Description

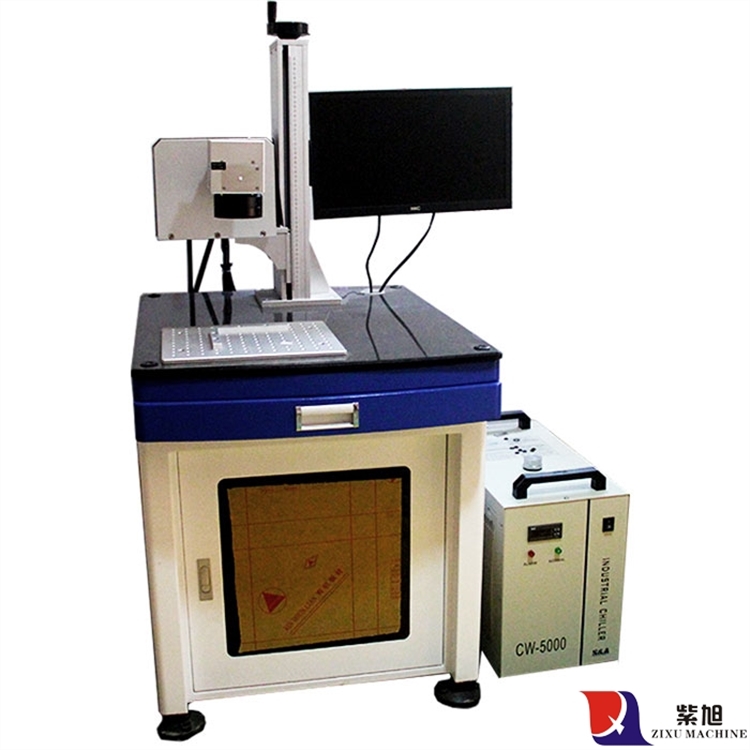

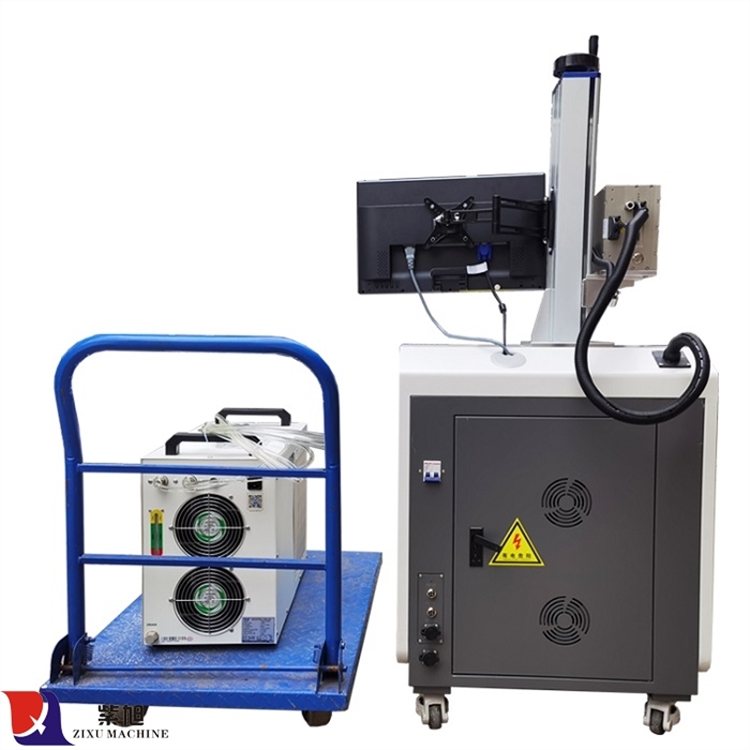

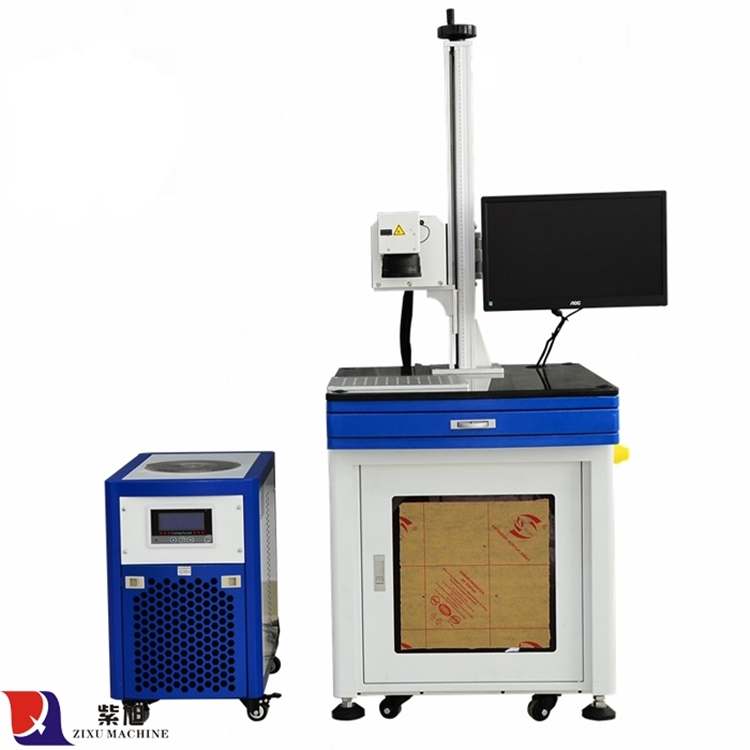

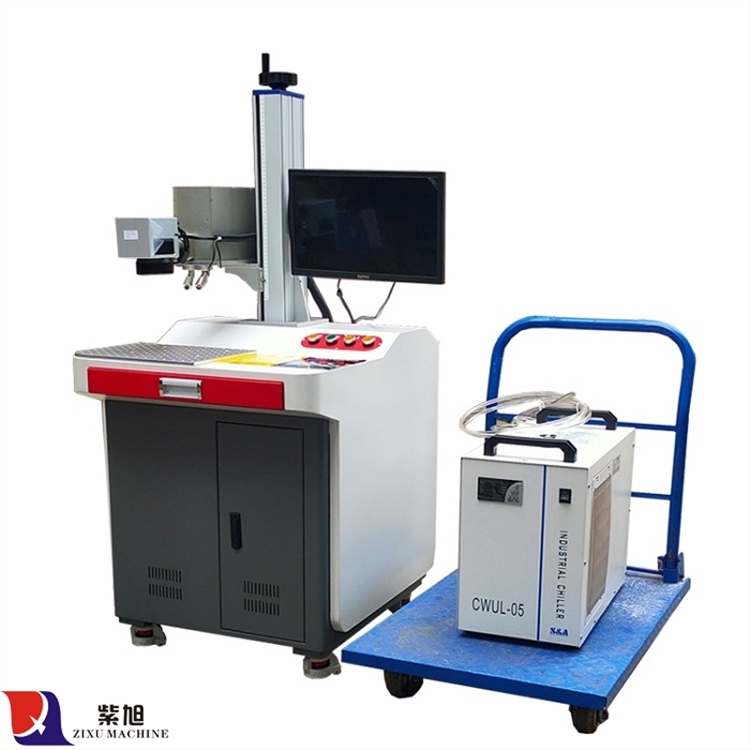

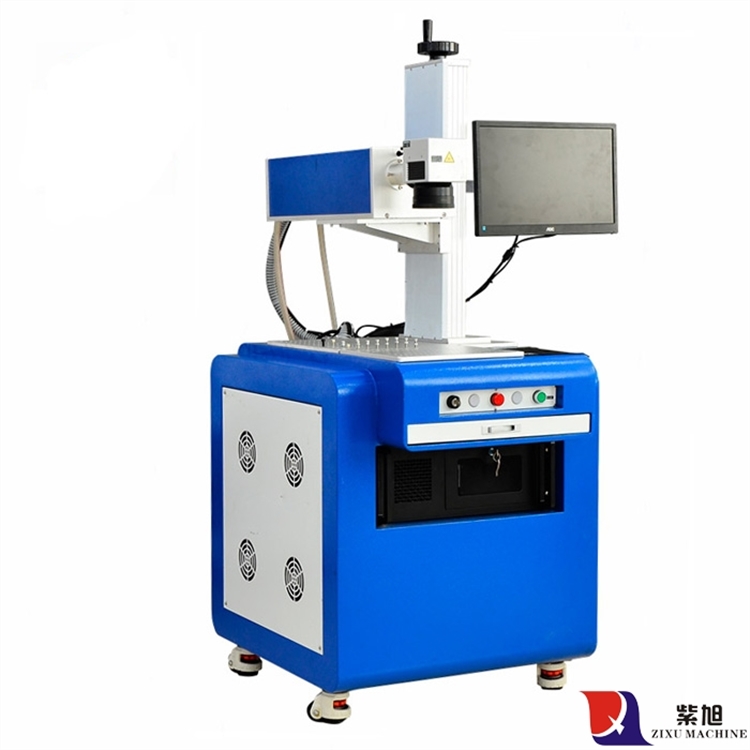

ZIXU Uv 5w Fiber Laser Portable Mini Marking Machine for Plastics Keyboard



Ultra Violet Printer,the principle with the laser marking machine similar, are using a laser beam in a variety of different material surface marked with a permanent mark. Marking effect is through the short wavelength laser directly interrupted the molecular chain of matter (different from the long-wave laser generated by the evaporation of the surface material exposed deep material) to show the required etching patterns, text. Can be achieved in the assembly line on-line flight marking function, mainly for the thin fragile items such as shallow markings: photovoltaic solar glass. On the basis of cold working, the effect of processing the material will be better results, better development, in the use of cold laser processing, the material impact of the probability reduced to one percent.







Laser Engraving Machine



Parameter	Parameter index	Unit	Illustration
Laser wavelength	354.7	nm
Average output power	3.0-5.0	W	@30kHz
pulse width	<20	ns	@30kHz
Pulse repetition frequency	10-100	KHz
Laser output mode	TEM00
Beam quality	<1.2
Spot diameter	0.8+-0.1	mm	Measured at window
Beam divergence angle	<1.2	mrad
Beam circularity	>90
Pulse stability	<3	%	RMS/@30kHz
Power stability	<5	%	RMS/8hr
Beam pointing stability	<30	urad/℃
Polarization degree	>100:1
Polarization direction	Horizontal
Working temperature and humidity	10to35  <80	℃  %
Storage temperature and humidity	-20 to 65 <90	℃  %
Power	100-240 50/60<500	VAC Hz W	Single  phase
Warranty	15	months





Laser Engraving Machine Application

Printer 3d Crystal Laser Engraving Machine Machine: Automatic Application System Suitable for ultra-fine processing of high-end market, cosmetics, medicines, and other polymer materials on the surface of the bottle marking. Particularly suitable for plastic, glass ,crystal marking
