Description

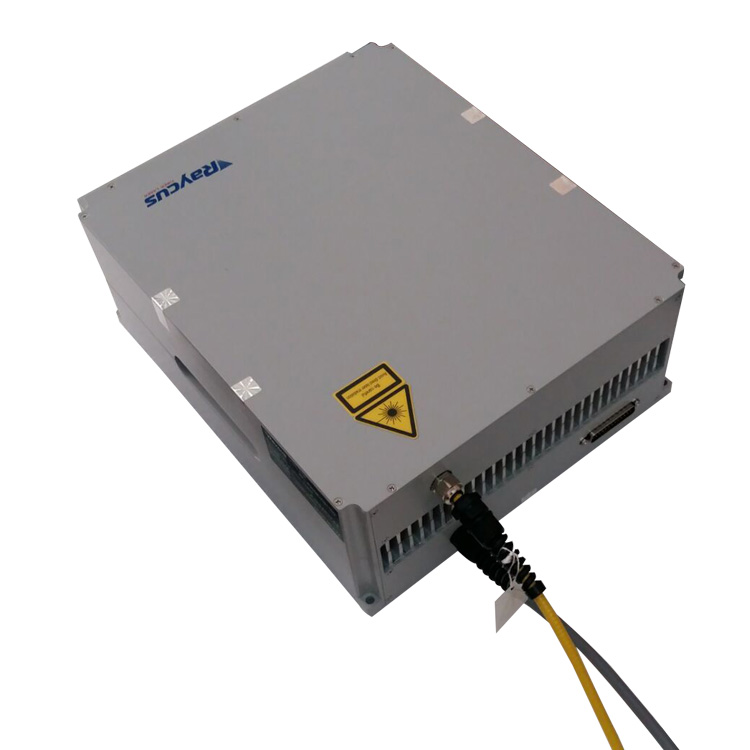

20w Raycus Fiber Laser Source for Laser Marking Machine

Hot sale product





Why choose Raycus laser source?

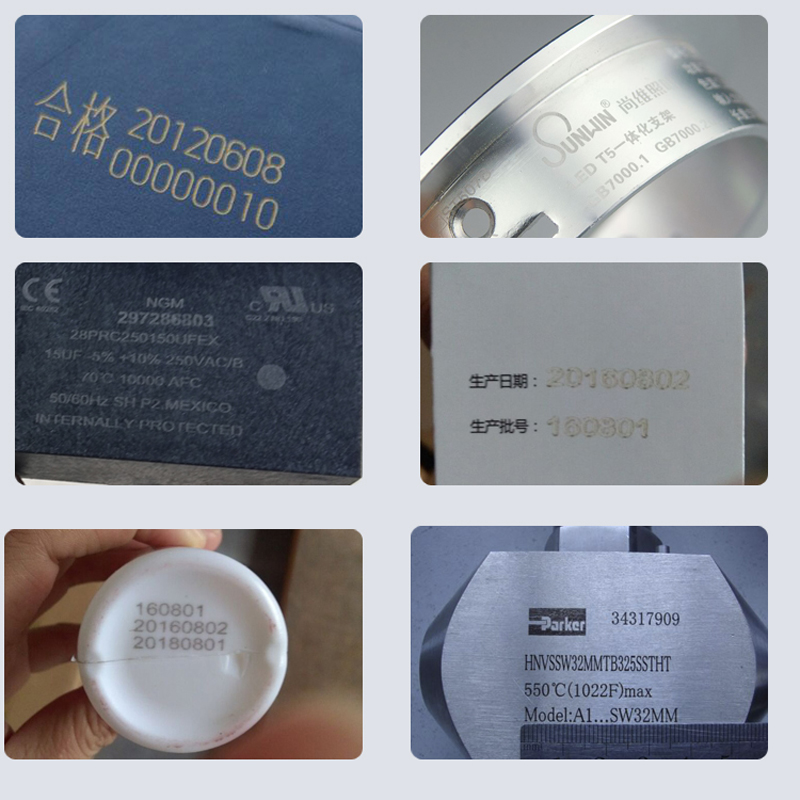

Raycus’ 10~100W Q-switched pulsed fiber lasers feature high peak power, high pulse energy and optional output beam size. They are widely used in marking, precision drilling and engraving on non-metal and high reflection metals, such as gold, silver, aluminum and stainless steel etc.. Compared with traditional lasers, Raycus’ Q-switched fiber lasers have lower cost and more stable performance in these applications.  The key components of the lasers are developed and manufactured in house to ensure the lasers’ reliability and uniformity. With more than 10000 lasers installed in the field, the reliability has been well proved.

Product description

Sharp pulse laser is a high speed and high efficiency of the laser marking system and the development of specialized. It provides an ideal high power laser energy source for the industrial laser marking machine and other applications. Pulse laser with respect to conventional lasers, for each tile pump conversion efficiency is improved by more than 10 times, automatic design of low energy consumption, suitable for laboratory or outdoor operation. Exquisite, can be placed independently, can be used at any time, can be directly embedded in the user’s equipment. The laser can emit a pulse laser with 1060~1085nm wavelength, which is controlled by the standard interface of the industrial laser. The laser needs to use 24V DC power supply.

Parameter

Pulsed fiber laser	20W
Output center wavelength (nm)	1060~1085
polarization	any
Whether the high reflection (with optical isolator)	yes
Average power (W)	≥20
Single pulse energy (mJ) @20kHz	1
Beam quality (M2)	<1.5
Spot diameter (mm)	6~8
Pulse width (NS) @20kHz	<130
Repetition frequency range (kHz)	20 – 80
Power adjustment range (%)	10-100
Output optical fiber length (m)	2
Operating voltage (VDC)	24±1
Power consumption (20 C) (W)	200
Cooling mode	Air cooling
Module size W * D * H (mm)	260×391×120
Working temperature (c)	0-40
humidity	30~85
Storage temperature (c)	-10~60

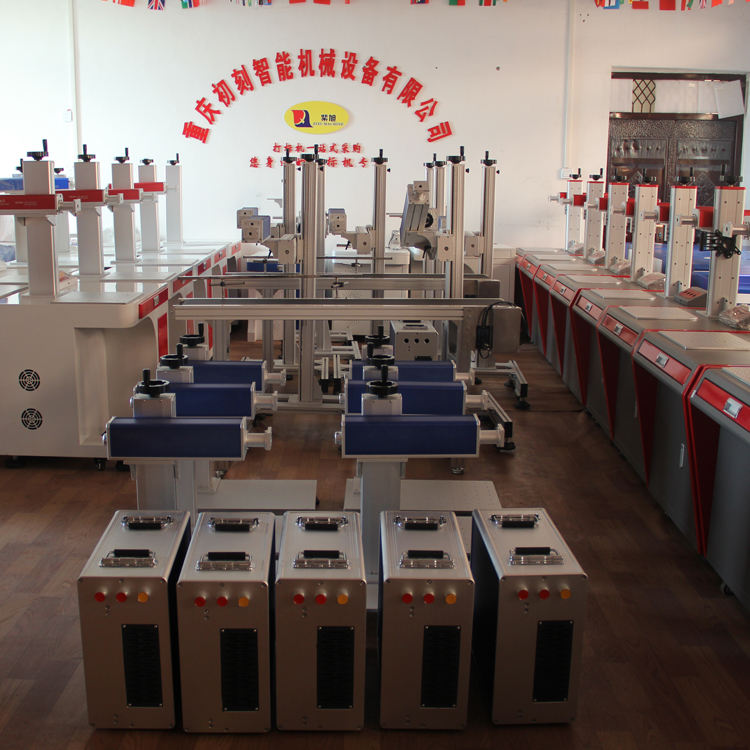

Chongqing Zixu Factory

Chongqing ZiXu Machine works, is a professional engaged in marking machine design and industrial enterprises. Founded in 2006, covers an area of 2000 square meters. In annual production of 500 sets of laser marking machine.Since the establishment of our company, the products are loved by countries around the world. Such as the United Kingdom, Spain, France, Germany, the United States, Dubai and Brazil, South Korea and other more than and 30 countries and regions. After we continue to improve and perfect the product quality has been achieved CE, ISO9001, TUV certificate, won the domestic and foreign large number of customers favor and approval









Zixu exhibition



We take part in exhibition at home and abroad. Our products are exported to India, Britain, Spain, France, Germmany, the United States, Dubai and Brazil, South Korea and other more than 100 countries and regions.

We want be a worldwide top brand of laser marking machine. We sincerely look forward to cooperate with you, warmly welcome worldwide agents to join us.
