Description
- Brand Name: MLHJ
- Origin: CN(Origin)
- Warranty: 1 year
- Type: portable multi gas anlyzer, built-in pump
- Customized support: OEM, ODM, OBM
- Place of Origin: Beijing, China
- Brand Name: Zetron
- Model Number: PTM600
- Function: measure gas purity
- Weight: 2.5kg
- size: 230x210x120 mm
- Sensor type: Infrared Sensors Imported
- Connection: Wi-Fi/USB Network
- Detecting Gas: Combustible Gas/H2S/CO/O2/H2S/H2
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#ffc36d;font-family:Arial,Helvetica;font-size:24px;color:#000;background-color:#f7f7f7;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-3{text-align:center}#detail_decorate_root .magic-4{font-size:24px}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{font-size:18px}#detail_decorate_root .magic-9{border-bottom-style:solid;border-bottom-color:#ffc36d;font-family:Arial,Helvetica;font-size:24px;color:#000;background-color:#f7f7f7;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-10{width:750px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:351.5625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:351.5625px}#detail_decorate_root .magic-13{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-14{width:750px;height:618px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-15{position:relative;left:0;top:26px;width:750px;height:1596.3302752293578px}#detail_decorate_root .magic-16{width:750px;height:936.875px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-17{position:relative;left:0;top:0;width:750px;height:936.875px}#detail_decorate_root .magic-18{margin-bottom:0}#detail_decorate_root .magic-19{position:relative;width:100%}#detail_decorate_root .magic-20{width:750px;height:653px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-21{position:relative;left:0;top:-33px;width:750px;height:721.25px}#detail_decorate_root .magic-22{width:750px;height:962.5px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-23{position:relative;left:1px;top:-1px;width:750px;height:962.5px}#detail_decorate_root .magic-24{width:750px;border-collapse:collapse}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;width:152px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;width:551px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{display:none}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:127px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:99px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-31{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-32{width:245px;height:171px;overflow:hidden}#detail_decorate_root .magic-33{position:relative;left:-1px;top:-34px;width:245px;height:245px}#detail_decorate_root .magic-34{position:relative;left:0;top:0;width:256.5px;height:171px}#detail_decorate_root .magic-35{font-size:18px;font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-36{position:relative;left:0;top:0;width:245px;height:183.75px}#detail_decorate_root .magic-37{font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-38{width:245px;height:163.556640625px;overflow:hidden}#detail_decorate_root .magic-39{position:relative;left:0;top:0;width:245.00000000000003px;height:163.556640625px}#detail_decorate_root .magic-40{width:245px;height:163px;overflow:hidden}#detail_decorate_root .magic-41{position:relative;left:0;top:0;width:280.05369127516775px;height:163px}#detail_decorate_root .magic-42{position:relative;left:0;top:0;width:245px;height:163.2016129032258px}#detail_decorate_root .magic-43{overflow:hidden;width:184.5px;height:223.48586810228807px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:0;margin-left:0;width:184px;height:223px}#detail_decorate_root .magic-45{overflow:hidden;width:184.5px;height:222.60326086956522px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-46{overflow:hidden;width:750px;height:523.1037489102005px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:750px;height:523.1037489102005px}#detail_decorate_root .magic-48{overflow:hidden;width:750px;height:304px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:-38px;margin-left:1px;width:750px;height:375px}#detail_decorate_root .magic-50{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-51{width:320px}#detail_decorate_root .magic-52{overflow:hidden;width:320px;height:137px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:-80px;margin-left:3px;width:320px;height:213.2px}#detail_decorate_root .magic-54{overflow:hidden;width:320px;height:137px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:-70px;margin-left:0;width:320px;height:214.4px}#detail_decorate_root .magic-56{overflow:hidden;width:426px;height:278.4975px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:426px;height:278.4975px}#detail_decorate_root .magic-58{overflow:hidden;width:750px;height:422px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-59{margin-top:0;margin-left:0;width:750px;height:422px}#detail_decorate_root .magic-60{font-size:16px}#detail_decorate_root .magic-61{overflow:hidden;width:750px;height:638px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-62{margin-top:0;margin-left:0;width:750px;height:666.6666666666667px}#detail_decorate_root .magic-63{overflow:hidden;width:750px;height:485.18426294820716px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-64{margin-top:0;margin-left:0;width:750px;height:485px}
Overview

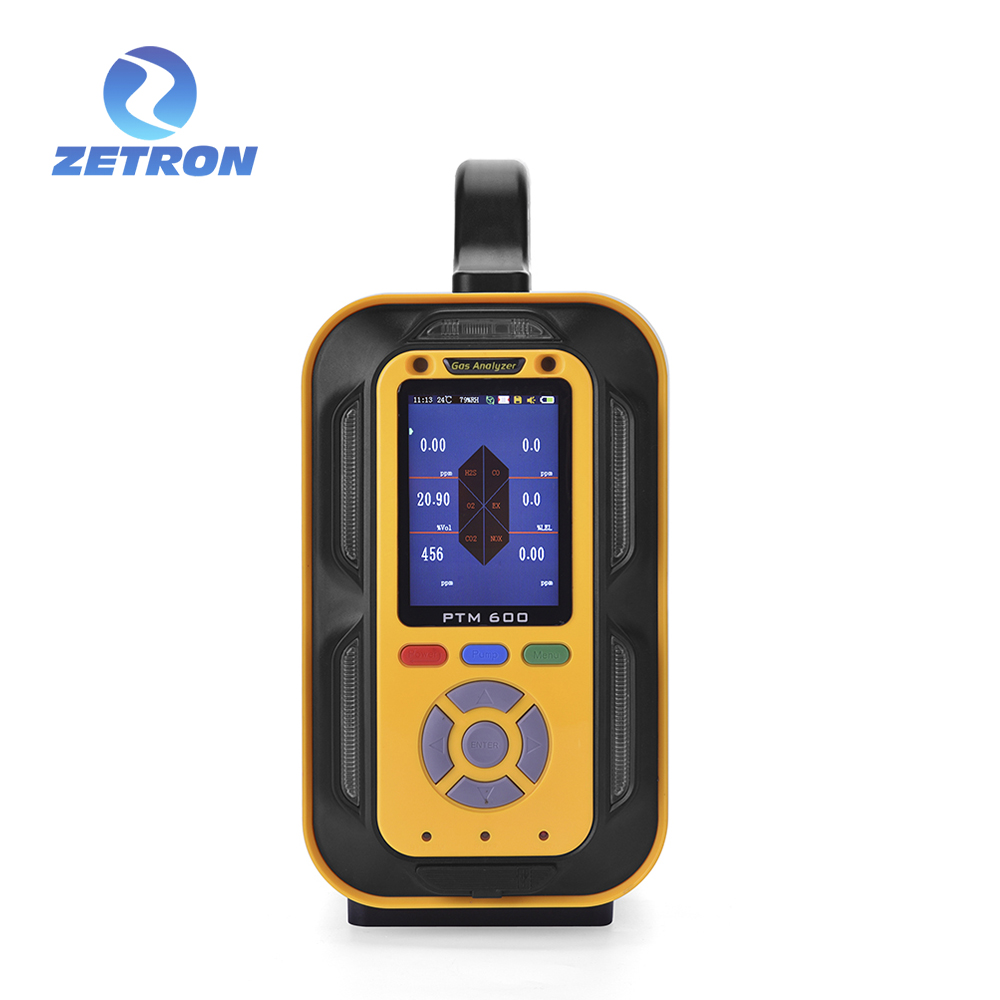

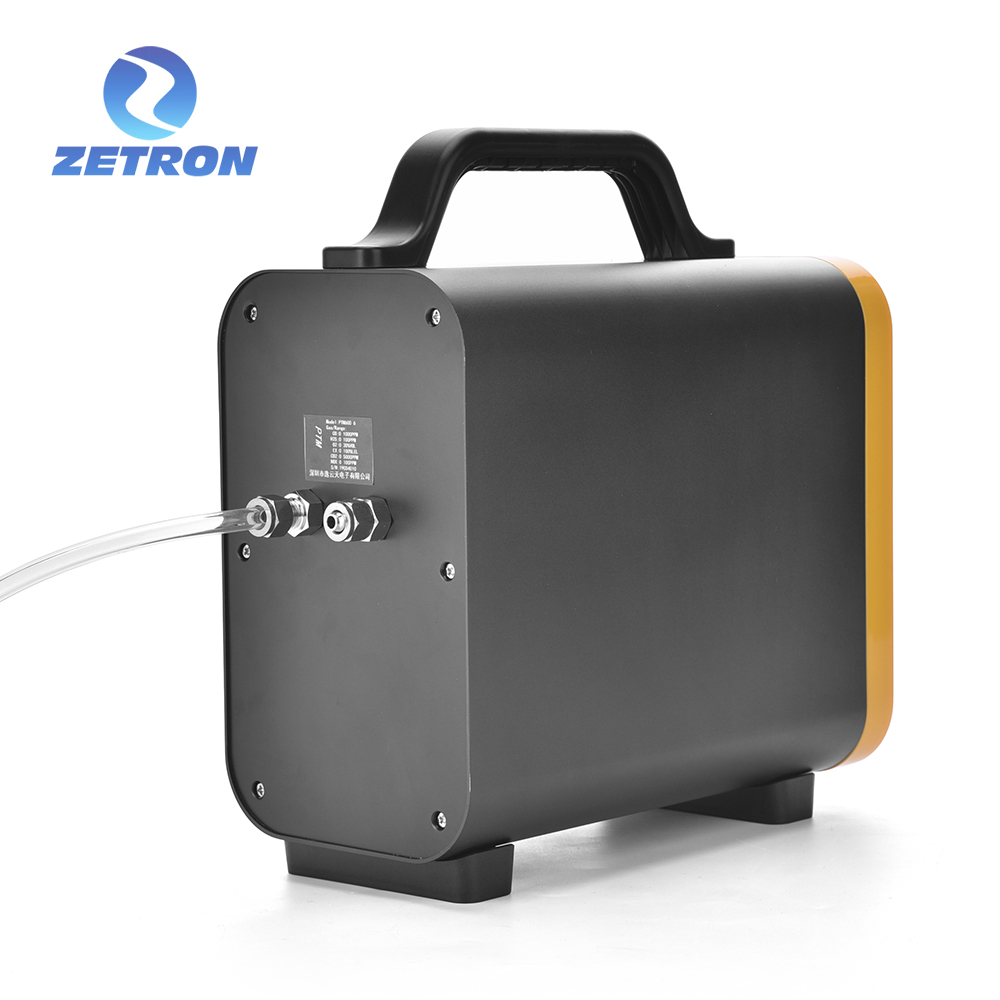

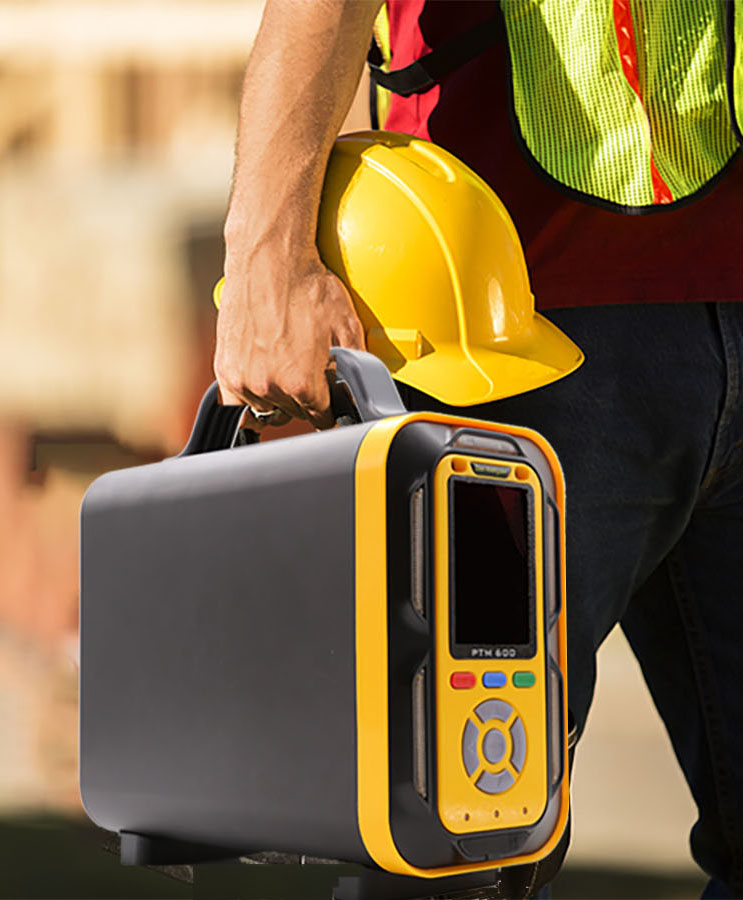

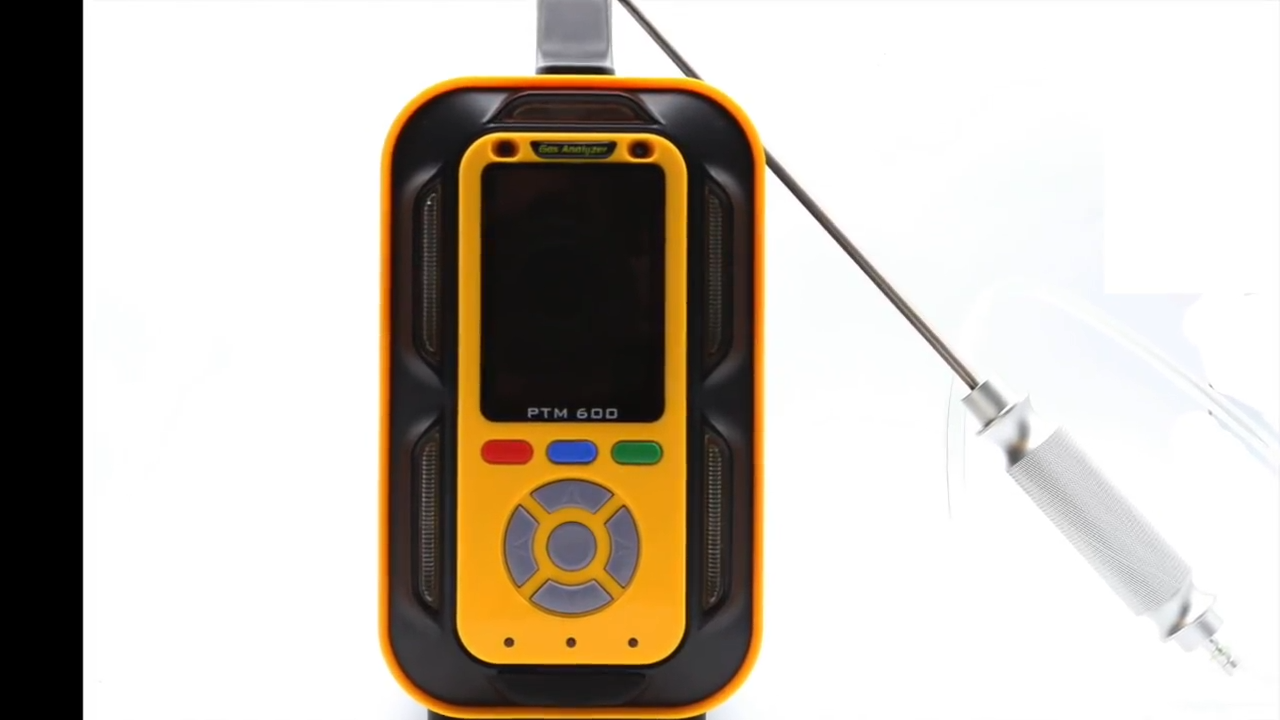

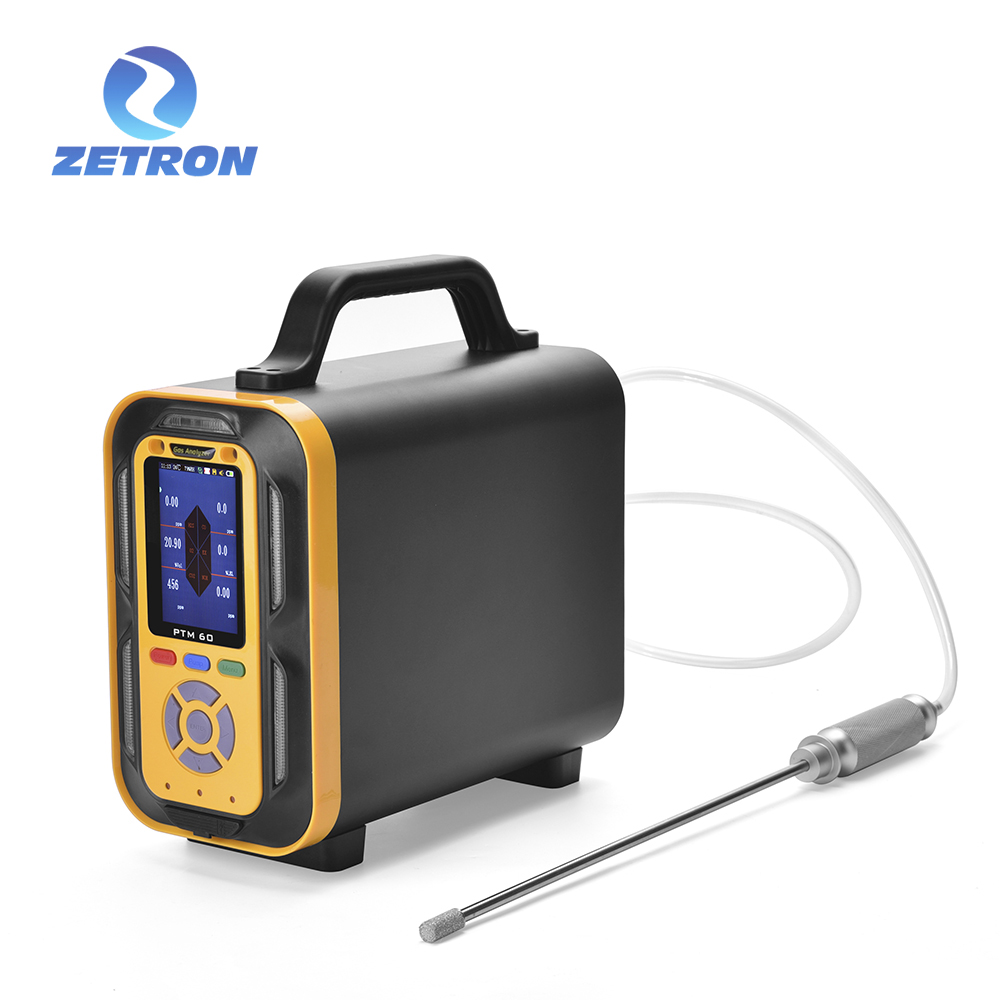

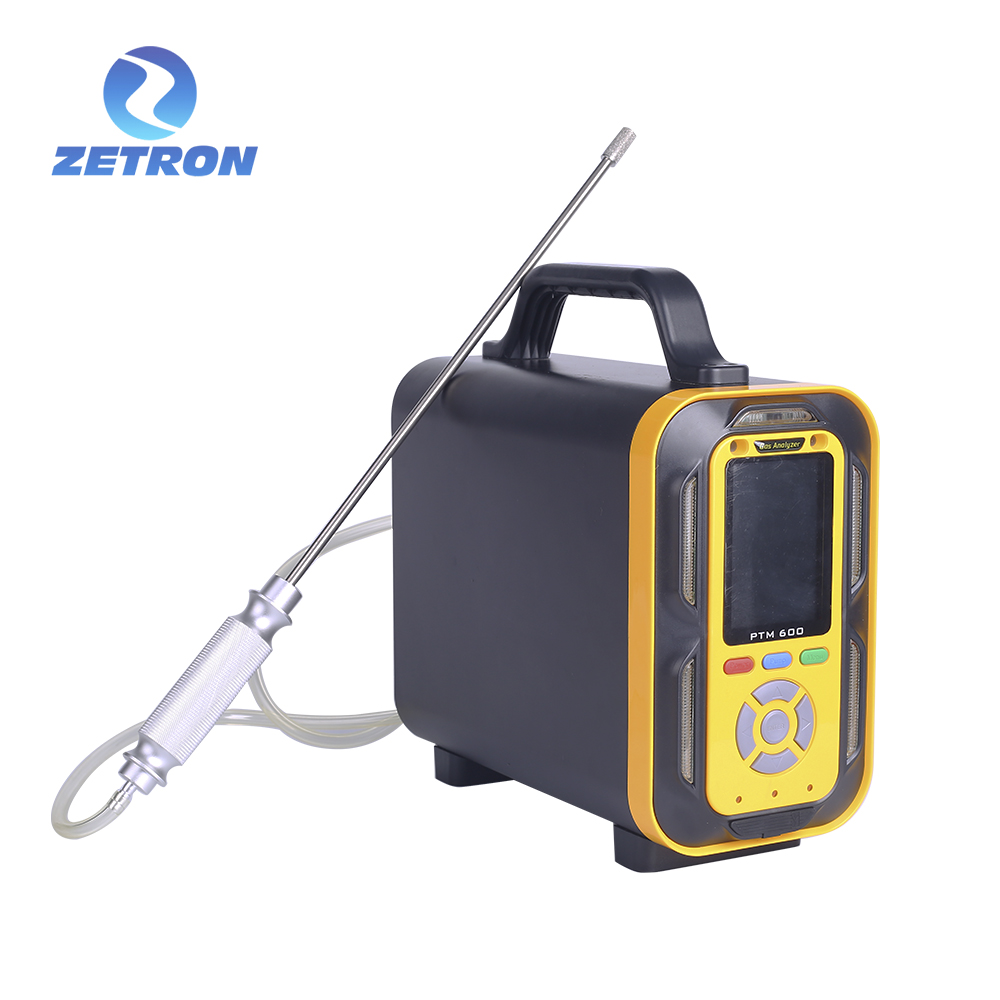

PTM600 portable gas detector
PTM600 portable gas detector has the function of measuring multi gases, temperature and humidity.
The product is provided with high measurement precision, stable performance and simple operation and convenient to carry. It is suitable for indoor environment of family, office, inside of cars and natural environment, etc.
It is possible to simultaneously detect 1 ~ 6 types of gases, which can be expanded to 18 or more types of gases, and the types for detection are more than 500 types.
The product is provided with high measurement precision, stable performance and simple operation and convenient to carry. It is suitable for indoor environment of family, office, inside of cars and natural environment, etc.
It is possible to simultaneously detect 1 ~ 6 types of gases, which can be expanded to 18 or more types of gases, and the types for detection are more than 500 types.

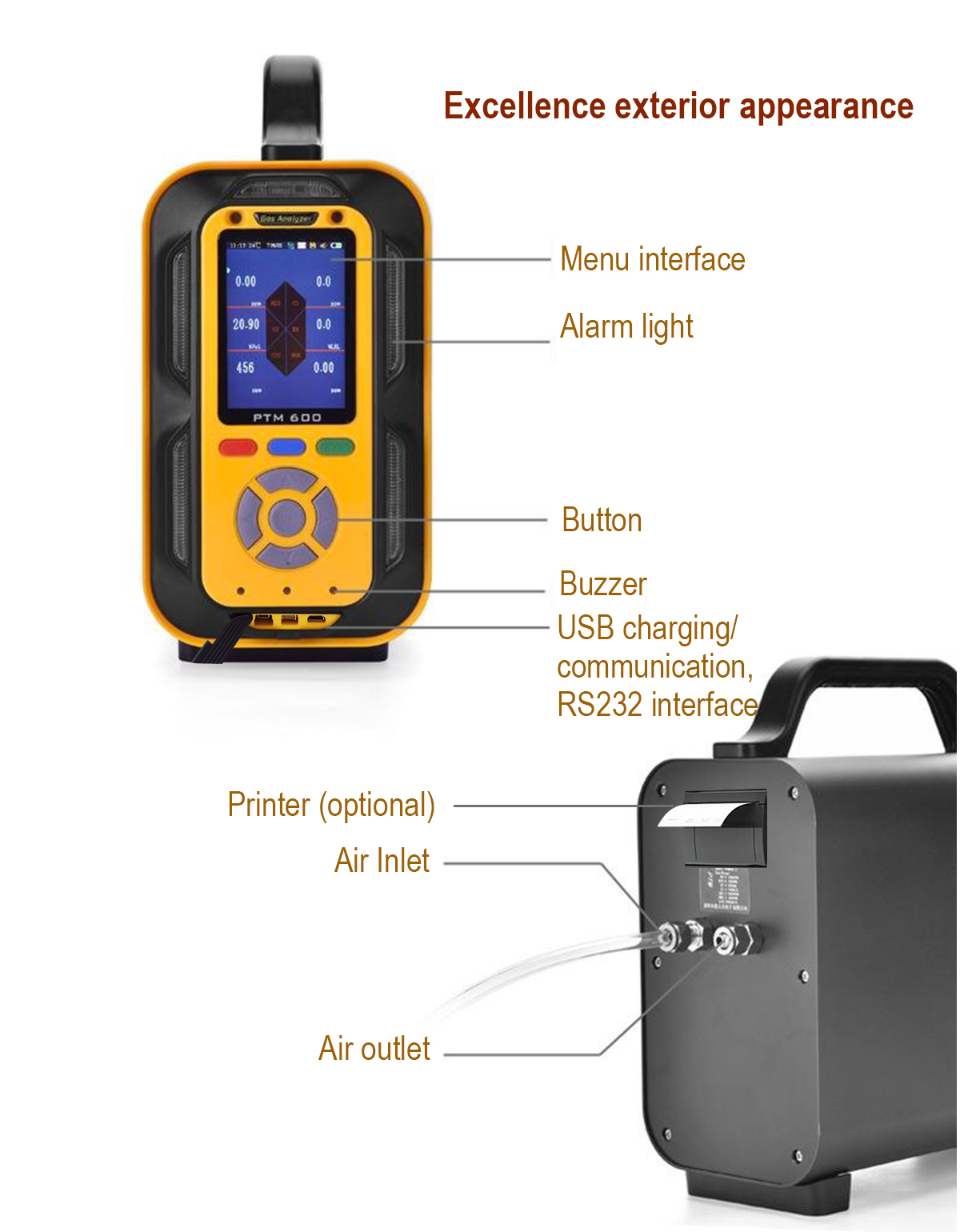

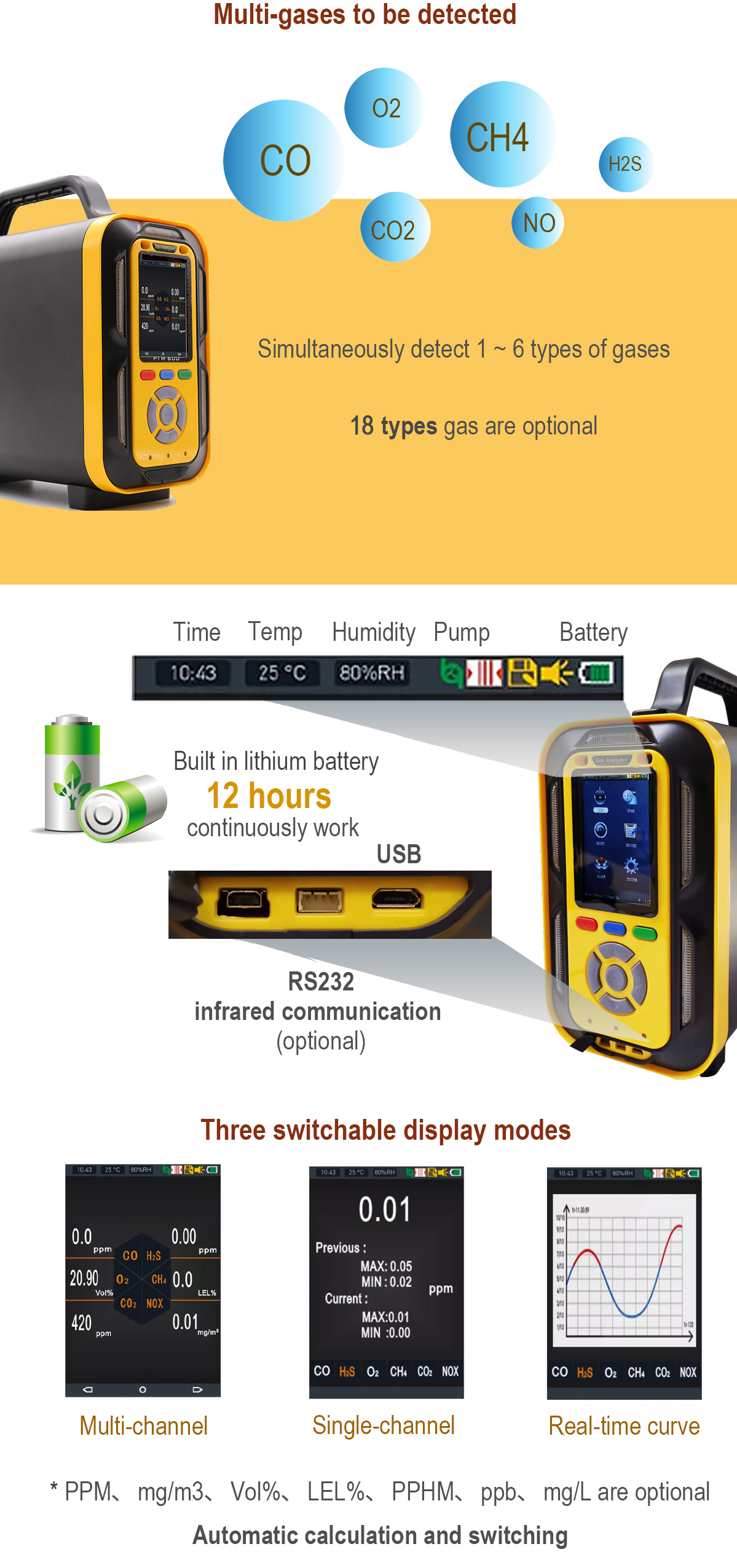

Features
Product Specifications
|
Gases to be detected
|
Arbitrary combination of 1 ~ 6 types of gases which can be expanded to 18 or more types of gases, such as toxic gases, oxygen gas, carbon dioxide, inflammable and explosive gases, TVOC, and so on.
|
||||||||
|
Detection range
|
Electrochemical sensor for O2:0-30%VOL
Electrochemical sensor for H2: 0-1000ppm
IR sensor for CO: 0-1000ppm
IR sensor for CO2: 0-100%VOL
IR sensor for H2S: 0-200ppm IR sensor for CH4:0-100%LEL other ranges can be customized |
||||||||
|
Resolution
|
1ppm
other resolution can be customized
|
||||||||
|
Detection principle
|
PID photoionization Depending on the type of gas, range, field environment and user demand, can be customized.
|
||||||||
|
Allowable error
|
≤±2% F.S (other or higher precision levels can be customized)
|
||||||||
|
Working environment
|
Temperature: -40 ℃ ~ + 70 ℃
Humidity: ≤10 ~ 95% RH
|
||||||||
|
Sample gas temperature
|

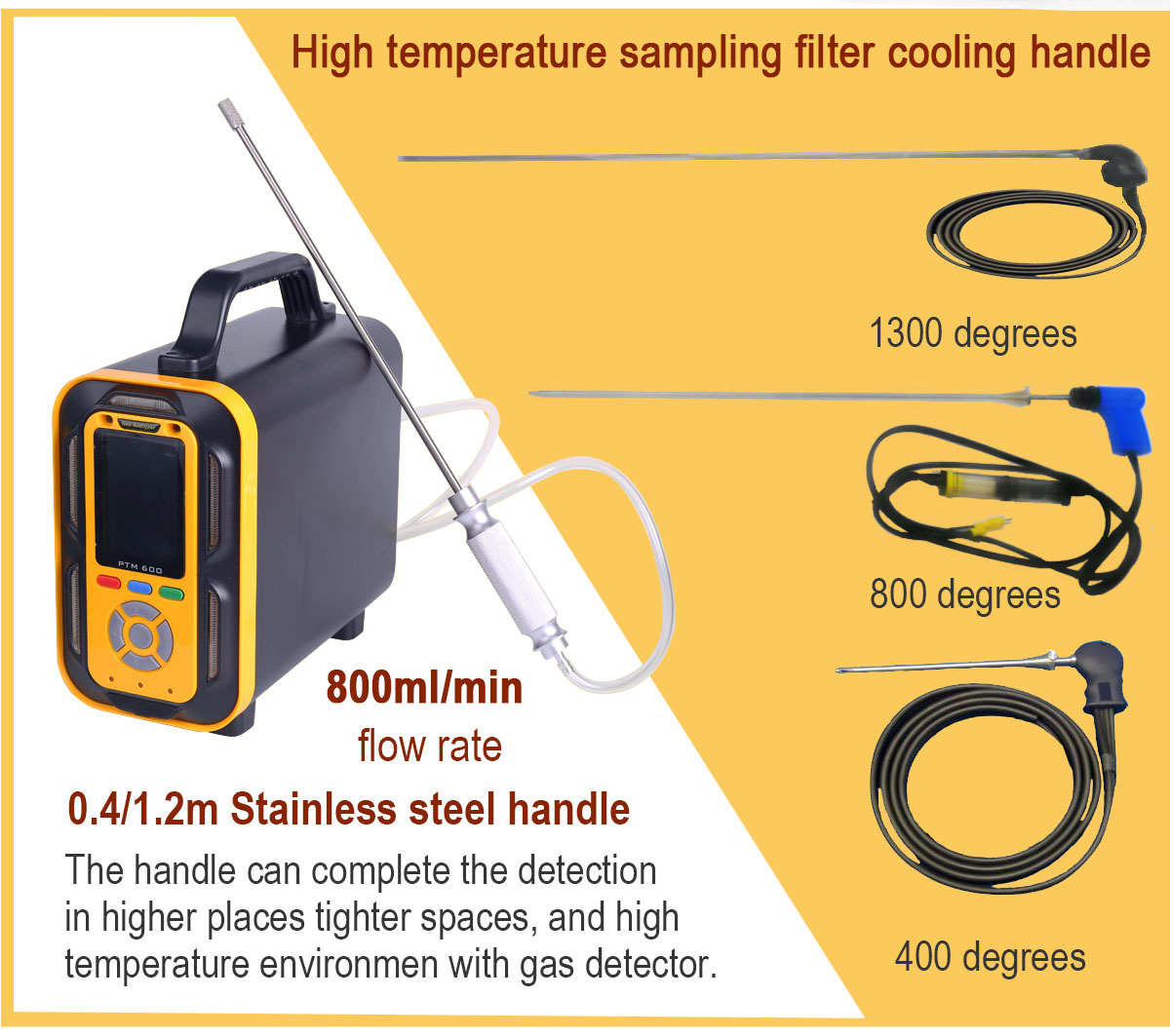

-40 ℃ ~ + 70 ℃, and the optional configuration of high-temperature sampling and cooling filter handle will be possible to detect the smoke gas at the temperature of 1300 ℃.
|
||||||||
|
Power supply
|
3.6VDC, 10000mA high capacity rechargeable polymer battery
|
||||||||
|

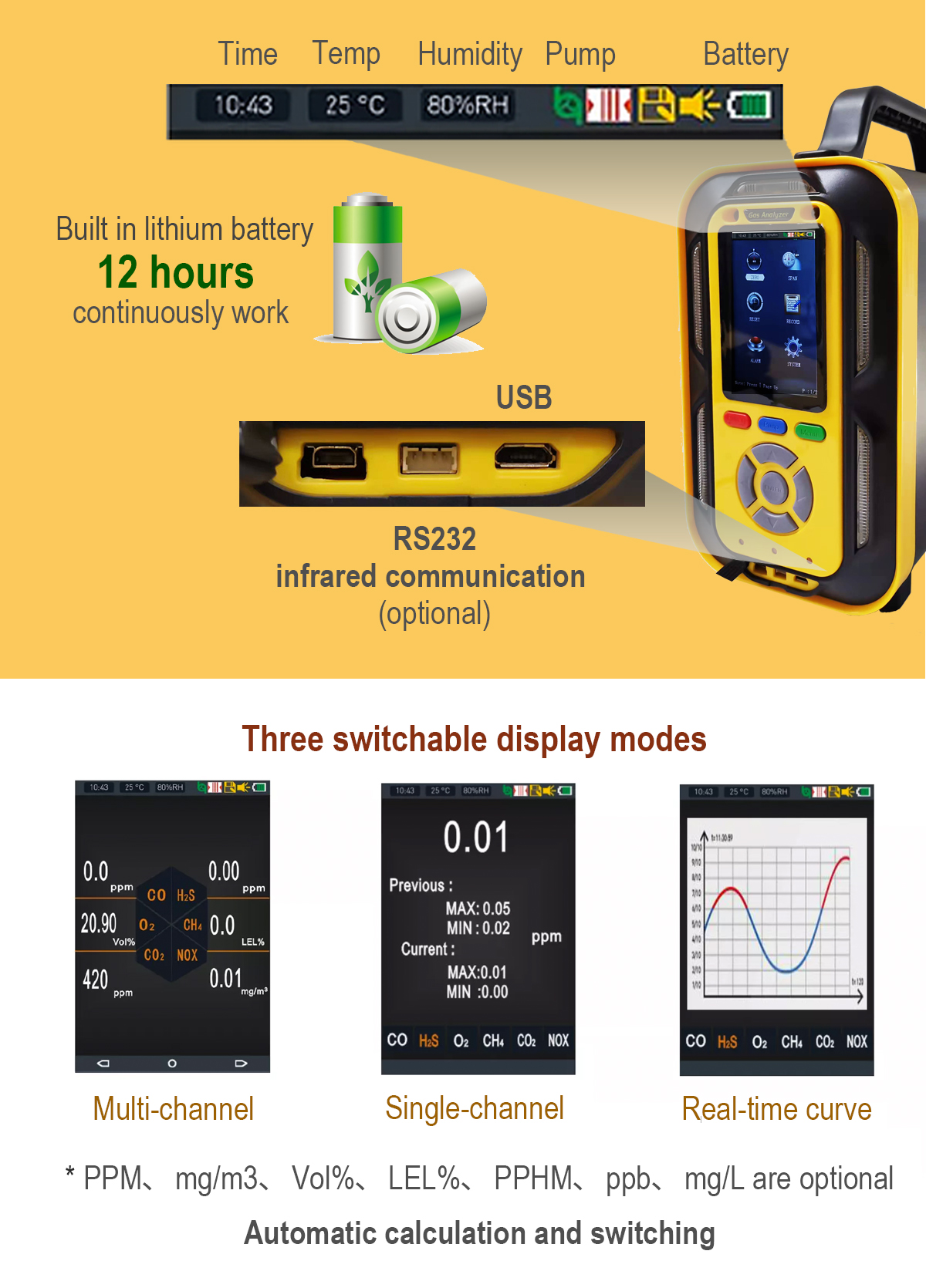

Display mode
|
3.5-inch high-definition color screen
|
||||||||
|
Detection mode
|
Built-in pump-suction type measurementFlow rate at 800 ml / min
|
||||||||
|

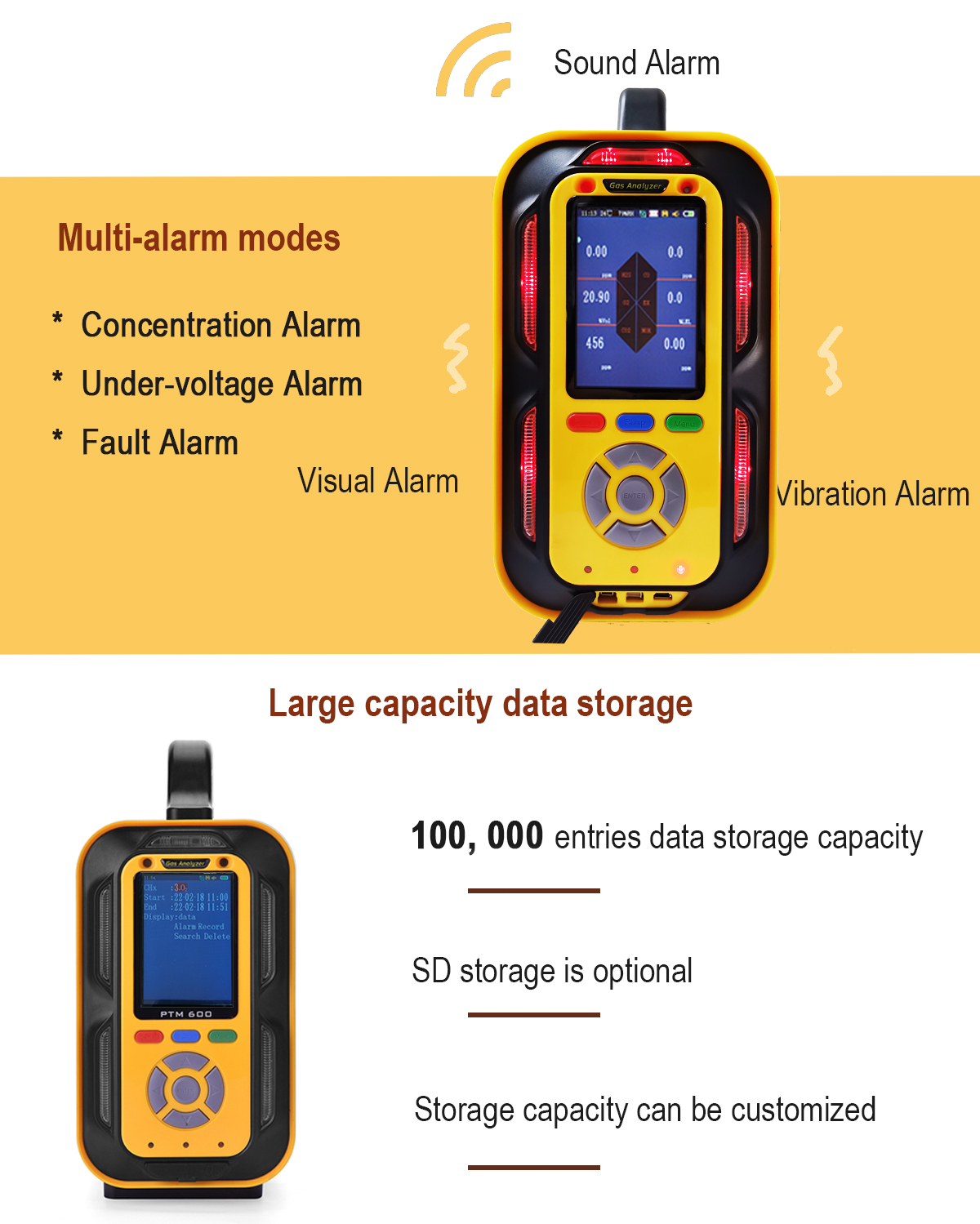

Alarm mode
|
Sound & light alarm, vibration alarm, turning off the alarm.
|
||||||||
|
Protection level
|
IP66
|
||||||||
|
Explosion-proof type
|
Intrinsically safe type
|
||||||||
|
Explosion-proof mark
|
Exia II CT6
|
||||||||
|
Exterior dimensions
|
230×210×120 mm (L×H×W)
|
||||||||
|
Weight
|
2.5Kg
|
||||||||
Application Scenes
Petroleum, chemical, pharmaceutical, environmental protection, gas distribution, flue gas analysis, air treatment and all other occasions that need to detect and analyze gas concentration.

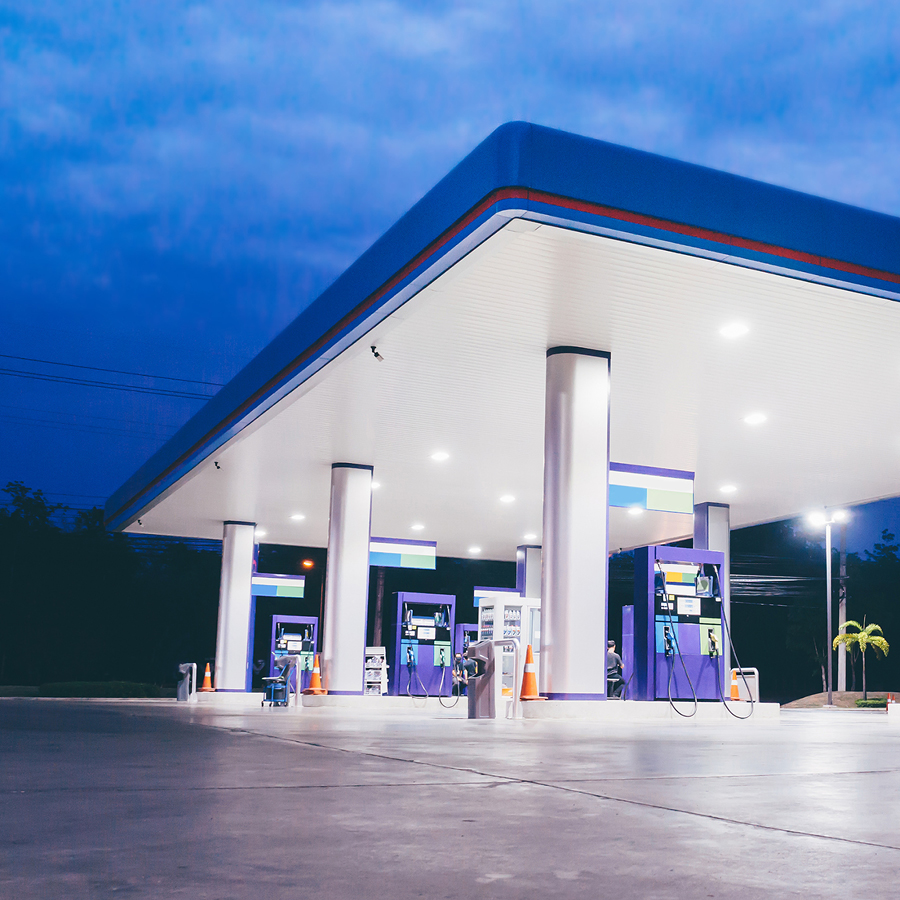

Gas Station

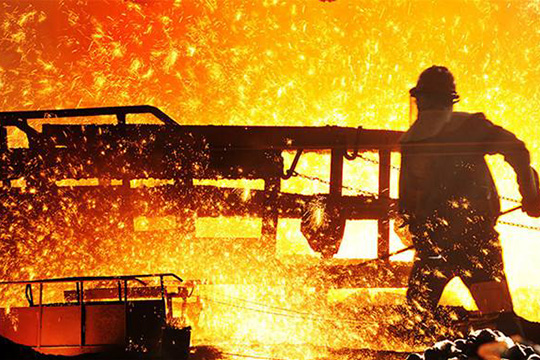

Metallurgical Industry

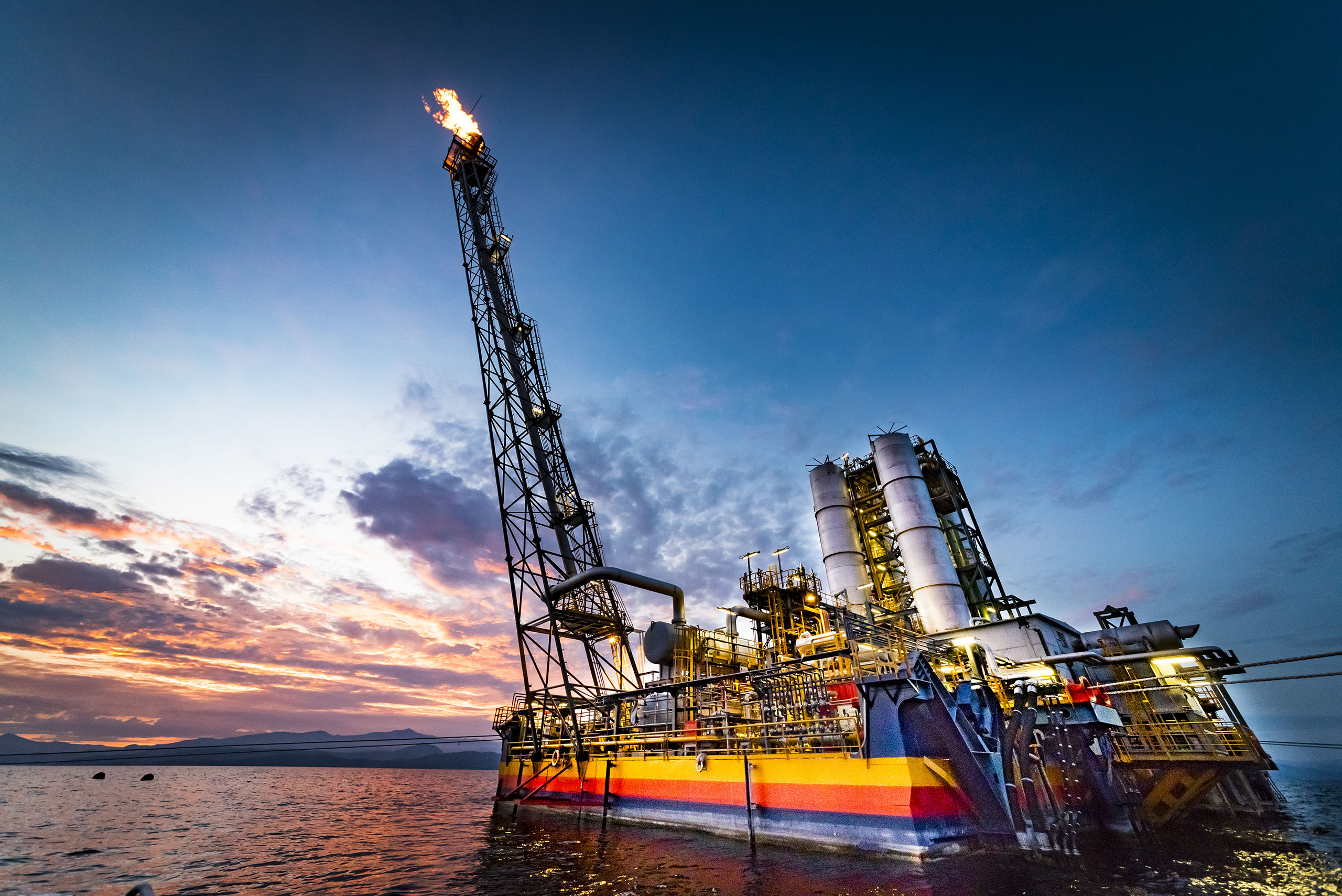

Oil Exploitation
Shipping

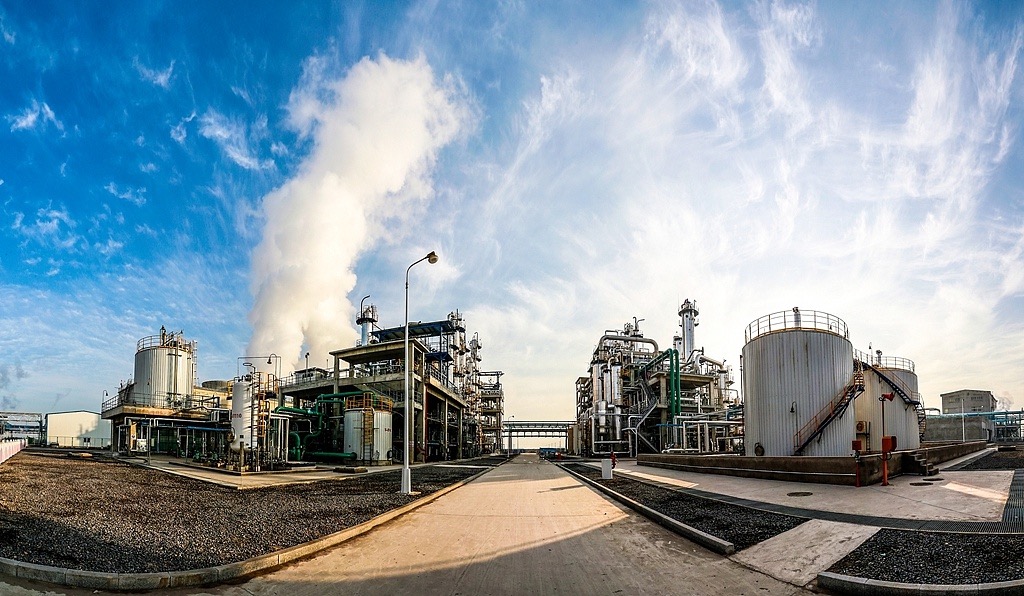

Chemical Medicine

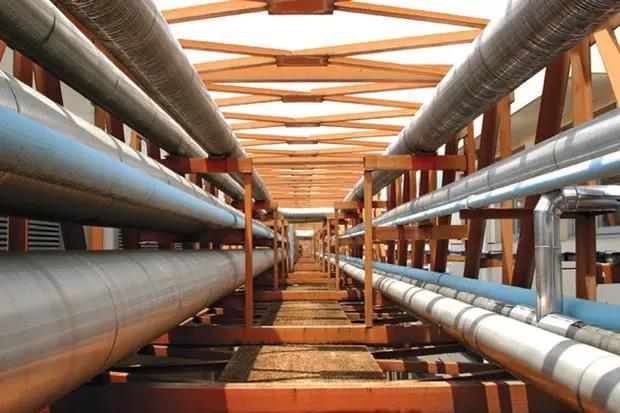

Gas Pipeline

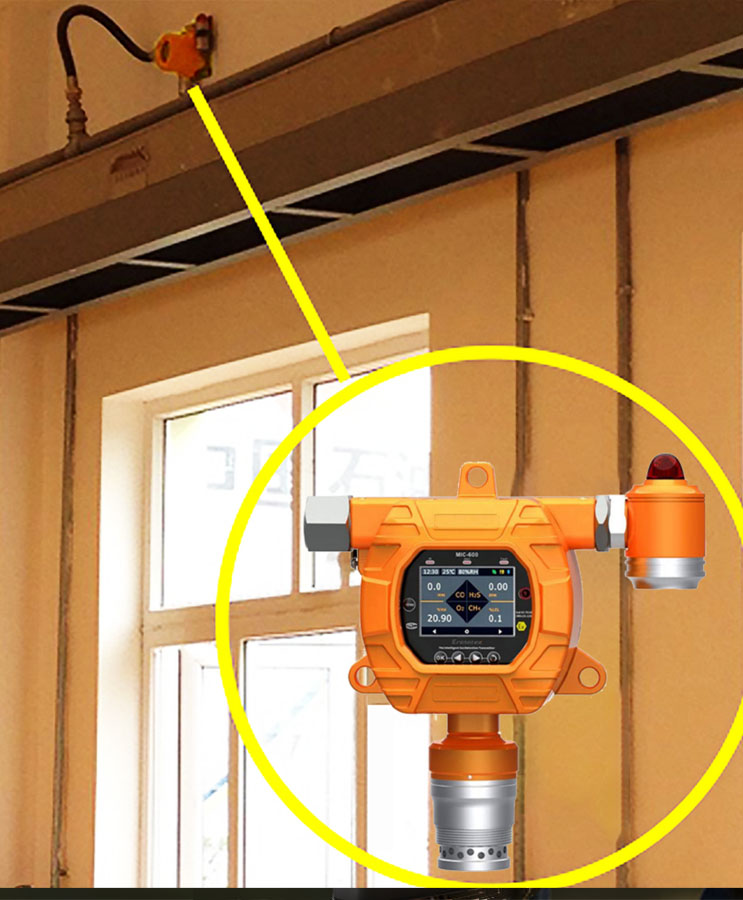

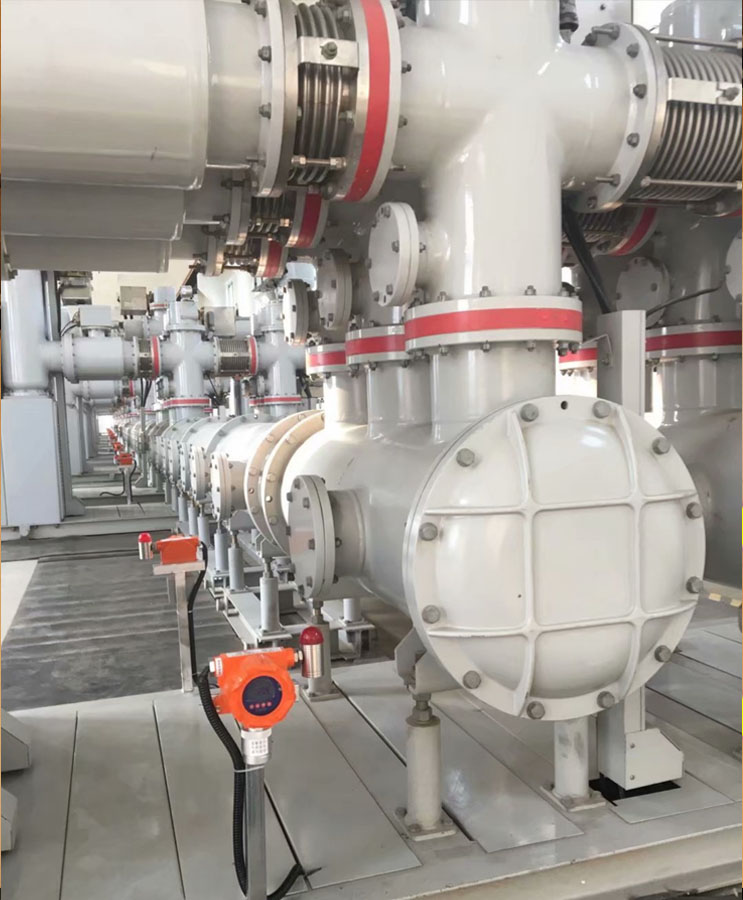

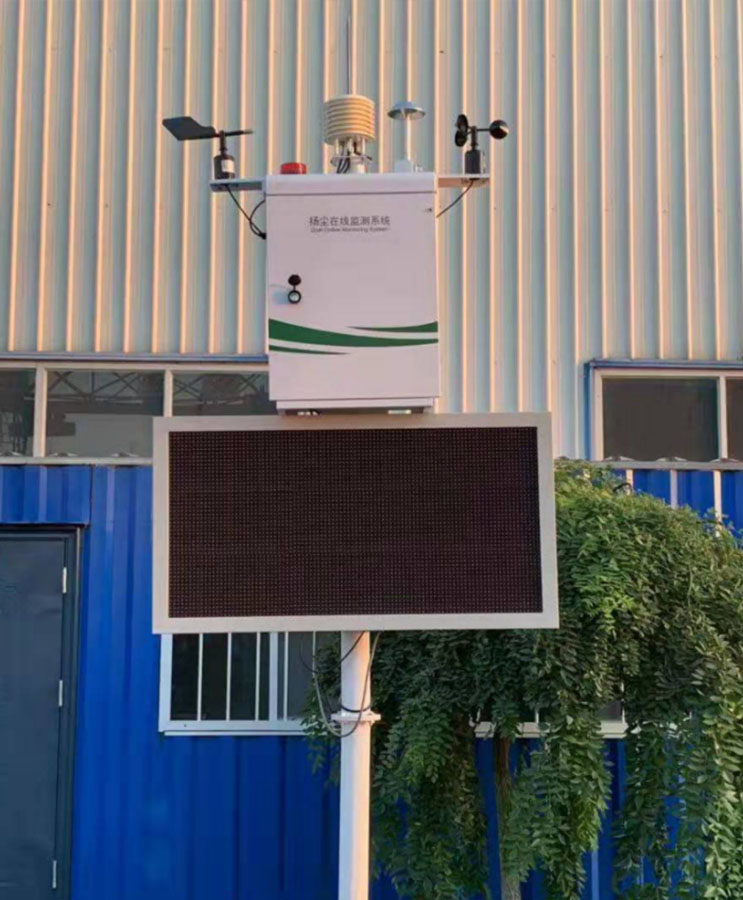

Customer Case

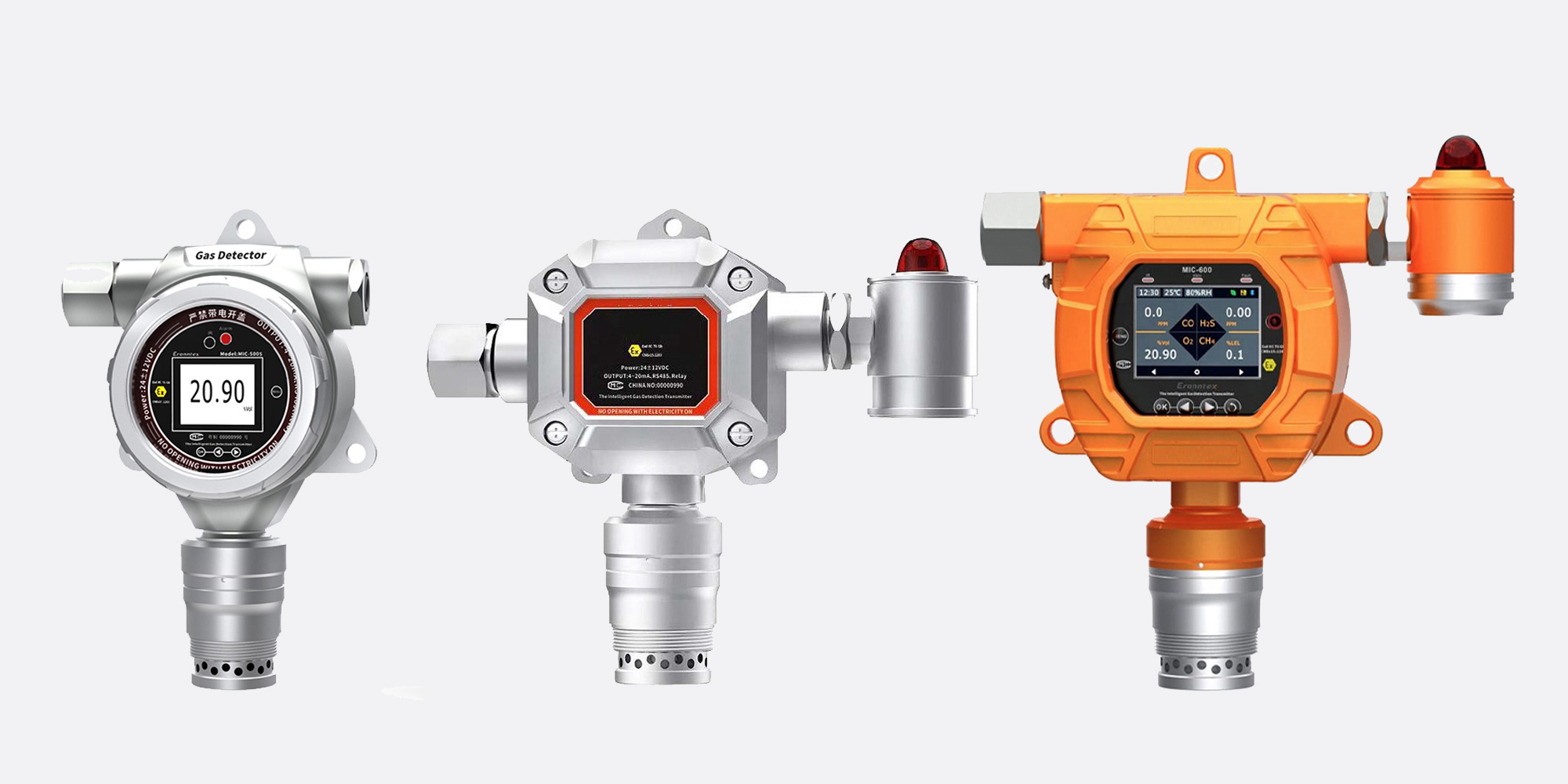

Recommend Products
Why Choose Us

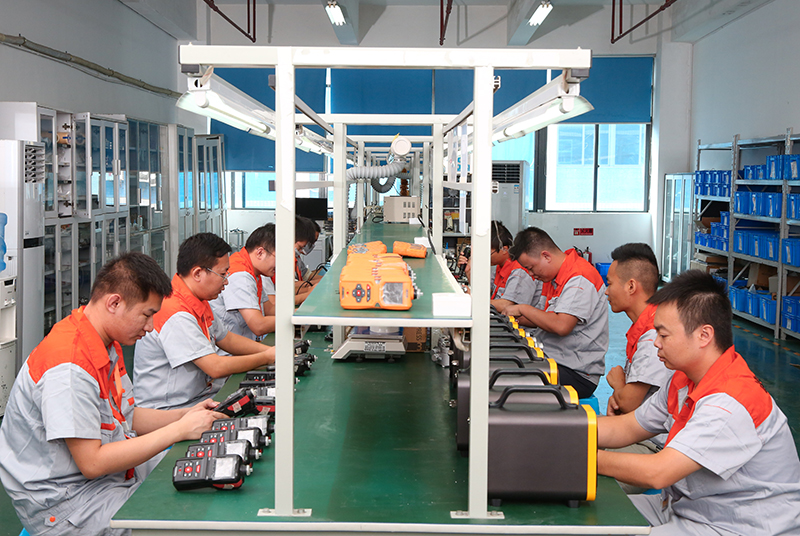

Beijing Zetron Technology Co., Ltd. currently has a R&D and manufacturing base in Shenzhen and a sales center in Beijing, focusing on the development, production and sales of gas monitoring equipment and systems. With “gas detector” as the core product, we have formed series products and targeted solutions for different industries, scales and applications, such as petroleum, chemical, storage, fire protection, environmental protection, electronics,biochemical medicine, energy and electricity, forestry and household appliances. We have been plowing for 15 years, holding on to our strength, remembering our mission, innovating, and actively creating greater social value, and our products have been widely used and recognized by our customers, becoming a leading enterprise in technological innovation in the domestic gas detection industry.
So far, we have customers/buyers from over 20 countries/regions like Bulgaria, Brazil, Canada, China, Colombia, Germany,Iraq,Japan, Philippines, Russian Federation, Singapore, Taiwan, Thailand, Uruguay, United States, Ukraine, Vietnam, etc.
The list of countries still expanding…..
