FQA :

Q: 20w/40w/50w/60w/80w/90w is the higher the better of number? how should I choose?

A:In fact, 20w/40w/50w/60w/80w/90w is only the output power of the machine, not the key to determining the engraving/cutting effect. The output power of the laser module is the key point. If the output power of an engraving machine is 90W, and the output power of the laser module is 5~5.5w, That’s effect is not much different from that of a machine with a 40W output power and 5~5.5w laser module output power. you can choice which meet your needs.

Q: Why is the title says 80W, 40W, but the Laser is 10W or 5W?

A:80w 40W is the effective power of Laser machines, its actual laser output power should be 10W/5W.

Q: Why you do you not update your software?

A:We do not sell any software, it just can be work with the machine, we can guide customer how to use it but do not have any way to update it. if you have any question about using software, just feel free to contact with our service team via order page on Aliexpress

Q: Why I do not get a reply?

A:Please pay attention to confirm that you are contact with

ZBAITU Global Store on Aliexpress instead of other merchants, Our service team deal with any question within 24hrs every working day.

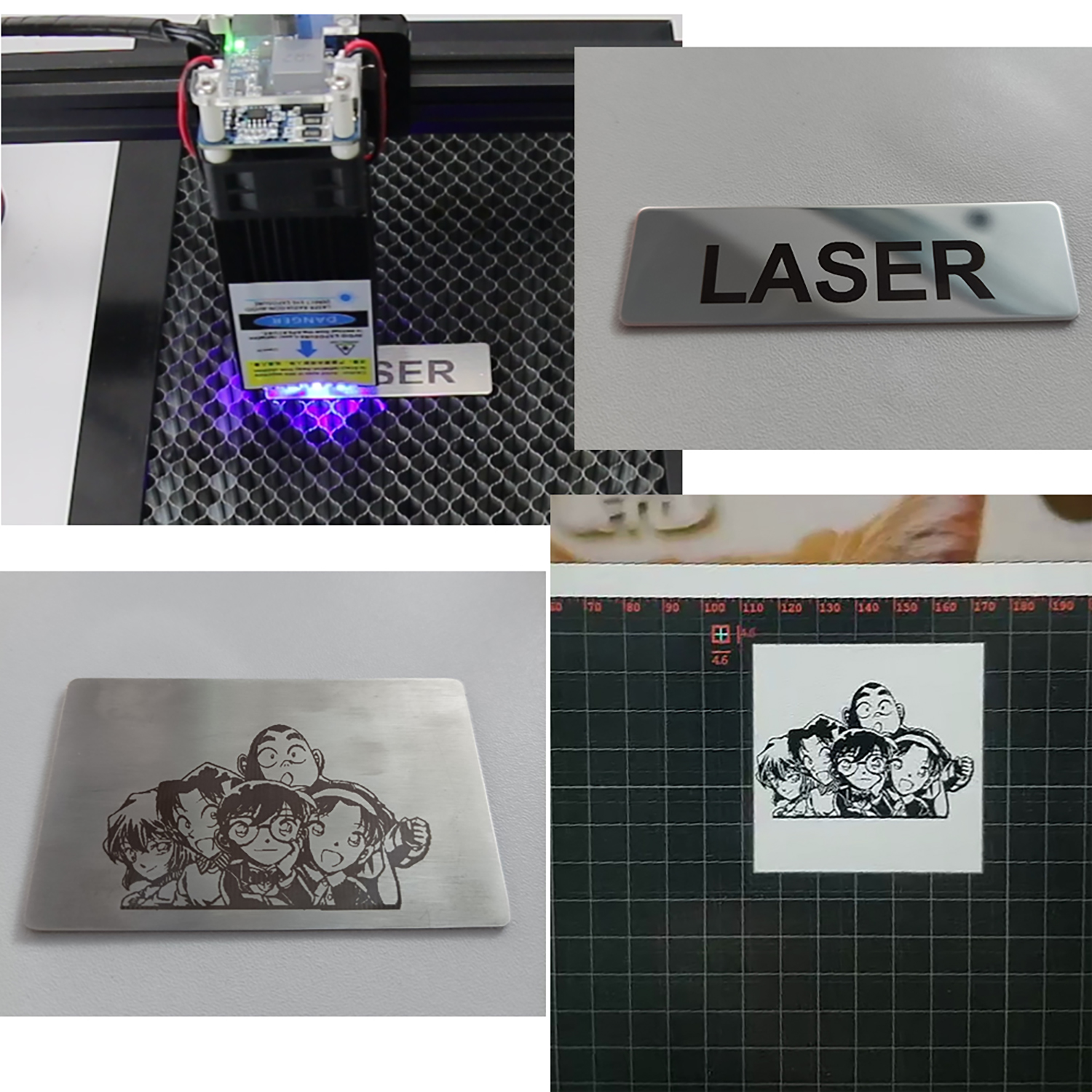

Q: Is it possible to engrave metal?

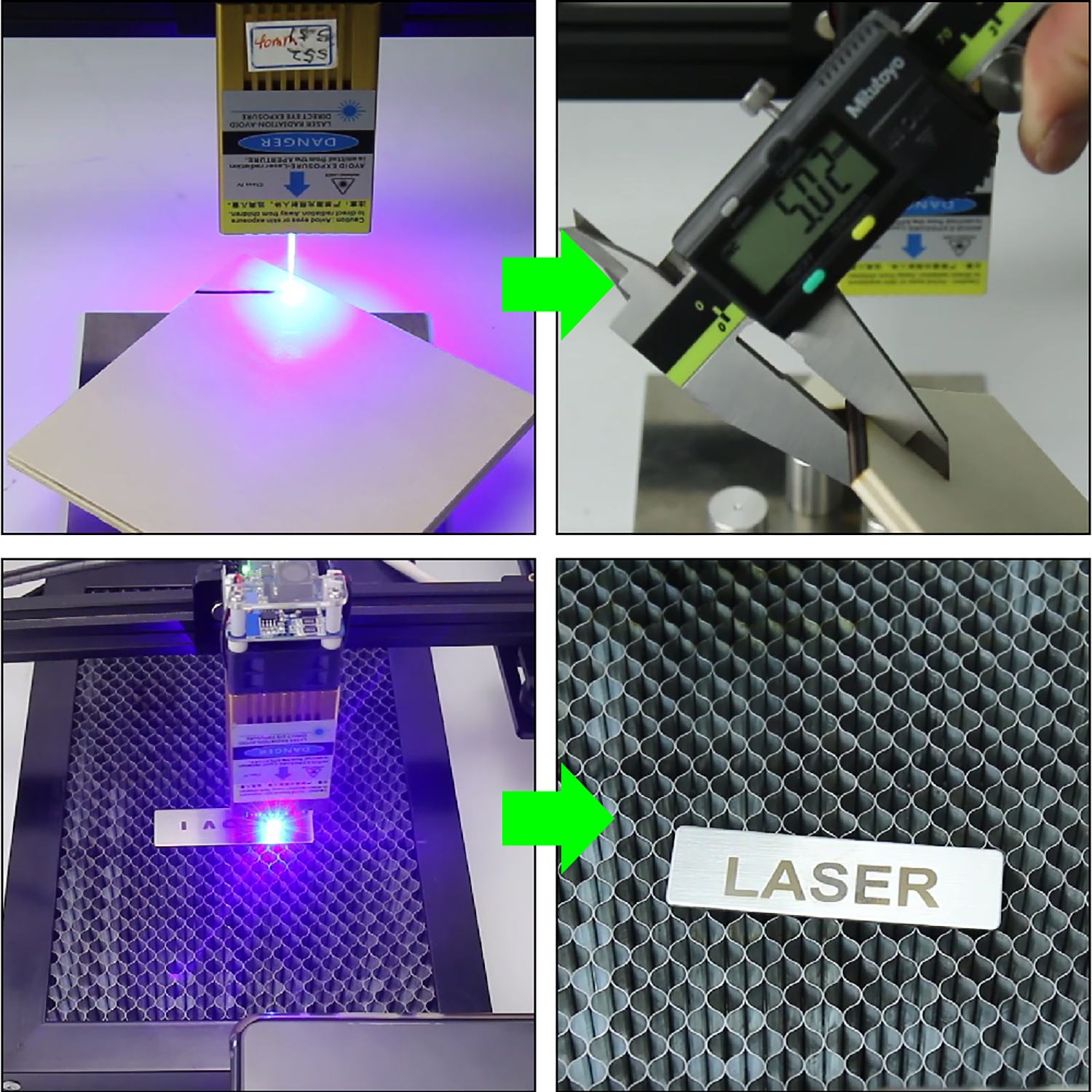

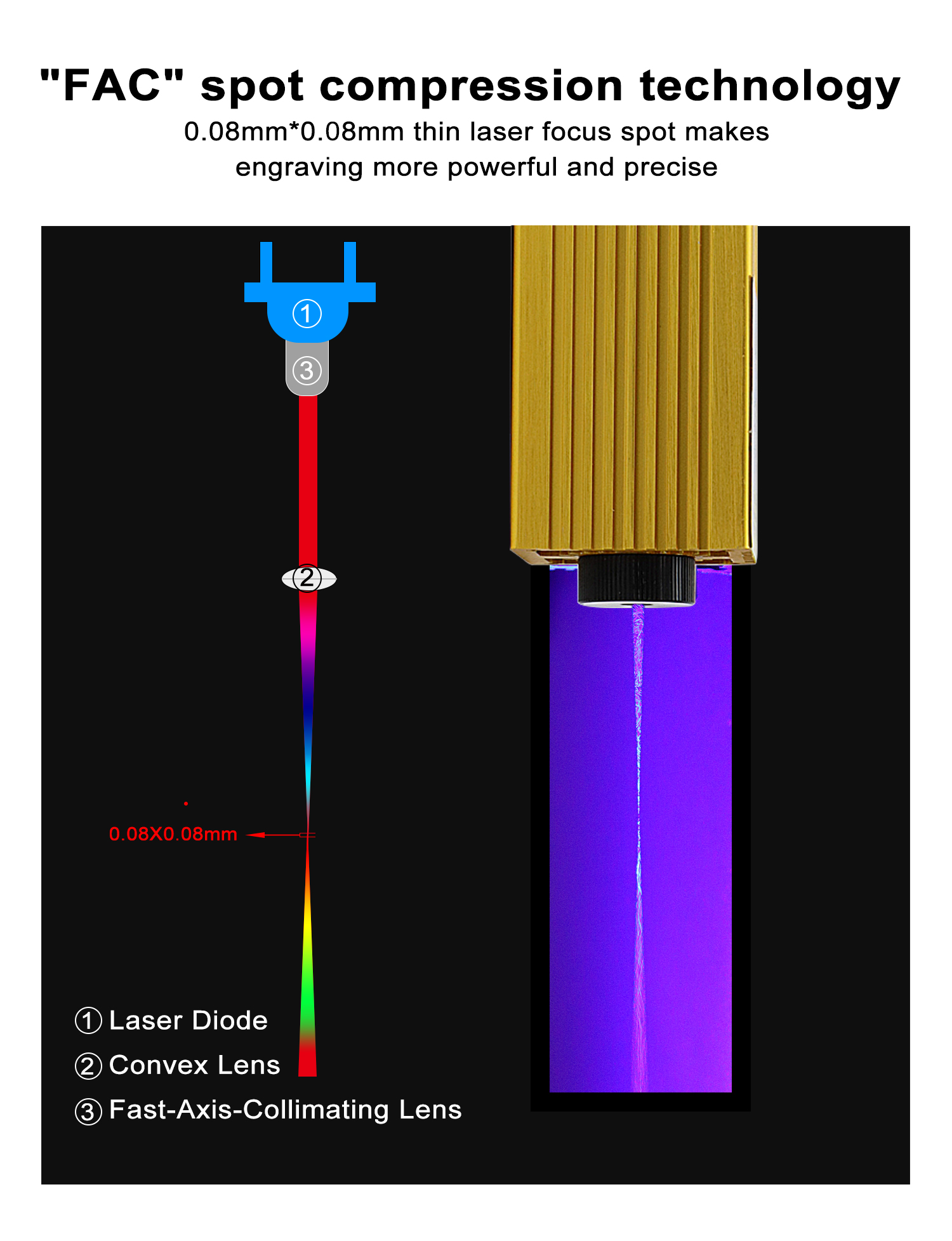

A:Yes, the ZBAITU laser Engraver uses compressed spot technology with a spot size of only 0.08mm and supports engraving stainless steel and various coated metals.

Q: Can this machine only cut dark acrylic?

A:Yes, the laser cutter can cut dark acrylic, but not transparent acrylic.

Q: Is there user manual?

A:Yes, there are user manual in paper in the box, also some assembly videos.

Q: Can i get a assure after purchase?

A:Of course,ZBAITU Global Store provide 100% satisfied for sure,you can enjoy 1 year of free replacement for any accessories. you just need pay for the shipping cost.

1– Designed for Laser Engraver, 3D printer, CNC mill, arduino project.

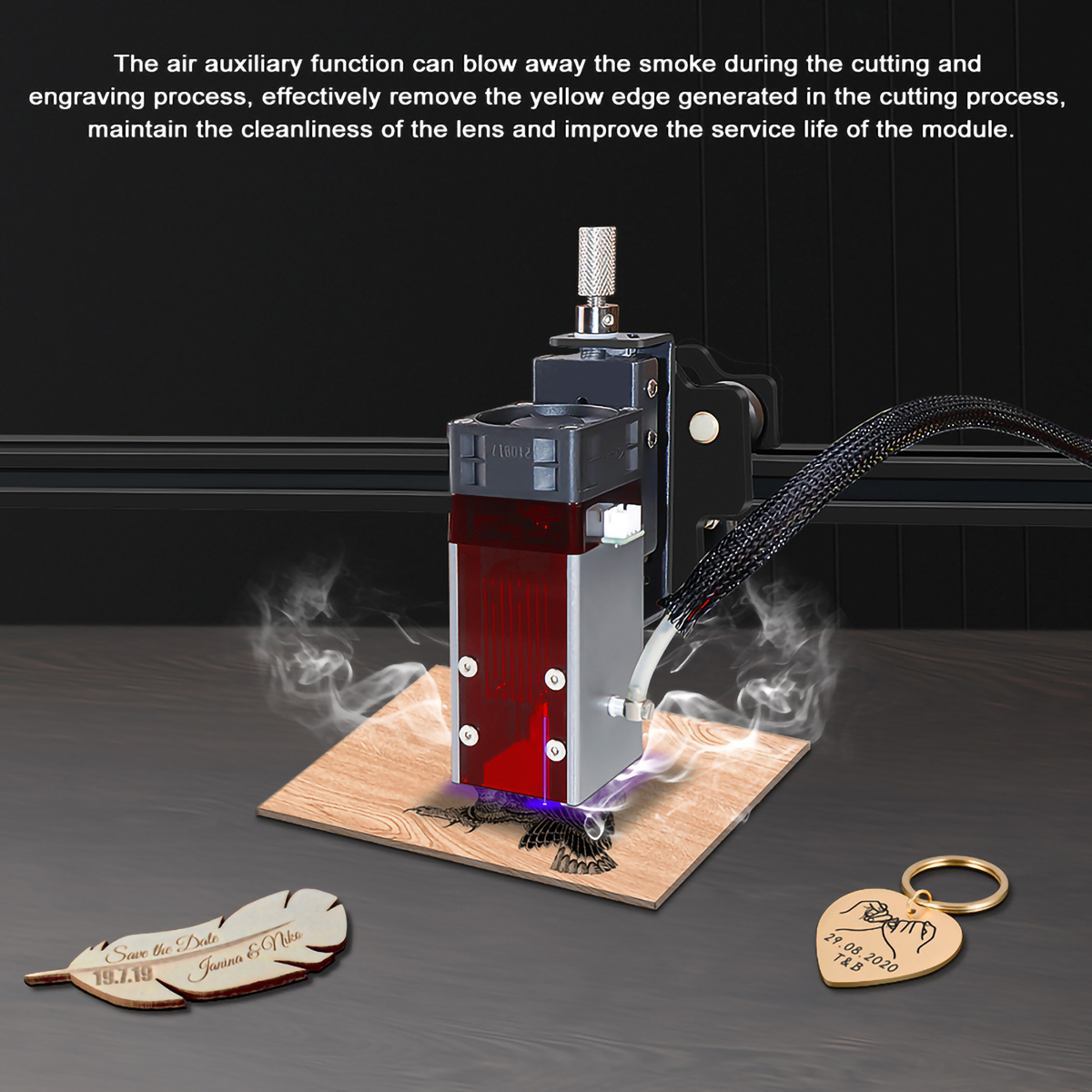

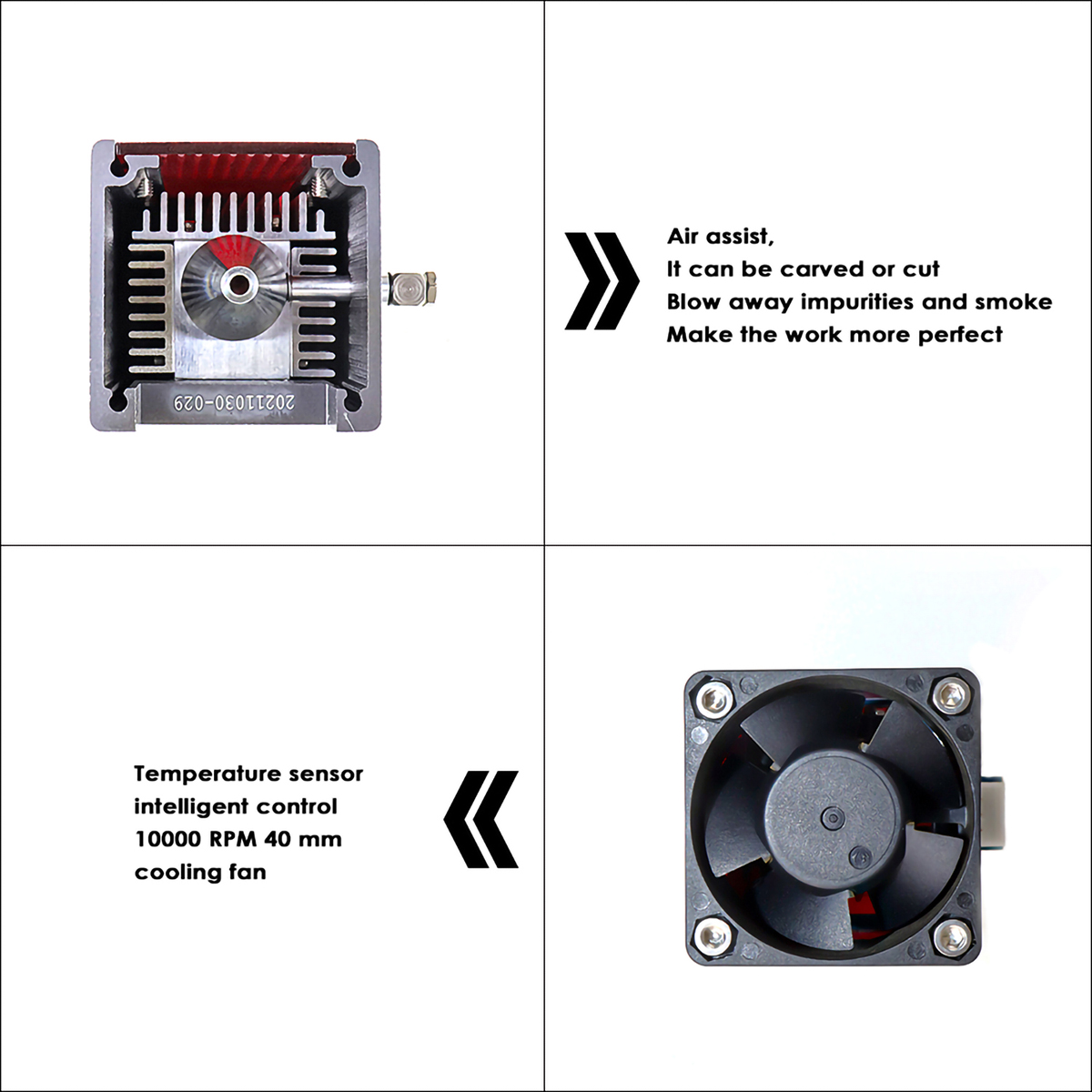

2– Built-in Air assist Interface, it is easy and convenient to use a air bump to improve cutting and engraving accuracy and speed.

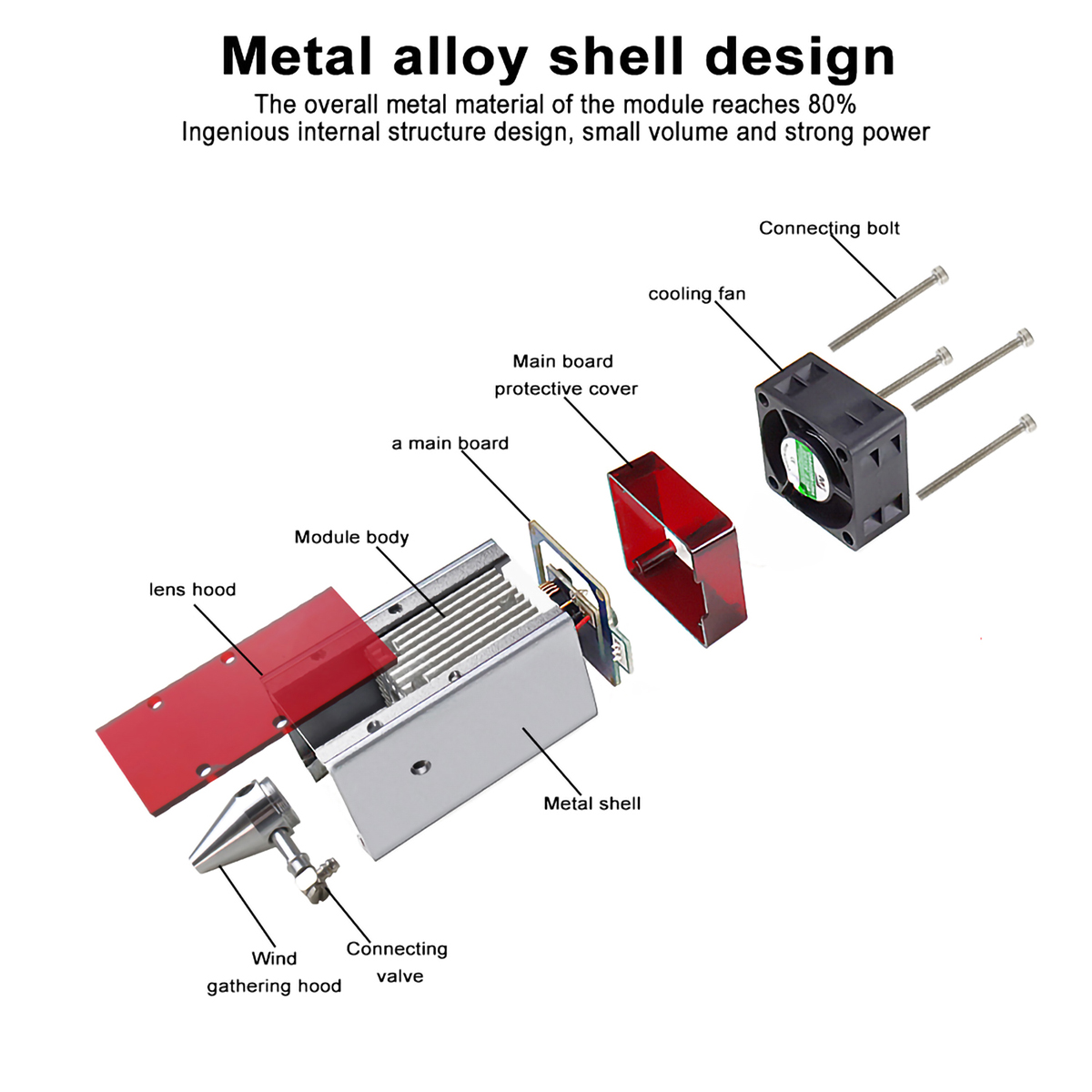

3– Metal Nozzle, the head is metal to improve safety, no worry burn the plastic protective cover again.

4– Smaller and Lighter, the upgraded laser module head is compacted 0.2kg/0.44lb, the lighter the weight, the smaller the move inertia, the better performance for printing.

5– Cooling System, temperature sensor intelligent control + 12000 rpm 40mm cooling fan, can working 20 hours Continuously.

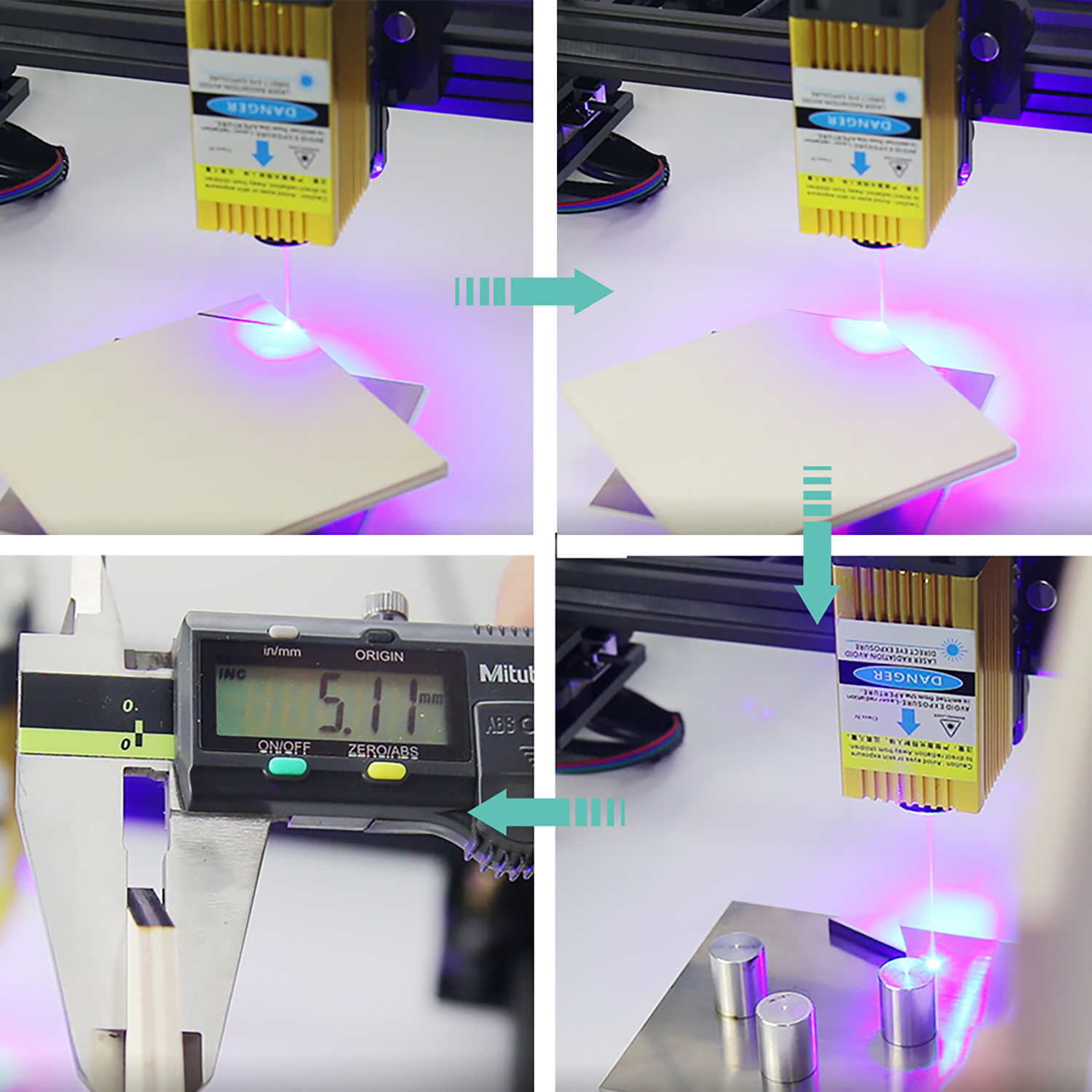

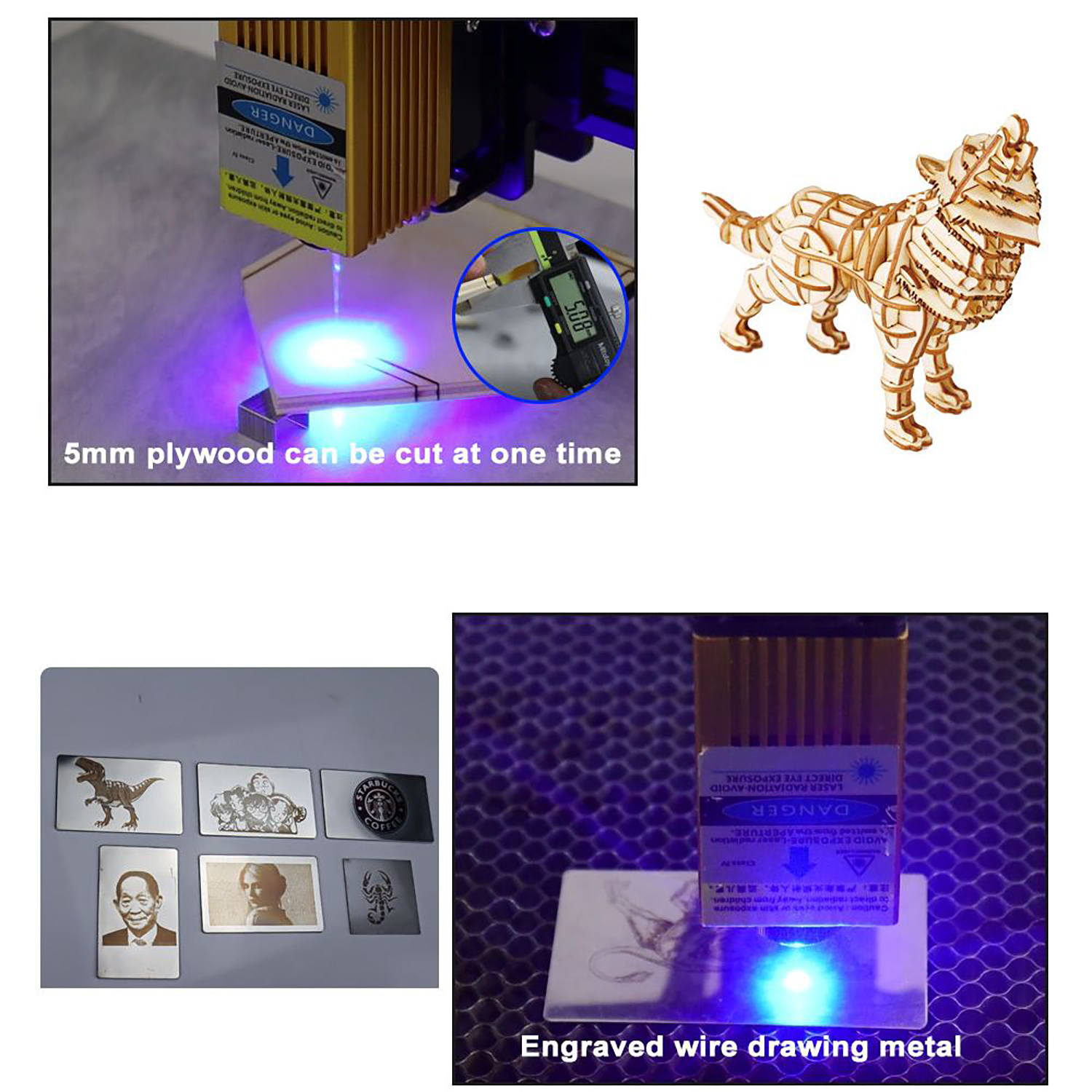

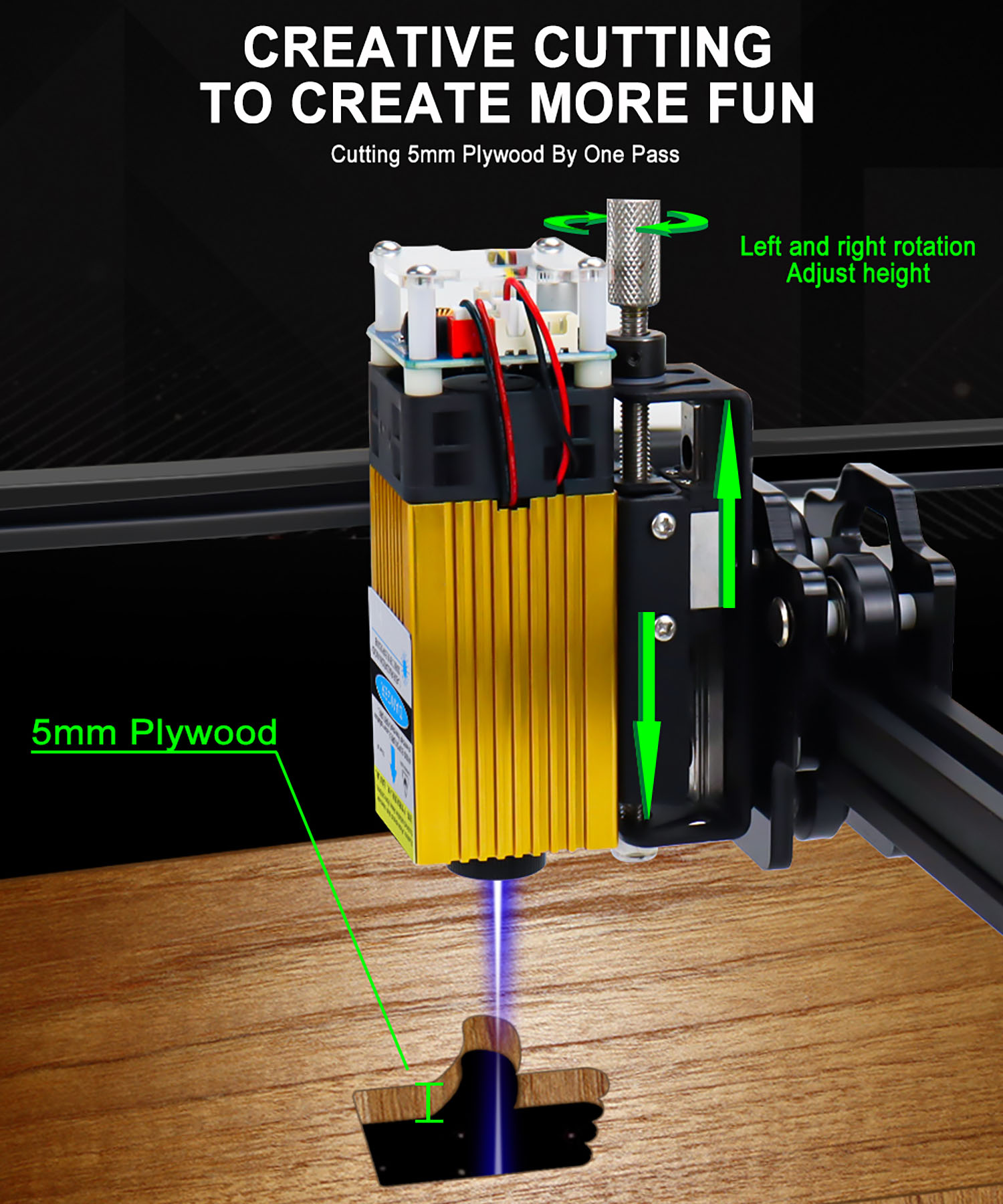

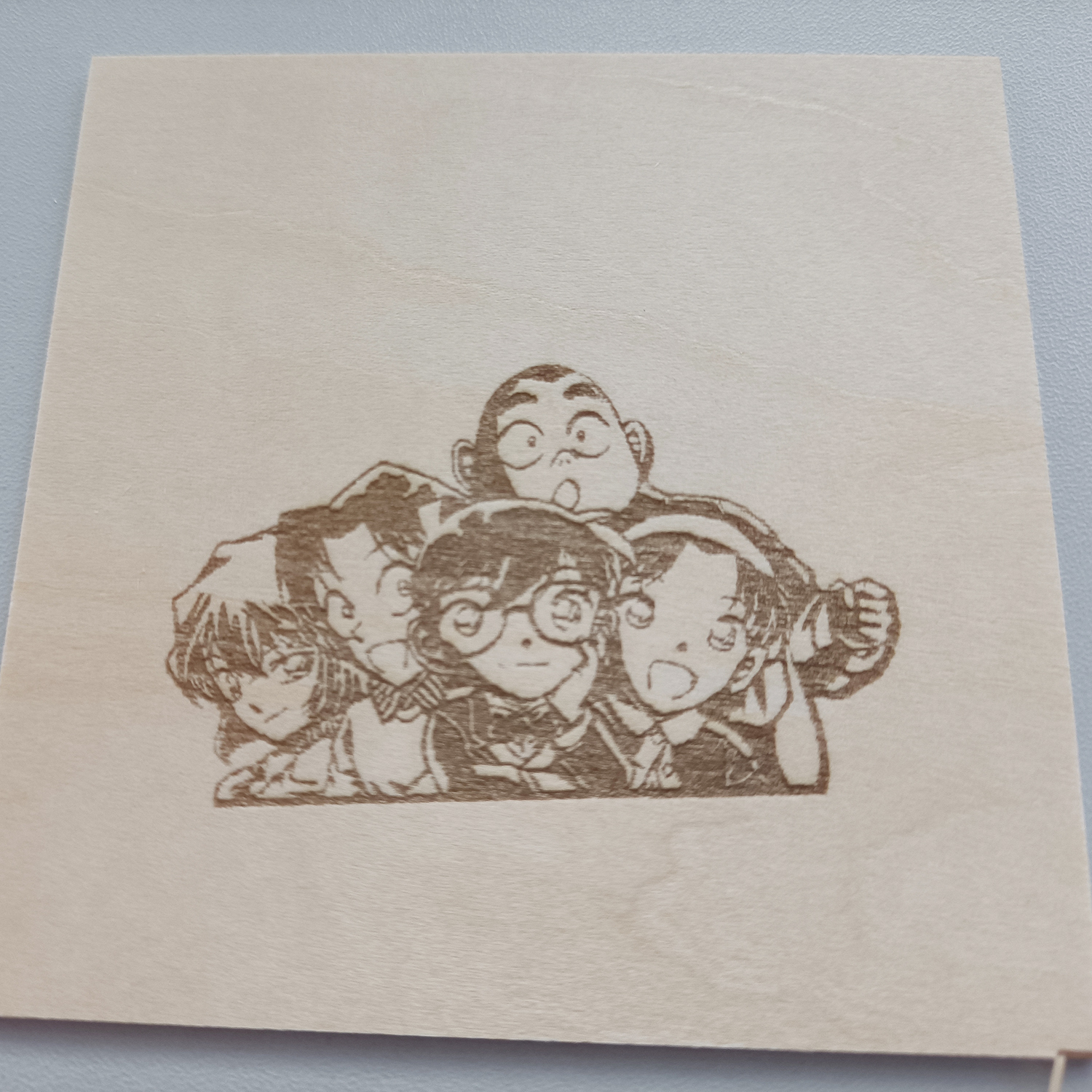

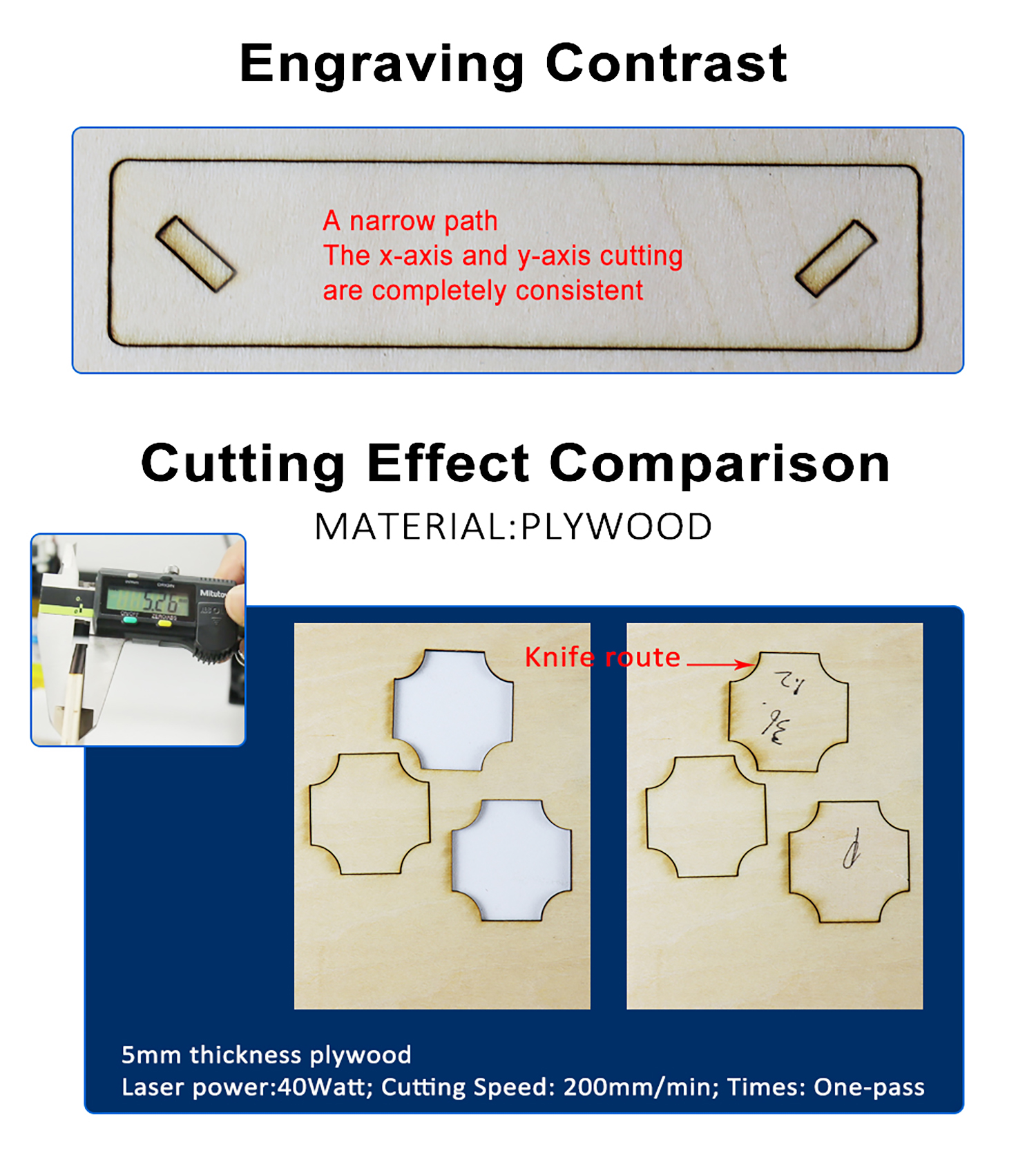

6– 10W Optical power output, 6mm plywood by 1 pass, 10mm pine board by 1 pass(straight line), 5mm black acrylic board by1 pass, Able to engrave stainless steel, but it needs good focus adjustment.

7– More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

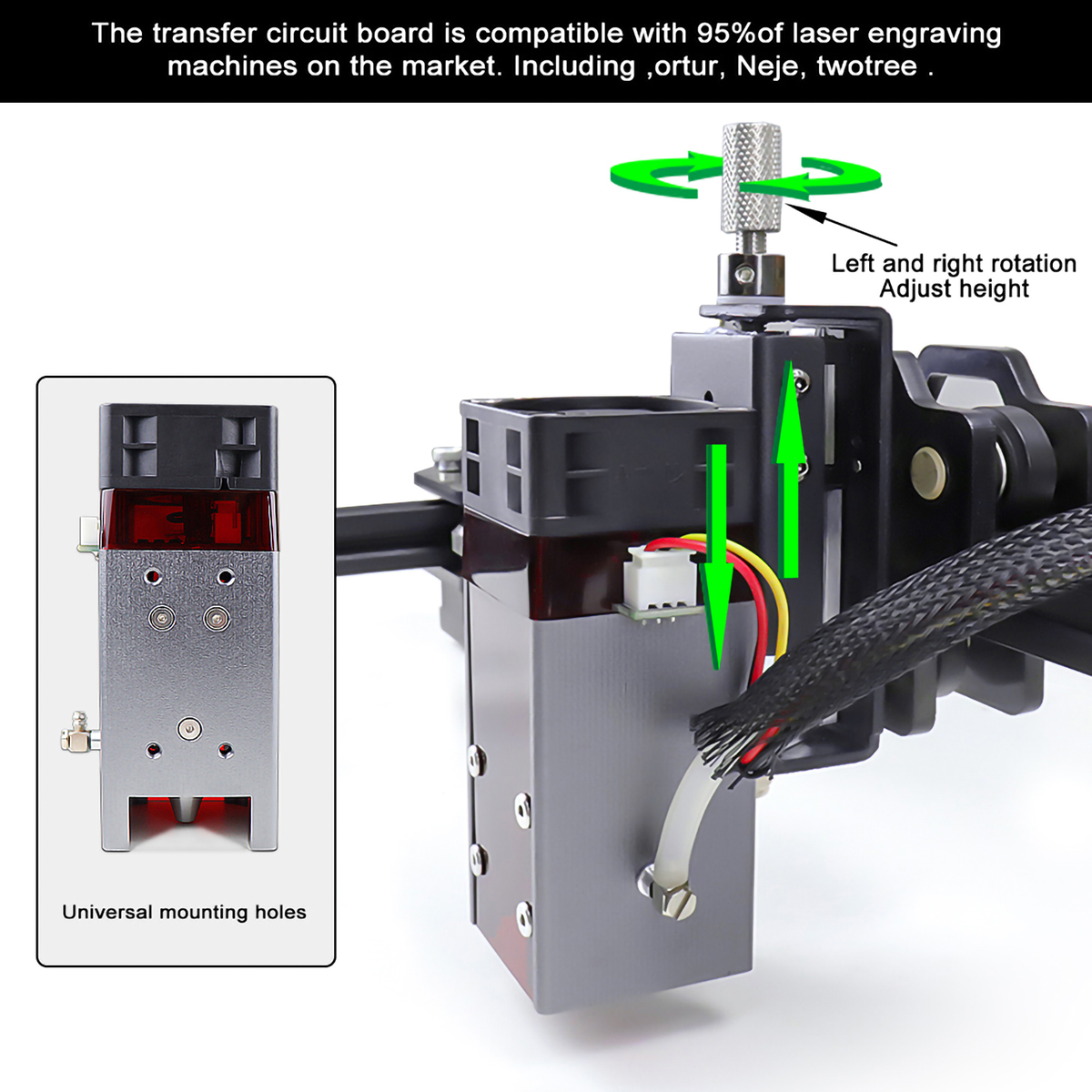

8– Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for laser module, can work with lase machine from Neje, Ortur, Two tress and so on.

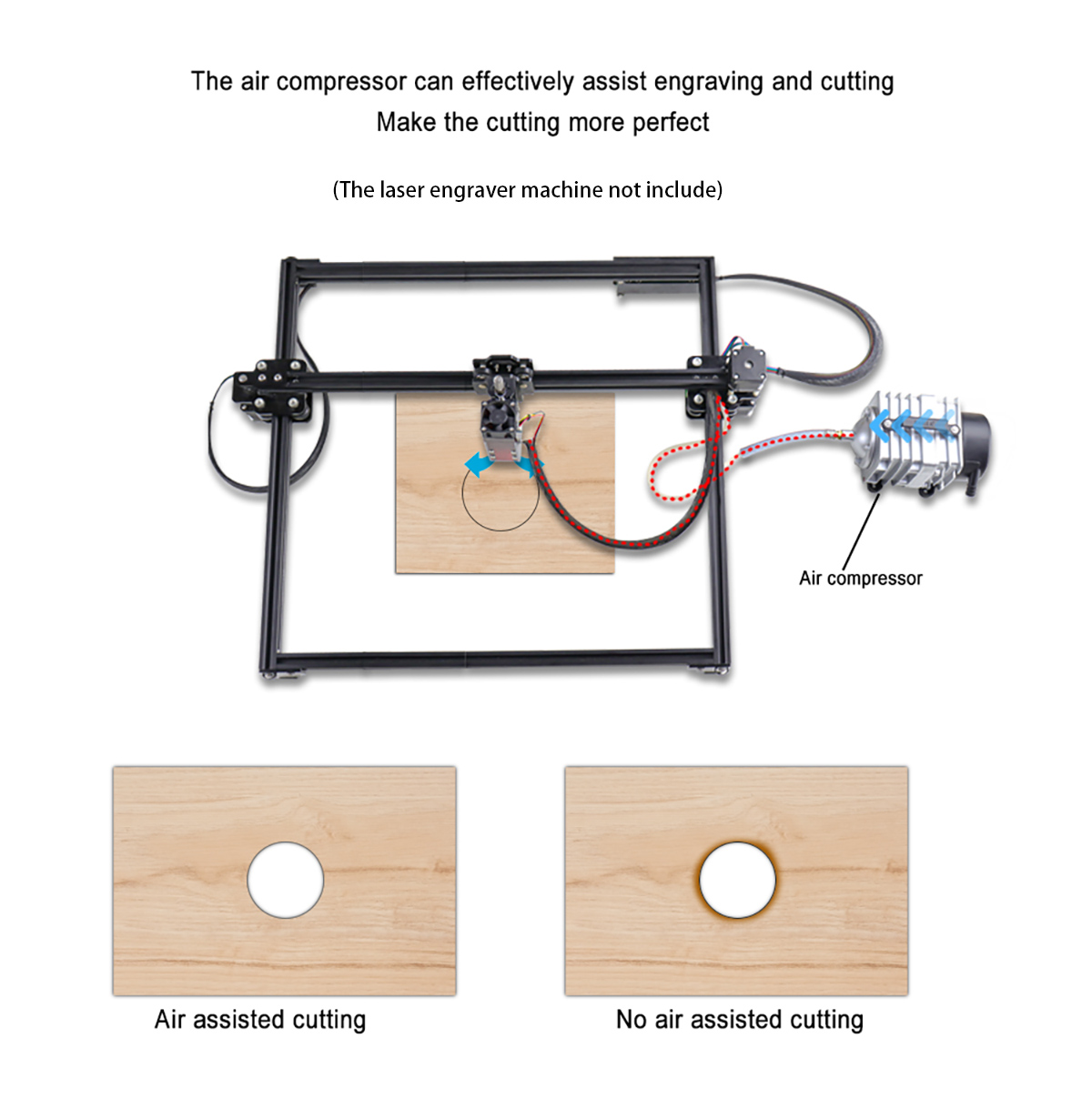

The FF80-EARE Best to use with air pump to reduce the black edge and improve the engraving and cutting effect.

Please chose the air pump~~

NO1: FF80-EAIR

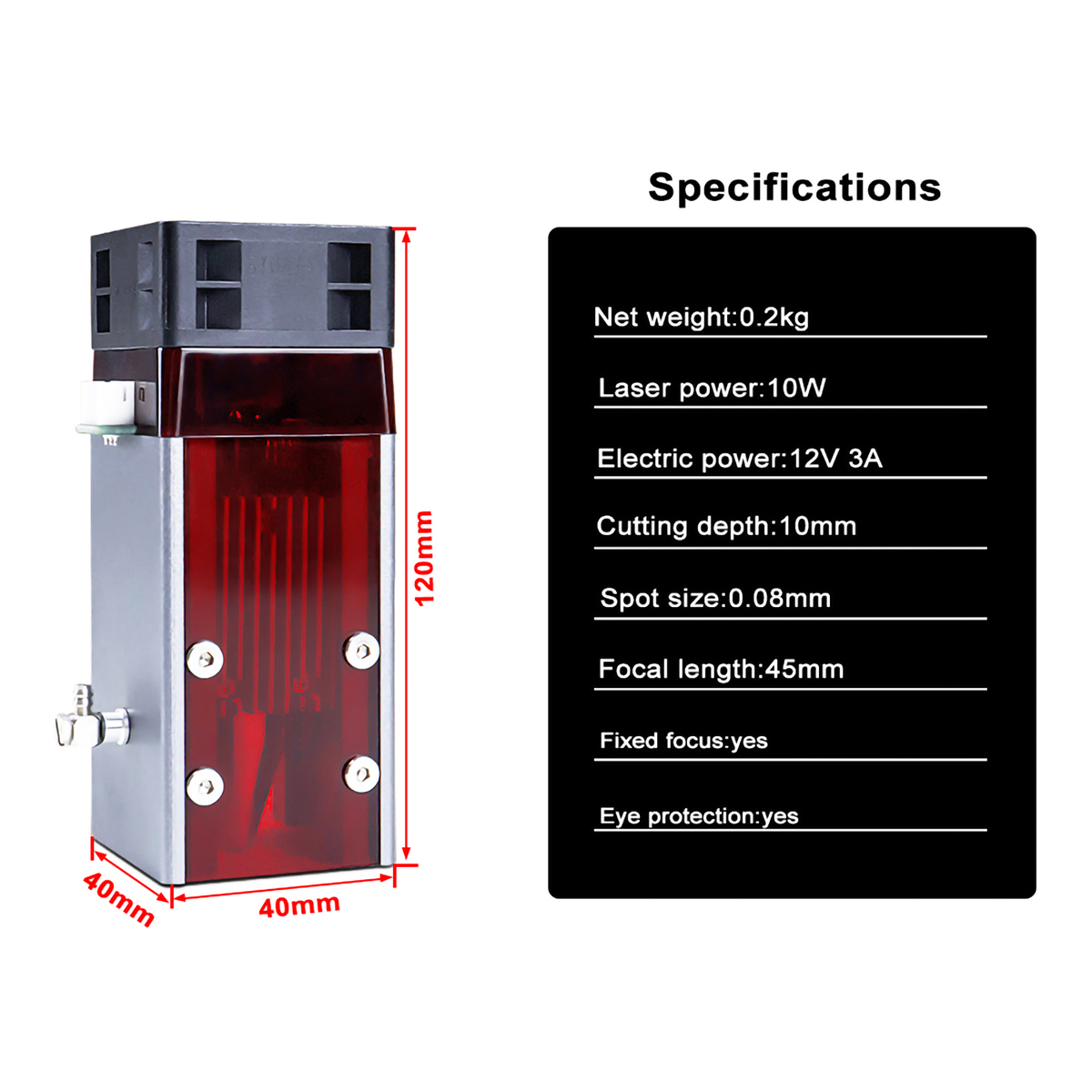

Product Specification

Model:FF80-EAIR

Heatsink Material:Aircraft Aluminum + Brass Shell

Luminous Color:Blue

Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

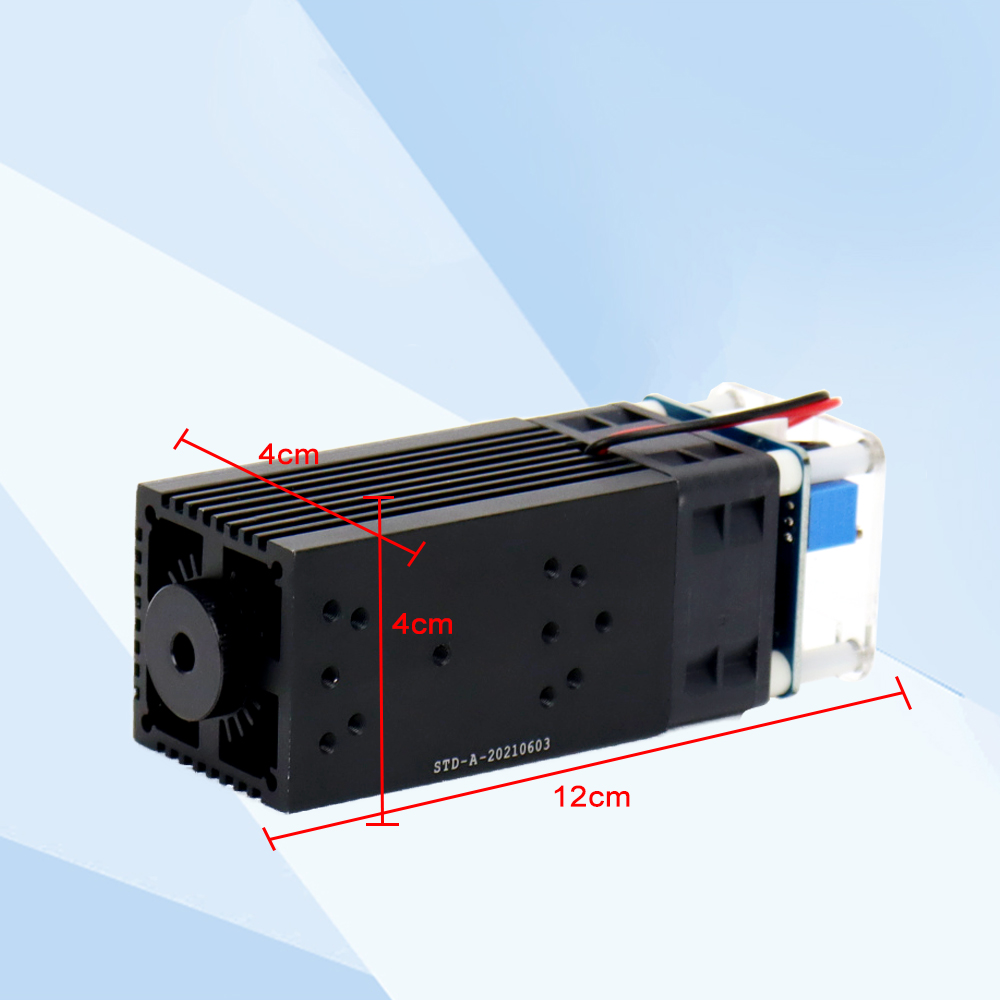

Dimension:4x4x12CM

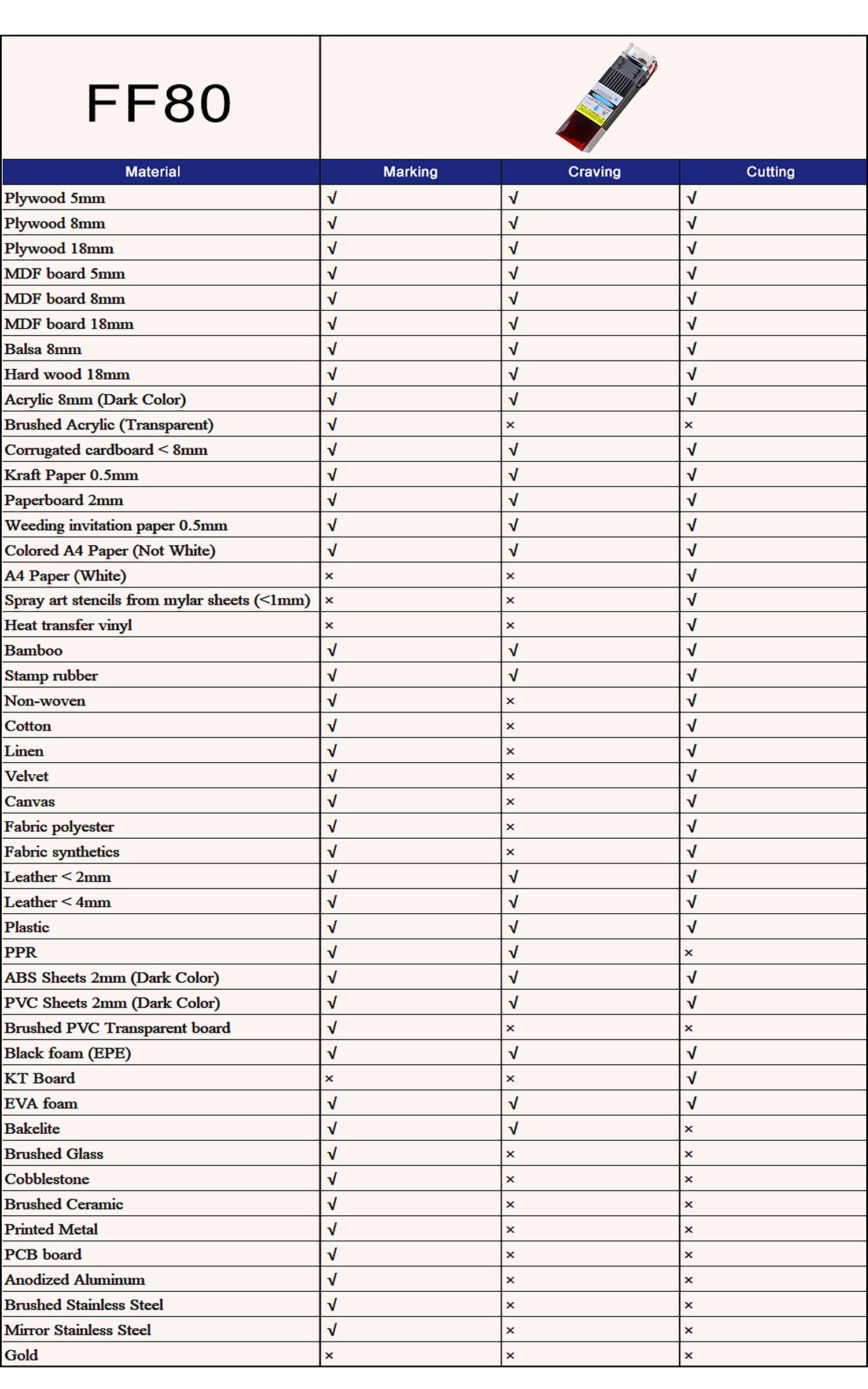

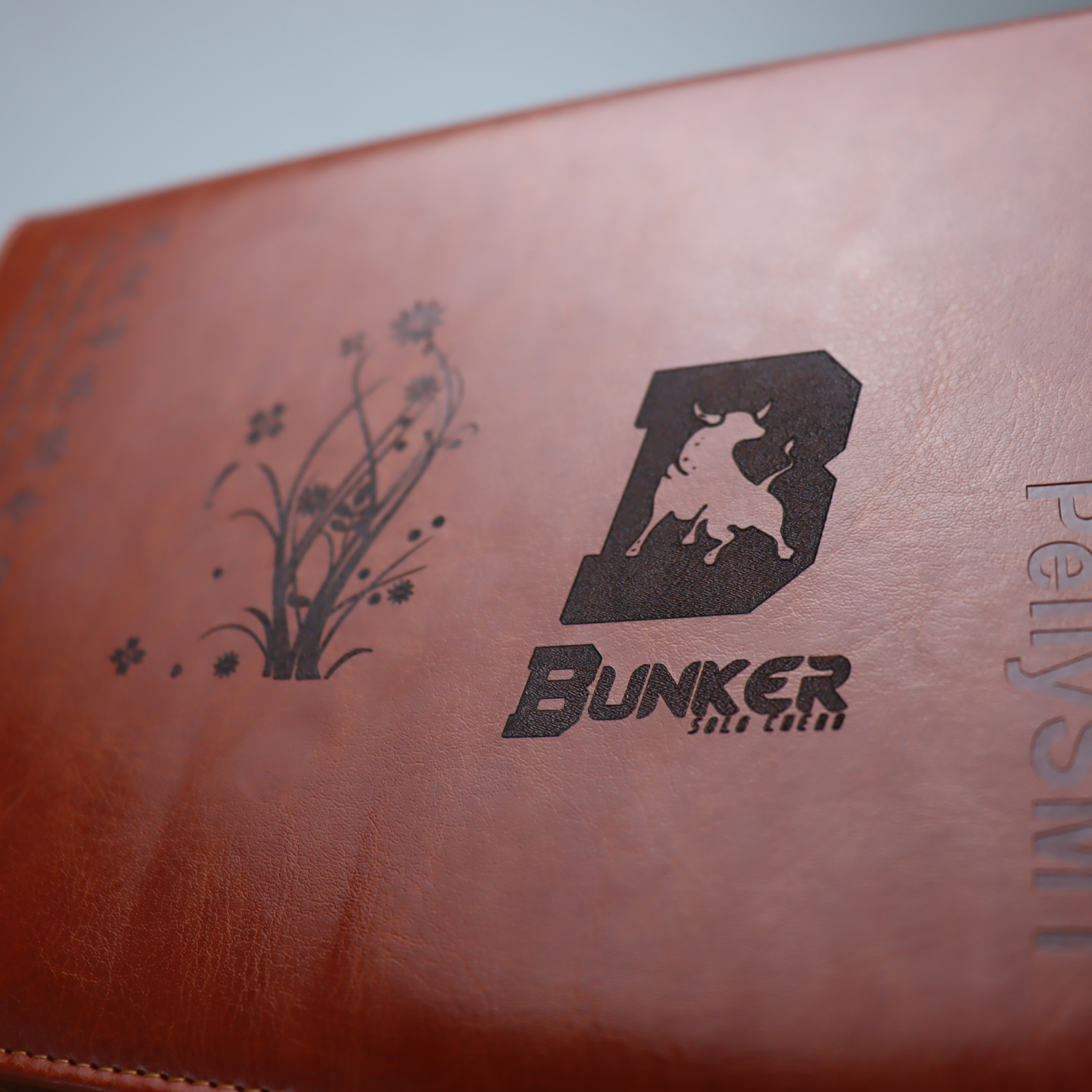

Can Cut/Engrave : MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/PVC

Module Input:40-80W

Optical power output:10W

Wavelength:450nm

Beam Shape:0.08X0.08mm

TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation

PWM/TTL Input:DC3.3V-12V

Drive Mode:External ACC

Safe temperature range:<60 ℃

Module weight:200g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time:10000-20000 hours

Please Note!!!!! Make sure your address is correct and full before payment!

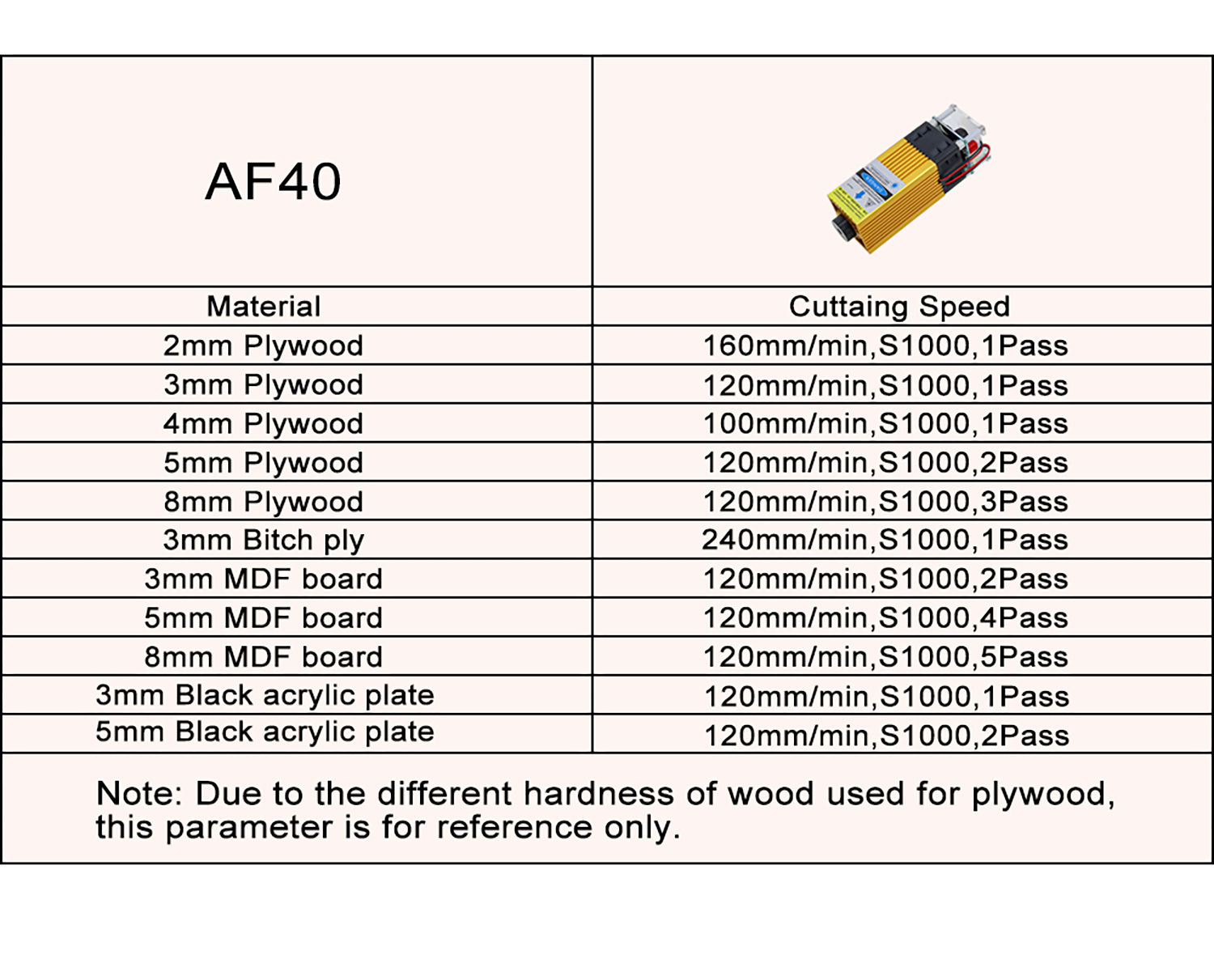

NOTE: Due to the different hardness of wood used for plywood, this parameter is for reference only.

NO2: FF80

ZBUITA 450nm Laser-Professional Version, Focal Fixed, laser module,laser head for Laser Engraving Machine ,laser cutting tool

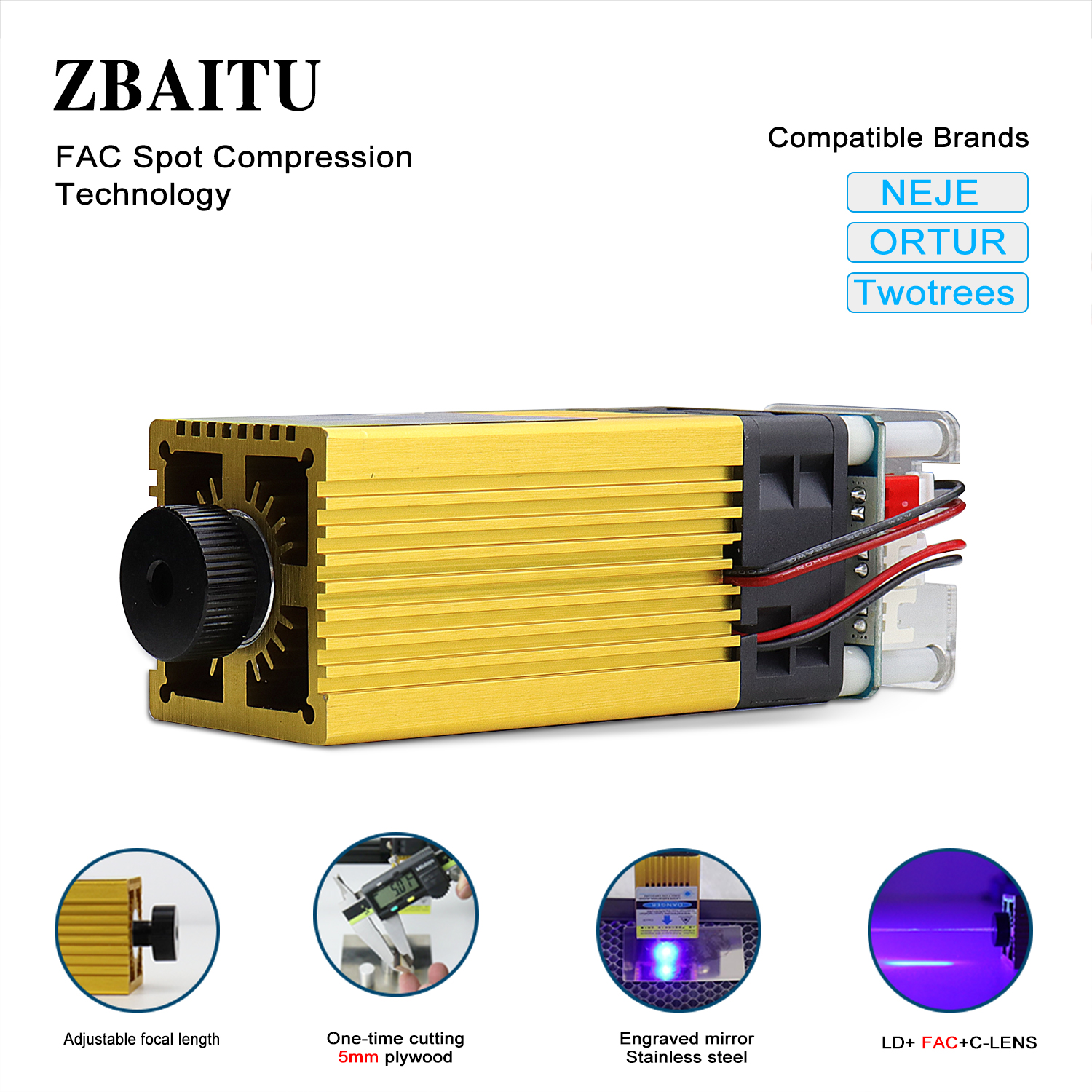

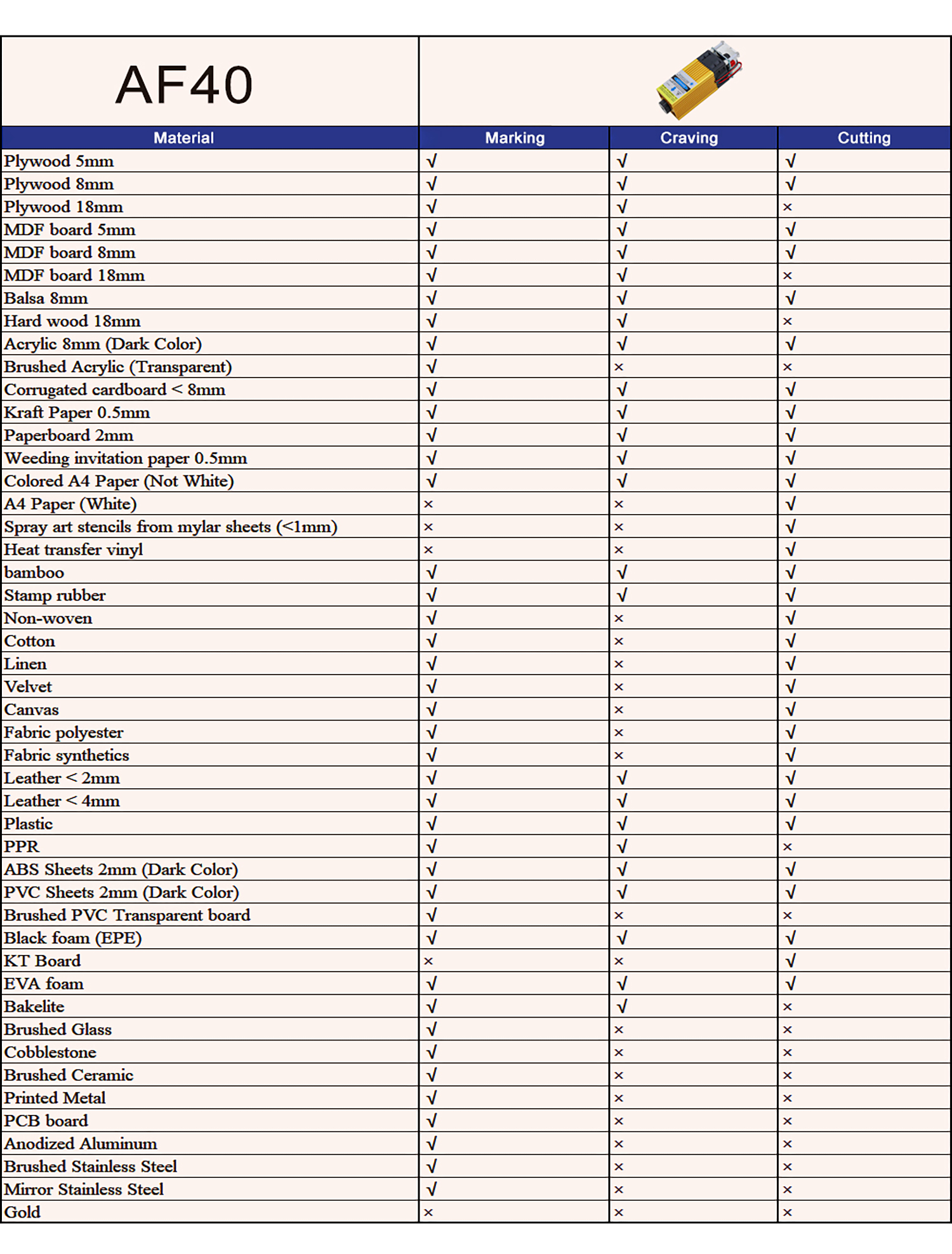

NO3: AF40

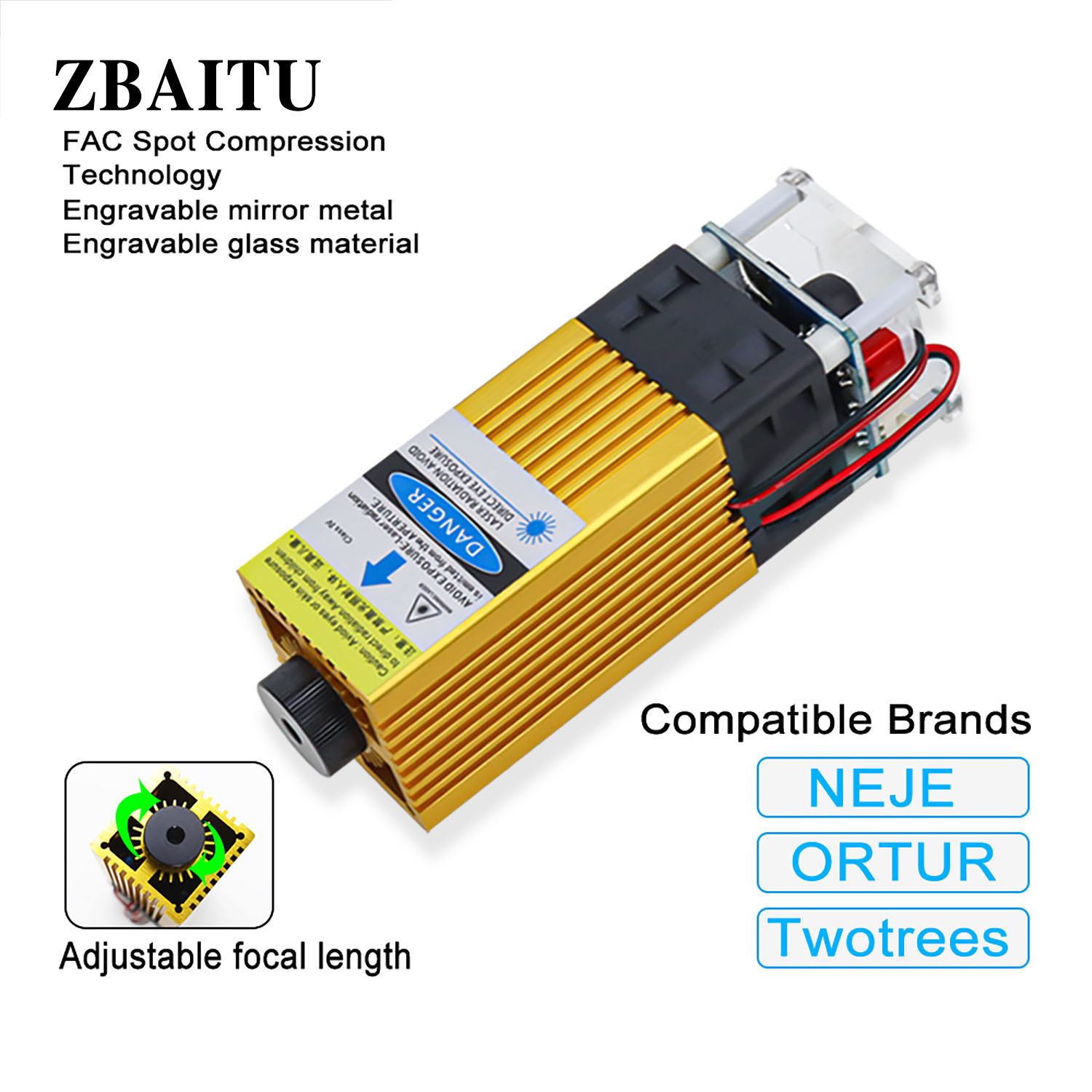

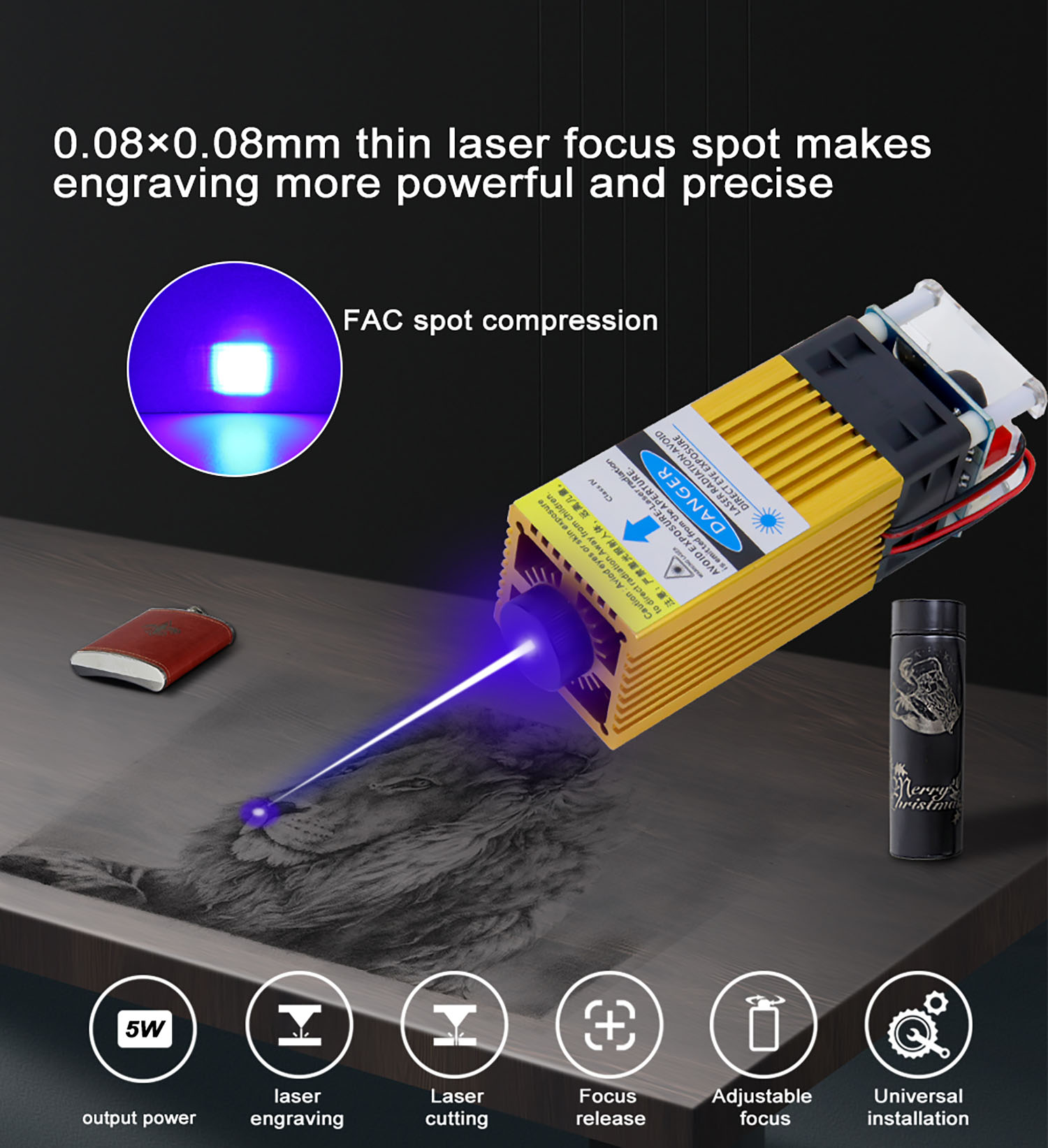

ZBAITU AF40 Laser Engraving Module, Adjutable FAC 0.08×0.08mm,TTL Laser Module Head, High Power for CNC Engraver Laser Machine

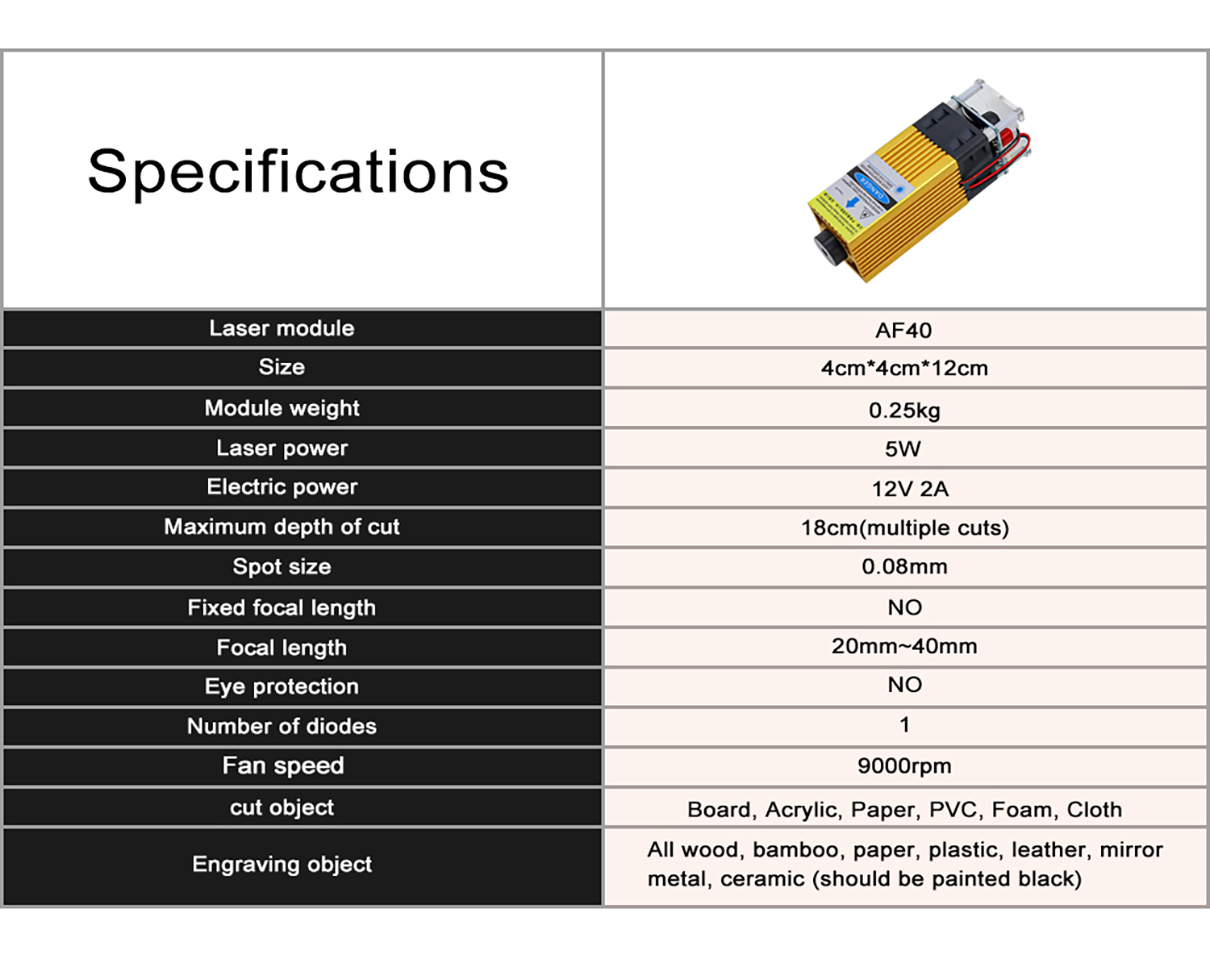

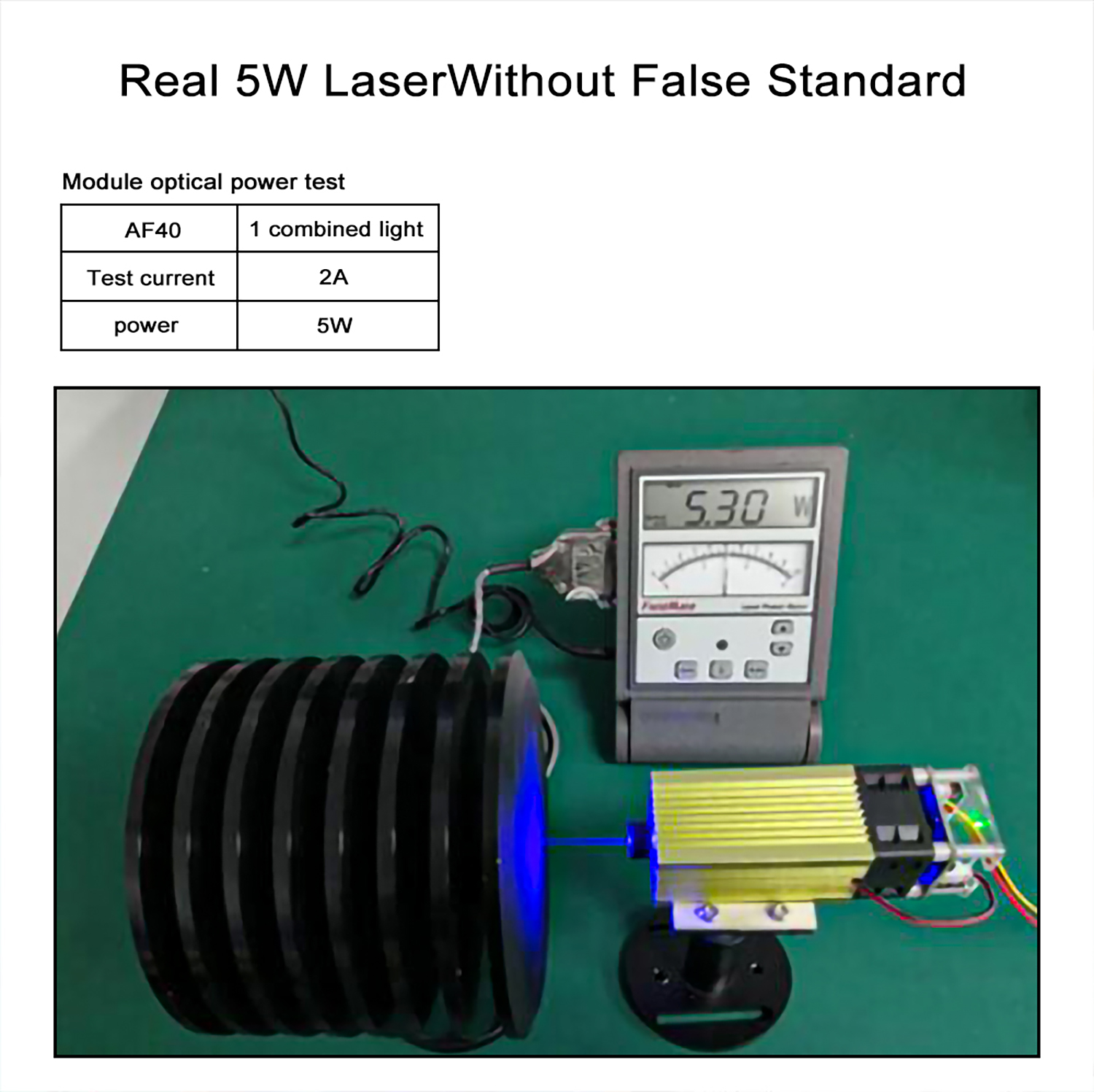

Specification

-Effect ouput power: 40W

-Beam size : (0.08mm*0.08mm)

-Input:12V, 2.5A

-Optical Output: 5W

-Wavelength: 450nm

-Precision: 0.08mm

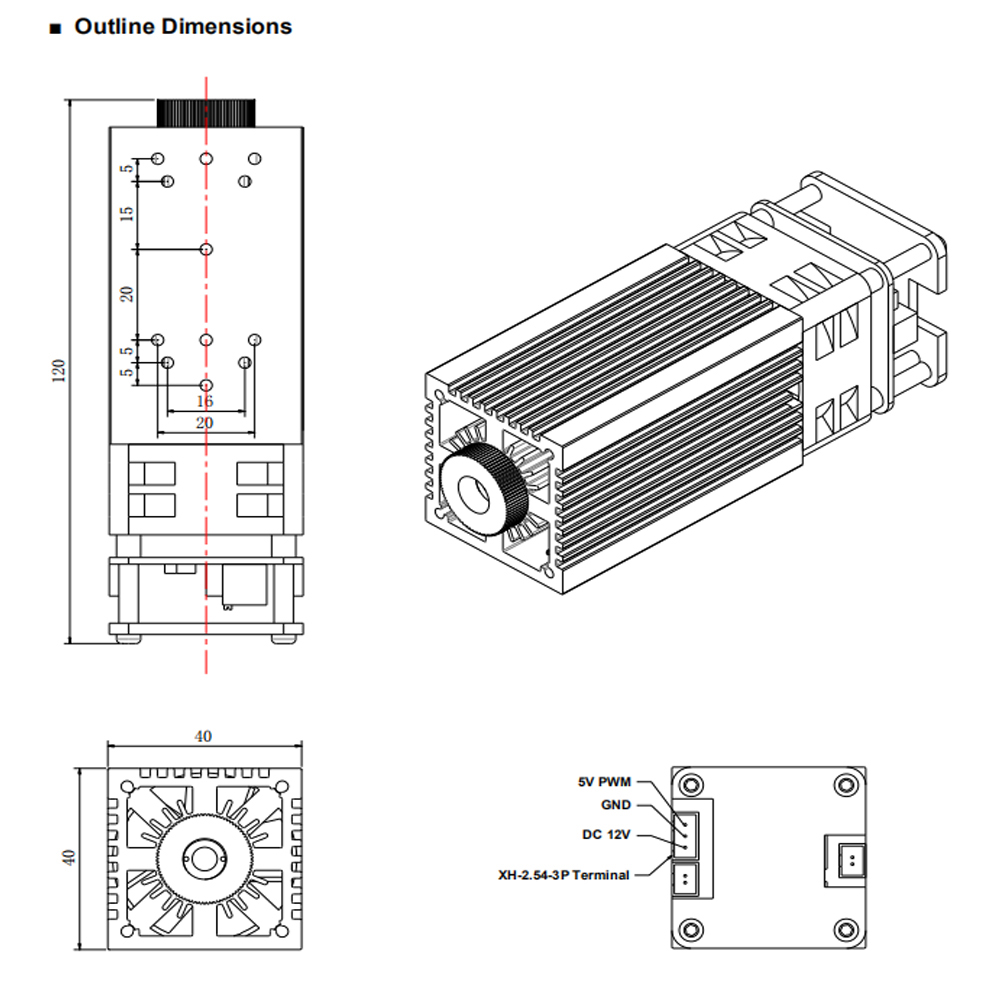

-Module Size:40mm*40m*120mm

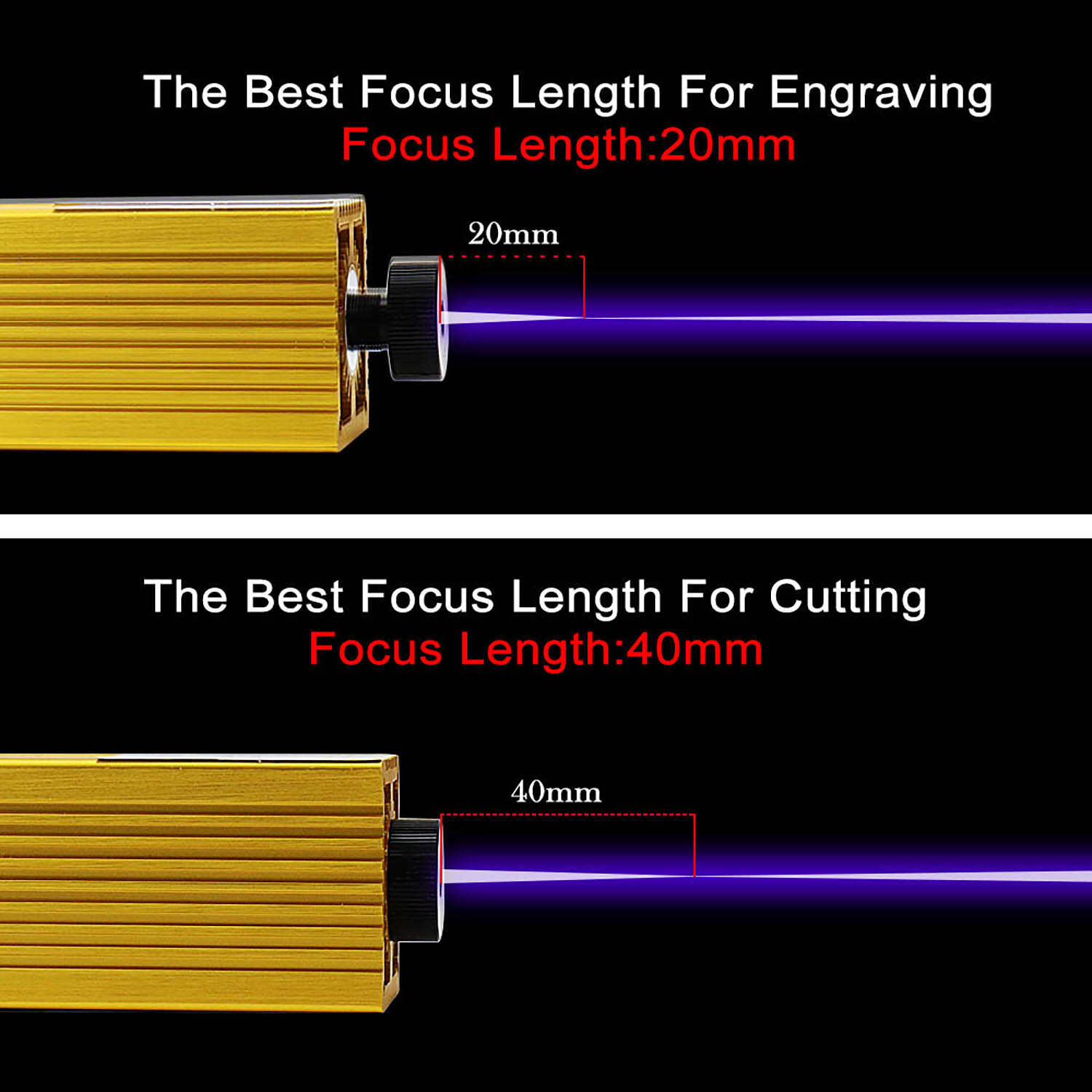

-Focal length:20mm~40mm

Package include

1*laser module

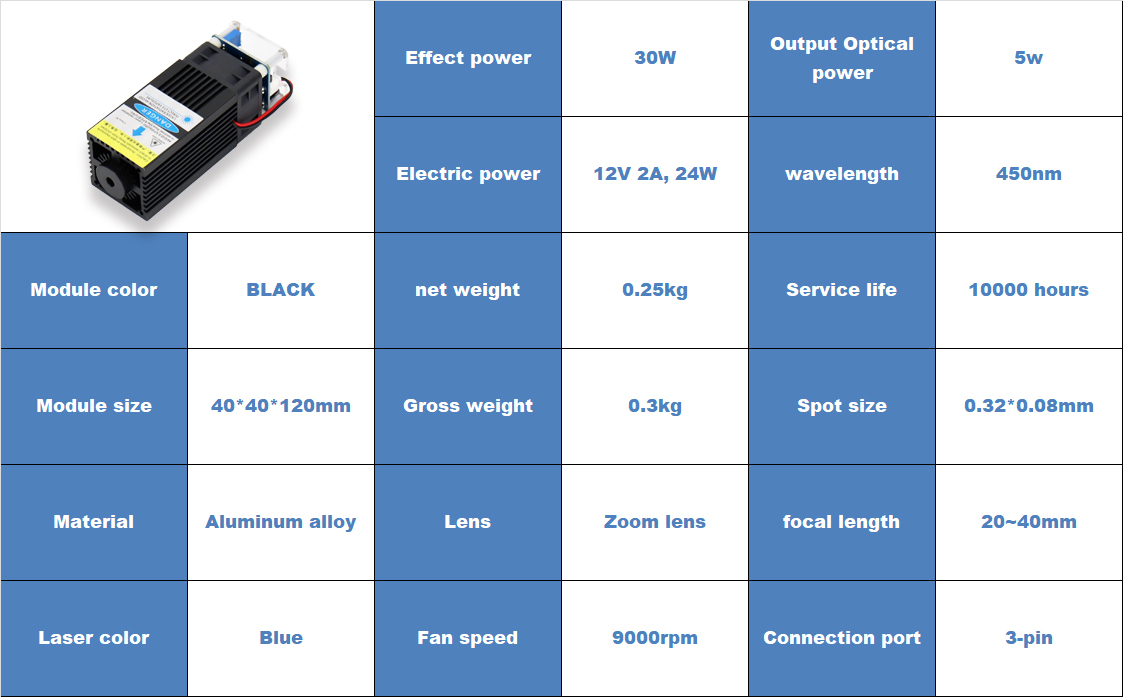

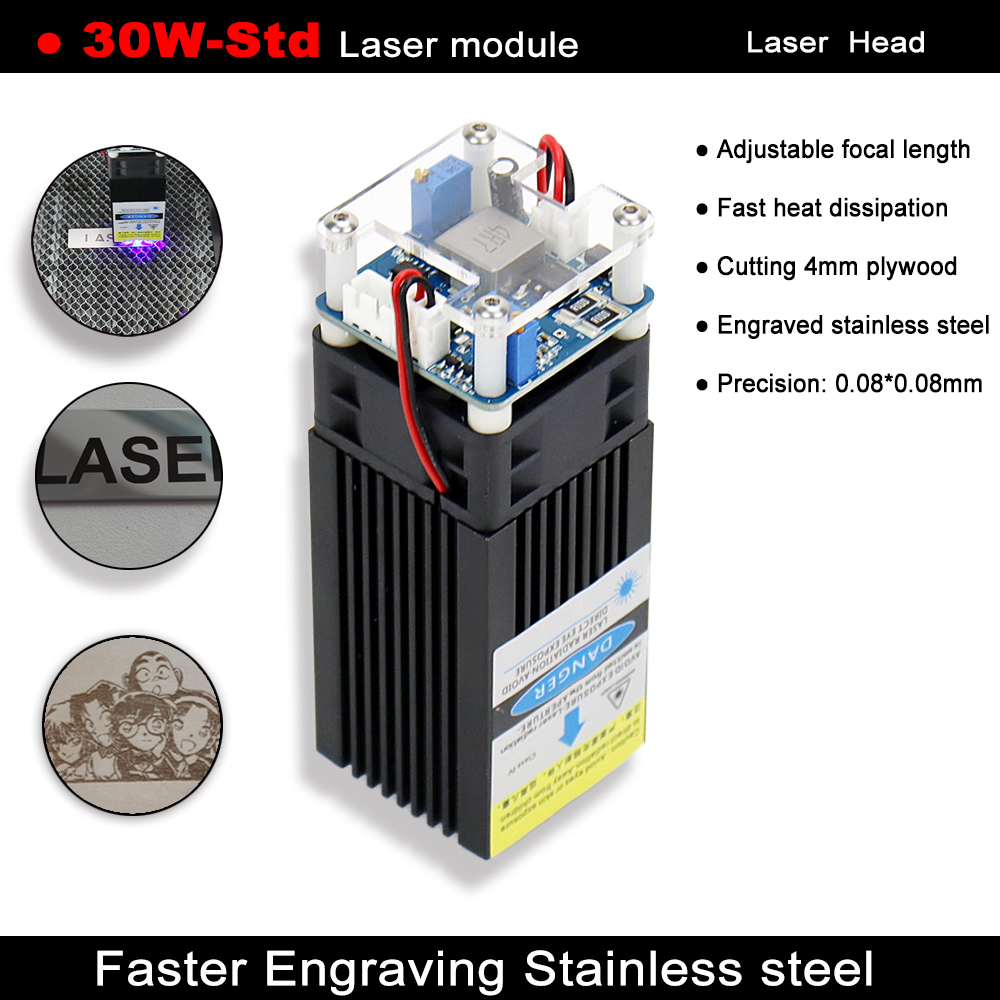

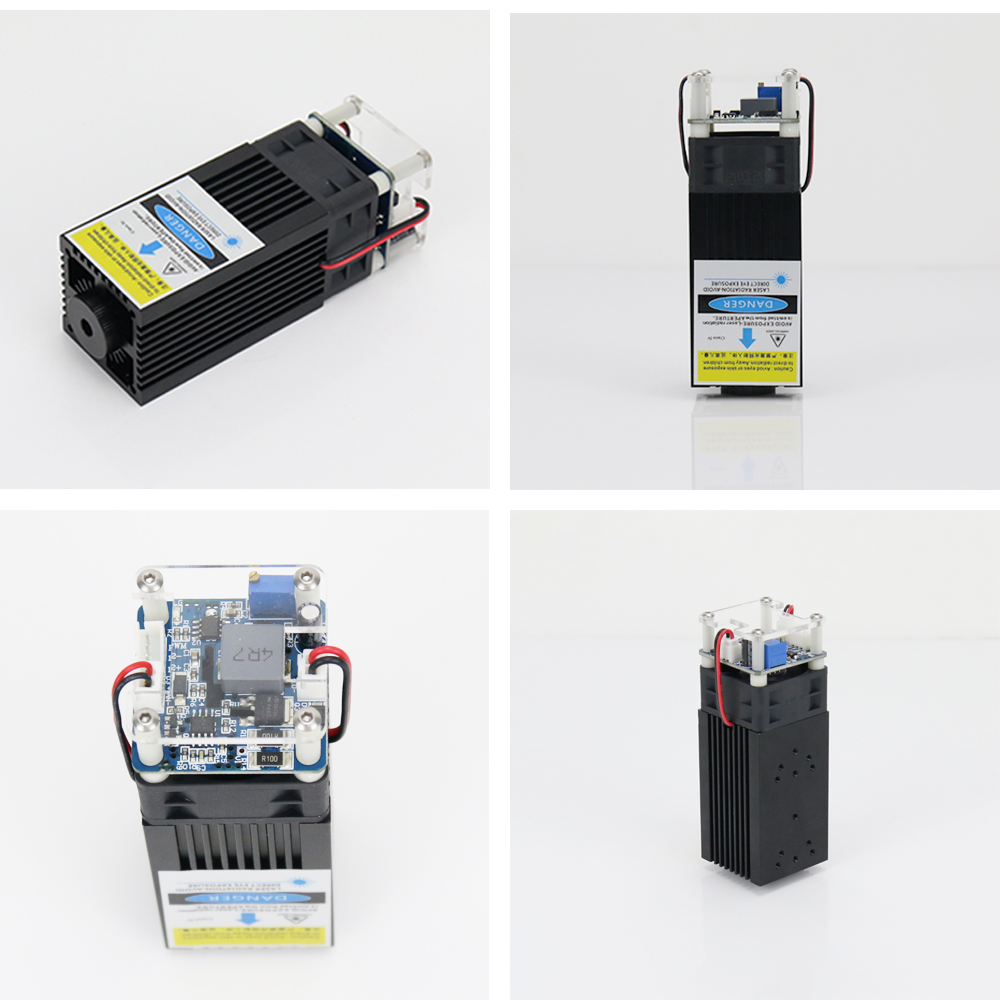

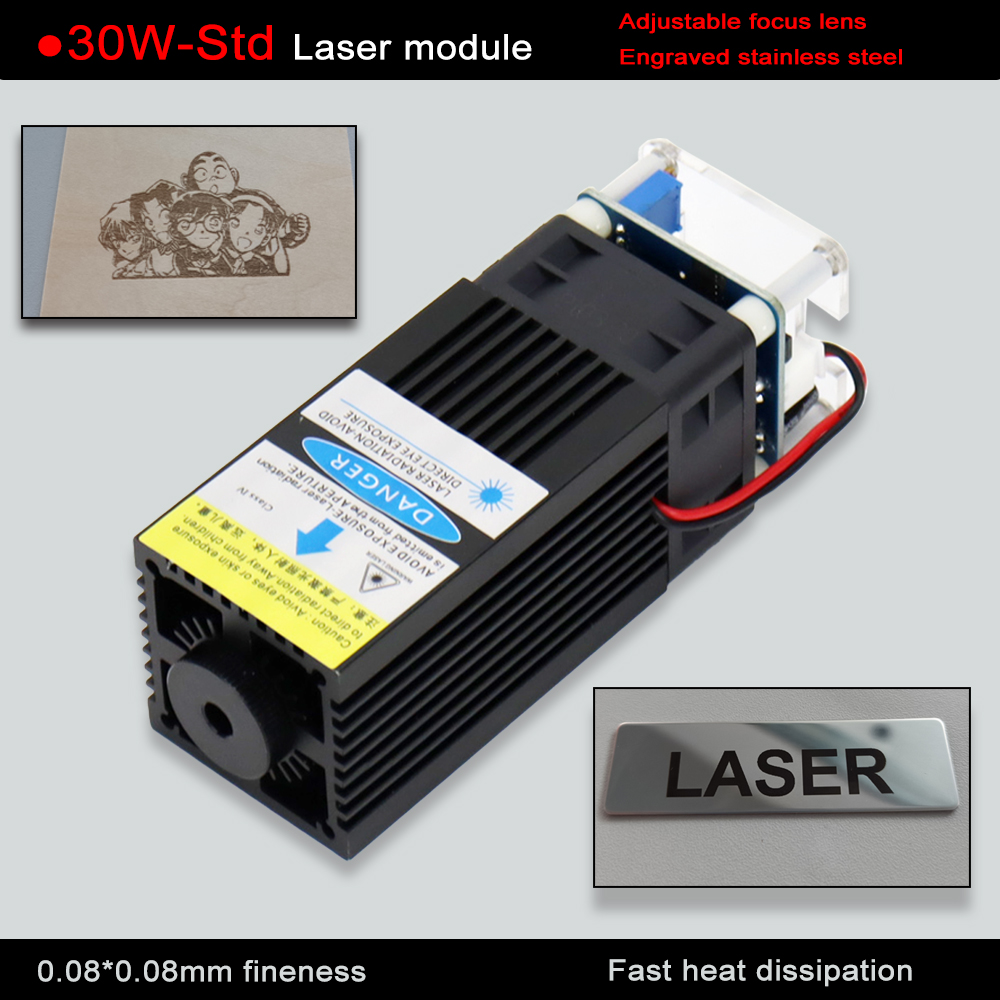

NO4: AF30

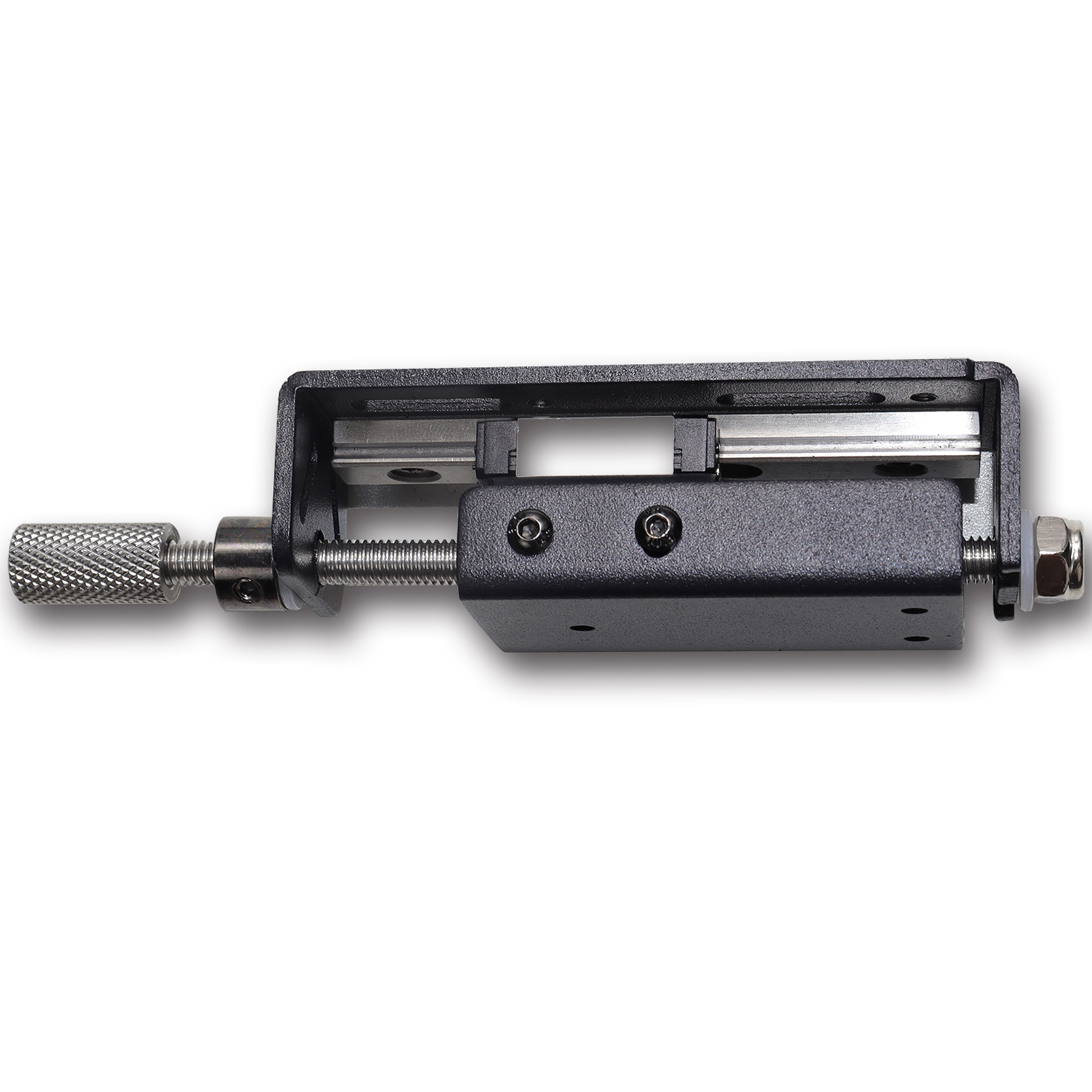

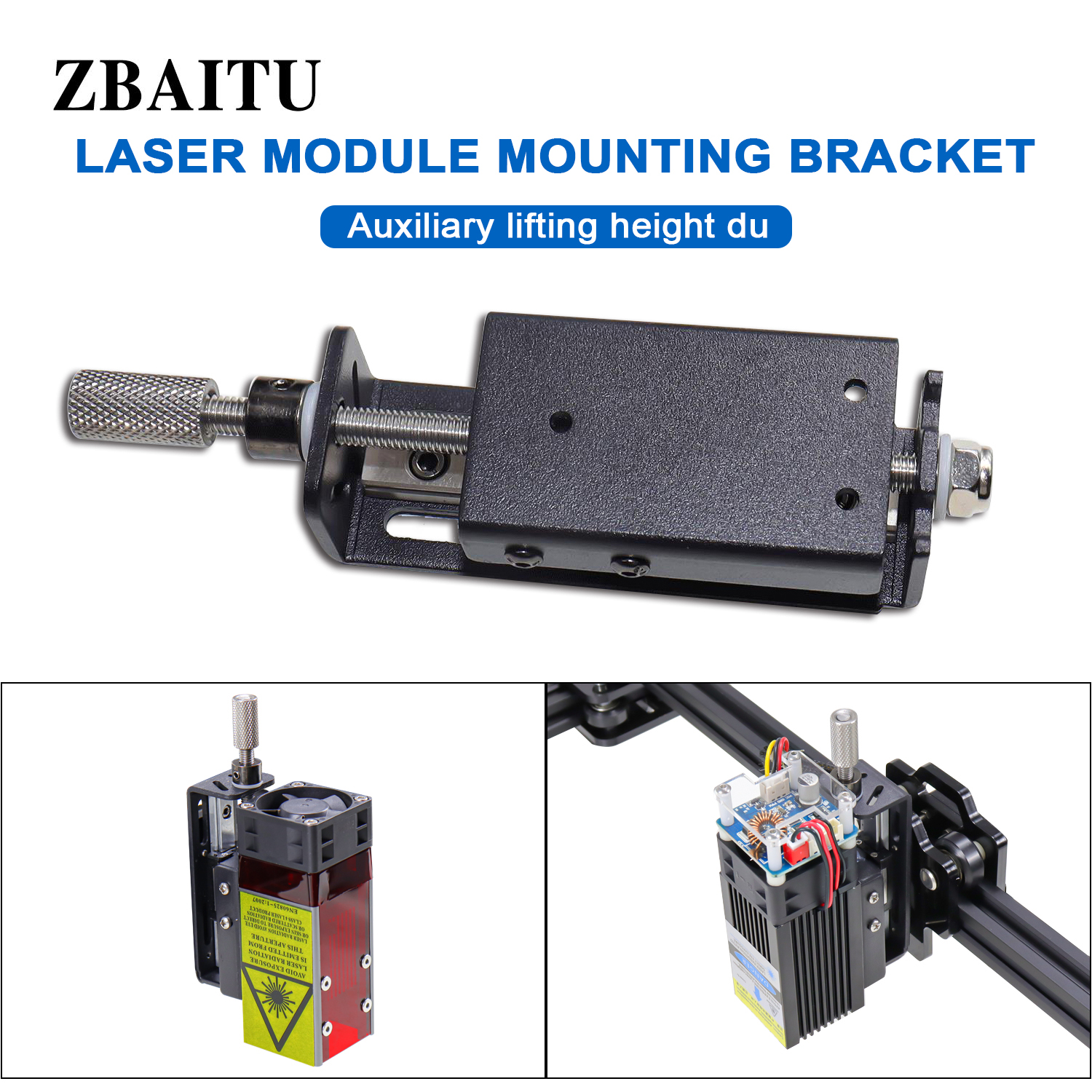

NO5: Slider

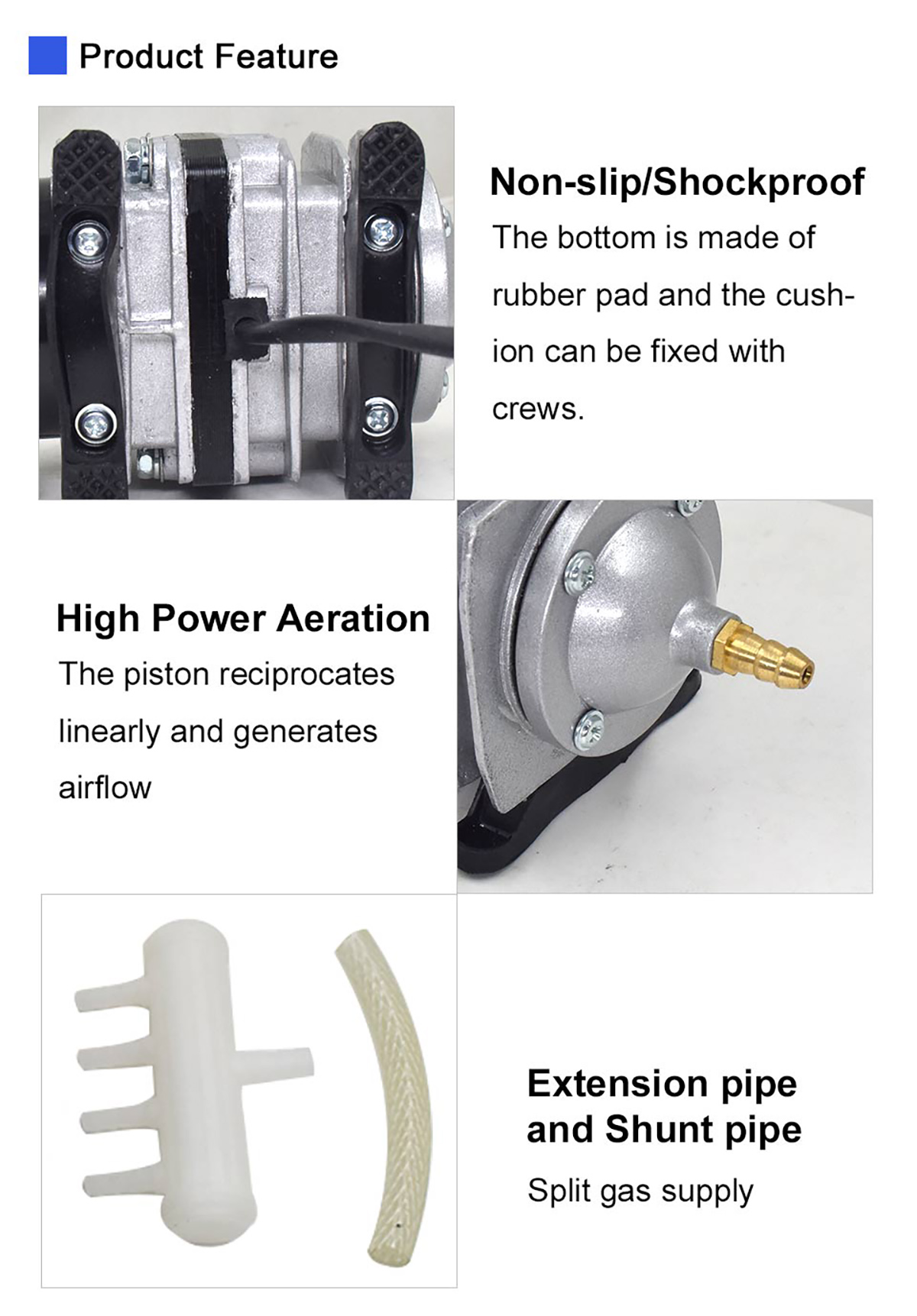

NO6: Air Pump

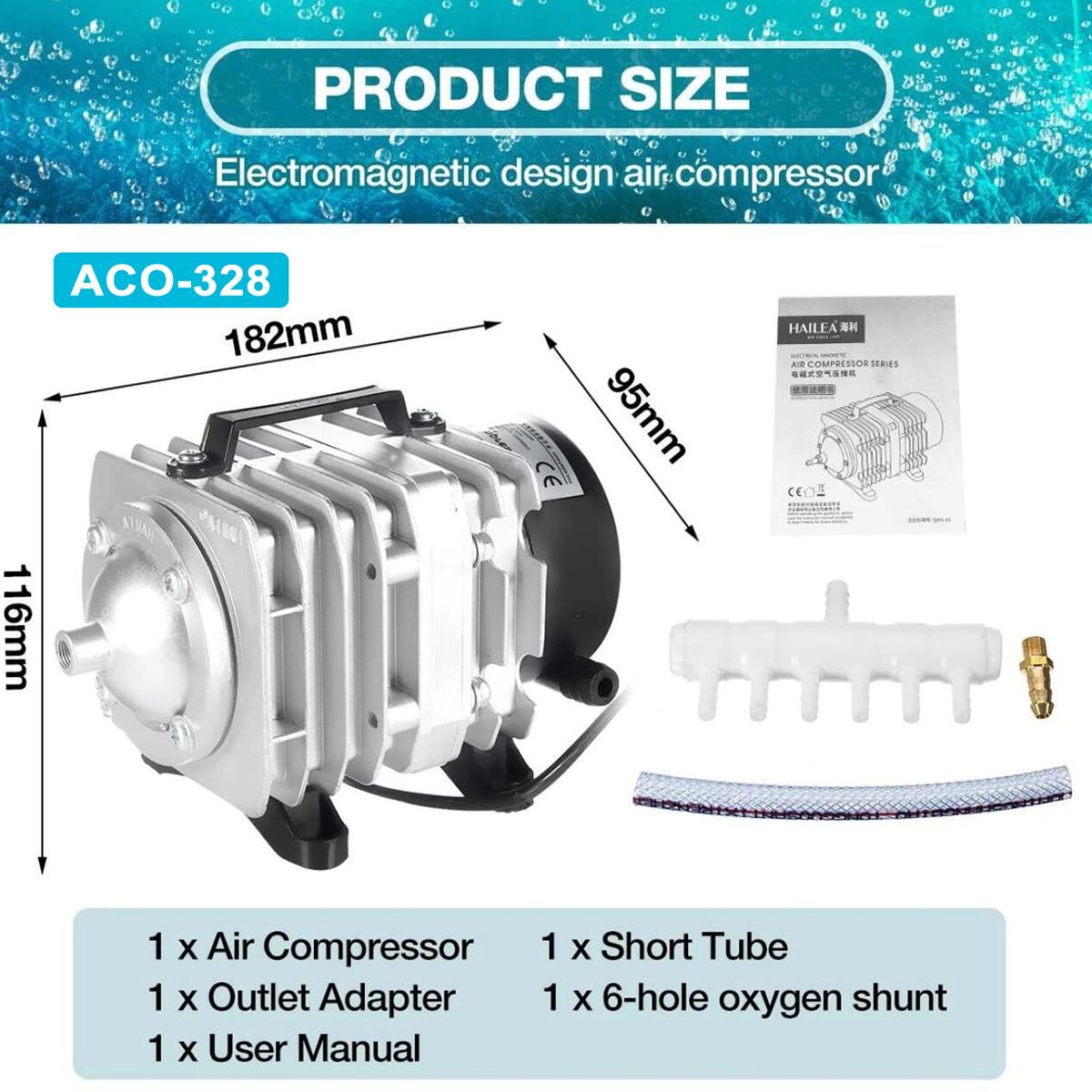

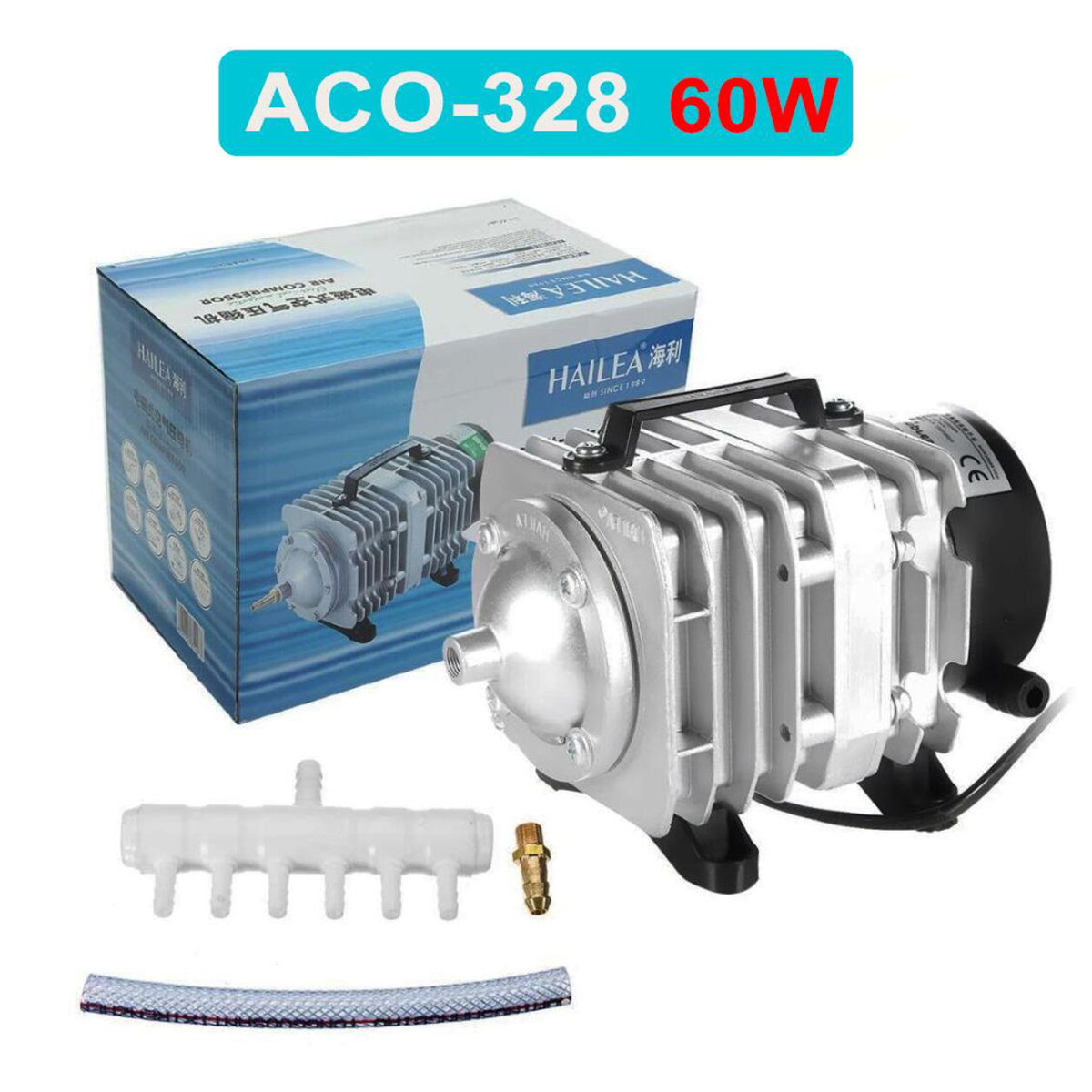

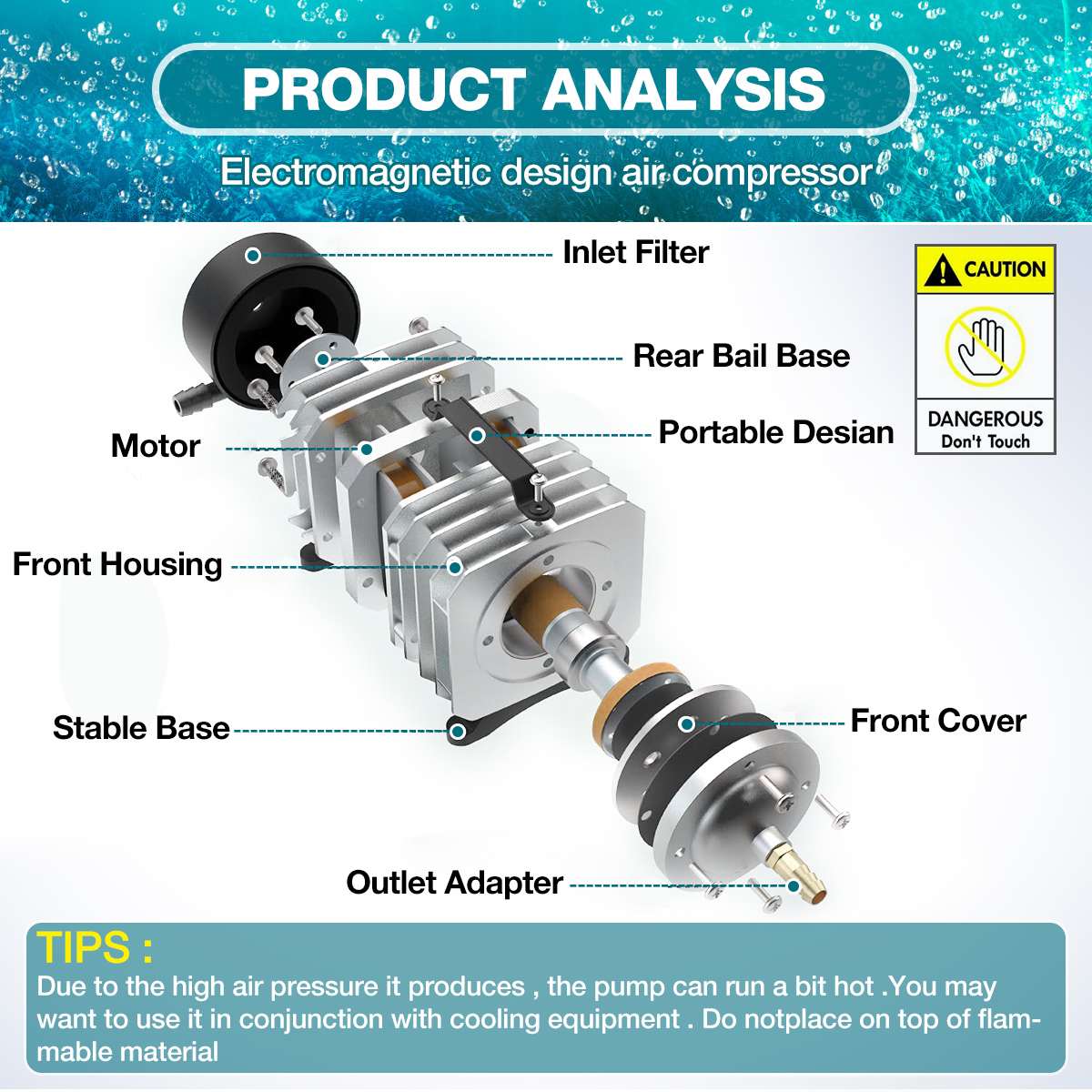

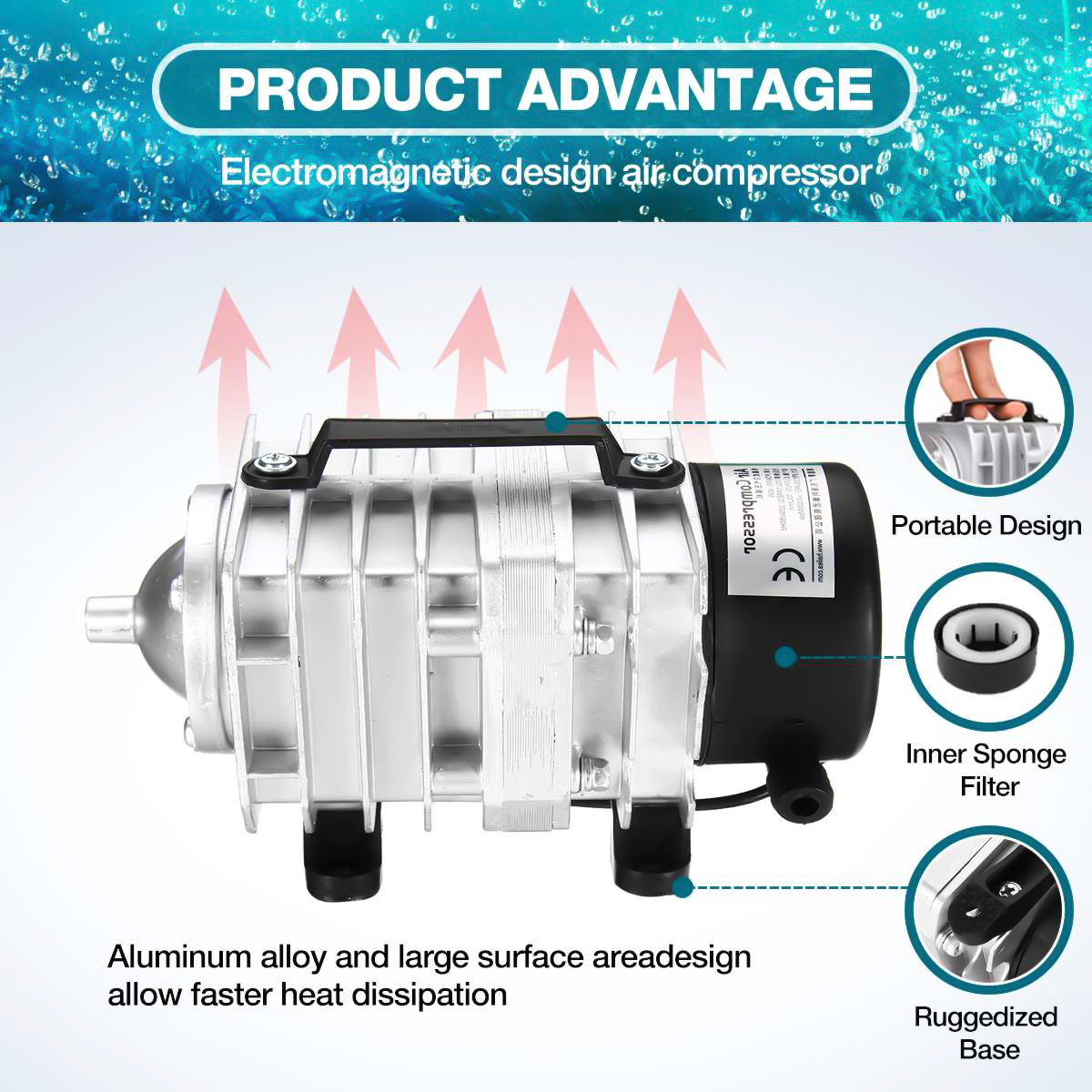

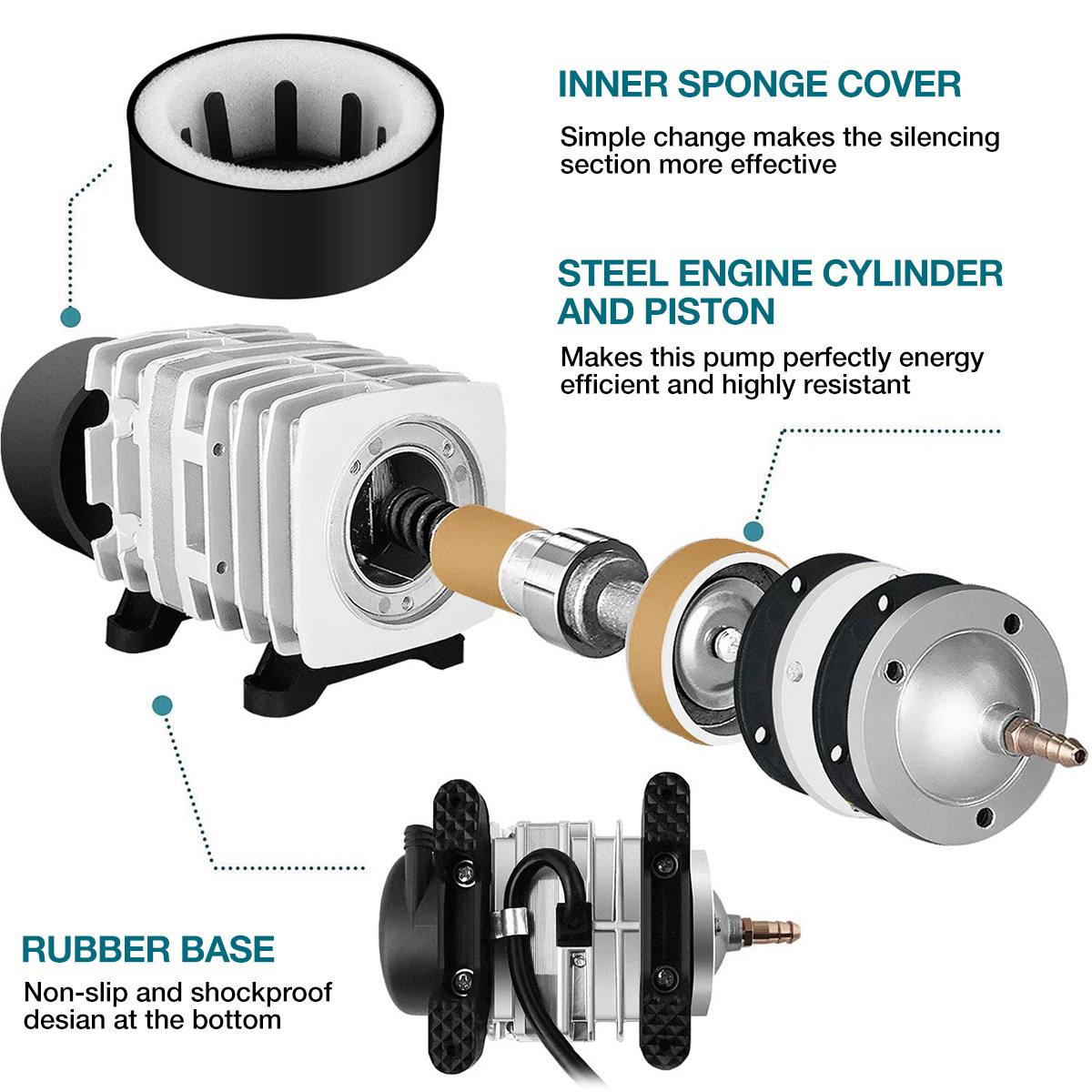

Air Compressor Electrical Magnetic for ZBAITU EAIR  Laser Engraving Cutting Machine,Air Pump,Aquarium and Hydroponic Systems
