Description
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Origin: CN(Origin)
- Model Number: 80W Laser adj
- Effect power: 80w
- electric power: 40w
- color: black
- laser color: blue
- wavelength: 450nm
- input: 12V 4A
- Material: Aluminum alloy

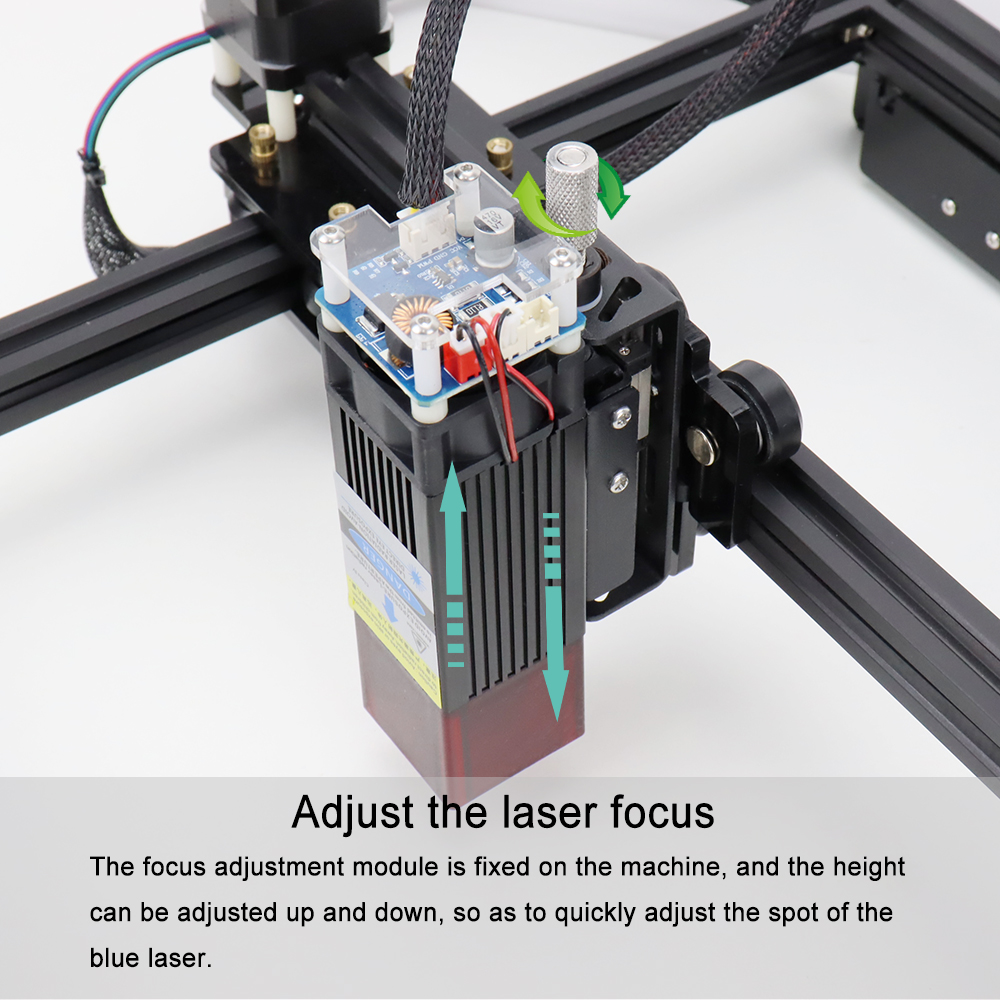

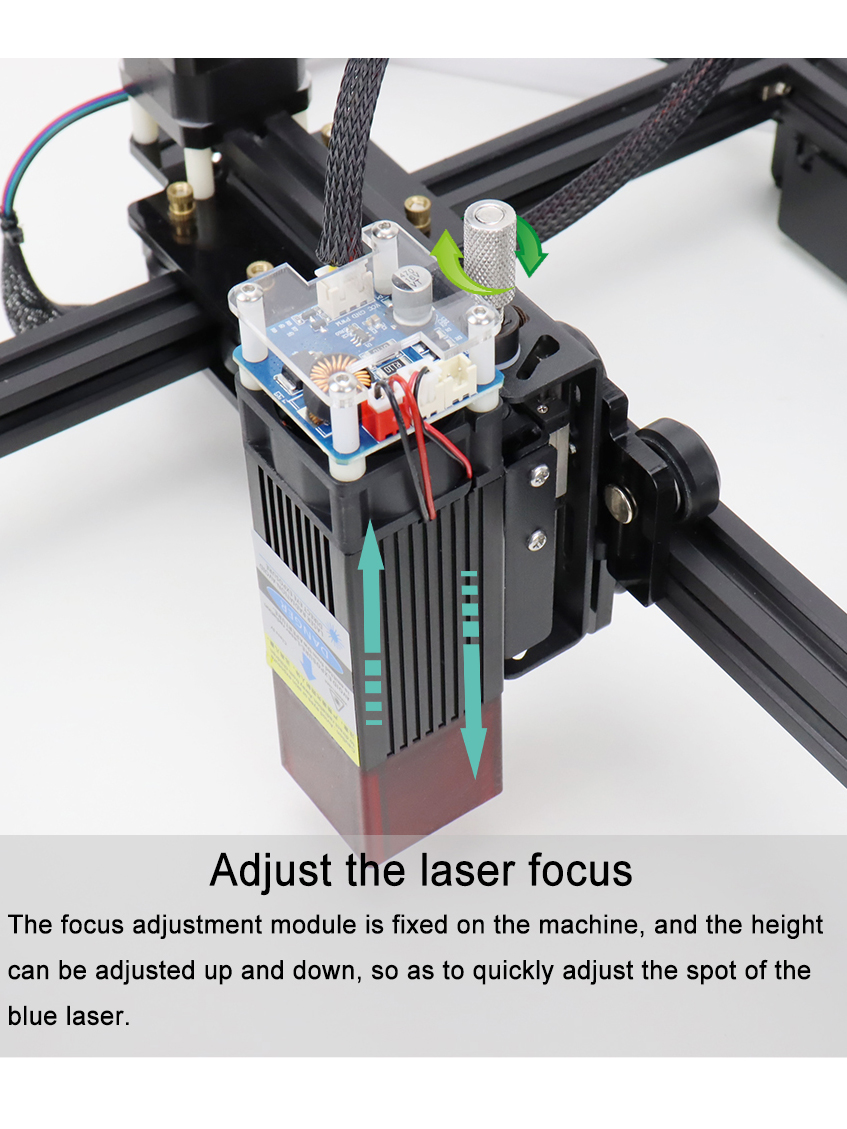

- fixed focus: 45mm
- adjustable power: 5V PWM modulation
- Interface parameters: TTL signal control power
- M1: Laser module
- M2: Laser head
- M3: Laser Tools

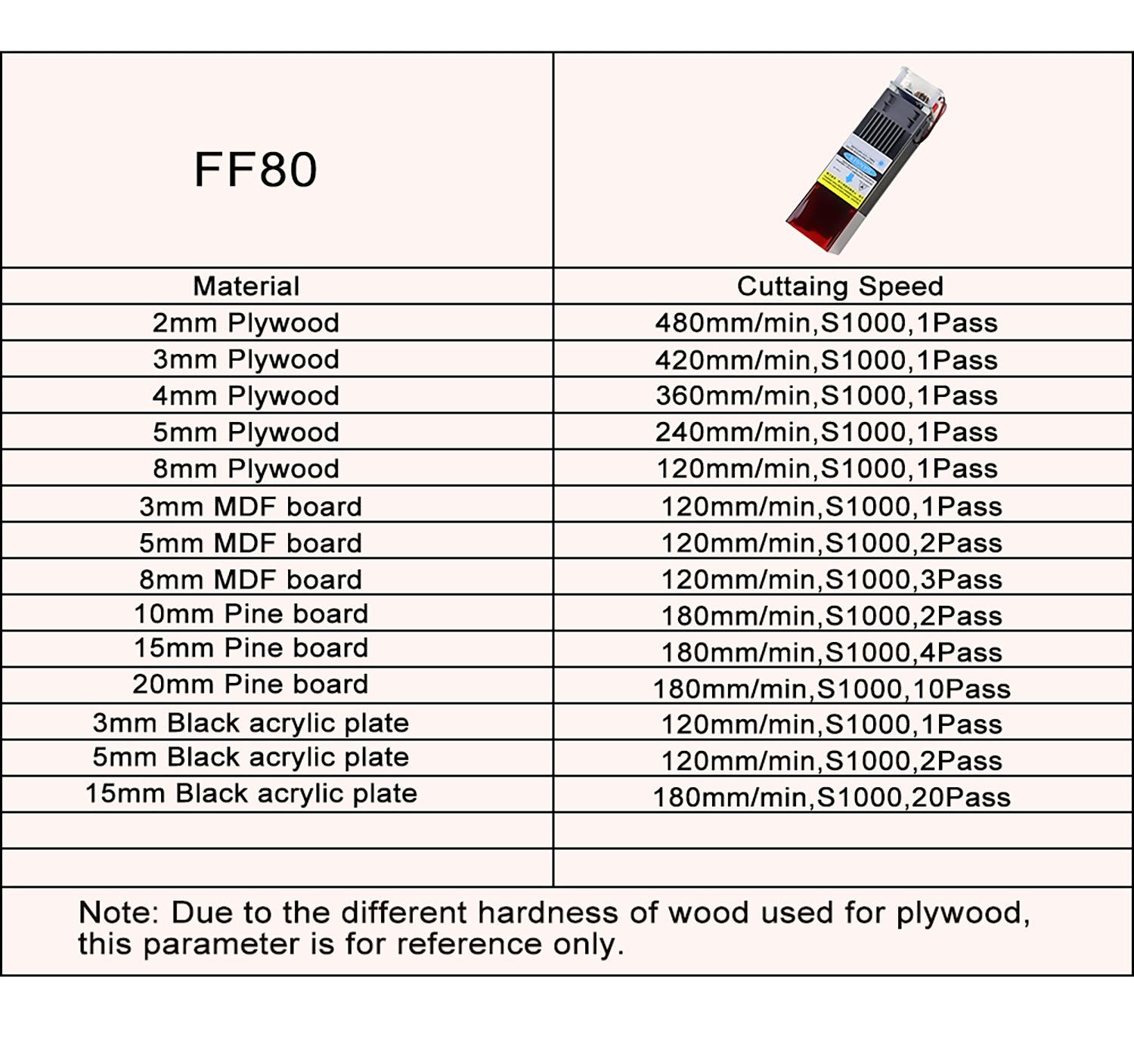

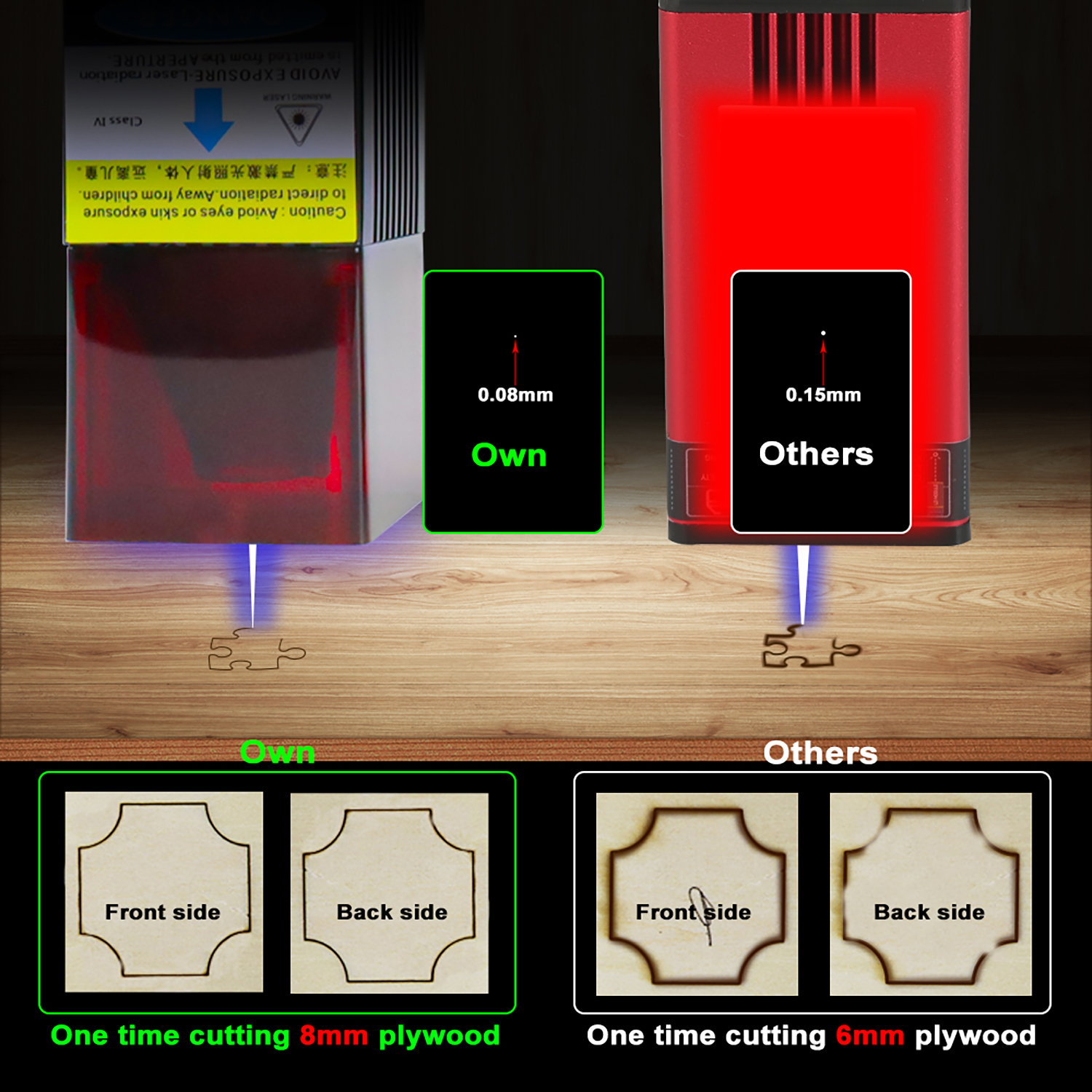

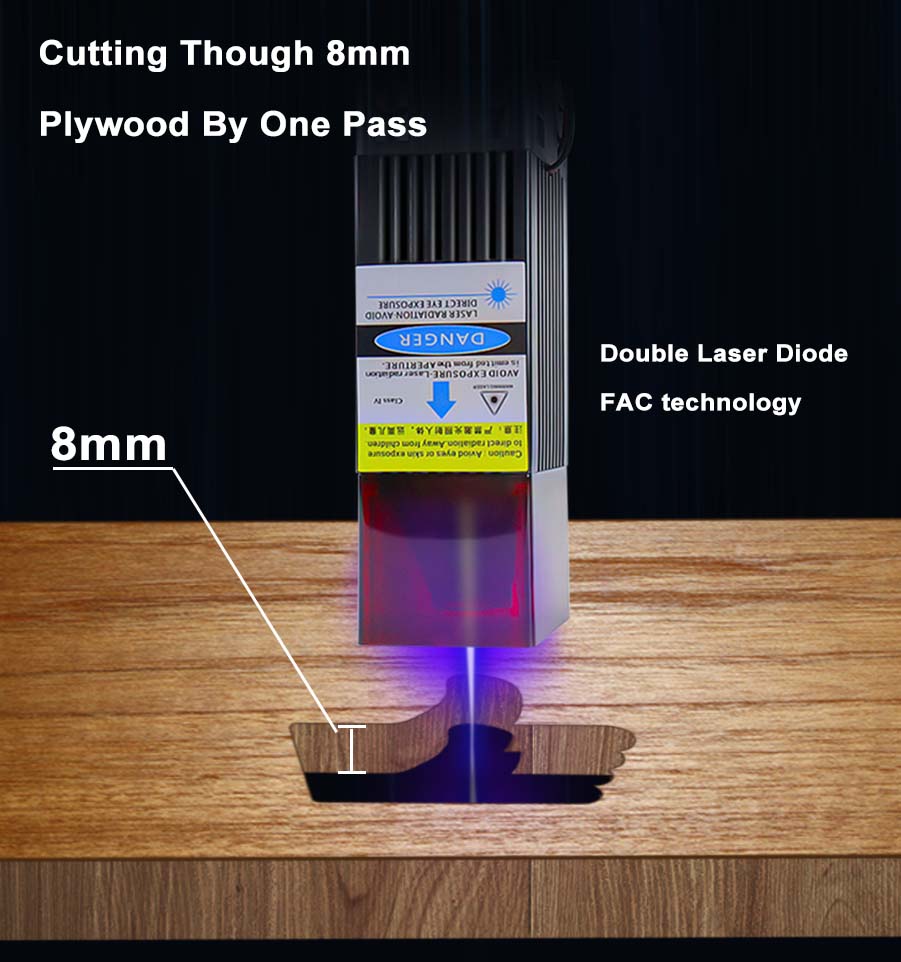

ZBAITU laser module laser head, FF80 Professional cutting module, cutting 8mm plywood one pass, With regulator, wood tools CNC
Product description

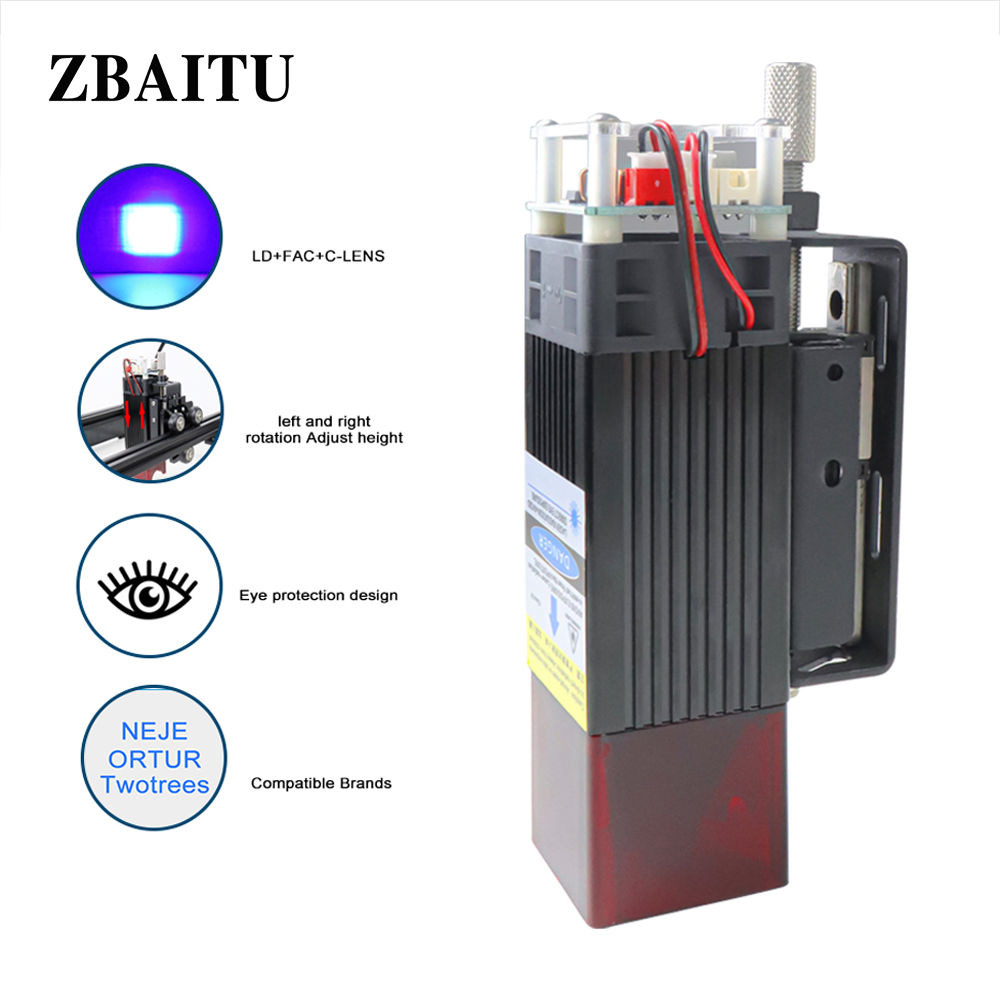

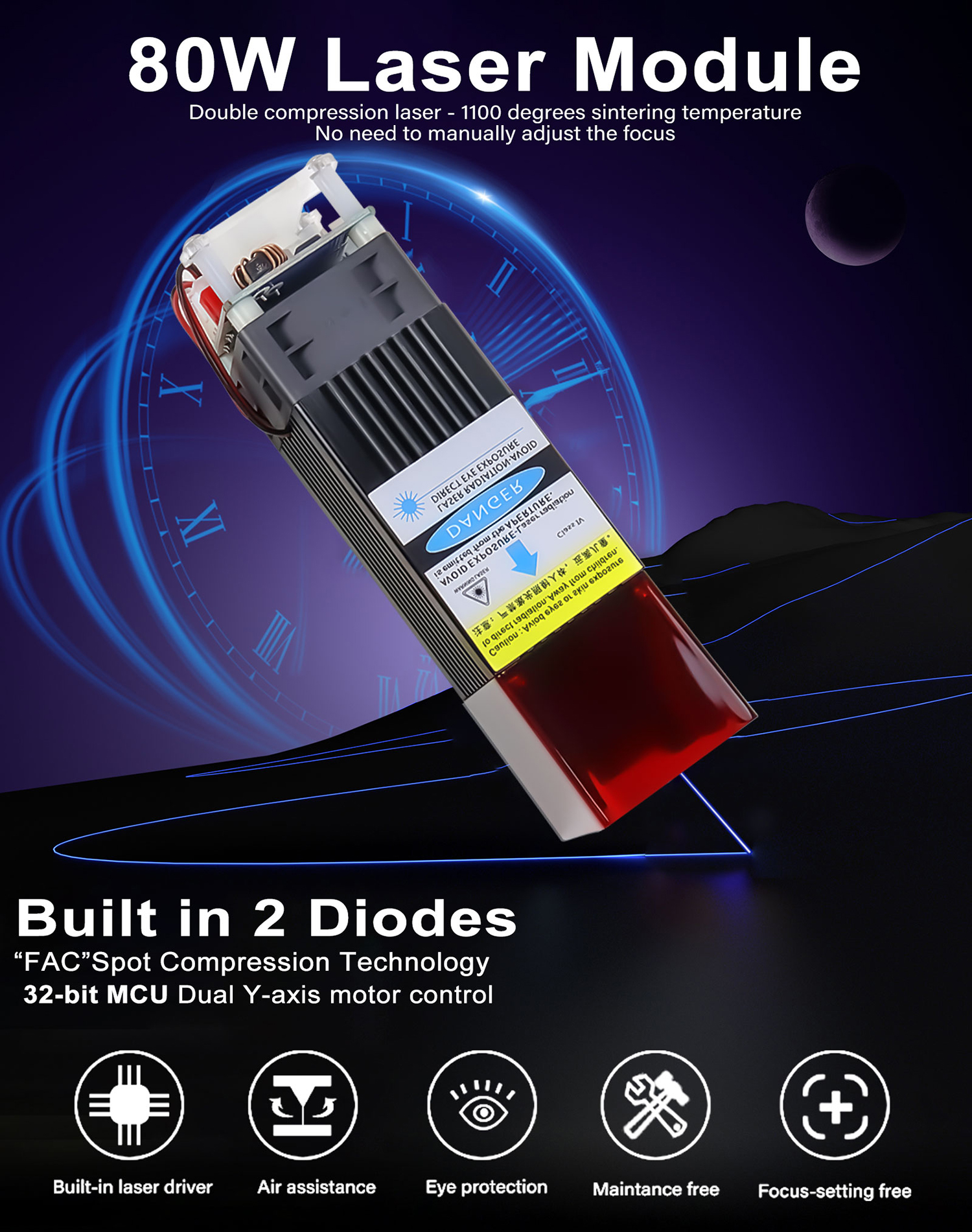

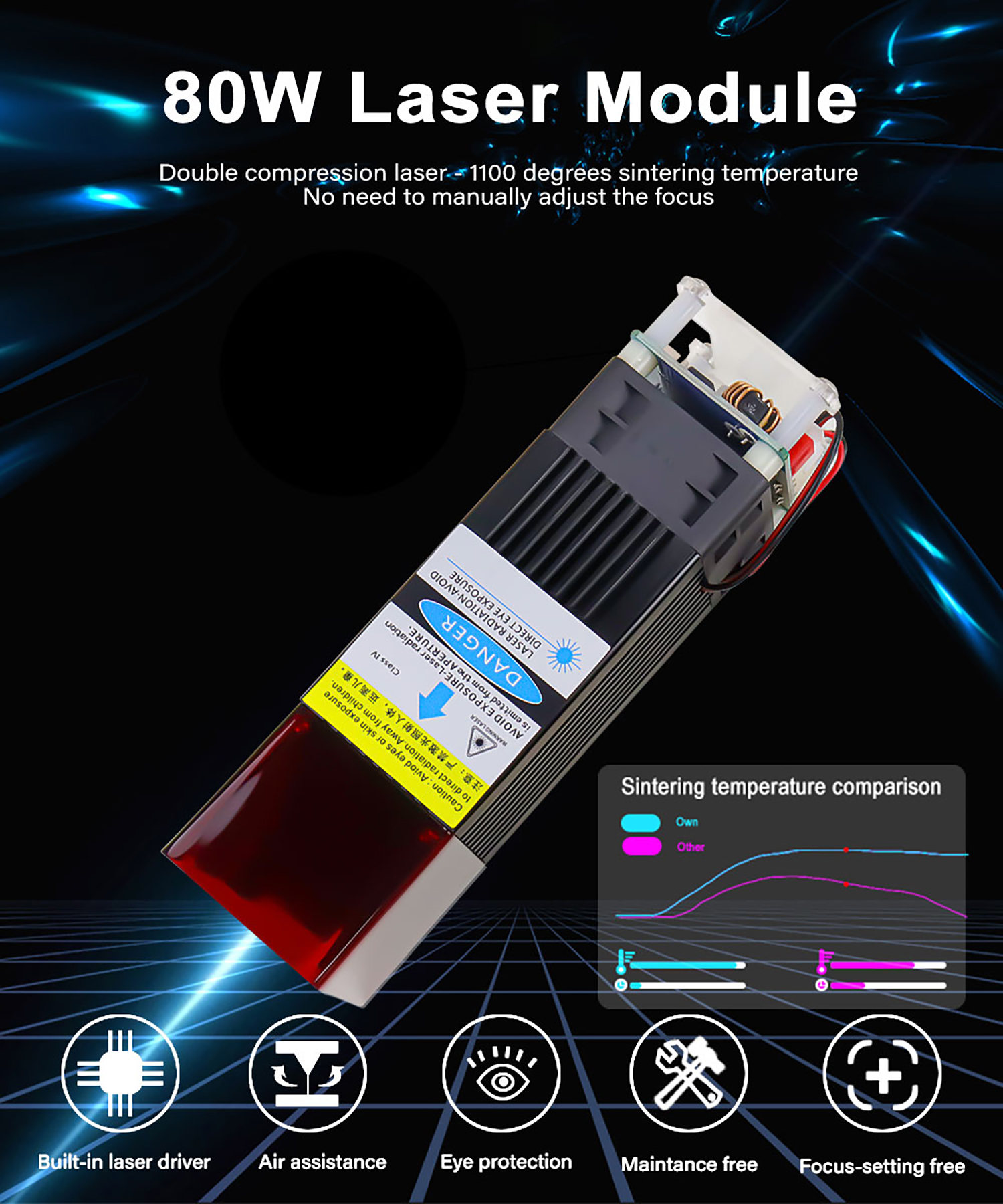

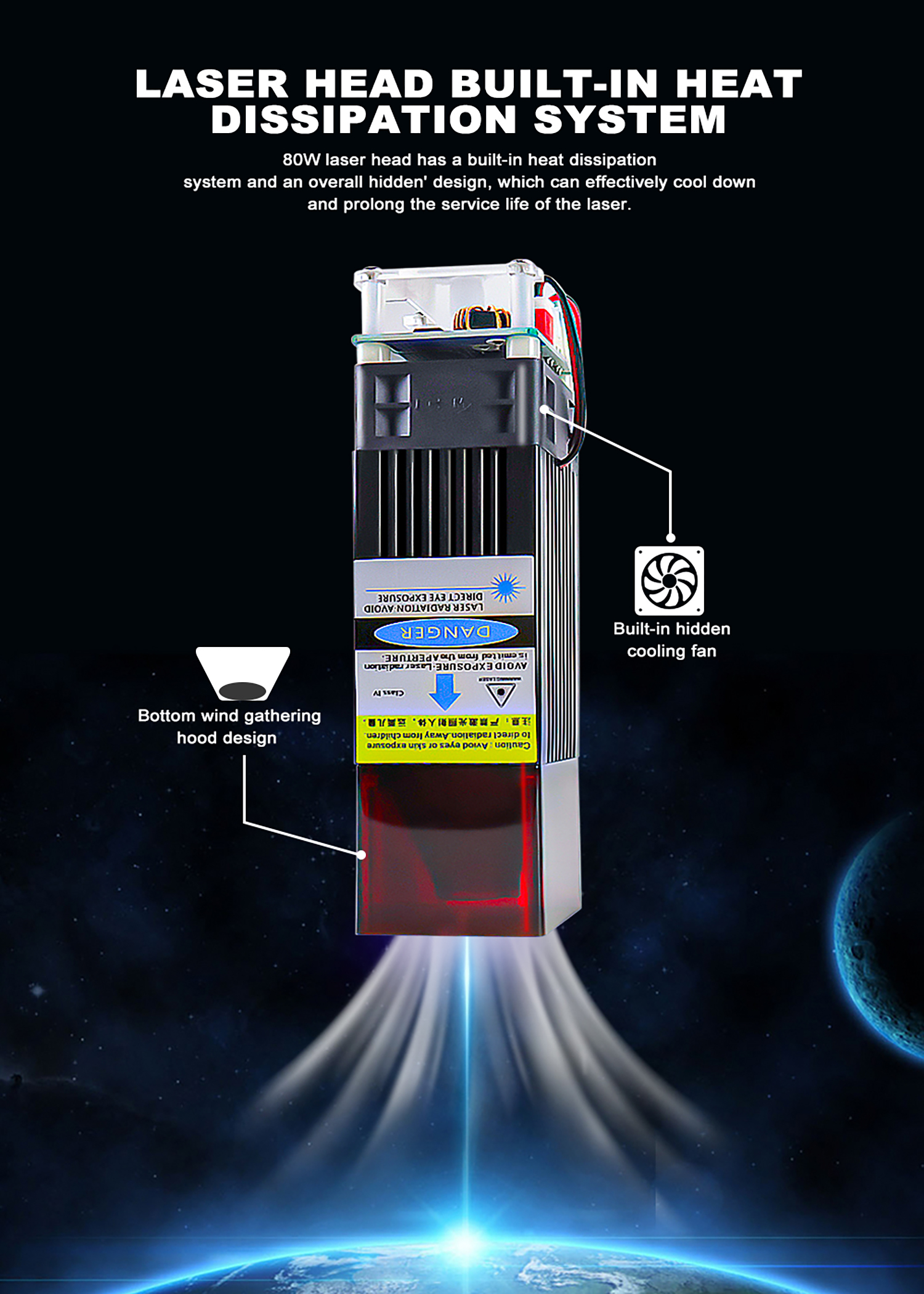

Newly upgraded 80W blue laser module, powerful engraving and cutting ability. suitable for CNC milling machine and MASTER engraving machine.
Specification
-Effect ouput power: 80W
-Electric power:40
-Input: 12V 4A
-Material: aluminum alloy + plastic
-Wavelength: 450nm

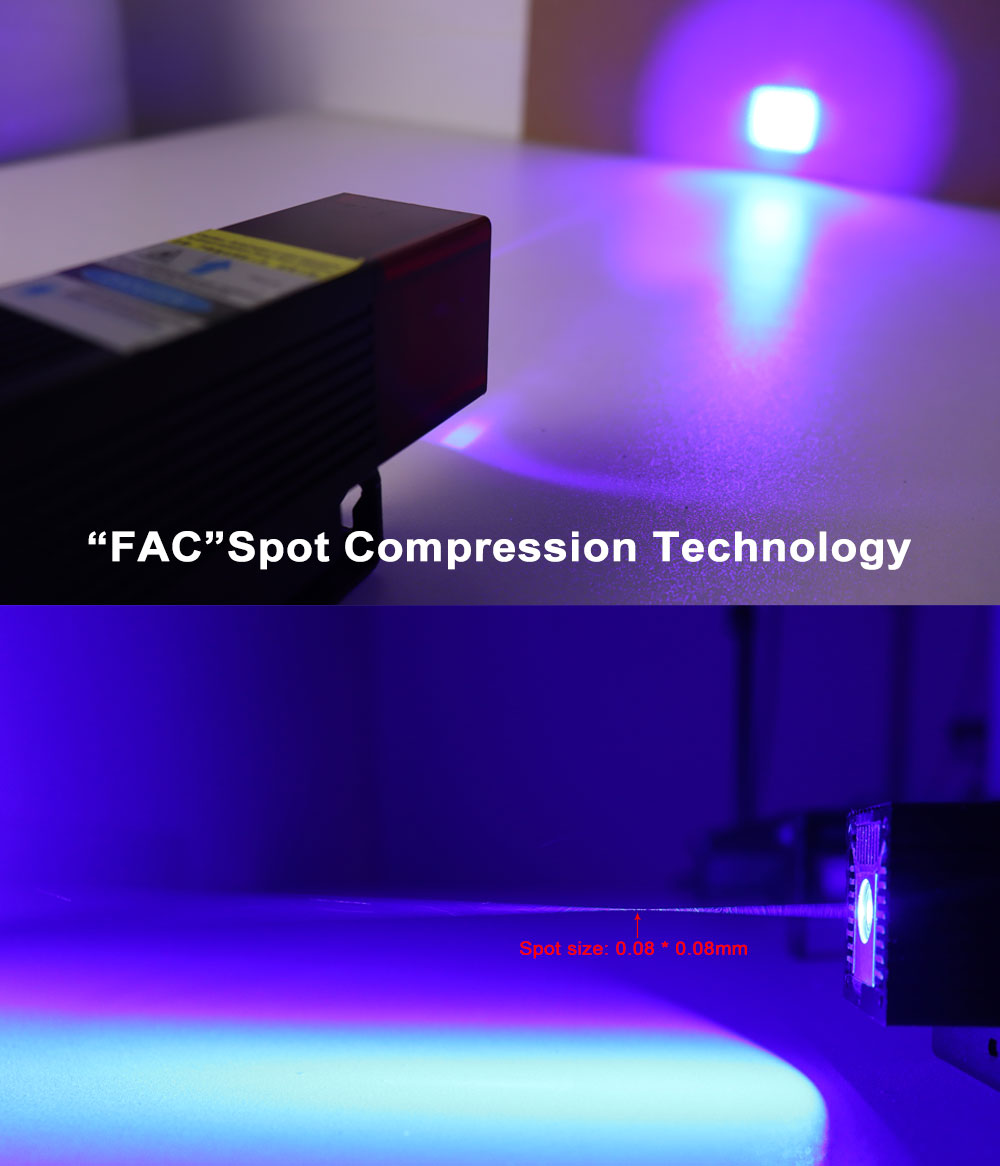

-Beam size : (0.08mm*0.08mm)
-Precision:0.08mm

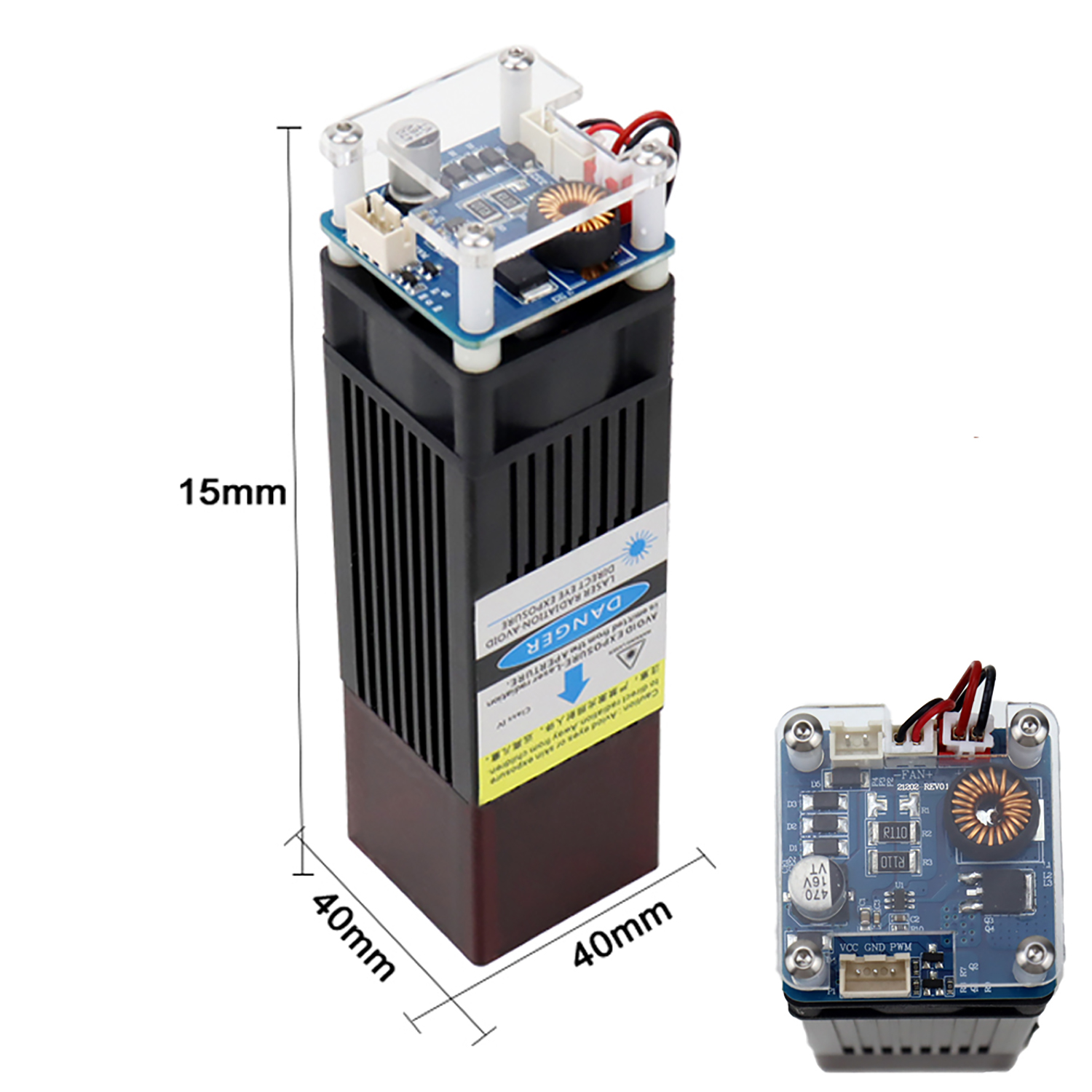

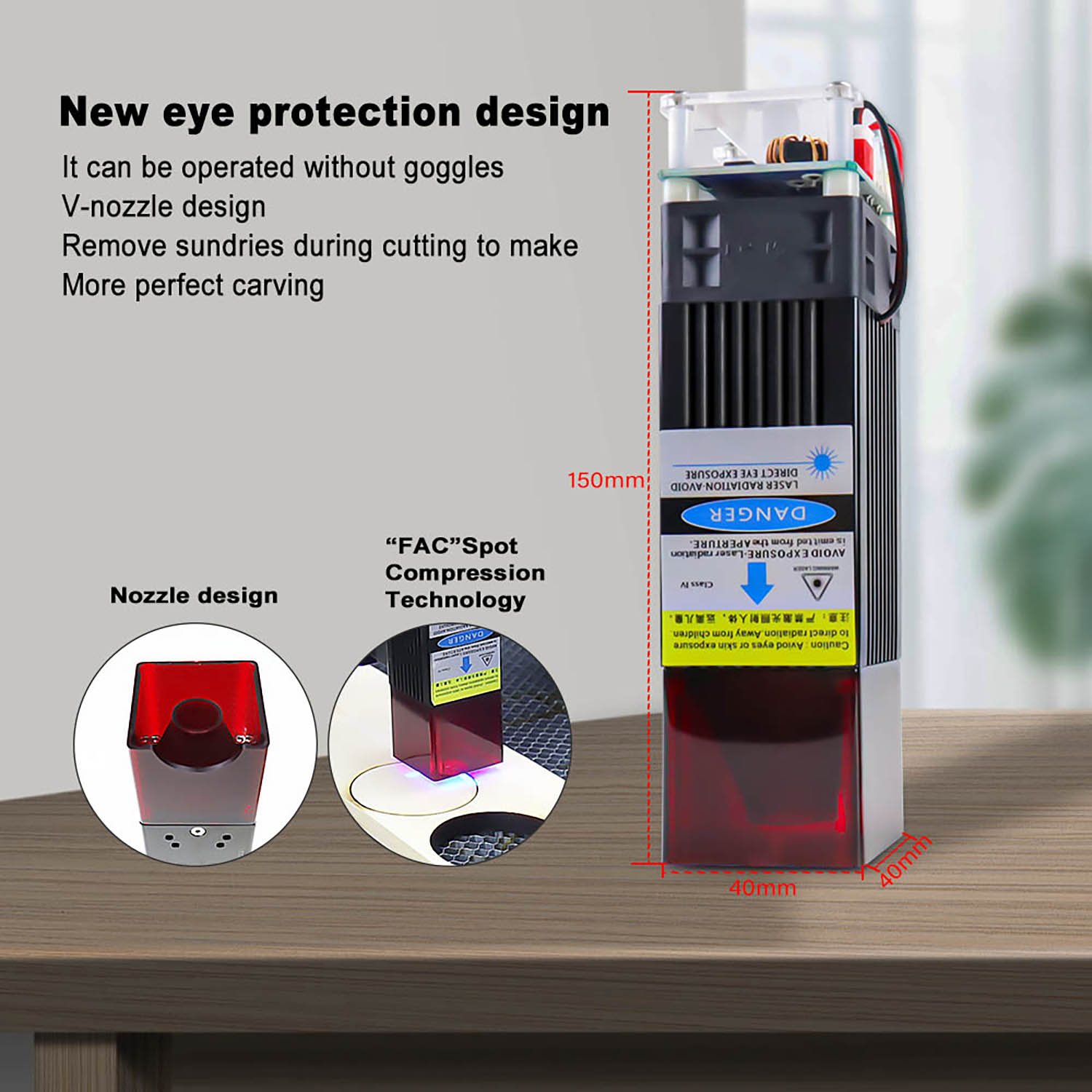

-Module Size: 40*40*150mm
-weight: 0.3kg
Package Include
1* (Laser Module)
1* (3pin cable)

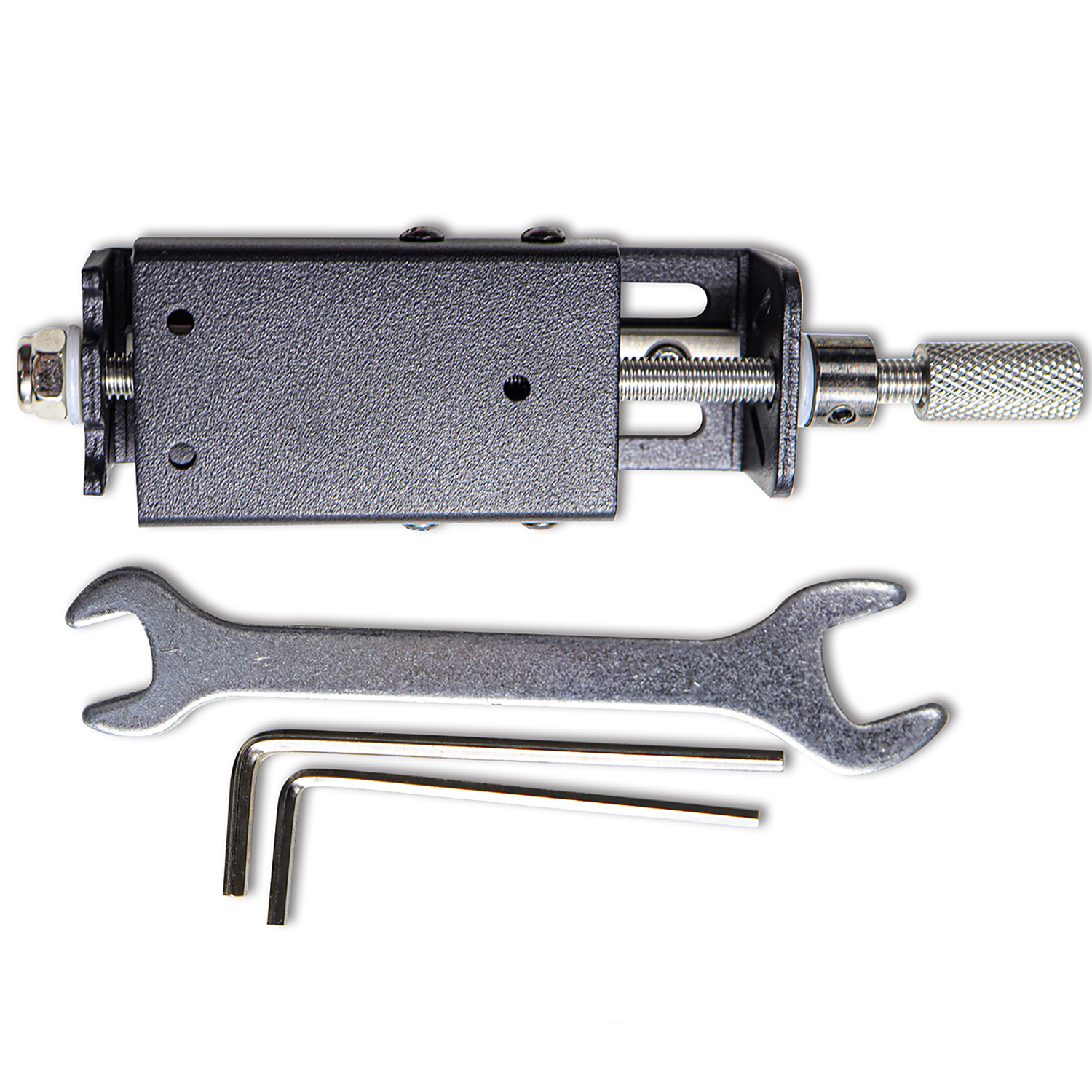

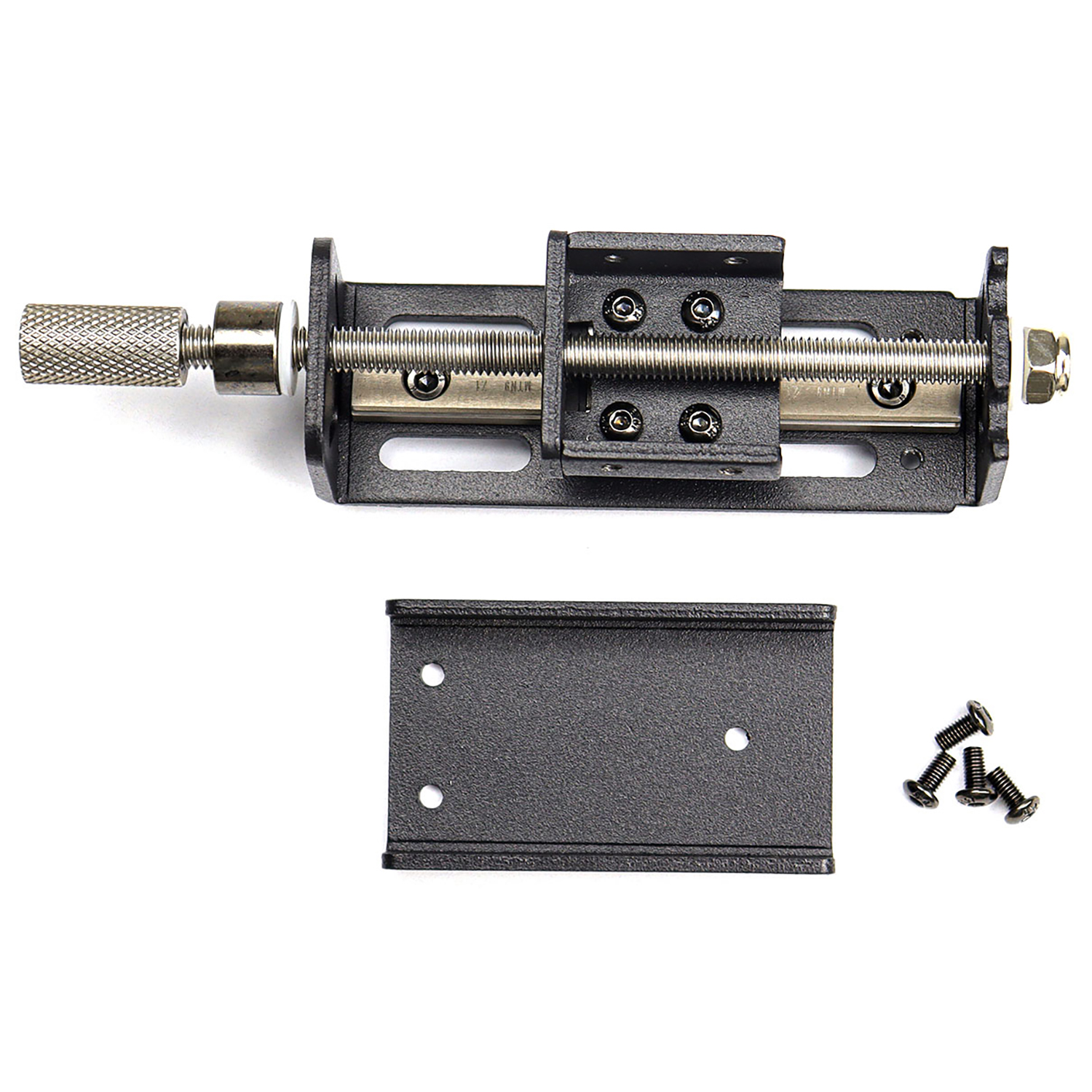

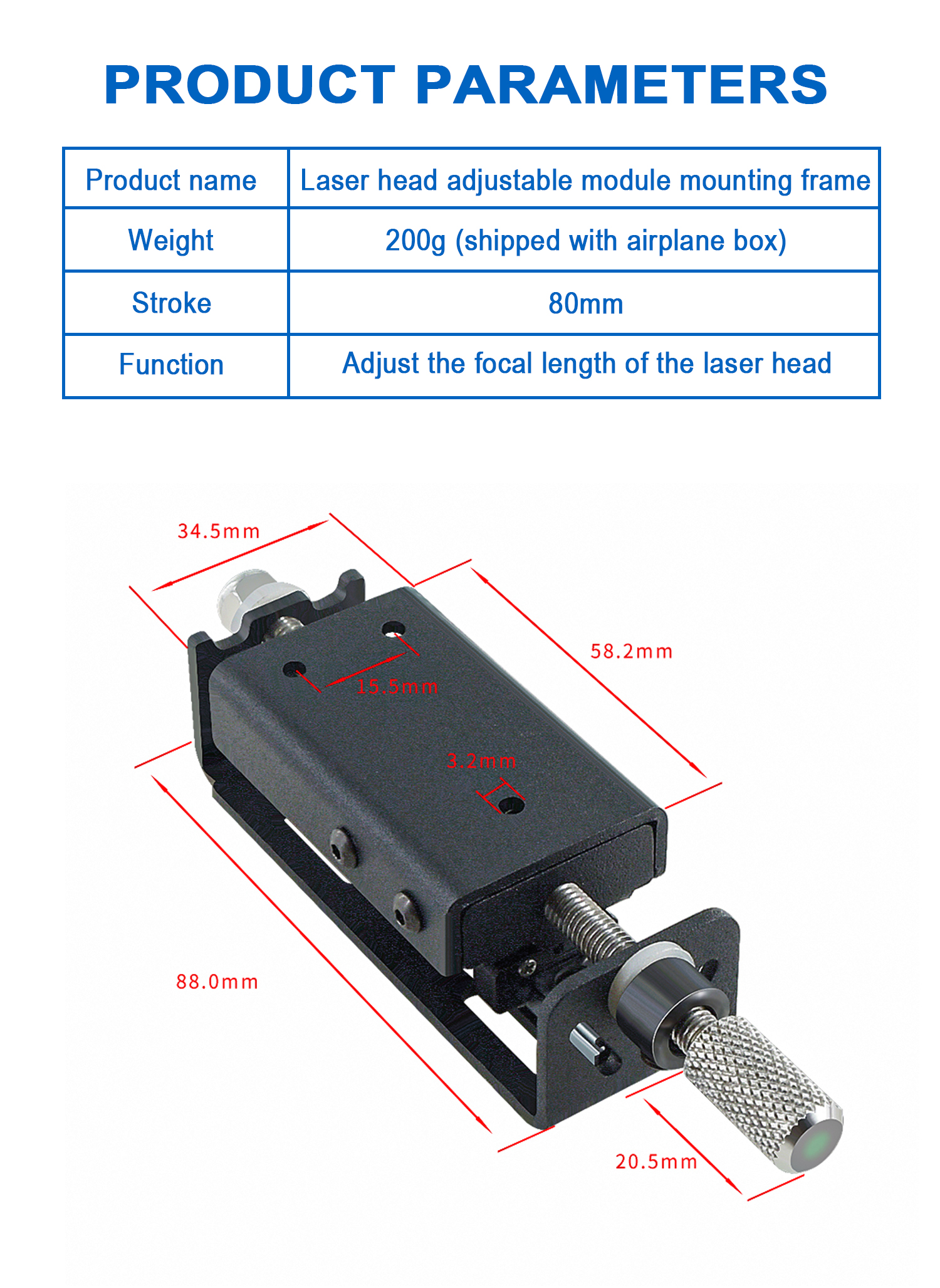

1* Slider (Optial)
FQA :
Q: 20w/40w/50w/60w/80w/90w is the higher the better of number? how should I choose?
A:In fact, 20w/40w/50w/60w/80w/90w is only the output power of the machine, not the key to determining the engraving/cutting effect. The output power of the laser module is the key point. If the output power of an engraving machine is 90W, and the output power of the laser module is 5~5.5w, That’s effect is not much different from that of a machine with a 40W output power and 5~5.5w laser module output power. you can choice which meet your needs.
Q: Why is the title says 80W, 40W, but the Laser is 10W or 5W?

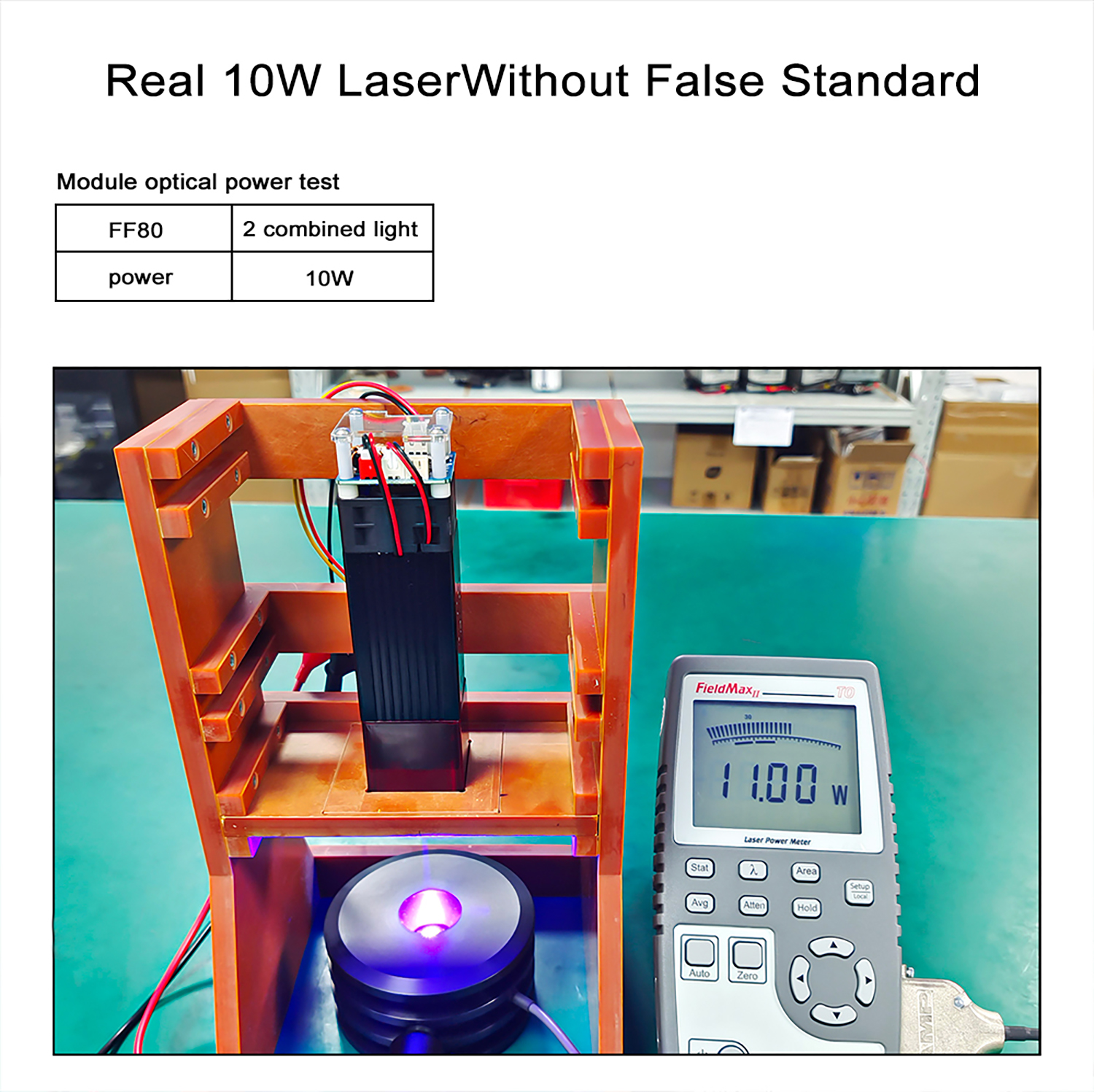

A:80w 40W is the effective power of Laser machines, its actual laser output power should be 10W/5W.
Q: Why you do you not update your software?
A:We do not sell any software, it just can be work with the machine, we can guide customer how to use it but do not have any way to update it. if you have any question about using software, just feel free to contact with our service team via order page on Aliexpress
Q: Why I do not get a reply?
A:Please pay attention to confirm that you are contact with
ZBAITU Global Store on Aliexpress instead of other merchants, Our service team deal with any question within 24hrs every working day.

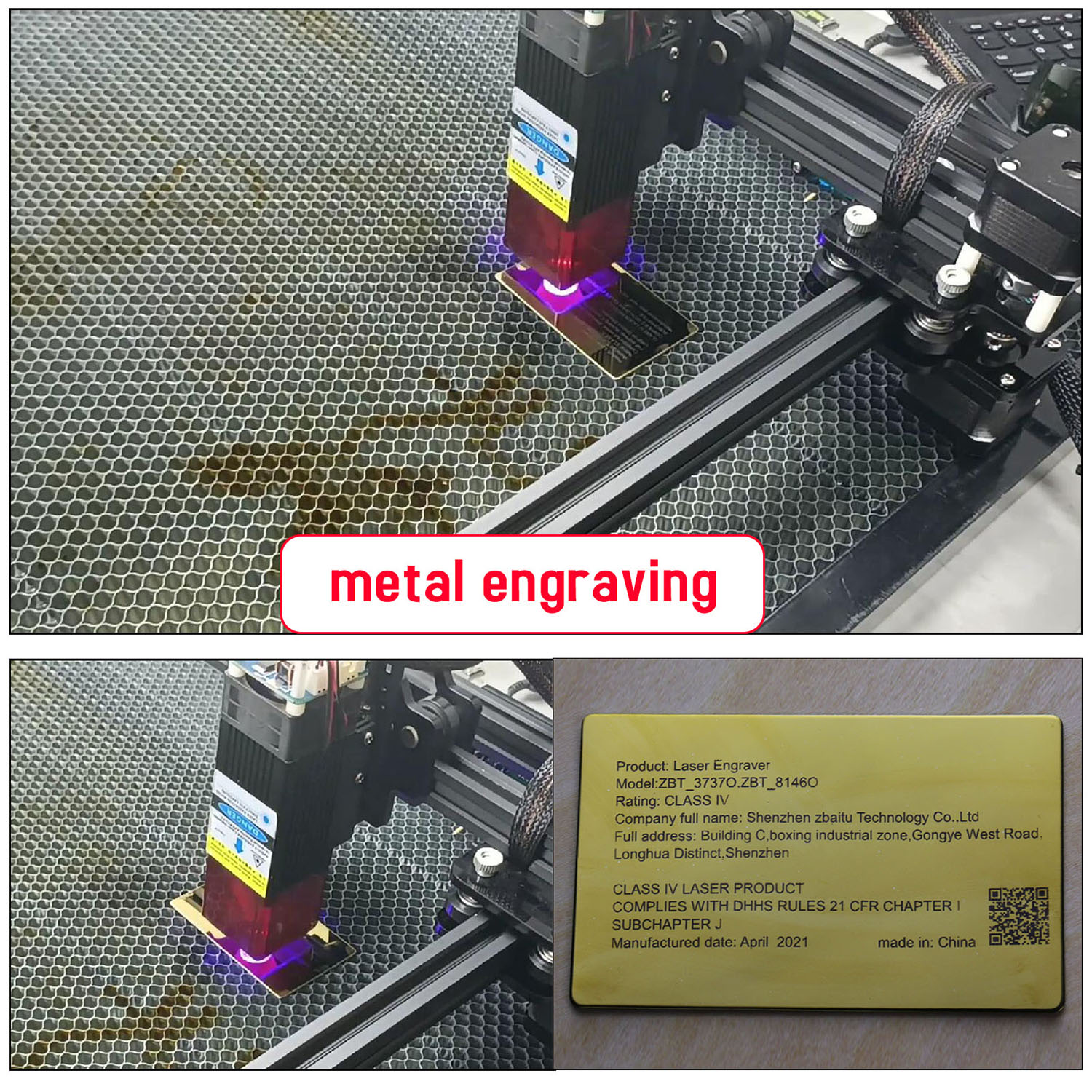

Q: Is it possible to engrave metal?

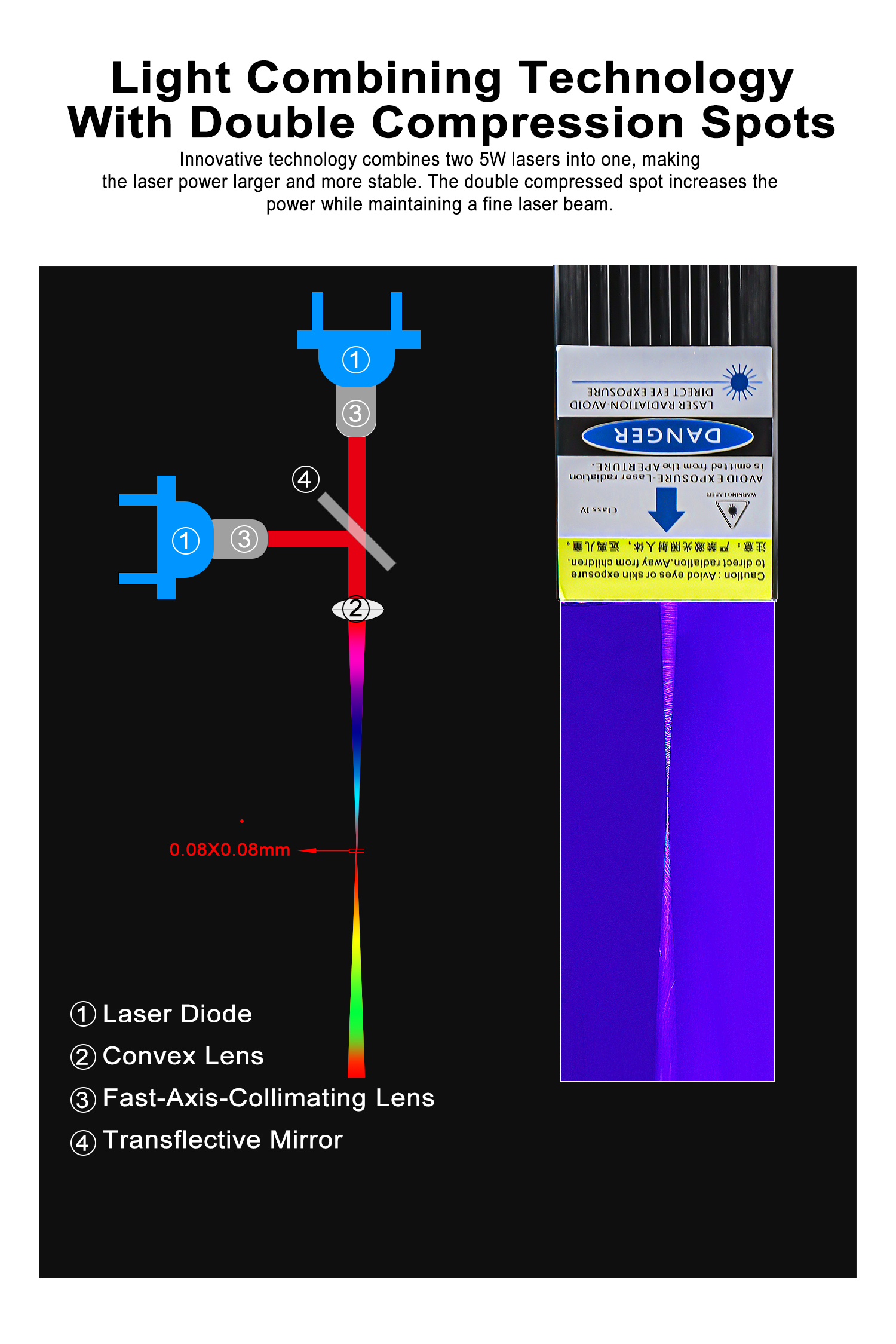

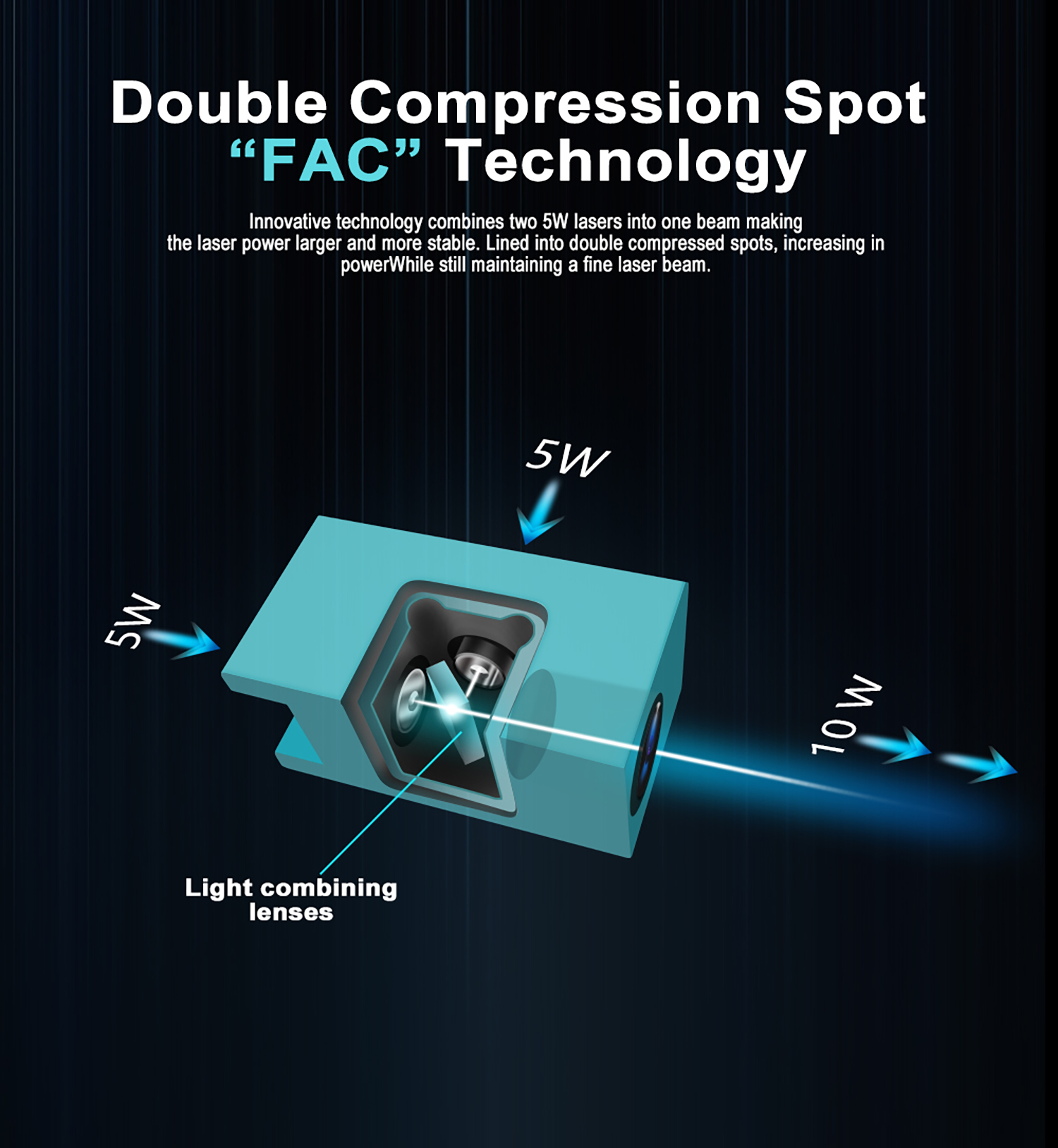

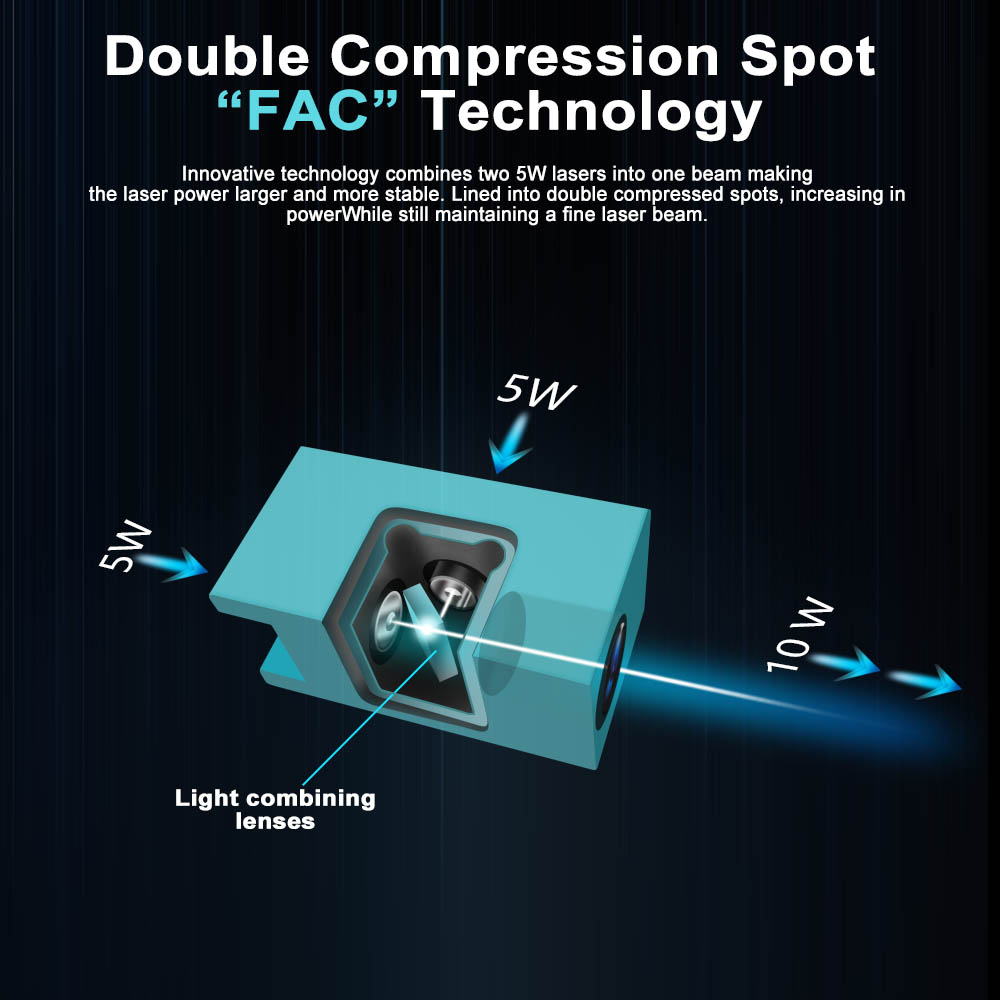

A:Yes, the ZBAITU laser Engraver uses compressed spot technology with a spot size of only 0.08mm and supports engraving stainless steel and various coated metals.
Q: Can this machine only cut dark acrylic?
A:Yes, the laser cutter can cut dark acrylic, but not transparent acrylic.
Q: Is there user manual?
A:Yes, there are user manual in paper in the box, also some assembly videos.
Q: Can i get a assure after purchase?
A:Of course,ZBAITU Global Store provide 100% satisfied for sure,you can enjoy 1 year of free replacement for any accessories. you just need pay for the shipping cost.
