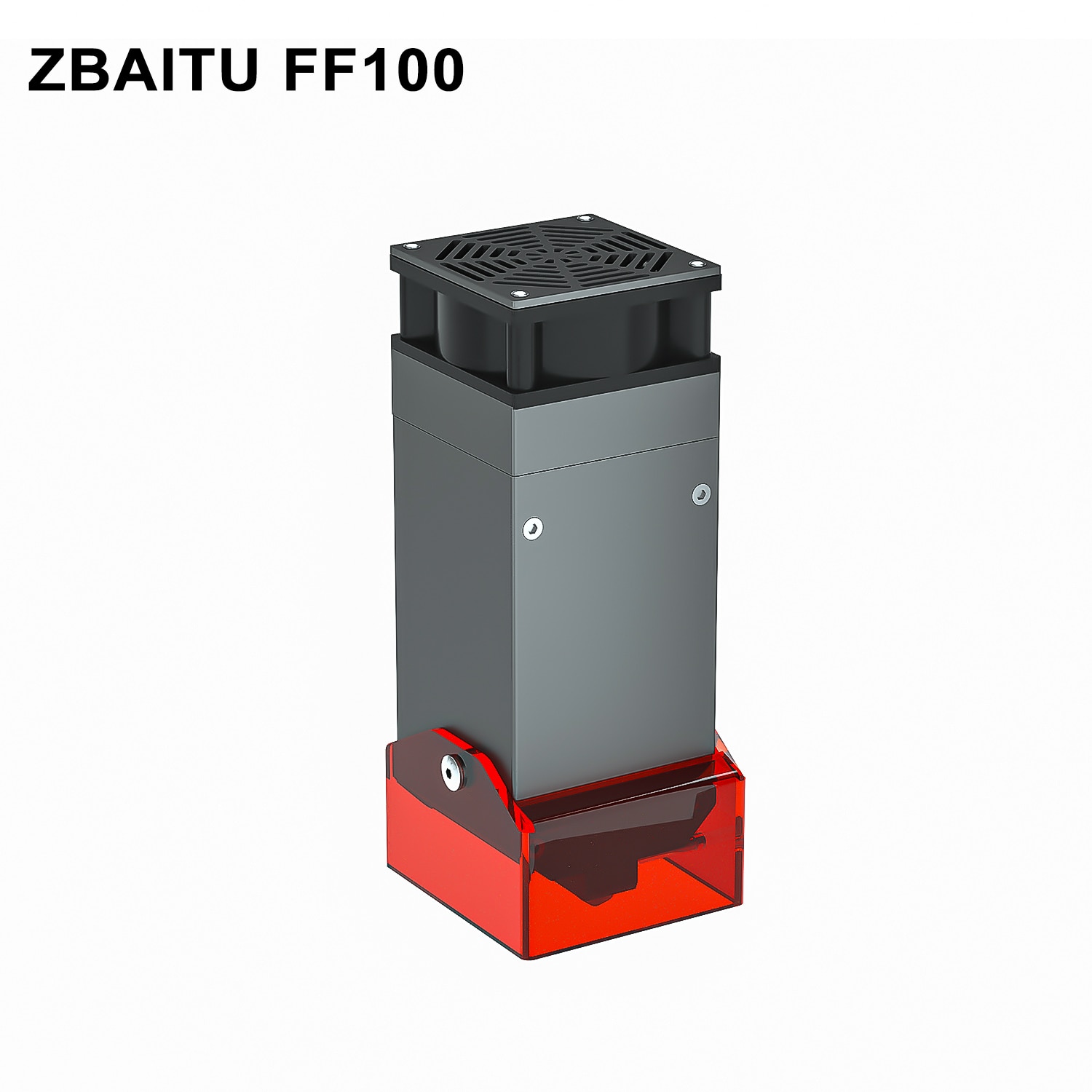

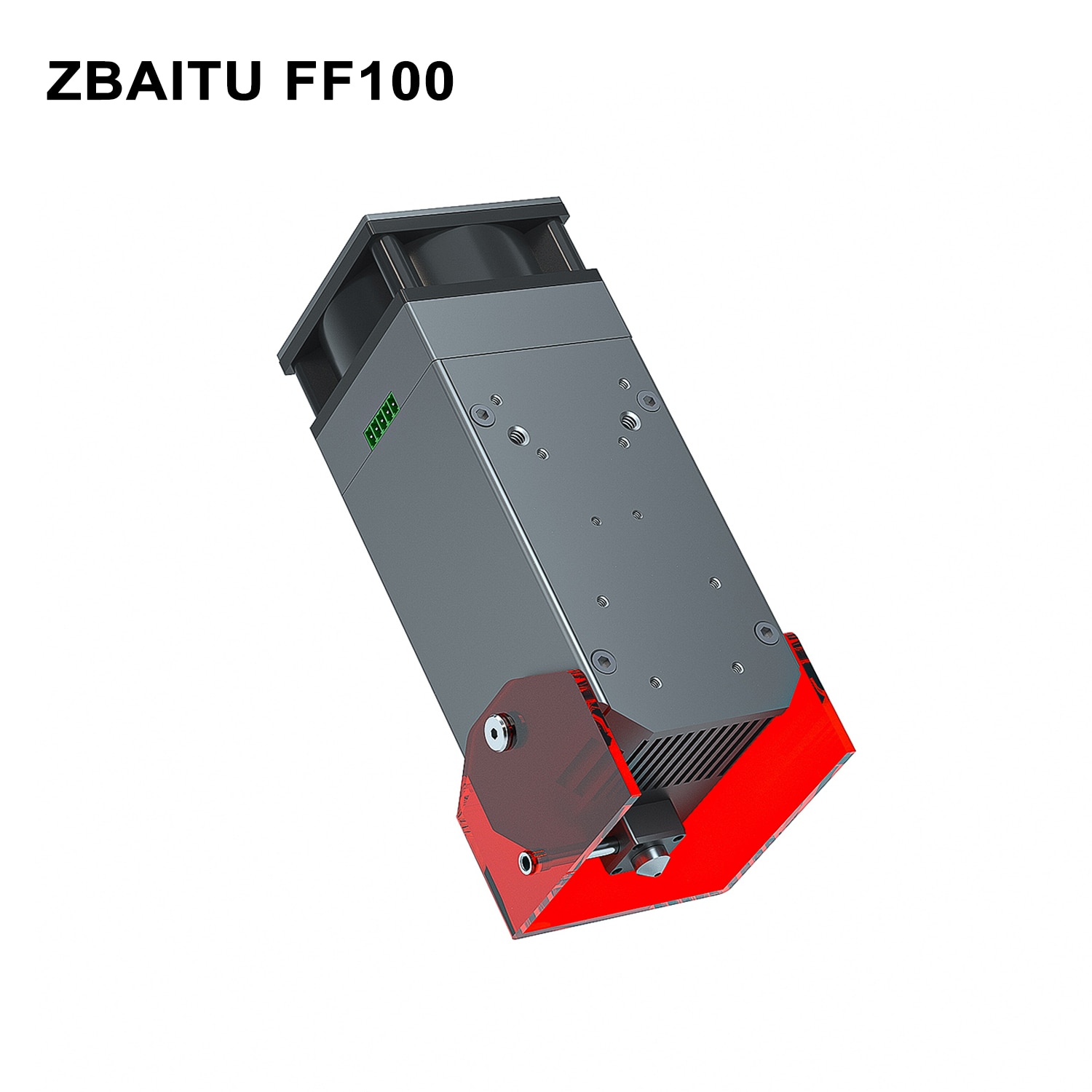

ZBAITU FF100

The First 3 in 1 Diode Laser

12mm Solid wood Cutting in One-PASS

6mm Black Acrylic Cutting in One-PASS

Built-in Powerful air assist kit

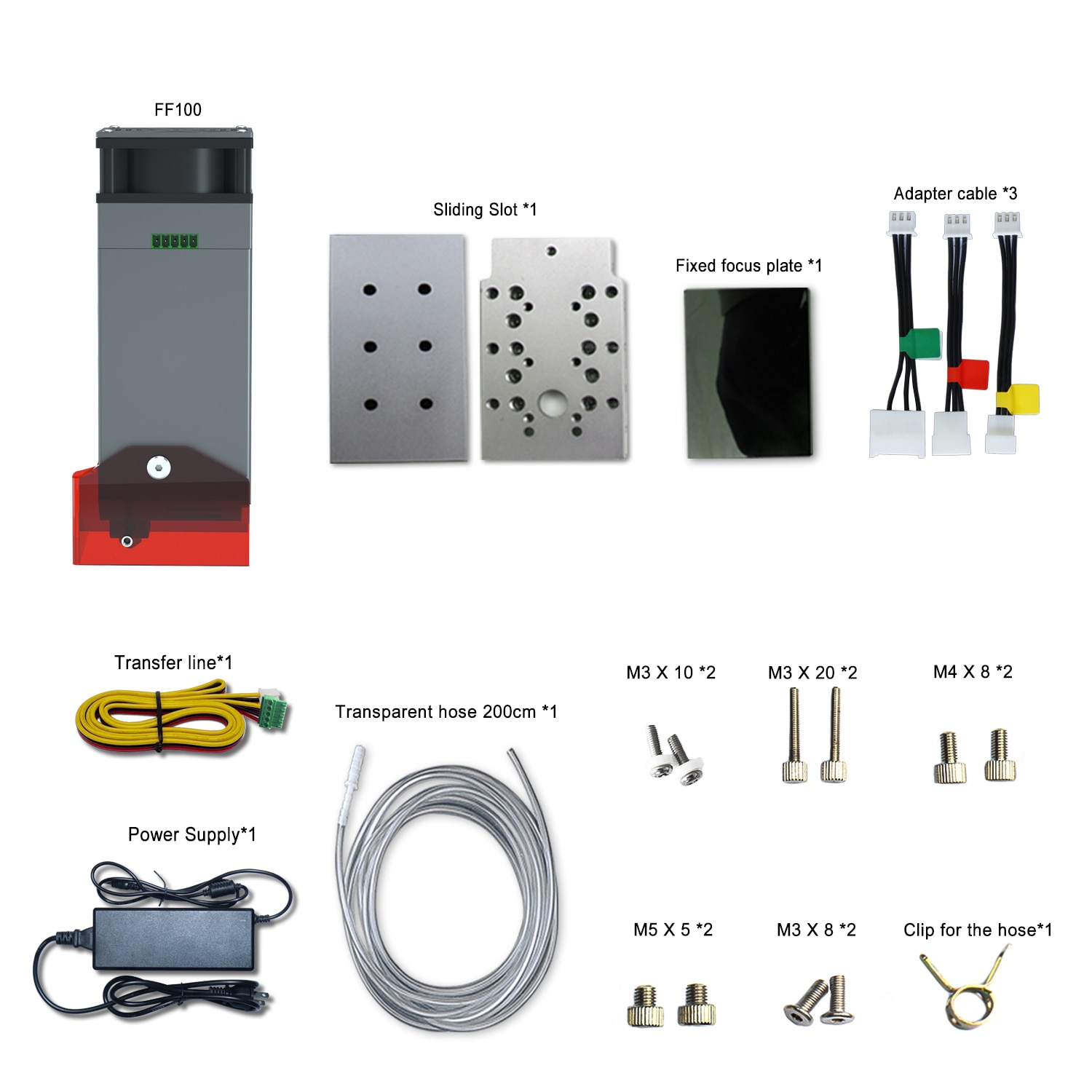

Matching wires, Installation tools, Power Supply

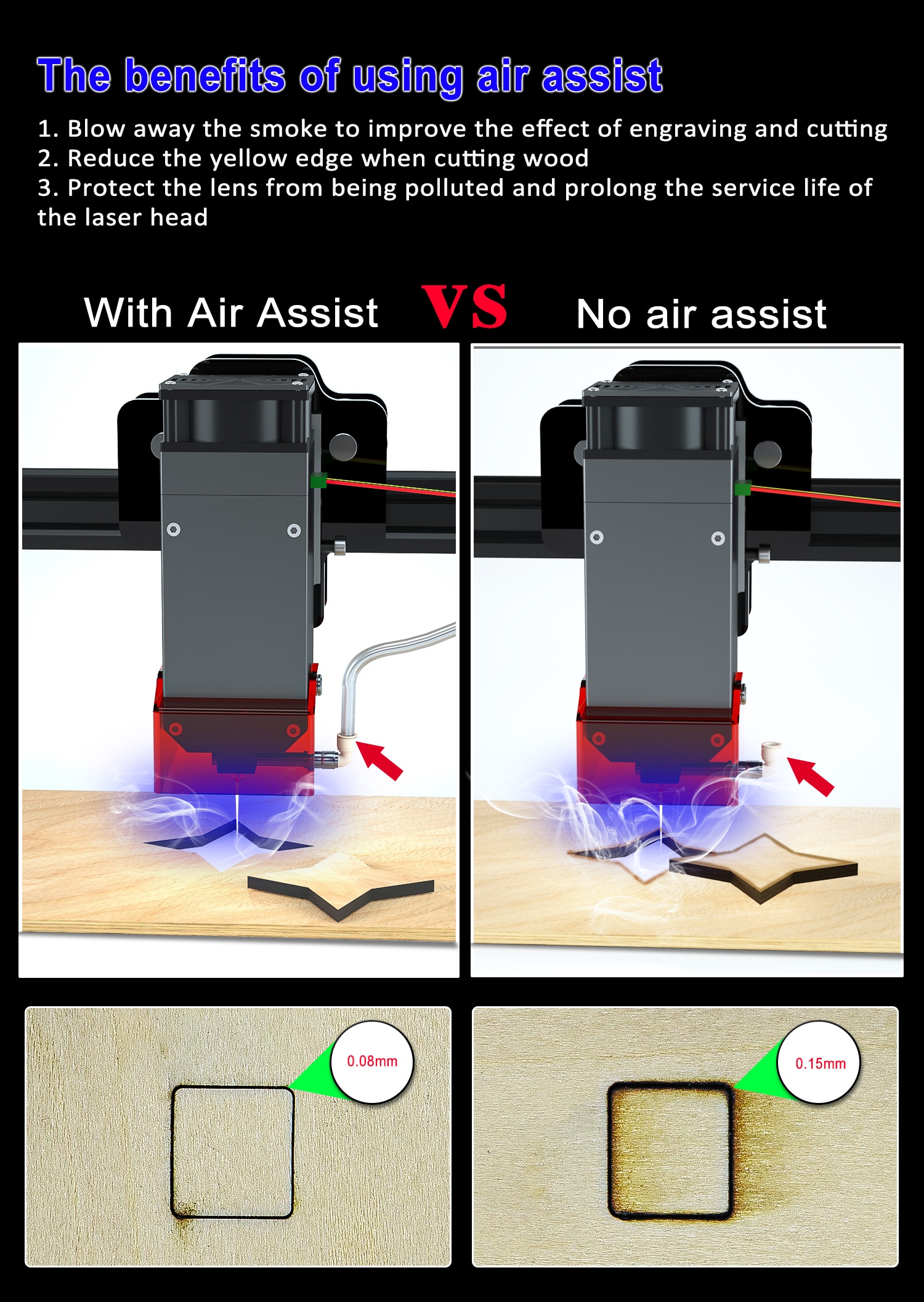

The benefits of using air assist

1. Blow away the smoke to improve the effect of engraving and cutting

2. Reduce the yellow edge when cutting wood

3. Protect the lens from being polluted and prolong the service life of the laser head

Features:

1. Equipped with air-assisted system, which is extremely helpful for cutting and engraving, reduce the yellow edge.

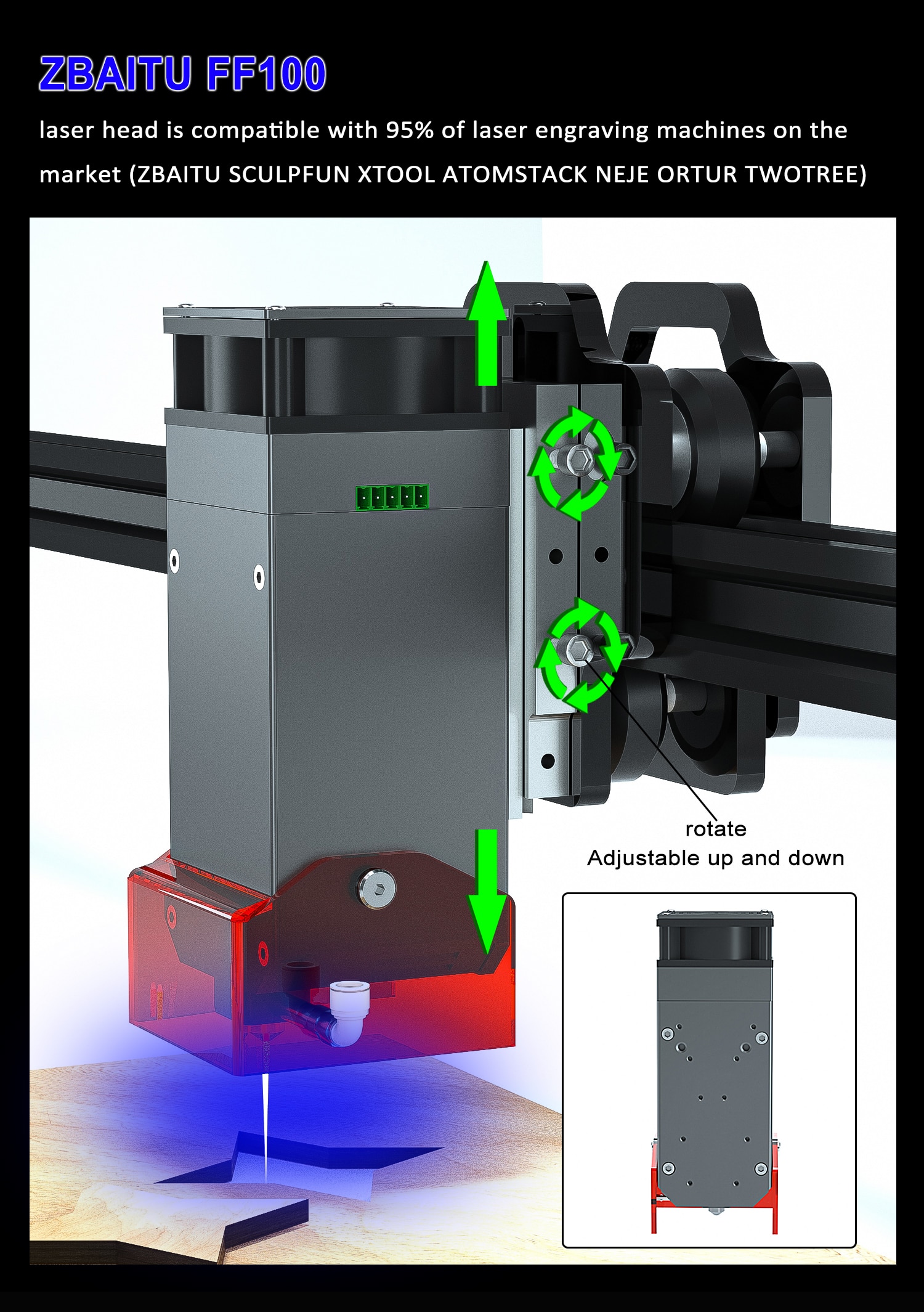

2. It works on all zbaitu frame-mounted models, just replace your old laser module.

3. Made of aluminum, strong and durable.

4. Upgraded high quality fixed-focus laser (free focus plate), no need to focus.

5. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.

6. Engraving and cutting speed is 150% higher than other 10W lasers.

7. Can work with XTOOL, Ortur, Atomstack, SCULPFUN, NEJE, Two tress and many other brands of laser engravers.

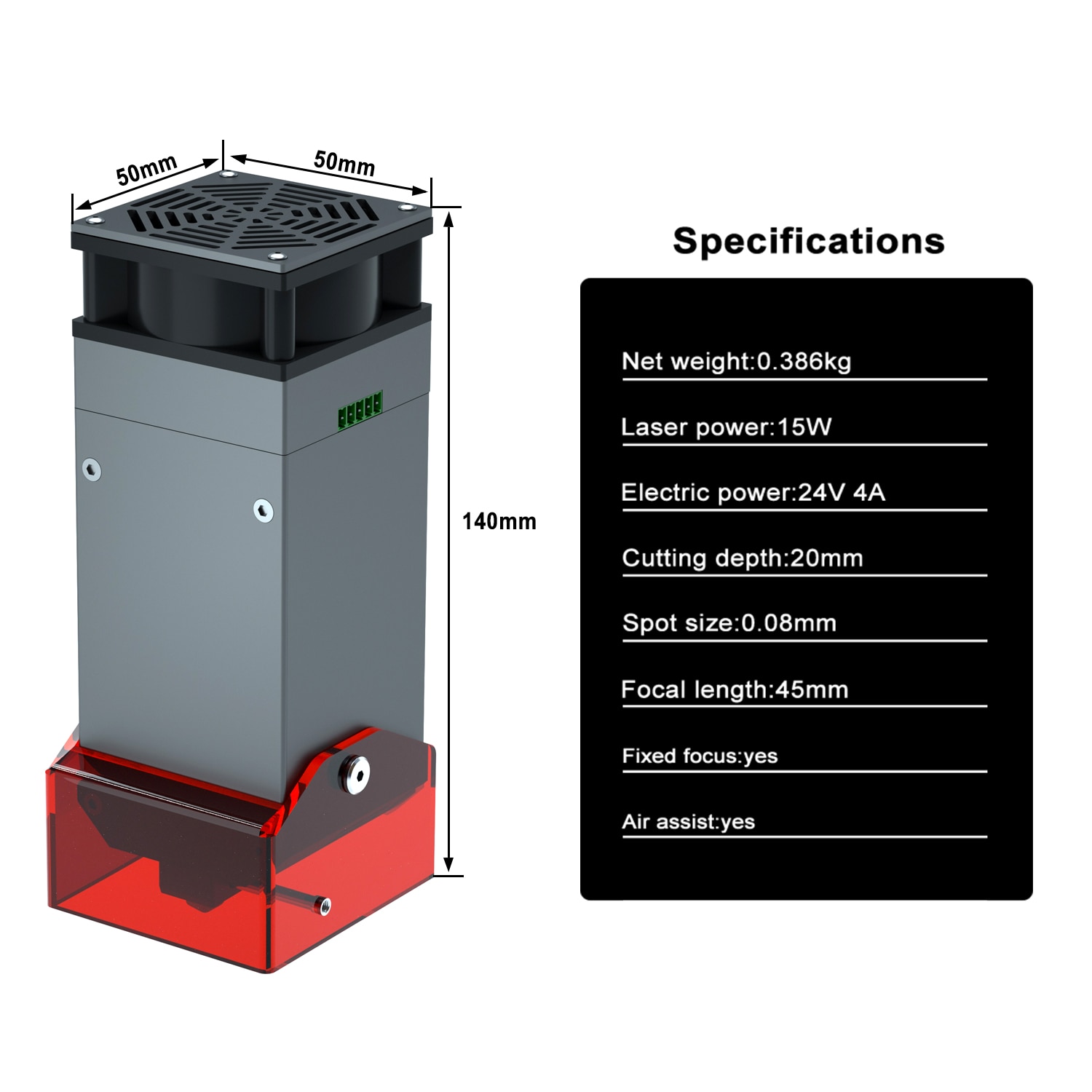

Module Model: FF100

Laser type: Diode

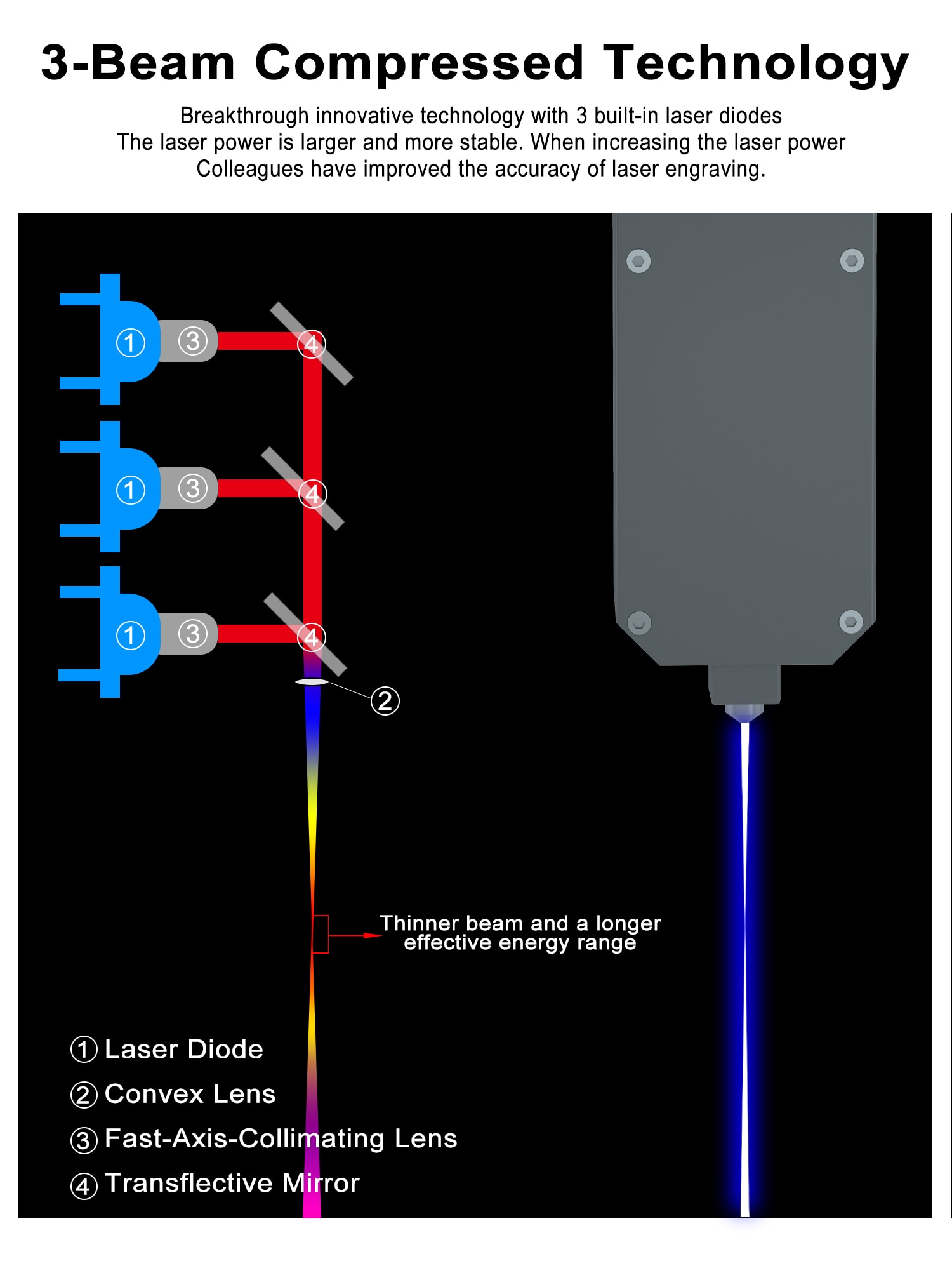

Diode No.: 3

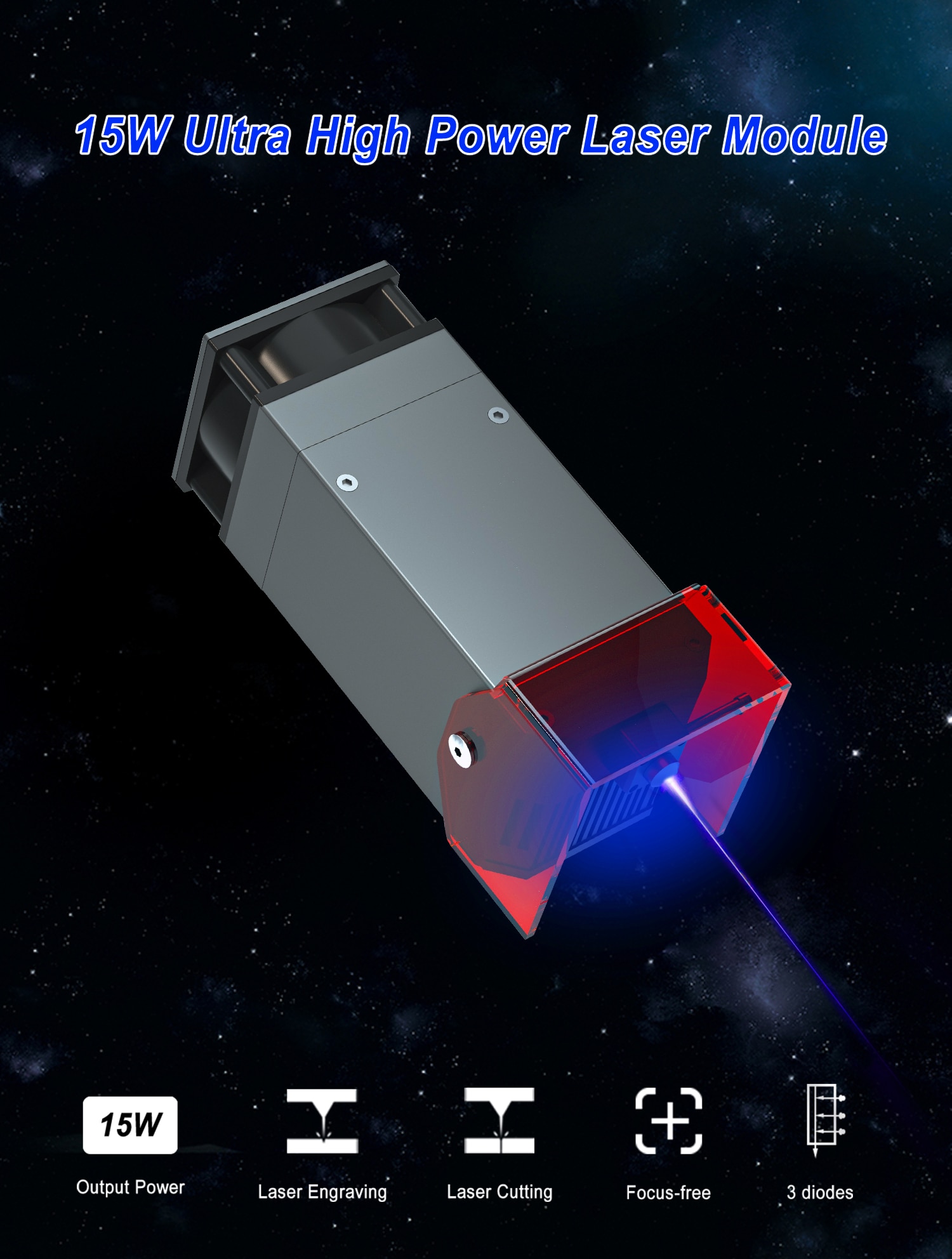

Optical Output Power: 15W

Product Material: Aluminum 6061 Anode

Housing Size: 140*65*60mm

Circuit Board Size: 44*52mm

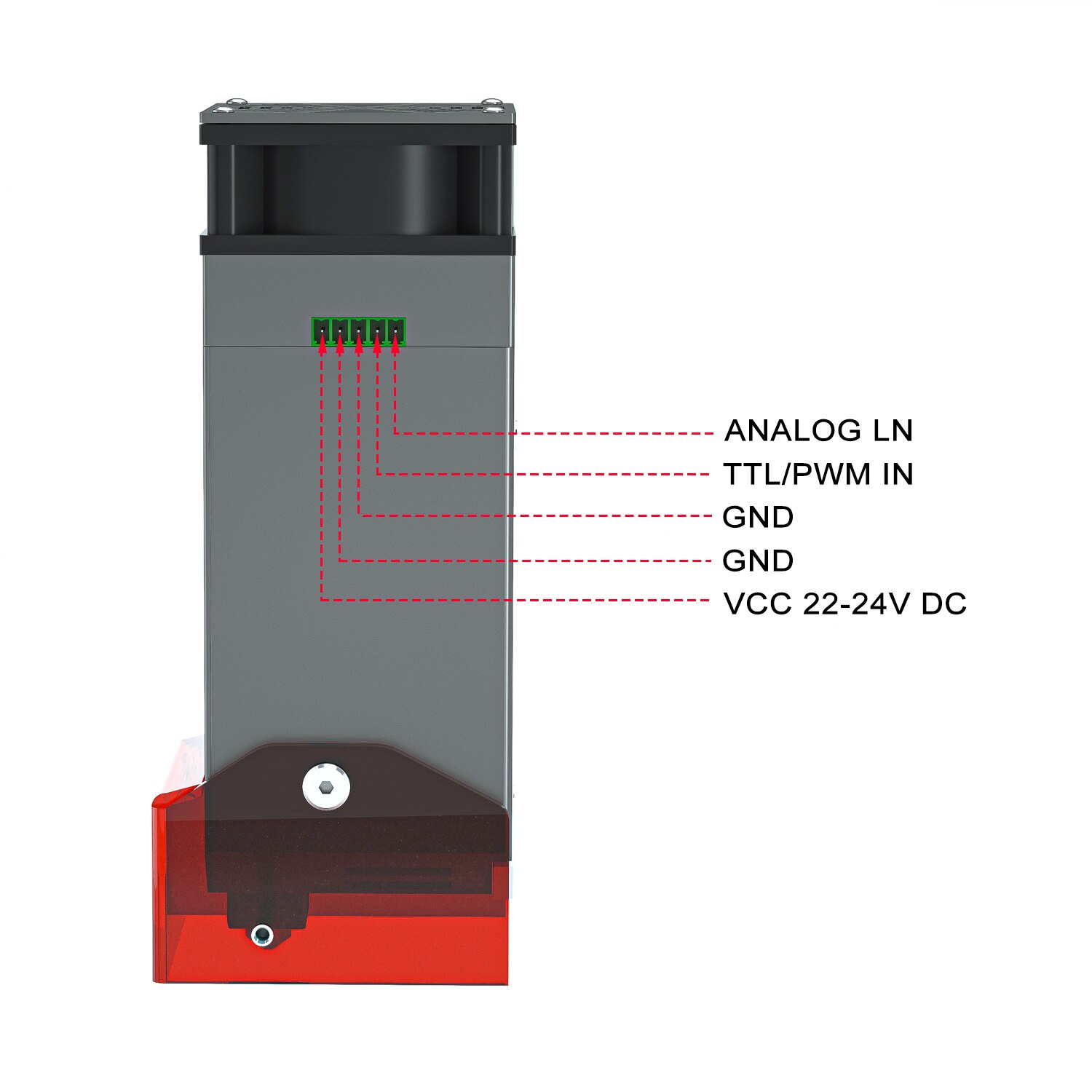

Circuit Board: V/PWM Modulation Board

Wire Rod: 22# 2P2.54 Terminal Reverse Wire 80mm

Optical Lens: φ6/glass

Laser Beam Mode: Spot

Working Mode: Pulse Work

Light Spot Size: 0.08*0.1mm

Wavelength: 445±5nm

Engraving Accuracy: 0.01mm

Working Time: 15000H

Working Temperature: 0℃~70℃

Storage Temperature: 一40℃~85℃

Sintering Temperature: 2000~2400℃

Product Net Weight: 715g
