Description

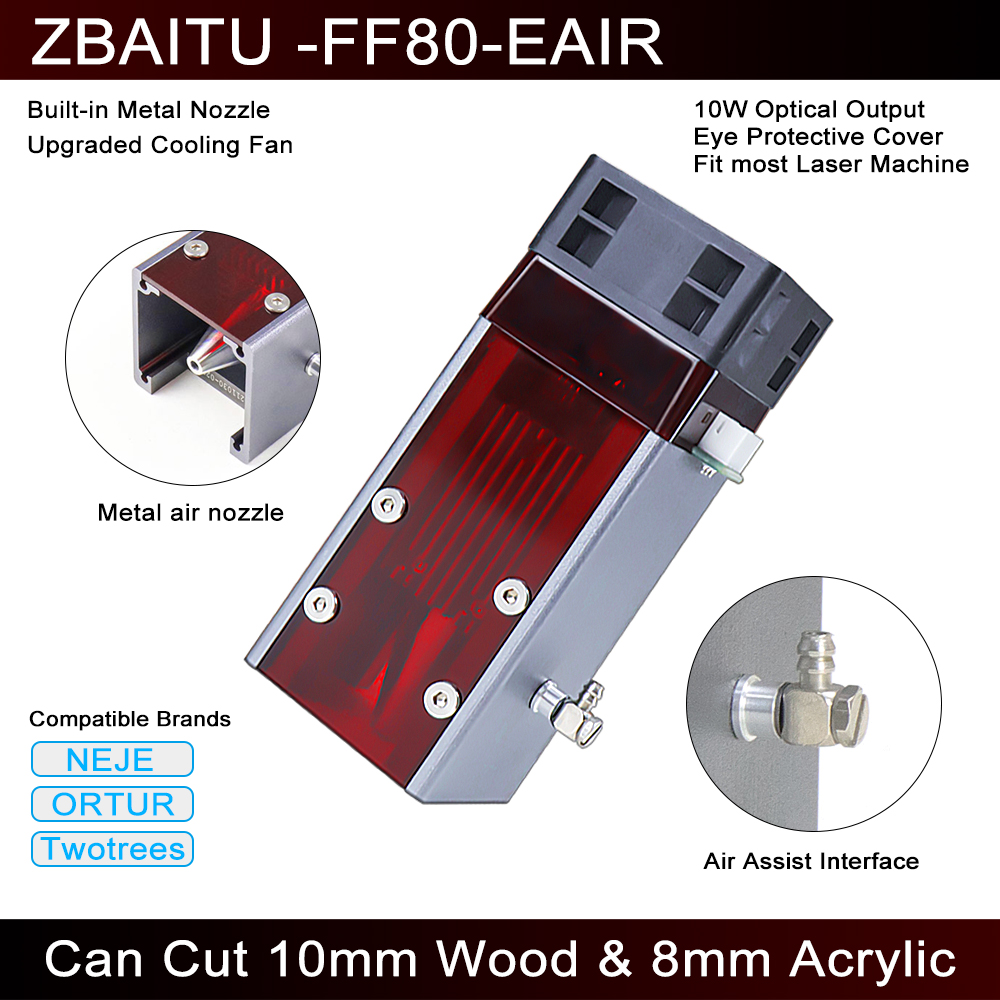

80W Laser Module Laser Diode Head for CNC Laser Machines Engraver Cutter, Eye Proective, FAC, 0.08×0.08mm Spot
- Certification: CE
- Model Number: ZBAITU-FF80
- Effect Power: 80W
- Color: Black
- Laser Color: Blue
- Wavelength: 450nm
- Material: Aluminum Alloy
- Fixed Focus: 45mm
- Adjustable Power: 5V PWM Modulation
- Interface Parameters: TTL Signal Control
- Output Optical Power: 10W
- FAC Technology: YES
- Focus Adjust: NO
- Spot Size: 0.08X0.08mm
- Dimension: 4x4x16cm
- Weight: 0.3kg
- Service Life: 15000 Hours
Newly Professional 80W Blue Laser Module, 10W Optical Power Output, Powerful Engraving and Cutting Ability for Wood Arcylic Metal

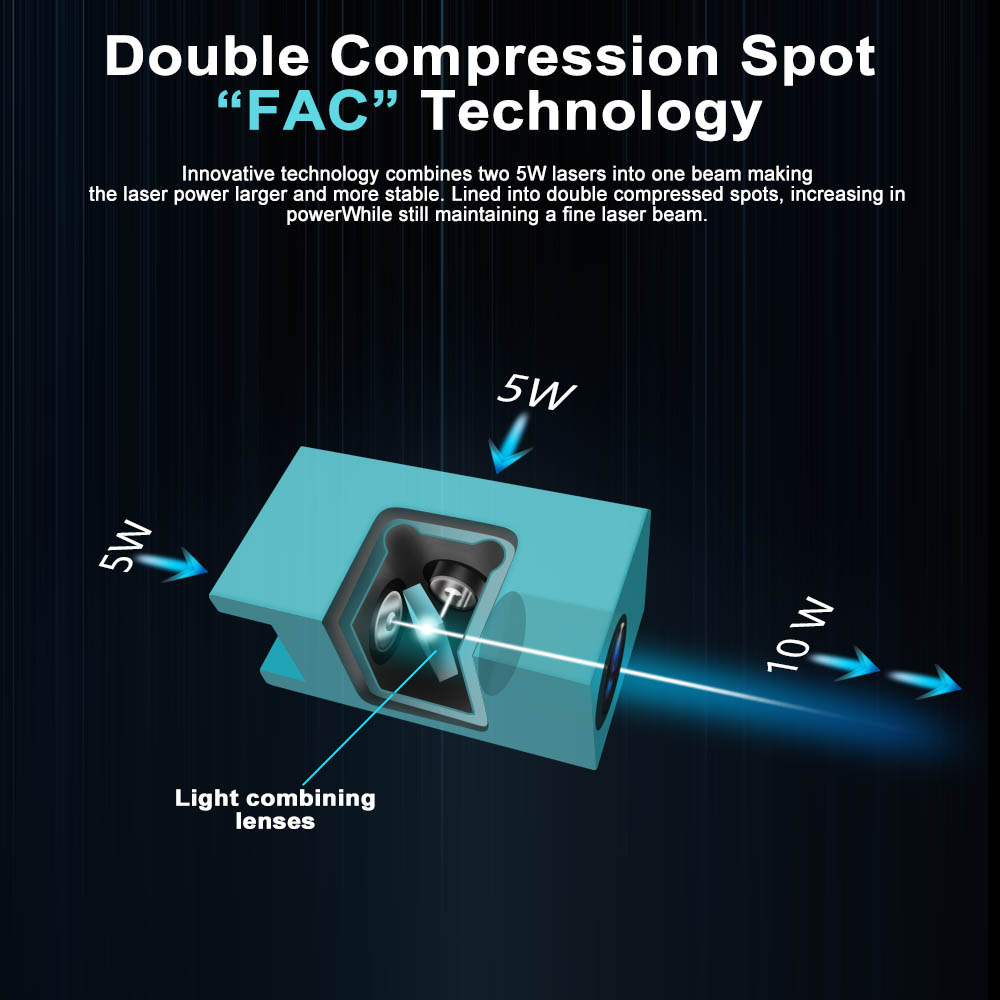

FAC technology: FAC technology means the laser power is more centralized, the engraving/cutting/marking is more accurate.
Designed for Laser Engraver Machine, 3D Printer, CNC Mill.
10W optical power output is the highest according to newest theory of light refraction in the market.
Some others claim that their 15W laser power is not so reliable and professional.

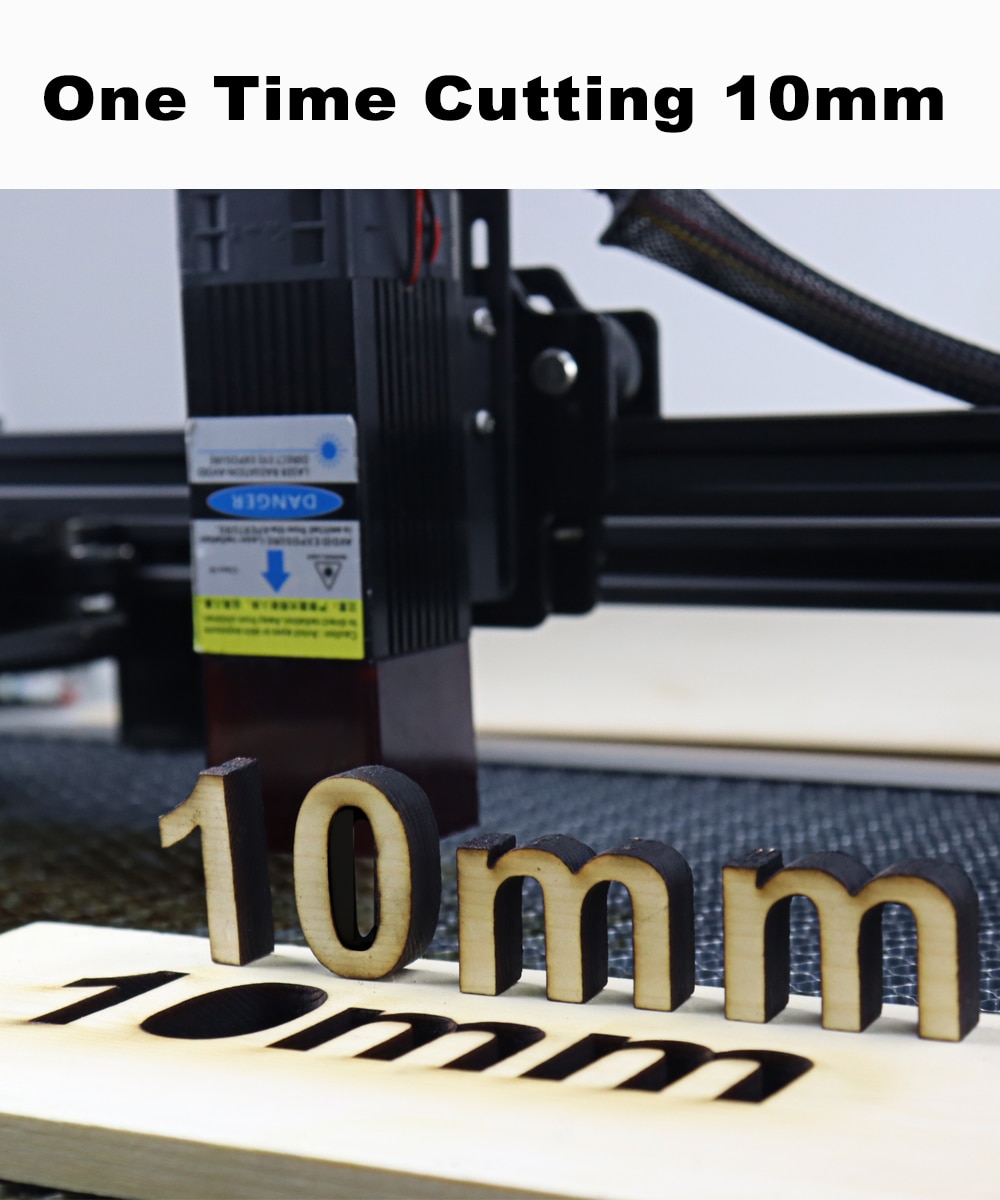

Cut 8mm plywood from 1 pass, 6mm black acrylic board from 1 pass, Able to engrave stainless steel, metal, ceramic, glasses and so on.
Can Cut: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper.

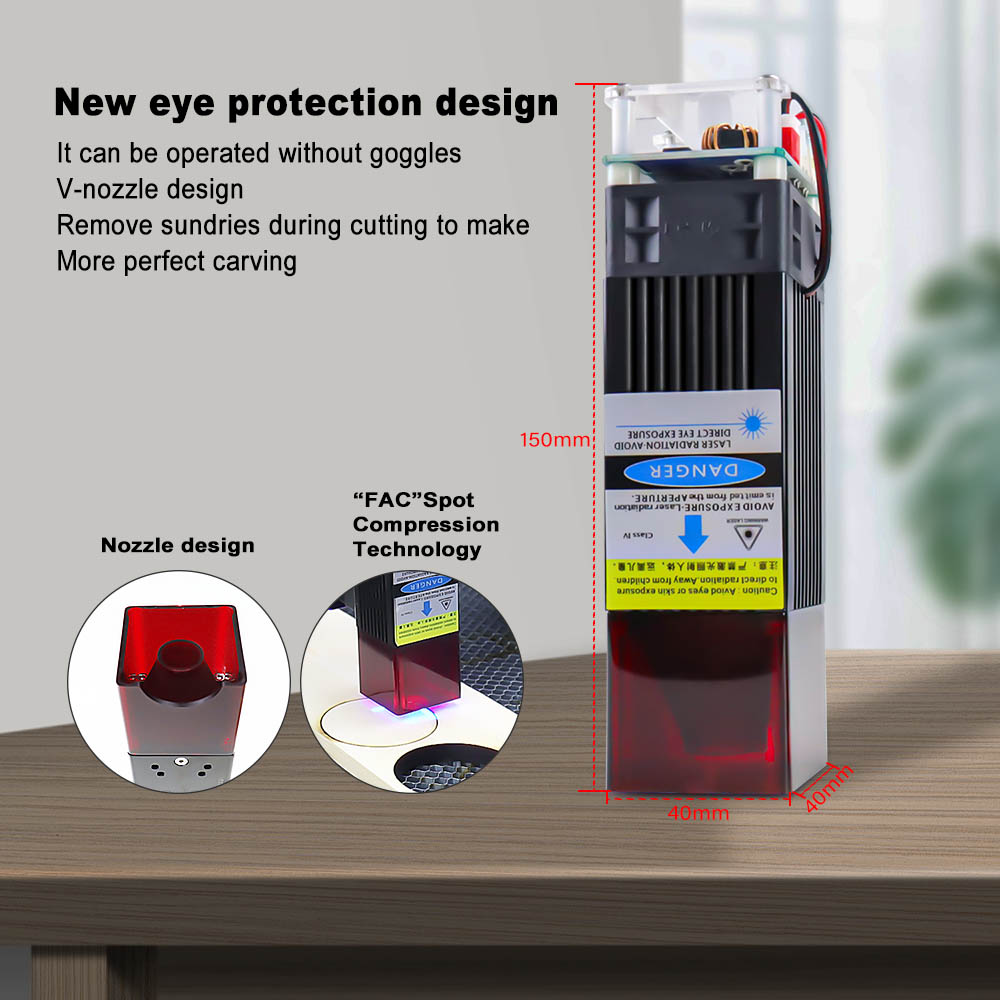

More Safety, Even without wearing protective glasses, the operation is more comfortable with the protective cover on the head.
More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.
General Specification:
Model：ZBAITU FF80
Material：Aircraft Aluminum
Luminous Color：Blue
Dimension: 4X4X16cm
Life Time：15000 Hours
Technical Parameters：
Module Input：30-40W
Optical Power Output：10W
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 3-4A
PWM/TTL Input：DC3.3V-12V
Drive Mode：External ACC
Safe Temperature Range：<60 ℃

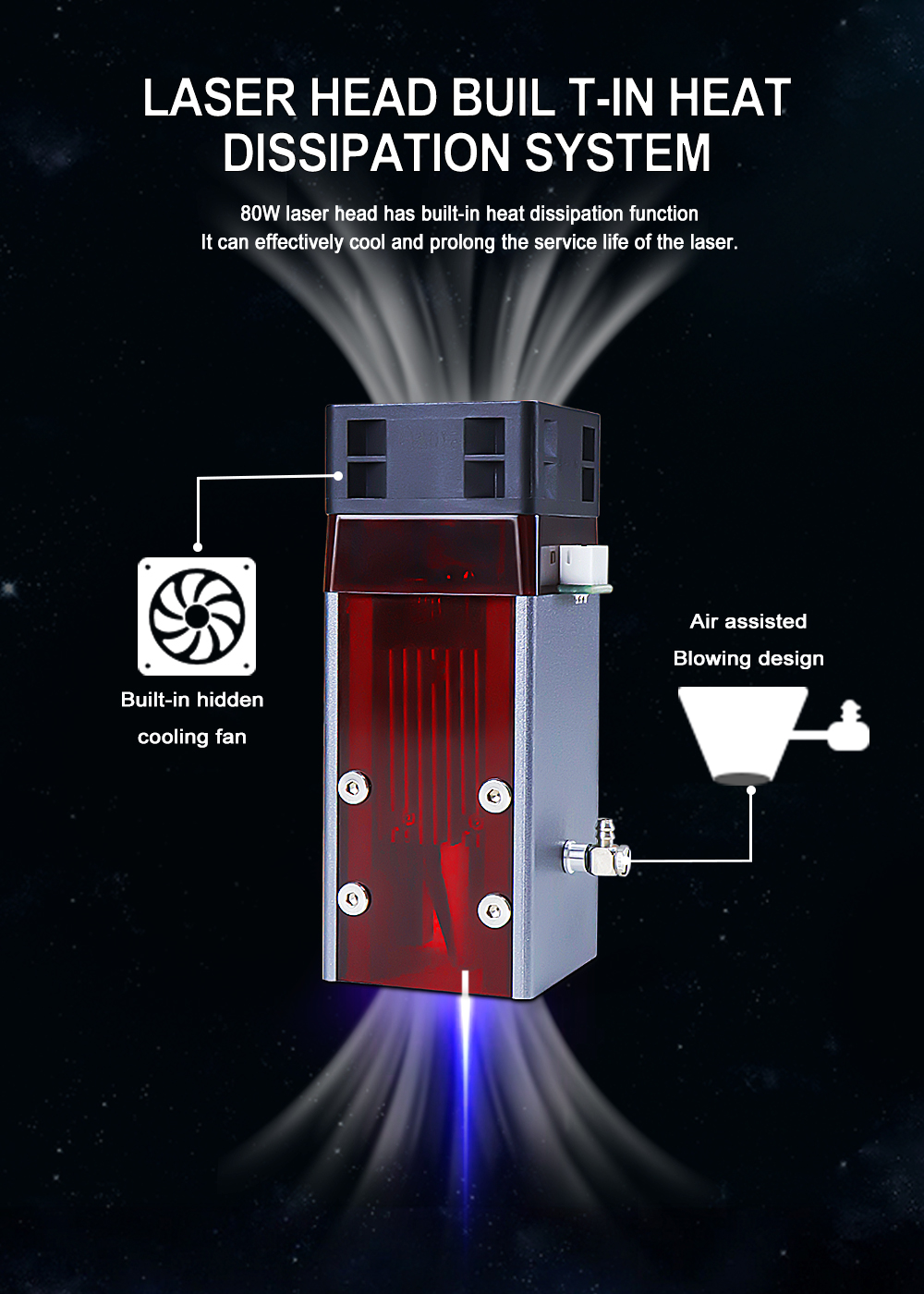

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
You May Be Wondering

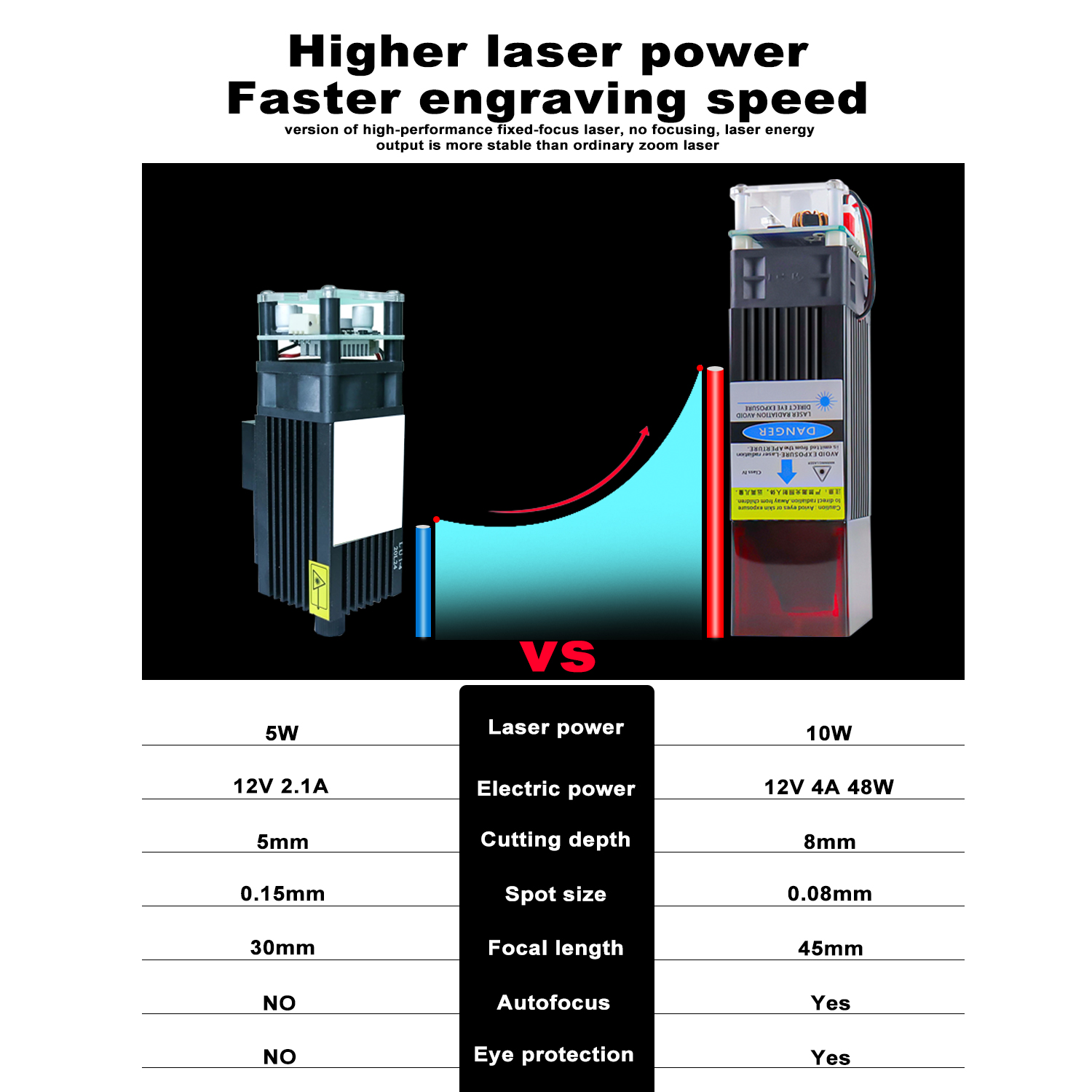

1. What is the difference between the 40 and 80 models? How should I choose the device power?
80W model (10W laser output) supports more engraving and cutting materials, has finer engraving, and faster engraving speed compared to the 40W model(5W Laser output)
2. Why is the title says 80W, 40W, but the Laser is 10W or 5W,
80w 40W is the effective power of Laser machines, its actual laser output power should be 10W/5W.
3. Is it possible to engrave metal?
Yes, the ZBAITU laser Engraver uses compressed spot technology with a spot size of only 0.08mm and supports engraving stainless steel and various coated metals.
4. Is it possible to engrave glasses cups?
Yes, it can engrave glasses.
look at our video: https://youtu.be/3TnwUb8cIc8Q
5. Can this machine only cut dark acrylic?
Yes, the laser cutter can cut dark acrylic, but not transparent acrylic.
