Description
- Brand Name: ZBAITU
- Origin: Mainland China
- Model Number: M37
- CNC or Not: CNC
- Is Smart Device: YES
- Condition: New
- Certification: CE,FCC,RoHS
- Item: Laser Engraving Cutting Machine
- cnc: laser engraver
- ferramentas: laser engraving machine
- gravadora laser: cnc laser
- maquina: laser cutting machine
- laser cutter: cnc machine
- laser module: 80W Laser Engraving Cutting Machine
- laser 80w: cnc router
ZBAITU 80W Laser Engraving Cutting Machine, High Power Laser Module with Air Aissited/Wifi Offline/32-bit MCU/FAC-2 Diode
【ZBAITU M37-FF80-EAIR】【Engraving&Cutting Machine】【CNC Machine】【370*370mm】
2022 Newest High Power Module with Air Assist/Wifi Offline Best Downsized Industrial High Power Laser Engraver & Cutter for business starters, hobbyists, designers, artists, home-makers, professionals.
a. Freeshipping is not means free duty from china. As we all known, import high value goods would be charged import tax in each country; AND NOT included the remote area charge too
b.Usually, we shipping out your order within 48 hours by AliExpress Standard Shipping
c. Seller’s shipping methods are shipping by express company, such as Stander Shipment/DHL/FedEx/ UPS/ TNT; Please contact us！
d. It is best to buy this product with an air pump. This product does not include air pump, please buy it yourself!
With FAC Techonolgy
Upgrade Dual Compression Technology:

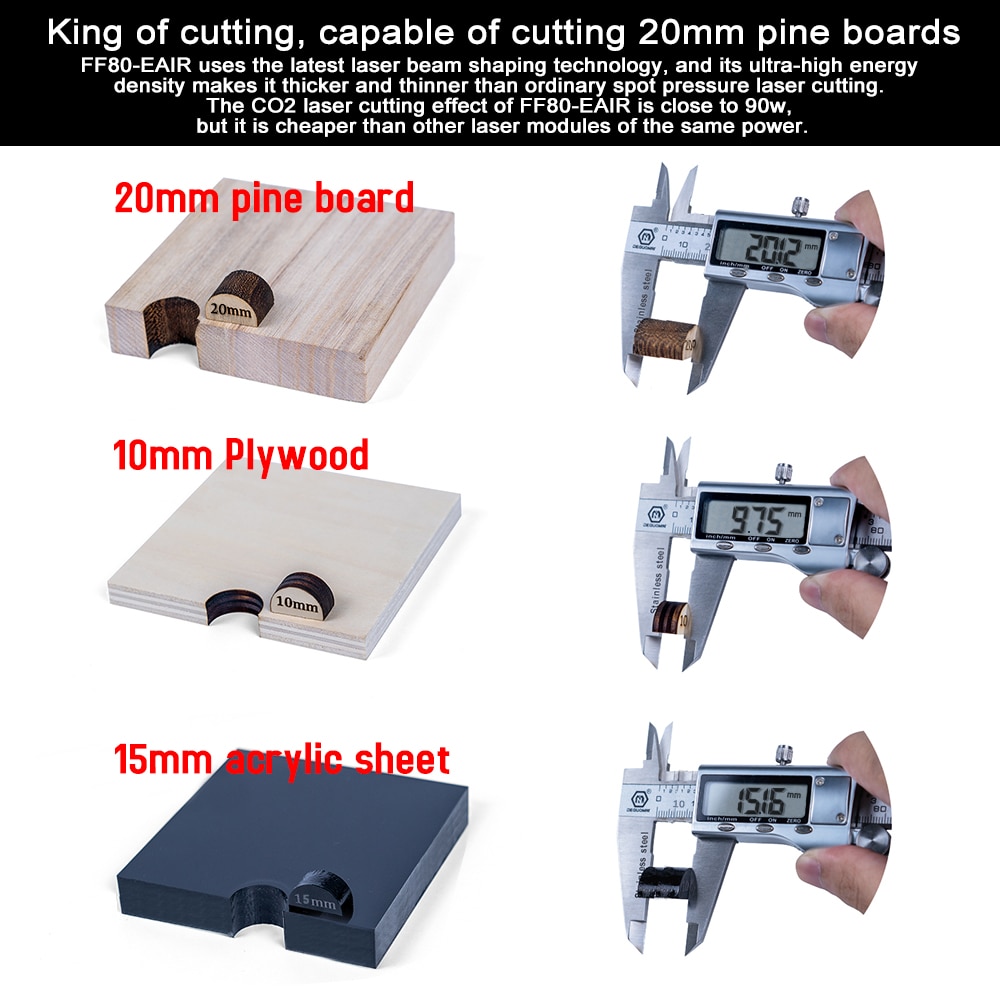

The ultra-fine laser focusing area is reduced to 0.08*0.08mm, and the high-density laser can easily cut 20mm thick wood and 15mm thick black acrylic; it can directly engrave mirror stainless steel metal, ceramics, glass, and the engraving speed is 40% higher than that of ordinary models. Laser sintering Temperature up to 1200°C

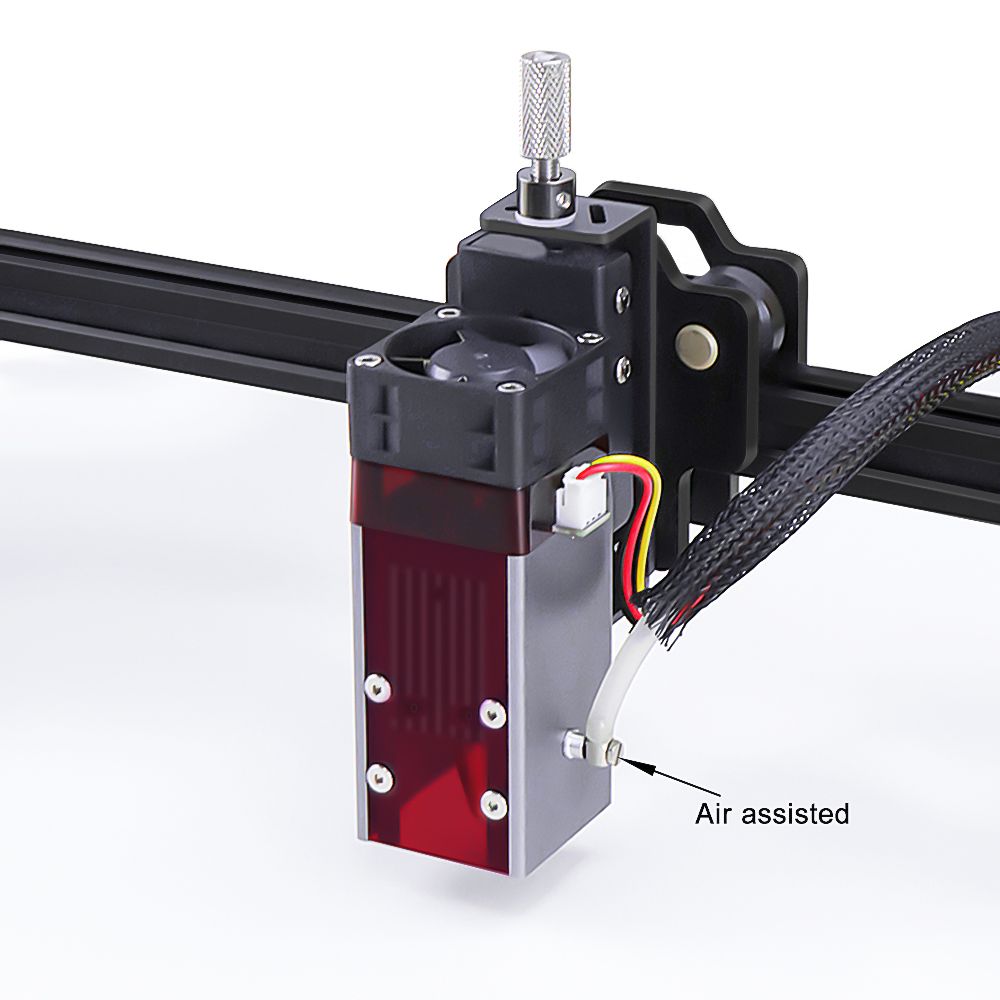

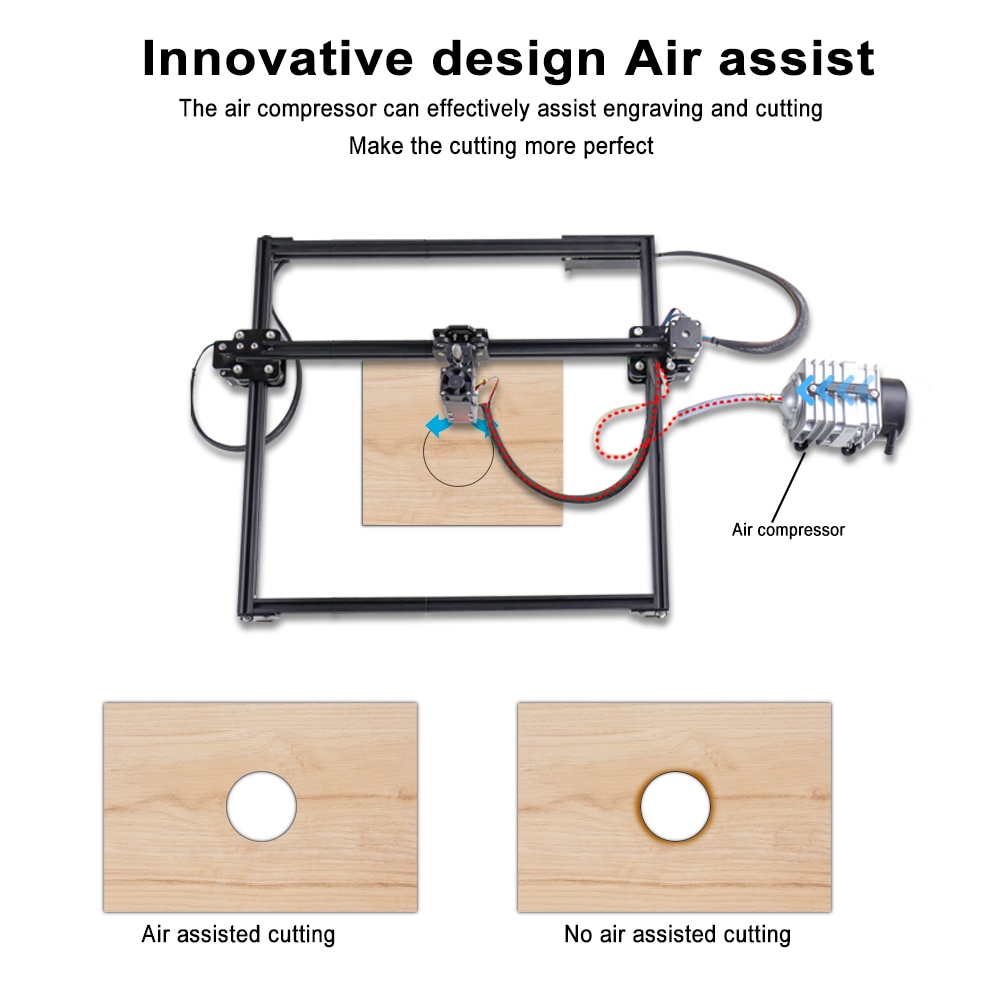

Air assist, metal nozzle:
FF80-EAIR laser engraver module with built-in airassisted interface, Improved air valve, will improves cutting and engraving capabilities, especially reduces yellow edges when cutting wood.The head is metal to improve safety, no worry burn the plastic protective cover again.
Eye protection filter and fan design:
The laser filter cover filters 98% of the ultraviolet light to the eyes. You and those around you don’t need to wear goggles to get a clear view of the laser engraving. Reduce the cost of your goggles and the inconvenience of wearing them. At the same time, the protective cover increases the structural design of the blower nozzle, and the laser blows away the smoke and debris during work, making your engraving work more perfect.Cooling System, temperature sensor intelligent control + 12000 rpm 40mm cooling fan, can work continuously for 20 hours.
Sturdy and easy to install structure design:
The all-aluminum alloy anodized structure design makes the machine more durable and improves the engraving accuracy. The entire structure is designed for quick assembly, which can generally be completed within 10-20 minutes.
Wide Compatibility:
This machine is compatible with a variety of mature engraving software, such as LaserGRBL, LightBurn, supports Win XP/Win 7/Win 8/XP/Win 10, also supports MAC system (LightBurn), the engraving file format supports NC, BMP, JPG, PNG, DXF, etc.
Motor integrated drive module:
Modular design, more stable performance, with three stepper motor drivers can provide faster moving speed, complete high-efficiency engraving, and the service life can reach 15,000 hours.

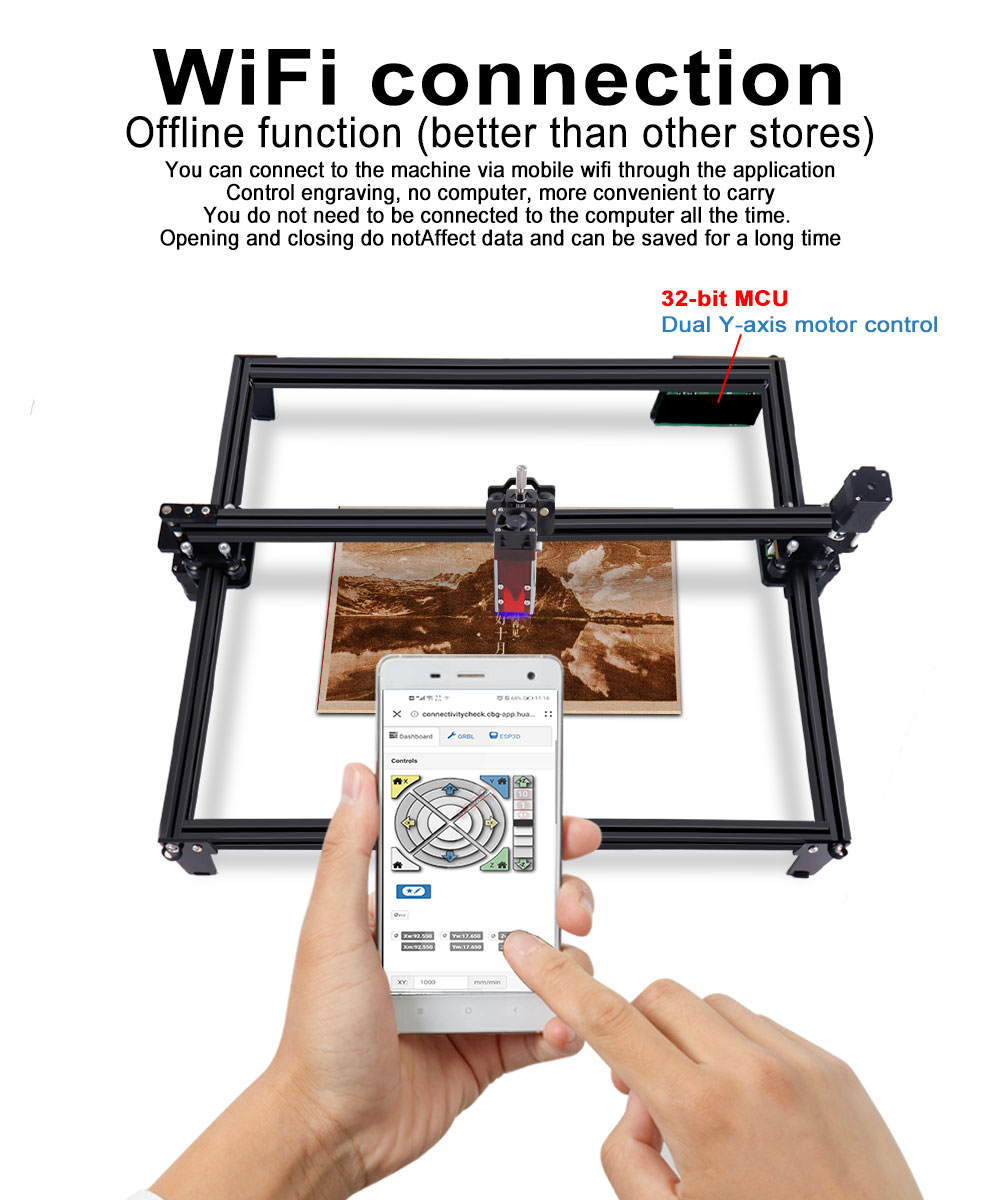

Offline work function supports long time printing
32-bit MCU motherboard. New SD card slot is added, which can control the machine by connecting to wifi and controlling the web program. you can put the file to the SD card, then start engraving or cutting, bring your more convenience.

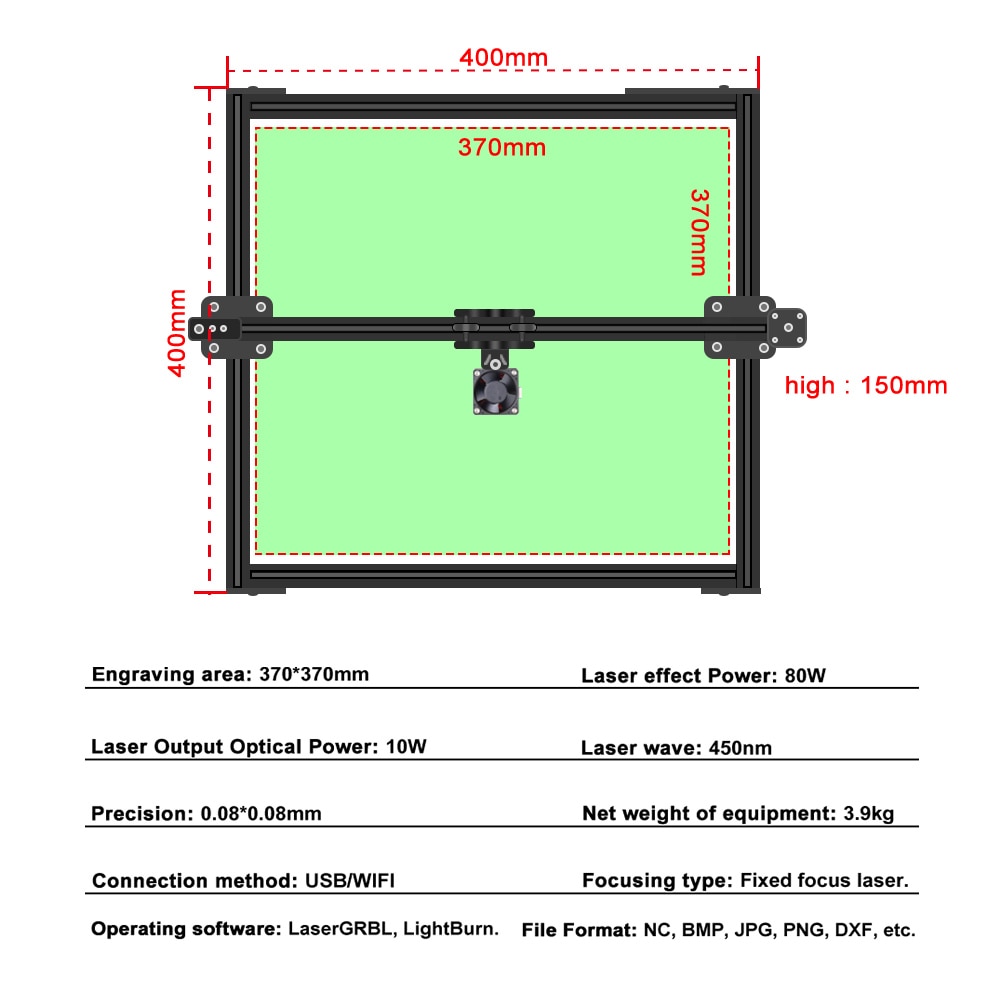

Large size of engraving:
The laser machine has a large engraving area (37X37cm), which can meet your various engraving and cutting needs. If you want bigger size, please look at ZBAITU M81 series.
laser with lifterLaser height adjustment is more convenient and fast.
Support for engraving multiple materials:
Stainless steel, aluminum, plastic, ceramic, wood, bamboo, paper, leather, rubber, sponge paper, etc. (Stone, glass, reflective or transparent materials are not supported.)
Specifications:
Model：ZBAITU M37
Material：Aluminum alloy
Machine size：54*50*15cm
Machine weight：2.9kg
Package weight：4kg
Engraving accuracy：0.01mm
Working size：37*37cm
Carving material：Woodbamboocardboardplasticleathermedium density fiberboardslatelacquered metalmirror stainless steel, etc
Cutting material：Cardboardnon-wovenveneeracrylicsome thin plastic sheetsspongeMDFLeather.etc
Focus method：Adjustable focus
Data transmission method：USB transmission, WiFi transmission
Operating software：LaserGRBLLightBurn.etc
Support system：Win XP / Win 7 / Win 8 / XP / Win 10 /MacOSX system，engraving file format supports compatible with file format engraving with NC, BMP, JPG, PNG , DXF, etc
Supported input formats：NC BMP JPG PNG DXF, ect
Module Model: ZBAITU FF80 EAIR
Material:Aircraft Aluminum + Brass Shell
Luminous Color:Blue
Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension:4x4x12CM
Can Cut/Engrave : MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/PVC
Module Input:40-80W
Optical power output:10W
Wavelength:450nm
Beam Shape:0.08X0.08mm
TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation
PWM/TTL Input:DC3.3V-12V
Drive Mode:External ACC
Safe temperature range:<60 ℃
Module weight:200g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time:10000-20000 hours
Q: 20w/40w/50w/60w/80w is the higher the better of number? how should I choose?
A:In fact, 20w/40w/50w/60w/80w is only the output power of the machine, not the key to determining the engraving/cutting effect. The output power of the laser module is the key point. If the output power of an engraving machine is 60W, and the output power of the laser module is 5~5.5w, That’s effect is not much different from that of a machine with a 40W output power and 5~5.5w laser module output power. you can choice which meet your needs.
Q: Why is the title says 80W, 40W, but the Laser is 10W or 5W?
A:80w 40W is the effective power of Laser machines, its actual laser output power should be 10W/5W.
Q: Why you do you not update your software?
A:We do not sell any software, it just can be work with the machine, we can guide customer how to use it but do not have any way to update it. if you have any question about using software, just feel free to contact with our service team via order page on Aliexpress
Q: Why I do not get a reply?
A:Please pay attention to confirm that you are contact with
ZBAITU Global Store on Aliexpress instead of other merchants, Our service team deal with any question within 24hrs every working day.
Q: Is it possible to engrave metal?
A:Yes, the ZBAITU laser Engraver uses compressed spot technology with a spot size of only 0.08mm and supports engraving stainless steel and various coated metals.
Q: Can this machine only cut dark acrylic?
A:Yes, the laser cutter can cut dark acrylic, but not transparent acrylic.
Q: Is there user manual?
A:Yes, there are user manual in paper in the box, also some assembly videos.
Q: Can i get a assure after purchase?
A:Of course,ZBAITU Global Store provide 100% satisfied for sure,you can enjoy 1 year of free replacement for any accessories. you just need pay for the shipping cost.
