Description
- Brand Name: LanYuXuan
- Certification: NONE
- Origin: CN(Origin)
- Warranty: 1 year
- Certification: pcoc, Reach, IECEE, scoc, EPA, GS, CE
- Customized support: OEM, ODM, OBM
- Place of Origin: Zhejiang, China
- Brand Name: YANTE
- Model Number: YT-CM3000
- Size: 280 x 340 x 500 mm
- Weight: 20 KG
- Wavelength Range: 400~700
- Wavelength range: 400-700nm
- Light source: Pulsed xenon lamp, D65 and C light source calibration
- Measuring area / test aperture: D 25mm / D 30mm
- Spectral bandwidth: 10nm
- Measuring range: Measuring range
- Photometer linear error: 0.3%
- Angle of view: 2 °, 10 °
- Simulated light source: C, D65
- UV cut filter: 395, 420nm
- Dimensions: 280 x 340 x 500 mm
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:850.6329113924052px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750.0000000000001px;height:850.6329113924052px}#detail_decorate_root .magic-3{border-bottom-style:solid;border-bottom-color:#bbb;font-family:Roboto;font-size:24px;color:#000;background-color:#bbb;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px}#detail_decorate_root .magic-9{width:375px;height:442.70588235294116px;overflow:hidden}#detail_decorate_root .magic-10{position:relative;left:0;top:33px;width:375px;height:375px}#detail_decorate_root .magic-11{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px;margin-left:-3px}#detail_decorate_root .magic-12{width:364px;border-collapse:collapse}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:131px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:192px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{overflow:hidden;width:750px;height:351px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:750px;height:351px}#detail_decorate_root .magic-17{width:446px}#detail_decorate_root .magic-18{overflow:hidden;width:446px;height:510.24245228020686px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:446px;height:446px}#detail_decorate_root .magic-20{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-21{color:#999;font-family:”Helvetica Neue”,Helvetica,Arial,sans-serif,宋体;font-size:14px;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-weight:400;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial;display:inline !important;float:none}#detail_decorate_root .magic-22{color:#333;font-family:”Helvetica Neue”,Helvetica,Arial,sans-serif,宋体;font-size:14px;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-weight:400;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial;display:inline !important;float:none}#detail_decorate_root .magic-23{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-24{box-sizing:border-box;margin:0;padding:0;color:#2e3033;font-family:Arial,’Microsoft YaHei’,’5FAE软雅黑’,’5B8B体’,’Malgun Gothic’,Meiryo,sans-serif;font-size:14px;font-style:normal;font-variant:normal;font-weight:normal;letter-spacing:normal;line-height:14px;orphans:auto;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:auto;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff}#detail_decorate_root .magic-25{box-sizing:border-box;margin:0 0 10px;padding:0;list-style:none}#detail_decorate_root .magic-26{box-sizing:border-box;margin:0;padding:0;font-size:14px;color:#666;line-height:20px}#detail_decorate_root .magic-27{overflow:hidden;width:446px;height:446px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-29{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-30{width:245px;height:245px;overflow:hidden}#detail_decorate_root .magic-31{position:relative;left:0;top:0;width:245px;height:245px}#detail_decorate_root .magic-32{padding:0;margin:0;color:#333;font-size:14px;line-height:20px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-33{position:relative;left:0;top:0;width:245px;height:237.65917602996257px}#detail_decorate_root .magic-34{width:750px;border-collapse:collapse}#detail_decorate_root .magic-35{min-height:18px;padding:5px 10px;width:126px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-36{min-height:18px;padding:5px 10px;width:108px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-37{min-height:18px;padding:5px 10px;width:99px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-38{min-height:18px;padding:5px 10px;width:100px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-39{min-height:18px;padding:5px 10px;width:88px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-40{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:806px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:-20px;margin-left:0;width:750px;height:806px}#detail_decorate_root .magic-43{overflow:hidden;width:750px;height:2483px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:0;margin-left:0;width:750px;height:2483px}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:1047px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:750px;height:1047px}#detail_decorate_root .magic-47{overflow:hidden;width:750px;height:1901px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:750px;height:1901px}
ØImported concave flat field gratings, photoelectric display sensors, pulsed xenon lamps and other components ensure the basis of equipment accuracy. ØThe circuit uses an ARM + FPGA dual-core solution to ensure the computing power and sampling timing accuracy. ØThe stepper motor is used to control the amount of ultraviolet radiation, which realizes automatic and precise control of the amount of radiation, abandons the manual pull plate structure, and realizes the one-key test of fluorescent brightness. ØThe instrument is operated by PC software, and the storage space of test data is not limited; It is convenient to consult and print historical measurement data, and the number of standard samples is not limited; ØUsers can update the latest manufacturer software functions at any time.
Product Description

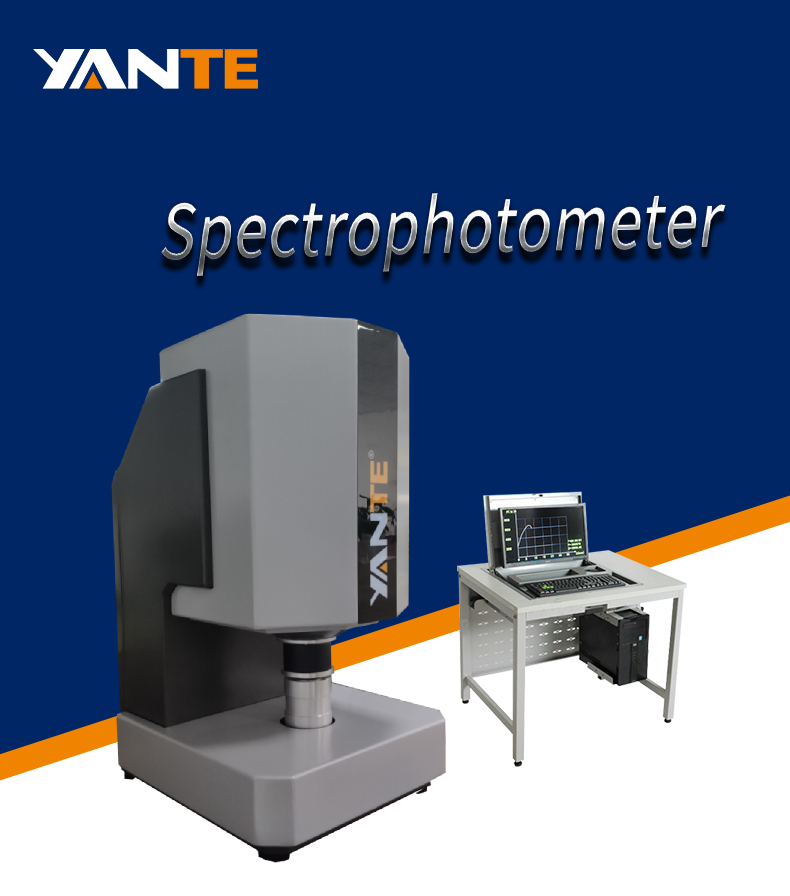

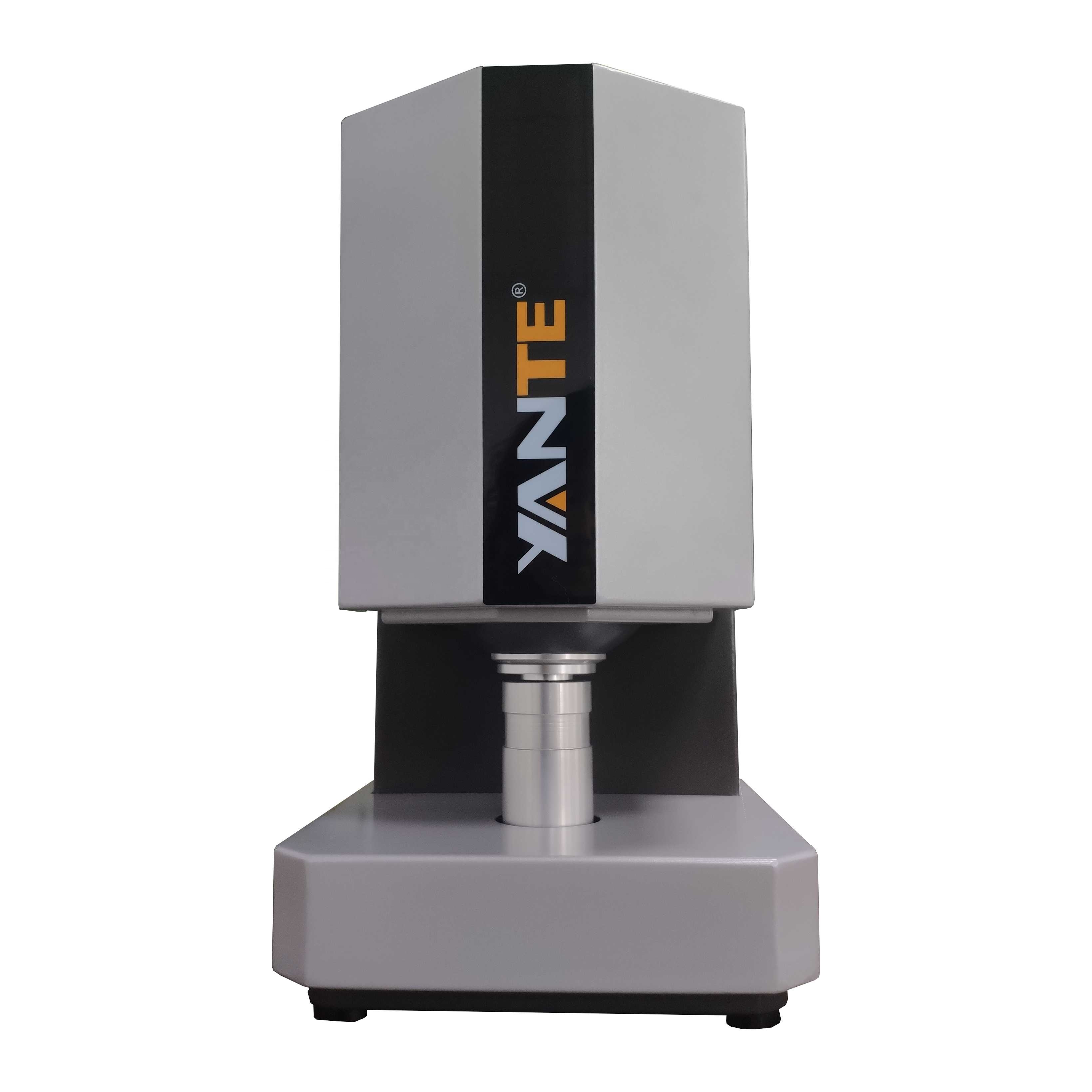

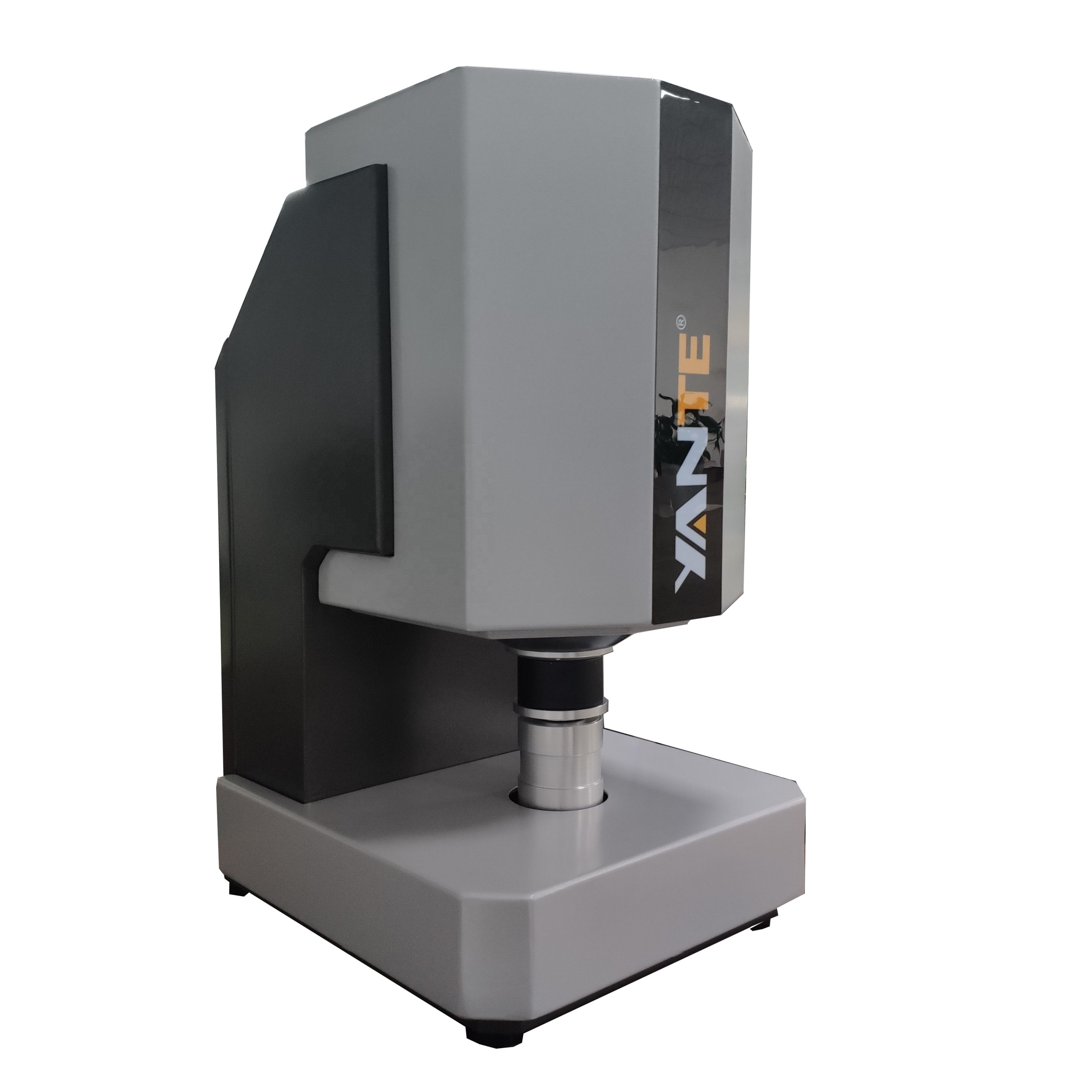

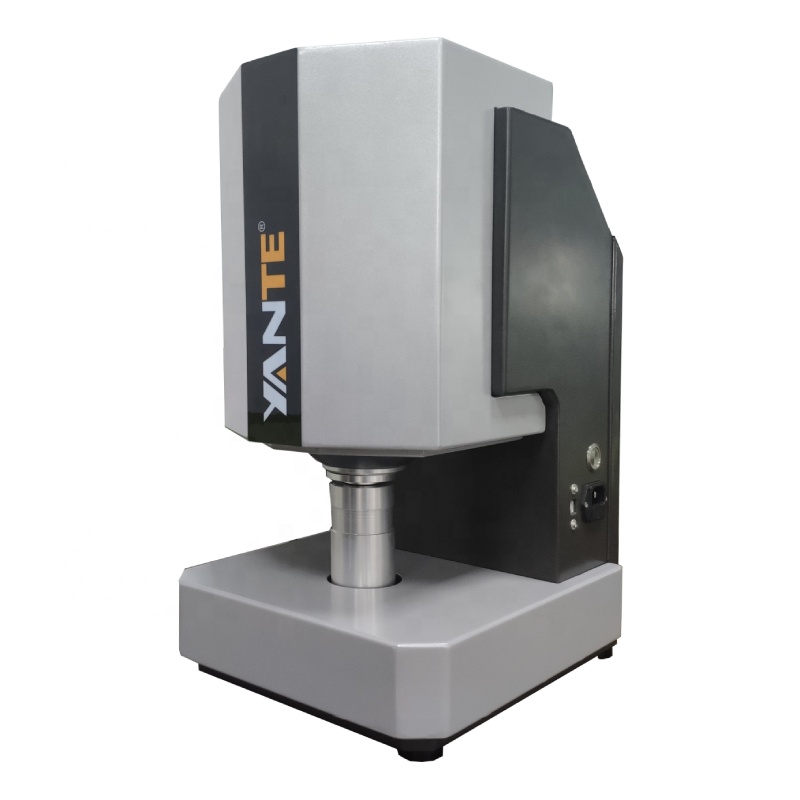

YT-CM3000 Spectrophotometer is a precision instrument for measuring the whiteness, color and color difference of solids. It is widely used in industries of paper-making, printing, textile printing and dyeing, ceramics, building materials, chemical industry, food, salt and other solid color and whiteness commodity inspection departments.
The light absorber eliminates specular reflection.
|
Power Supply
|
AC100-220V (50/60) Hz 50W (customized)
|
|
Working Environment
|
(10~35)℃,Humidity≤85%
|
|
Geometric conditions
|
Double beam (d / 0)
|
|
Light source
|
Pulsed xenon lamp, D65 and C light source calibration
|
|
Measuring area / test aperture
|
Φ25mm / Φ30mm
|
|
The light absorber eliminates specular reflection.
|
0.3%
|
|
Spectral bandwidth
|
10nm
|
|
Receiver
|
128 unit photoelectric array
|
|
Wavelength range
|
400-700nm
|
|
Measuring range
|
0-200%
|
|
Repeatability
|
≤ ± 0.05 CIELAB (ΔE *)
|
|
Reproducibility (difference between instruments)
|
≤ ± 0.30 CIELAB (ΔE *)
|
|
Measuring time (typical)
|
4-20 seconds
|
|
Simulated light source
|
C, D65
|
|
Angle of view
|
2 °, 10 °
|
|
Light source
|
D65, C
|
|
Spectral data interval
|
10nm
|
|
UV cut filter
|
395, 420nm
|
|
Communication interface
|
USB2.0
|
|
Dimensions
|
280 × 340 × 500 mm
|
|
Net weight
|
≤ 19.5kg
|
Application Range
Paper, cardboard, Powder for salt, industrial salt, calcium carbonate, talcum powder, etc.
Standard
GB/T 7974-2013
GB/T 10339-2007
GB/T 7973-2003
GB/T 7975-2005
GB/T 3979-2008
GB/T 9338-2008
GB/T 2679.1-2013
GB/T 1543-2005
GB/T 10339-2007
GB/T 8940.2
GB/T 5950
ISO2470-1-2016
ISO 2470-2-2008
ISO 2471
ISO 2469
Product Features
ØImported concave flat field gratings, photoelectric display sensors, pulsed xenon lamps and other components ensure the basis of equipment accuracy. ØThe circuit uses an ARM + FPGA dual-core solution to ensure the computing power and sampling timing accuracy. ØThe stepper motor is used to control the amount of ultraviolet radiation, which realizes automatic and precise control of the amount of radiation, abandons the manual pull plate structure, and realizes the one-key test of fluorescent brightness. ØThe instrument is operated by PC software, and the storage space of test data is not limited; It is convenient to consult and print historical measurement data, and the number of standard samples is not limited; ØUsers can update the latest manufacturer software functions at any time.
Detailed Images

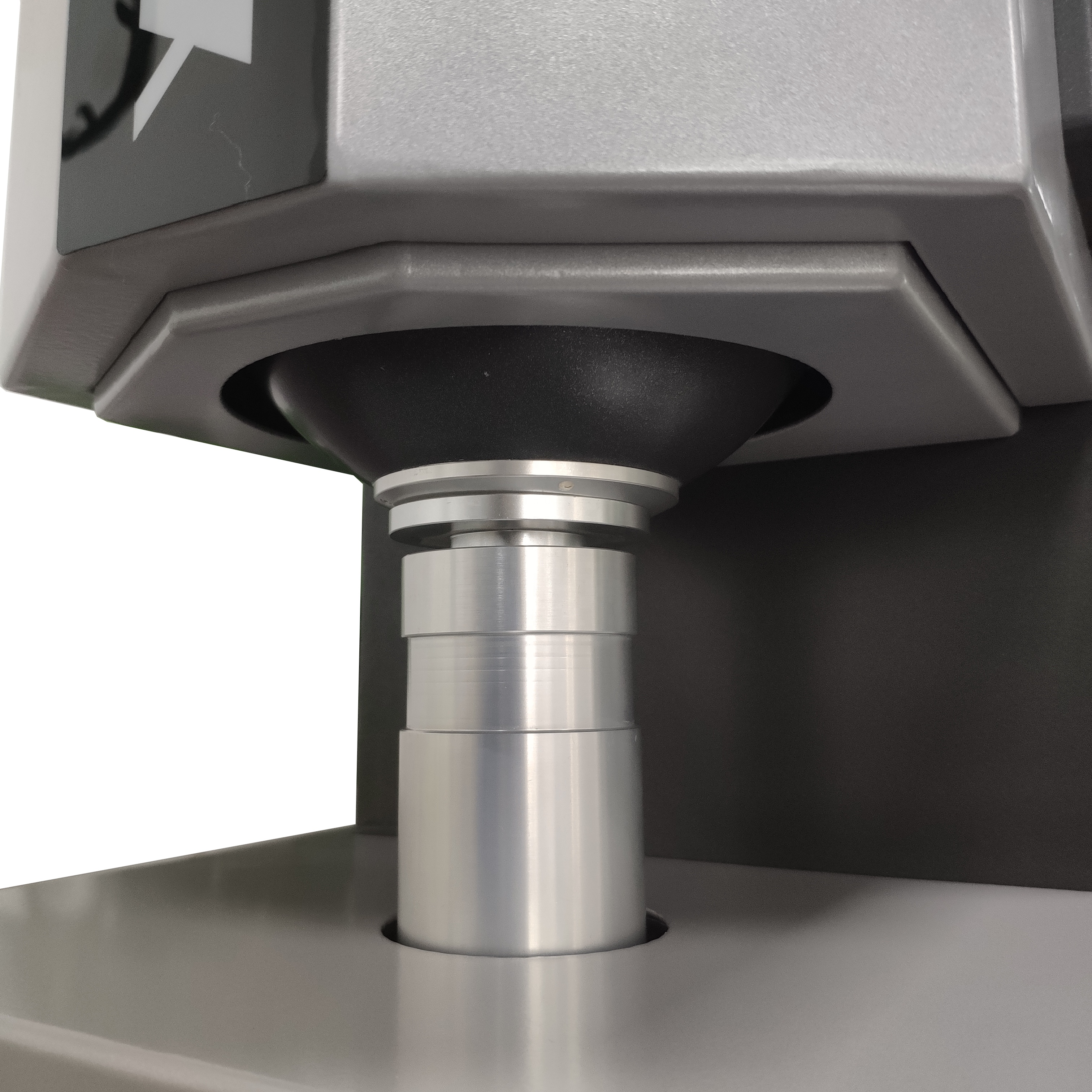

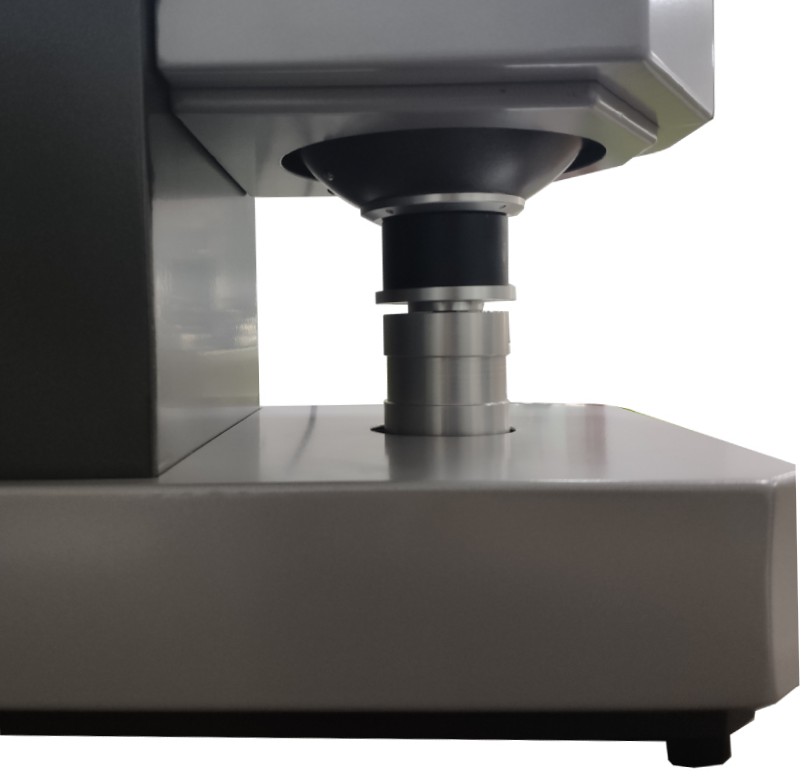

Imported concave flat field grating
photoelectric display sensor

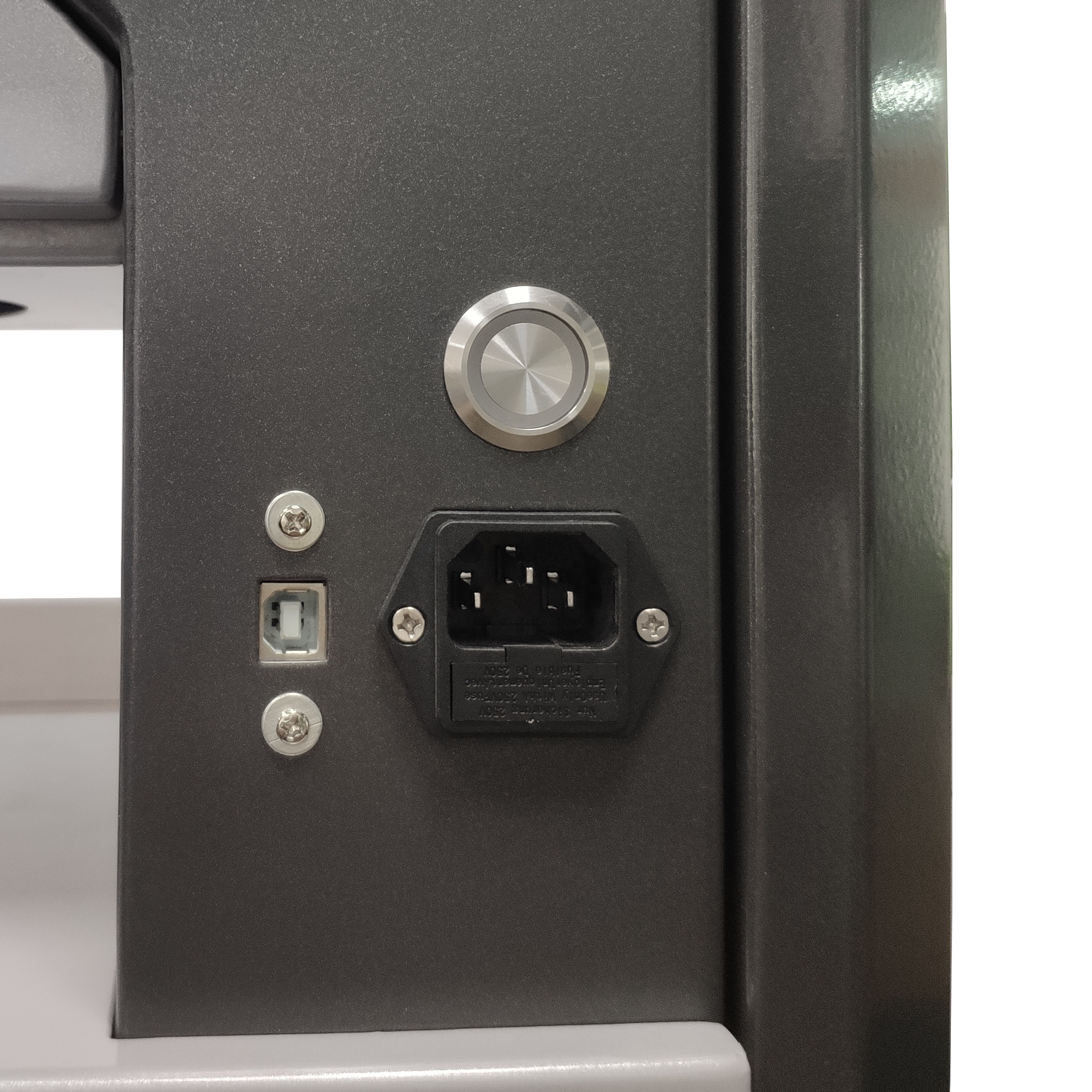

Tester connection
Size Information
Size Chart of This Design
|
L
|
W
|
H
|
N.W.
|
G.W.
|
|
|
YT-CM3000
|
28
|
34
|
50
|
19.5
|
Optional Accessories(Purchase Separately)
One host Zero the black tube Three standard boards Online software Data cable
