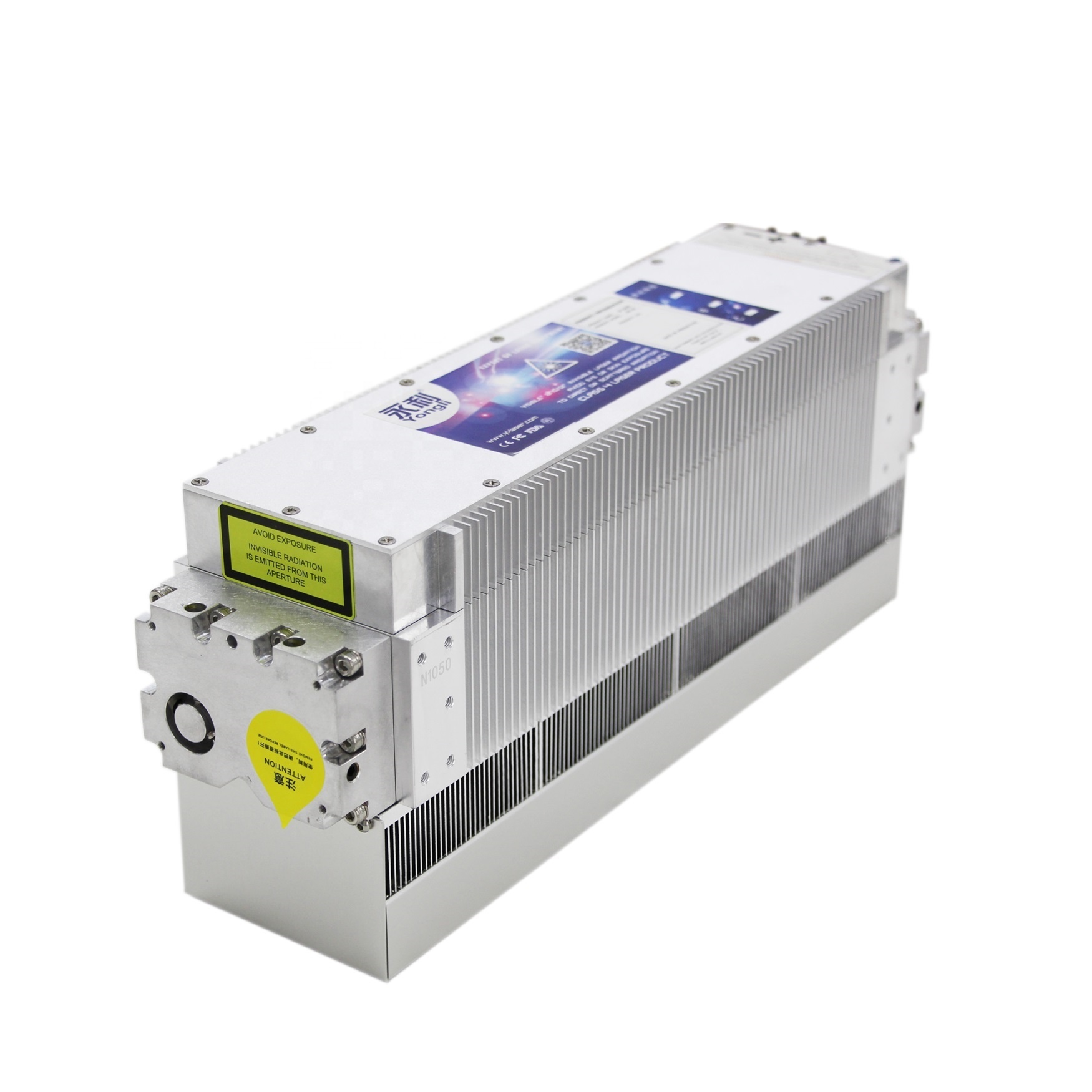

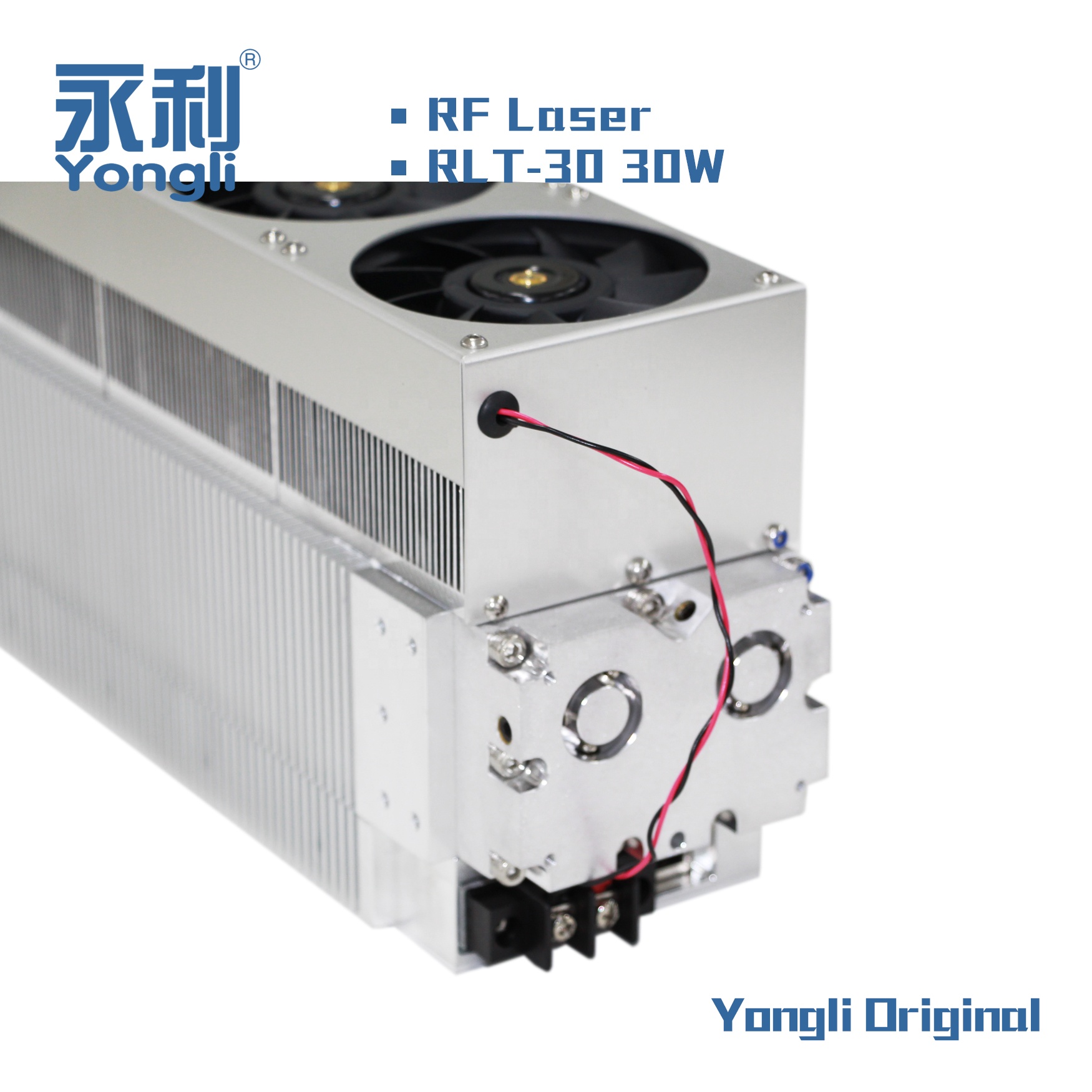

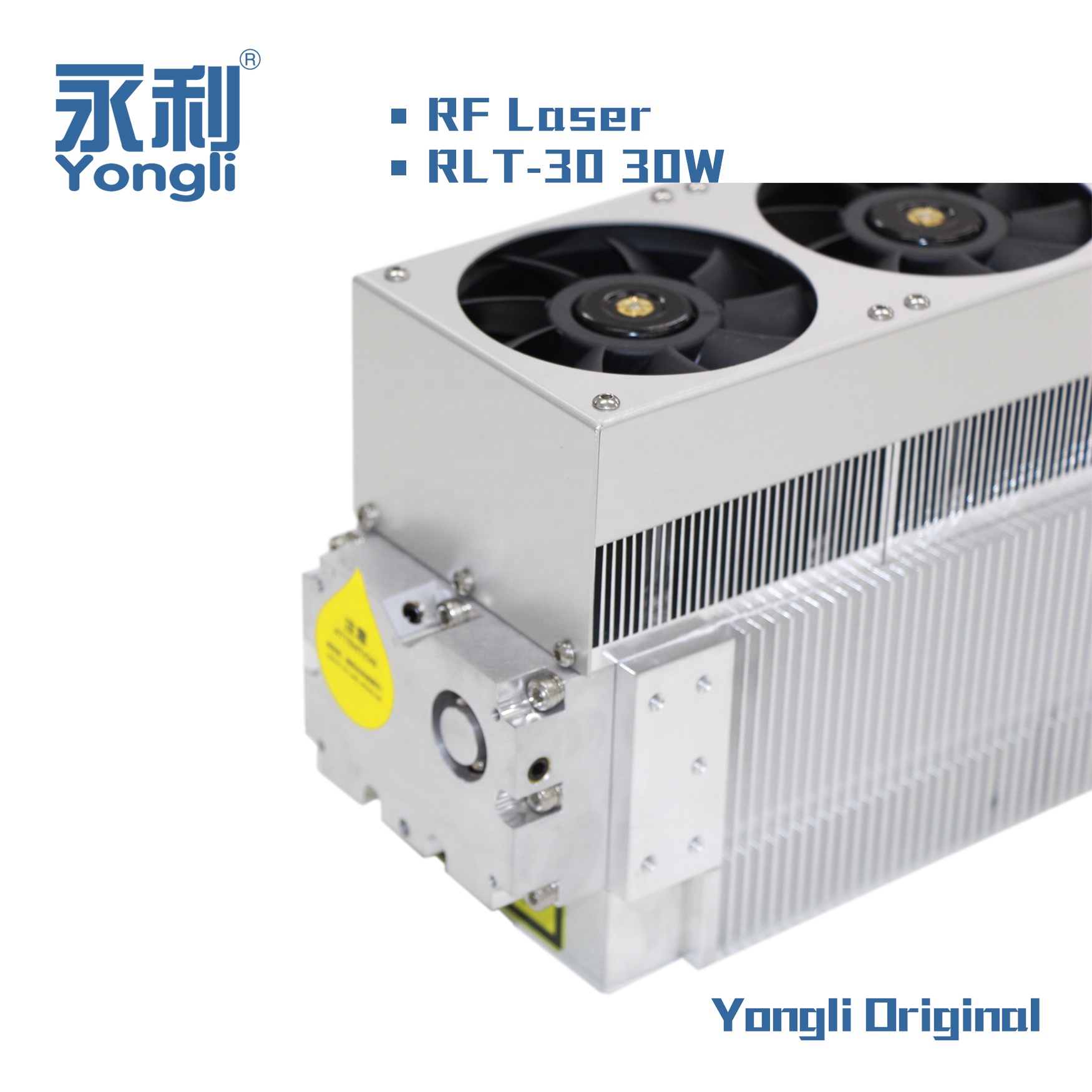

RLT-30 30w Metal RF co2 fractional laser tube for medical machines
Product Description
Yongli Laser Co2 RF laser sources can operate at high repetition rates and have low power drift in operation. In addition, they have higher beam quality. For example, if paper needs to be marked, the power is set to a low value. The average service life of our Yongli RLT-30 Co2 RF laser metal tube 30W is expected to be around six years (20,000 Hours Service Life). After that, an exchange for a new or upgraded laser source is required. With ceramic tubes, contamination of the gas mixture by air flowing in from the outside is rarely or never the case. Often the full laser power can be achieved again by adjusting the power electronics (readjusting the frequency for the antenna driver) or by replacing a defective board (typically a power amplifier defect).
Product Paramenters
|
Model
|
RL-30
|
|
Rated Power
|
30w
|
|
Mode Quality
|
TEM00
|
|
Beam Divergence
|
7.5±0.5 mrad
|
|
Beam Size
|
1.8±0.2mm
|
|
Power Instability
|
≤±5%
|
|
Wavelength
|
10.6±0.1μm
|
|
Polarization
|
Linear Polarization(100:1) Parallel to the width direction
|
|
Operating frequency and duty cycle
|
0~25kHz,0~100%
|
|
Weight
|
6.2kgs
|
|
Gross Weight
|
9.8kgs
|
|
Size
|
357*92.5*142mm
|
|
Input Voltage
|
Maximum average current 12A,requires the power supply to withstand peak current 18A, not less than 1ms
|
|
Head Load
|
＜575W
|
|
Maximum case temperature
|
＜60℃ （140°F）
|
|
Ambient temperature at work
|
＜15~40℃（59~104°F）
|
|
Humidity
|
Non-condensing
|
|
Shipping and storage enviroment temperature
|
-10~60℃（14~140°F）
|
Installation Instructions

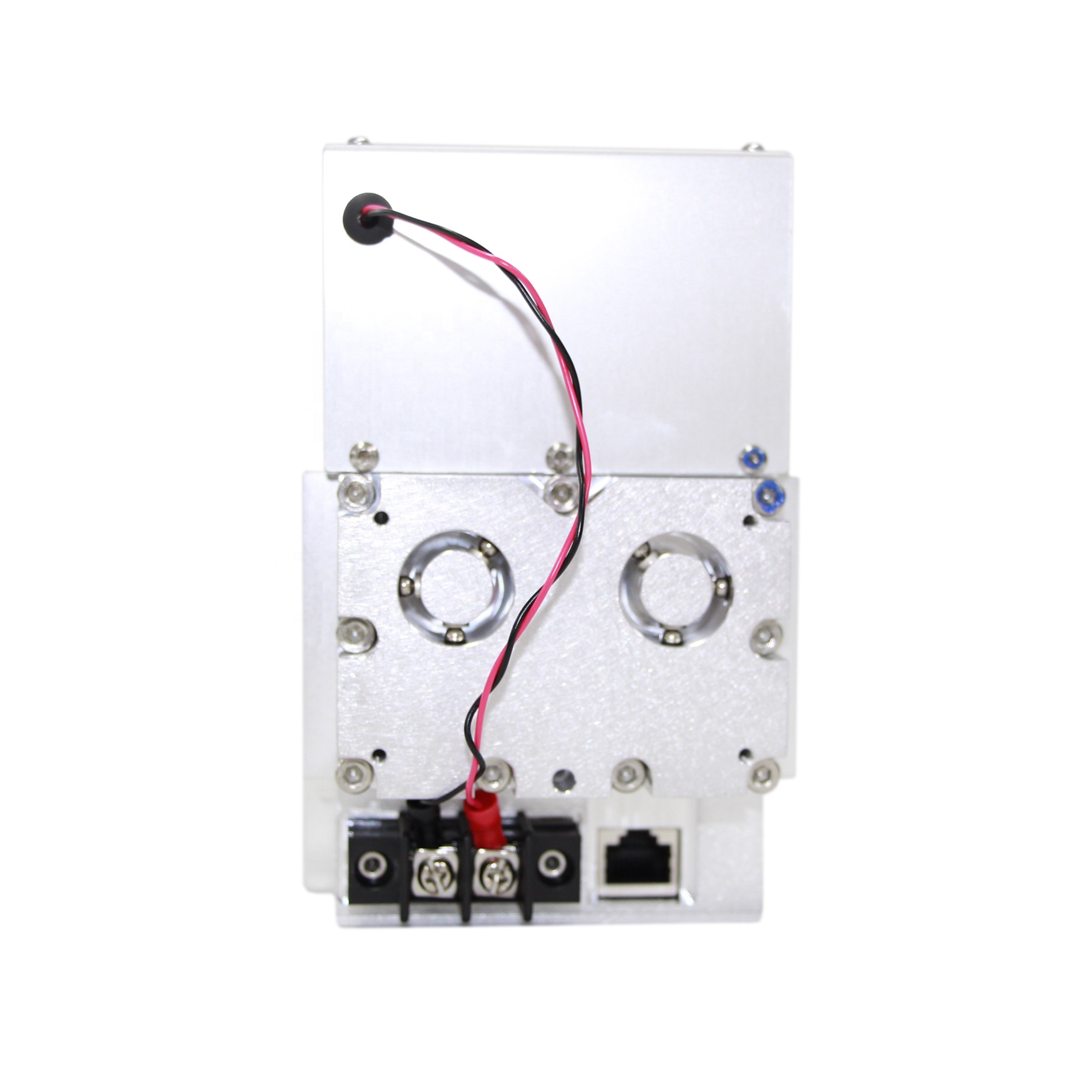

The connection Interface
Yongli RF CO2 Laser tube can replace other common brand of co2 laser tube.
The power supply it is compatible with
Model No.: SE-600-48
Application
For CO2 Laser Marking Machine
-Achieve high speed static or dynamic online marking code
-Mark/Engrave clearly
-Hard-wearing quality
-High engraving and marking efficiency
-Environmentally-friendly
For Medical treatment
-CO2 Fractional Laser Scare Removal Skin Resurfacing Device
-CO2 laser therapy
-RF Stretch Marks Removal CO2 Fractional Laser Machine
-RF Tube Laser Generator Vaginal Tightening Laser
-Cosmetology surgery apparatus
For CO2 Laser Cutting Machine
-High and stable power -Cutting better than Fiber laser For Non-metal
-The speed of cutting is faster
-Cutting Leather, wood,plastics etc
-The wavelength influence the cutting effect
