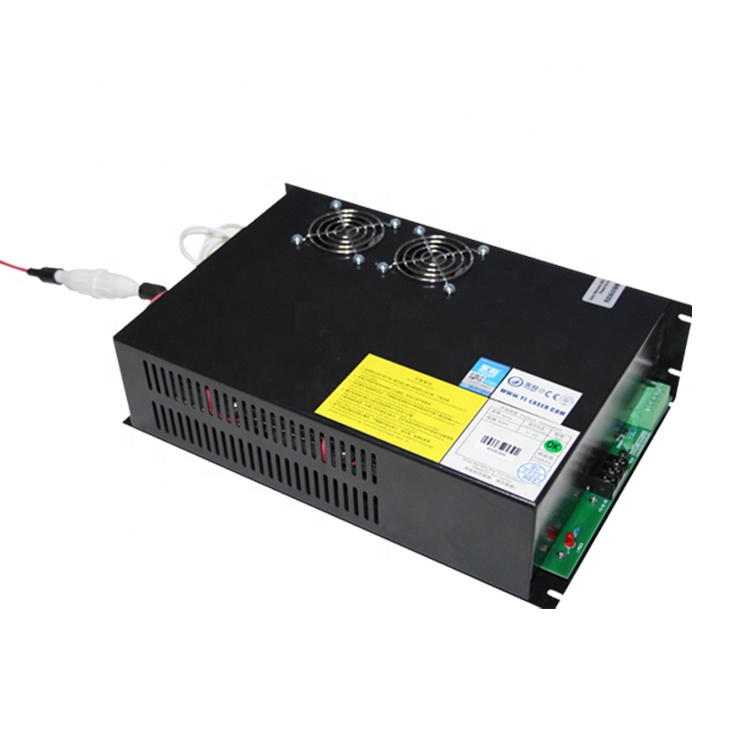

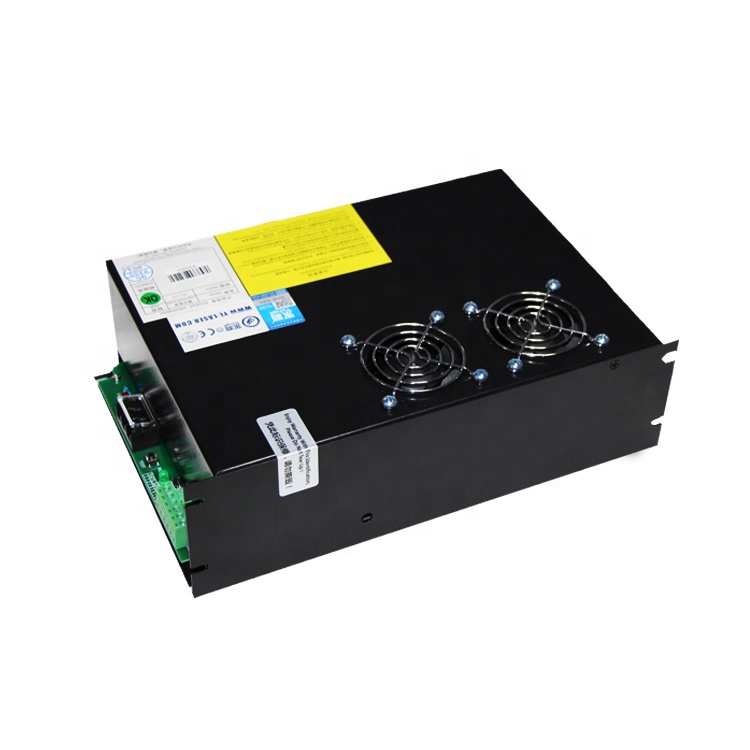

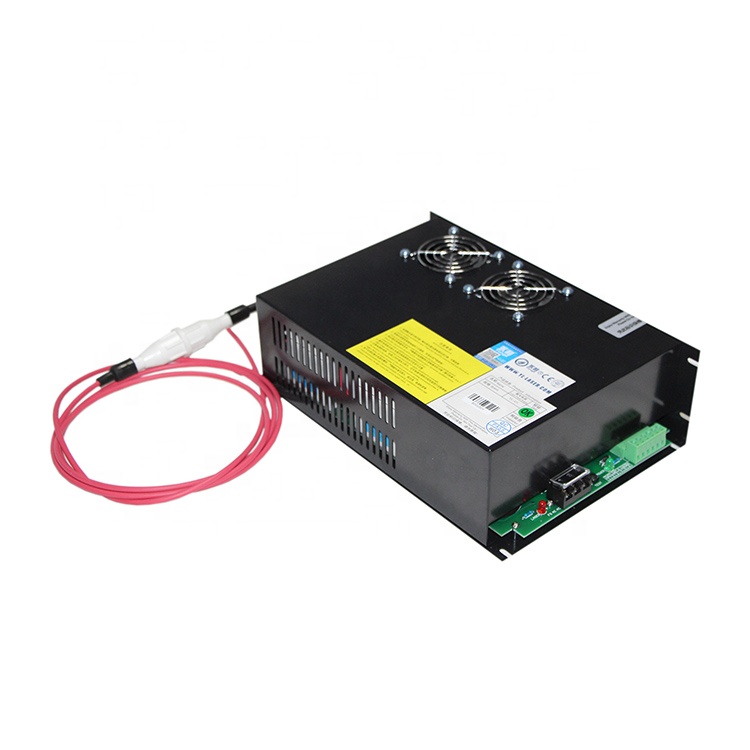

Yongli YL-U1 80w 90w 100w
co2 laser tube power supply
co2 laser tube power supply
Product Description
For Yongli 90W-130W co2 laser tubes, our R&D Department cooperates with Electronic Assembly Dept. designed and fabricated the YL-U1 CO2 Laser Tube Power Supply, which perfectly compatible with
A2s(90W-100W), A4s(100W-130W), H2(90W-100W) and H4(100W- 130W) CO2 laser tube.
YL-U1 can be also adapted to other brands of CO2 laser tubes which with an output power of 90W-130W.
A2s(90W-100W), A4s(100W-130W), H2(90W-100W) and H4(100W- 130W) CO2 laser tube.
YL-U1 can be also adapted to other brands of CO2 laser tubes which with an output power of 90W-130W.
Technical Parameters
|
Input Voltage
|
AC220V or AC110V (Optional)
|
|
AC Input Frequency
|
47~440Hz
|
|
Over Current Protection
|
Yes
|
|
Open Circuit Protection
|
Yes (Within Certain Time)
|
|
Cooling Method
|
Fan Cooling
|
|
Operating Temperature
|
-30℃ ~ 65℃
|
|
Relative Humidity
|
20-85%RH (Non-Consendate)
|
|
Vibration Resistance
|
Amplitude:1mm /Frequency 30Hz / 2 Hours
|
|
Ageing Time
|
Continuous over 4 hours / Pulse over Half Hour
(Frequency 60Hz)
|

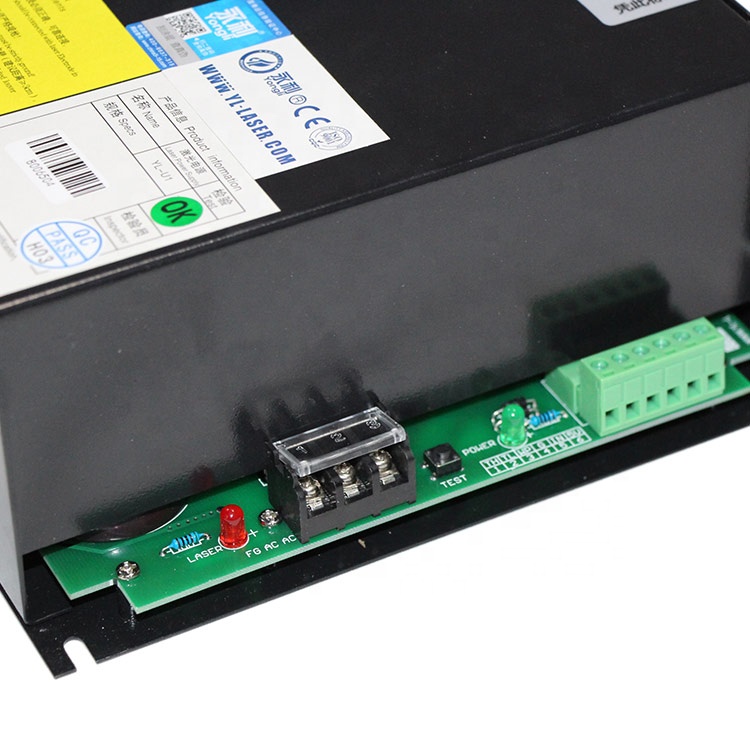

Product Details
|
TH
|
Input Signal
|
High-level ≥ 3V Pmin-Pmax
|
|
TL
|
Input Signal
|
Short-circuited When Not Use
|
|
WP
|
Protection
Switches
|
Short-circuited When Not Use
|
|
G
|
Signal Ground
|
Well Connected
|
|
IN
|
Input Signal
|
0-5V Analogue Signals or PWM Signals
(1≥20KHz)
|
|
5V
|
Output Power
|
Output Voltage: 5V / Max Output Current: 50mA
|
