Description
|
Model
|

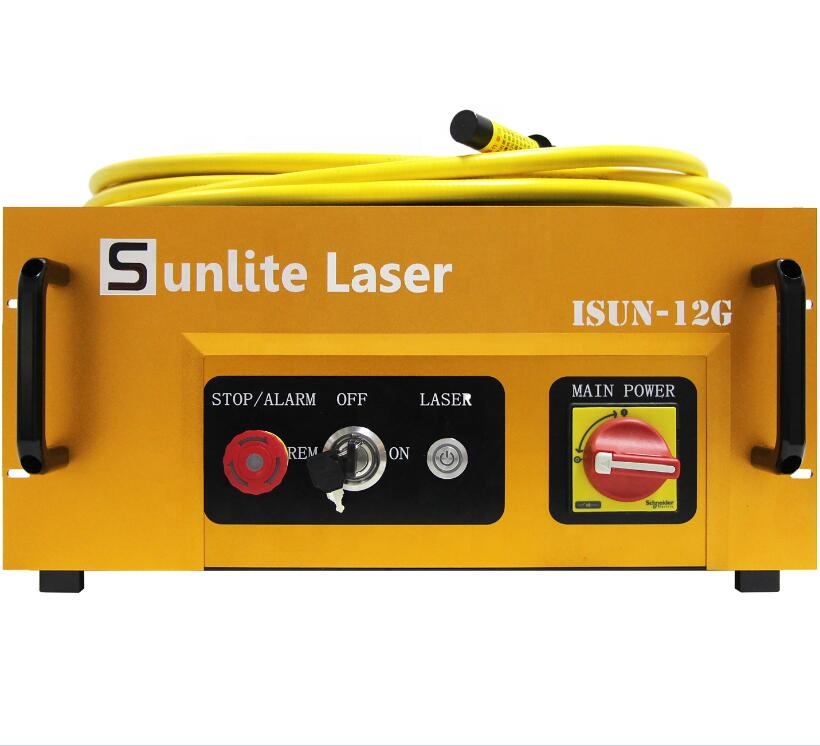

ISUN-12G
|
ISUN-18G
|
ISUN-24G
|
||
|
Rated Power(w)
|
1100
|
1600
|
2000
|
||
|
Central Wavelength(nm)
|
1070
|
||||
|
Working Mode
|
CW/Modulation
|
||||
|
Max Modulation Frequency(KHZ)
|
50
|
||||
|
Output Power Instability
|
＜3%
|
||||
|
Red Indicator
|
YES
|
||||
|
Fiber Output Interface
|
QBH/QCS
|
||||
|
Output Fiber Core
|
50μm
|
||||
|
Delivery Cable Length
|
15m/Customizable
|
||||
|
Working Voltage(v)
|
AC220
|
AC380
|
|||
|
Max Power Comsumption(w)
|
3200
|
5000
|
|||
|
Control Type
|
Rs232/AD/Hyper Terminal
|
||||
|
Power Adjusting Range(%)
|
10~100
|
||||
|
Working Enviroment Temperature
|
5~35℃
|
||||
|
Cooling Method
|
Water Cooling 25℃/＞12(l/min)
|
Water Cooling 25℃/＞20（l/min）
|
|||
|
Dimension
|
476*213*656
|
608*440*208
|
|||
High Electro-optical Conversion Efficiency
Altitude Stress-resisting Capacity
Sheet Cutting Efficiency
Customized Output Fiber Length
Optional Air Cooling or Water Cooling
Maintenance-freeOperation
Wide Modulation Frequency Range
* Laser cutting/drilling
* Laser welding
* Laser marking/scribing
* Precision machining
* Laser fast prototyping
The laser cutting is used to powerfully cut through a material. Many industries may have traditionally used a blade cutter to achieve their cutting goal but the obvious core advantage here is that a laser makes no contact with the material, meaning there are no expensive cutting discs to replace and the machine does not have to experience any downtime to replace ‘contact’ parts.
Laser Welding
As with many of these fiber laser processes, the clue is in the name here, and this laser process us used to weld two materials together. You will most often find that the materials being welded together are metals, but they can also be dissmilar metals too; metals which don’t possess the same qualities. This is especially useful in industrial sectors, where a wide ranging number of metals are used.
1.The warranty valid date is caculated since the day of sale contract is made.
2.Any malfunction within warranty valid date, the product need to be sent back to the facotry for reparing.
3.When it is sent back to factory, within 7 days after being signed for, new product will be offered once it is impossible to be repaired.
*Our company (Yongli Laser) reserves all the right for the final explanation.
