Yieryi LS163 Transmission Meter Portable UV IR Visible Light Measurement Spectrometers with Backlight for Glass PC Material

LS163 Solar Film Tester (Transmission Meter)

1. Multifunctional solar film tester: can test three parameters of visible light, infrared and ultraviolet. This solar film transmission meter has three different display modes, which are lighttance display, rejection rate display and light transmit transmission display.widely used in solar film, glass industry, automobile 4S shops, beauty shops, etc. It is suitable for display, production, quality inspection, inspection and other occasions. It can test optical properties of solar film, stick-film glass, PC material and window glass.

2. Simple operation and fast measurement: The three test results will be displayed on the interface immediately after putting the materials into the test slot.

3. Accurate parallel light metering: The parallel light path design can accurately measure the solar film and side glass within 6mm

4.The display interface can be rotated 360 ° adaptively: which is convenient for reading data when testing at different angles.

5.Real time dynamic calibration function : the meter will make self-calibration after power on.

6. set the display data as rejection rate or light transmittance : The instrument can also only display the visible light transmittance.

7. Data lock function. Press the hold button after testing, the data will remain on the interface after taking away the tested materials.

8. Portable, backlight, low power consumption: Adopts LCD dot matrix screen with backlight,The window film transmission meter has small size with anti-slip design. The anti-slip design is convenient for holding or carrying out.It can continuously measure for more than 100 hours. The meter will automatically shutdown without operation after 3 minutes.

Specifications :

1. Name: LS163 Solar Film Tester
2. UV Peak wavelength: 365nm
3.IR Peak wavelength: 940nm
4.Visible light: 380-760nm, conform to the CIE photopic luminosity function
5.Accuracy: ±2% (Colorless and transparent material)
6. Resolution: 0.1%
7.Test Slot: 6mm * 58mm (W*D)
8. Product size: 73mm*24mm*146mm
9. Packing size: 50mm*130mm*180mm
10.Display: 128*128 Dot matrix LCD
11.Weight: 187g (Include batteries)
12.Power supply: 4*AAA alkaline batteries (battery not included)

Packaging:

1 * LS163 Transmission Meter
1 * User Manual

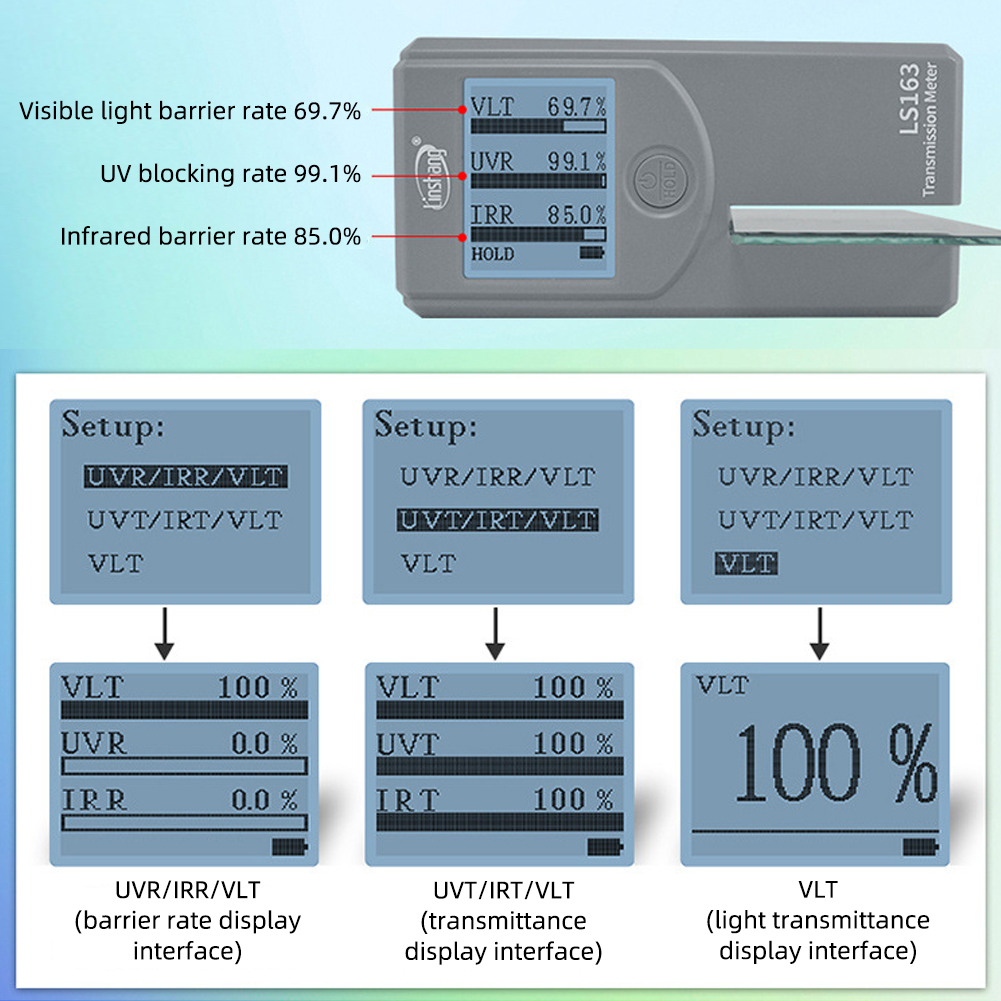

1.Visible light barrier rate 69.7%
2.UV blocking rate 99.1%
3.Infrared barrier rate 85.0%

UVR/IRR/VLT(barrier rate display interface)
UVT/IRT/VLT(transmittance display interface)
VLT (light transmittance display interface)

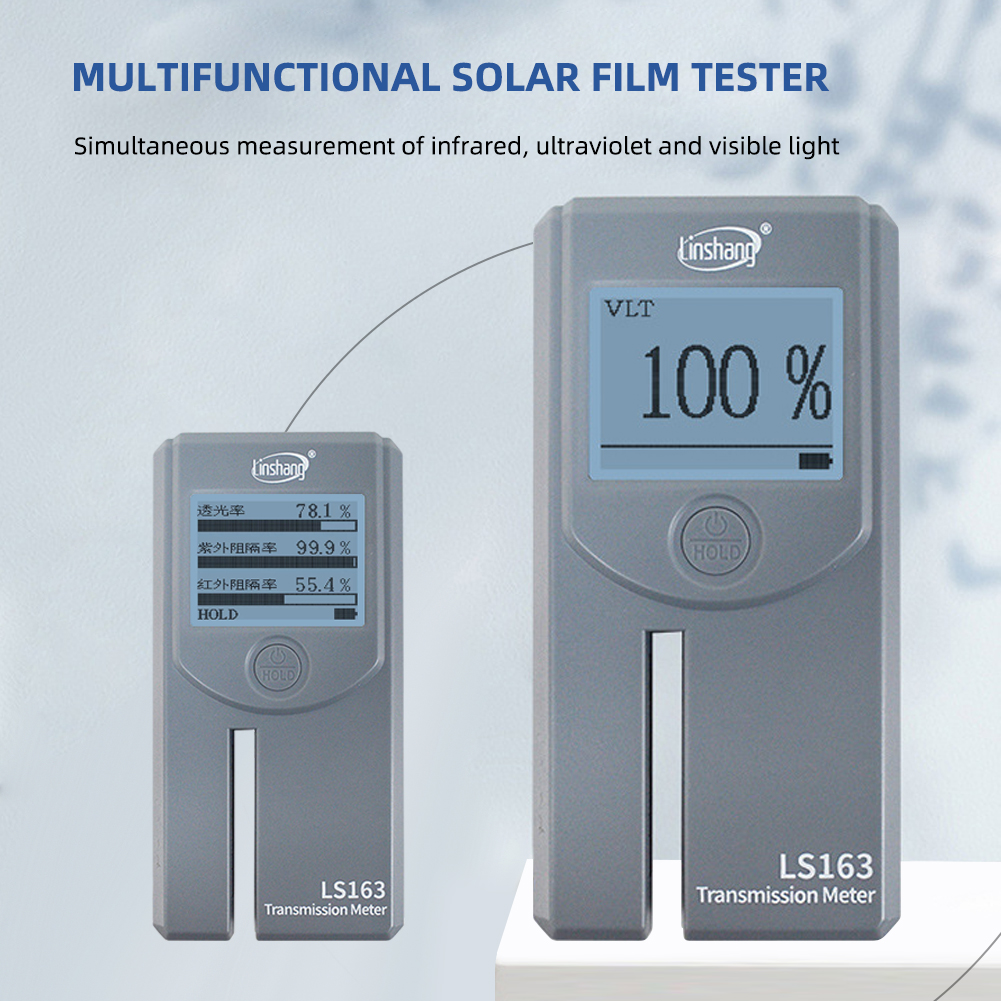

MULTIFUNCTIONAL SOLAR FILM TESTER ：

Simultaneous measurement of infrared, ultraviolet and visible light

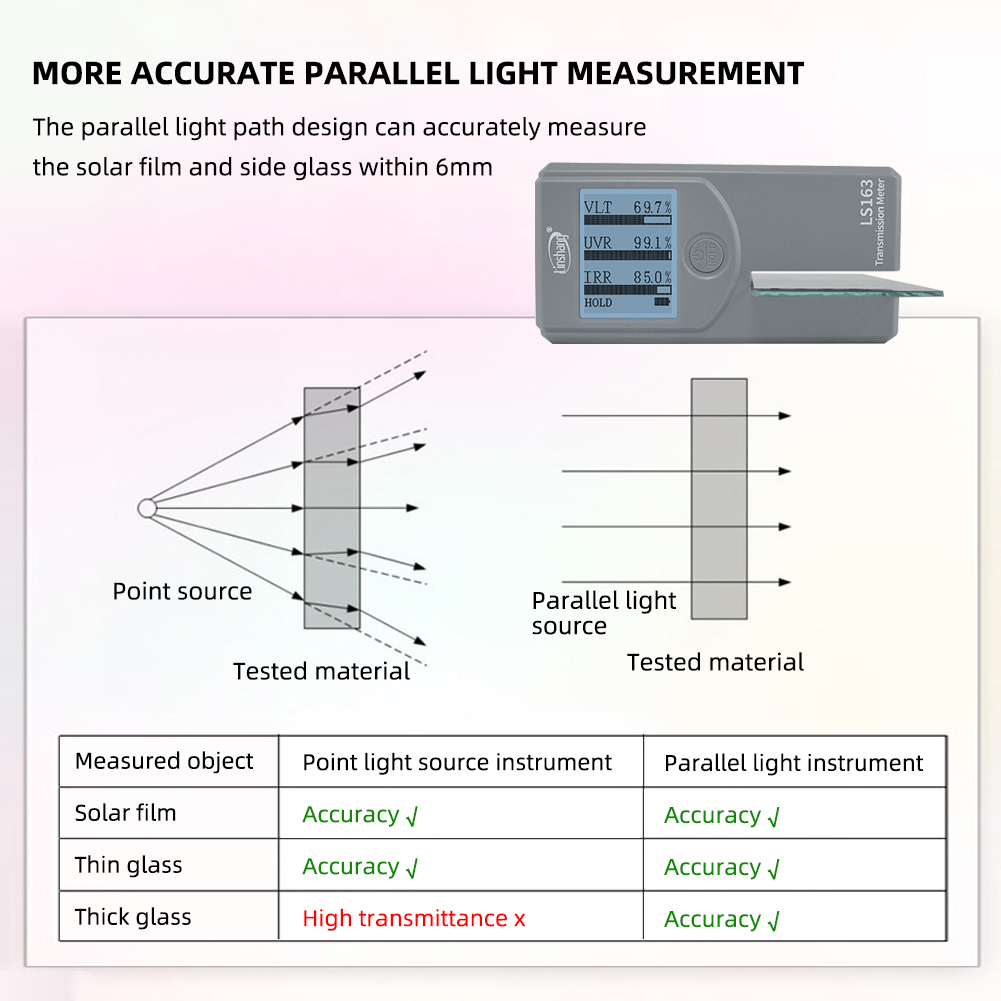

MORE ACCURATE PARALLEL LIGHT MEASUREMENT：

The parallel light path design can accurately measurethe solar film and side glass within 6mm

Rotating screen reading is more convenient ：

The screen can be rotated in 4 directions and can be read quickly when measured at any angle

Automatic rotation in four directions

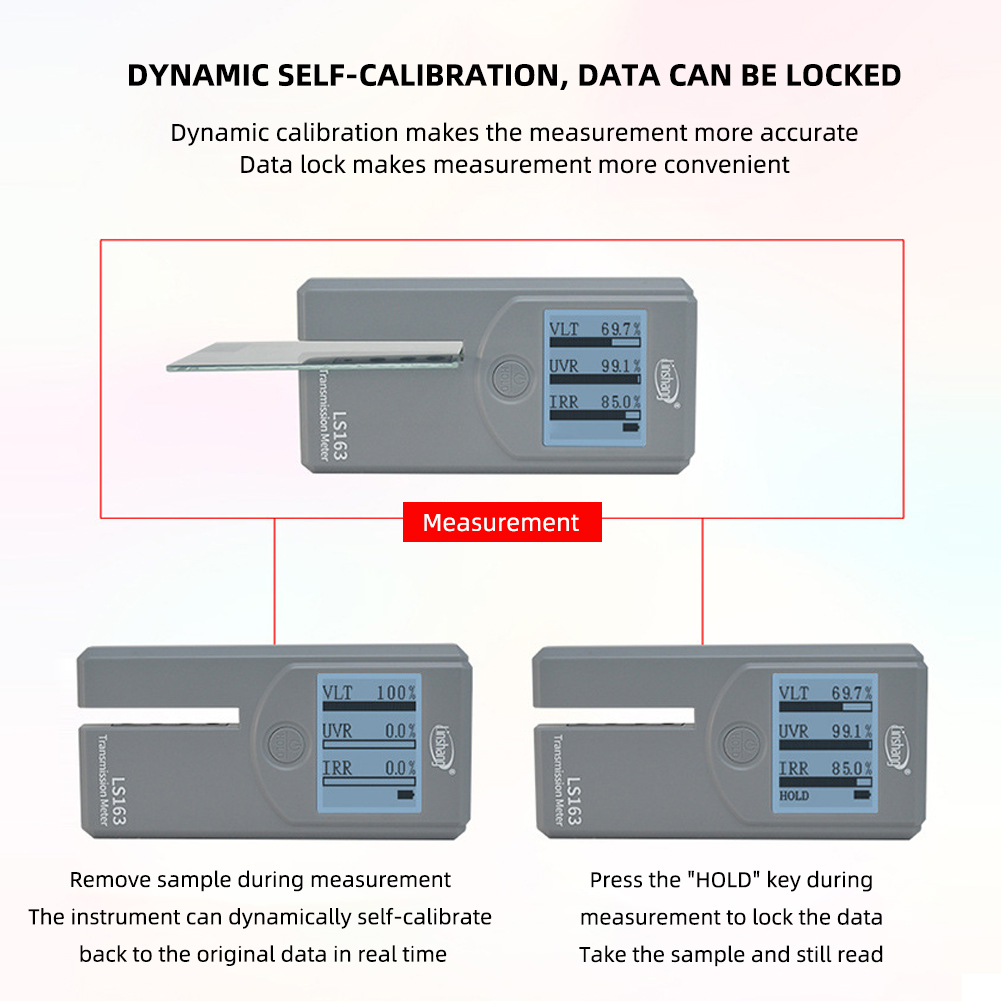

DYNAMIC SELF-CALIBRATION, DATA CAN BE LOCKED：

Dynamic calibration makes the measurement more accurateData lock makes measurement more convenient

Measurement：

1.Remove sample during measurement The instrument can dynamically self-calibrate back to the original data in real time

2.Press the “HOLD” key during measurement to lock the data Take the sample and still read

1.6mm large notch:
Solar film, film glass and side glass can be placed

2.Built in LCD backlight:
The dark environment can also be used normally

3.Low power design:
Powered by 4*AAA batteries (not included), it can measure continuously for more than 100 hours

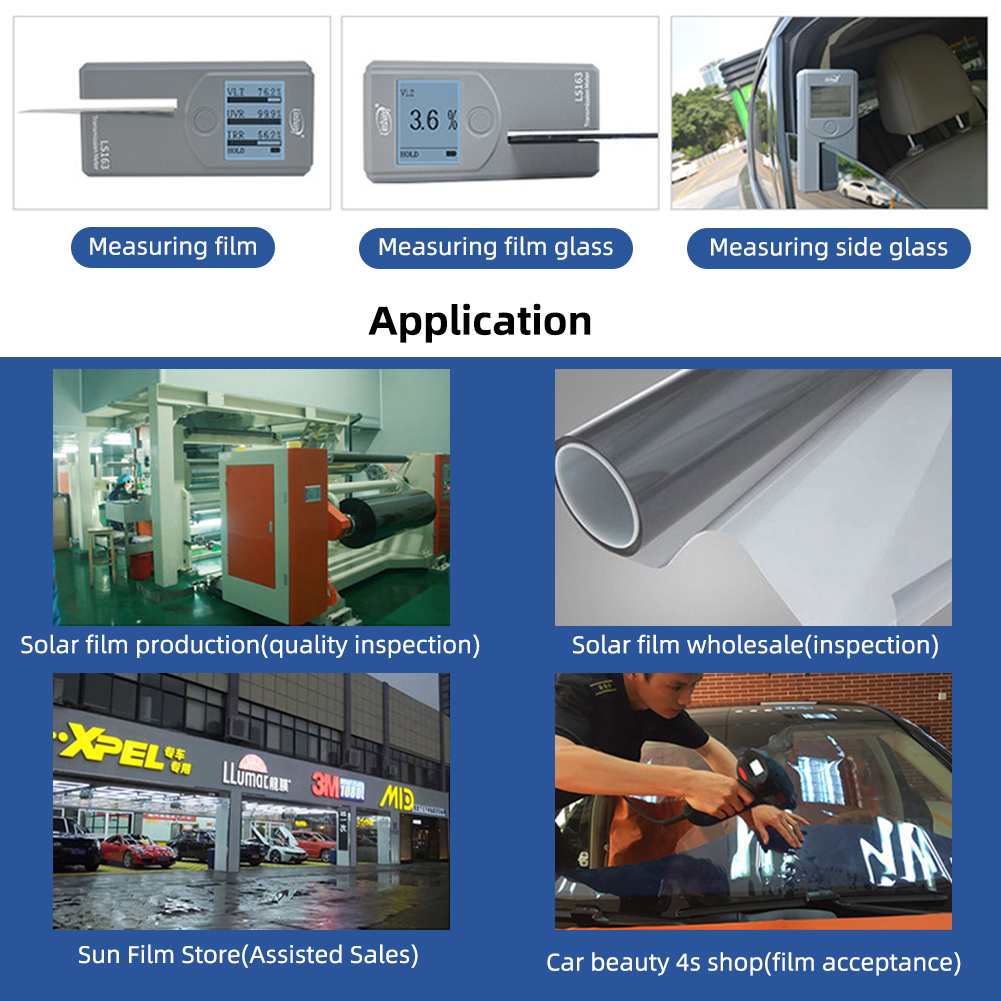

Application：

1.Measuring film
2.Measuring film glass
3Measuring side glass

E.g:

1. Sun Fil.m Store (Assisted Sales)
2.Car beauty 4s shop(film acceptance)
3.Solar film production(quality inspection)
4.Solar film wholesale(inspection)
