1.Upgrade Edition

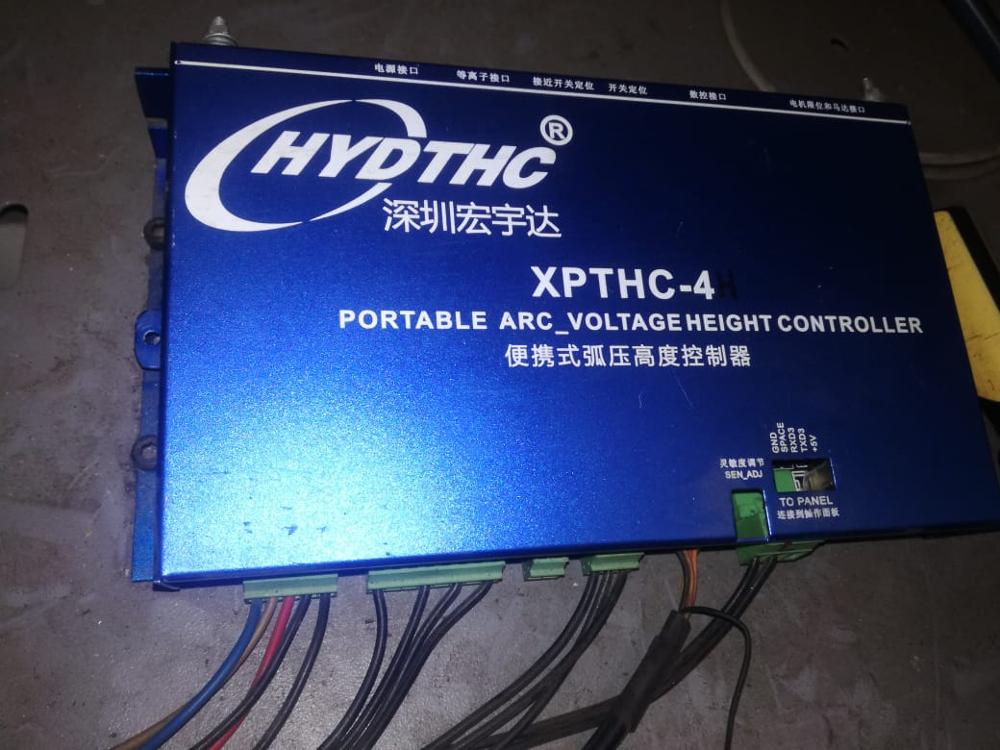

XPTHC-4H is a new design that can completely replace the arc voltage of the old XPTHC-4H
Based on the existing functions of the old model, the new XPTHC-4H adds many new functions:

1. Better operation, new operation panel design.
2. Added Dynamic Pierce, protect torch retaining cap.
3. Better anti-interference design.
4. Better work stability.

A, Auto Initial Height Sensing(IHS)
Torch Retaining Cap IHS and Proximity Switch IHS (NPN and PNP), Proximity Switch IHS is backup for Torch Retaining Cap IHS for cutting dirty/rusty workpiece, needing the Anti-Collision Fixture designed by HYD

(optional ).

B, Torch Anti-Collision Function
We designed Touch-Up circuit for Anti-Collision Function. No matter it is on Auto Control Model or Manual Control Model, when torch head touches the workpiece, THC would automatically lift torch up to IHS height. So with XPTHC-4H, even in Manual Control Model, user doesn’t need to worry about torch head crashing.

C, Freeze Auto Height Control on Corner Signal
XPTHC-4H can recognize Corner Signal from CNC and freeze Auto Control Model on receiving this signal, protect torch on voltage spikes (Corner Turning, Kerf Crossing) effectively.

D. Set Pierce Time

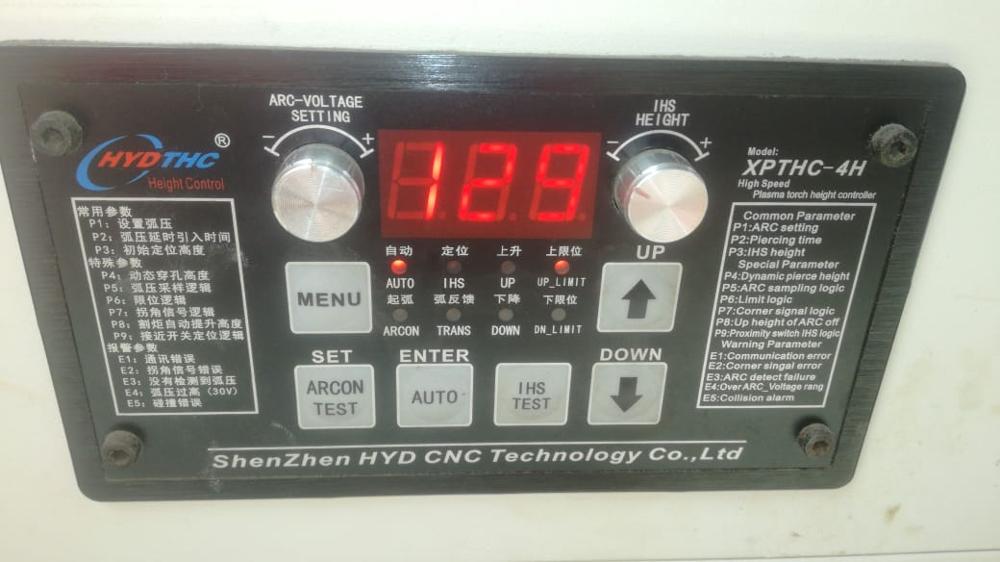

Set the Button (Set PIERE) to set Pierce Time.

E. Manual Operation
Many functions can be Manually operated on THC Operation Panel such as setting Auto/Manual, Up and Down, testing of IHS and Arc Start….etc

F. Arc Voltage Divide
Isolation Voltage Divide detection, the Voltage Divide ratio is 100:1/50:1. And XPTHC-4H supports different HF plasma.

2.Basic parameter

1 Input Power:DC24-36 or AC24V+10%,50Hz/60H z
1 Down/Up Motor:DC24V DC MOTOR
1 Motor Drive: PWM ;
1 Output Current:1A-4A, Load capacity:100W,
1 Working temperature:-10-60℃
1 Voltage Divide ratio :50:1
1 Control accuracy :±1V -±2V
1 Size :length *width *height:272mm*225mm*80mm
1 The speed of lifting:1000mm/min-4000mm/min(Contact the supplier if it exceeds the range of speed)

3 Application

XPTHC-4H supports almost all plasma cutters on market like Hypertherm, Thermal Dynamics…include HD plasmas like HPR130, 260, Ultra-cut series….
And it supports all CNC cutting controllers on market like Hypertherm, Burny industrial level controllers or Mach3 such DIY controllers, because XPTHC-4HIII can start Auto Height control with or without Auto enable signal from CNC. But with Auto enable/disable signal from CNC, THC would work better.
