Description

Origin: Mainland China
Certification: NONE

modname=ckeditor

Question 1: Can the water level line be lengthened?
Answer: You can lengthen within 100 meters by yourself, and lengthen by yourself

Question 2: Is this suitable for single-chip microcomputers:
Answer: Not applicable

Question 3: Will this water level float in the water?
Answer: No, the density of the water head is much larger than that of water, and it will sink;

The water level applies to:
Bihe: BF-912A+ EV3 EV5 BF-KT4 BF-8805A BF-450T BF-3030
CKC: C61F-PG 61F-GP-N A61F-GP-N AFR-1
Xinling HHY1G JYB-3 Chint: JYB714B Delixi: JYB714A

Other brands: DF-96A DF97A DF-96D ZDF-96B DF-96B EDF-96D DF-96A-96C

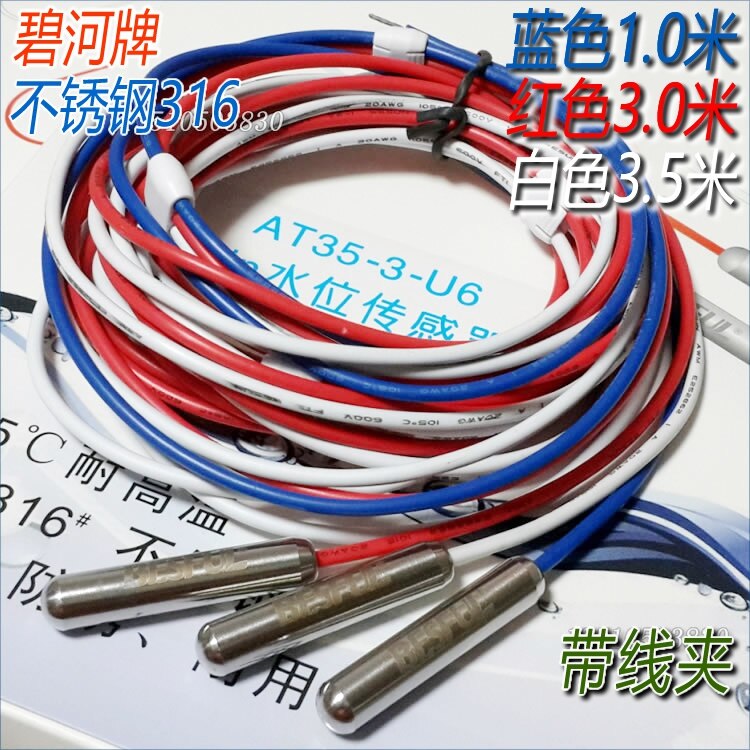

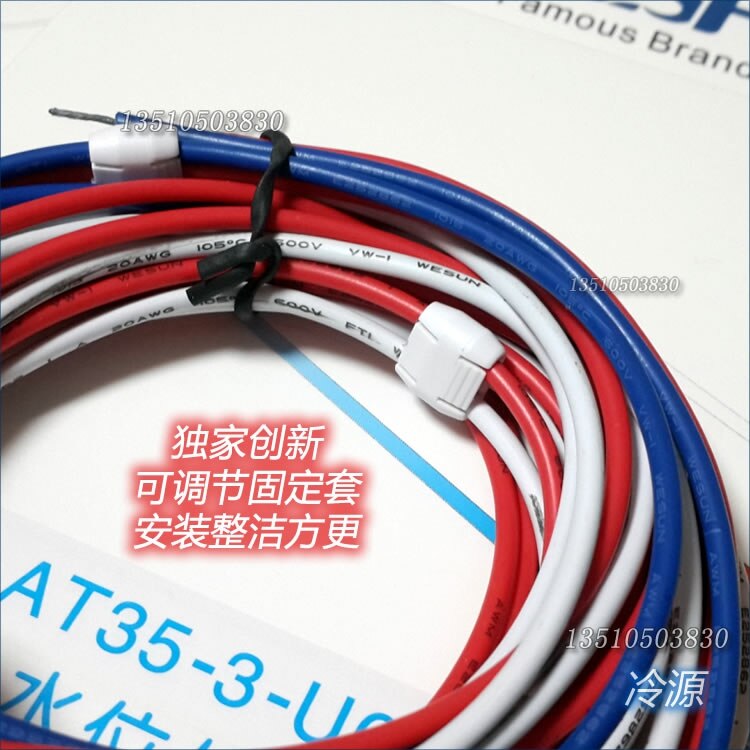

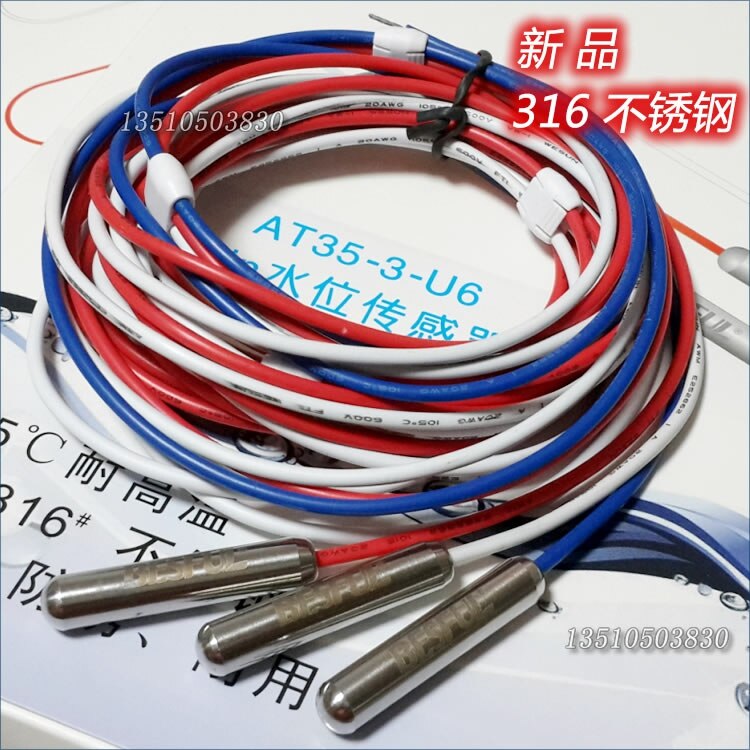

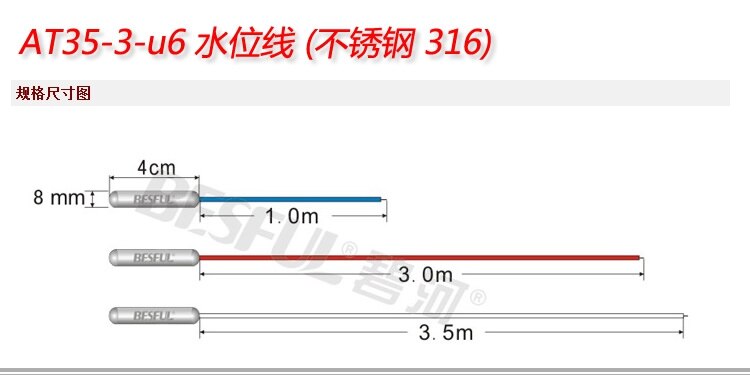

AT35-3-U6 stainless steel 316 water level sensing line (3) (new product) (blue) 1.0 meters, (red) 3.1 meters, (white) 3.5 meters.

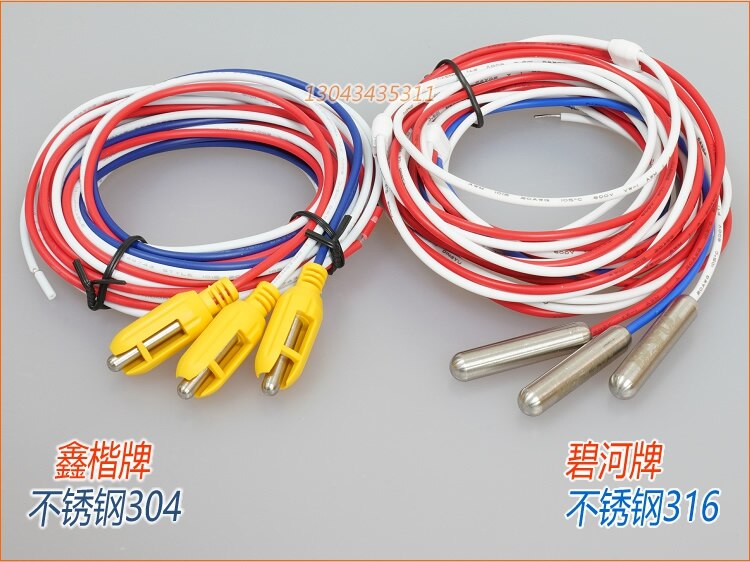

AT35-3 stainless steel 304 water level sensing line (3) (blue) 1.0m, (red) 3.1m, (white) 3.5m.
AT35-7 stainless steel 304 water level sensing line (7) blue 0.7 meters
White 0.8m Green 1.1m White 1.4m Yellow 2.2m Red 3.35m White 3.5m

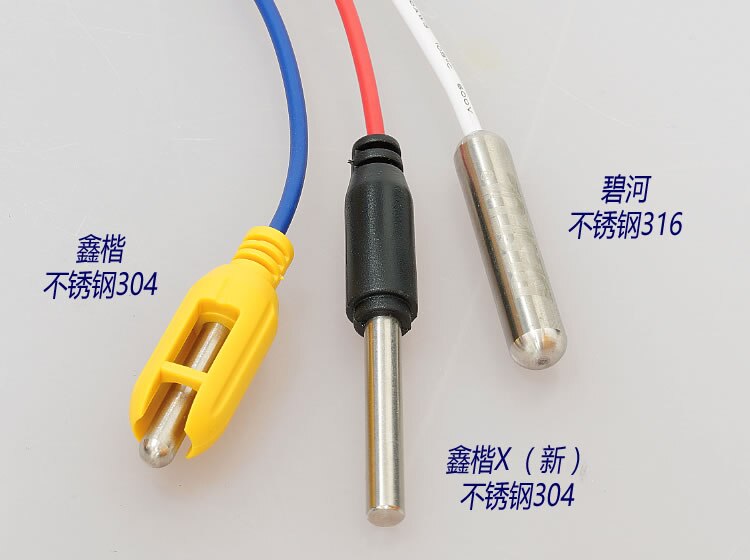

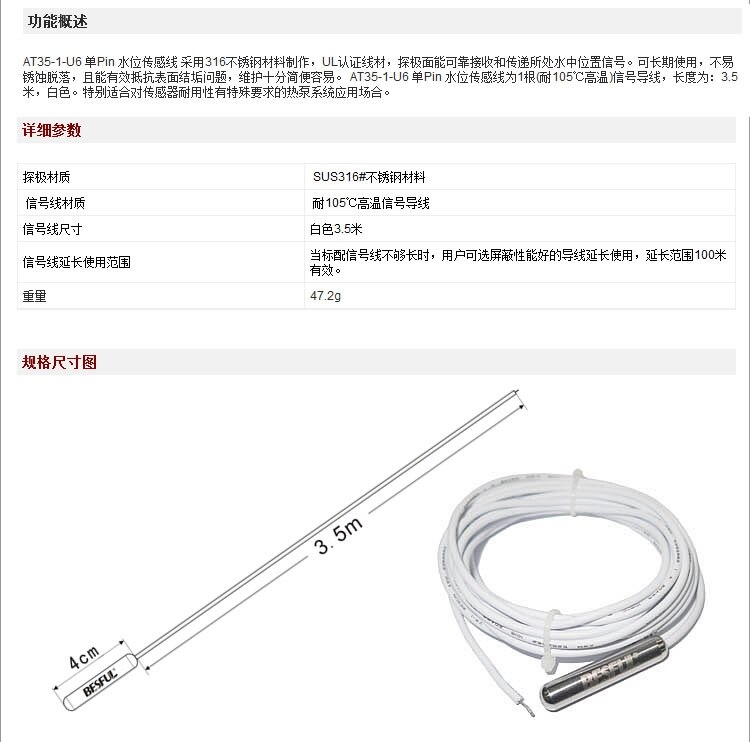

AT35-3-U6 electrode type liquid level sensor is made of SUS316# stainless steel material.
AT35-3 electrode type liquid level sensor is made of SUS306# stainless steel material,

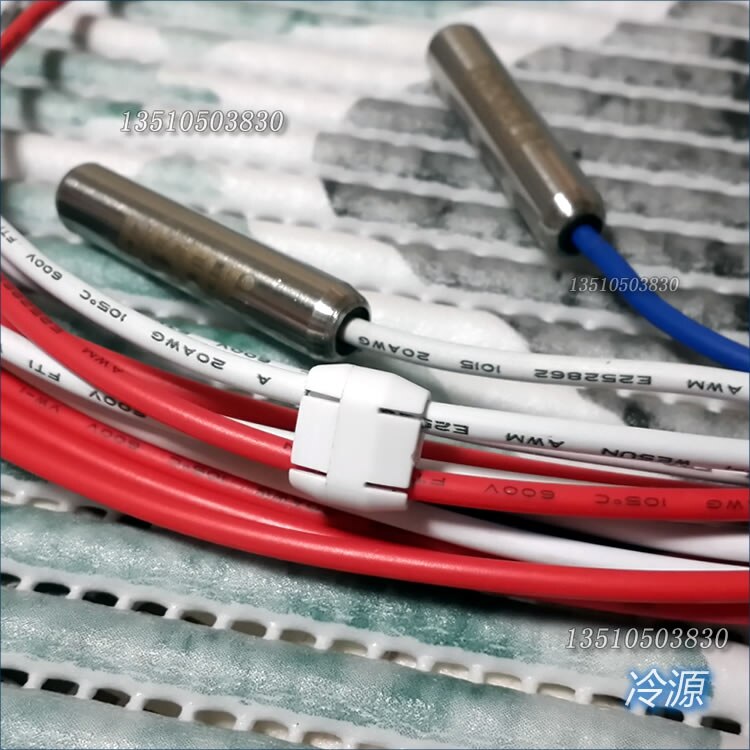

The probe surface can reliably receive and transmit the position signal in the water. It can be used for a long time, not easy to rust and fall off, and can effectively resist the problem of surface scaling, and the maintenance is very simple and easy. The AT35-3 liquid level sensor has a total of 3 (105 ℃ high temperature resistant) signal wires (each signal wire has a different color), each signal wire has a different length, respectively: (blue) 1.0 meters, (red) 3.1 meters, ( white) 3.5 meters.

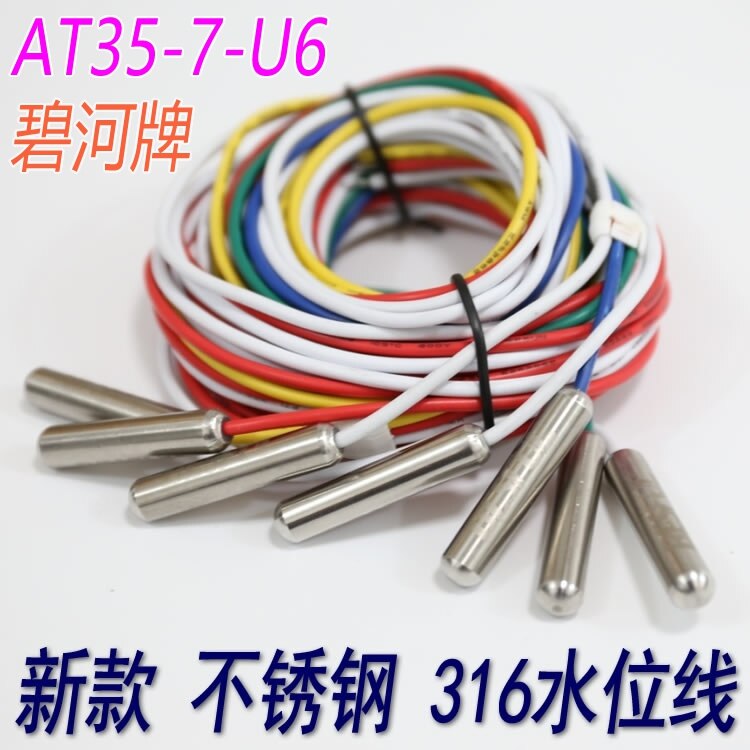

The AT35-7 electrode type water level sensor is made of SUS304# stainless steel material, and the probe surface can reliably receive and transmit the position signal in the water. It can be used for a long time, not easy to rust and fall off, and can effectively resist the problem of surface scaling, and the maintenance is very simple and easy. The AT35-7 water level sensor has a total of 7 signal wires (105 ℃ high temperature resistance), which are: blue 0.7 meters (100% water level line), white 0.8 meters (common pole), green 1.1 meters (80% water level line), white 1.4 meters (common pole), yellow 2.2 meters (50% water level), red 3.35 meters (30% water level), white 3.5 meters (water shortage common pole).
