XF200B Ultrasonic Wind Speed Sensor Wind Direction Transducer for Bridges, Tunnels

  • Home
  • XF200B Ultrasonic Wind Speed Sensor Wind Direction Transducer for Bridges, Tunnels
Sale!

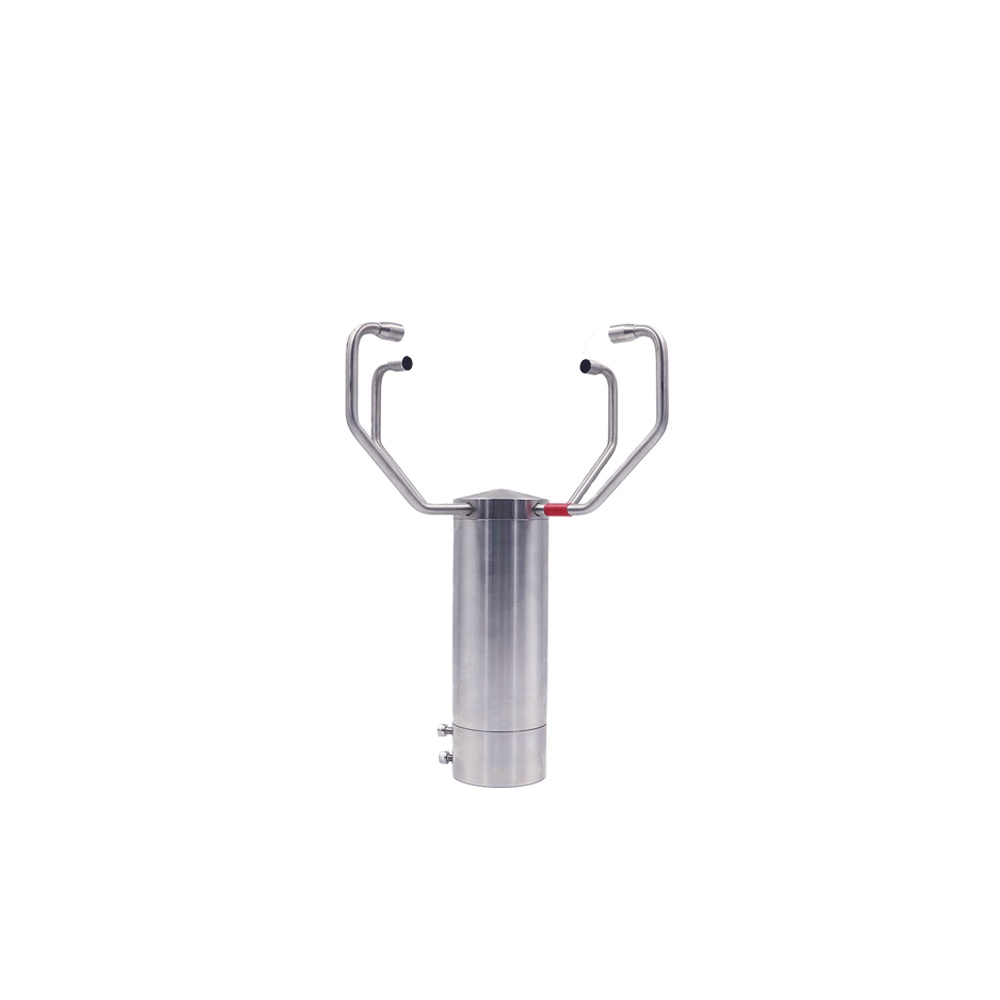

XF200B Ultrasonic Wind Speed Sensor Wind Direction Transducer for Bridges, Tunnels

$2,442.92

88 in stock

SKU: 1005004285890336 Category:

Description

  • Brand Name: MLHJ
  • Origin: CN(Origin)
  • DIY Supplies: ELECTRICAL
  • Certification: CE
  • Model Number: XF200B
  • Type: Air quality sensor
  • Place of Origin: Hebei, China
  • Brand Name: XINFENG
  • Usage: Outdoor Weather Monitoring
  • Theory: Principles of Optics, Optics
  • Output: RS485
  • Description: Compact All-in-one Weather Sensor
  • Model: XF200B
  • Material: ASA
  • Interfaces: RS485
  • Power Supply: 12…24VDC
  • Optional Accessories: Electronic compass or GPS,10m cable
  • Certificate: CE ROHS ISO9001
  • Warranty: 1 Year
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{width:750px}#detail_decorate_root .magic-6{overflow:hidden;width:750px;height:306.79327976625274px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:750px;height:306.79327976625274px}#detail_decorate_root .magic-8{width:750px;border-collapse:collapse}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:187px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{text-align:center}#detail_decorate_root .magic-11{min-height:18px;padding:5px 10px;width:123px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{min-height:18px;padding:5px 10px;width:170px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-13{min-height:18px;padding:5px 10px;width:181px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-14{display:none}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:50px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:187px;box-sizing:content-box}#detail_decorate_root .magic-17{min-height:18px;padding:5px 10px;width:515px;box-sizing:content-box}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;width:170px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;width:182px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;width:316px;box-sizing:content-box}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:179px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;width:516px;box-sizing:content-box}#detail_decorate_root .magic-23{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-24{margin-bottom:0}#detail_decorate_root .magic-25{position:relative;width:100%}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:310.0303951367781px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:310.0303951367781px}#detail_decorate_root .magic-28{overflow:hidden;width:247.33333333333334px;height:216.71977124183007px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:247px;height:216px}#detail_decorate_root .magic-30{overflow:hidden;width:247.33333333333334px;height:216.29149797570852px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:371px;height:216px}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:247px;height:220px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:327.9986779885087px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:327.99867798850863px}#detail_decorate_root .magic-35{overflow:hidden;width:184.5px;height:264.3266475644699px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:184px;height:264px}#detail_decorate_root .magic-37{overflow:hidden;width:184.5px;height:263.7146739130435px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:190px;height:263px}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:186px;height:263px}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:187px;height:263px}#detail_decorate_root .magic-41{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;margin-right:0;margin-bottom:0;width:undefinedpx;min-height:0}#detail_decorate_root .magic-43{width:180px;height:144px;max-width:100%;max-height:100%}

Product Paramenters

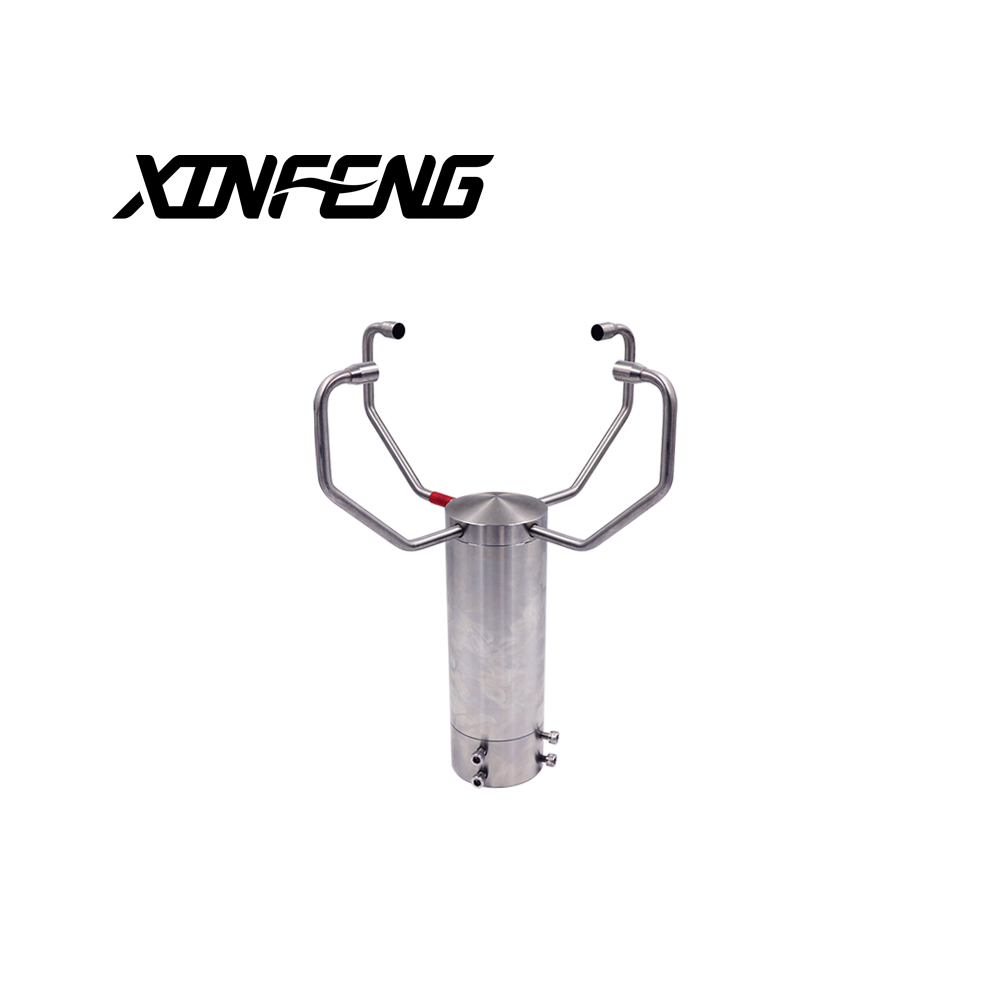

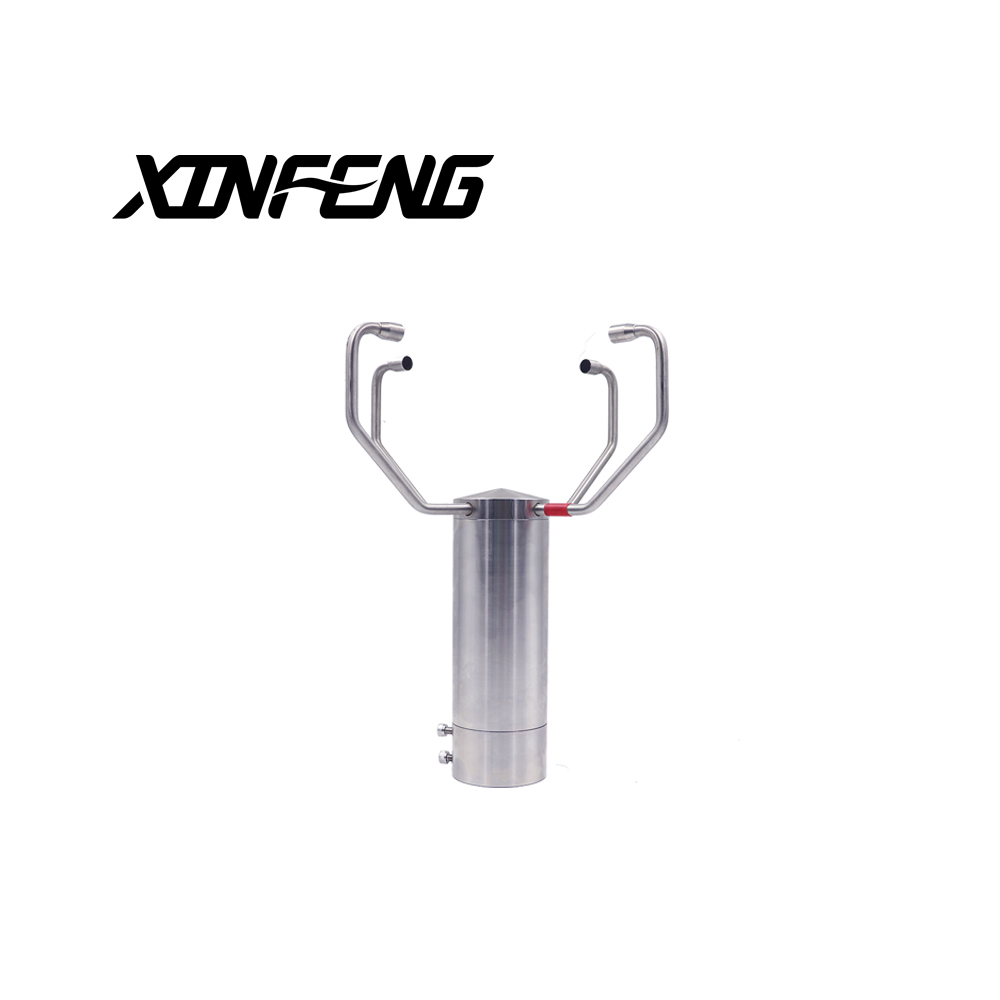

The XF200B ultrasonic wind sensor is a measuring instrument that uses the time difference of ultrasonic propagation in the air to measure wind speed and direction. Stainless steel material has the characteristics of low wear and long service life. Compared with the traditional mechanical anemometer, the product has a heating function and can still work normally in extreme weather. It can be widely used in urban environmental monitoring, wind power generation, weather monitoring, bridges and tunnels, marine ships, aviation airports and other fields. No maintenance and on-site calibration are required.

Measture item

Range

Resolution

Accuracy

Wind speed

0-60m/s

0.01m/s

(0-30m/s)±0.3m/s or ±3%
(30-60m/s)±5%

Wind direction

0-360°

0.1°

±2°

Principle

Ultrasonic

Output

4-20mA

RS485(Modbus)

Supply

DC12-24V 、solar power

fixed form

A) Sleeve fixed;
B) Flange adapter fixed

Power consumption

<1W (12V)

Heating average current

<3A

Main material

316SS

Ingress Protection

IP66

Wind-Resistant

75m/s

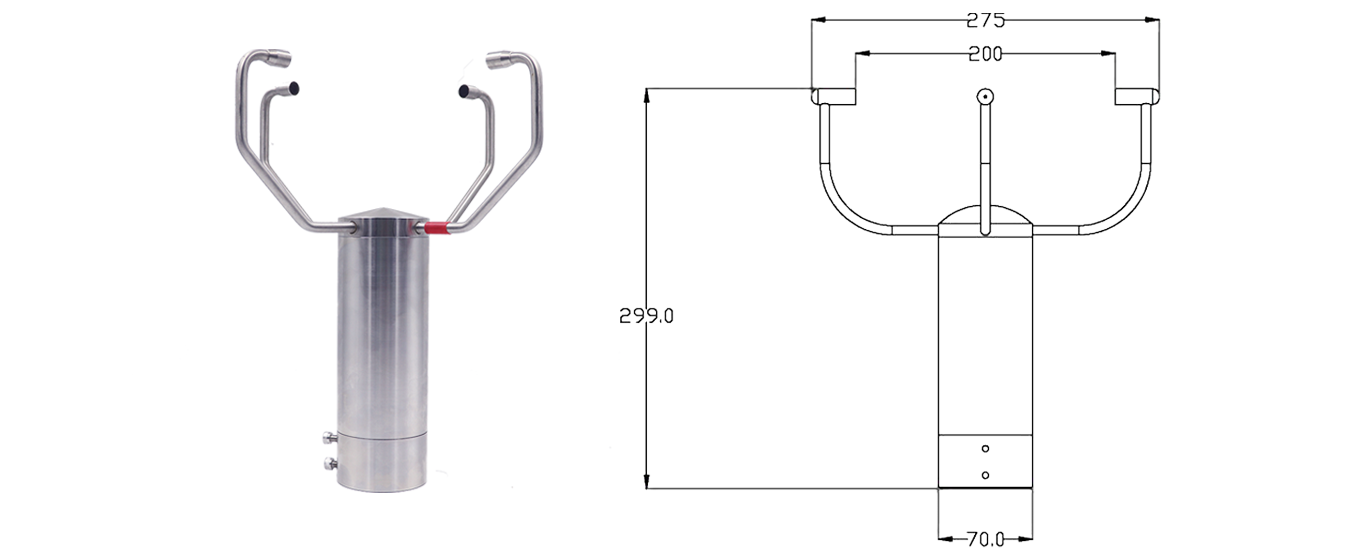

Size(mm)

251×182×182

Mounting part size(mm)

50(ID)×70(OD)

Mounting frame

1.5m、3m Pole fixed

Working temperature

-40℃~60℃

Storage temperature

-50℃~80℃

Products Description

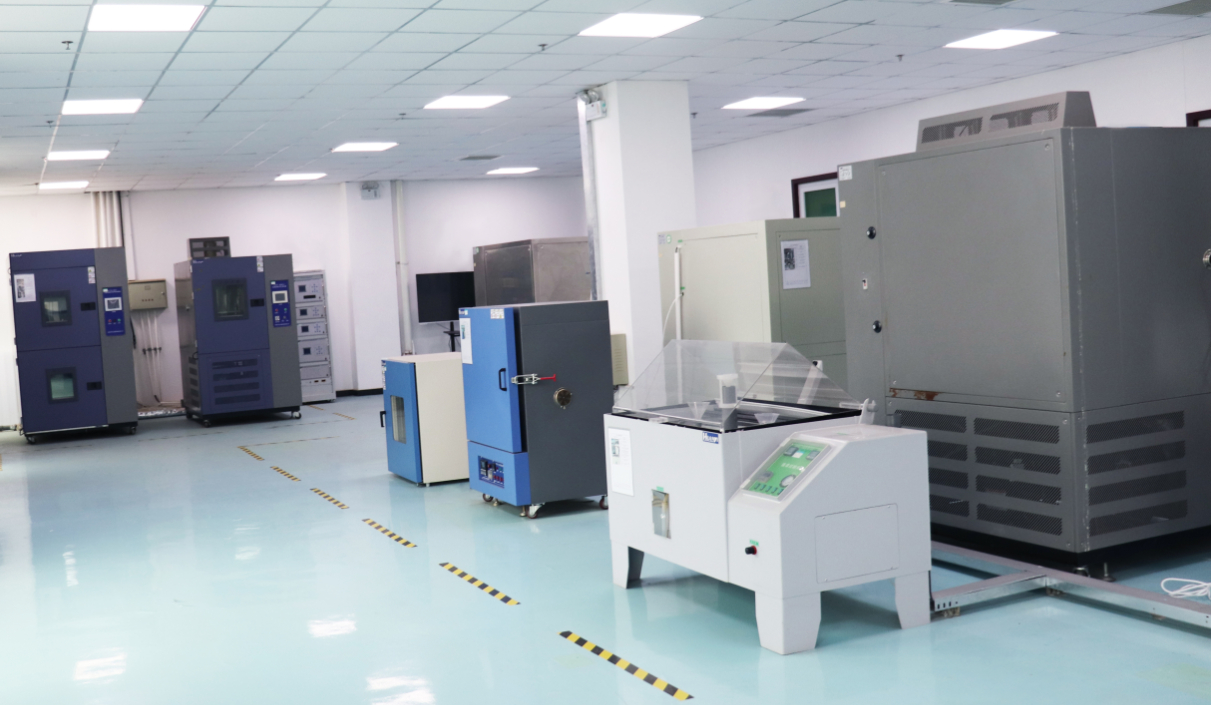

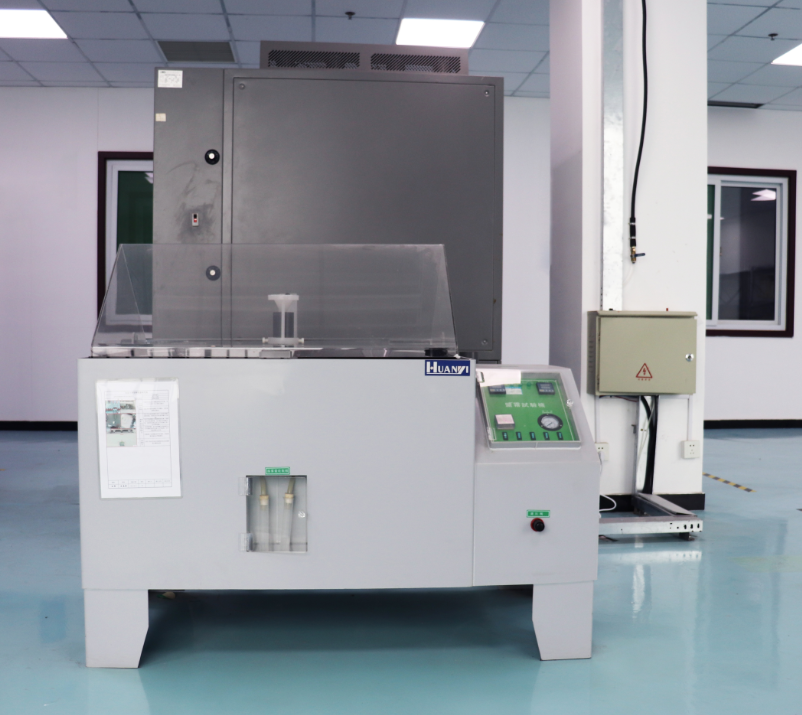

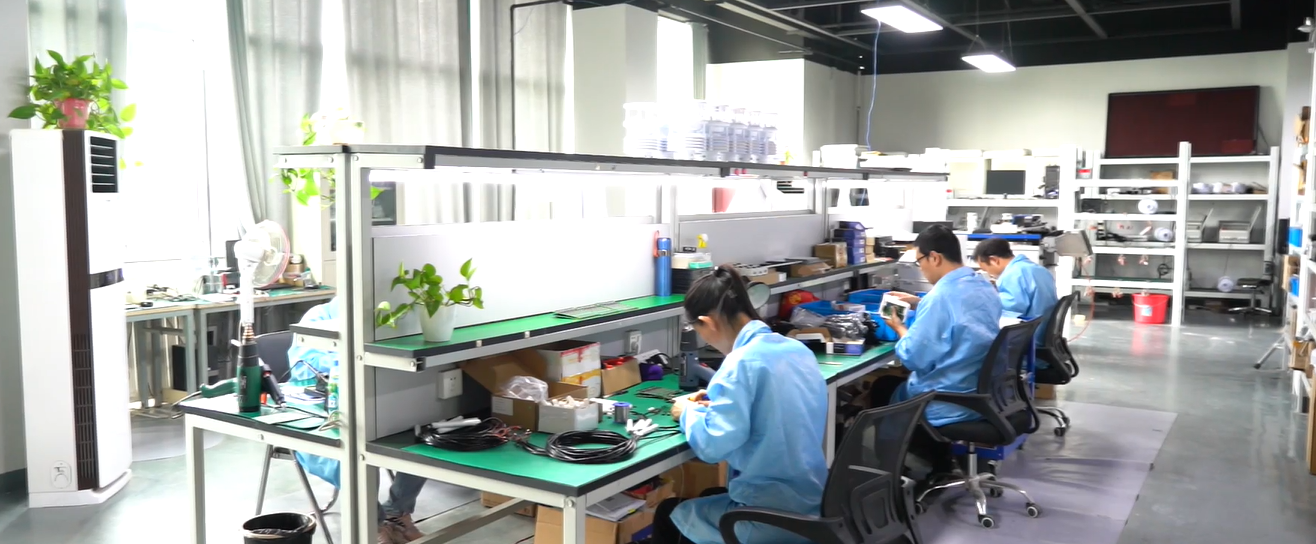

Manufacturing Technique

Company Profile

Handan Yunnong Inteligent Agricultural Technology Co., Ltd. was established in 2012. It committed to the research, development, production and sales of intelligent hardware products and systems for agricultural internet of things. The products cover sensors related to meteorology, soil, environment, plant physiology. Gateways and wireless controllers, of which the RYQ series automatic weather stations can widely used in agricultural microclimate, hydrology, photovoltaic new energy, traffic meteorology, environmental protection and other fields. The XF series compact all-in-one smart weather sensor has a variety of built-in parameters, it is easy to install and cost-effective. The company is currently a technoliogy-based small and medium-sized enterprise, in Hebei Province,a national high-tech enterprise, and hopes to grow and develop together with partners in the meteorological industry.

Certifications

FAQ

Q: Do you offer free samples ? A: Sorry , we do not offer free samples . Q: What payment ways do you accept ? A: You can pay us by T/T , PayPal , and West Union . Q: What is your delivery time ? A: It is in 6-8 working days since the payment confirmed . If quantity more than 100pcs /order, it will need extra 3-5 working days . Q: What is your normal delivery way? A: Goods will be sent DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders. Q: How is your quality assurance service ? A: Our service is free exchange within one month and 12 months`quality guarantee. Q: Could we make a visit to your factory ? A: Yes, you are welcomed . But before that ,we will do the visiting investigation.
