Description
- Brand Name: Aideepen
- Certification: None
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Accuracy Class: 0.5
- Model Number: WXD3-13
- Measuring Range: 10K
- Dimensions: 2W
- feature 1: WXD3-13-2W
- feature 2: Potentiometer 10K Ohm
- feature 3: Multi-turn Wire Potentiometer

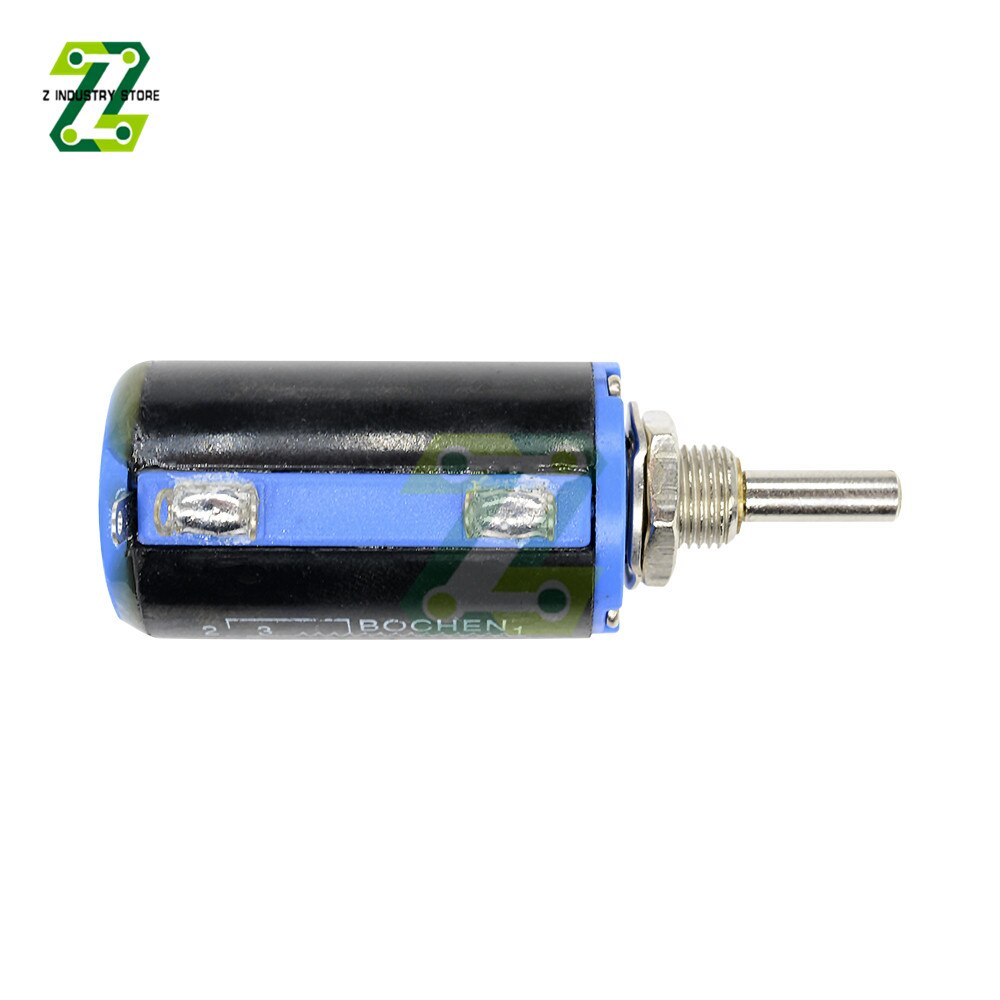

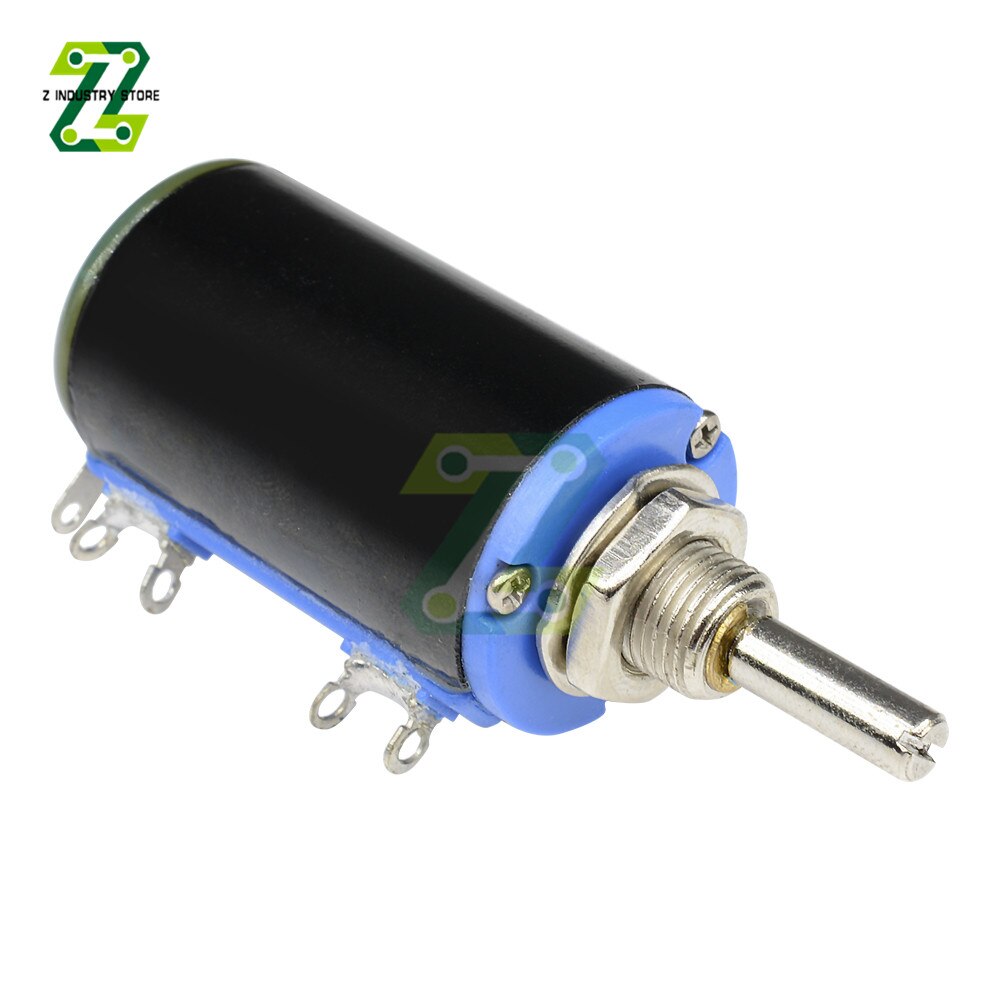

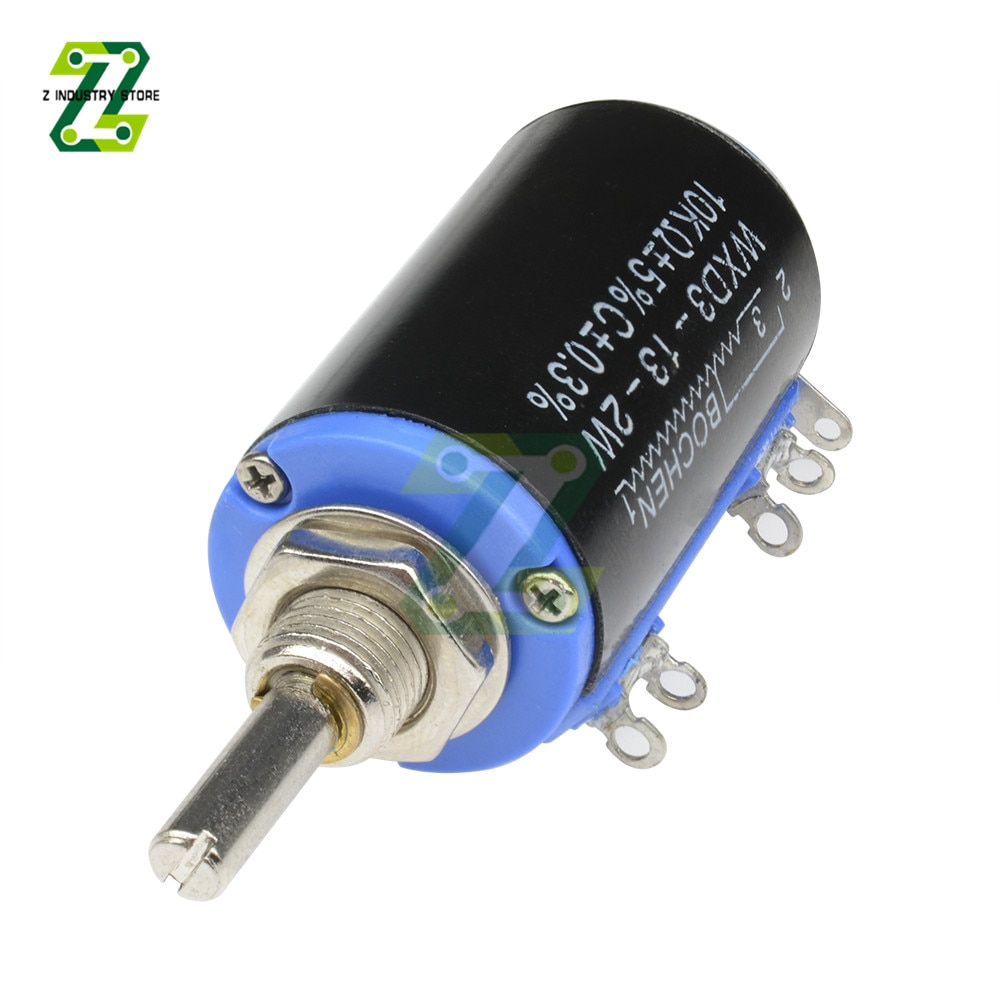

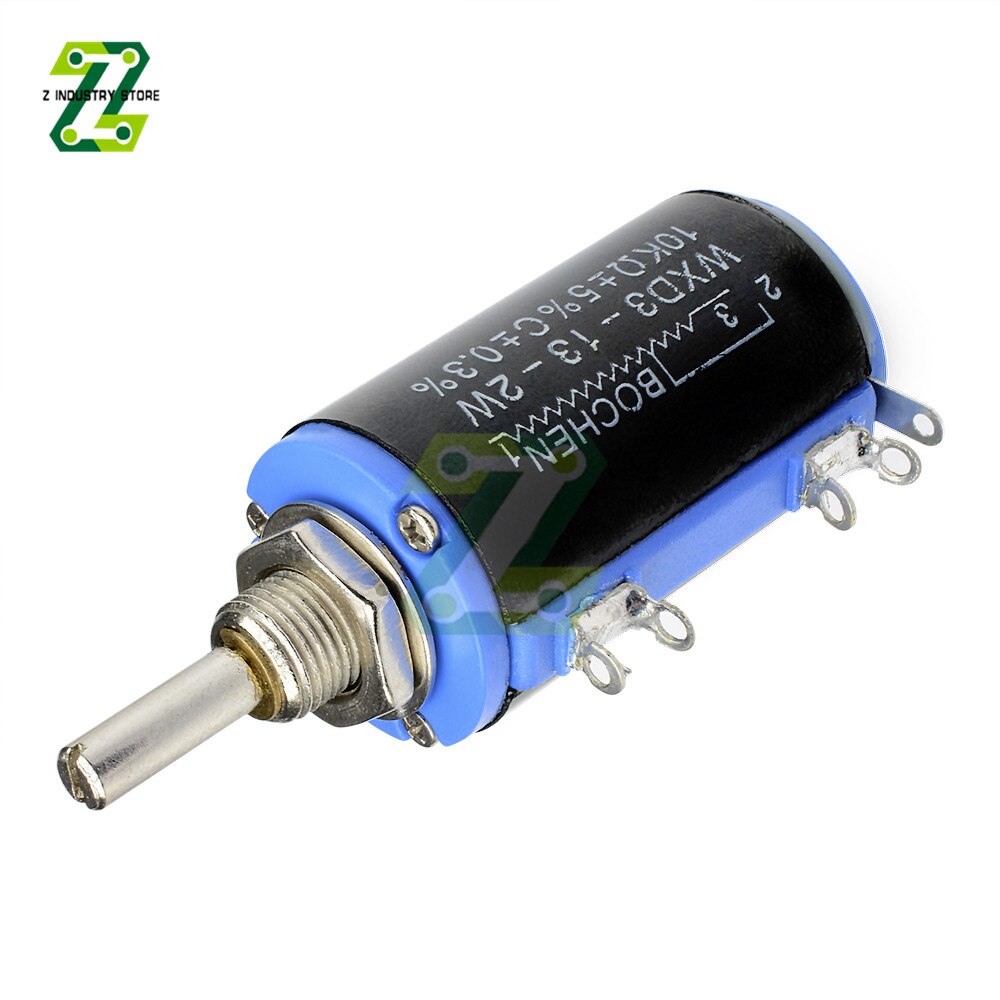

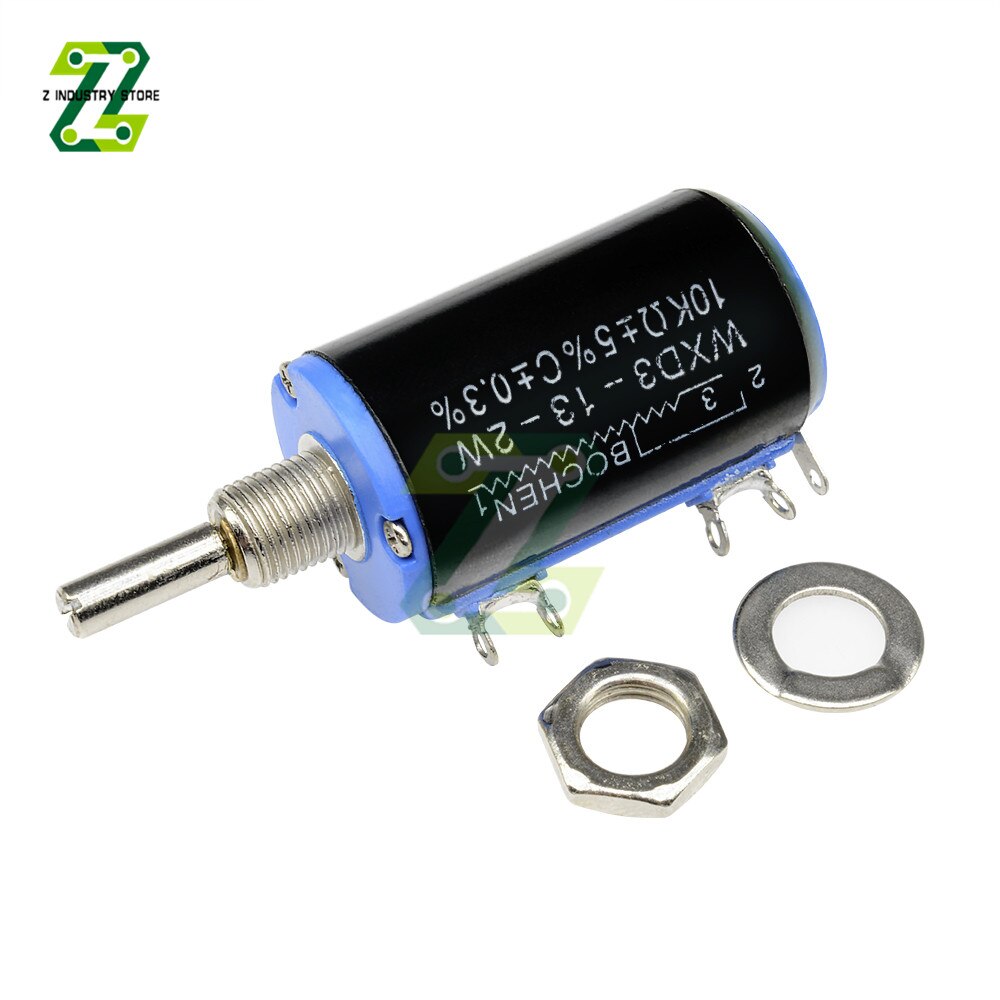

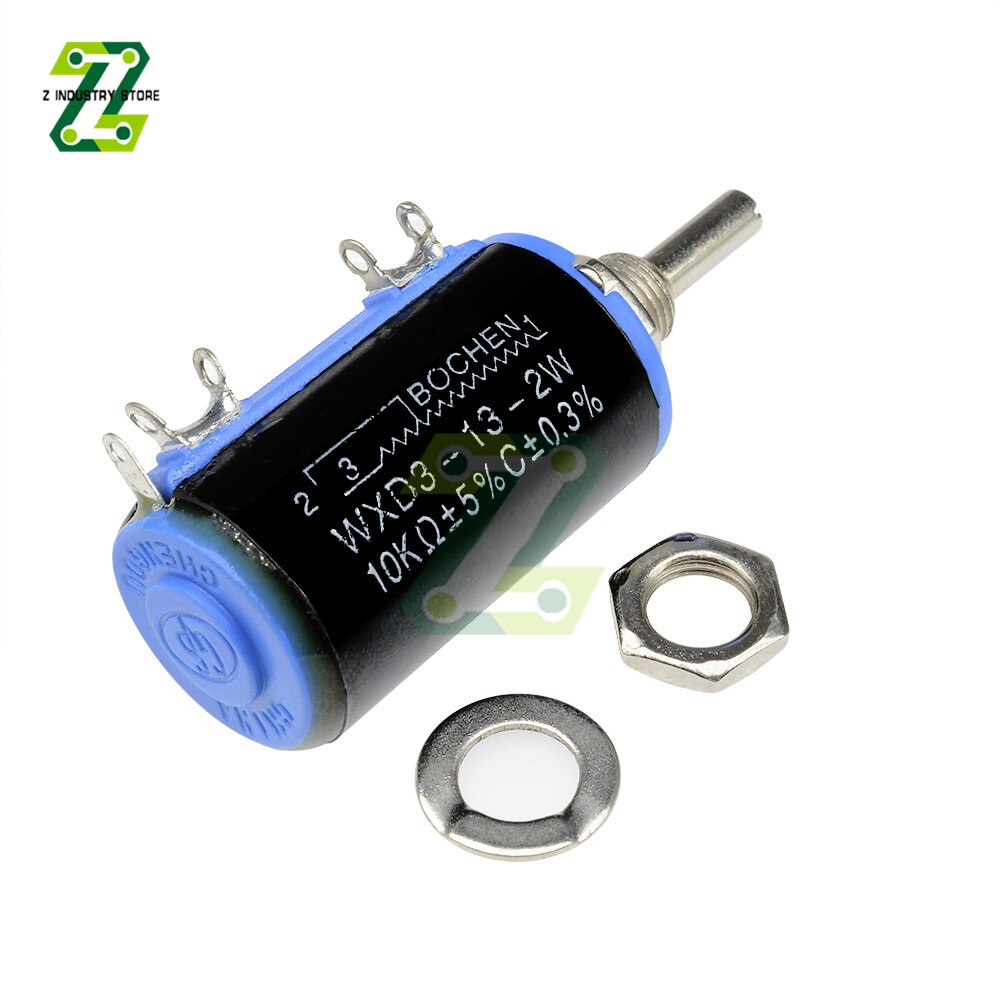

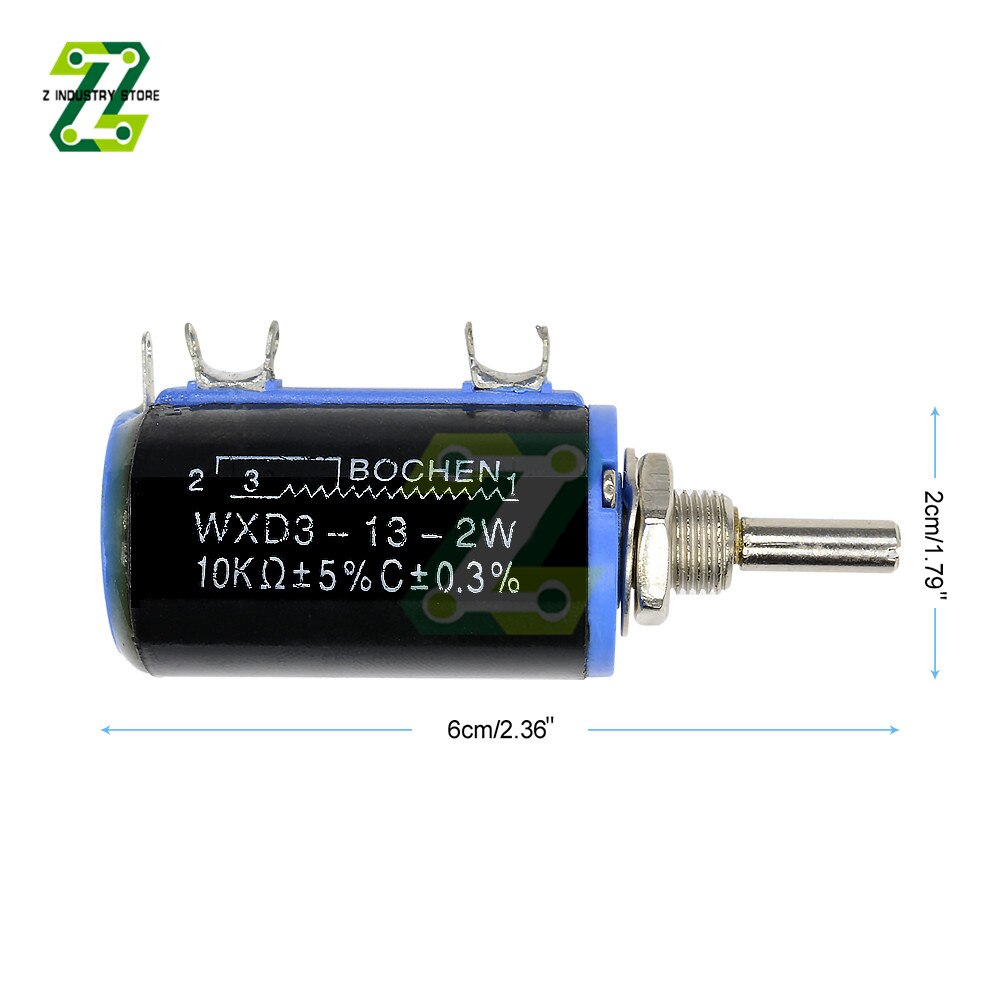

WXD3-13-2W Potentiometer 10K Ohm Rotary Side Rotary Multi-turn Wire Potentiometer
Parameter:
Environmental conditions for use:
Ambient temperature: -55~+100℃
Relative temperature: + 40°C, 98%
Atmospheric pressure: 107~4.4Kpa
Vibration: Vibration frequency is 10~500HZ, acceleration is 49 meters/S2
Collision: 40 to 80 times frequency/min, acceleration 147 meters/S2;
Centrifugal: acceleration 147 meters/S2.
Main technical features
Dielectric strength: withstand 750V (50HZ AC effective value) for 1 minute, no breakdown, flying fox phenomenon;
Rated power: 2W
Impedance: 100Ω minimum; maximum 100KΩ
Rotation torque: 50~500gf.cm, 1 torque: 3 ratio.
Constant hot flash: 40±2℃, relative humidity of 93±3%, ΔR/R should not exceed ±1% in 96 hours.
Electric load: ΔR/-R 48 hours? No more than 1% after rated power load.
Package Included:
1 WXD3-13-2W10K ohm rotary multi-turn potentiometer wirewound
