Description
- Brand Name: EC Buying
- Condition: New
- Origin: Mainland China
- Resistance Tolerance: 5%
- Rated Power: 2W
- Technology: Wirewound
- Type: Wirewound Potentiometer
- Operating Temperature: normal
- Model Number: WXD3-13-2W
- is_customized: Yes
- Max. Operating Voltage: 160v
- Type 2: Precision Potentiometer
- Other: Gray Knob

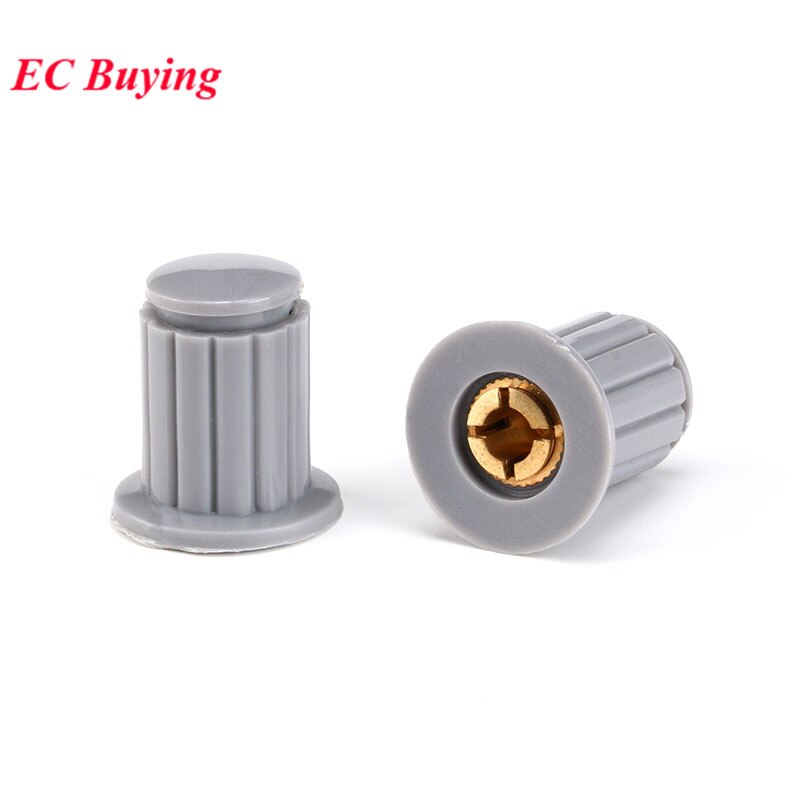

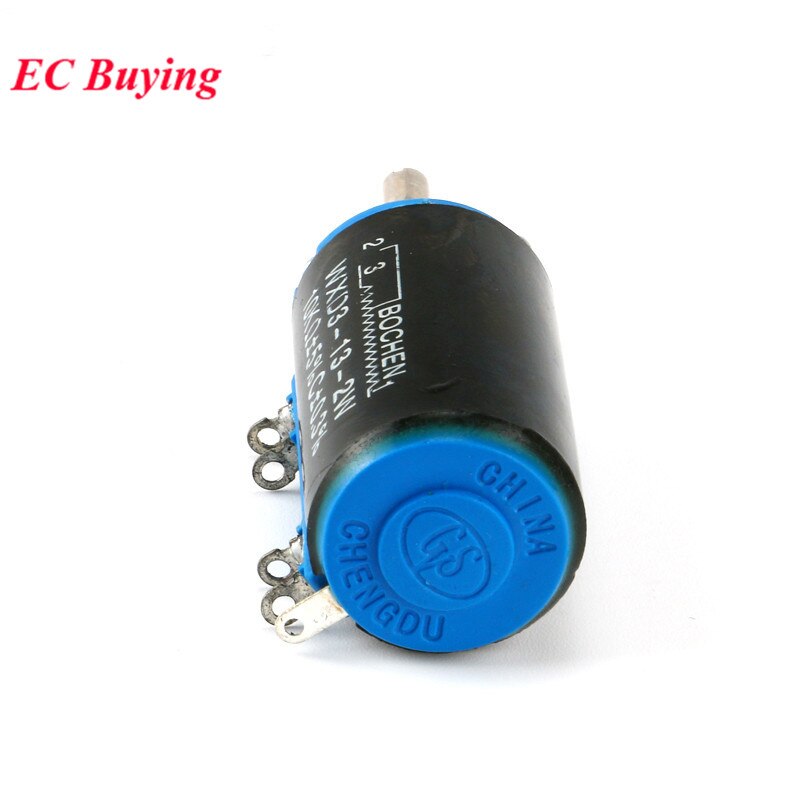

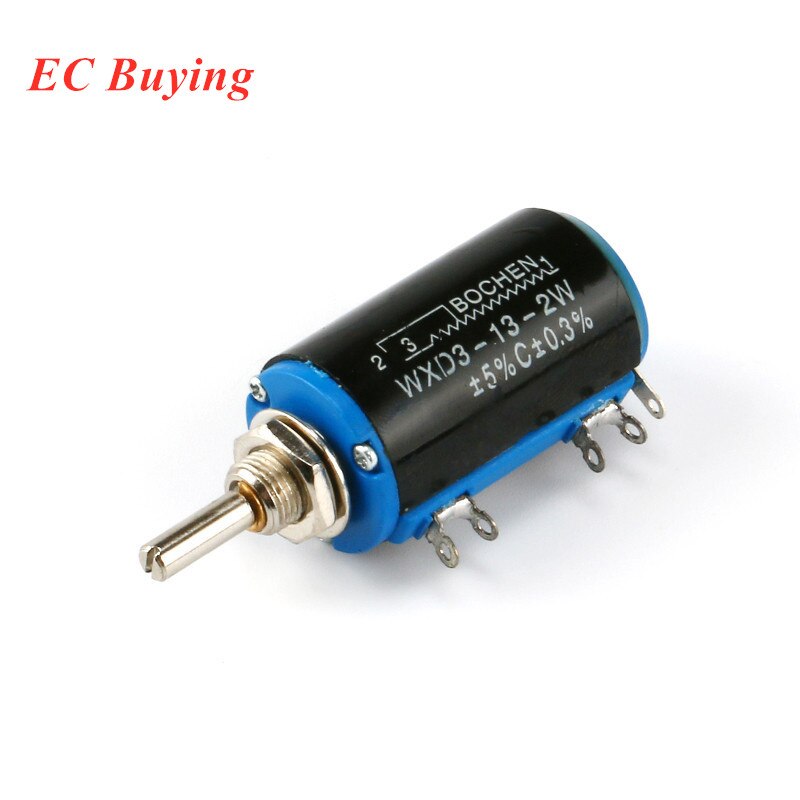

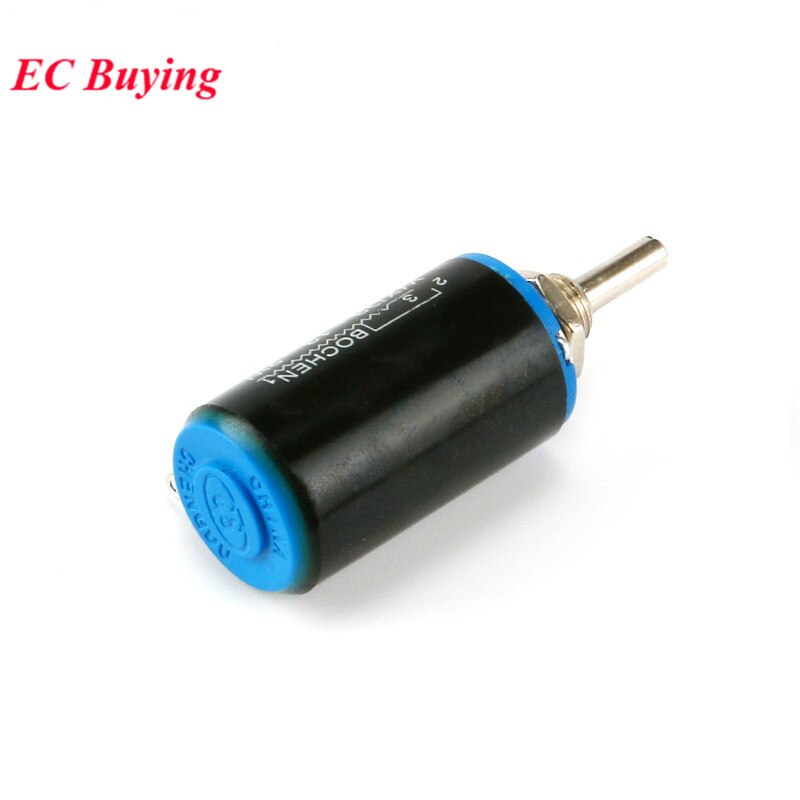

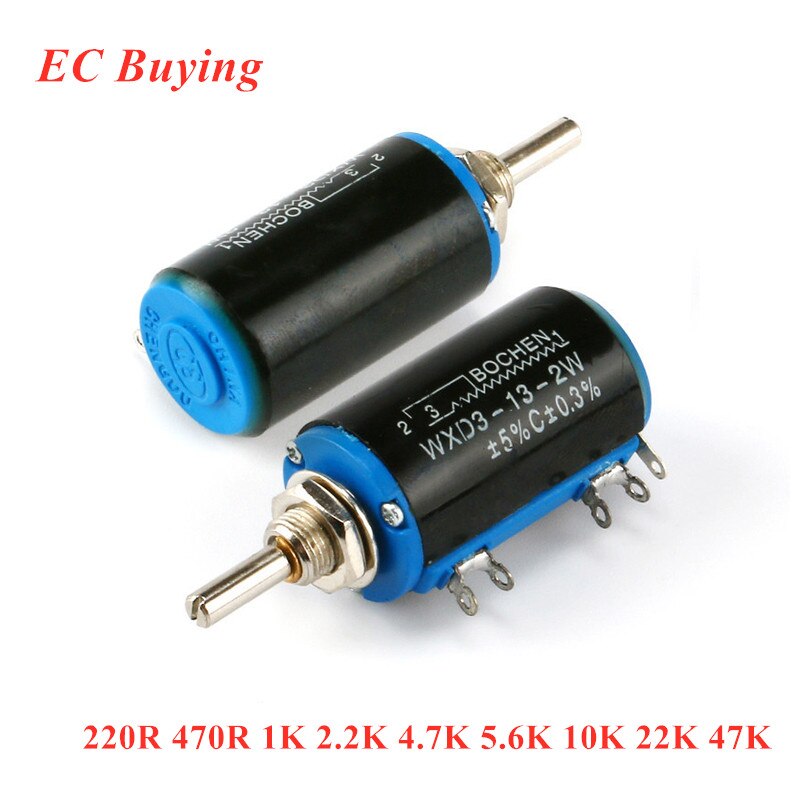

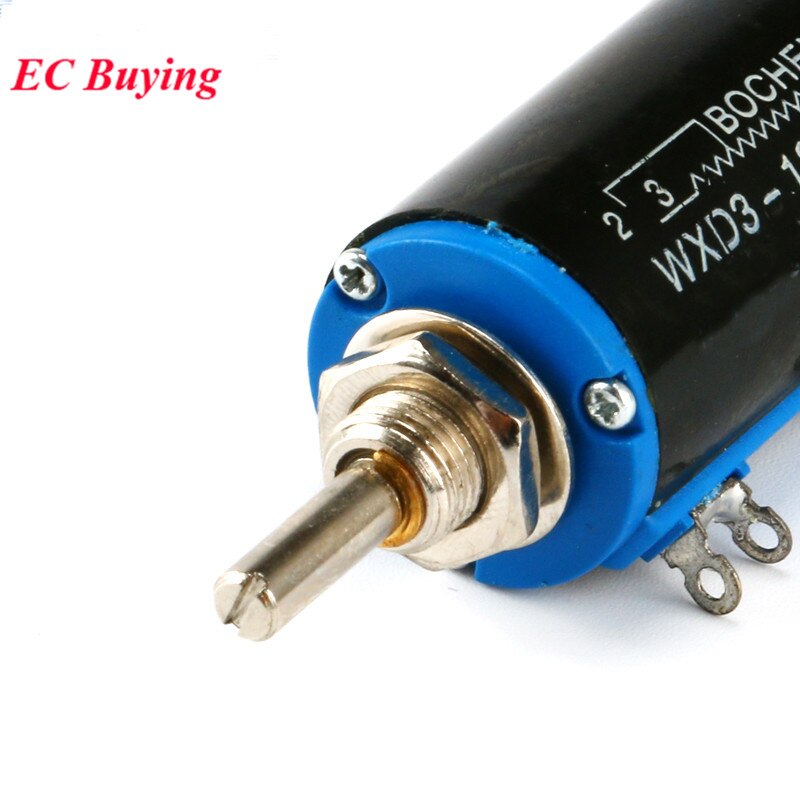

Note: SKU Other, it is Gray Knob, for WXD3-13-2W multi-turn wire-wound potentiometer.
Product Feature:
-
Resistance range 100Ω~100KΩ
-
Resistance tolerance ±5%
-
Rotation angle 3600°±20°
-
Number of laps 10 laps
-
Rated voltage 160V
-
Starting torque 3.5~100mN.m
-
Rated power 2W (85 ° C) 0W (125 ° C)
-
Linear accuracy ±0.3%
-
Mechanical durability 10,000 weeks
