Description

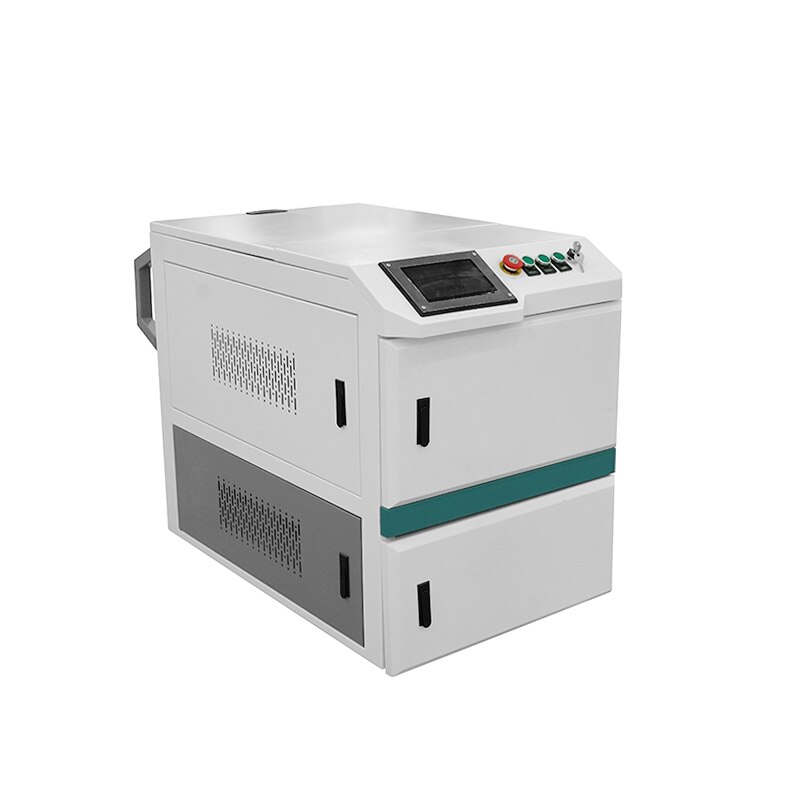

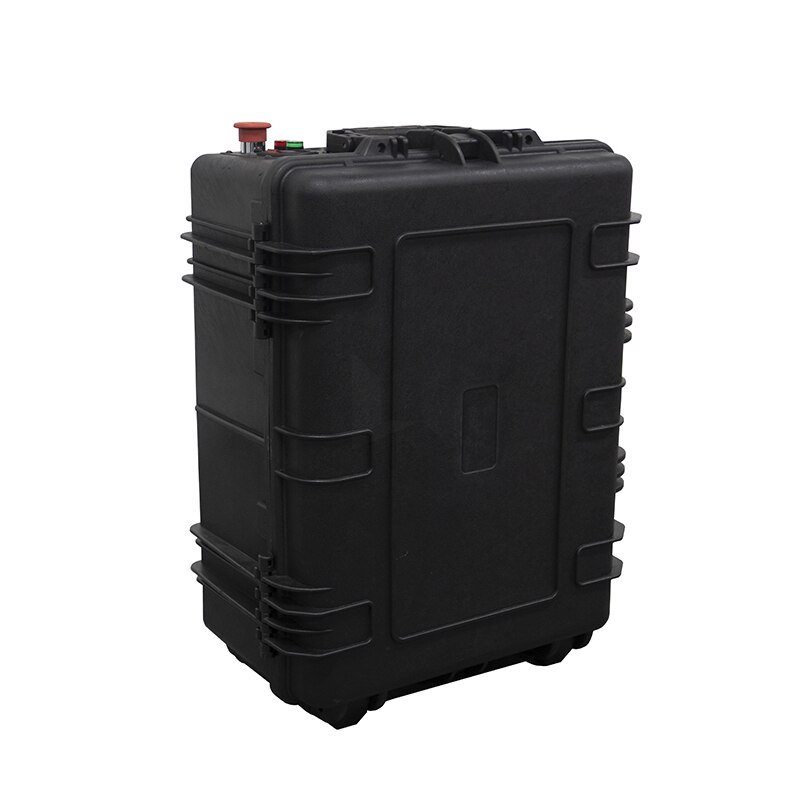

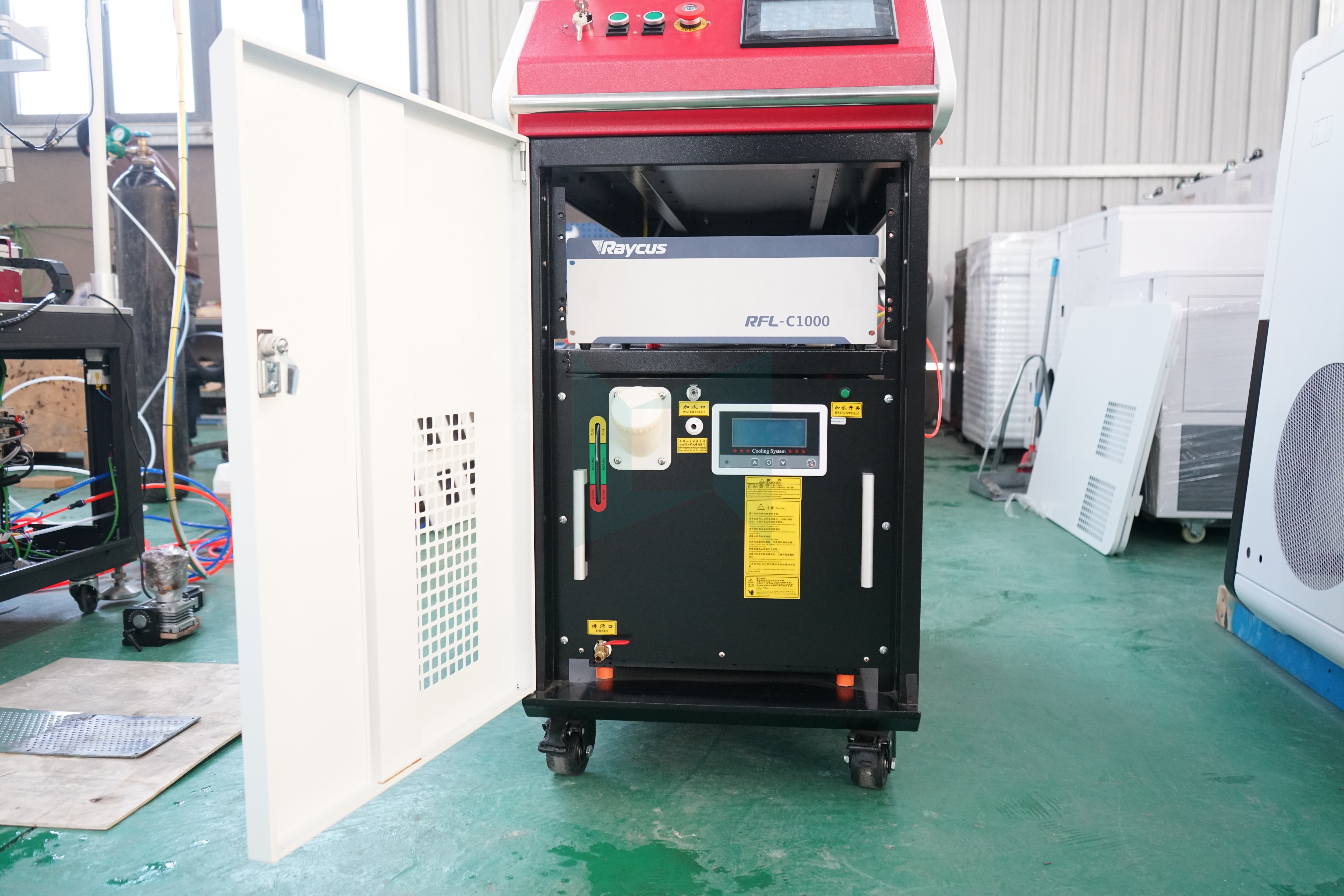

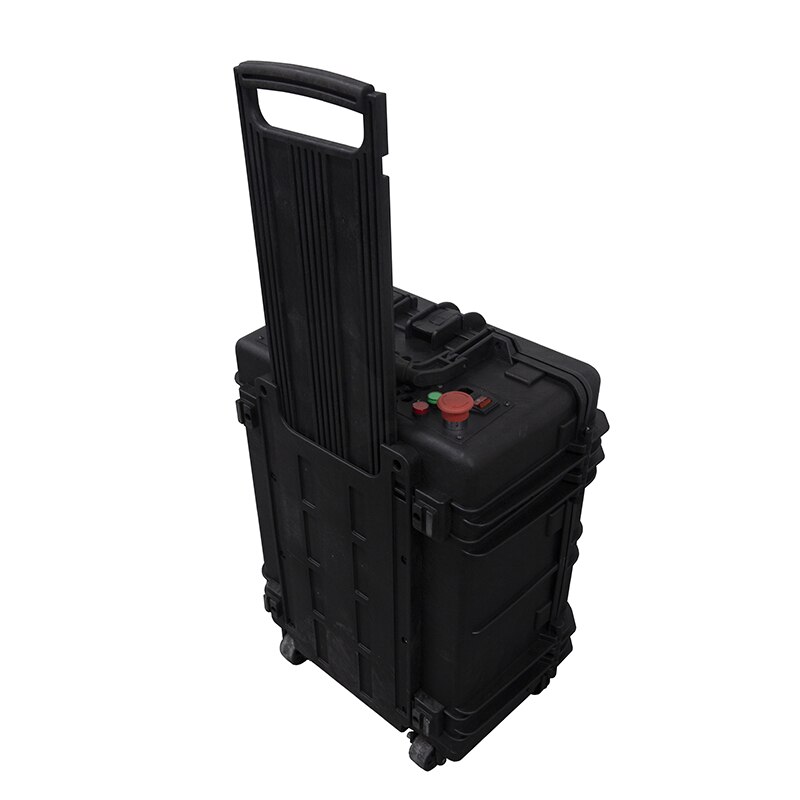

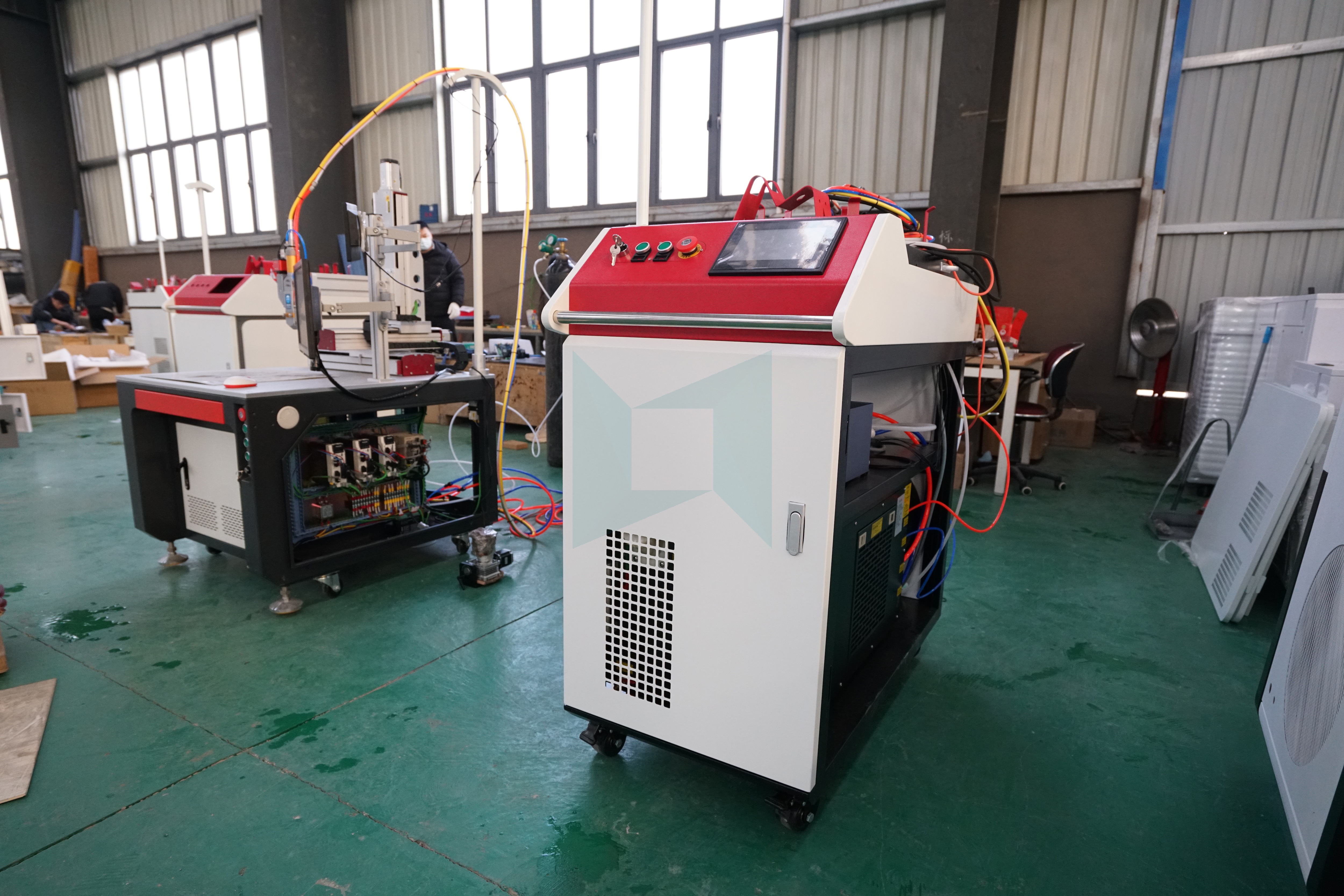

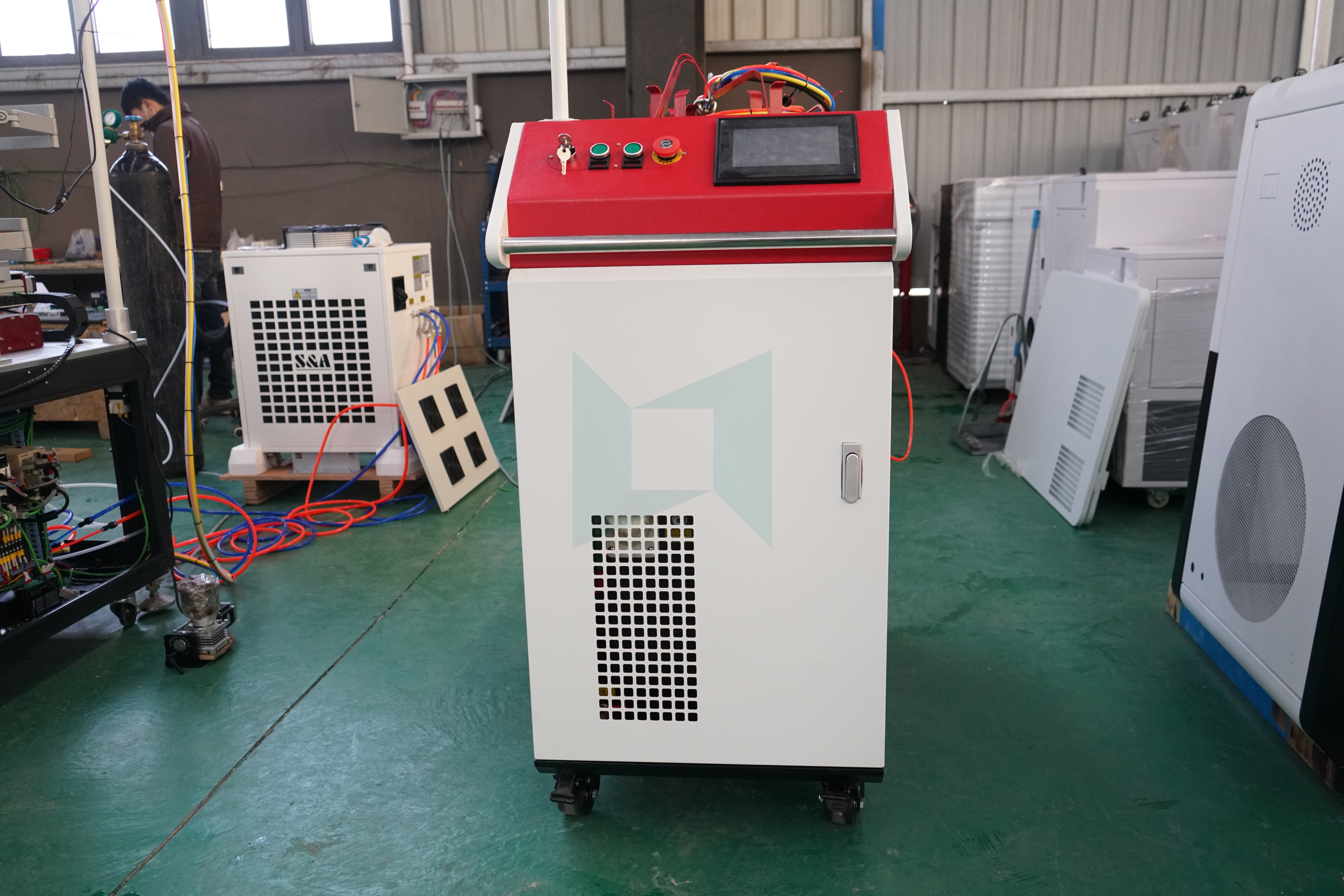

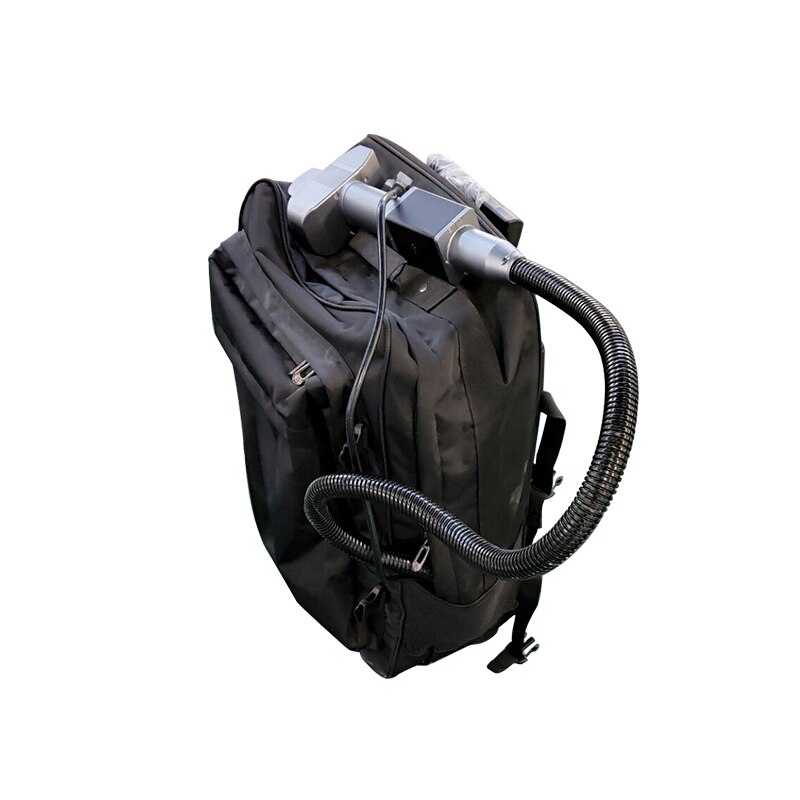

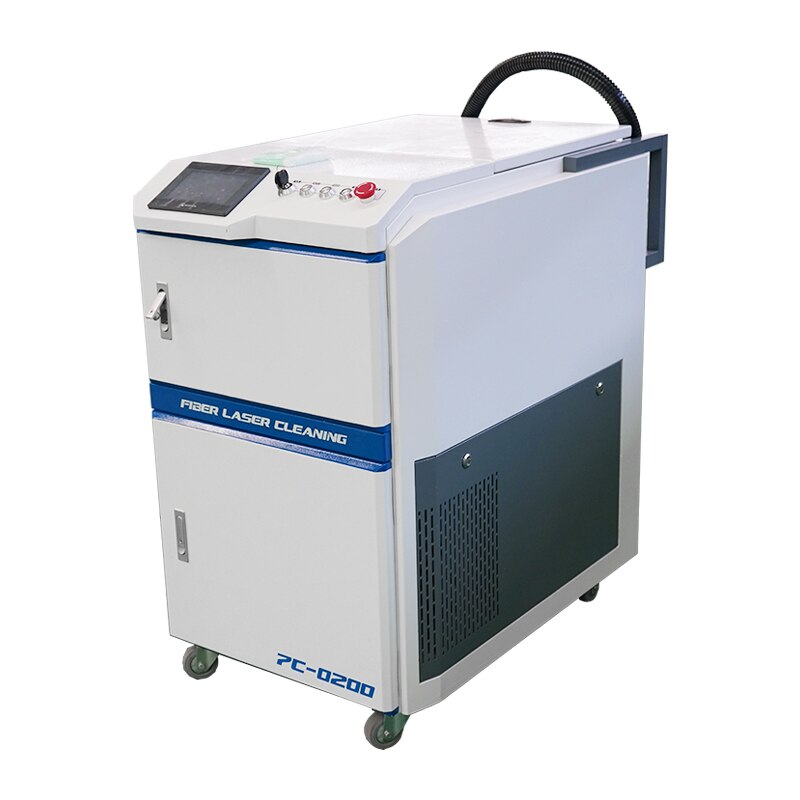

WSX controller fiber laser cleaning machine all model 1000w

Application
Rust Removal	Oxide Removal	Molding Cleaning	Surface Preparation
Coatings Removal	Weld Pre-treatment	Gluing Pre-treatment	Removal of Oil and Grease
Paint Removal	Surface Cleaning	Stain Removal	Surface Roughening
Tool Cleaning	Historic Restoration	Selective Paint Removal	Precise Cleaning

1)Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves, thermal stress, etc., causing surface materials to sublimate and evaporate.

2)The focused laser beam is capable of accurately evaporating surface objects or dirt.

3)Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface.

4)By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.

Equipment model	LXC-50	LXC-100	LXC-200	LXC-500	LXC-1000
Laser working medium	Yb-doped fiber
Laser power	50W	100W	200W	500W	1000W
Laser wavelength	1064nm
Pulse frequency	20-100KHz	20-100KHz	20-200KHz	20-50KHz	20-50KHz
Cooling method	Air cooling	Air cooling	Water cooling	Water cooling	Water cooling
Dimension	760mmX780X790mm			1100x950x700mm
Total Weight	56kg	60kg	65kg	130kg(Including Water tank)	140kg
Total power	350W	600W	1000W	1800W	2000W
Scan width	10-60mm
Optional	Hand/automatic
Working temperature	5-40℃

————————————-
