Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Grade: Industrial
- Warranty: 1 years
- Power Source: Electric
- Customized support: OEM, ODM, OBM
- Place of Origin: Zhejiang, China
- Brand Name: Hongli Pipe Threading Machine
- Model Number: SQ50E Threading machine
- Frequency: 50HZ / 60HZ
- No-Load Speed: 38RPM
- Applicable Pipe Thread: 1/2″-2″BSPT/NPT
- Dimensions: 80*56*47CM
- Weight: 75KGS
- Product name: Pipe threading machine
- Screw Threads: NPT/BSPT
- Capacity: 1/2″-2″ pipe, 15mm-50mm
- Categories: Threading Machines for 2″ Pipes
- dies: universal
- color: yellow&Grey
- Rated Voltage: 110/220V
- Rated Input Power: 1500W
- warranty: 1 Year
- Package: Plywood Case
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#bbb;font-family:Roboto;font-size:24px;color:#000;background-color:#bbb;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{text-align:center}#detail_decorate_root .magic-6{font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-7{font-size:20px}#detail_decorate_root .magic-8{width:750px}#detail_decorate_root .magic-9{overflow:hidden;width:750px;height:830px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-10{margin-top:0;margin-left:0;width:750px;height:830px}#detail_decorate_root .magic-11{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-12{padding:0;line-height:20px;margin:0}#detail_decorate_root .magic-13{margin:0;padding:0}#detail_decorate_root .magic-14{font-size:18px}#detail_decorate_root .magic-16{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-17{overflow:hidden;width:750px;height:500px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:750px;height:500px}#detail_decorate_root .magic-19{overflow:hidden;width:373px;height:248.66666666666666px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-20{margin-top:0;margin-left:0;width:373px;height:248.66666666666666px}#detail_decorate_root .magic-21{overflow:hidden;width:373px;height:248px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:500px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{width:750px;border-collapse:collapse}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;width:721px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{font-size:20px;background-color:#fff}#detail_decorate_root .magic-26{display:none}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:182px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:111px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:214px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;width:153px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;width:213px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-32{width:446px}#detail_decorate_root .magic-33{overflow:hidden;width:446px;height:300.90133333333335px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:5.946666666666667px;margin-left:88.01066666666667px;width:248px;height:294px}#detail_decorate_root .magic-35{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-36{font-size:22px}#detail_decorate_root .magic-37{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-38{text-align:right}#detail_decorate_root .magic-39{overflow:hidden;width:446px;height:297.3333333333333px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:446px;height:297px}#detail_decorate_root .magic-41{overflow:hidden;width:750px;height:1125px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:750px;height:1125px}#detail_decorate_root .magic-43{overflow:hidden;width:373px;height:289.24454545454546px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-44{margin-top:0;margin-left:0;width:373.00000000000006px;height:289.24454545454546px}#detail_decorate_root .magic-45{overflow:hidden;width:373px;height:289px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:373px;height:301.1127272727272px}#detail_decorate_root .magic-47{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-48{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-49{width:245px;height:226.293630017452px;overflow:hidden}#detail_decorate_root .magic-50{position:relative;left:0;top:0;width:245px;height:226.293630017452px}#detail_decorate_root .magic-51{padding:0;margin:0;color:#333;font-size:14px;line-height:20px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-52{position:relative;left:1px;top:-10px;width:244.99999999999997px;height:255.63368055555554px}#detail_decorate_root .magic-53{position:relative;left:0;top:0;width:245px;height:235.13194444444443px}#detail_decorate_root .magic-54{min-height:18px;padding:5px 10px;width:66px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-55{min-height:18px;padding:5px 10px;width:77px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-56{min-height:18px;padding:5px 10px;width:292px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-57{min-height:18px;padding:5px 10px;width:64px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-58{min-height:18px;padding:5px 10px;width:49px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-59{min-height:18px;padding:5px 10px;width:718px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-60{min-height:18px;padding:5px 10px;width:50px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-61{background-color:#fff}#detail_decorate_root .magic-62{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-63{overflow:hidden;width:247.33333333333334px;height:164.86083701939435px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-64{margin-top:0;margin-left:0;width:247px;height:164px}#detail_decorate_root .magic-65{overflow:hidden;width:247.33333333333334px;height:164.86083701939435px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-66{margin-top:0;margin-left:0;width:247px;height:185px}#detail_decorate_root .magic-67{min-height:18px;padding:5px 10px;width:93px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-68{min-height:18px;padding:5px 10px;width:100px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-69{min-height:18px;padding:5px 10px;width:111px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-70{min-height:18px;padding:5px 10px;width:101px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-71{min-height:18px;padding:5px 10px;width:116px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-72{margin-top:0;margin-left:0;width:494px;height:297px}#detail_decorate_root .magic-73{overflow:hidden;width:750px;height:562px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-74{margin-top:0;margin-left:0;width:750px;height:562px}#detail_decorate_root .magic-75{overflow:hidden;width:750px;height:1017.8571428571429px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-76{margin-top:0;margin-left:0;width:750px;height:1017.8571428571429px}#detail_decorate_root .magic-77{margin-top:0;margin-left:0;width:373px;height:279.75px}#detail_decorate_root .magic-78{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-79{overflow:hidden;width:750px;height:331px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-80{margin-top:0;margin-left:0;width:750px;height:331px}#detail_decorate_root .magic-81{overflow:hidden;width:750px;height:535px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-82{margin-top:0;margin-left:0;width:750px;height:535px}#detail_decorate_root .magic-83{overflow:hidden;width:750px;height:456.0717571297148px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-84{margin-top:0;margin-left:0;width:750px;height:456.0717571297148px}
Product Description
Wholesale High Speed Powerful Drive SQ50E Electric Pipe Threader Machine For Threading 1/2″ To 2″ Pipe Manufacture
Model SQ50E Electric Pipe Threading Machine For BSPT or NPT Threader interchangeable with RIDGID 300 Compact Pipe threading machine
Application:
* threads a wide range of pipe: Black Pipe, Cast Iron Pipe, Galvanized Pipe, Steel Pipe, Stainless Steel Pipe
Feature:
* Heavy-duty proven performance.
* Threads ¼”-2″ pipe at 38RPM

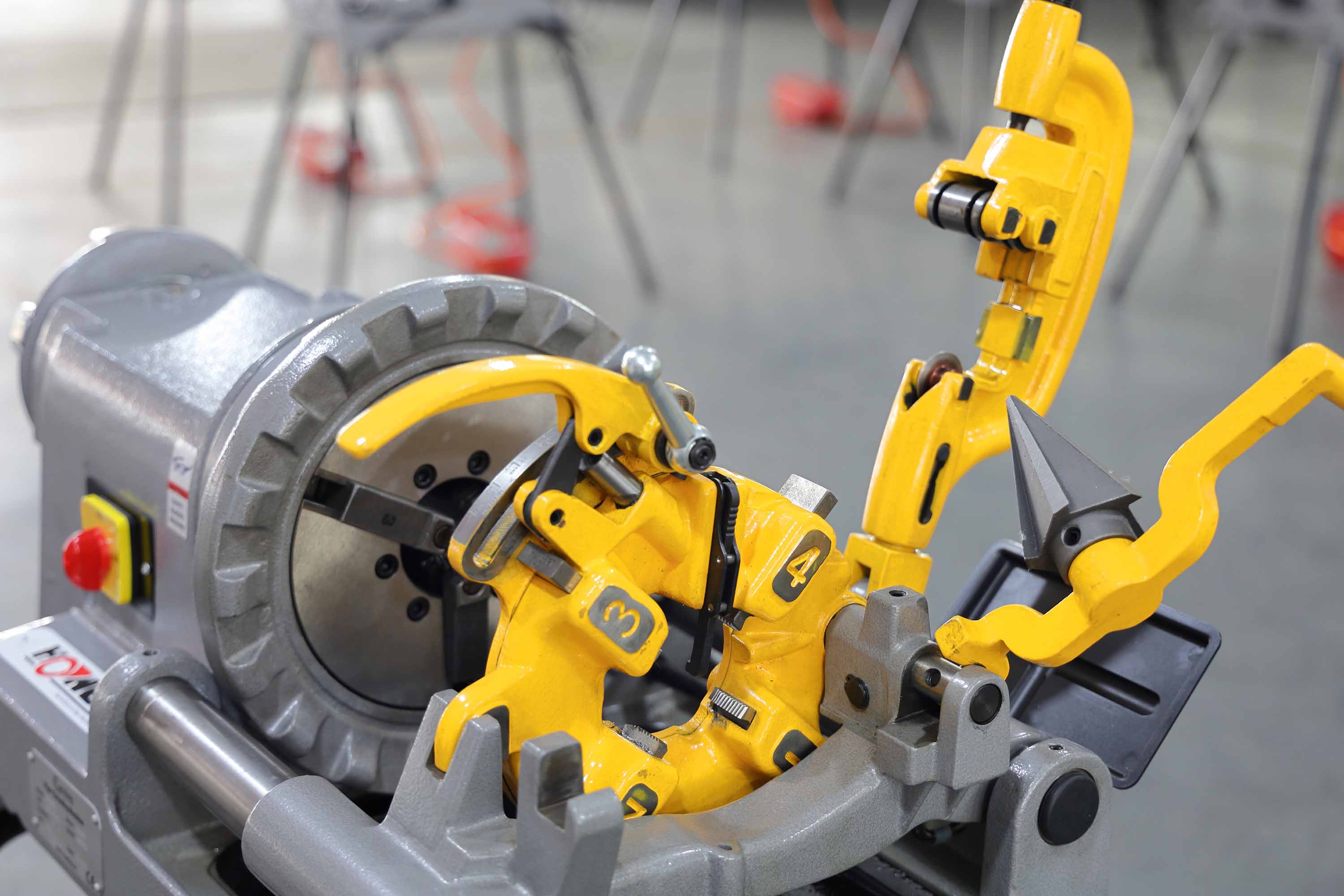

* Standard with one pc 1/2″-2″ Self Opening Die Head fits RIDGID ® 815A Die Head
* Standard with one set 1/2″-3/4″, HSS dies fits RIDGID ® Dies.
* Standard with one set 1″-2″, HSS dies fits RIDGID ® Dies.
* Standard with one pc 1/2″-2″ Self Opening Die Head fits RIDGID ® 815A Die Head
* Standard with one set 1/2″-3/4″, HSS dies fits RIDGID ® Dies.
* Standard with one set 1″-2″, HSS dies fits RIDGID ® Dies.
* HSS dies Rockwell Hardness (HRC) 58-62
* Each Parts on this machine are work with the RIDGID ® Model 300 Compact
* Pump: Self-priming adjustable flow, gerotor pump.

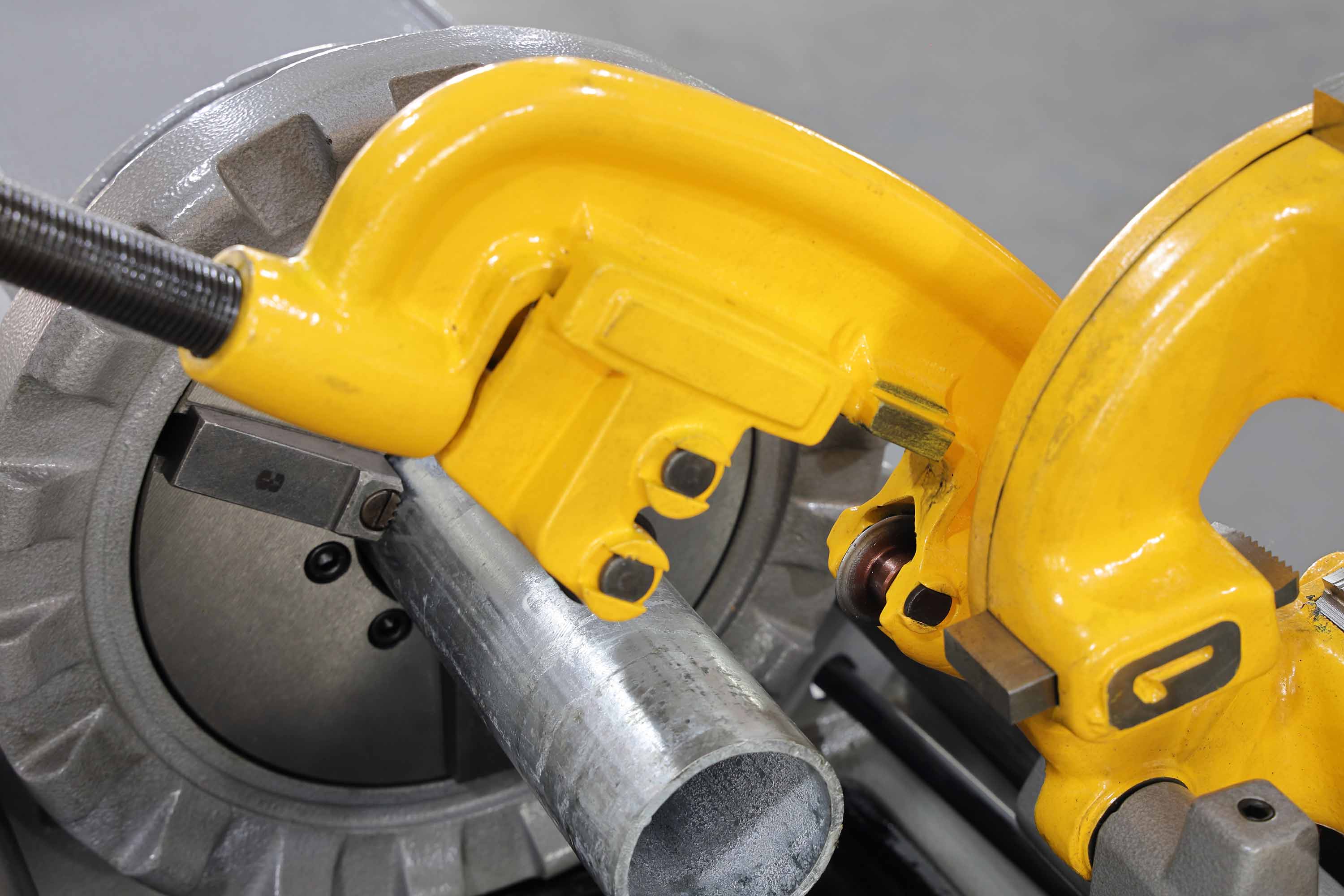

* Cutter Assembly work with RIDGID ® 360 Cutter
* Pump: Self-priming adjustable flow, gerotor pump.
* Cutter Assembly work with RIDGID ® 360 Cutter

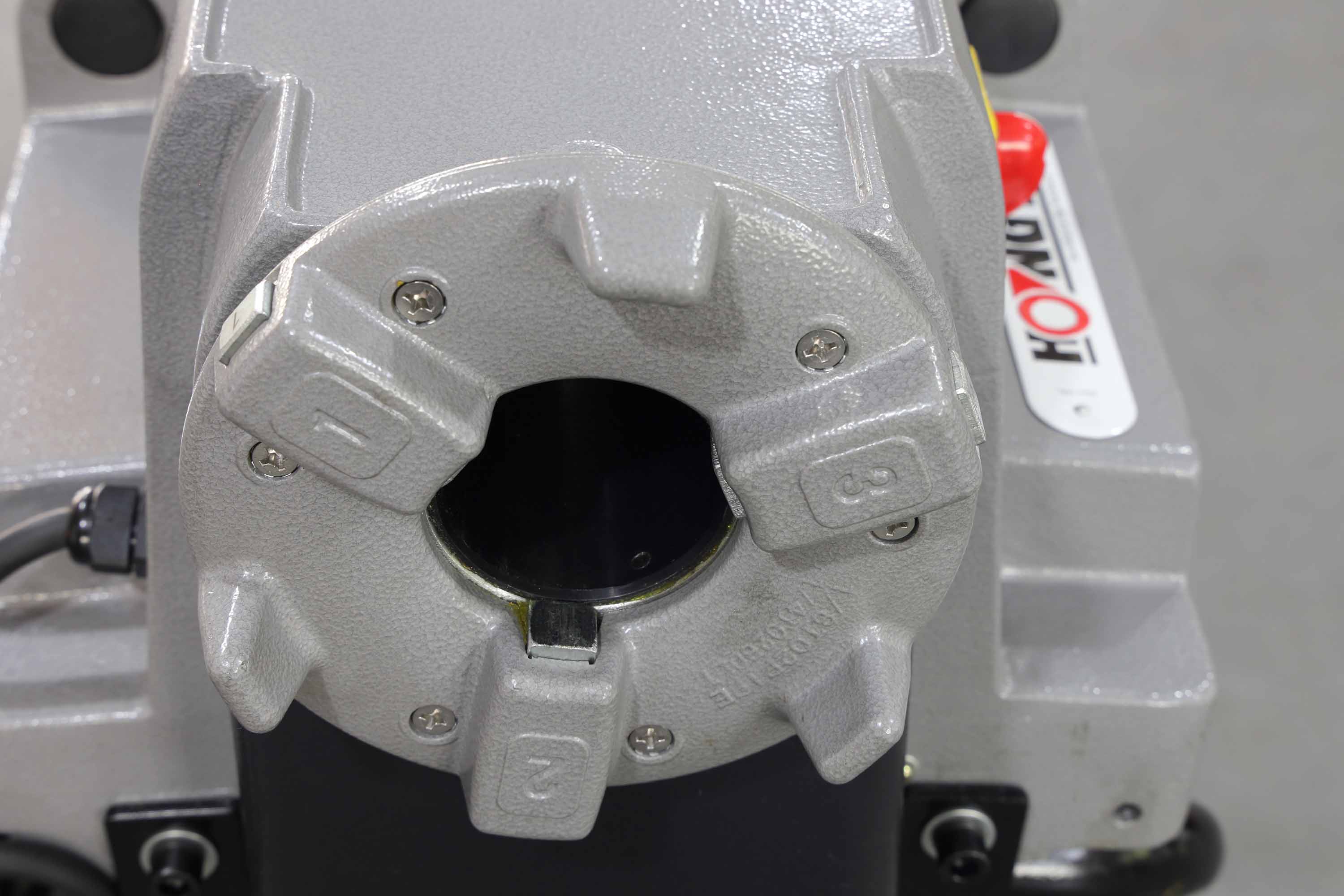

* Front Chuck: Hammer type with replaceable rocker action jaw inserts.
* Precision thread cutting for NPT/BSPT/Metric/BSPP/NPSM
* Precision thread cutting for NPT/BSPT/Metric/BSPP/NPSM
* 651 Pneumatic Folding Wheel Stand with 2 wheels (optional), 10 inch steel wheels with Solid Rubber Tires is more durable
* Approved by CE standards.
* 1 Year Warranty
* Approved by CE standards.
* 1 Year Warranty
HS Code of SQ50E Electric Pipe Threading Machine: 8459700000
Detailed Images
|
Technical Specifications
|
|
|
|
|||
|
Capacity:
|
½”-2″ (15mm-50mm) pipe
|
Motor:
|
1500W Universal,reversible, 50/60Hz, single phase.
|
|||
|
Cutter Capacity:
|
1/8″-2″(6mm-50mm) pipe
|
Spindle Speed:
|
38 RPM
|
|||
|

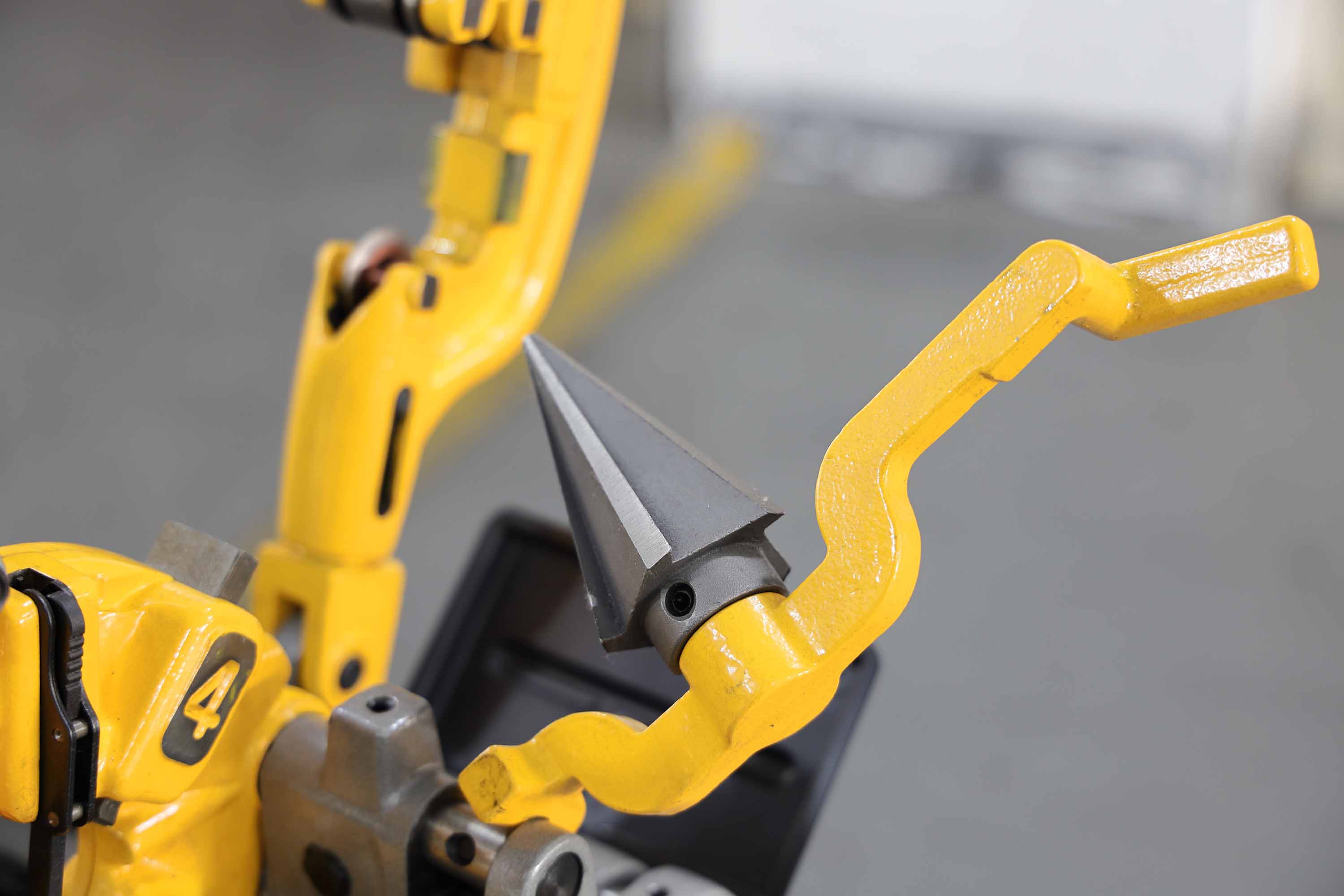

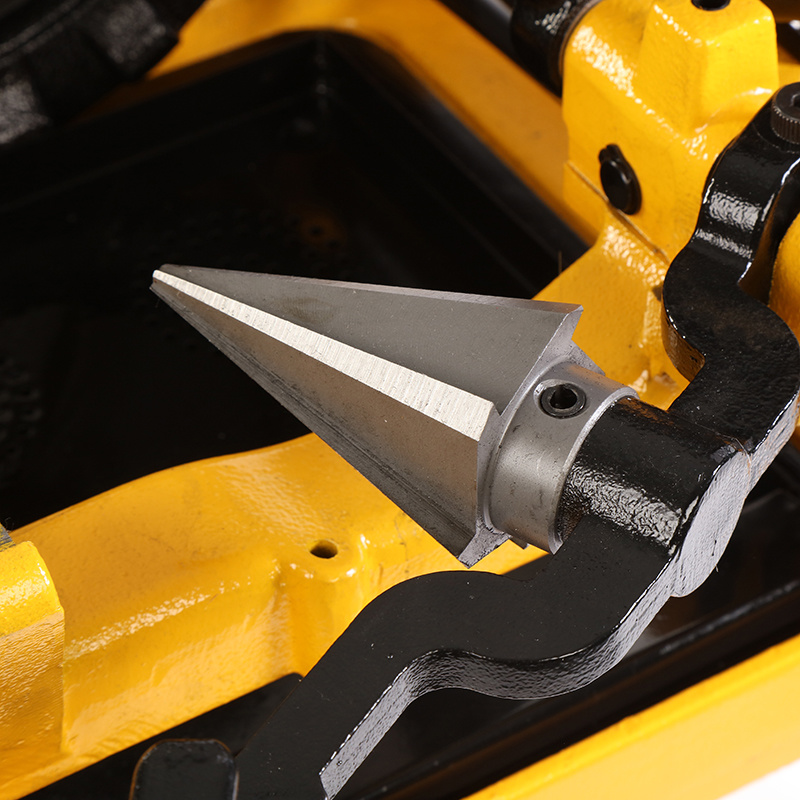

Reamer Capacity:
|
1/8″-2″ (6mm-50mm) pipe
Positive-locking, 5-flute cone, right-hand
|

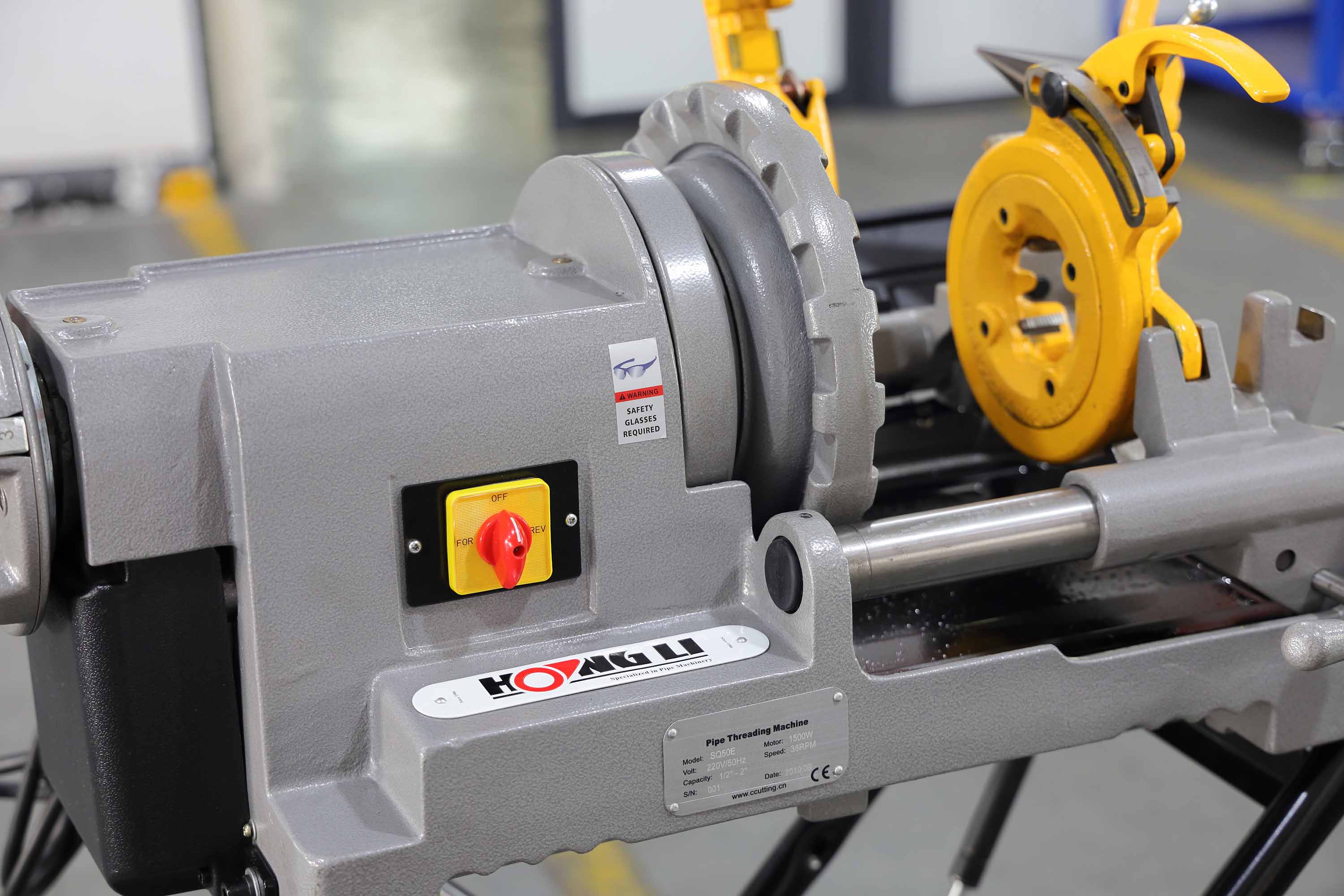

Switch: |
Heavy duty FOR/OFF/REV switch ,integral Foot Pedal is optional.
|
|||
|
Screw Threads:
|
NPT / BPST
/Metric/BSPP/NPSM
|

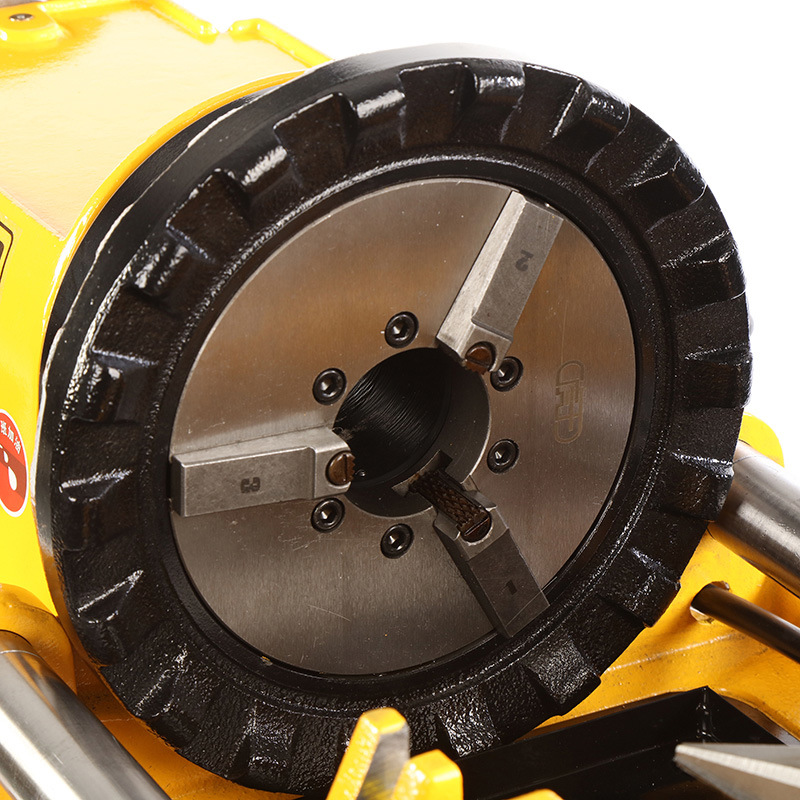

Front Chuck:
|
Hammer type with replaceable rocker action jaw inserts.
|
|||
|
Rear Centering Device:
|
Cam action
|
Oiling System:
|
Self-Contained Oil System with adjustable flow control
|
|||

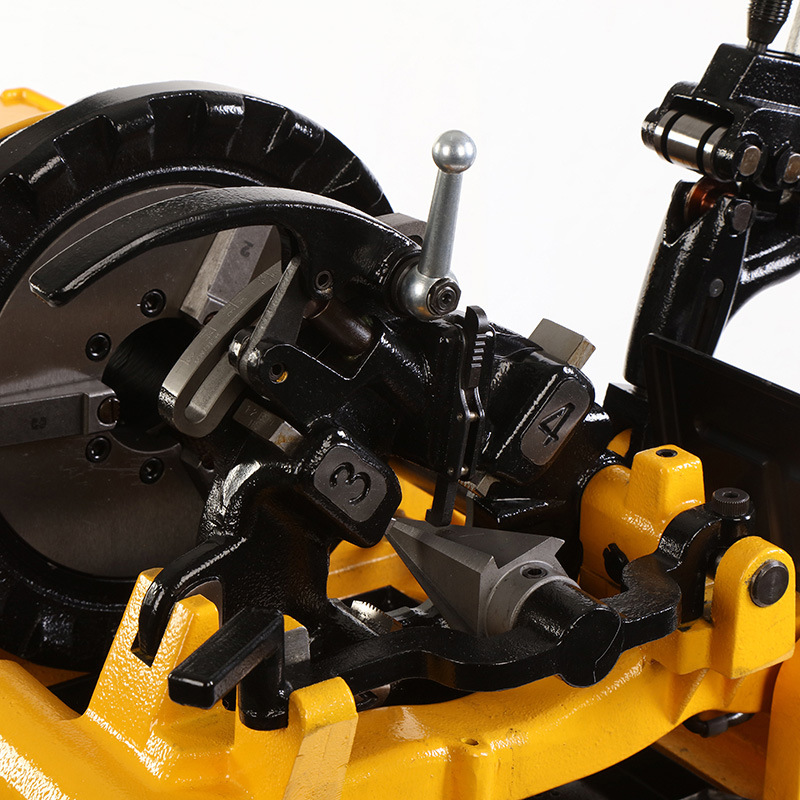

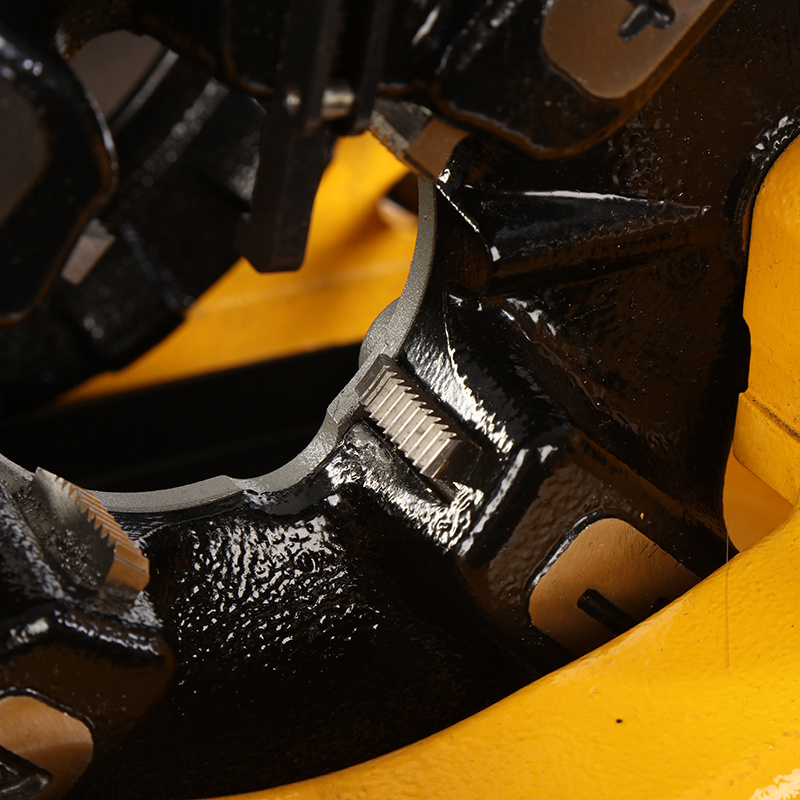

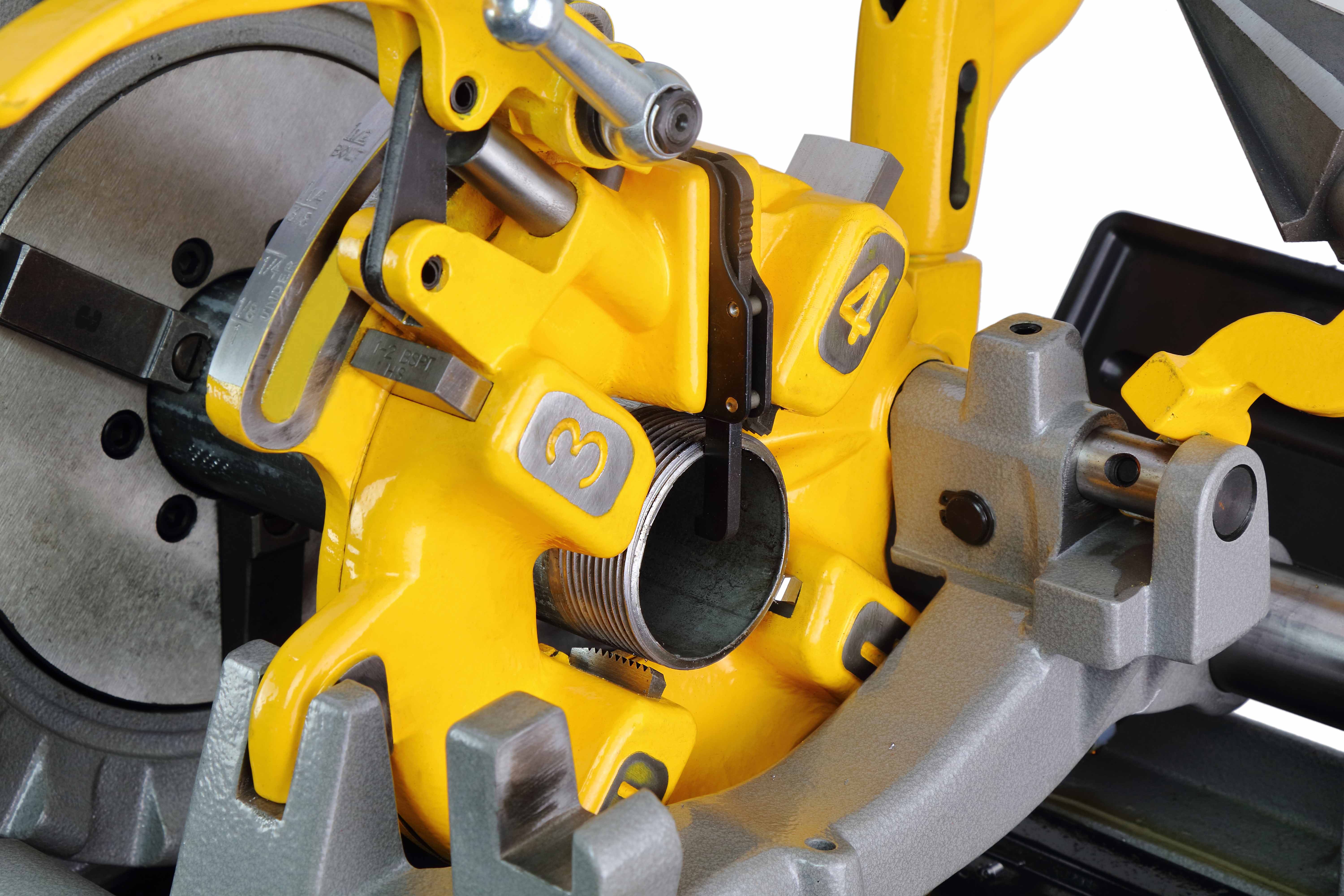

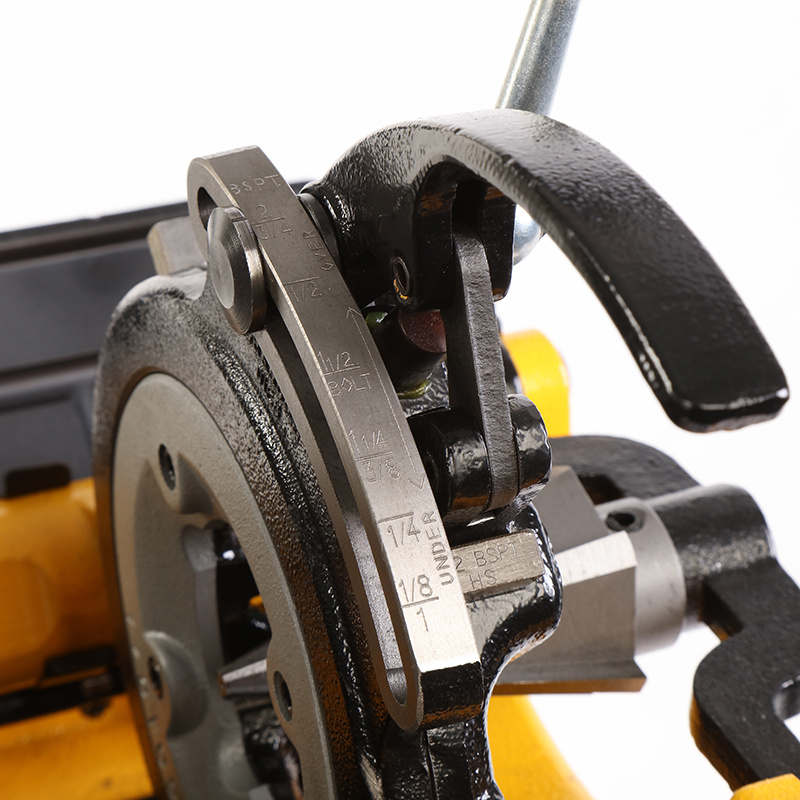

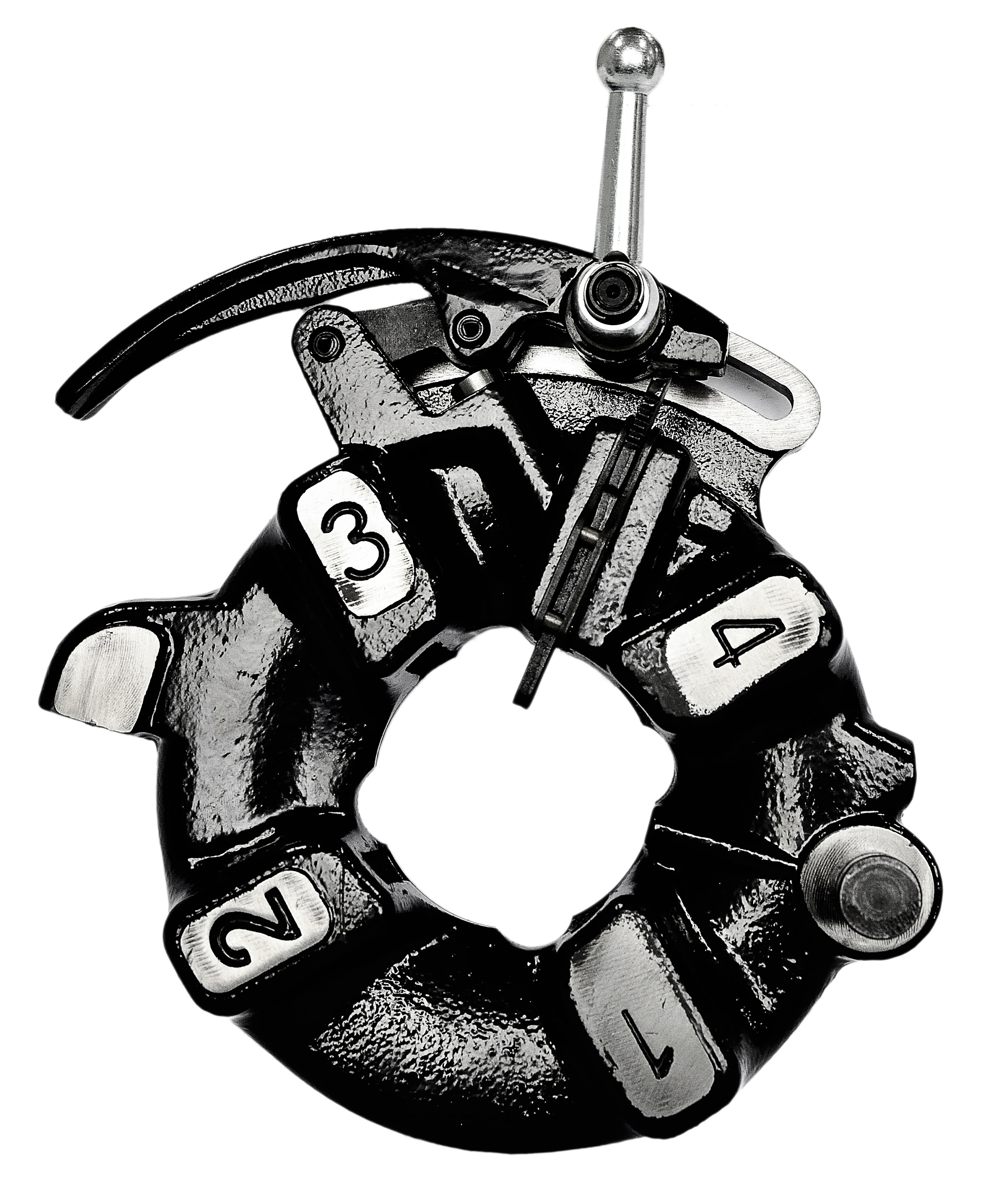

Die head (Standard) is interchangeable with RIDGID ®815A Die head

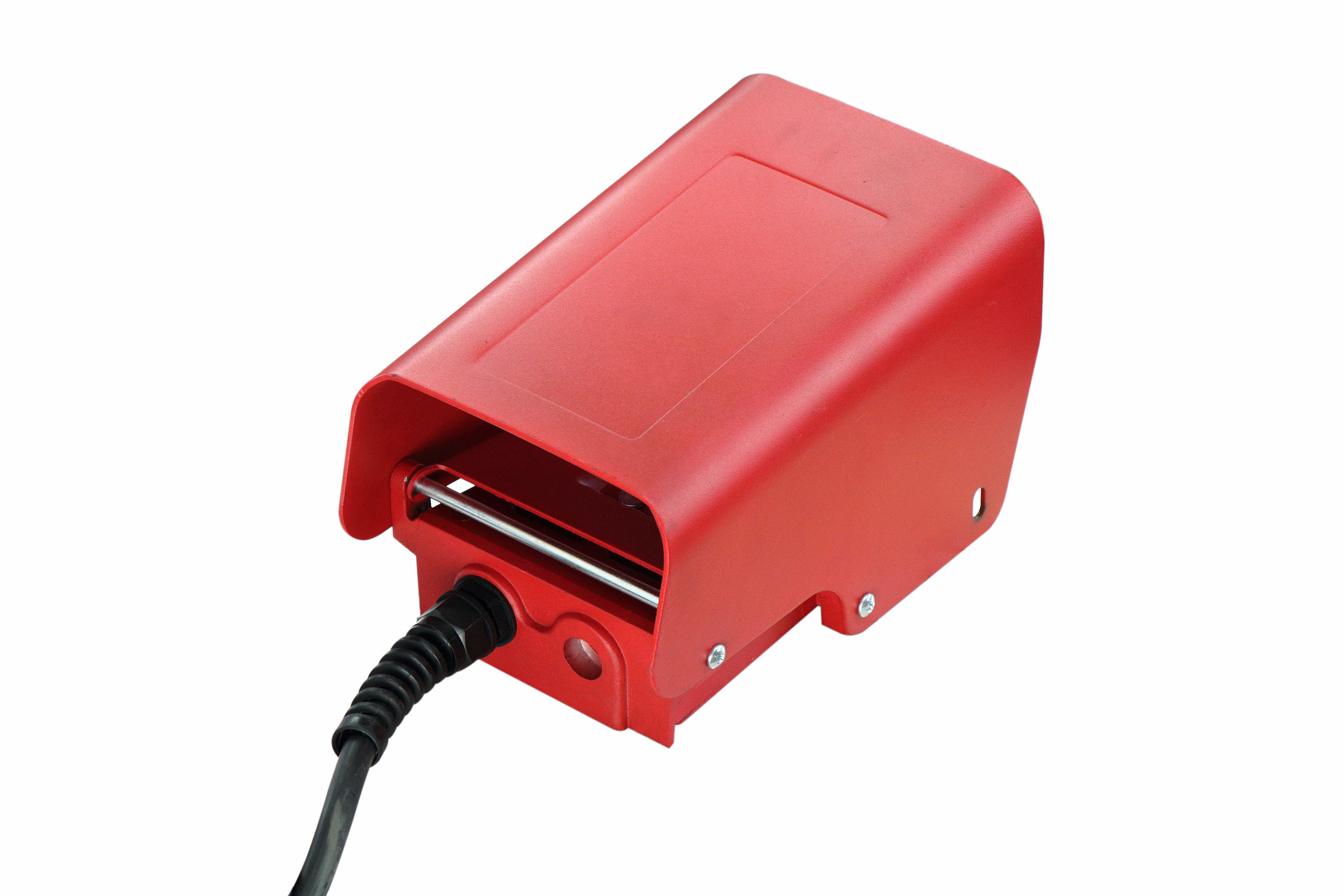

Foot Patel is optional

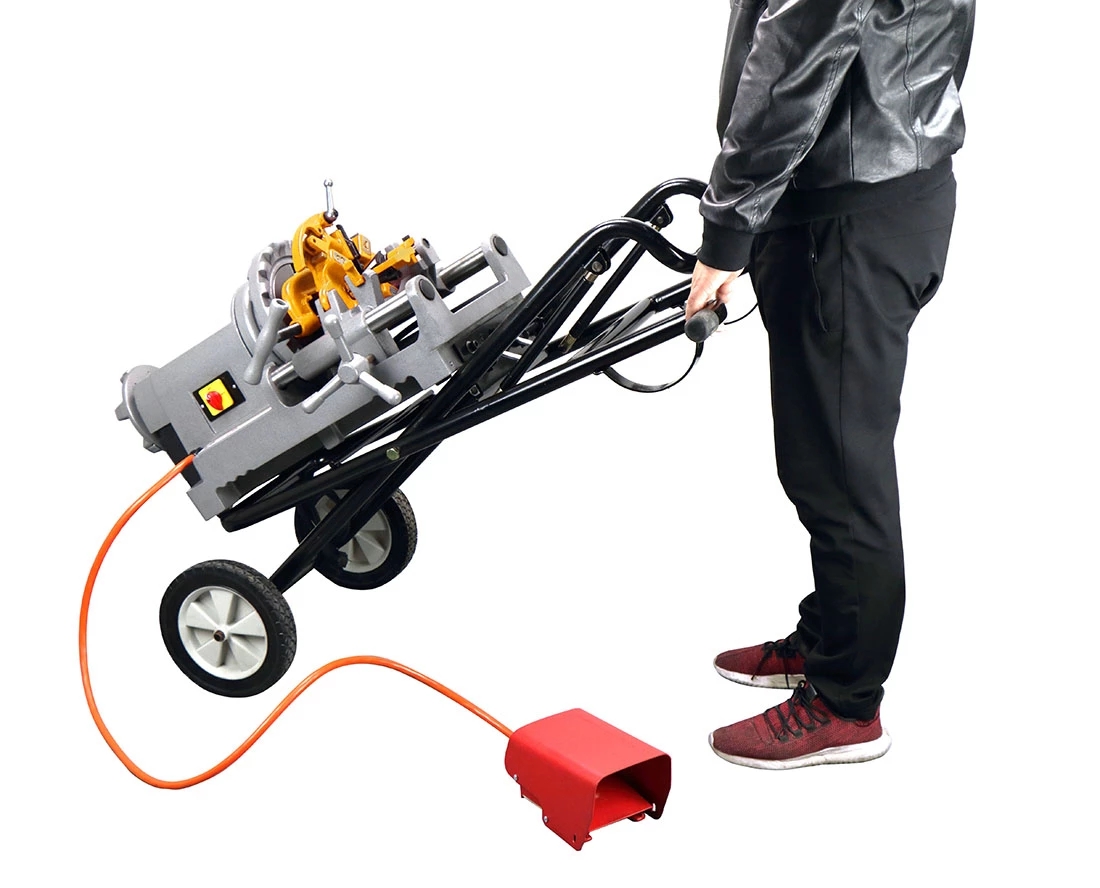

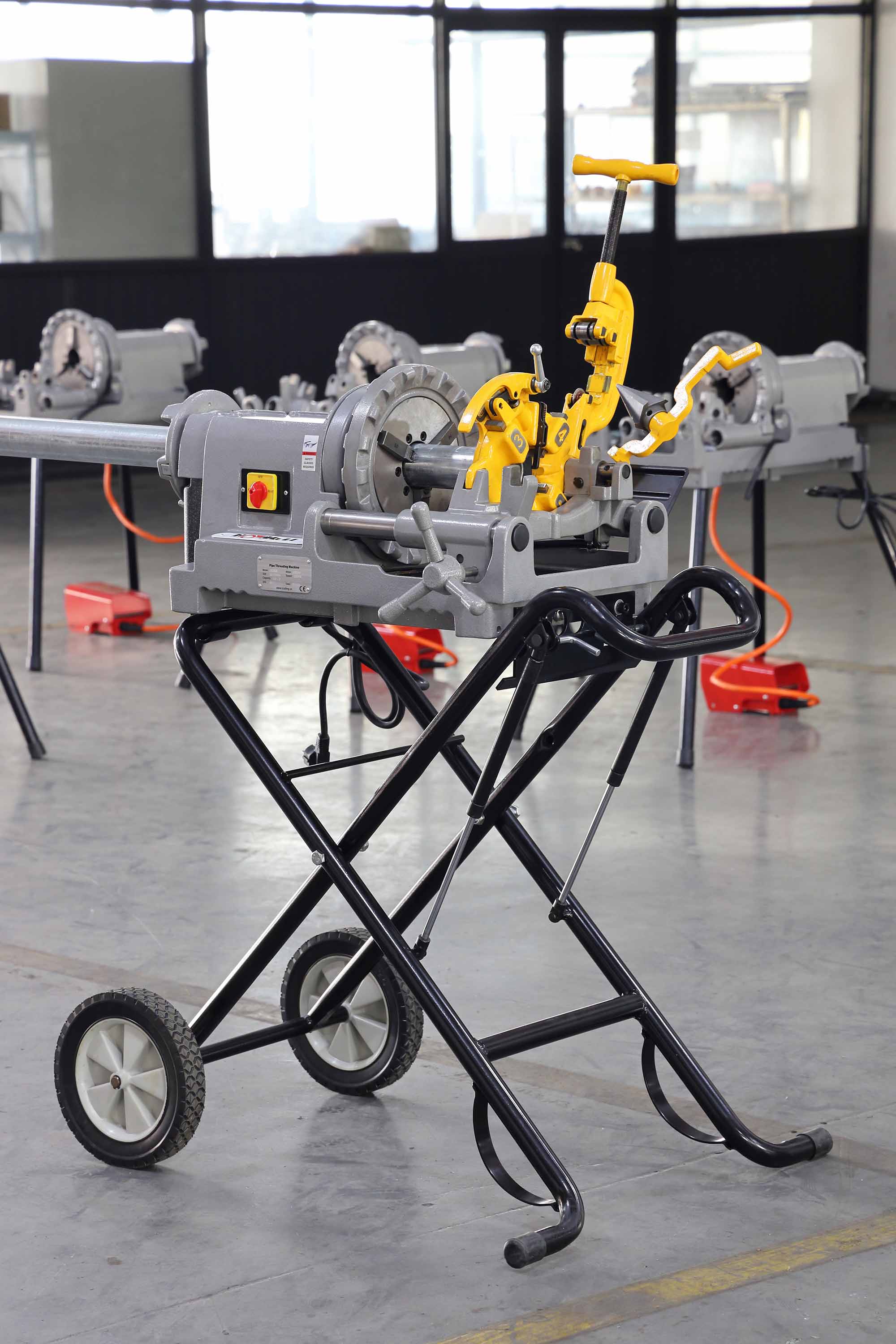

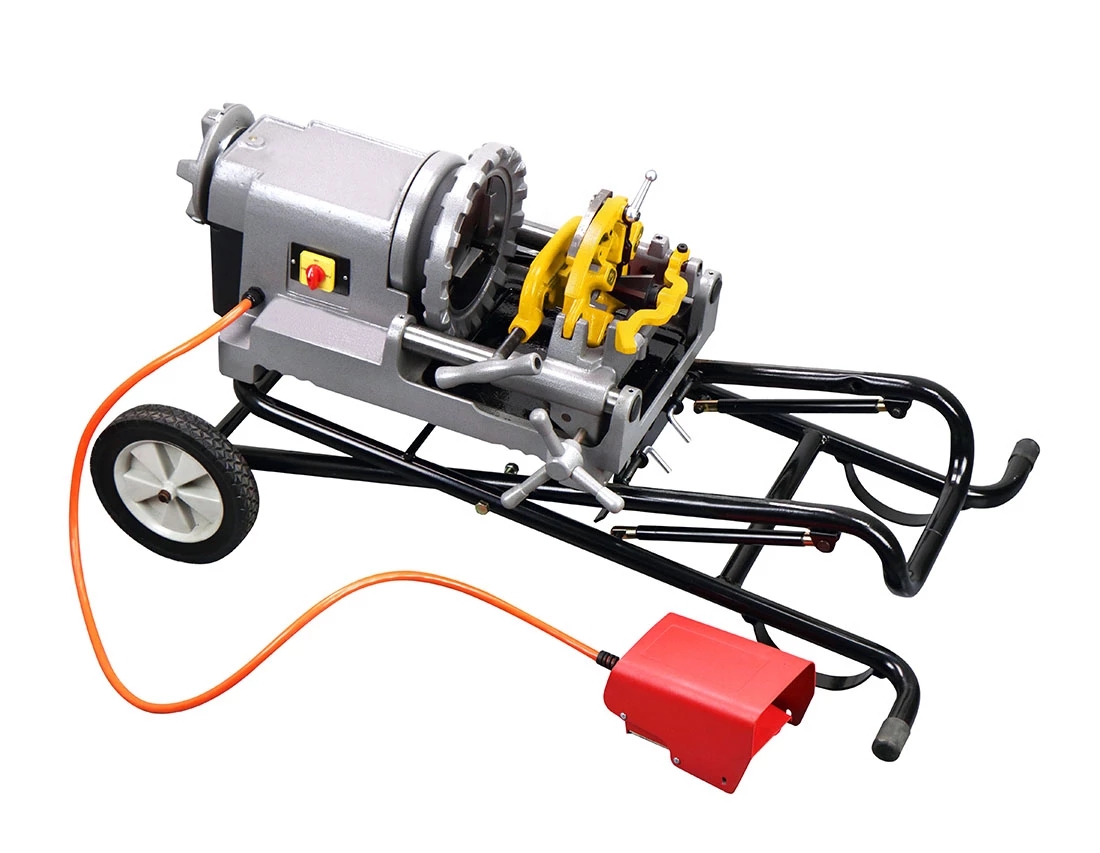

651 Pneumatic Folding Wheel Stand with 2 wheels (optional) :

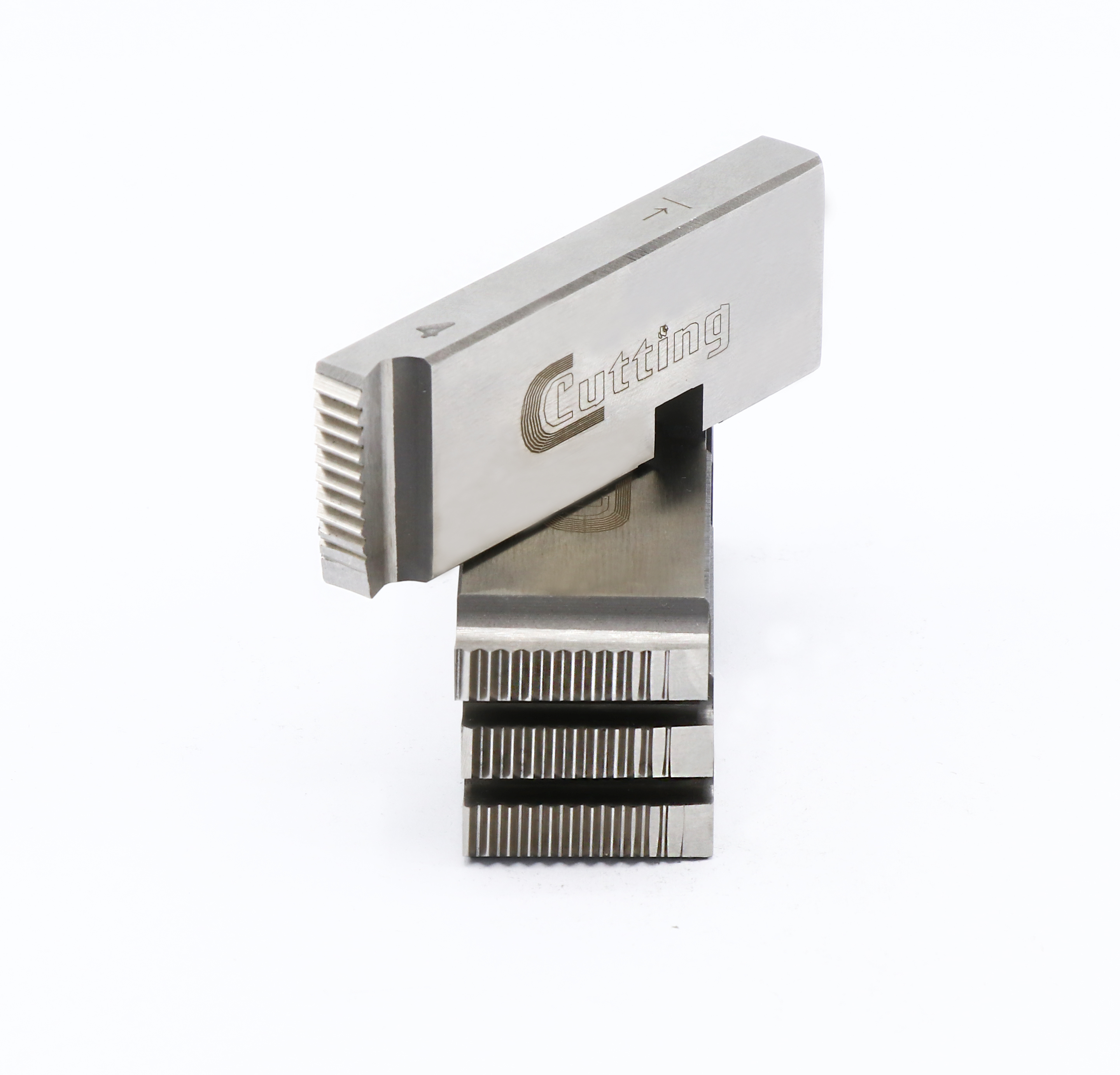

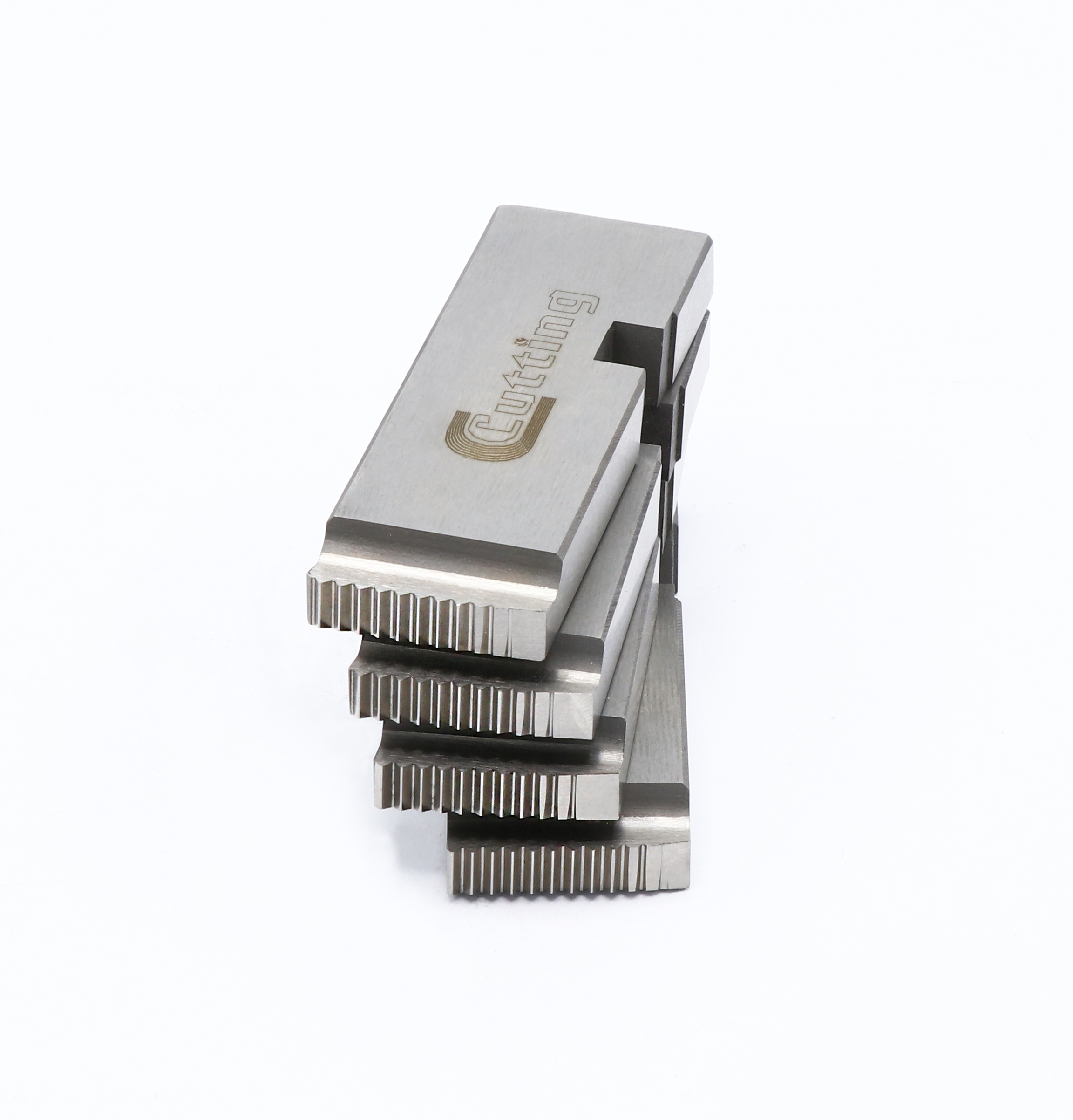

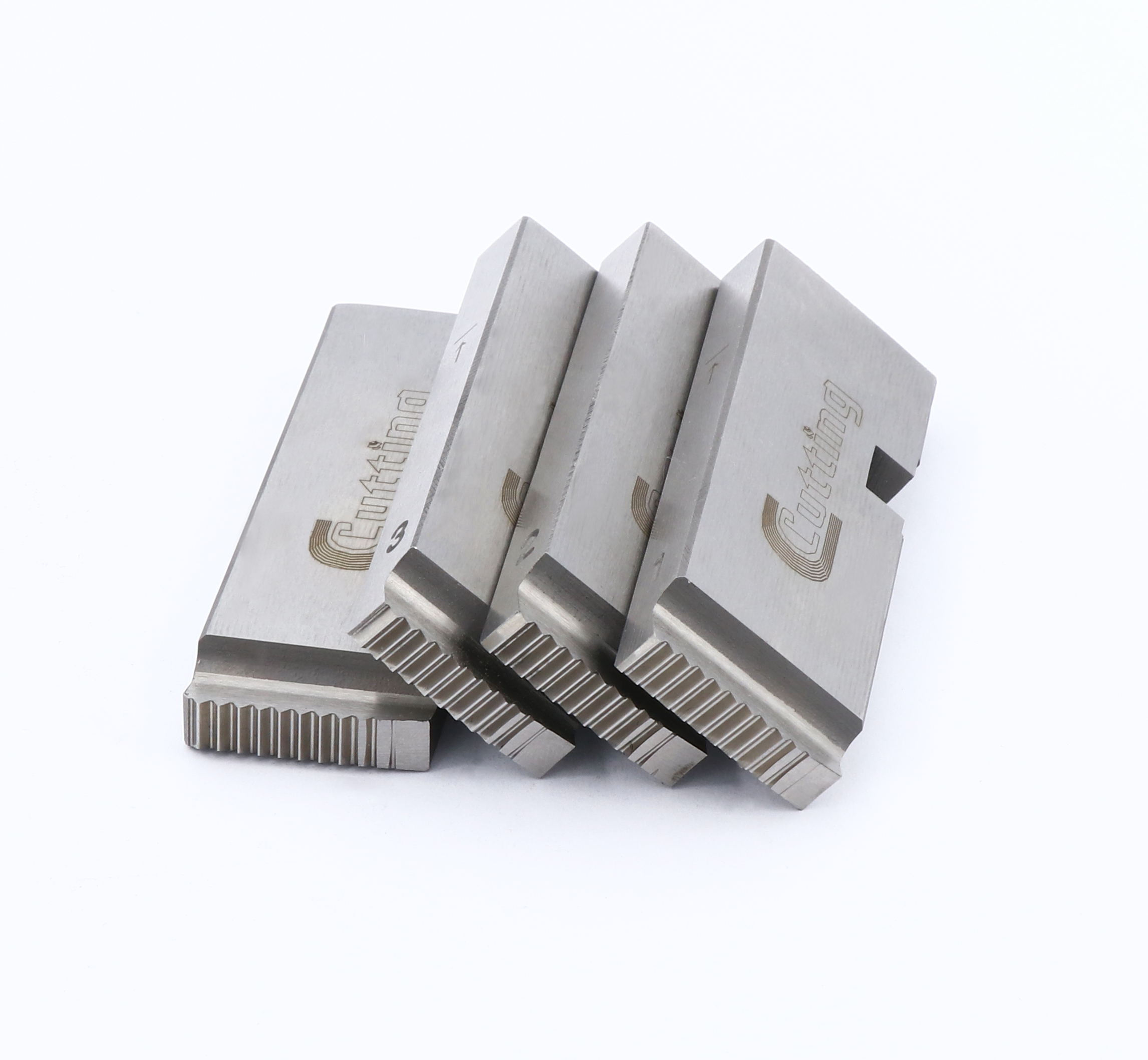

Dies in Alloy Material
Dies in HSS Material
Dies in Super HSS Material
Dies work with RIDGID ®Dies
Ordering Information
|
Catalog No.
|
Model No.
|
Description
|
Capacity in.
|
Capacity mm.
|
N.W.
|
|||||
|
302312
|
SQ50E
|
Electric pipe threading Machine complete set, 110V, NPT
|
1/2-2
|
15-50
|
75kg
|
|||||
|
302311
|
SQ50E
|
Electric pipe threading Machine complete set, 220V, BSPT
|
1/2-2
|
15-50
|
75kg
|
|||||
|
Accessories:
|
|
|
|
|
|
|||||
|
–
|
–
|
–
|
–
|
6
|
||||||
|
|
|
|
|
0.75
|
||||||
|
|
|
|
|
0.75
|
||||||
|
4581011
|
819
|
|
|
4.5
|
||||||
|
11001004
|
–
|
–
|
–
|
22.4
|
||||||
|
11102001
|
–
|
–
|
–
|
5
|
||||||
|
602201
|
H401
|
1/8″-6″
|
4-150
|
20
|
||||||
Related Products

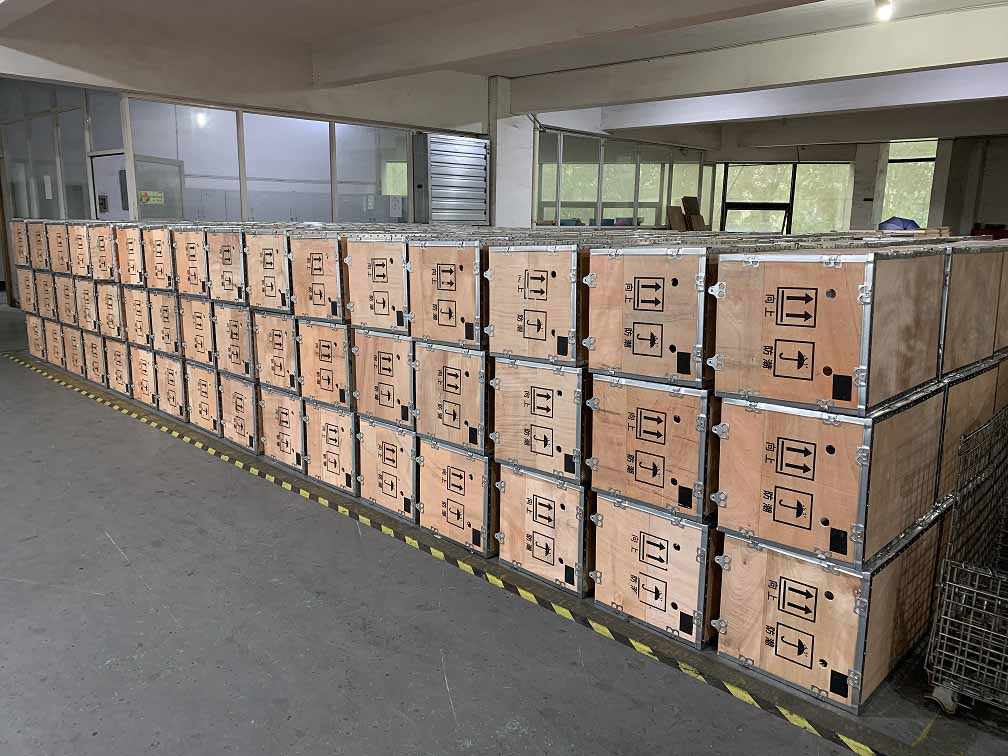

Packing&Shipping
|
Package
|
Length
|
Width
|
Heigth
|
Gross Weight
|
Net Weight
|
|
SQ50E
|
80mm
|
56mm
|
47mm
|
90kgs
|
75kgs
|
After Sales Service
Why choose us
1. Professional customer service guidance
Pre-sales customer service can answer your professional machine knowledge
2. Full technical support
Professional maintenance and after-sales personnel provide services
3.One year warranty

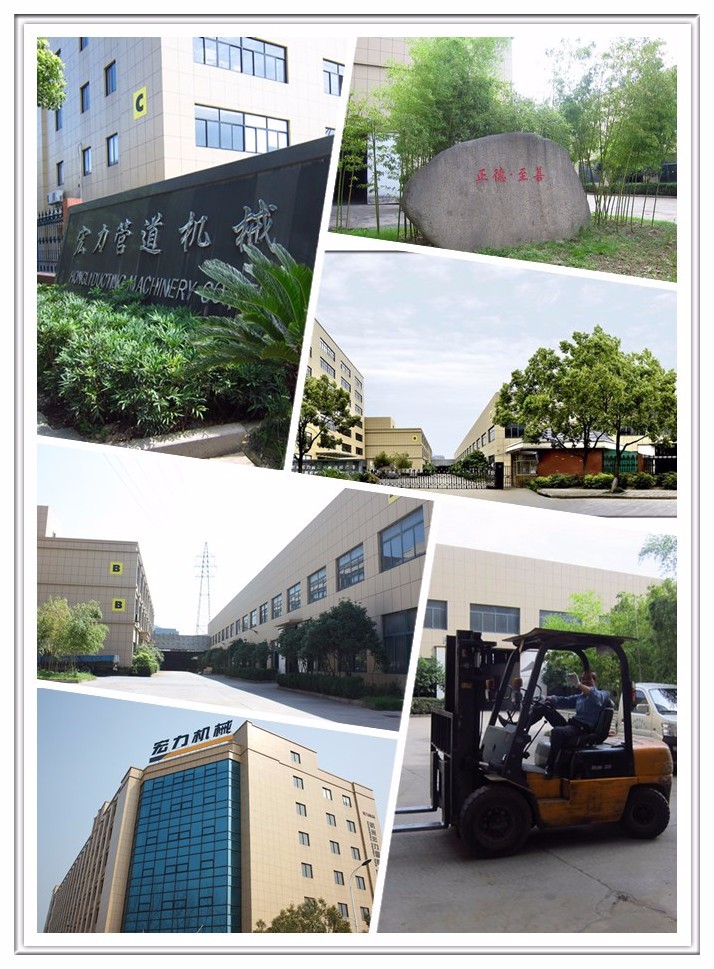

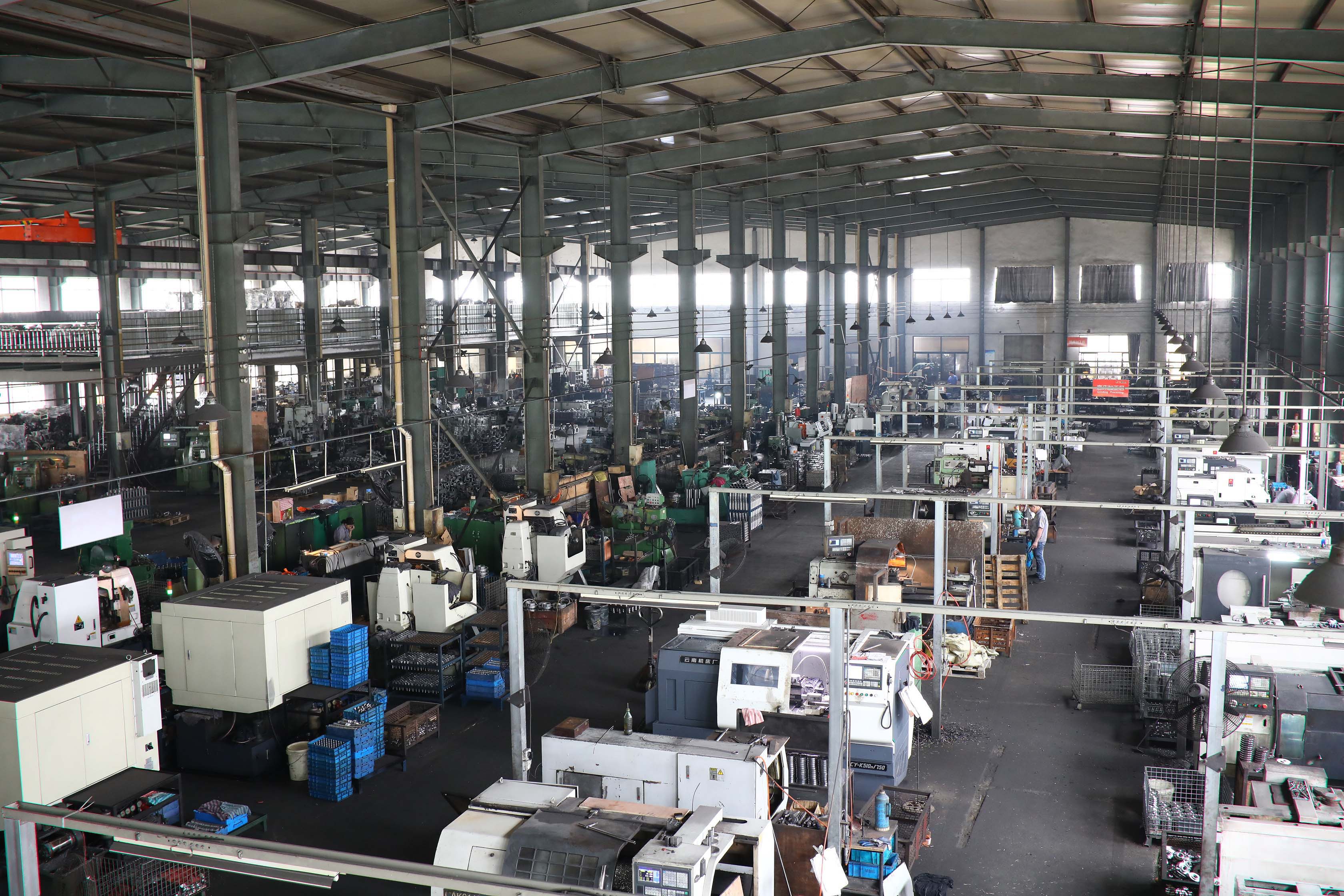

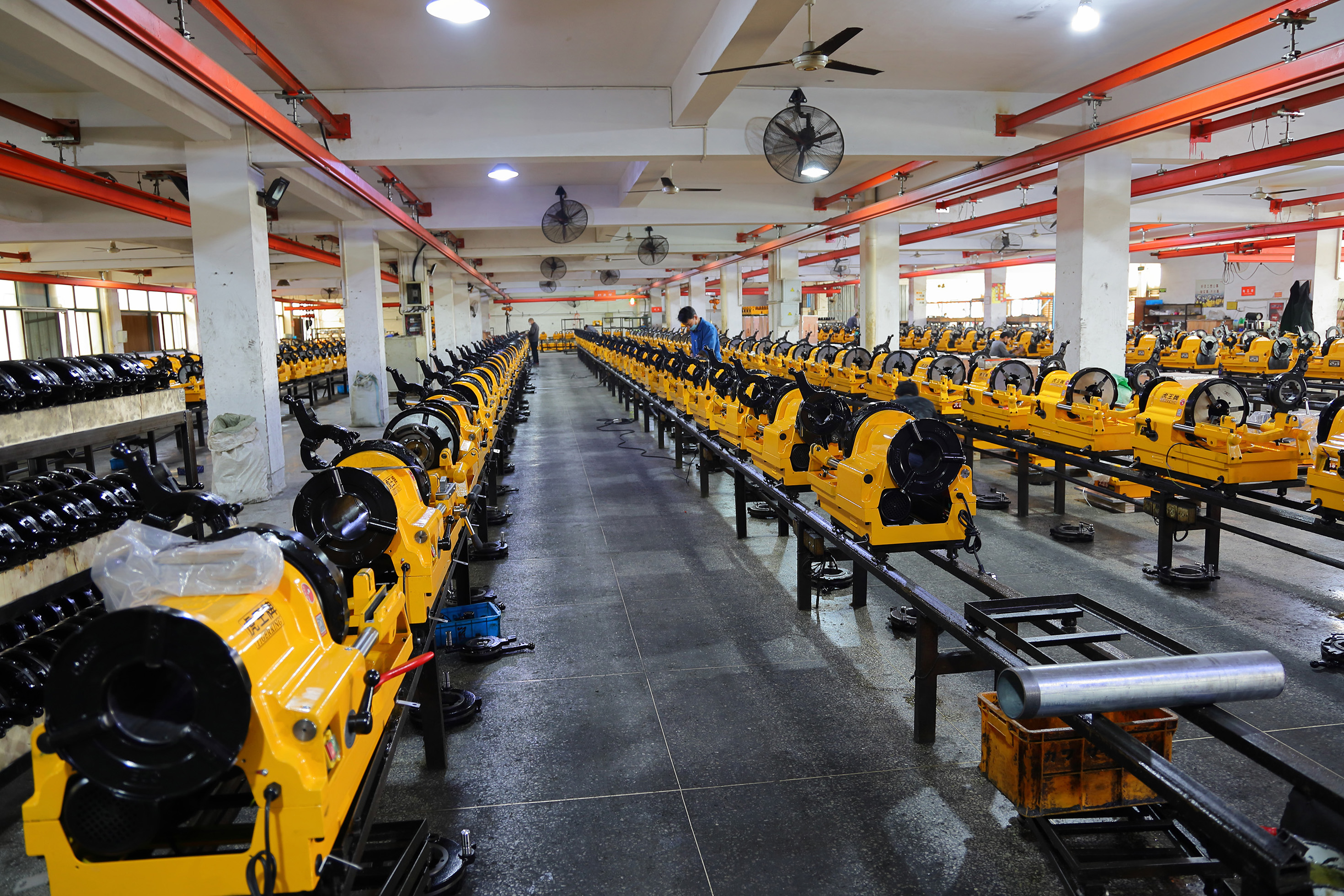

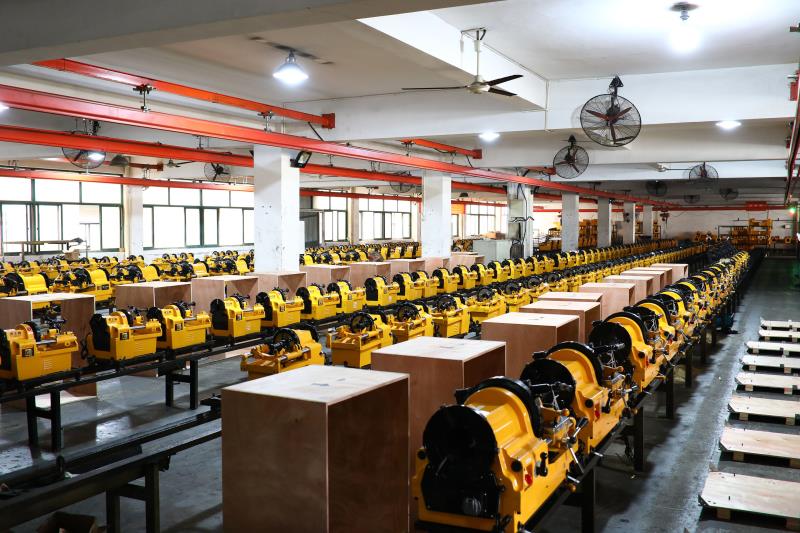

Company Introduction
