Description
- Brand Name: ACCTEK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: AK30F
- CNC or Not: CNC
- Is Smart Device: No
- Product name: Fiber Laser Marking Machines
- Laser Power: 20W /30w/ 50w(Optional)
- Marking Speed: 0-8000mm/s
- Laser wavelength: 1064um
- Marking Depth: 0.01-0.5mm
- Power supply: AC220V 10% / 50HZ
- Minimum Character: 0.15mm
- Marking material: Metal and plastic
- color: Customized Color
- Keywords: Fiber Laser Marking Machines

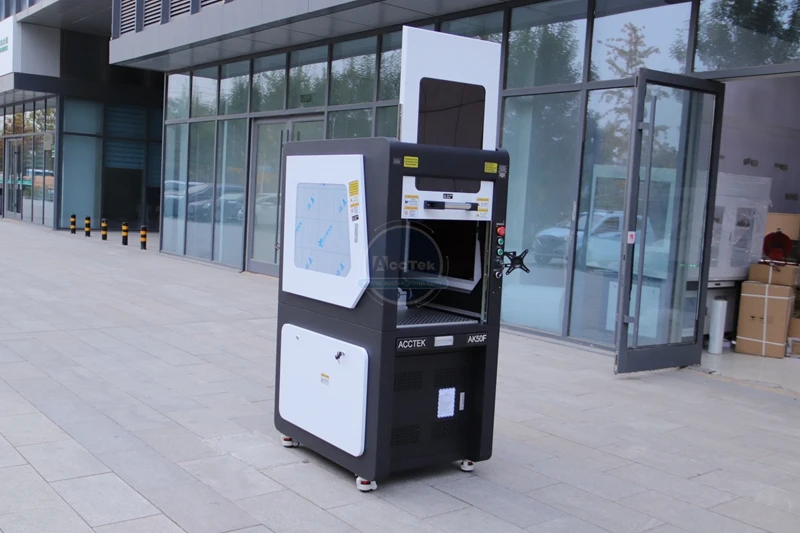

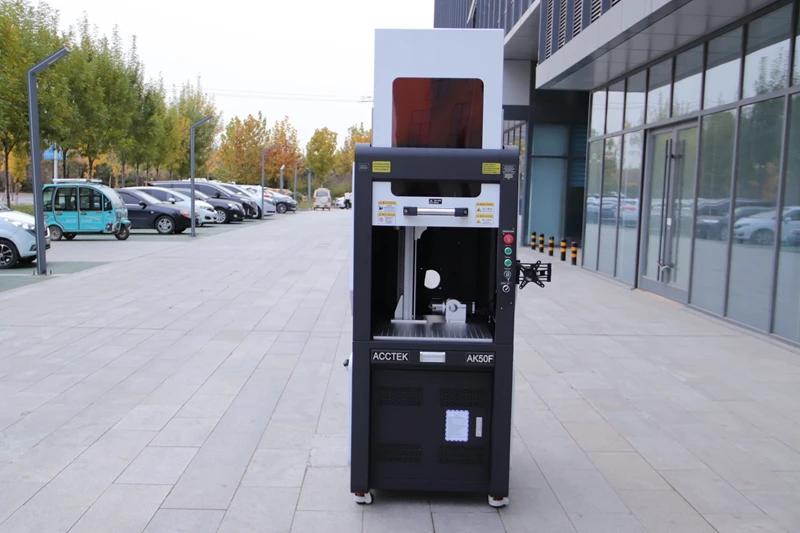

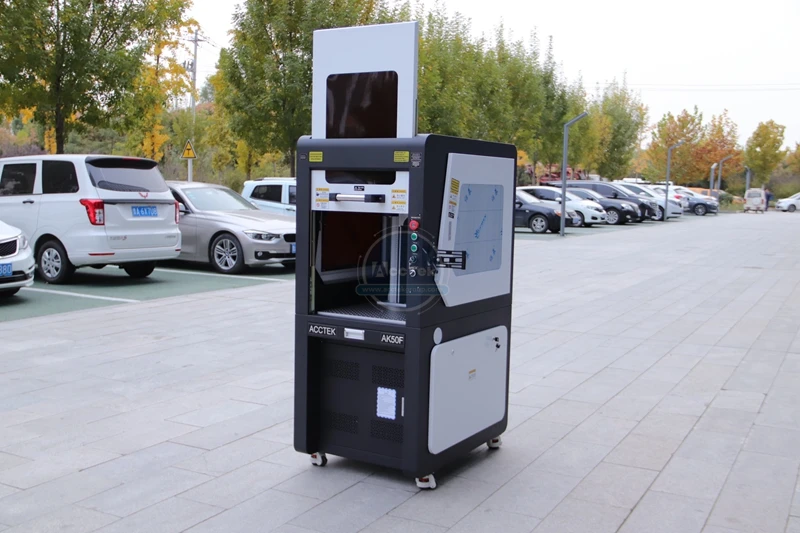

Wholesale Acctek 20W 30W 50W 100W Fiber Laser Marking Machines For Jewelry Metal
Product description
1.AK20F/AK30F/AK50F series are developed for efficient laser marking of metals and some nonmetal materials
2.The small and compact size, low power consumption,
3. Long-life 100,000 hours life span, continuous 24 hours working,
AK20F fiber laser marking machine as your best choice.
|
NO |
Model |
Fiber laser marking machine AK30F/ AK50F |
|
1 |
Laser power |
Raycus fiber laser source 20w/30w/50w |
|
2 |
Working area |
100*100mm/200*200mm |
|
3 |
Laser Wavelength |
1064nm |
|
4 |
Response time |
0.5ms |
|
5 |
Frequency of pulse |
20-100KHz |
|
6 |
Max marking depth |
≤0.8mm |
|
7 |
Marking lines |
1-10 lines(in the marking area) |
|
8 |
Minimum line width |
10um |
|
9 |
Minimum character |
0.15mm |
|
10 |
Repeatability accuracy |
±0.002mm |
|
11 |
Resolution ratio |
0.1mm |
|
12 |
Marking content |
Text,pattern,date,barcode,etc |
|
13 |
Operation system |
Windows XP and win7,win8,win10 |
|
14 |
Control software |
EZCAD control software |
|
15 |
Graphic format supported |
bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
|
16 |
Unit power |
≤1.2KW |
|
17 |
Operation temperature |
5℃-40℃ |
|
18 |
Relative moisture |
≤ 90%,no fog |
|
19 |
Supply Voltage |
220V, 50/60Hz |
More Details
Raycus 20w fiber laser source
Long service life and more stable operation
Field lens
Good materials ,good focus,high power,long service life
Original LMCV4 EZCAD controller
The system is stable, easy to operate and install
High-speed Galvanometer
Compact and convenient, easy to operate ,durable, energy-saving and efficient, high-definition scanning, fast .
Optional parts for laser marking machine 20w:
1. Rotary :Realize local machining , reduce finshing allowance and complete tool path calculation at one time
2. 2D aluminum table : Make the object placed flat and easy to adjust the focal length.
Application samples
Applicable industry of laser marking machine 20w: gold & silver jewellery, sanitary ware, food packing, tobacco products, medicine packing, medical apparatus and instruments, watches & glassware, auto accessories, electronic hardware .
Applicable materials of laser marking machine 20w: gold & silver, stainless steel,ceram, plactic, glass, stone, leather, cloth, bamboo and so on.
