Description

400-500mW RGB red, green and blue synthetic white laser Mini full color laser TTL modulation

The first RGB white DPSS laser in the world ! We made red laser, green laser and blue laser into one laser. The 500mW white laser is the first RGB laser you can find. The product is the newest, please contact us if you need to know more details about it.

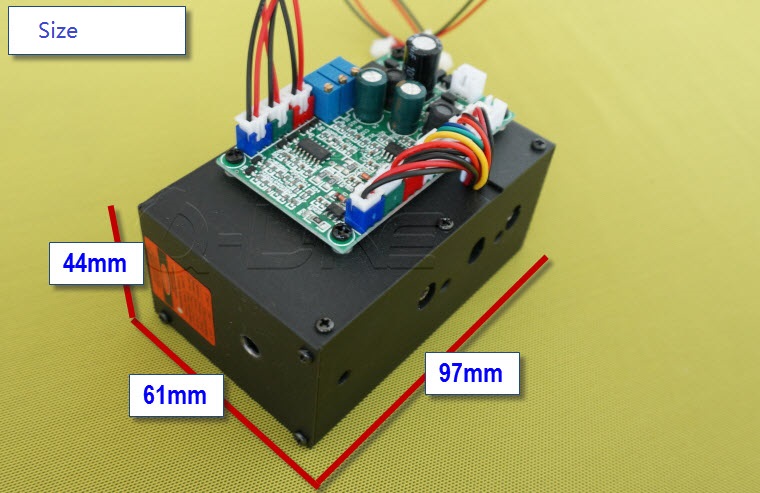

Host size:length 106mmwidth 76mmheight 47mm
Circuit size:length 63mmwidth 42.2mmheight 23mm
Output wavelength:450/658/532nm
Output power:100mW, 220mW, 130mW for blue, red and green respectively

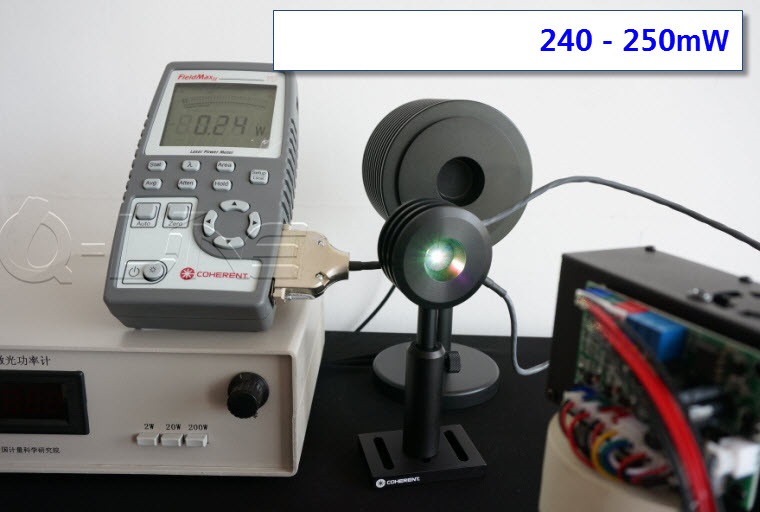

Combined power:measured power of three kinds of light after passing through the lens 240-250mW

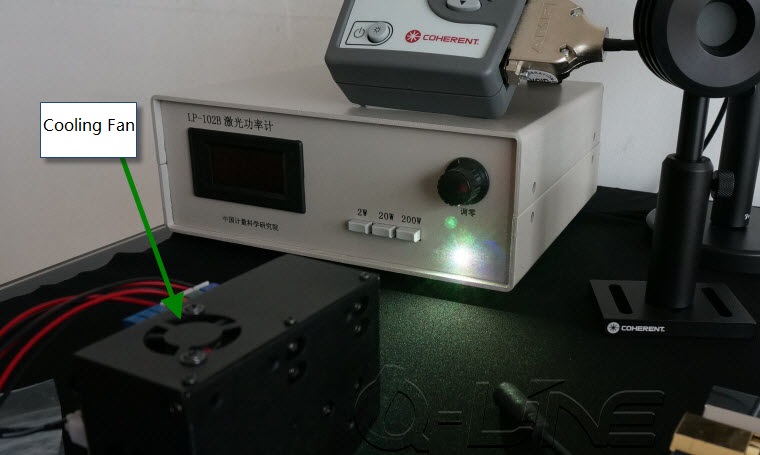

Cooling method:aluminum heat dissipation and air cooling
Modulation frequency:Modulation TTL
Working characteristics:continuous work
Shell material:aluminum
Circuit control:constant current
Reverse connection protection:automatic identification of positive and negative poles
Working voltage:DC=12V
Working current:I<1.5A
