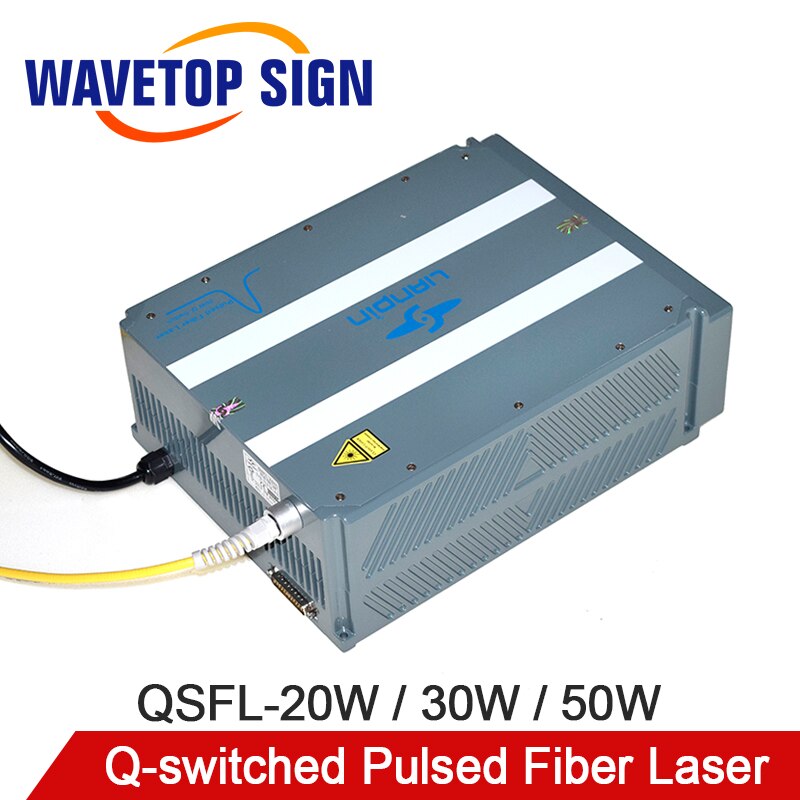

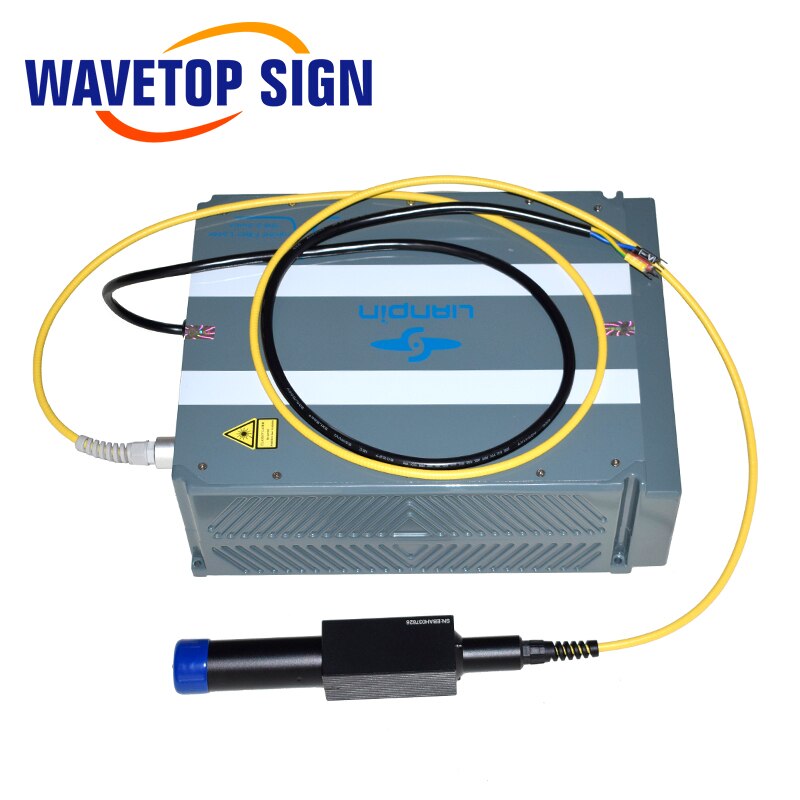

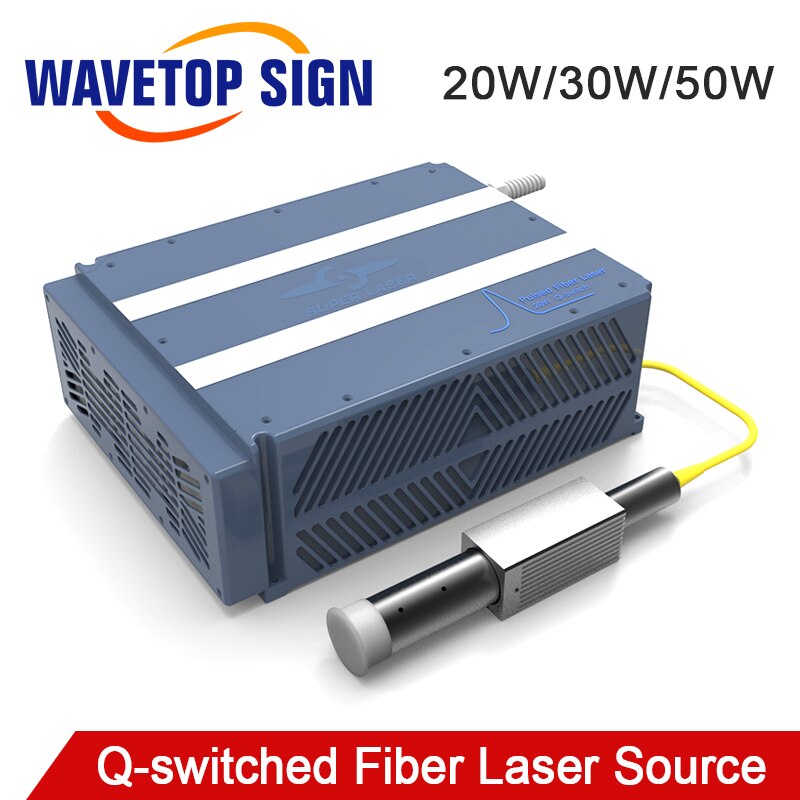

Description
- Brand Name: wavetopsign
- Model Number: Fiber 20W 30W 50W 100W
- Cooling Method: Air cooling
- Polarization: Arbitrarily
- Output center wavelength: 1064
Advantage:
1. Large heat radiating area, narrow pulsed width, high peak power, large range adjustment of pulse repetition rate
2. No light leaking when laser is off， High reliability and long life time ，Compact structure
3. Strong resistance against high reflect segregation output, can be used in surface processing of high reflection metal material, such as, aluminum, copper, gold, silver and so on

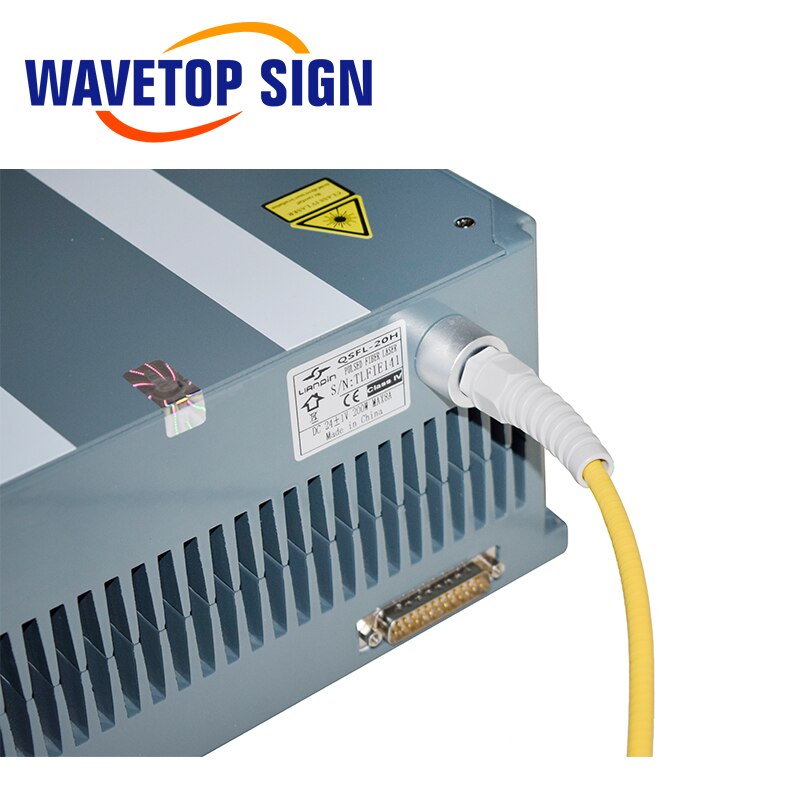

4. Universal 25 pin interface
Application:
Ideal laser module is suitable for fine processing.Our Q-switched low power fiber laser is mainly applied in processing on most kinds of material, including metal (iron, steel, magaluma, kirsite, copper nikel and so on) and non-metal material (such as ABS, PC, epikote). And the marking field covers all kinds of ornaments, hardwares, shell of electronic product, medical product…
Type,frequency and power of laser module are optional according to marking, engraving or cutting.Our fiber laser is also employed in welding, precision machining, cutting, graphicengraving and processing on special materials.
Advantage:
1. Adjustable pulse width with 4-260ns, large frequency repetition range (20-1000KHz), no light leakage when laser power is off.
2. High reliability, long lifetime. Compact structure, small in size.
3. Anti-high reflection isolated output. Can be applied in processing on high reflective material, such as aluminum, copper, silver, stainless steel.
4. Universal DB25 control interface.
Application:
Materials such as anodised aluminium, iron, stainless steel, magal, kirsite, copper, nikel, galvanized plate. Application industry include but not limited to marking on metal products: mobile, hardware, watch shells, medical devices, jewelry, auto spare parts. Non-metal material: ABS, PC, epoxy resin, PVC, specific products like: keyboard, charge, electron components, IC……
