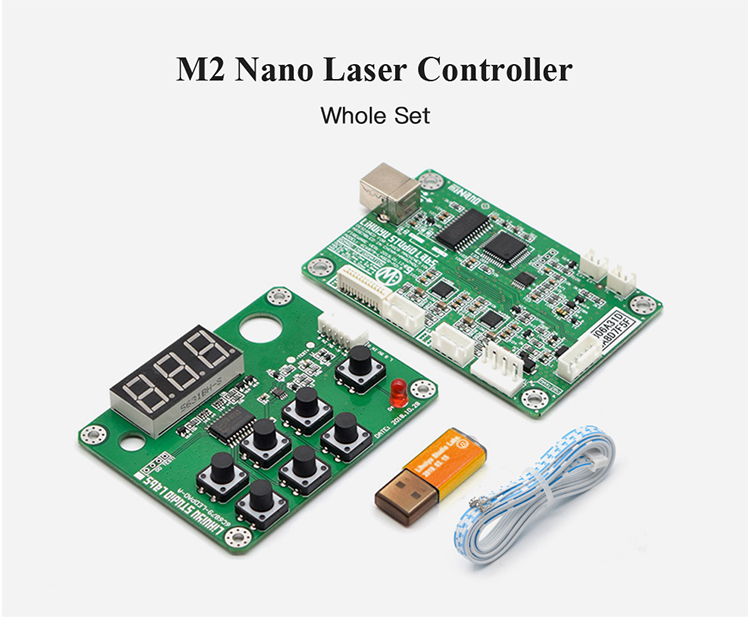

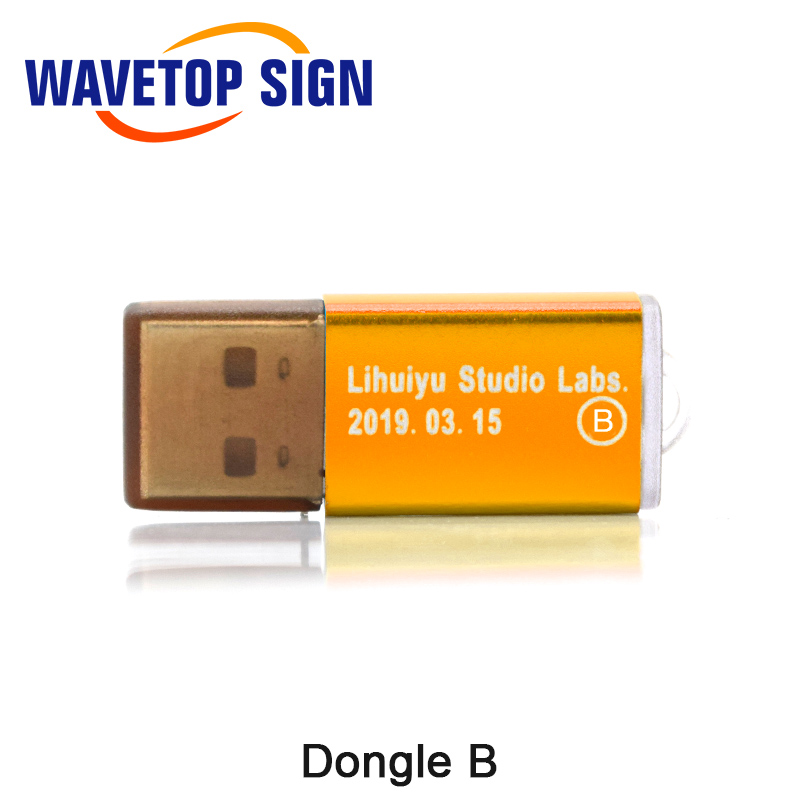

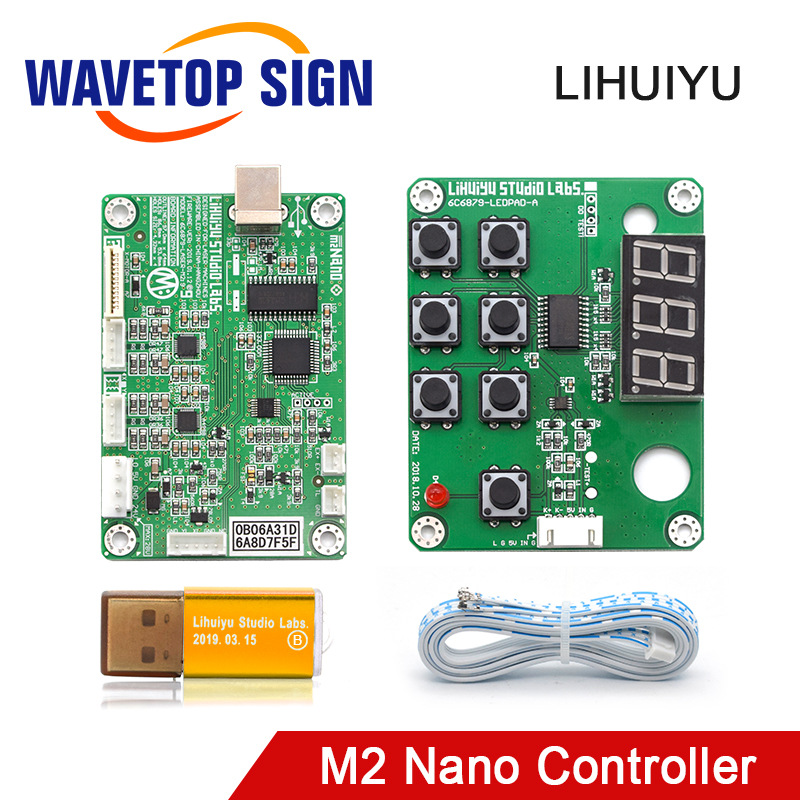

WaveTopSign LIHUIYU M2 Nano Laser Controller Main Board Control Panel Dongle B System Cable

$108.11

200 in stock

SKU: 1005004010830654 Category:

Description

  • Origin: CN(Origin)
  • Certification: NONE
  • DIY Supplies: ELECTRICAL
  • Brand Name: WaveTopSign
  • Weight (KG): 0.3 KG
  • Product name: M2 Controller System
  • Application: Laser Engraving Cutting Machine
  • Laser Application Software: Coreldraw and Corellaser
  • Used for: For DIY 3020 3040 K40
#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:624px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:624px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{font-size:18px}#detail_decorate_root .magic-9{overflow:hidden;width:750px;height:781px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-10{margin-top:0;margin-left:0;width:750px;height:781px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:421px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:421px}#detail_decorate_root .magic-13{overflow:hidden;width:750px;height:519px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:750px;height:519px}#detail_decorate_root .magic-15{overflow:hidden;width:750px;height:397px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:750px;height:397px}#detail_decorate_root .magic-17{margin:0;padding:0}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:354px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:354px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:613px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:613px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:367px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:367px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:257px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:257px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:409px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:750px;height:409px}#detail_decorate_root .magic-28{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-29{padding:0;line-height:20px;font-weight:bold;color:#333;margin:0}

Product Description

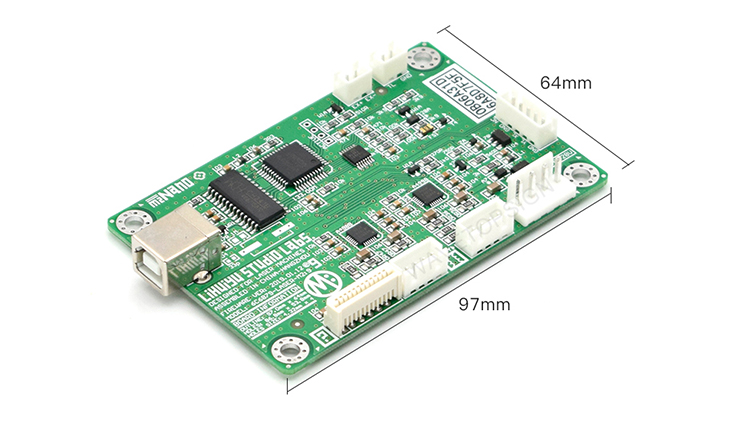

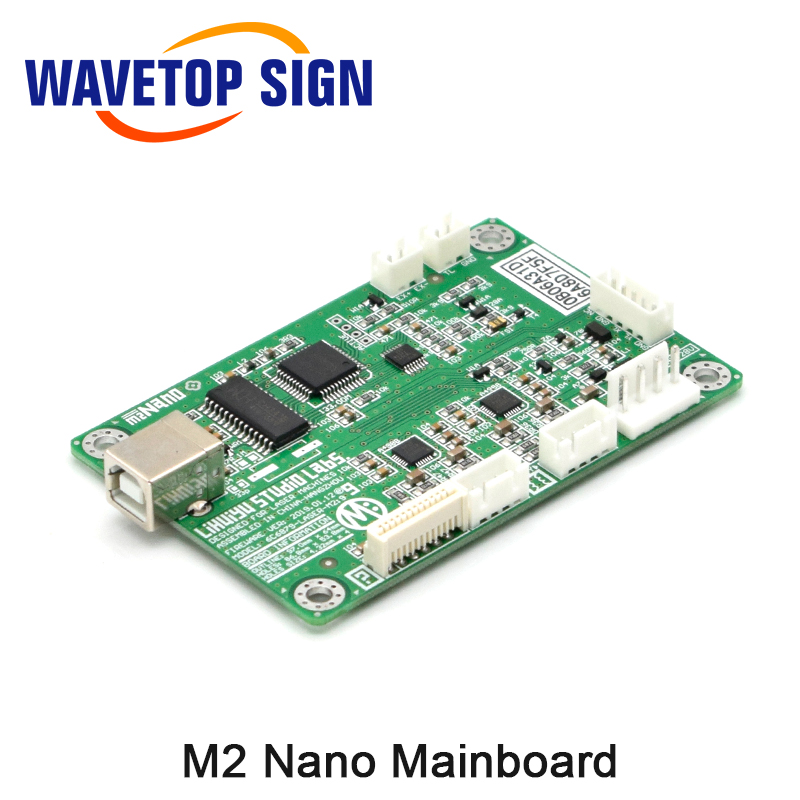

M2 mainboard is a square port USB interface mainboard. 1. Support carving,cutting image engraving, slow marking; 2. Support for receiving unlimited number if engraving data; 3. Support USB dropped breakpoints continued; 4. Support unlimited engraving format; 5. Support USB dropped detection; 6. Supports accidental breakpoints;

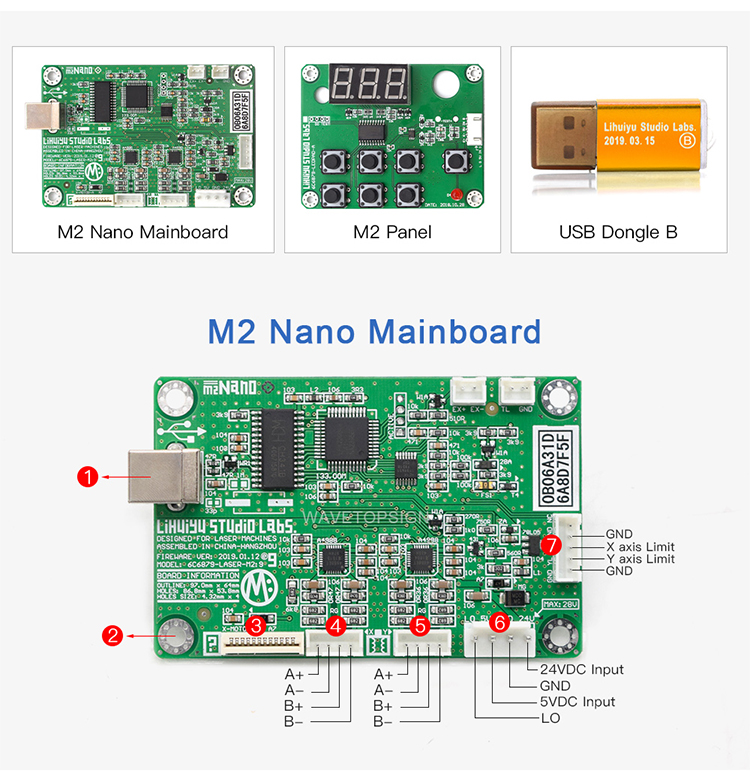

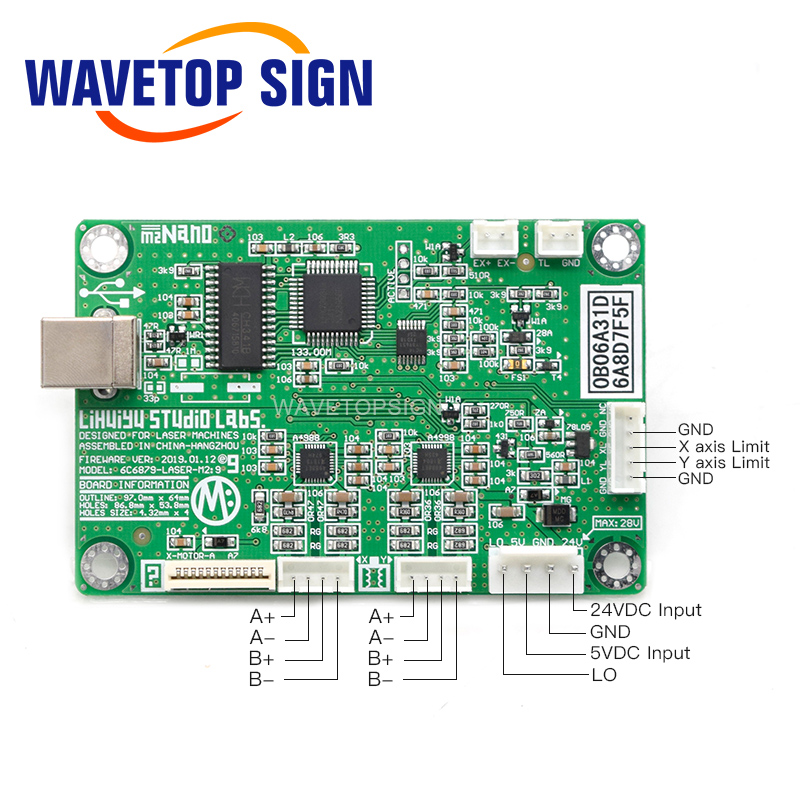

1.A Type USB Port/USB Interface(Pcb Jack) 2.The Main Board Mounting Holes 3.X-Axis Motor (Contain X Axis Limit, Y Axis Limit) 4.X-Axis Motor(Trolley Motor) 5.Y-Axis Motor(Beam Motor) 6.Power Input, The Laser Control Signal Output LO: Laser control signal output. low level(≤0.3V), Laser on. High level (5v),laser off 7.Switch Connection

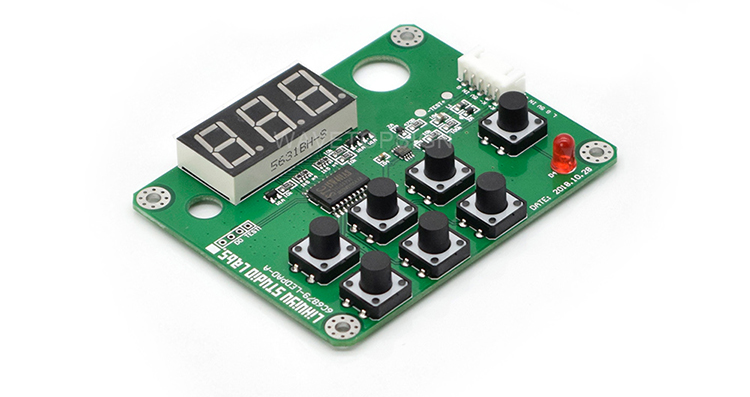

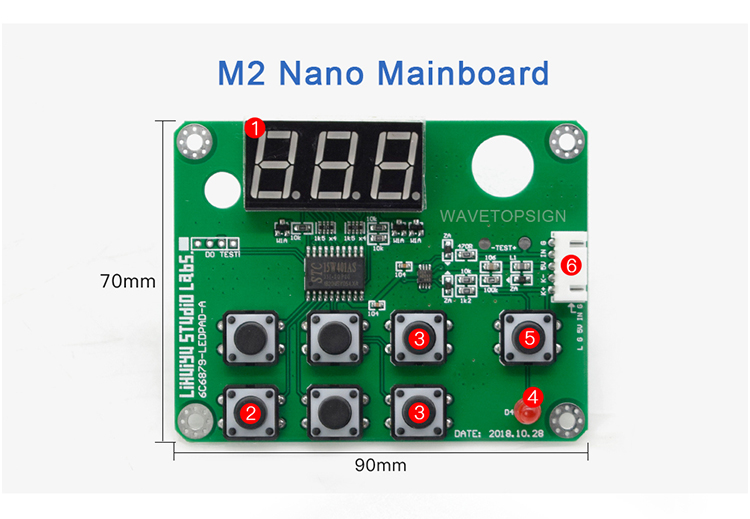

1. Digital display for laser energy percentage 2. Laser energy settings button: Used to set laser energy,with a range of 0% to 99.9%. The setting accuracy is 0.1%; 3. Turn off the laser: Press the two buttons at the same time to force the laser off. Press any button again to restore the original data. 4. Laser status indicator 5. Test button 6. Connect to laser power supply
