1.Input:1 phase 220V±15%

2.Output Voltage Range:3 phase 220V±15%

3.Output Power:0.75kw/1.5kw/2.2kw

4.Rated current:4A/7A/10A

5.Rated Frequency :50hz/60hz

6.Output Frequency Range:0~650Hz

7.Control way: Open loop vector control(SVC)V/F

Type selection instructions:

A.  Please read the product instructions carefully, choose the type according to the function and power you need, and avoid the damage caused by wrong wiring;

B.  This Frequency converter does not support single-phase motor speed regulation with capacitance.;

C.  Speed regulation of three-phase AC motors with six or more stages. Please purchase a converter with higher power than the motor;

D.  If you don’t know how to choose the type, you can also contact us to give you some suggestions.​

E. WK310 series frequency converters do not have RS485 communication function by default, nor do they have built-in braking units. If you need RS485 communication function of frequency converter or need to use with brake resistance,Please leave a message when ordering.

OUR PRODUCT TECHNOLOGY

• Our products have excellent performance.

A.  0.5Hz can provide 150% starting torque;

B.  Overload capacity: 150% rated current 60s; 180% rated current 10s;

C.  Carrier frequency: 0.5k ~ 15.0kHz.

• Our products have powerful functions.

A. PID control function — Closed-loop automatic control technology;

B. Multi-speed control function — 8-speed control;

C. Multiple Protection of Motor—Short-circuit, phase-absence, over-current, over-voltage, under-voltage, over-heat, over-load protection, etc.

• Our products have a comprehensive configuration.

A. 17 functional terminals—Hundreds of functions can be realized through different combinations

B. Relay output—More complex linkage control functions can be realized.

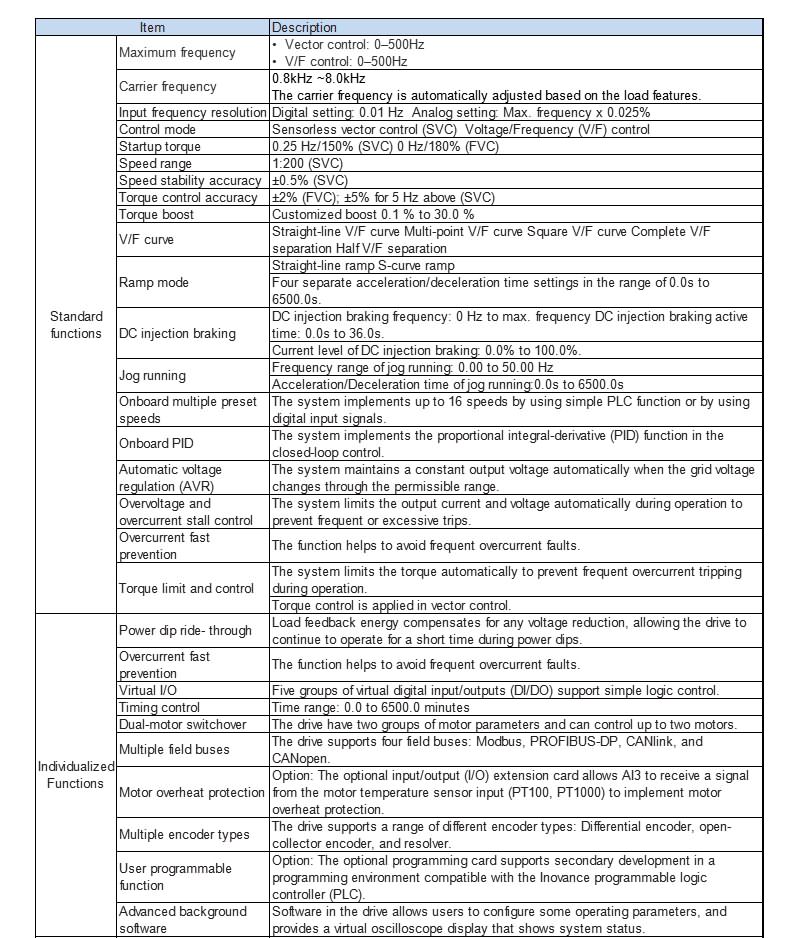

specifications
