Description
- Origin: CN(Origin)
- Model Number: DKJ3018PRO5.5W001V2
- Type: Water Dispenser Parts
- Torque: 0,25 N/M
- Power supply: 24V, 5,6A
- Control software: GRBL control 24V 5.6A controller
- Offline screen: 1.8 inch offline screen
- Applies to: WinXP, Win7, Win8, Win10
- Product size: 33 x 40 x 24 cm
- Effective carving surface: 300 (X) x 180 (Y) x 45 (Z) mm
- spindle: 775 spindle motor 24V
- Spindle speed: 10000U/min
- electricity: 1,33A, 12V
VEVOR Laser Engraver Kits 5500mw DIY Laser Engraver Kits Laser Engraving Machine Kit 3018 CNC Machine For Wood Plastic Leather
Product Description

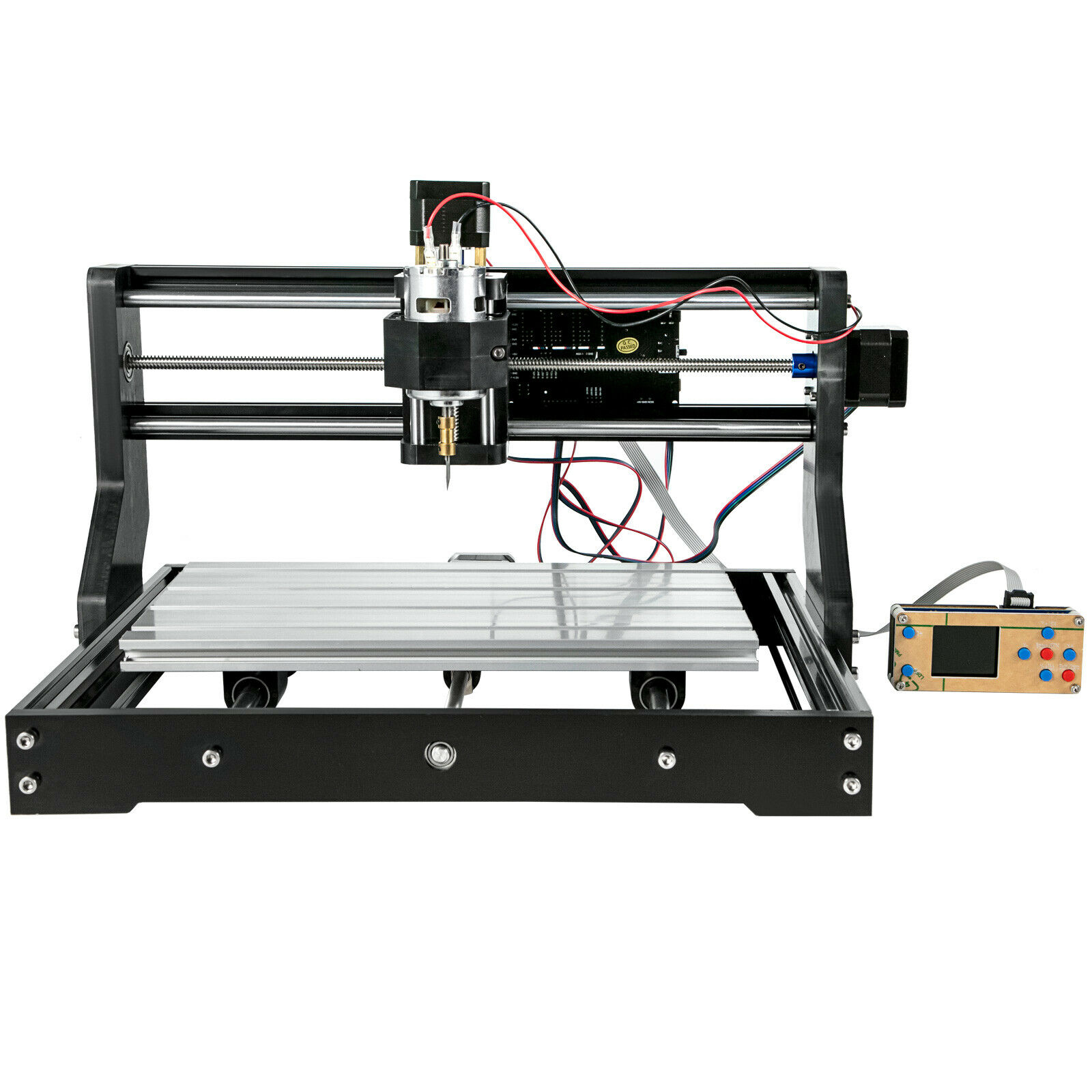

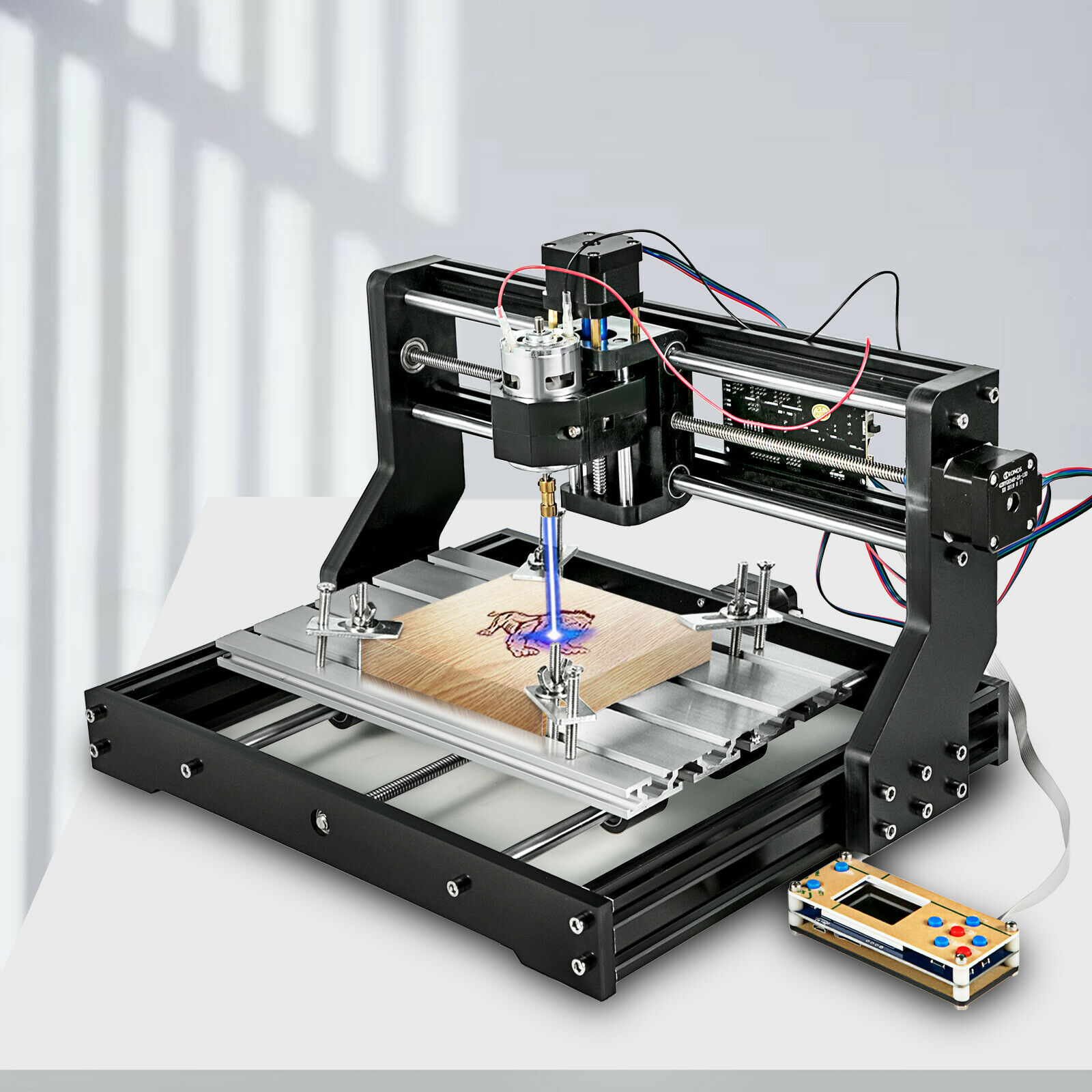

CNC 3018 Pro engraving machine
This CNC engraving machine with an effective working area of 11.8 “(X) x 7.1” (Y) x 1.8 “(Z) is made of aluminum and Bakelite. It has a USB port, a GRBL control card and an offline controller with an additional laser engraver (5500 mW) all kinds of plastics, soft aluminum, wood, PVC, etc.

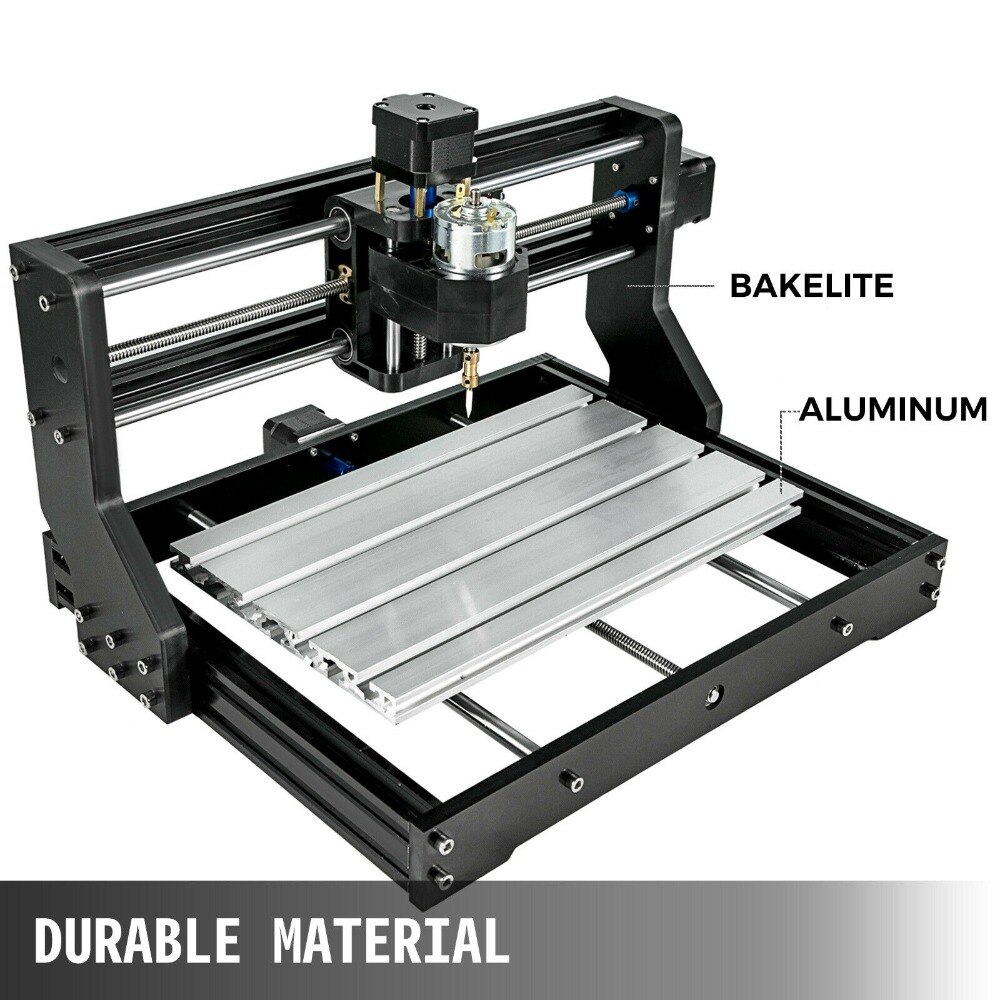

Durable material
Made of aluminum and bakelite, the laser engraver for wood and metal has a good appearance, high precision and durability.

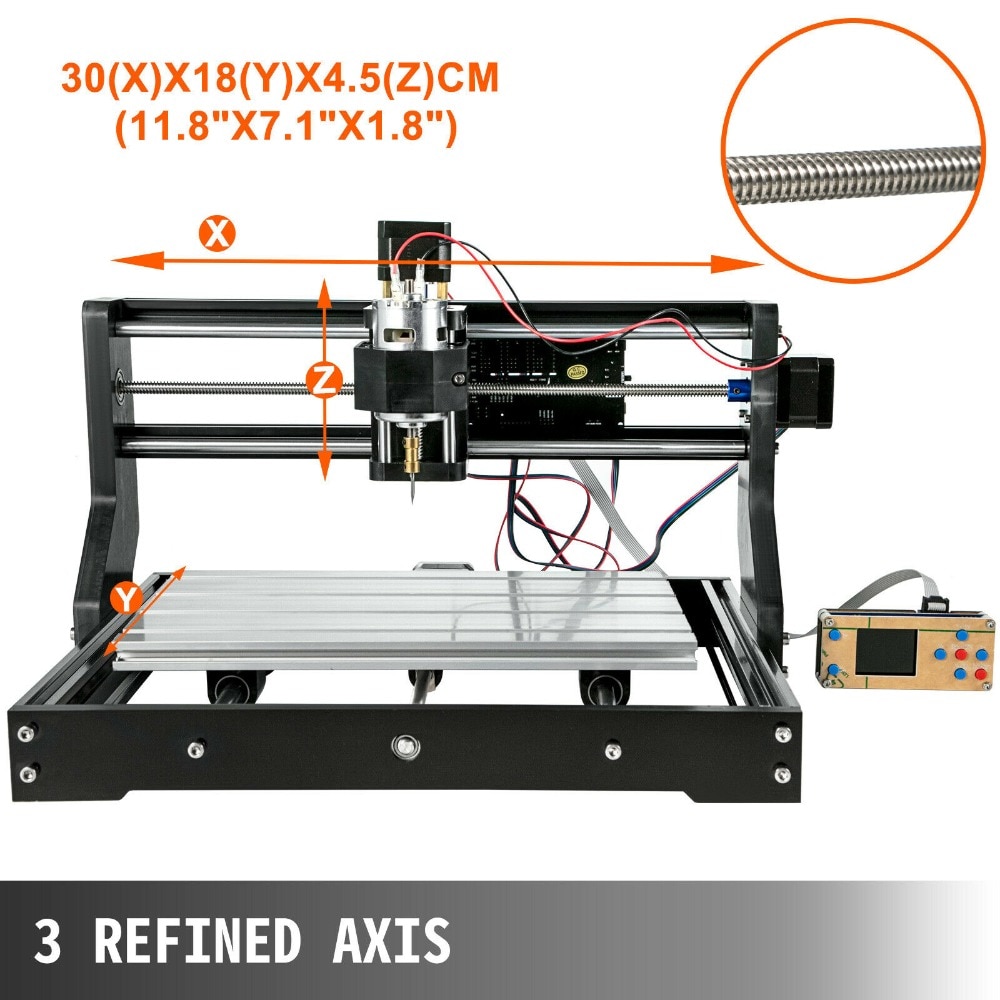

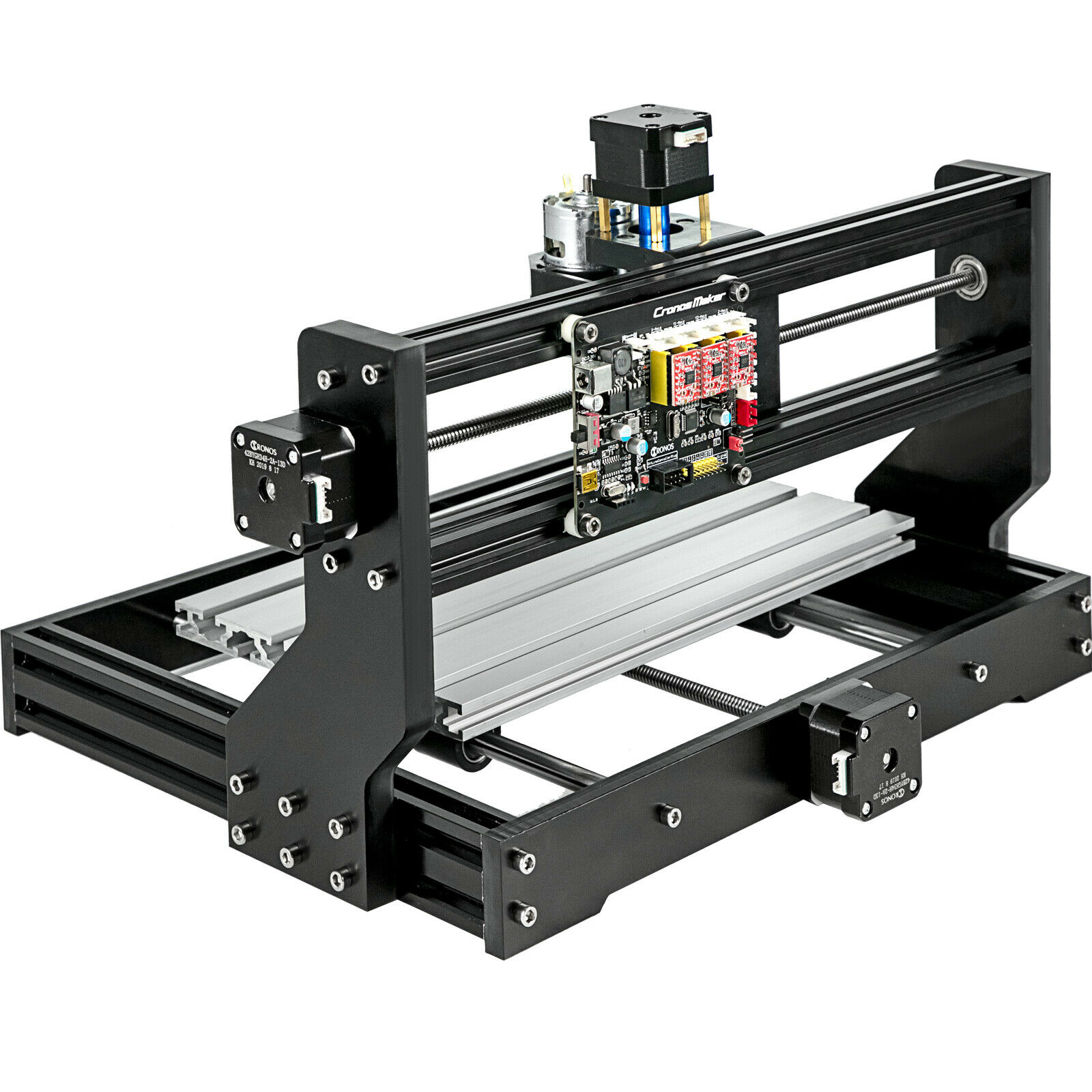

3 Refined Axis
Three axes can realize a flat engraving with an effective working area of 300 (X) x 180 (Y) x 45 (Z) mm (11.8 “x 7.1” x 1.8 “). The drive units consist of T8 Stainless steel threaded rods.

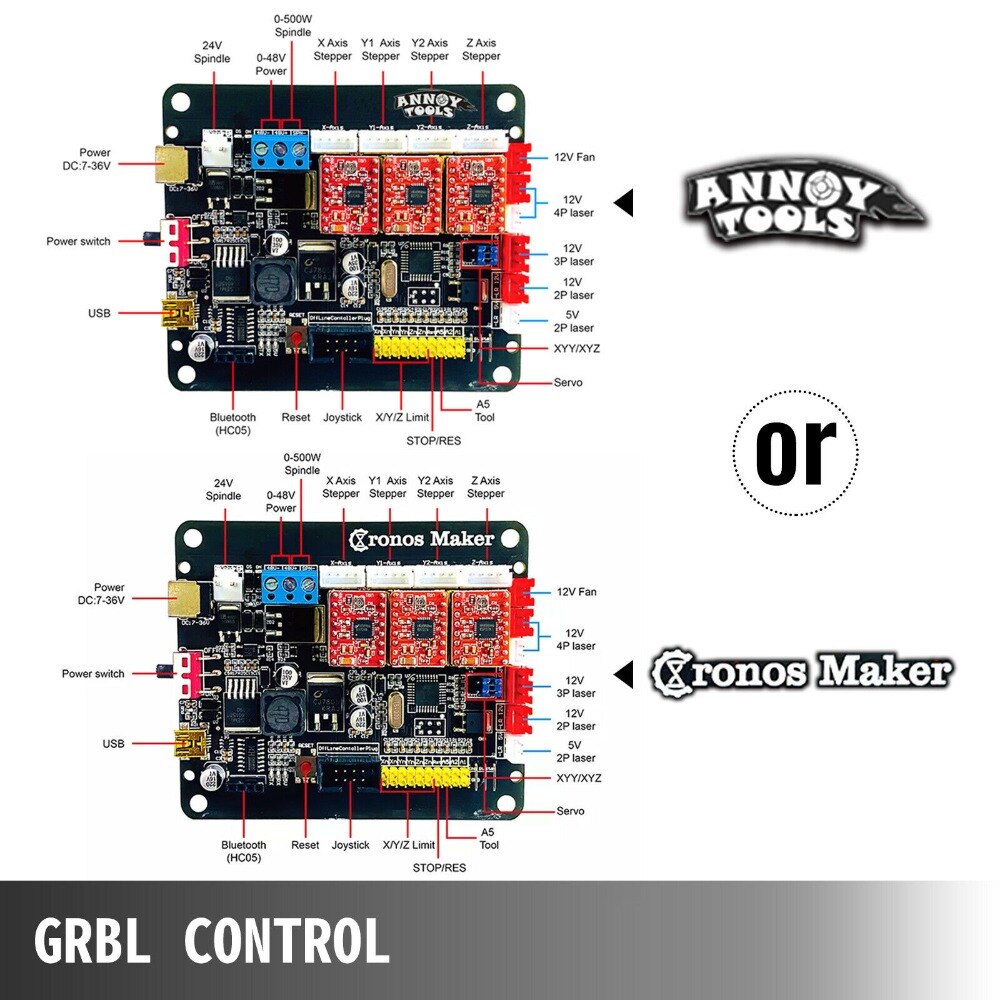

GRBL control card
Can be connected to a computer via a USB interface. Can output 2P / 3P and supports PWM and TTL functions, which allows for greater practical applicability. These two types of control panels are shipped randomly, but this will not affect performance.

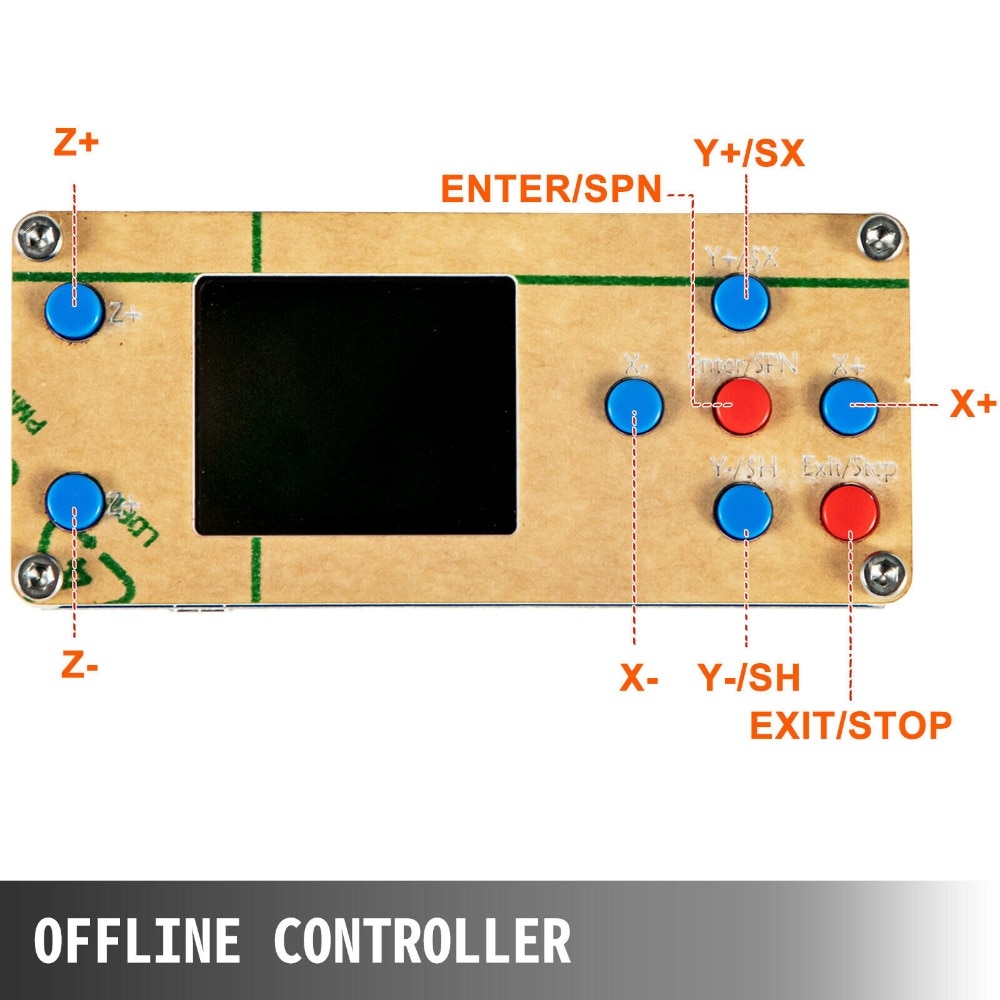

Offline controller
A multifunctional offline controller is configured for remote control of the engraving machine. 1. You don’t need to connect to a computer. 2. You don’t need to download any files. 3. Set the position of the X, Y and Z axes manually to the starting point of the engraving and manually switch the spindle on or off.

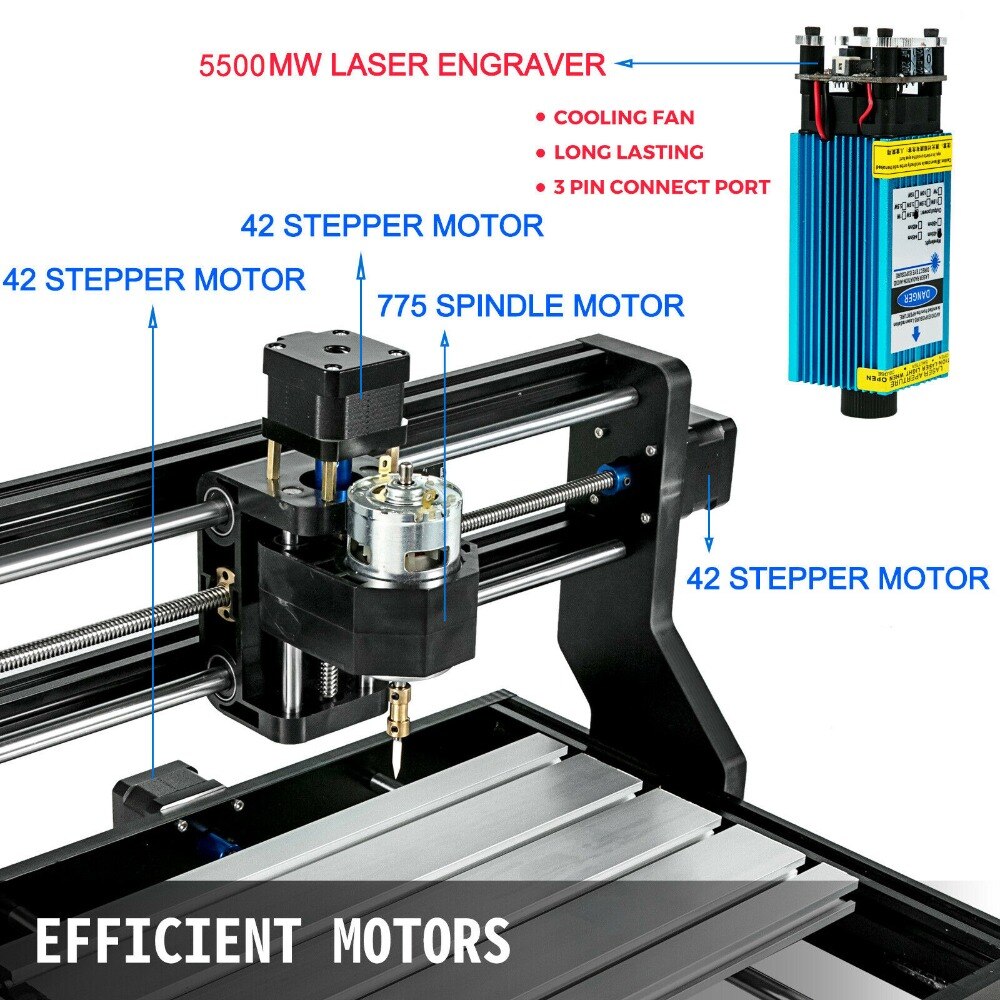

Efficient engines
42 stepper motors are included in each of the three axes for smooth movement. The 24 V spindle motor 775 on the Z-axis can reach a speed of 10,000 rpm. An additional 5500 MW laser engraver is included.
Broad application
As a laser cutter and engraver, all types of plastics, soft aluminum, wood, acrylic, PVC and a variety of other soft materials can be engraved or milled.
Feature
【PREMIUM QUALITY】 – CNC 3018 PRO is an updated version of 3018 CNC. The components do not need to be positioned, which reduces the difficulty of the equipment and improves the working accuracy and stability. The frame and fixed parts are made of aluminum and bakelite. Effective working area: 300 (X) x 180 (Y) x 45 (Z) mm (11.8 “x 7.1” x 1.8 “).
【USER-FRIENDLY】 – According to the instructions, the mini laser engraver is easy to assemble. Supports Windows XP, Win7, Win8, Win10, (32/64 systems. Instructions are on the USB stick.
【USEFUL CONTROLS】 – Connect to the computer via the USB port and let GRBL control you. Offline control of the CNC router is also included for easy remote control without a computer. Three advantages of the offline controller: 1. No connection to a computer required; 2. You don’t need to download any files. 3. Set the position of the X, Y and Z axes manually to the starting point of the engraving and manually switch the spindle on or off.
【HIGH PERFORMANCE】 – The 3018 pro comes with T8 threaded rod drive units, three 42 stepper motors and a 775-24 V spindle motor with a speed of 10,000 rpm. An additional 5.5 W laser engraver with a wavelength of 450 nm ensures a much more efficient engraving.
【VERSATILE USE】 – All kinds of plastics, soft aluminum, wood, acrylic, PVC, PCB, etc. can be engraved with the laser engraving machine. However, cutting or engraving hard metal, jade or other hard materials with the laser cutter is prohibited.
Note: The manual, the software, the list and the assembly video are saved on the USB stick. Please refer to the USB for further details.
If you are using the Mac or Linux operating system, please click here to download and install the software listed:
1. https://jtechphotonics.com/?page_id=2012
2. https://github.com/grbl/grbl/wiki/Using-Grbl
Specifications

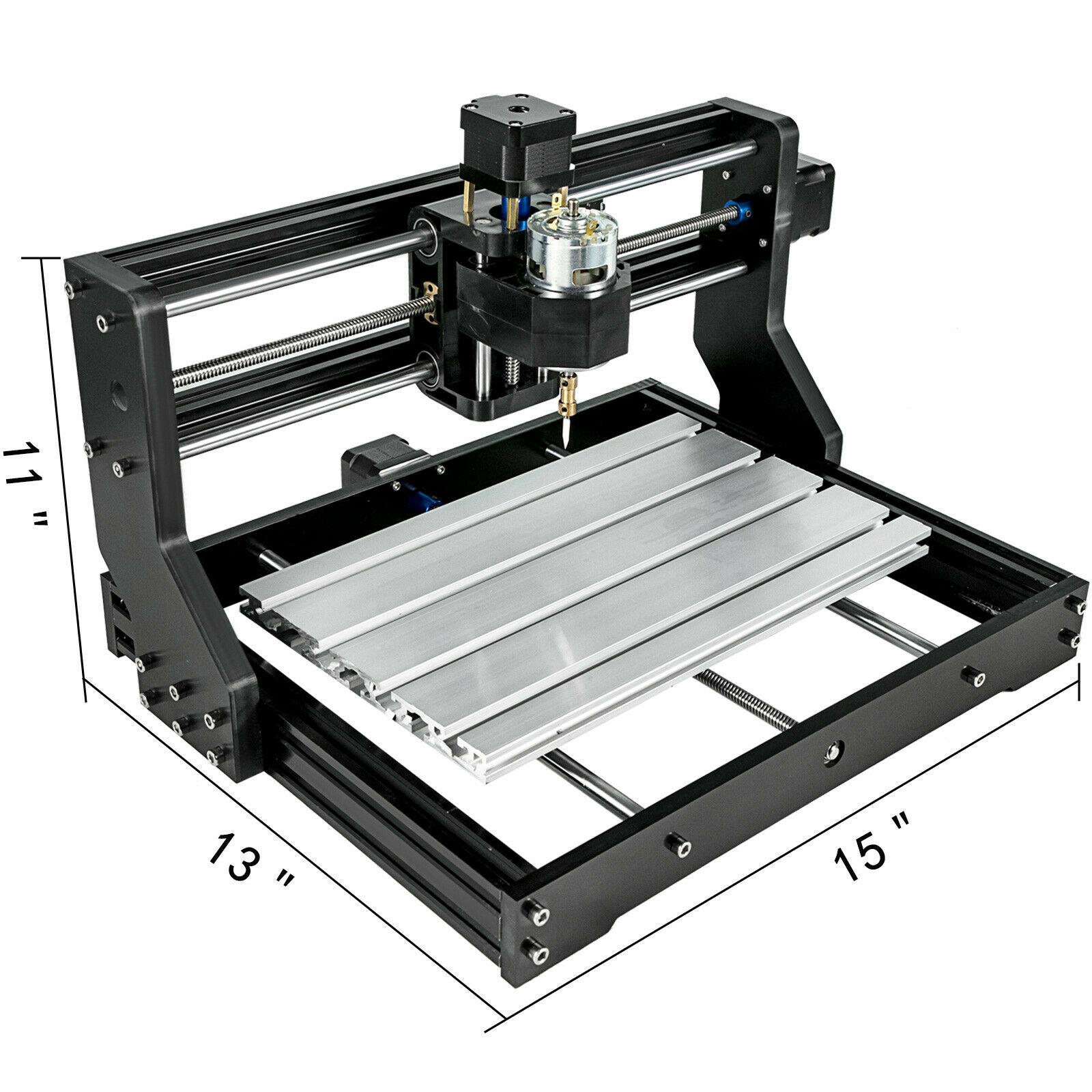

- Product size: 33 × 40 × 24 cm
- Effective carving area: 300 (X) x 180 (Y) x 45 (Z) mm / (11.8 “x 7.1” x 1.8 “)
- Spindle: 775 spindle motor 24 V
- Drive units: T8 stainless steel screws
- Spindle speed: 10000 rpm
- Body length: 34 mm; Current: 1.33A, 12V; Torque: 0.25 N / M
- Power supply: 24 V, 5.6 A.
- Control software: GRBL control 24 V 5.6 A controller
- Offline screen: 1.8 inch offline screen
- Drills: 10 free drills
- Connection: USB
- Applies to: WinXP, Win7, Win8, Win10

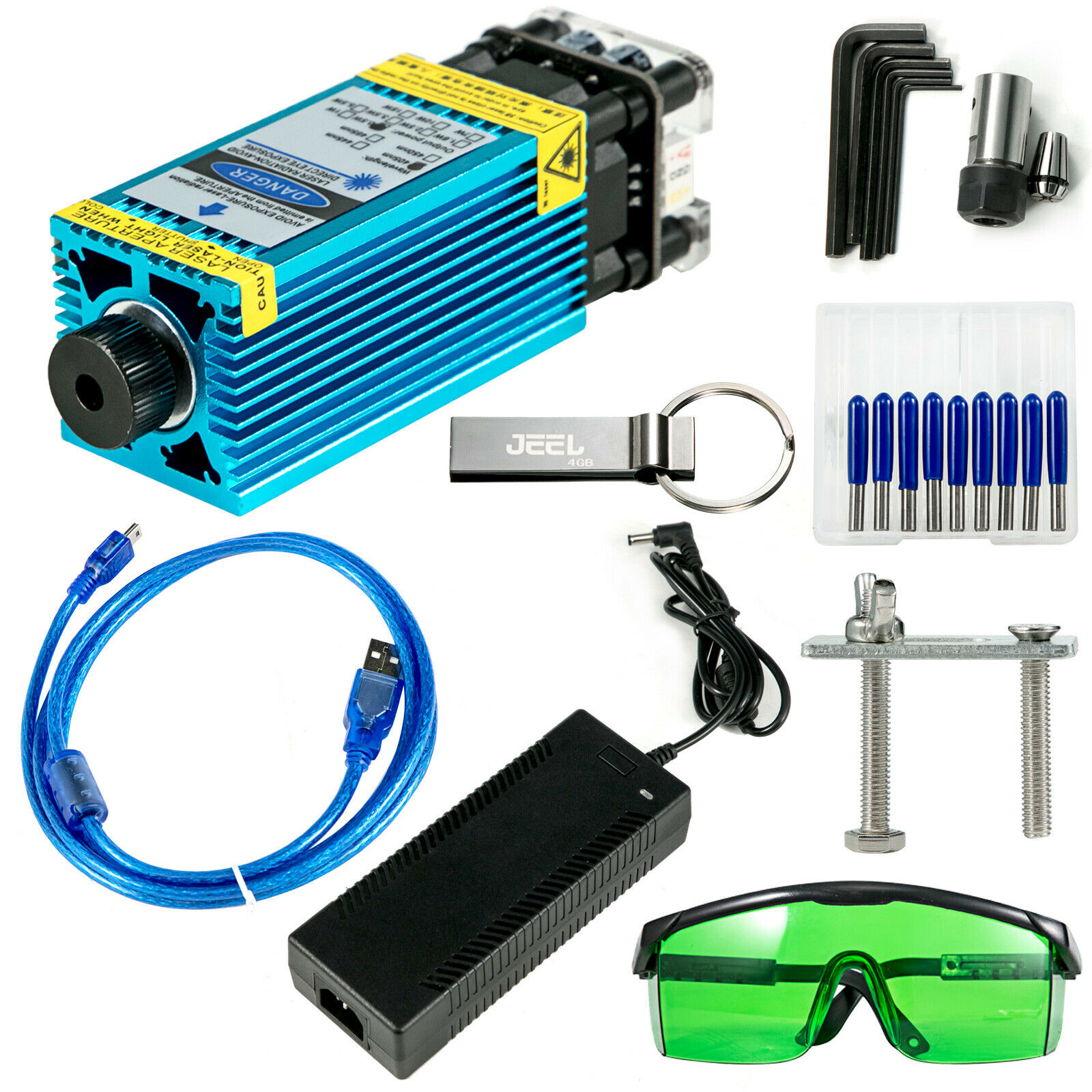

Package Content
- 1 x CNC 3018 milling set
- 1 x 5500 mw laser engraver
- 1 x offline controller
- 1 x USB drive
- 1 x table lamp
- 1 x eye protection
- 1 x tool kit
