Description
- Brand Name: VEVOR
- Certification: CE
- Origin: CN(Origin)
- Power output: 40W 50W 60W 80W 100W 130W 150W
![laser tube,60W,1000mm](https://ae01.alicdn.com/kf/Ha06dde27a63c492dbd6aa3b9c1aadd746.jpg)
Features & Details
- 【HIGH TEMPERATURE RESISTANCE】– This laser tube is made of the boron silicate glass that is also applied on the solar tubes. It is resistant to high temperature and high pressure.
- 【TEMOO MODE】– The co2 laser tube adopts the TEMOO mode, which is characterized by high spot concentration, high energy density as well as good and stable spot. At the same time, the use of output mirrors further enhances the mode.
- 【SPECIAL COATING TECHNOLOGY】– The inside of the discharge tube (imported German Schotter tube)uses the special coating technology. The coating is a reduction catalyst mixed with materials such as rare earth and gold.
- 【LONGER SERVICE LIFE】– Our service life of discharge tubes coated with special catalysts is much improved. Compared with other laser cutting tubes, our co2 laser can last longer.
- 【VARIOUS APPLICATION】– Professional 60w laser, one of the spare parts of CO2 laser engraving machine, widely used in engraving and cutting acrylic, cloth, leather, bamboo, wood and other materials.
Key Features
-
High-quality Material
Using the boron silicate glass as the material, the laser tube with high temperature and high pressure resistance.
-

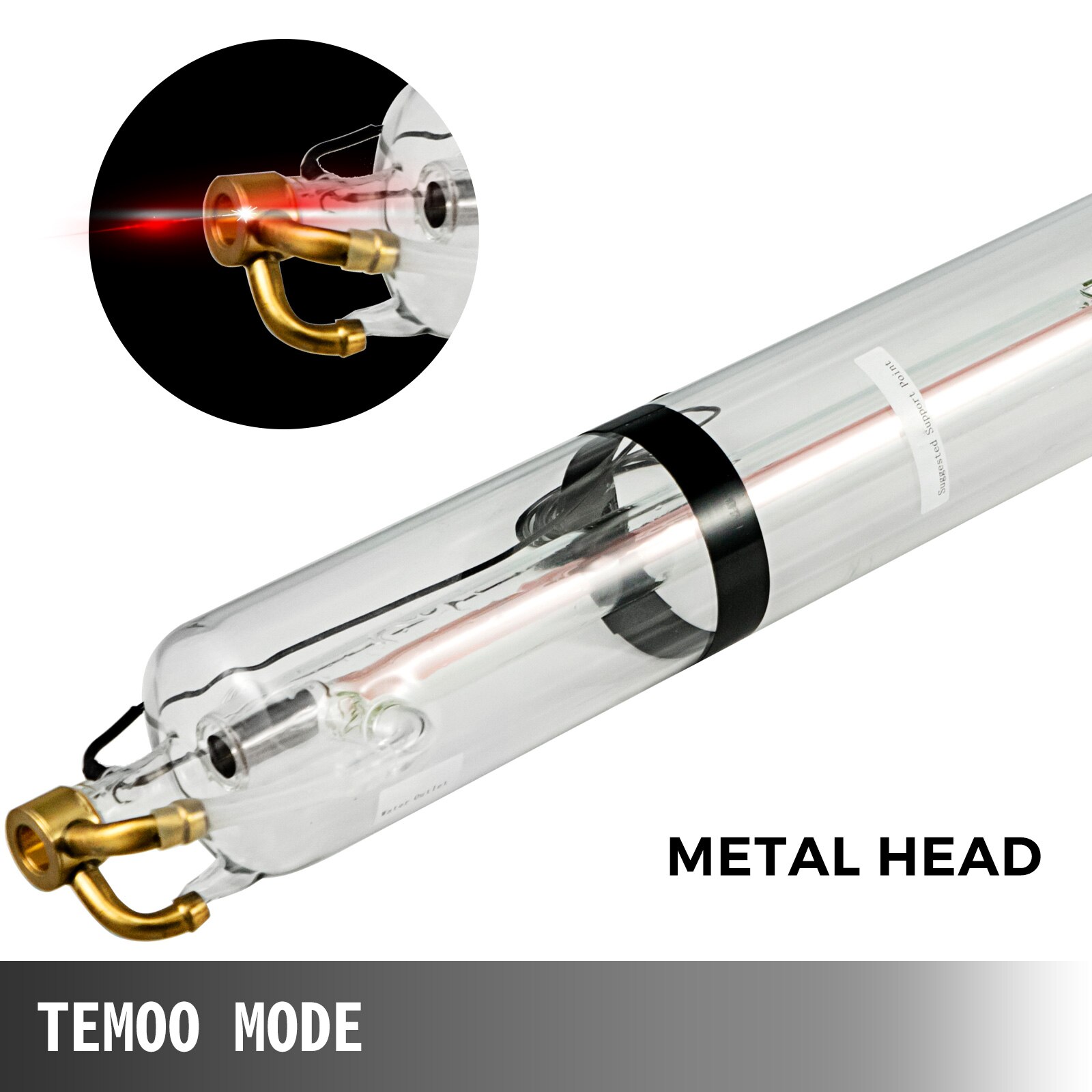

TEMOO Mode
TEMOO mode is applied on the laser cutting tube to provide the better high spot concentration and high energy density. Equipped with the output mirror, the mode is further improved.
-

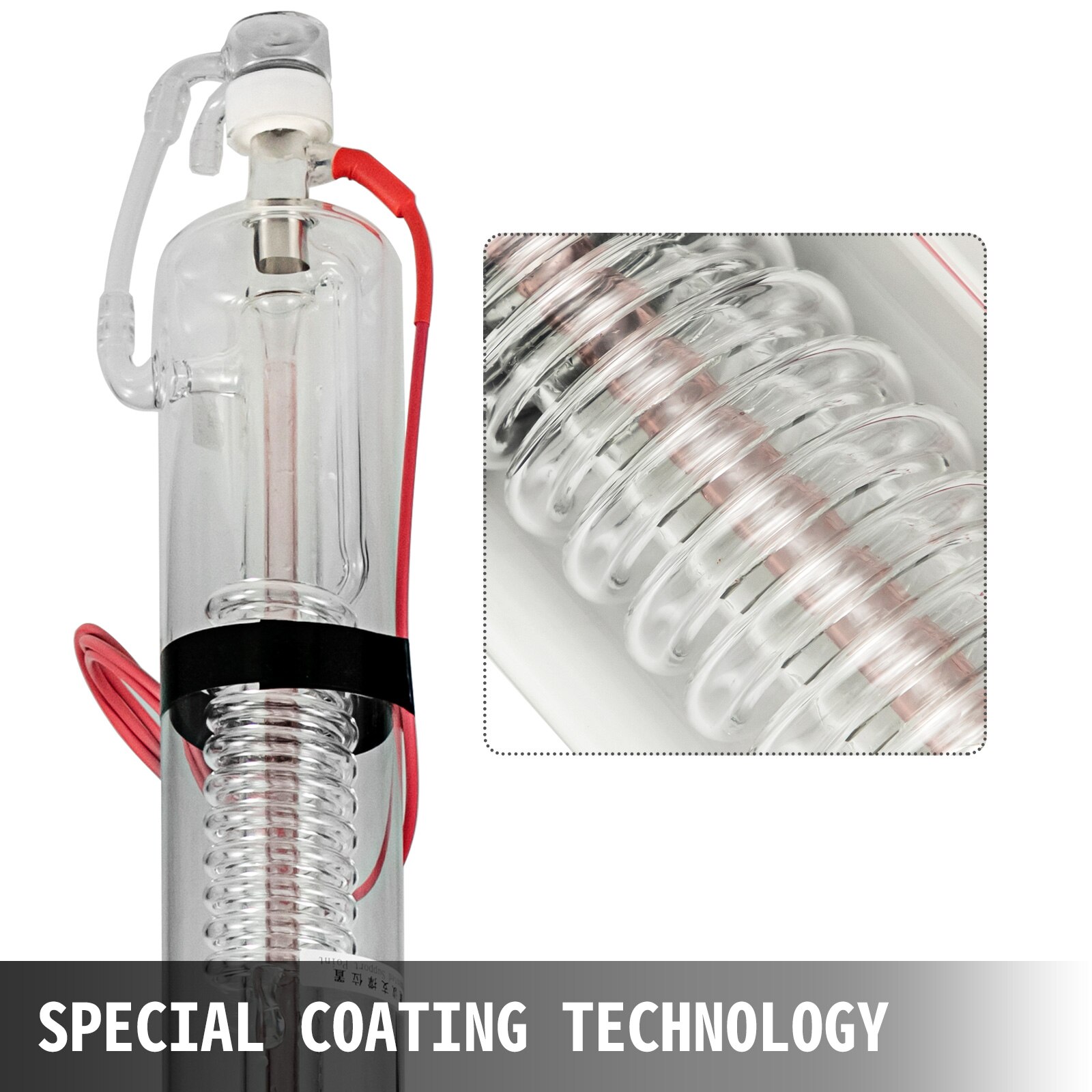

Special Coating Technology
The special coating technology is used inside the discharge tube (imported German Schotter tube). The coating is a reducing catalyst mixed with materials such as rare earth and gold.
-

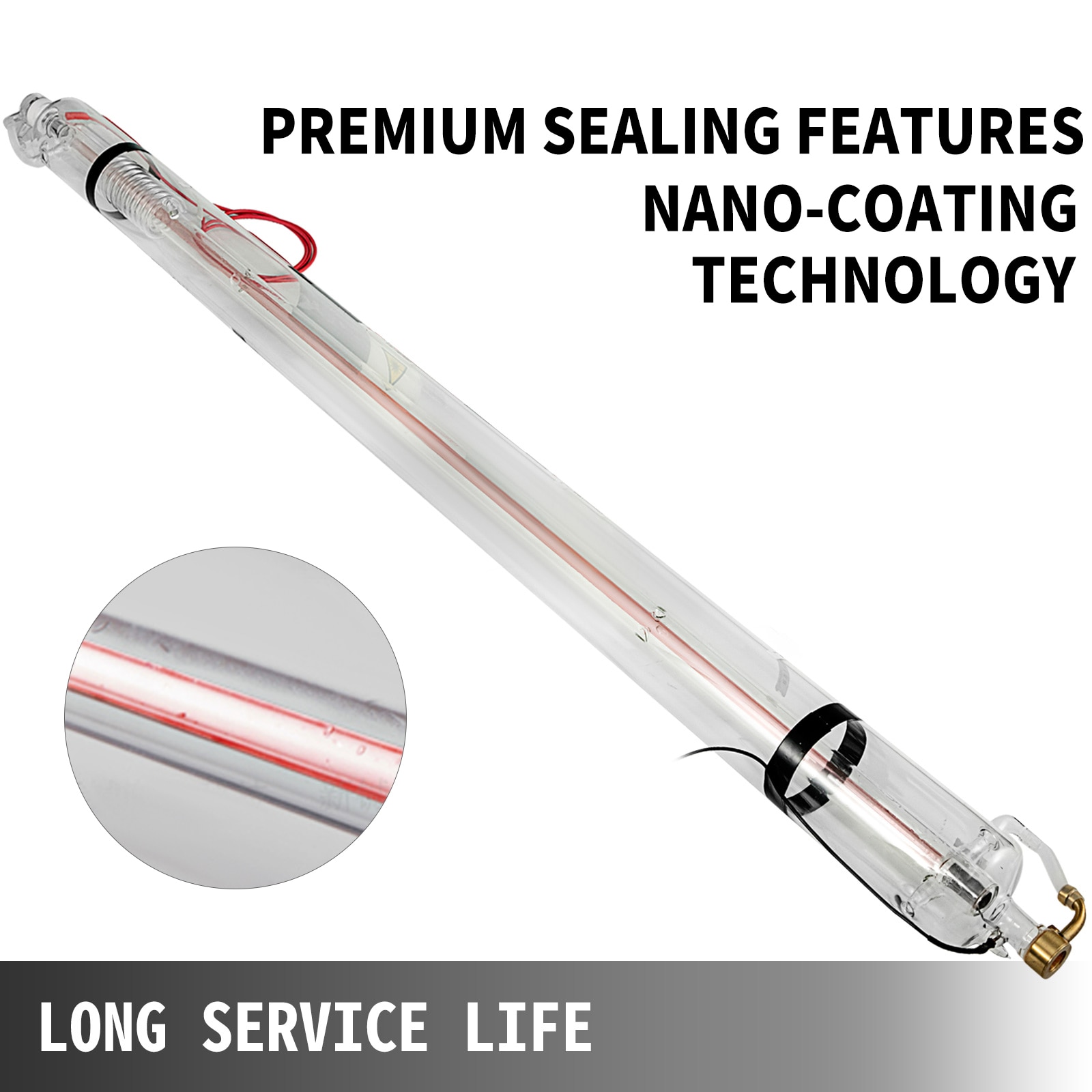

Long Service Life
The laser tube is fully enclosed to prevent gas from diffusing inside. Nano-coating technology is used inside to increase the output power and extend the service life. Note: After generally working 3-4 hours, it should pause for about 30 minutes.
-

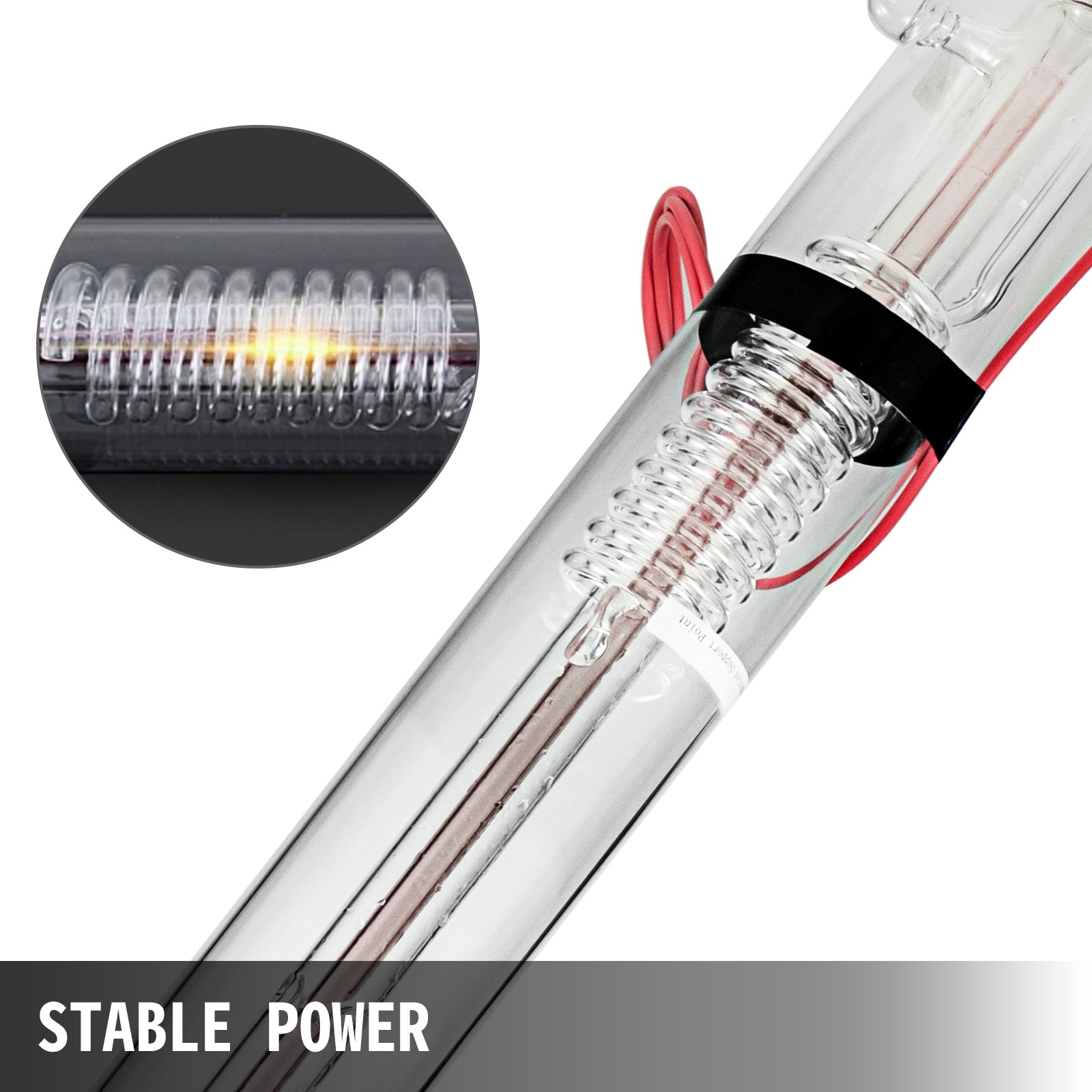

Stable Power
The laser uses German Schoot glass tube. Special treatment of the discharge tube improves the laser output and reduce power attenuation.
-
Wide Application
The co2 laser tube is perfect for laser engraving machine, laser marking machine, laser cutting machine and acrylic cutting ect.
![laser tube,60W,1000mm](https://www.jinlantrade.com/ebay/JGG60WCO2JGG00001/laser-tube-a100-2.jpg)
60W CO2 laser tube
Professional glass laser tube, mainly used in laser engraving machine, laser marking machine and laser cutting machine. It is a spare part for laser machines that can engrave and cut acrylic, cloth, leather, bamboo, wood and other materials. Our co2 laser tube 1000mm adopts the uses German Schoot discharge tube and special coating technology to improve the performance of the laser tube. It is definitely your best choice!
- TEMOO Mode
- High Temperature Resistance
- Special Coating Technology
- Longer Service Life
Specification
- Power output: 60W
- Length: 1000mm
- Beam diameter: 2.5mm
- Wavelength: 10.64microns
- Material: Boron Silicate Glass
- Outer diameter: 55mm
- Trigger voltage: 24KV
- Working voltage: 18KV
- Optimal operating current: 15-18mA
- Gross Weight: 7.08kg(15.61lbs)
- Package Size: 120 x 20 x 16cm/47.24 x 7.87 x 6.29inch
Package Content
- 1 x Laser Tube
![laser tube,50W,800mm](https://www.jinlantrade.com/ebay/JGG50WCO2JGG00001/laser-tube-a100-2.jpg)
50W CO2 laser tube
Professional glass laser tube, mainly used in laser engraving machine, laser marking machine and laser cutting machine. It is a spare part for laser machines that can engrave and cut acrylic, cloth, leather, bamboo, wood and other materials. Our co2 laser tube 800mm adopts the uses German Schoot discharge tube and special coating technology to improve the performance of the laser tube. It is definitely your best choice!
- TEMOO Mode
- High Temperature Resistance
- Special Coating Technology
- Longer Service Life
Specification
- Power output: 50W
- Length: 800mm
- Beam diameter: 4.8mm
- Wavelength: 10.6microns
- Material: Boron Silicate Glass
- Outer diameter: 50-55mm
- Trigger voltage: 24KV
- Working voltage: 16KV
- Optimal operating current: 22mA
- Gross Weight: 5.56kg(12.25lbs)
- Package Size: 100 x 20 x 16cm(39.37 x 7.87 x 6.29inch)
Package Content
- 1 x Laser Tube
![laser tube,60W,1000mm](https://www.jinlantrade.com/ebay/JGG60WCO2JGG00001/laser-tube-a100-2.jpg)
60W CO2 laser tube
Professional glass laser tube, mainly used in laser engraving machine, laser marking machine and laser cutting machine. It is a spare part for laser machines that can engrave and cut acrylic, cloth, leather, bamboo, wood and other materials. Our co2 laser tube 1000mm adopts the uses German Schoot discharge tube and special coating technology to improve the performance of the laser tube. It is definitely your best choice!
- TEMOO Mode
- High Temperature Resistance
- Special Coating Technology
- Longer Service Life
Specification
- Power output: 60W
- Length: 1000mm
- Beam diameter: 2.5mm
- Wavelength: 10.64microns
- Material: Boron Silicate Glass
- Outer diameter: 55mm
- Trigger voltage: 24KV
- Working voltage: 18KV
- Optimal operating current: 15-18mA
- Gross Weight: 7.08kg(15.61lbs)
- Package Size: 120 x 20 x 16cm/47.24 x 7.87 x 6.29inch
Package Content
- 1 x Laser Tube
![laser tube,80W,1230mm](https://www.jinlantrade.com/ebay/JGG80WCO2JGG00001/laser-tube-a100-2.jpg)
80W CO2 laser tube
Professional glass laser tube, mainly used in laser engraving machine, laser marking machine and laser cutting machine. It is a spare part for laser machines that can engrave and cut acrylic, cloth, leather, bamboo, wood and other materials. Our CO2 laser tube 1230mm adopts the uses German Schoot discharge tube and special coating technology to improve the performance of the laser tube. It is definitely your best choice!
- TEMOO Mode
- High Temperature Resistance
- Special Coating Technology
- Longer Service Life
Specification
- Power output: 80W
- Length: 1230mm
- Beam diameter: 2.5mm
- Wavelength: 10.64microns
- Material: Boron Silicate Glass
- Outer diameter: 80mm
- Trigger voltage: 26KV
- Working voltage: 18KV
- Optimal operating current: 7-30mA
- Gross Weight: 14.5kg(31.961lbs)
- Package Size: 141 x 32 x 27cm/55.51 x 12.59 x 10.62inch
Package Content
- 1 x Laser Tube
![laser tube,100W,1430mm](https://www.jinlantrade.com/ebay/JGG100WCO2JGG0001/laser-tube-a100-2.jpg)
100W CO2 laser tube
Professional glass laser tube, mainly used in laser engraving machine, laser marking machine and laser cutting machine. It is a spare part for laser machines that can engrave and cut acrylic, cloth, leather, bamboo, wood and other materials. Our CO2 laser tube 1430mm adopts the uses German Schoot discharge tube and special coating technology to improve the performance of the laser tube. It is definitely your best choice!
- TEMOO Mode
- High Temperature Resistance
- Special Coating Technology
- Longer Service Life
Specification
- Power output: 100W
- Length: 1430mm
- Beam diameter: 2.5mm
- Wavelength: 10.6microns
- Material: Boron Silicate Glass
- Outer diameter: 80mm
- Trigger voltage: 26KV
- Working voltage: 20KV
- Optimal operating current: 7-40mA
- Gross Weight: 16.46kg(36.281lbs)
- Package Size: 161 x 32 x 27cm/63.38 x 12.59 x 10.62inch
Package Content
- 1 x Laser Tube
![laser tube,130W,1630mm](https://www.jinlantrade.com/ebay/JGG130WCO2JGG0001/laser-tube-a100-2.jpg)
130W CO2 laser tube
Professional glass laser tube, mainly used in laser engraving machine, laser marking machine and laser cutting machine. It is a spare part for laser machines that can engrave and cut acrylic, cloth, leather, bamboo, wood and other materials. Our CO2 laser tube 1630mm adopts the uses German Schoot discharge tube and special coating technology to improve the performance of the laser tube. It is definitely your best choice!
- TEMOO Mode
- High Temperature Resistance
- Special Coating Technology
- Longer Service Life
Specification
- Power output: 130W
- Length: 1630mm
- Beam diameter: 2.5mm
- Wavelength: 10.6microns
- Material: Boron Silicate Glass
- Outer diameter: 80mm
- Glow-starters Voltage:40KV
- Working Voltage:28KV
- Optimal operating current: 30mA
- Glow-starters Current:8-9KV
- Gross Weight: 18.67kg(41.161lbs)
- Package Size: 181 x 32 x 28cm/71.25 x 12.59 x 11.02inch
Package Content
- 1 x Laser Tube
![laser tube,150W,1830mm](https://www.jinlantrade.com/ebay/JGG150WCO2JGG0001/laser-tube-a100-2.jpg)
150W CO2 laser tube
Professional glass laser tube, mainly used in laser engraving machine, laser marking machine and laser cutting machine. It is a spare part for laser machines that can engrave and cut acrylic, cloth, leather, bamboo, wood and other materials. Our CO2 laser tube 1830mm adopts the uses German Schoot discharge tube and special coating technology to improve the performance of the laser tube. It is definitely your best choice!
- TEMOO Mode
- High Temperature Resistance
- Special Coating Technology
- Longer Service Life
Specification
- Power output: 150W
- Length: 1830mm
- Beam diameter: 2.5mm
- Wavelength: 10.6microns
- Material: Boron Silicate Glass
- Outer diameter: 80mm
- Trigger voltage: 30 KV
- Working voltage: 25KV
- Gross Weight: 12.84kg(28.31lbs)
- Package Size: 220 x 32 x 31cm/86.61 x 12.59 x 12.20inch
Package Content
- 1 x Laser Tube
