UW/cm2 Umol/m2/s OHSP350P High Precision Plant Grow Light Spectrometer PPFD PAR Meter Extend Waterproof Sensor with Software

$1,688.70

SKU: 3534231018651 Category:

Description

Product Description

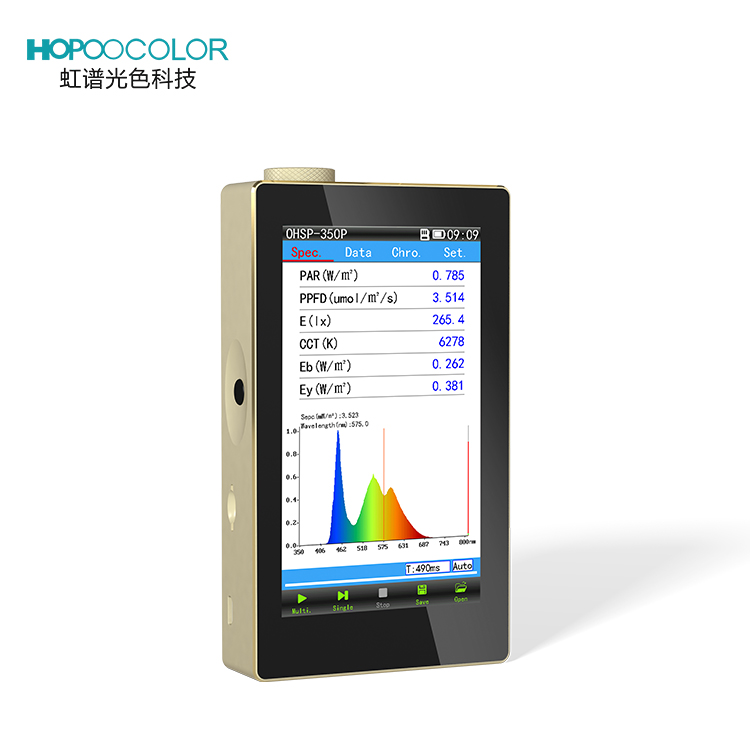

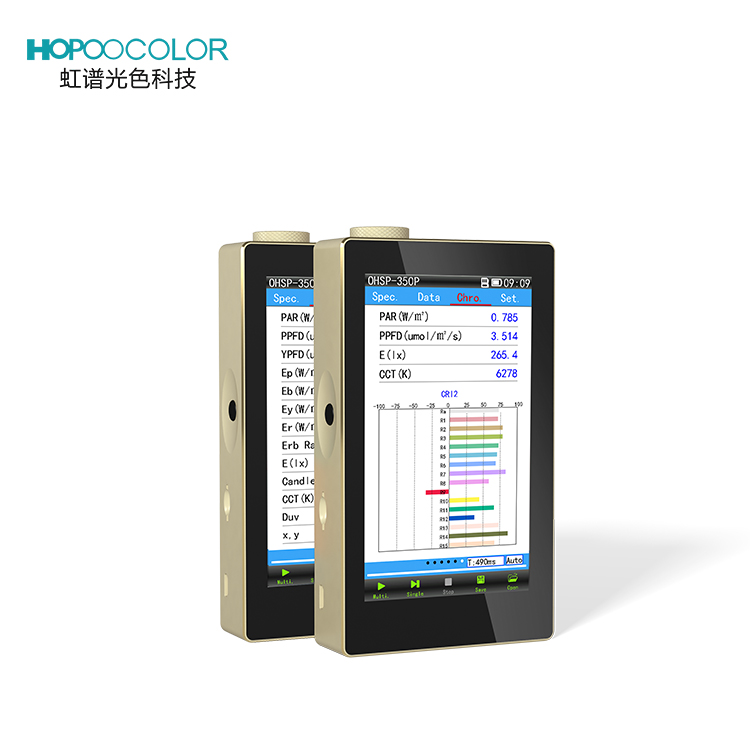

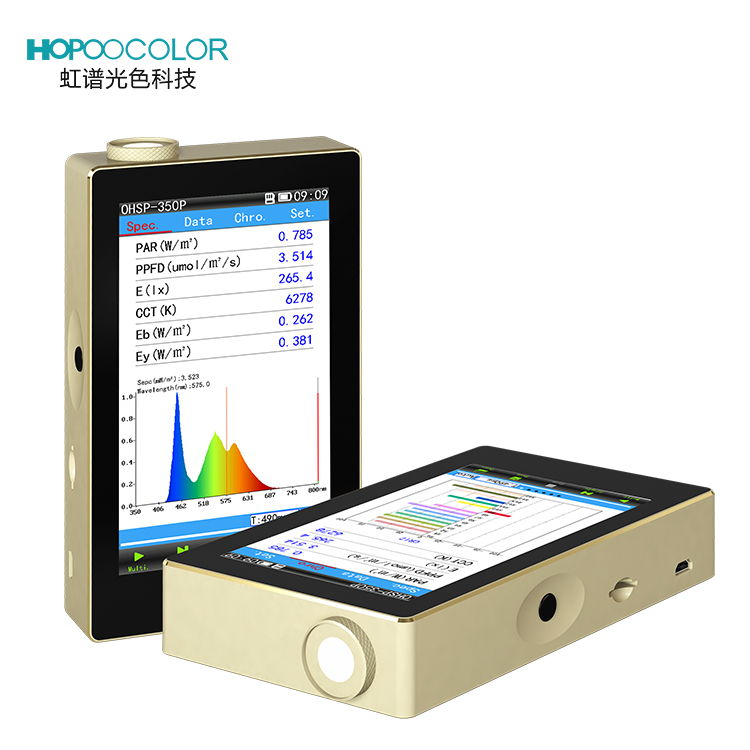

Portable PAR PPFD spectrometer
Wavelength range :350nm-800nm. PPFD test range : more than 4000umol/m2/s PC software English/Russian Language operation

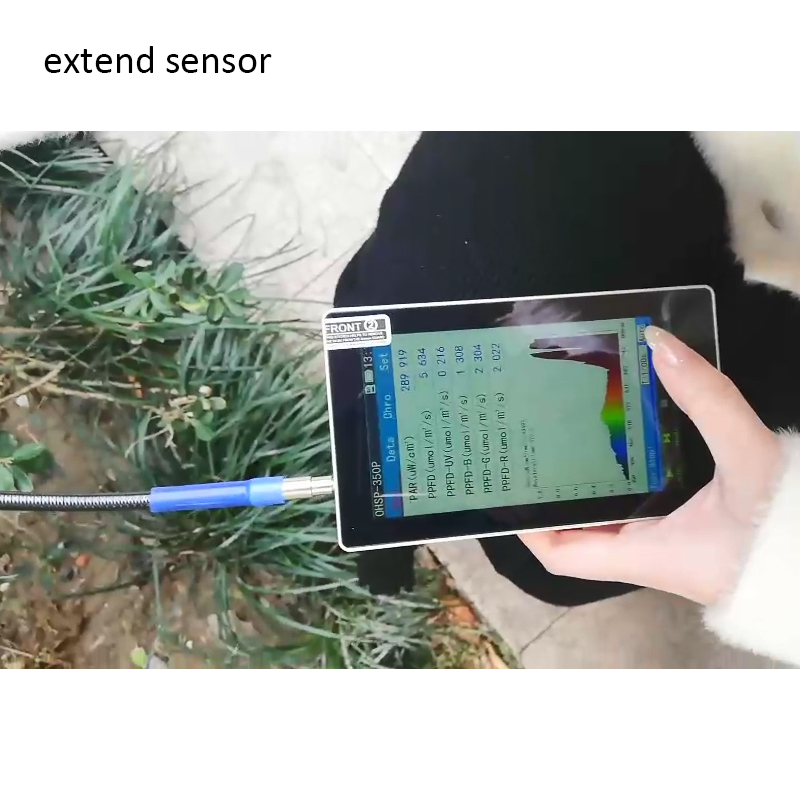

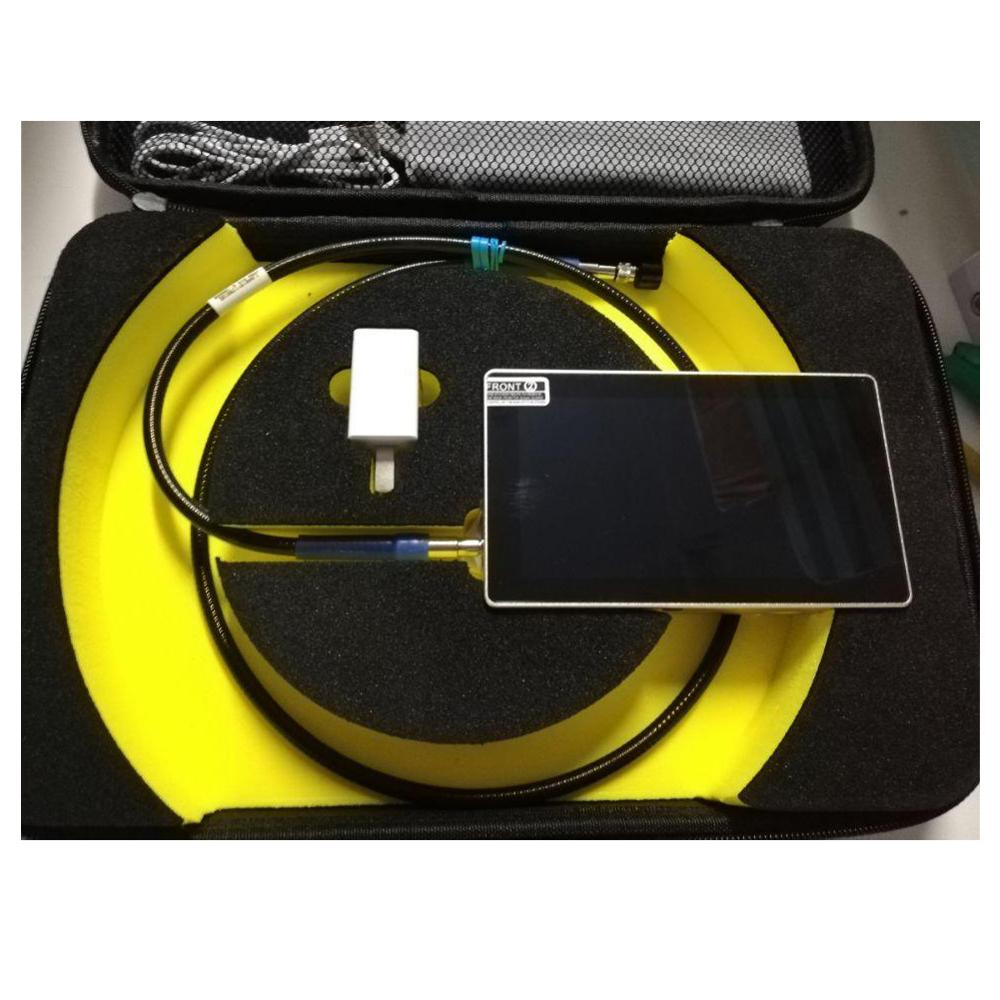

Application: Agriculture, greenhouse, planting, hydroponics Waterproof sensor, length 1.0m or more(according to your demand)

Meas parameters   Wave range:350-800nm

PPFD(umol/m2/s)  Illuminance E(lx) PPFD
YPFD(umol/m2/s) CCT(K) SDCM
PAR(mW/cm2)  Candle Light E(fc) coordinate x,y
Kppfv(umol/s/klm) CRI Ra coordinate u,v
Ech-A (mW/cm2) Spectral Power Distribution coordinate u’,v’
Ech-B (mW/cm2) Irradiance Ee(W/m2)

OHSP350 bacis parameters

TEST PARAMETER

Model OHSP350P Plant Light Version
Wavelength range

350nm ~800nm

Light Splitting Mode

long focal cross section

Sensor

High precision CCD

Spectral Bandwidth (FWHM)

2nm

Spectral Resolution

0.2nm  X, Y repetitive ±0.0005

Wavelength Accuracy

+ 0.5nm

Illuminantion Accuracy

(±4% Reading +1 Digital)

Lighting Area

10mm

Integrating Time

50μs~10000ms

Chromaticity Coordinate Accuracy

±0.0025.

CCT Range

1,000K~ 100,000K

Stray Light

≤0.3%

Illuminance Range

5lx~200klx


Application

                            Maybe you like our series related product. CLICK HERE!

Additional information

Measurement Range

OHSP350P Extend Waterproof Sensor
