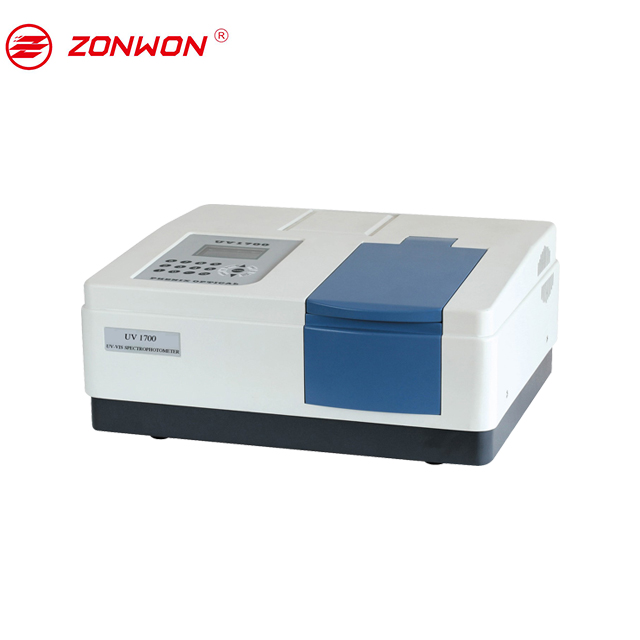

UV1700 Introduction:

The UV-VIS spectrophotometer model UV1700 is a compact and user-friendly common analytical instrument, which was designed to measure wavelength from 190nm-1100nm. It is extensively used for the analysis of food, drugs, agricultural products and is widely used in organic, inorganic, petroleum, environmental, bio-chemistry institutes and industries.



UV1700 Function:

It provides users with different measuring methods such as photometric, quantitative and kinetics measurement, and the application software on Windows platform can be connected to PC to enhance measurement functions and analyze experimental data.



UV1700 Features:

With the innovated double beam ratio recording system and good blazed holographic grating, the UV1700 has excellent optical performance and lower stray light. The advanced circuit measurement and control system ensures the machine with high stability and extremely low noise. The detachable sample chamber can accommodate varied accessories to suit different applications users may encounter. The design of open spacious light source chamber allows unique pre-aligned deuterium and halogen lamp for easy lamp replacement to avoid optical adjustment.



Display System: LCD 128*64

Sample Cell:Auto 4 Cells

Light source lamp: preset Japan Hamamastu deuterium lamp / OSRAM Long life halogen tungsten lamp



UV1700 / UV1700PC Specifications:



Model	UV1700	UV1700PC
Photometric methods:	Transmittance, Absorbance, Energy, Reflectivity
Wavelength range:	190nm-1100nm
Special Bandwidth:	2nm
Stray light:	≤0.05%T (220nm, 360nm)
Wavelength accuracy:	≤±0.5nm
Wavelength reproducibility:	≤0.2nm
Photometric range:	-3A ~ 3A
Photometric accuracy:	≤±0.3%T (0-100%T) ≤±0.002A (0-0.5A) ≤±0.004A (0.5-1A)
Photometric reproducibility:	≤0.001A (0-0.5A) ≤0.002A (0.5-1A)
Stability:	≤ ±0.001A/h
Noise:	≤ ±0.001A
Baseline flatness:	/	≤ ±0.002A
Power:	100-240V, 50/60Hz
Light source:	Deuterium & Tungsten-halogen lamp



Accessories:

UV1700 Spectrophotometer	1      set
Power Cable	1      pc
Operation Manual	1      pc
Certificate of quality checking	1      pc
Fuses (2 A)	2      pcs
10mm quartz cuvettes	2      cases
Packing list	3      pcs
Compact Disc	1      pc (UV1700PC only)
RS-232 cable	1      pc (UV1700PC only)
Dust cover	1   pc



Software specifications:

1.     Such operation as photometric measurement, spectrum measurement, quantitative measurement, kinetic measurement are offered in UVCON Windows applications.

2.     Single-wavelength quantitative measurement can be measured with several kinds of arithmetic calculation methods to meet users’ demand.

3.     Curves can be measured and recalled in memory with data-handling of arithmetic calculation smooth, Abs to/ from %T conversion and peak pick.

4.     The measured data and graphics can be stored on PC/ printed/ output for reports.
