Product Description

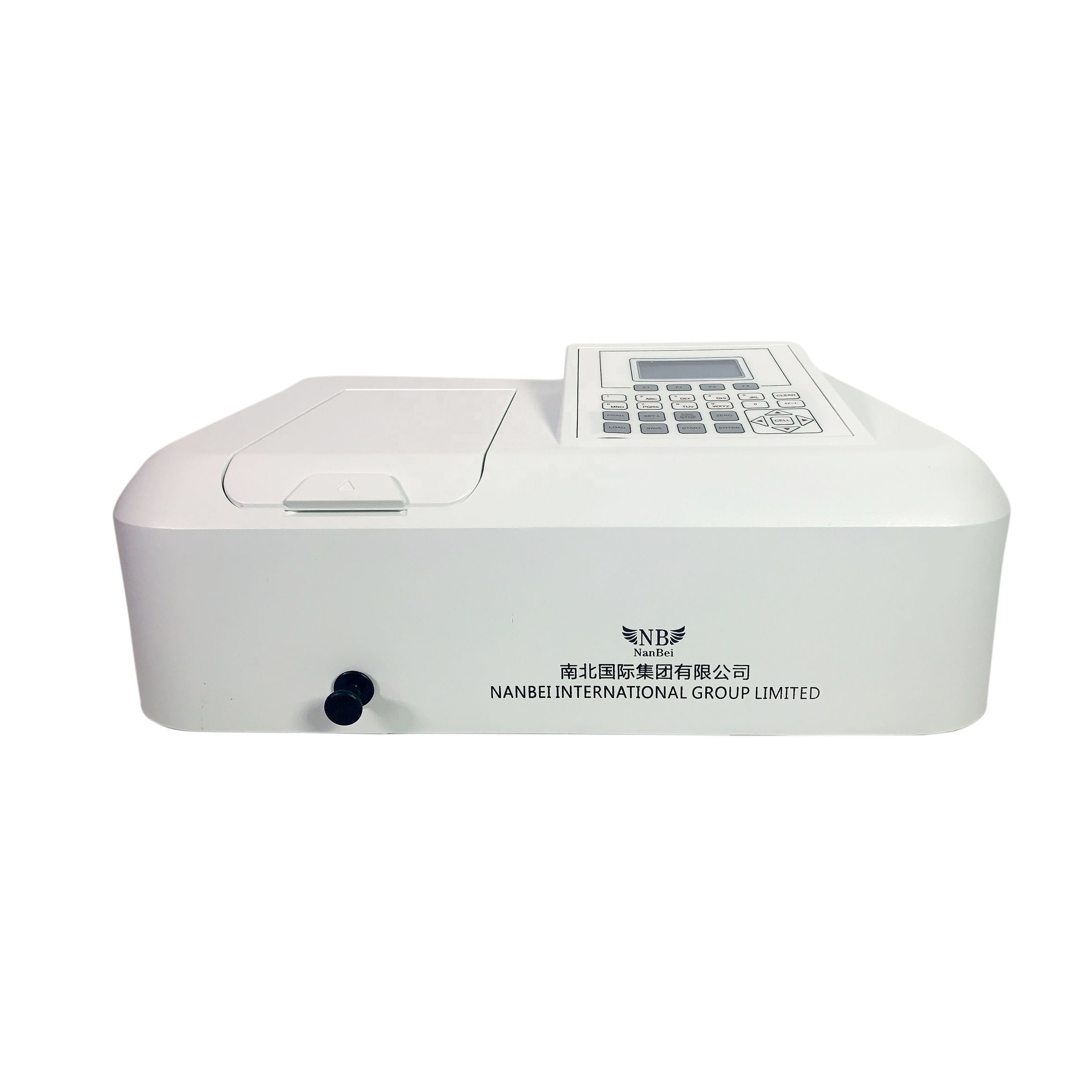

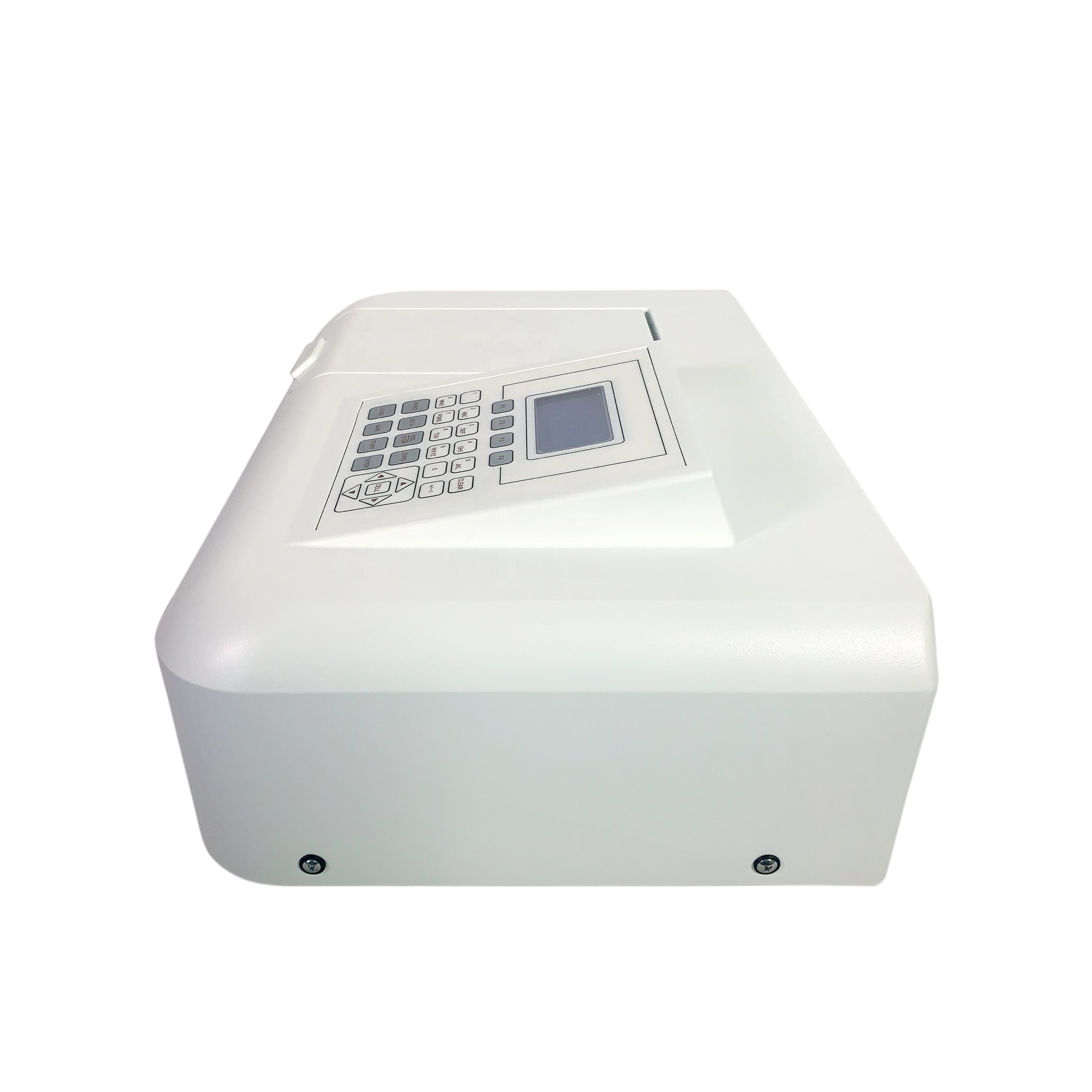

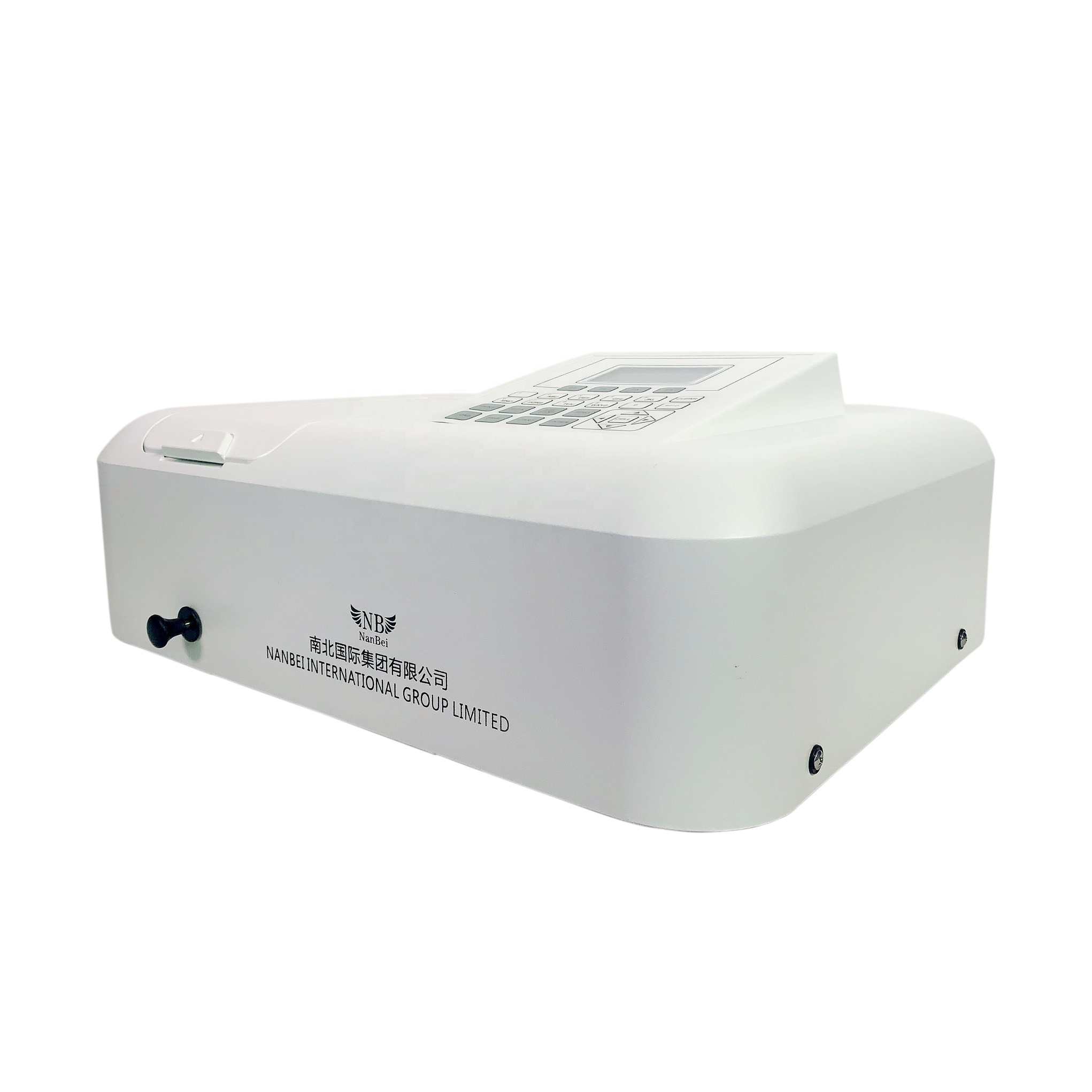

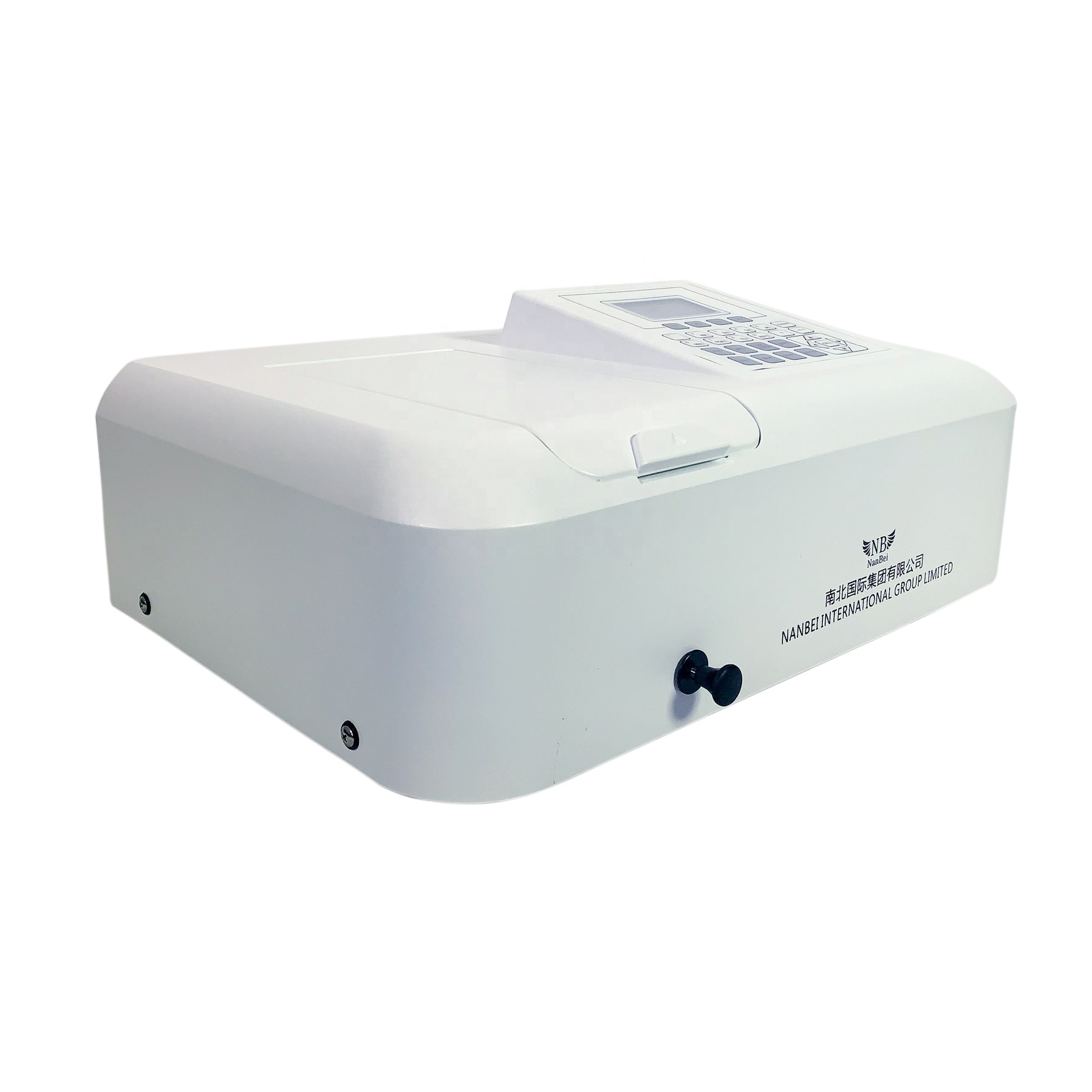

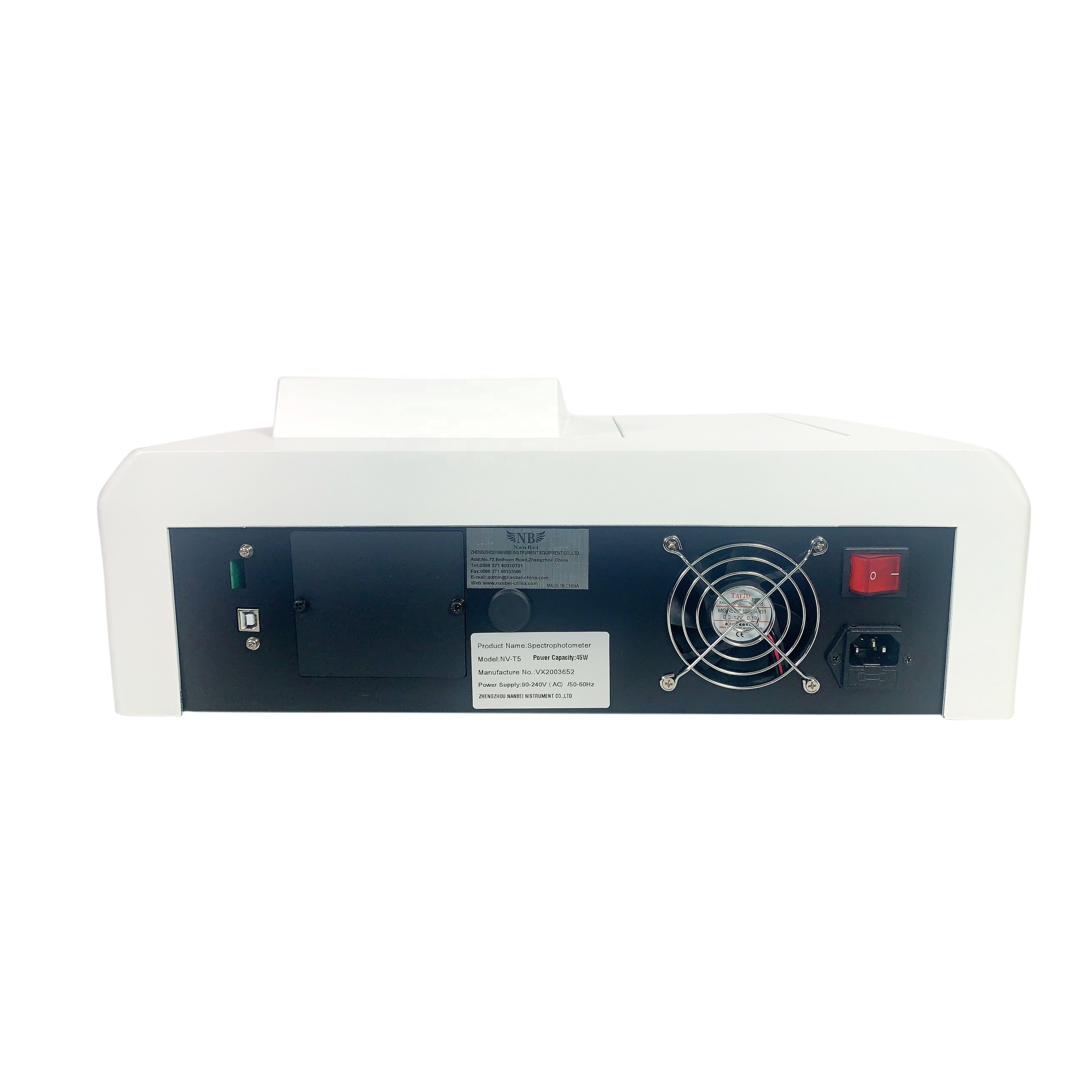

UV/VIS SPECTROPHOTOMETER PRICR
Characteristics of Products ●High stability: Optimize the structure of the optical system and integrated aluminum alloy base structure, to ensure long-term stability and reliability of the instrument ●Intelligent degree is high: Dual CPU embedded system hardware design of super reliable,128*64 LCD display, rich instruction, without reading the manual, is simple and convenient to use; custom wavelength correction and automatic wavelength calibration function, replacing the artificial adjustment link; light source using time automatic accumulation, convenient view to understand, light source switch menu can be in the instrument does not use circumstances to choose to close, prolong the equipment service life. ●Menu functions: Photometric measurement model, quantitative analysis, qualitative analysis, dynamic test, multi wavelength test. ●Data processing is convenient: can store up to 1000 groups of experimental data, optional built-in and external printer output, or optional NANBEI spectrum analysis software package and connected to the computer, to achieve more data processing and analysis functions.
Function of products ●Photometric measurement: to facilitate the measurement of the absorbance, transmittance, concentration of the sample at a specified wavelength. ●Automatic quantitative measurement: to establish the standard curve, a first-order, zero order / two order and three order curve fitting, a variety of optional quantitative analysis standard curve method can store and call.
Specification
Model
|
NV-T5
|
NV-T5A
|
NV-T5AP
|
||
Optical System
|
Single, Grating 1200 lines/mm
|
Dual detector ratio detection
|
|||
Wavelength Range
|
320~1100nm
|
||||
Spectral Bandwidth
|
4nm
|
2nm
|
2nm
|
||
Wavelength Accuracy
|
±0.8nm
|
±0.5nm
|
|||
Wavelength Repeatability
|
±0.2nm
|
±0.2nm
|
|||
Photometric Accuracy
|
±0.3%T;±0.002Abs(0~0.5Abs);±0.004(0.5-1.0Abs);
|
||||
Photometric Repeatability
|
±0.1%T;±0.001Abs(0~0.5Abs);±0.002(0.5-1.0Abs);
|
||||
Stray Light
|
≤0.05%T, @220nm/360nm
|
≤0.05%T, @360nm
|
|||
Noise Level
|
±0.002Abs
|
||||
Stability
|
±0.002A/h@500nm
|
||||
Photometric Range
|
0~200℅T,-0.301~3A,0~9999C(0-9999F)
|
||||
Light Source
|
Tungsten&Deuterium Lamp(Pre-aligned)
|
||||
Display
|
128×64 Dots Array Graphic LCD
|
||||
System Language
|
English
|
||||
Output
|
USB U DISK
|
||||
Power Requirement
|
AC90~250V/ 50~60Hz
|
||||
Dimensions(L×W×H)
|
550×400×220
|
||||
Weight
|
16kg
|
User manual
|
1piece
|
Power cable
|
1piece
|
1 cm 4 slot manual cuvette holder
|
2piece
|
1 cm standard quartz cuvette
|
1set (2pieces)
|
1 cm standard glass cuvette
|
1set (4pieces)
|
Dust cover
|
1 piece
|
Packinglist
|
1piece
|
