Product Description
Advantages:
1) The wide range of applicable materials makes up for the lack of infrared laser processing capabilities;
2) The beam quality is good, the focused spot is small, and ultra-fine laser marking can be realized;
3) The heat-affected area is small, to avoid being damaged by the processed materials, and to improve the quality of the finished product;
Technology Parameter
Model
|

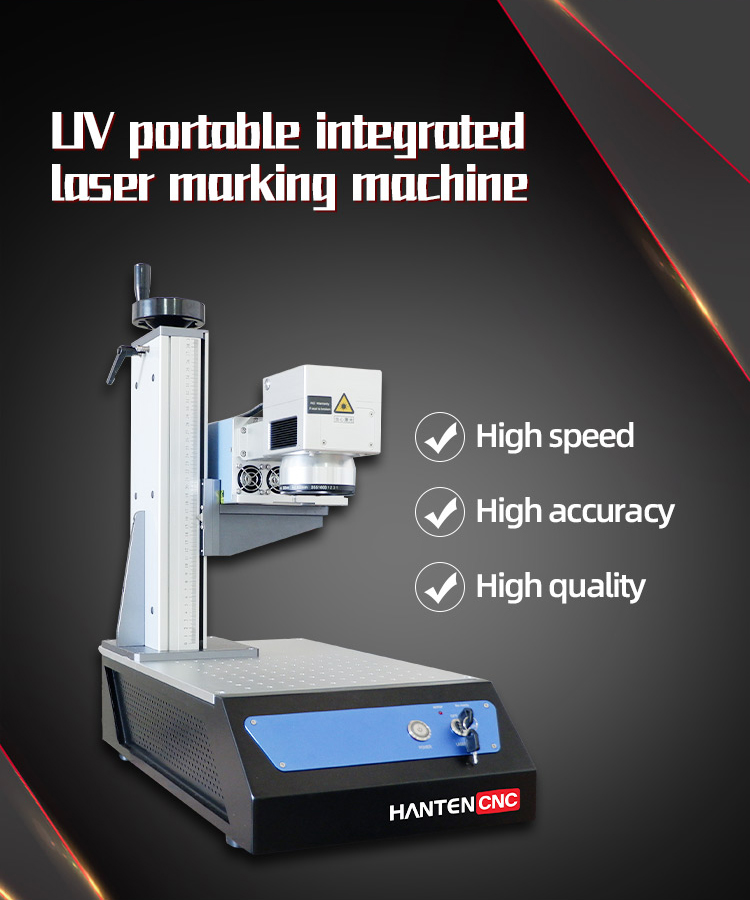

3W UV Laser Makring Machine
|
Laser Type
|
UV Laser
|
Laser wavelength
|
355nm
|
Marking Speed
|
0-7000mm/s
|
Marking area
|
100*100mm-300*300mm(option)
|
Repeatability accuracy
|
±0.003mm
|
Marking line width
|
≤0.01mm
|
Minimum character
|
0.2mm
|
Marking depth
|
≤0.01mm
|
Cooling system
|
Air Cooling
|
Working voltage
|
AC220V single phase 50Hz(option)
|
Sample Display

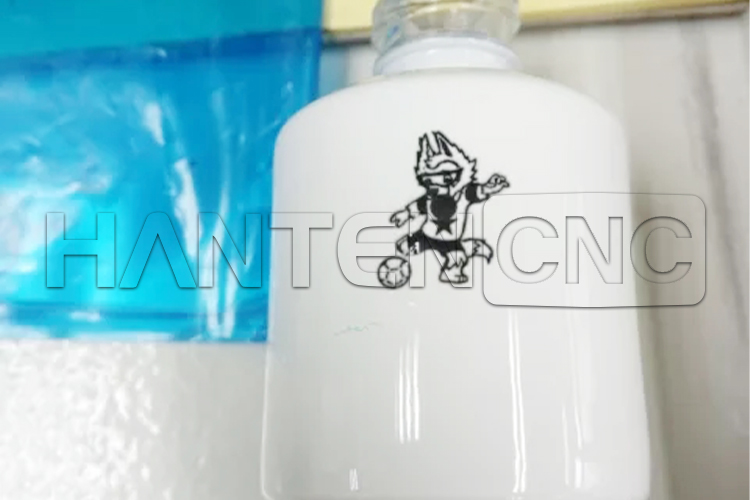

Marking vacuum cup pattern
Marking on plastic bottle cap
Marking on phone case
Marking on plastic knife
Marking on black plastic
Marking on toothbrush
