Description
Product Description

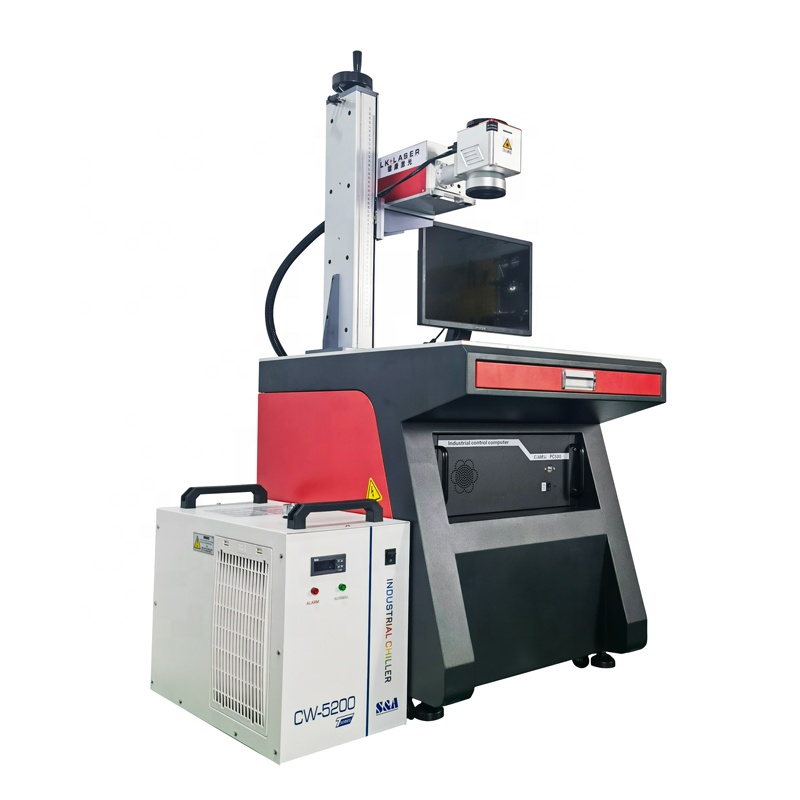

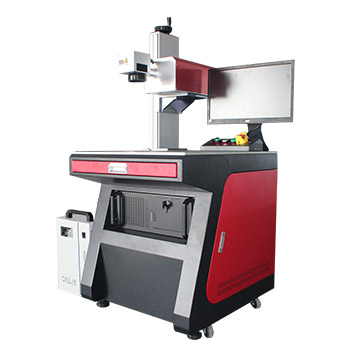

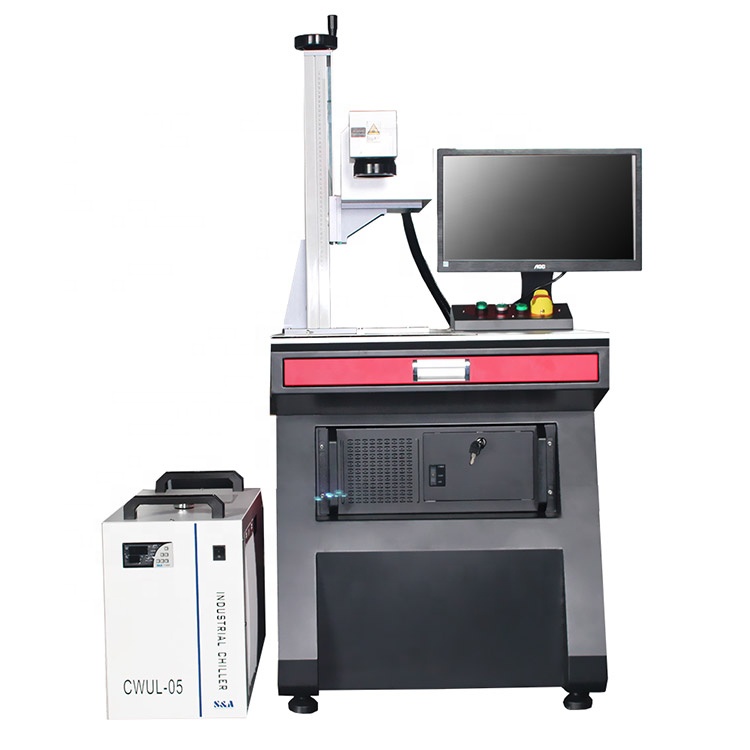

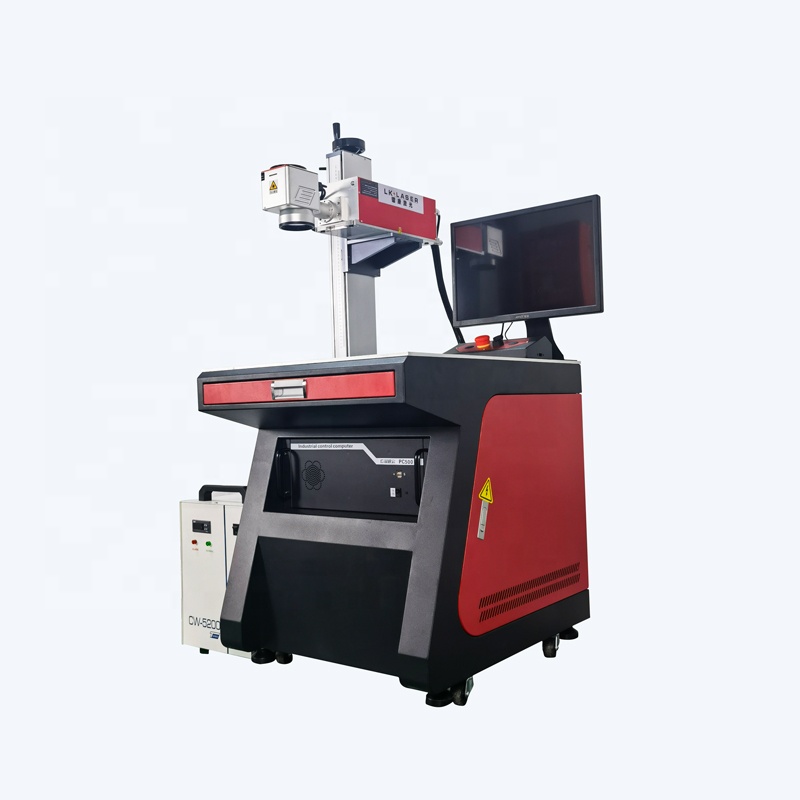

3W 5W Desktop UV Laser Marking Machine
|
Model
|
LK-UV-W3
|
LK-UV-W5
|
|
Max Laser power
|
3W
|
5W
|
|
Laser type
|
UV Fiber Laser
|
UV Fiber Laser
|
|
Fiber laser
|
1.6-1.8
|
1.6-1.8
|
|
Laser wavelength
|
355nm
|
355nm
|
|
Working area
|
110*110mm
|
110*110mm
|
|
Marking Depth
|
0.1-0.3mm
|
0.1-0.3mm
|
|
Working distance
|
80mm-100mm
|
80mm-100mm
|
|
Mini. line width
|
0.006mm
|
0.006mm
|
|
Min. character size
|
0.09mm
|
0.09mm
|
|
Repeat frequency
|
20KHz-80KHz
|
20KHz-80KHz
|
|
Engraving speed
|
≤10000mm/s
|
≤10000mm/s
|
|
Repeat accuracy
|
0.002mm
|
0.002mm
|
|
Life-span of Fiber Laser
|
80 000-120 000 hours
|
80 000-120 000 hours
|
|
Focus Spot Diameter
|
<0.01mm
|
<0.01mm
|
|
Temperature of Operation
|
0℃~40℃
|
0℃~40℃
|
|
Integrity power
|
≤ 0.8KW
|
≤ 0.8KW
|
|
Graphic Format supported
|
AI /DST / PLT / JPC / SVG / NC.G / BOT
|
AI /DST / PLT / JPC / SVG / NC.G / BOT
|
|
Cooling method
|
Water cooling
|
Water cooling
|
|
Power supply
|
AC220V+-15%/50Hz/15A
|
AC220V+-15%/50Hz/15A
|
|
Place of origin
|
Shenzhen China(Mainland)
|
Shenzhen China(Mainland)
|
|
Guarantee
|
1 year
|
1 year
|
Feature -Decent figuration and easy to operation. -Stable function of the whole system,low consumption. -Improved machine structure with red light indication. -The up-to-date water cooling system ensures the low operating noise and adjustment of operating temperature,supporting long working hours. Application&Materical -This machine is fit for glass, leather,rubber,metal,plastic etc. -It’s widely used in electric component,gift,communication equipment,electric appliance,construction material,keyboard,watch,IC integrate circuit,label of animal,communication equipment,cell phone shell,LED bolt,craftwork,jewelry etc.
