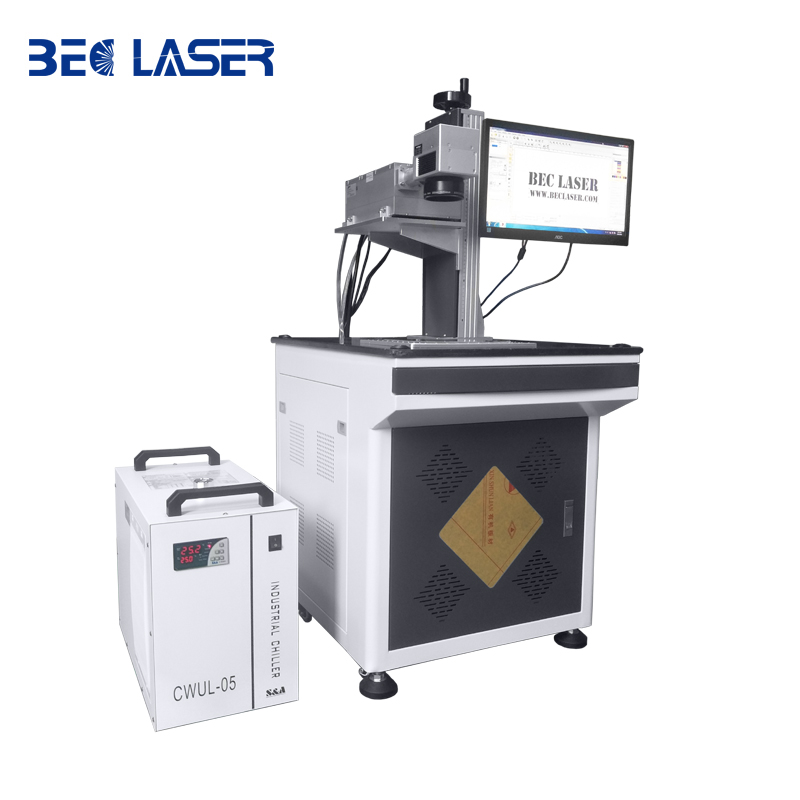

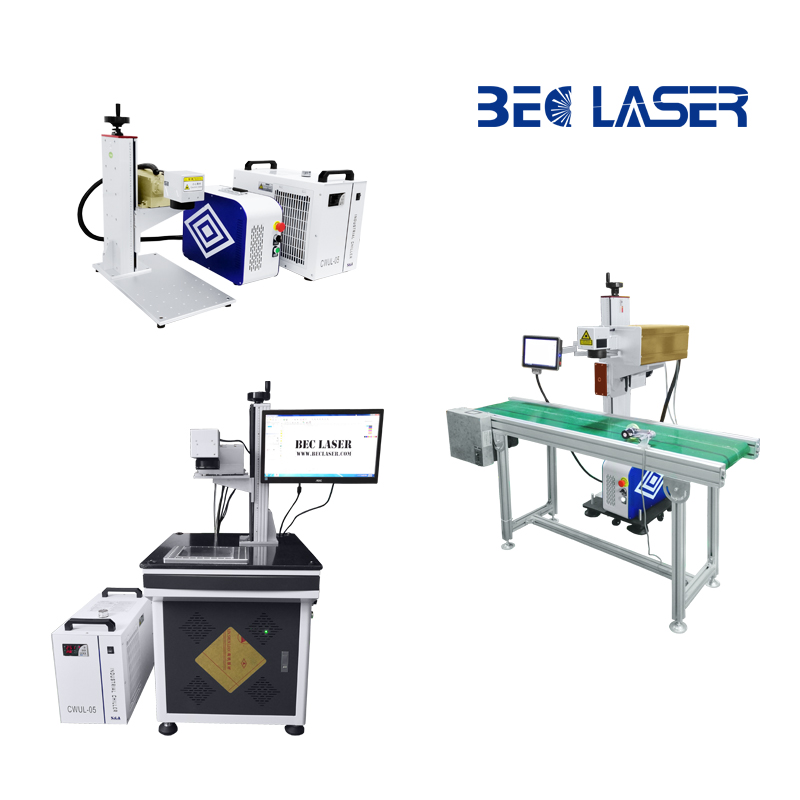

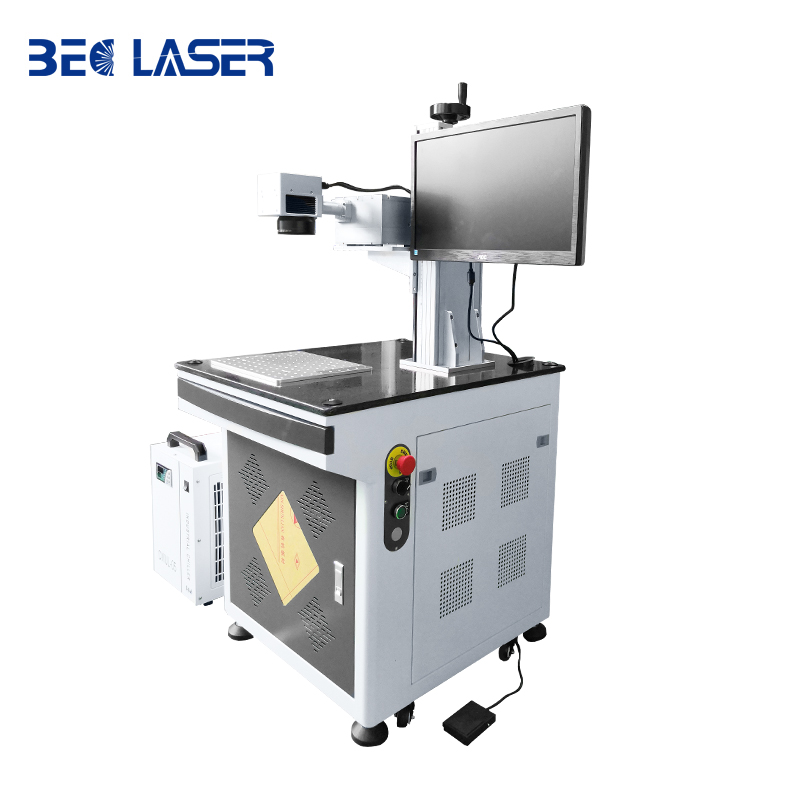

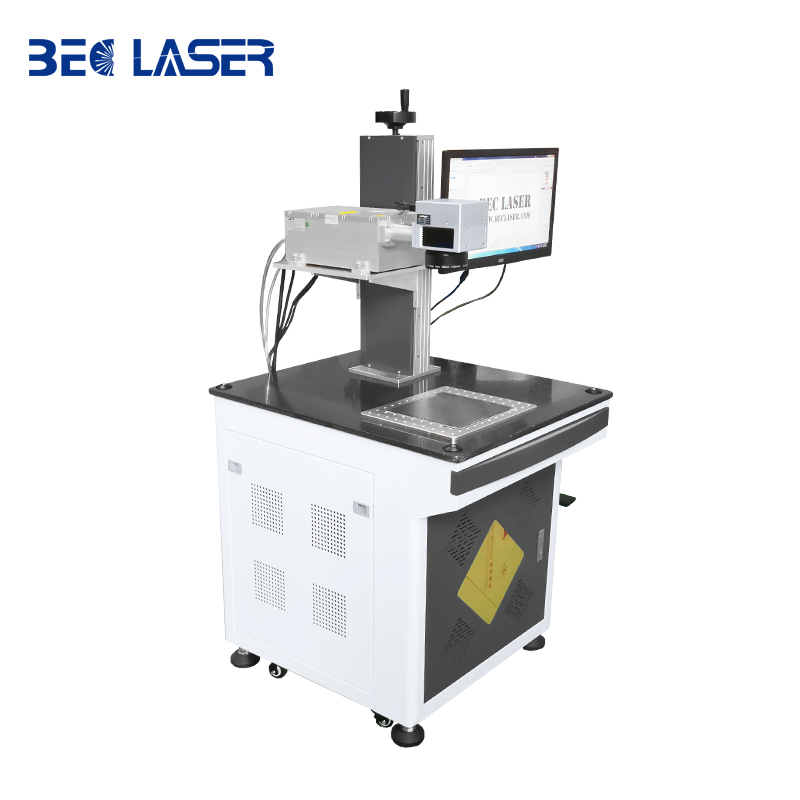

UV Laser Marking Machine 3 Watt 5 Watt For Code Glass Plastic HDPE
>>> Product Introduction <<<
UV Laser Marking Machine 3 Watt 5 Watt For Code Glass Plastic HDPE belongs to the series of laser marking machine, but its use of 355nm wavelength. It has small focus light spot, reduce material mechanical deformation. High peak power, small pulse width, small thermal effects of processing. It can do ultra-fine marking on special materials.
If you have the high requirement for the marking effect, BEC UV laser marking machine is the best choice.
Features:
- Small beam diameter and fine marking line
- Good quality and high laser beam stability
- Complete machine stability, simple and easy operation
- Narrow pulse width, small heat affected zone, workpiece without damage
- Suitable for sensitive material as cold light source
- Suitable for sensitive material as cold light source
Advantages:
• Hyper-fine Laser marking base on Imported UV Laser marking machine’s good light beam quality and small focusing spot. |
• Good processing effect and wide applicable material type base on mild heat-affected of UV Laser marking. |
• High processing accuracy, high marking speed and good stability base on imported high-speed galvanometer. |
• Convenient Operation: Convenient data processing with dedicated laser marking software. Interface is simple and friendly, easy operation. |
• Available support file format: PLT, DXF, AI, SDT, BMP, JPG, JPEG,TGA, PNG, TIF, TIFF, etc. |
• Support one-dimensional code and two-dimensional code marking such as Code39, EAN, PDF417, DATAMATRIX, etc. |
• Option function: marking-on-the-fling, rotary marking and X,Y 2D platform. |
>>> Technical Parameters <<<
Product Name | UV Laser Marking Machine 3 Watt 5 Watt For Code Glass Plastic HDPE | |
Model | BEC-UV3J | BEC-UV5J |
Laser Power | 3W | 5W |
Wavelength | 355nm | |
Pulse Width | <15ns@30kHz | <15ns@40kHz |
Frequency Range | 20KHz-150KHz | |
Beam Quality | M2 ≤1.2 | |
Beam Diameter | Non-expanded: 0.7±0.1mm | Beam expansion: 7.0±1.0mm |
Product Line Speed | The encoder measures speed, it can be adjusted according to the line speed. | |
Marking Speed | 800 standard characters /s | 1000 standard characters /s |
Cooling Mode | Water cooling | |
Enviornment Temperature | 15℃~35℃ ( No condensation ) | |
Power Supply | 220V( 110V ) 50Hz/60Hz | |
Optional Parts | 2D/3D working table, rotary fixture, conveyor belt, fume exhaust, etc. |
>>> Machine Structures <<<
>>> Machine Details <<<
>>> Applications <<<
* It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone
accessories (mobile phone screen, LCD screen) and communication products.
* Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military
industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
* Pharmaceutical, food, beverage and cosmetics industry.
* Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks
and watches and glasses.
* It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing
and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
