Products Description

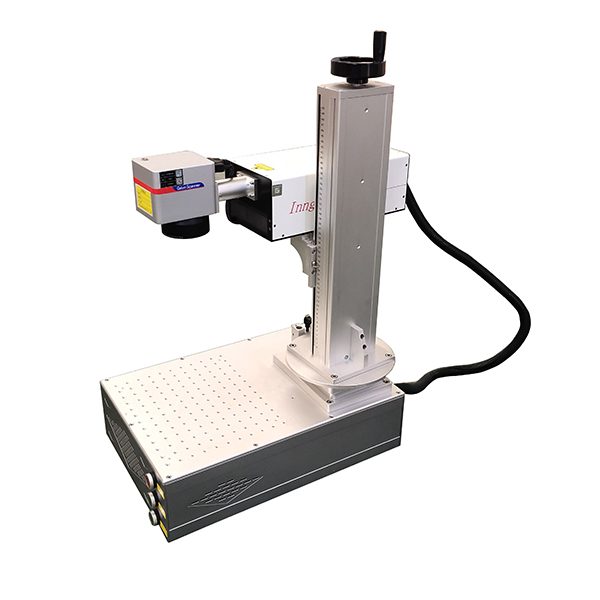

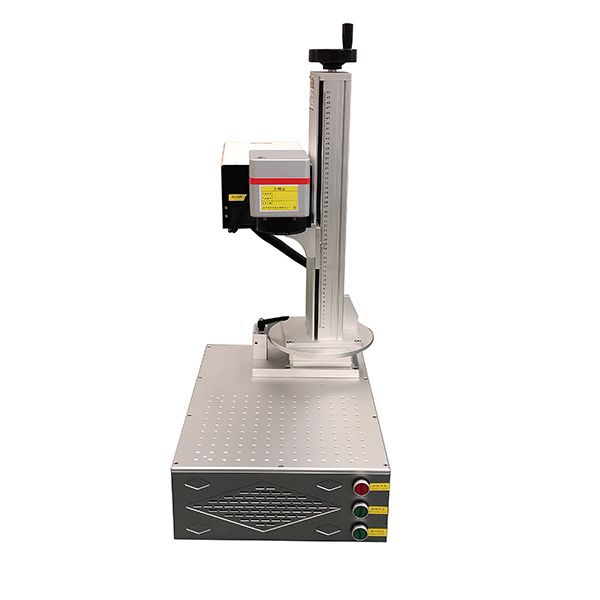

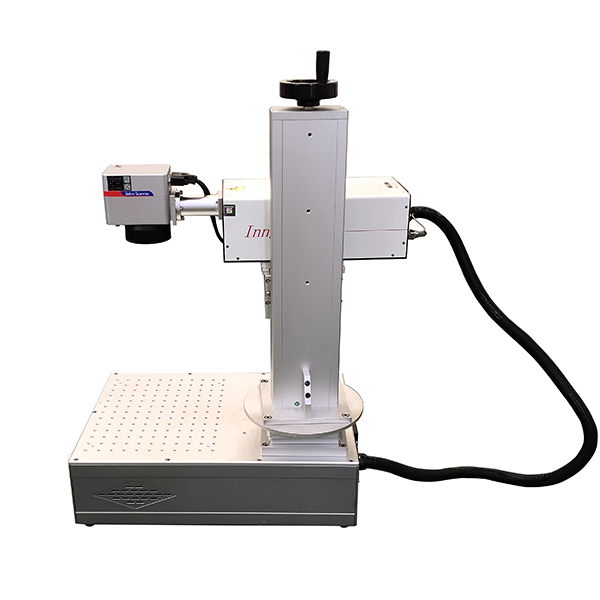

Brand new design 3watt 5watt UV Laser Marking Machine
UV Laser Marking Machine Description
UV laser marking machine series,the principle with the laser marking machine similar, are using a laser beam in a variety of different material surface marked with a permanent mark. Marking effect is through the short wavelength laser directly interrupted the molecular chain of matter (different from the long-wave laser generated by the evaporation of the surface material exposed deep material) to show the required etching patterns, text. Can be achieved in the assembly line on-line flight marking function, mainly for the thin fragile items such as shallow markings: photovoltaic solar glass. On the basis of cold working, the effect of processing the material will be better results, better development, in the use of cold laser processing, the material impact of the probability reduced to one percent. |
Product Paramenters
Product name
|
UV Laser marking machine
|
||||||
Machine Power
|
3W 5W(Optional)
|
||||||
Laser wavelength
|
355nm
|
||||||
Pulse repetition rate
|
20–200KHZ
|
||||||
Pulse width
|
<20ns@30KHz
|
||||||
Average power(W)
|
3W/5W
|
||||||
Average power stability
|
<±2% over 23 hours
|
||||||
Pulse-to pulse instability
|
<3%rms
|
||||||
Spatial mode
|
TEM00(M2<1.3)
|
||||||
Beam divergence
|
<2mrad(full angle)
|
||||||
Beam diameter
|
0.6±0.1mm
|
||||||
Cooling method
|
Air-cooling
|
||||||
Relative humidity
|
10%-80%(non-condensing)
|
||||||
Warm-up time(mins)
|
<10
|
||||||
Operating voltage
|
110V/220V(Optional)
|
Product configuration

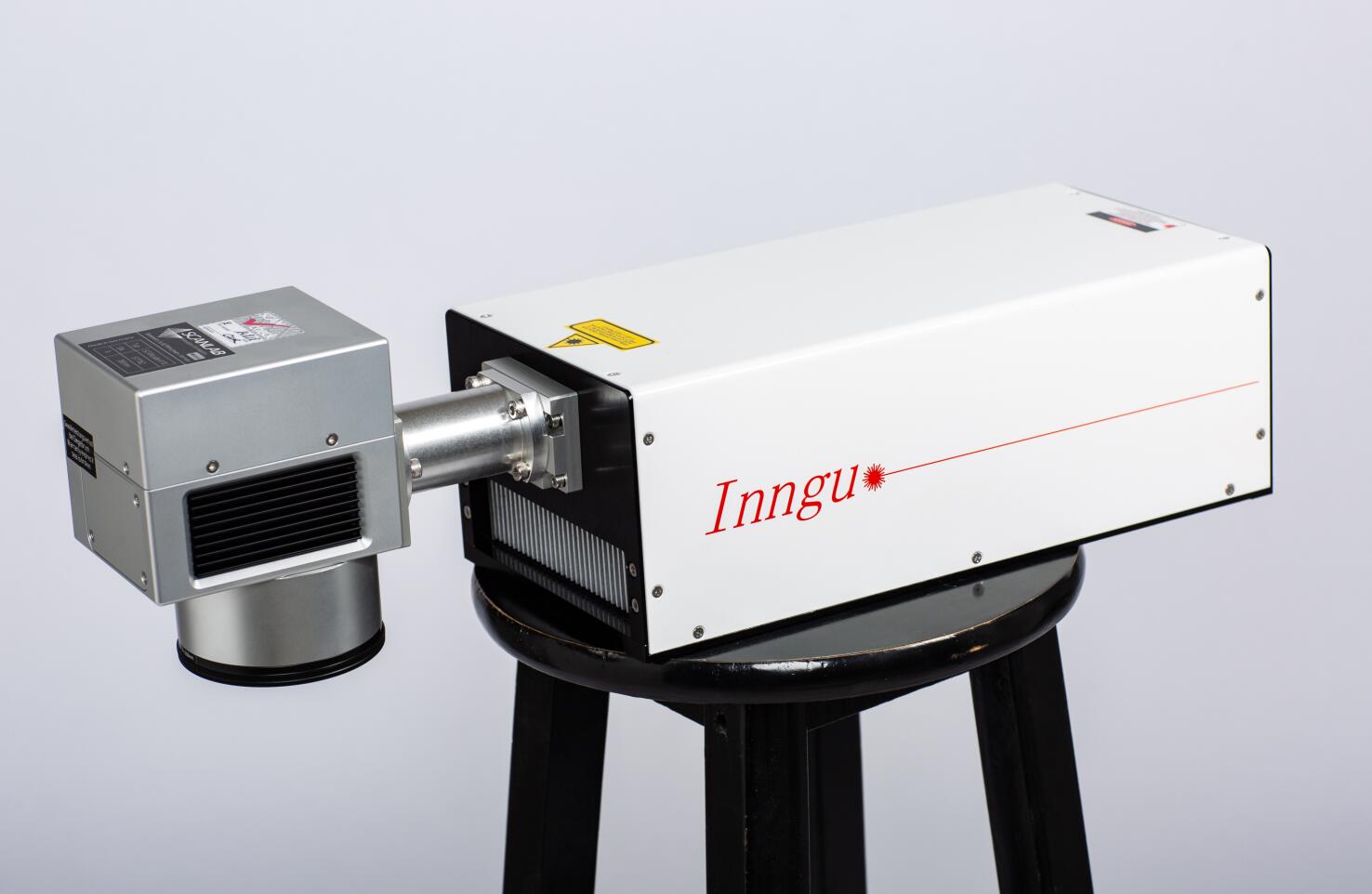

355nm UV Laser source
—Brand new air-cooled design,It can work normally without a chiller.
—It is more convenient for your marking work.
UV Scan Head
–It has the advantages of fast marking speed and high marking accuracy.
—It has double red lights, which makes it easier for you to find the focus.

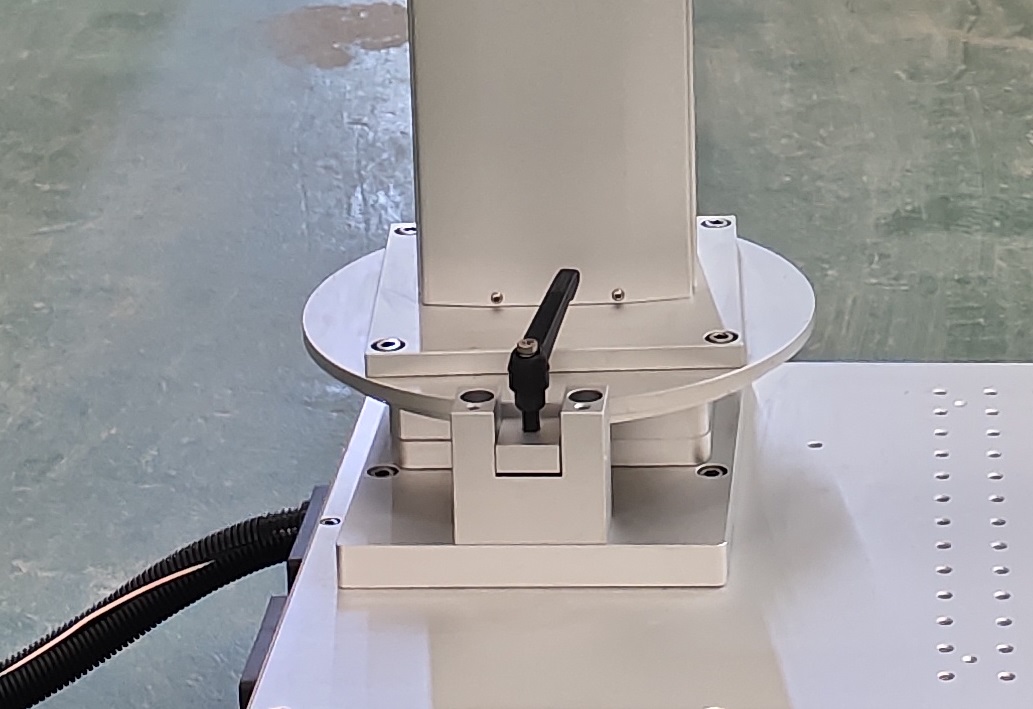

360 degree rotation design
–It will make your marking work more convenient.
Sample
Applicable Industry:
Mainly applied on shiny material marking, such ad mobile phone screen,LCD,optical device,auto glass etc.Also it applied for processing coating film on the most metal and non-metallic materials.Such as hardware,ceramic,glasses and clocks,PC,electronic components etc. Features: |
