Description

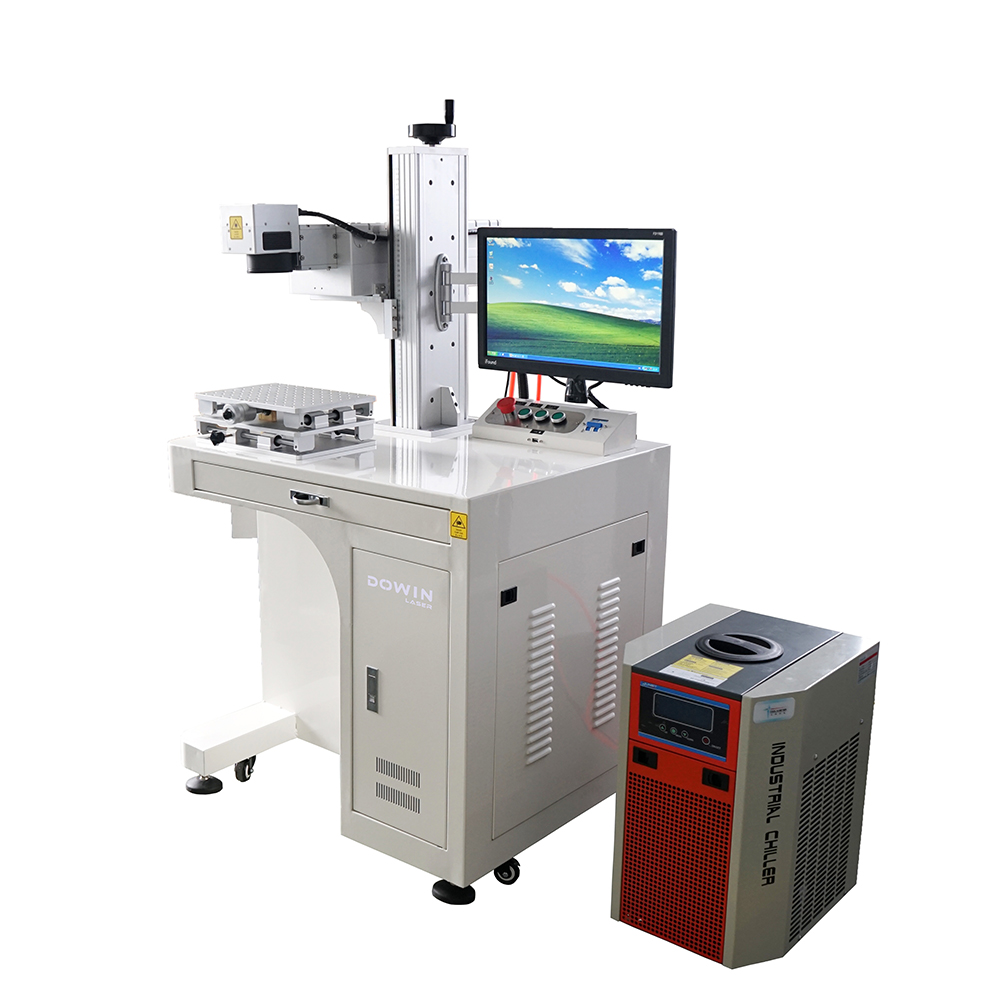

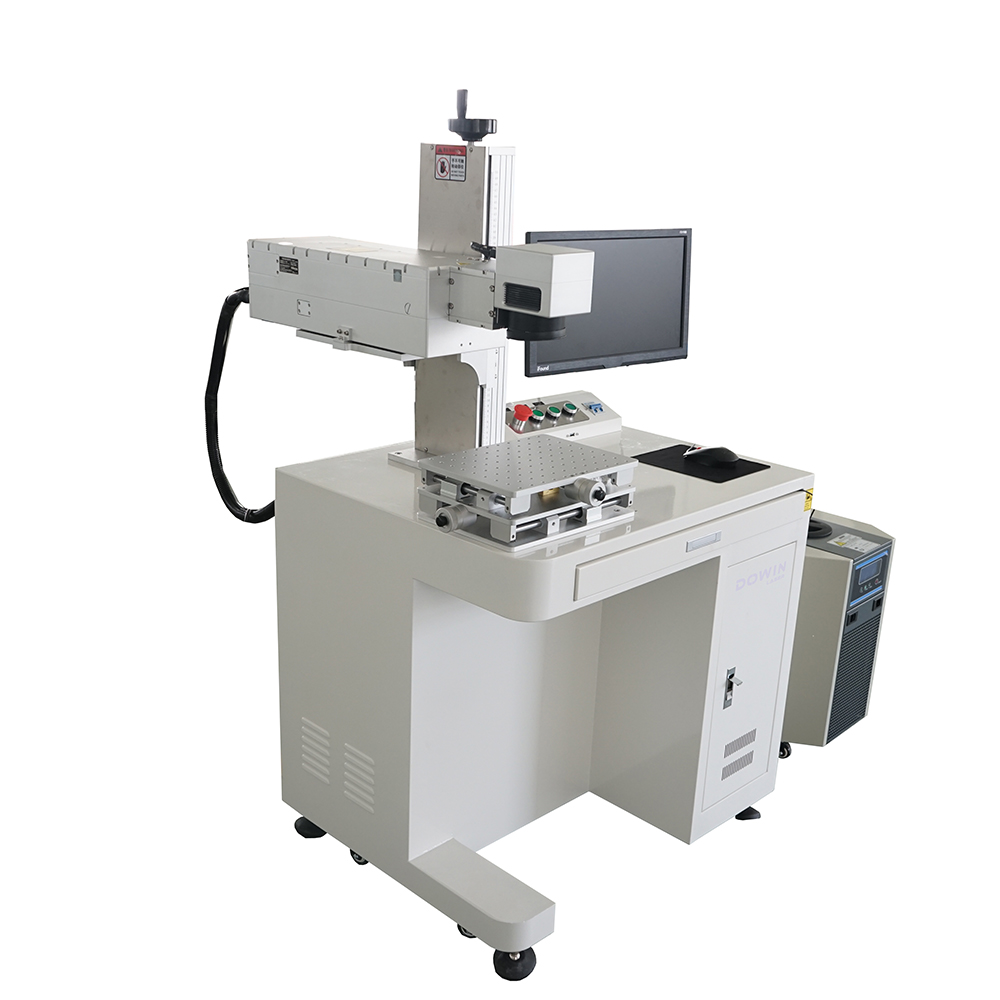

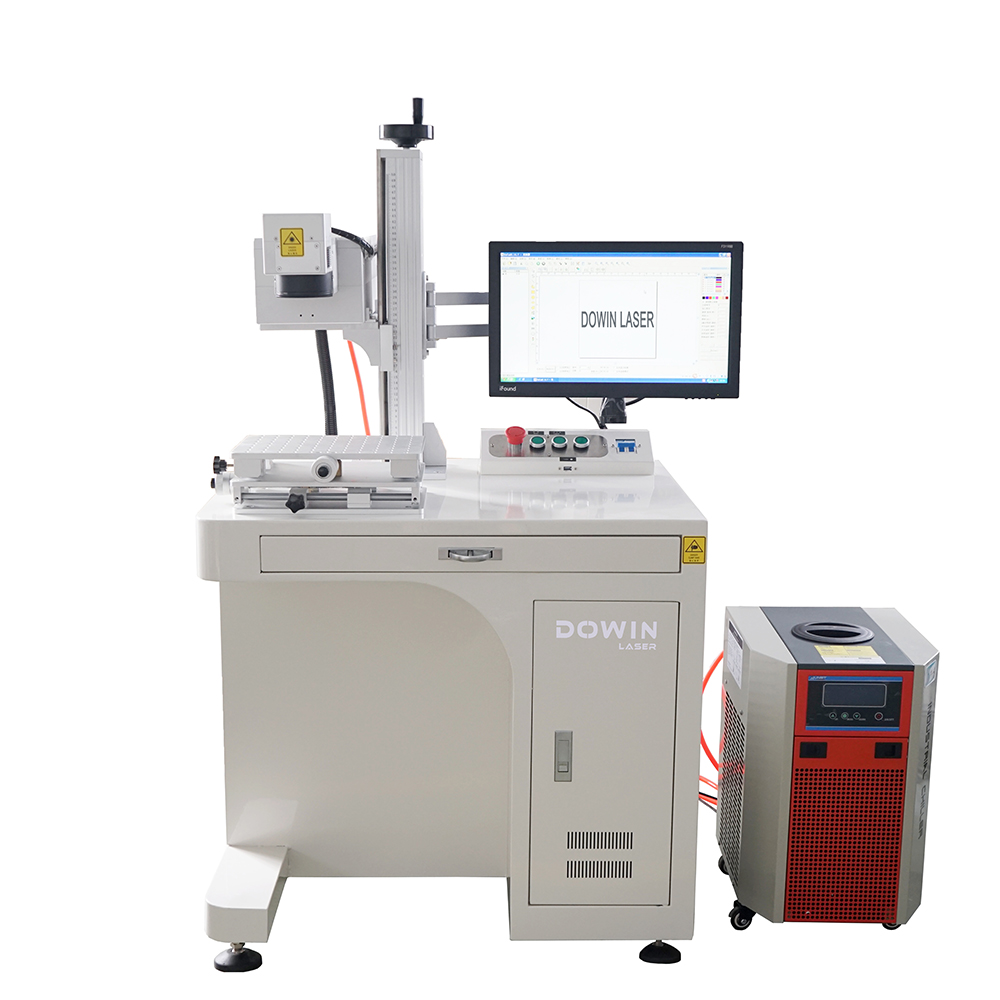

 UV laser engraving machine 5W UV laser engrave glass laser uv 355 nm with water cooling

DOWIN standard fiber laser marking machine is a kind of high quality, high performance fiber laser marking machine.This series are based on the domestic and foreign market, and configure of the international famous brand fiber lasers and galvo scanner etc. core optical devices, and improve the performance and stability,greatly reduces the failure rate of the product. Digital configuration of the company independent research and development of high-speed marking control card and powerful software.

Satisfy various industry high demands of marking application. Mark the products and packaging shell machine can be widely used in food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, electronic components and other sectors of the marking, has the advantages of high efficiency , high quality, low consumption, no pollution.

Model	DW-3W
Work Area	110*110mm ( Optional )
Laser Power	3W/5W/10W
Fiber laser generator	Huaray
Laser Pulse Frequency	20KHz – 200KHz
Laser scanner	Sino-Galvo SG7110
Red light dot	Yes
Power supply	Taiwan MW (Meanwell)
Wavelength	355±10nm
Beam Quality M2	<2
Min Line Width	0.01mm
Min Character	0.15mm
Marking Speed	≤10000mm/s
Marking Depth	≤0.5mm
Repeat Precision	±0.01mm
Power Supply	110V /220V(±10%)/50Hz/4A
Gross Power	<500W
Laser Module Life	100000h
Cooling Style	Water Cooling
System Composition	Laser source, Control System, Industrial Computer, Vibration lens
Working Environment	Clean and Dust Free
Operating Temperature	10℃-35℃
Humidity	5% to 75% (Free of Condensed Water)
Power	AC220V, 50HZ, 10Amp Stable Voltage
Warranty	3 years
Dimension (cm)	65*75*80cm
Weight (kg)	65kgs

 UV laser engraving machine 5W UV laser engrave glass laser uv 355 nm with water cooling Details:

Laser source :

Huaray  brand 355nm UV laser source ,durable with long life time

Taiwan Meanwell power supply :Power supply for galvo head and control board.High efficiency,low working temperature.

 Lifting Handle :

To rotate the handle to adjust the height to get focus of laser as per the working piece.it is for 500mm height adjustable.

High-speed Digital Galvanometer scanning ststem:High speed scanning galvanometer with Germany SCANLAB technology,with fast marking speed,digital signal,high precision.

Strong power S&A brand CWUL-03/05 water chiller :

Geninue version flying EZCAD mainboard /BSL flying marking system with 10.1inch touch screen

Omron Encoder , Keyence Amplifier  and sensor

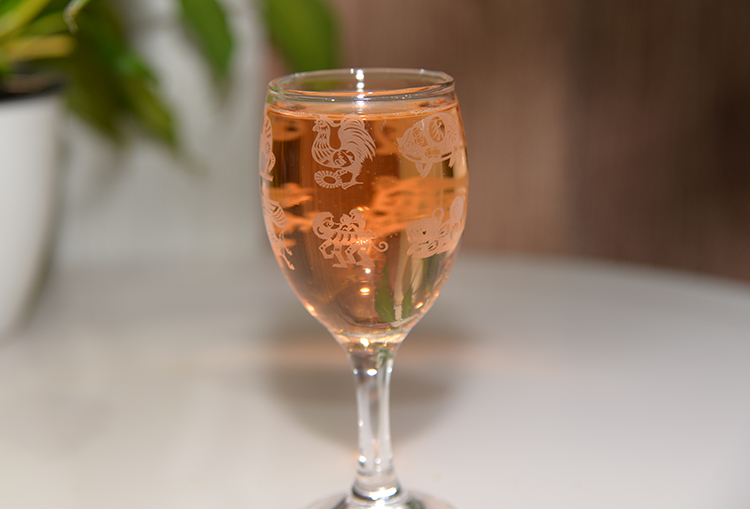

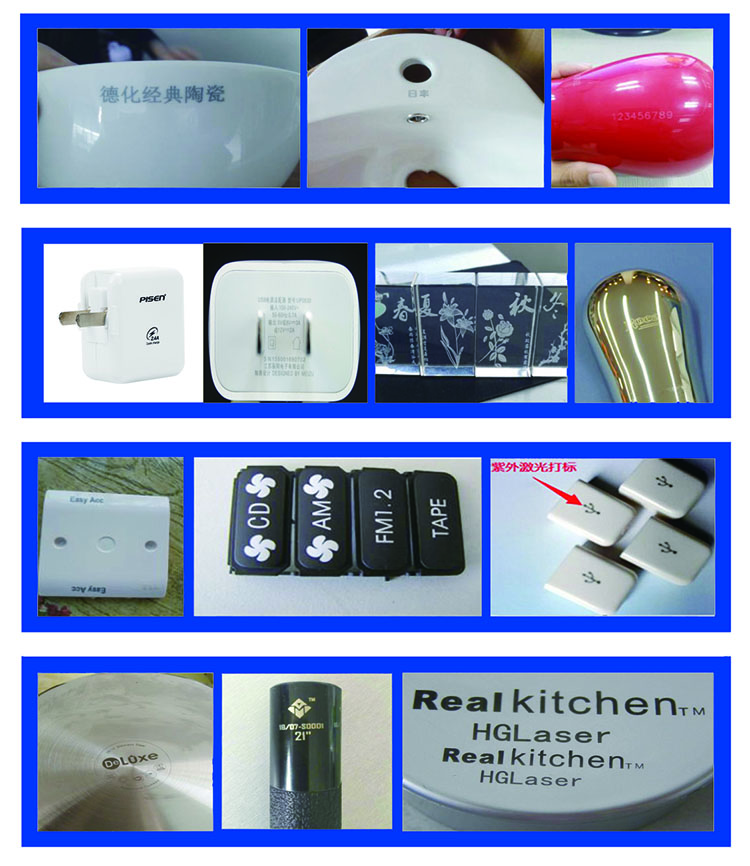

Samples of  UV laser engraving machine 5W UV laser engrave glass laser uv 355 nm with water cooling

Customer feedbacks :



UV laser engraving machine 5W UV laser engrave glass laser uv 355 nm with water cooling Factory show:
