Description
- Output Power: 1-5mW
- Origin: CN(Origin)
- Type: Bore Sight
- Model Number: L17
Application
-Military police and shooting training
-IPSC-IPDA-3GUNS shooters training
-Shooting experience area of National Defense Education Base
-Shooting Enthusiast

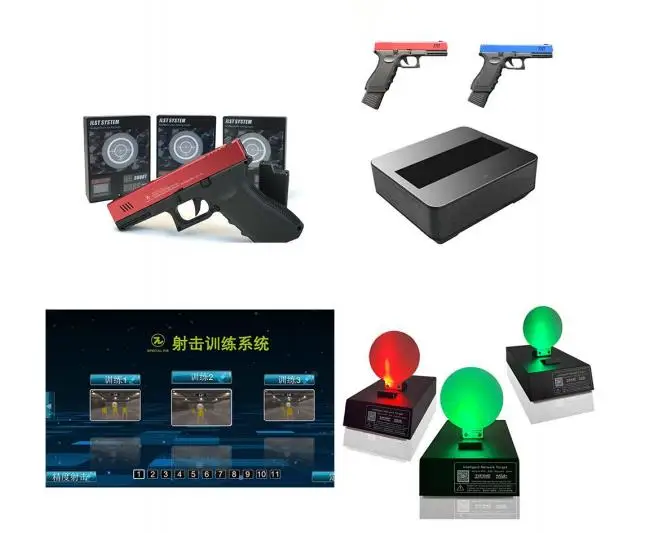

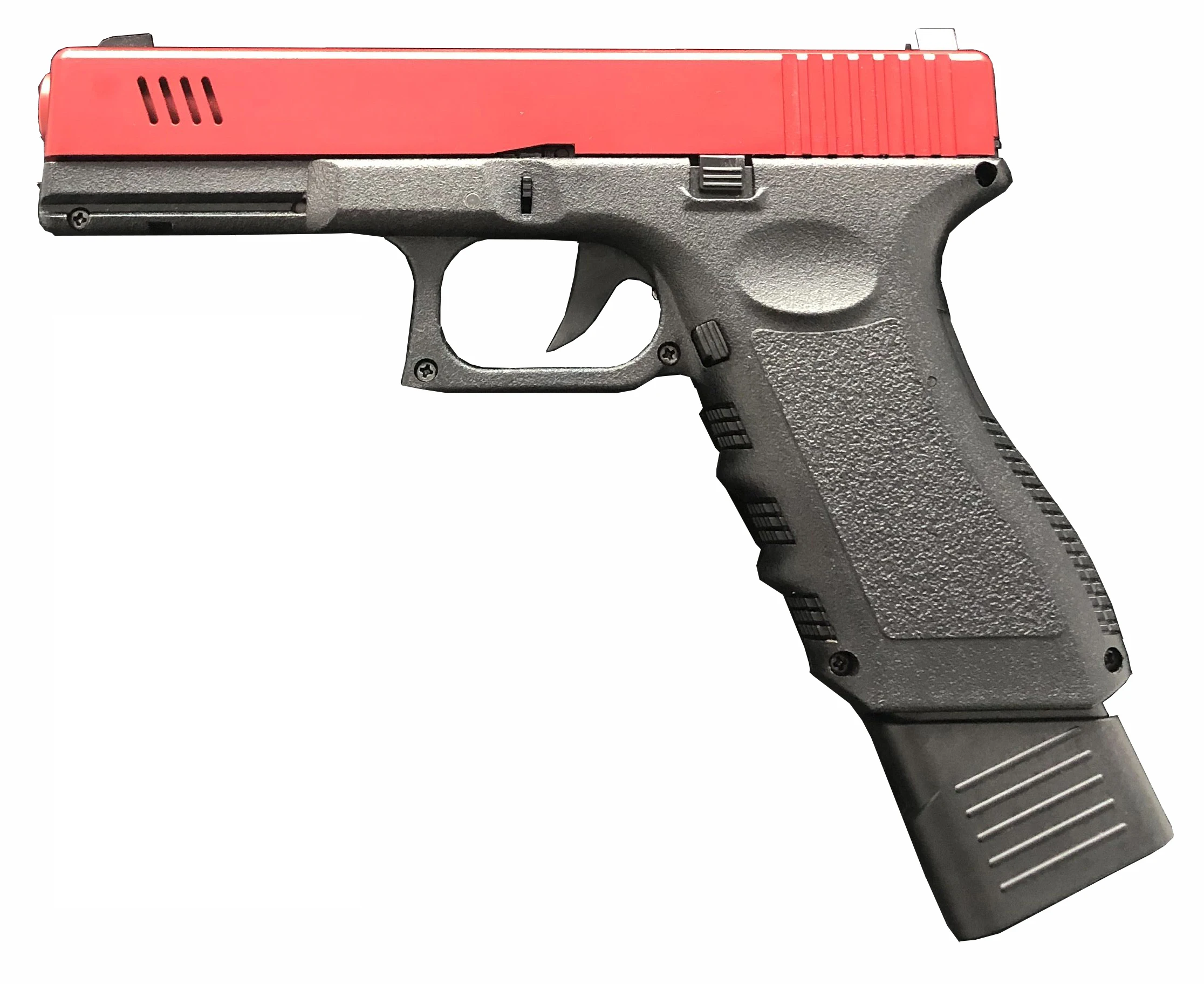

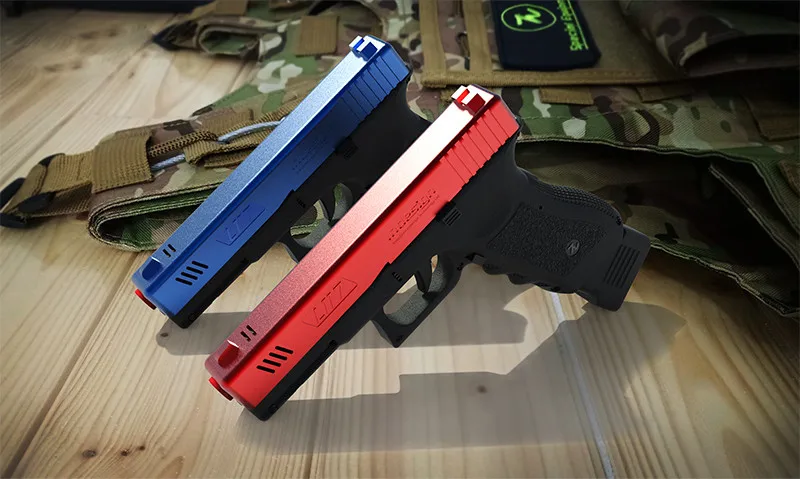

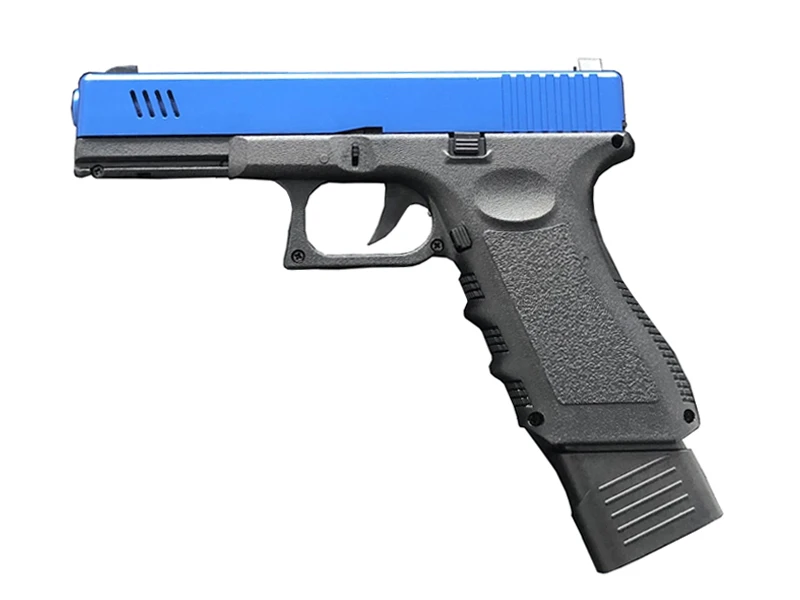

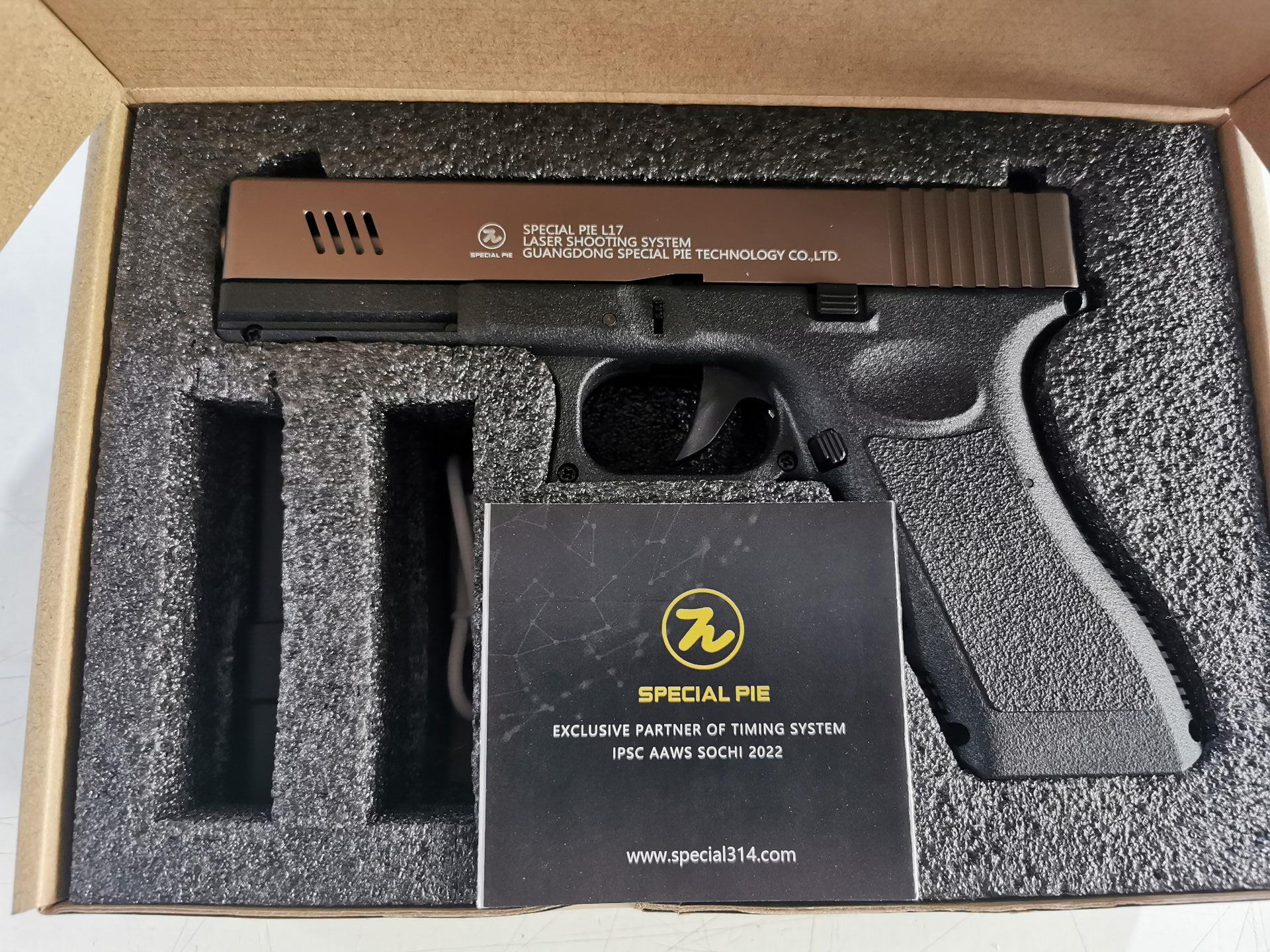

The L17 laser shooting simulator fully simulates the operation of real handguns,
including the functions of electric recoil, electronic magazine, last round hold
open, trigger wall and loading. Besides, the size of it can meet the requirement of
regular holster, which improves the safety and efficiency of training and saves the
training cost and time.
Product features
1. Electric recoil
2. Electronic Magazine (Provides the bullet writing program, supporting writing number of bullets)
A. Design of the bullets

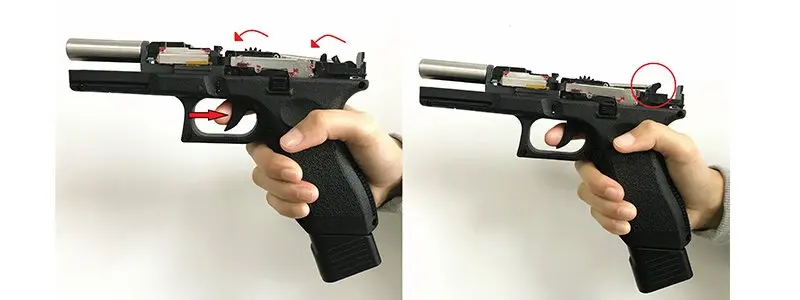

B. Last round hold open
3. Trigger Control
(1) Hammer Percussion
(2) Pound force: 3.6-6.2LB

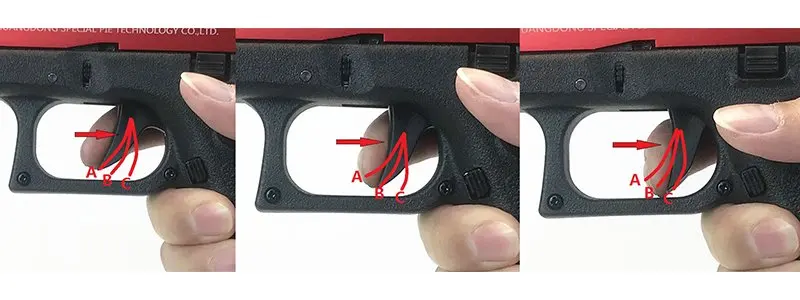

(3) Trigger stroke (A —> B —> C)
(4) Combination bit (B)

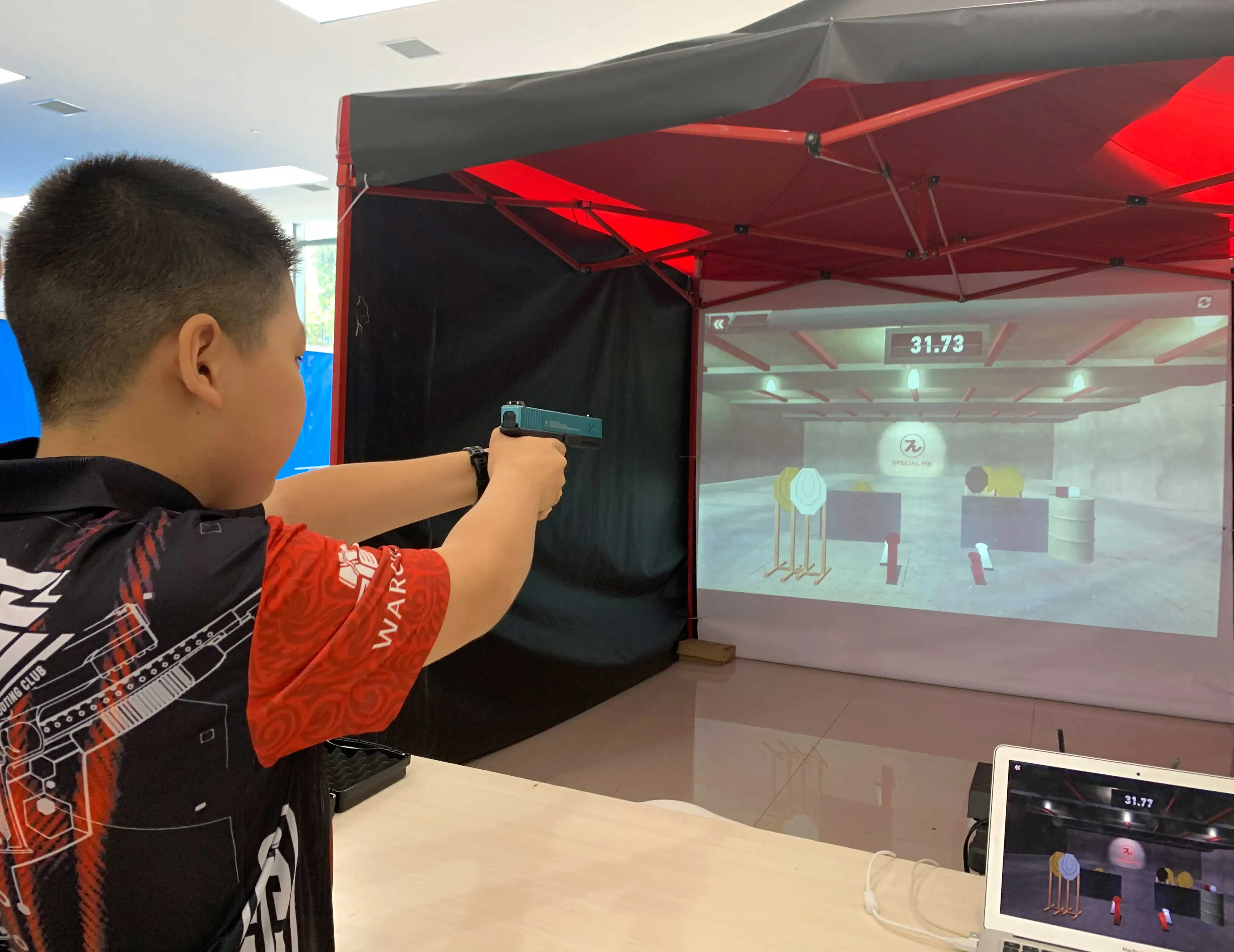

4. Application

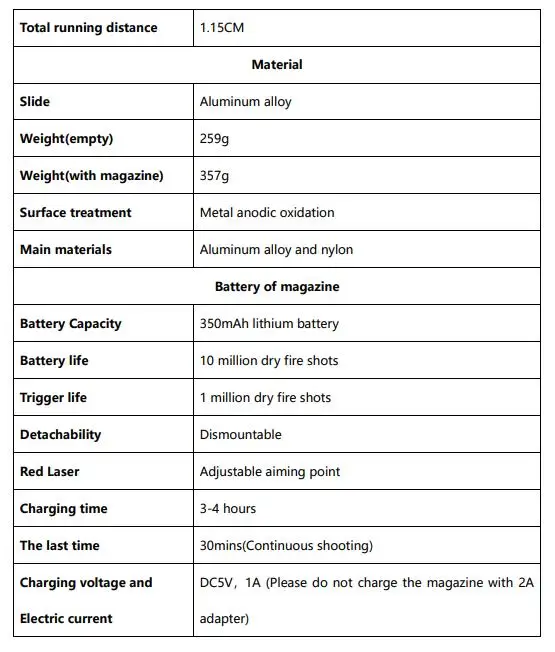

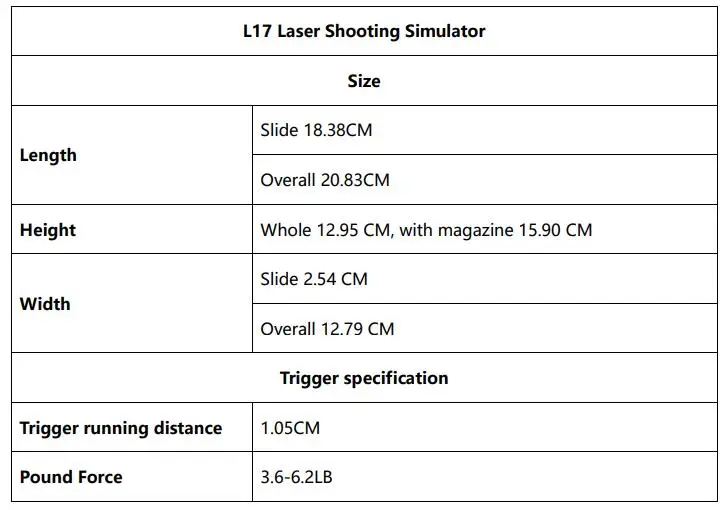

Technical Specification
Precautions For Use
1. There are indicator lights on both sides of the magazine, and a column of 8
shows the amount of bullets remaining. With the number of shots decreasing
(flicker is calculated once), the amount of bullet can be written by software. The
indicator light on the other side is the charging status light, which will automatically
turn off after being fully charged
2. The bullet quantity can be written by software (1-16 rounds, or unlimited).The default bullet quantity is unlimited, 16 shot each time. At the end of 16 shot, it will last round hold open
3. When you need to withdraw the magazine, the magazine lock should be pressed in place and then the magazine will fall off automatically. Please do not pull out the magazine by force.
4. Using the simulator to practice shooting should strictly obey standard shooting procedures. Forbid shooting with the hand holding the magazine. Forbid stopping the recoil movement of the slide during shooting. These two wrong operations above will cause damage to the simulator and the magazine.
5. There are two possible reasons for the laser simulator running fire: First, it is caused by the low battery of the magazine, please charge the magazine with the
mobile power bank in time; The second reason is that the magazine is not installed
properly. Please press the release button to take out the magazine and reinstall it.
6. Please use the mobile power supply or the USB adapter of voltage more
than 2A to charge the magazine. When the magazine is fully charged, the single
green charging indicator on the back will go off.
7. Simulator needs regular maintenance, users are kindly suggested to lubricate the key position of the simulator with lubricating grease by pressing the trigger about 1000 times. The position includes sliding rail, main transmission gear, rack and hammer next to the floating lock 8. When disassembling and installing the sliding cover for maintenance, the magazine must be removed in advance. Disoperation will easily make the sensor misjudge and lead to damage to the gear box.
9. When not using the laser simulator, please remove the magazine, otherwise the battery in the magazine will be exhausted.
10. Do not violently drag the slide and press the trigger hard to avoid damage to the simulator.
