Upgraded CNC 3020 er11 Engraver Machine DIY Wood Router Cutter Laser Engraving Use With GRBL Control Support Offline.

  • Home
  • Upgraded CNC 3020 er11 Engraver Machine DIY Wood Router Cutter Laser Engraving Use With GRBL Control Support Offline.
Sale!

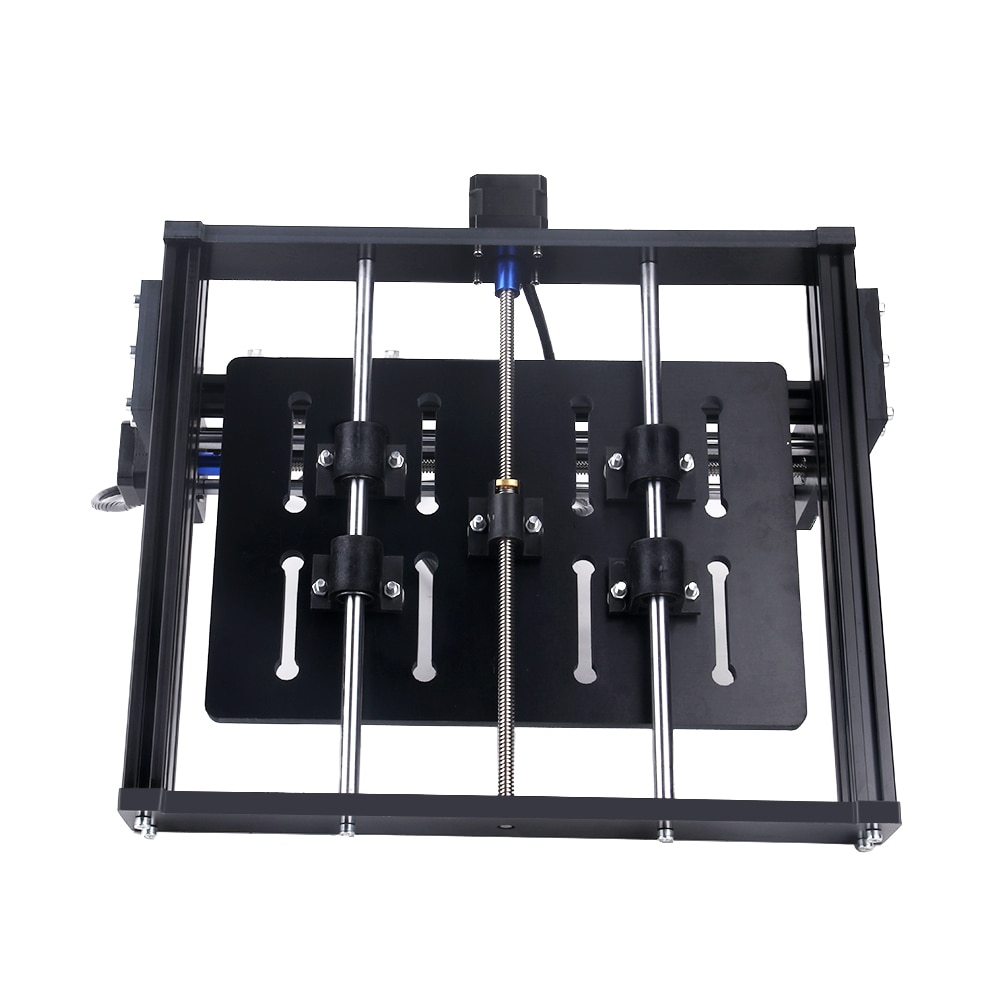

Upgraded CNC 3020 er11 Engraver Machine DIY Wood Router Cutter Laser Engraving Use With GRBL Control Support Offline.

$146.88$399.00

SKU: 4001296991460 Category:

Description

  • Brand Name: NoEnName_Null
  • Origin: CN(Origin)
  • Certification: None
  • Condition: New
  • Model Number: cnc3020
  • CNC or Not: CNC
  • Is Smart Device: NO

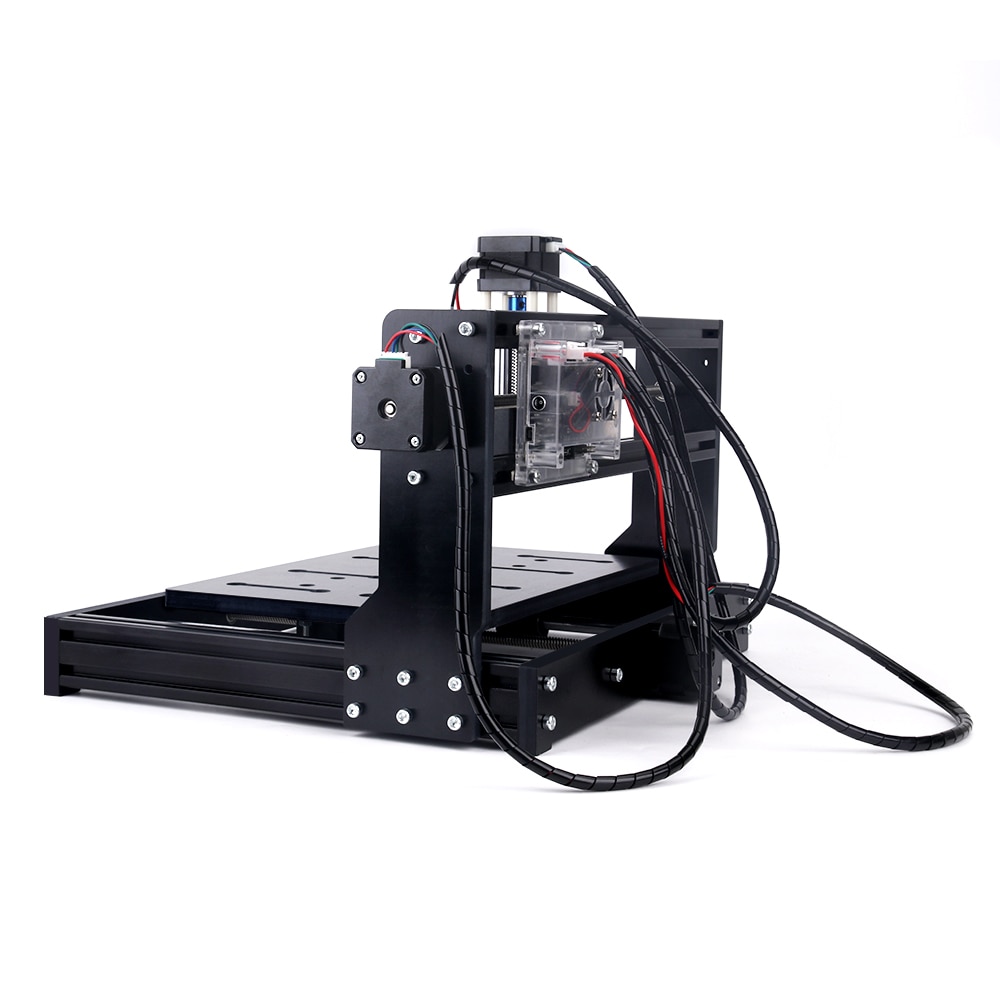

Upgraded CNC 3020 er11 Engraver Machine DIY Wood Router Cutter Laser Engraving Use With GRBL Control support offline

Feature:
X, Y, Z Working Area: 300 x 200 x 40 mm (11.81 x 7.87 x 1.57 inch)

Frame size: 400 x 330 x 240 mm (15.47 x 12.99 x 9.44 inch)

Collet: ER11, defaul size 3.175mm

Stepper Motor: 3 x 42 stepper motors: 1.3A, 0.25N.m

Spindle: 775 spindle motor, 24V: 10000 r/min

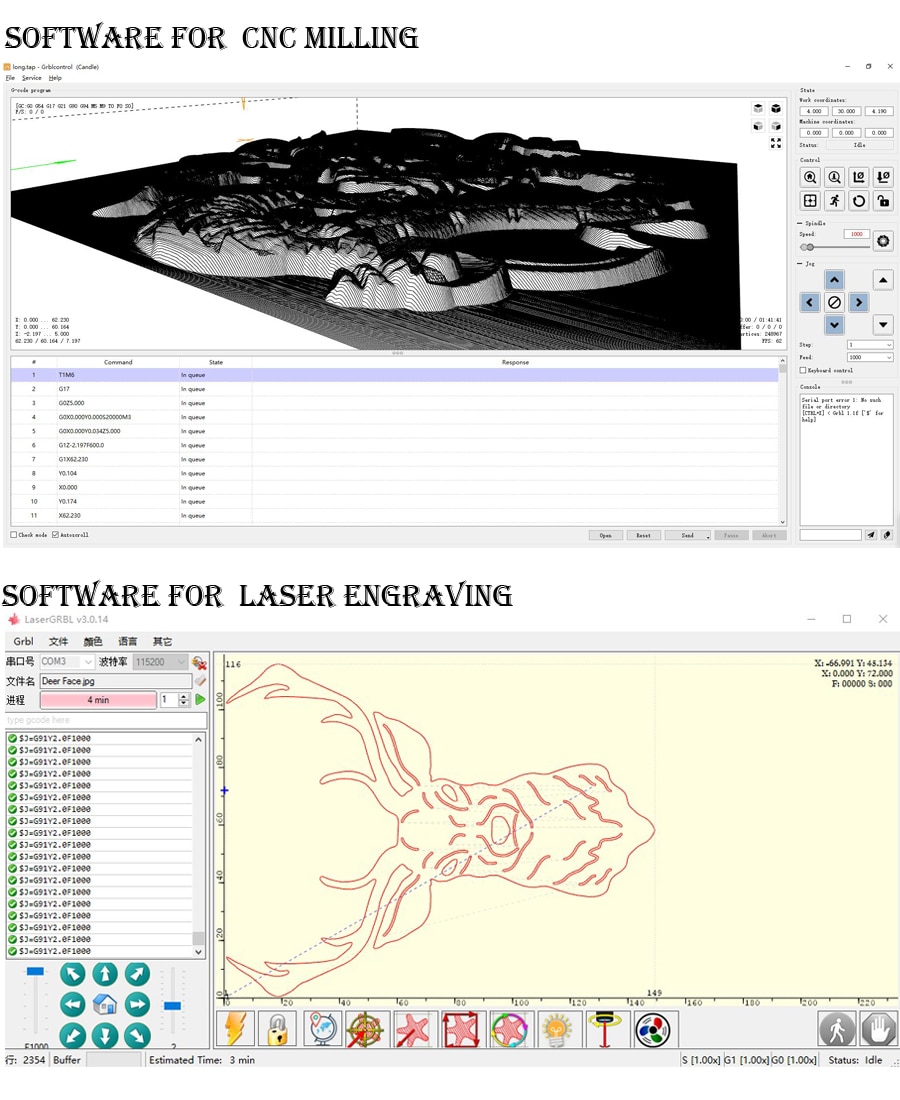

Software: GRBL Control Systems, laser GRBL

Supported system: Windows XP / Win 7 / Win 8 / Win 10 Home

Lead Screw: professional T8 T-screw, lead 4 mm, pitch 2mm, double copper nut and poor

Power Supply: 24V 5A power adapter

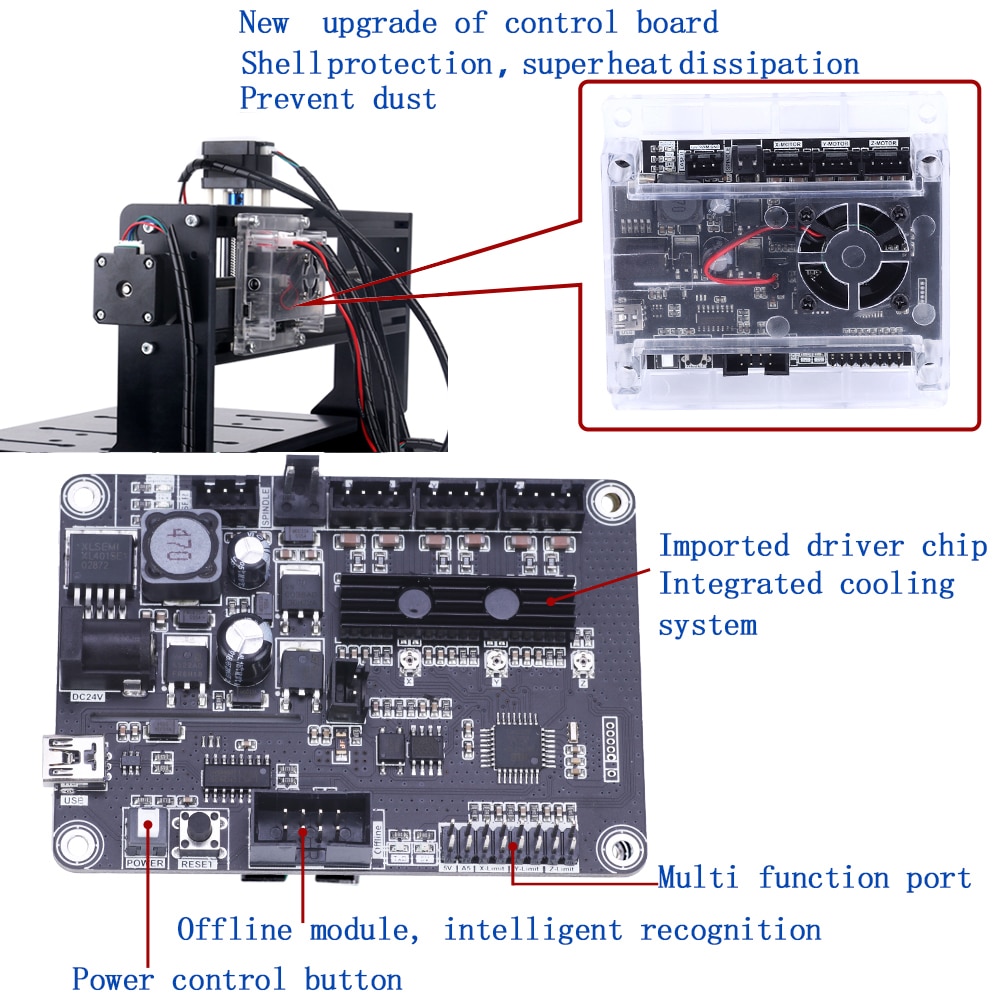

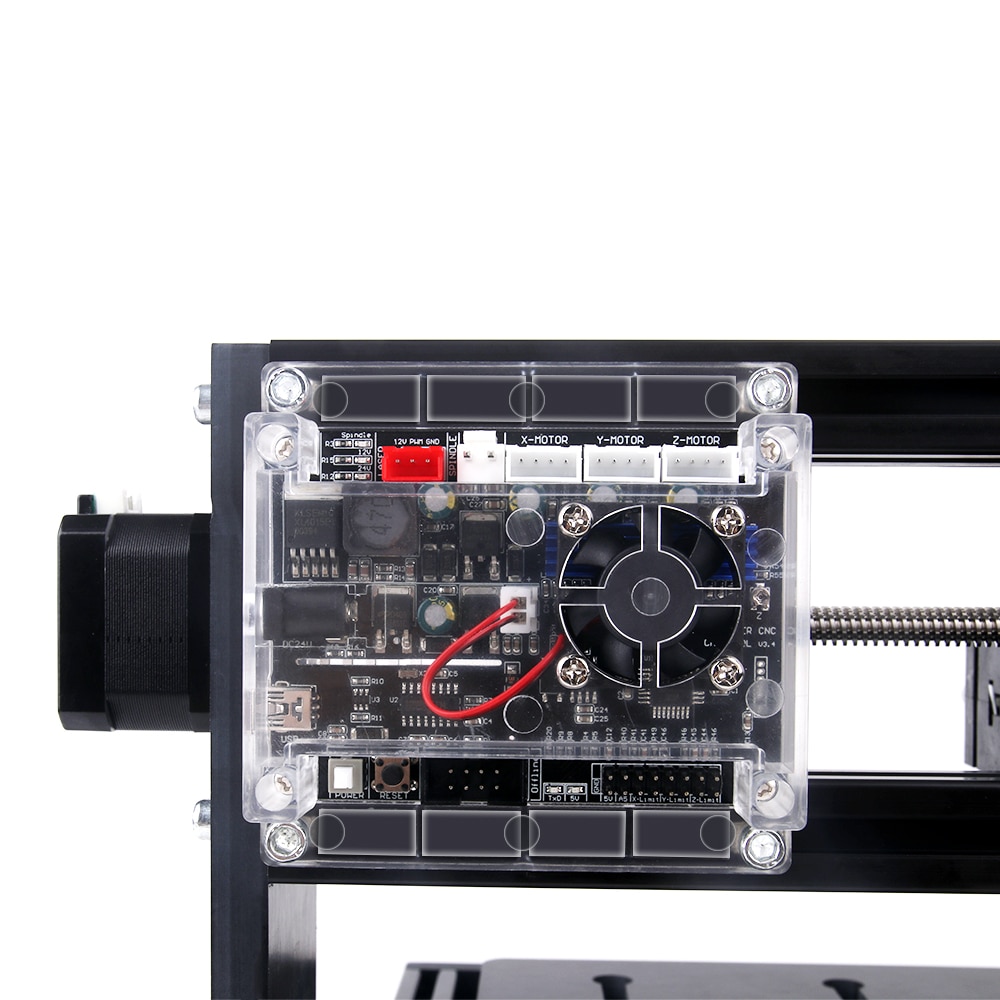

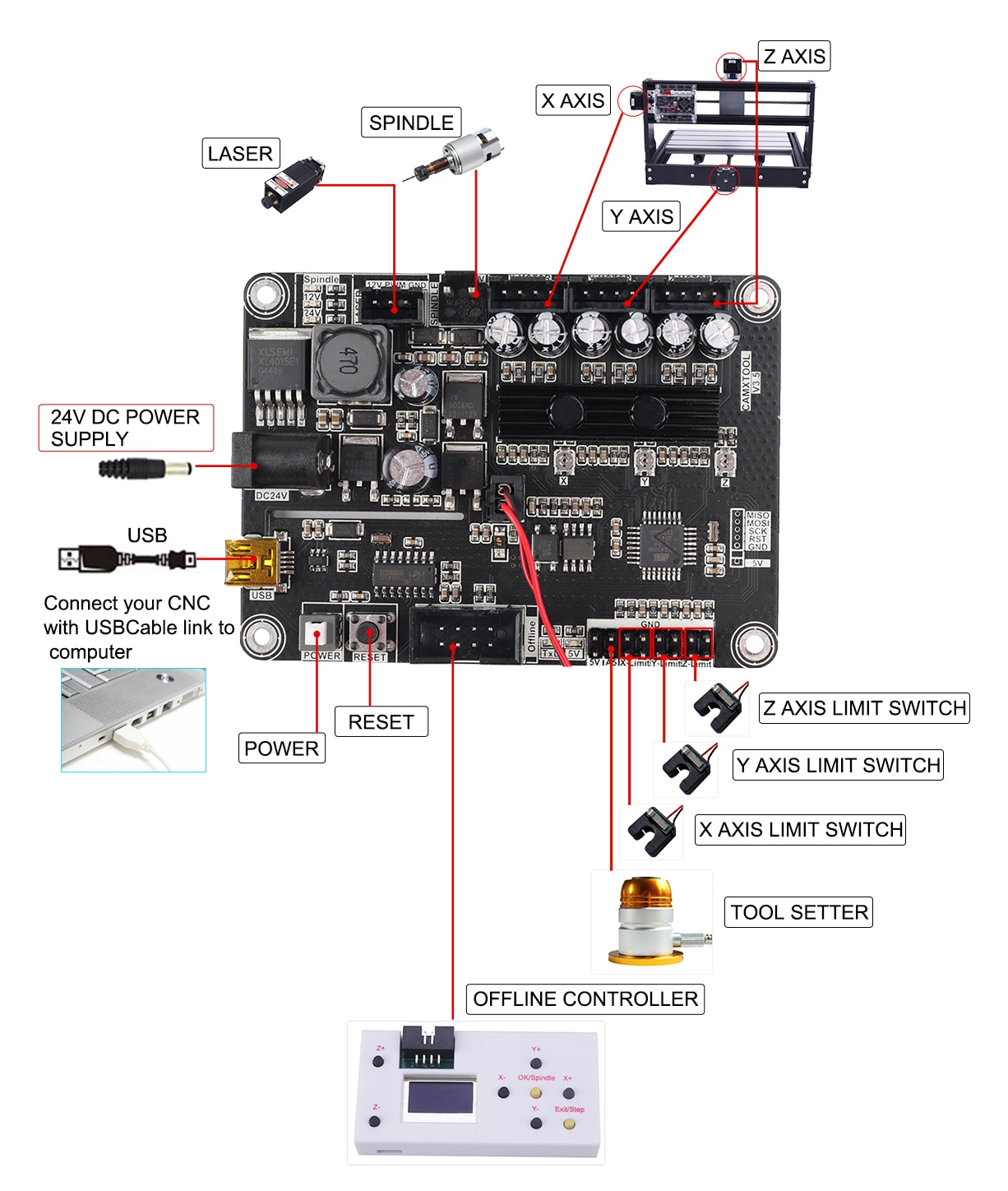

Controller Board: Upgrade GRBL Offline XYYZ 3 Axis Control Board with upgrade A4988 drives for GRBL 1.1f.

Laser Module (Options): Brand new and updated blue lasers, which is 33mm 3P connection, supports PWM/TTL, 0-100% adjustable

Offline work: Support

Offline controller (optional): 1 inch Monitor, 1GB Micro SD with TF card

Application:

Laser Can Engrave:
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam/Paper
/Anodized Aluminum/Ceramics/Stone/Stainless steel (with 15W)

15W Laser Can cut: About 3mm wooden materials
Laser Can Not Engrave:Metal/Glass/PCB/Reflective Material/Transparent Material
Cutters can be engraved:plastic, wood, acrylic, pvc, pcb, wood or the like material

Package Introduction:
(Gift for all sets: 2 pcs Plates + 10 pcs Milling Cutters + ER11-5mm Extension Rod)
