Description

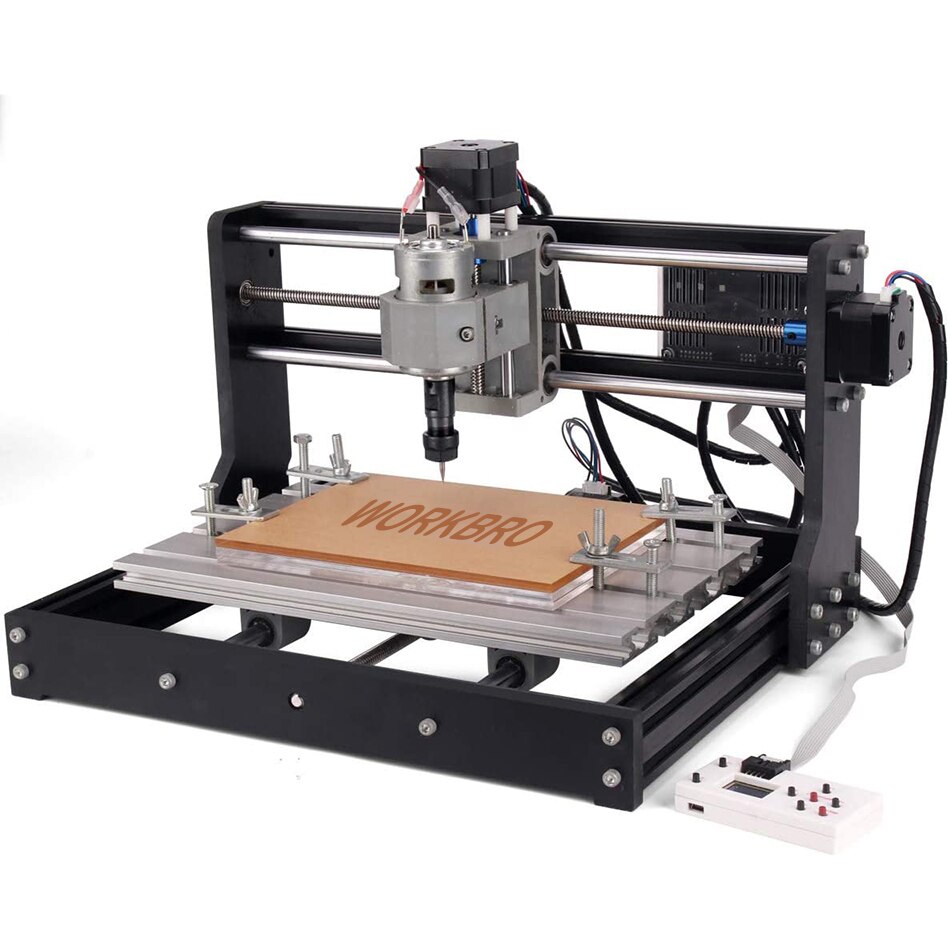

CNC 3018 Pro GRBL Control Laser Engraving Machine ER11 3 Axis PCB Milling Carving Machine DIY
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: CNC 3018 Pro
- CNC or Not: CNC
- Is Smart Device: NO
- Effective Engraving Area: 300 x 180 x 45 mm
- Effective Engraving Area 2: 11.8 x 7.1 x 1.8in
- Engraving machine Frame Size: 400 x 330 x 240 mm
- Engraving machine Frame 2: 15.7 x 13.0 x 9.4in
- Rated power: 60W
- Maximum power: 120W
- Softwar 1: Grbl control(Candle)
- Softwar 2: Laser GRBL control systems
- Carving Machine Supported OS: Windows XP, Windows 7, Windows 8, Windows 10
- Dear friends, buy engraving machine machines, we will give you system software and usage manuals that use engraving machines.
-
The 15000mW laser module can cut the thickness of 3 mm, and 15000 mW of laser modules can engrave aluminum alloy material and an anodized surface.

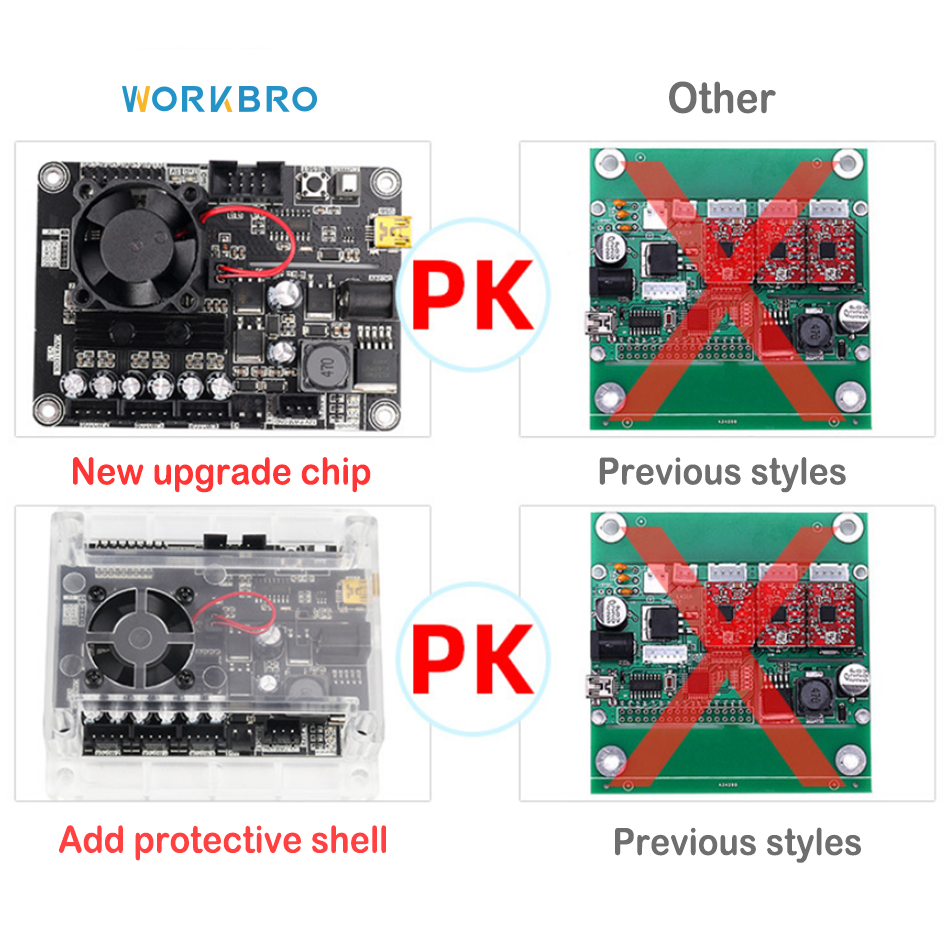

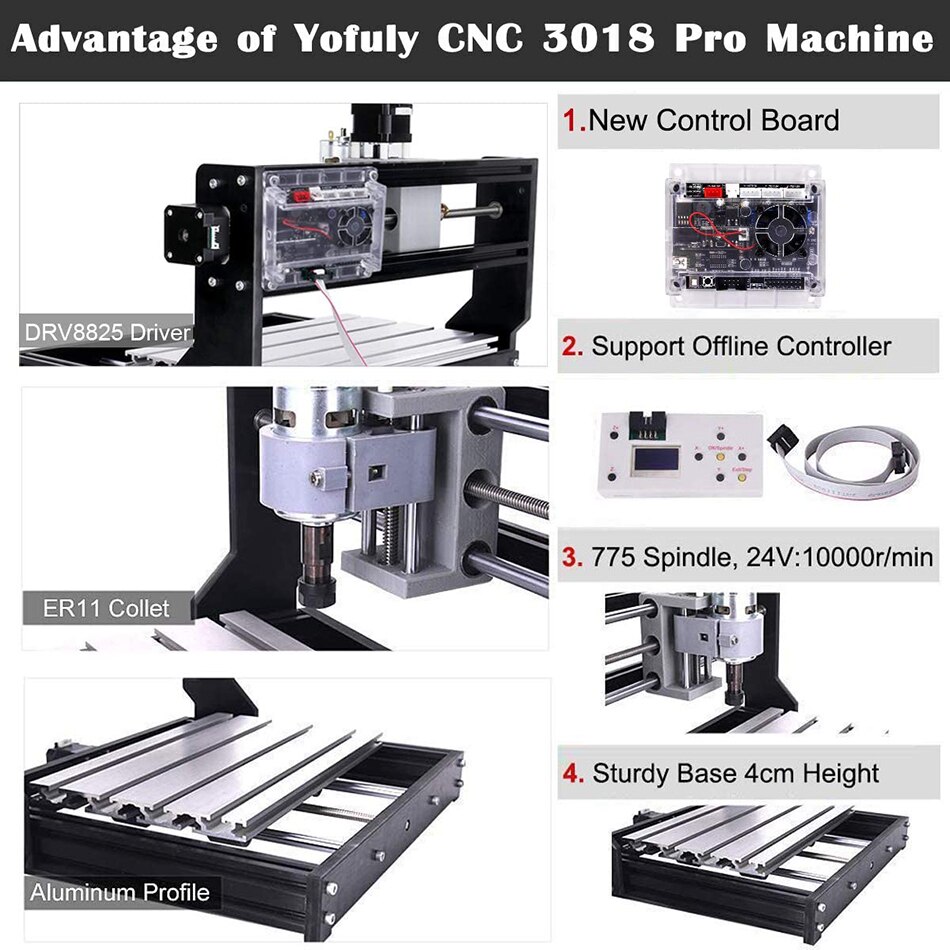

- High Quality New Version – Yofuly CNC 3018-Pro is an upgraded version of CNC 3018. We focused on updating the control board. The new control board adds fixed heat sink and external fan, as well as a sturdy shell, which greatly extends the service life of the control board.

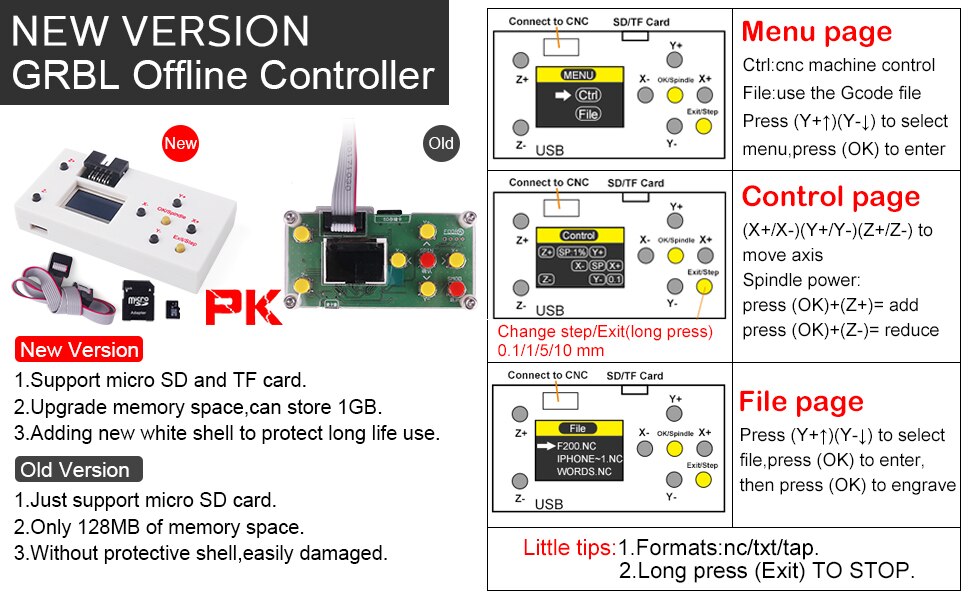

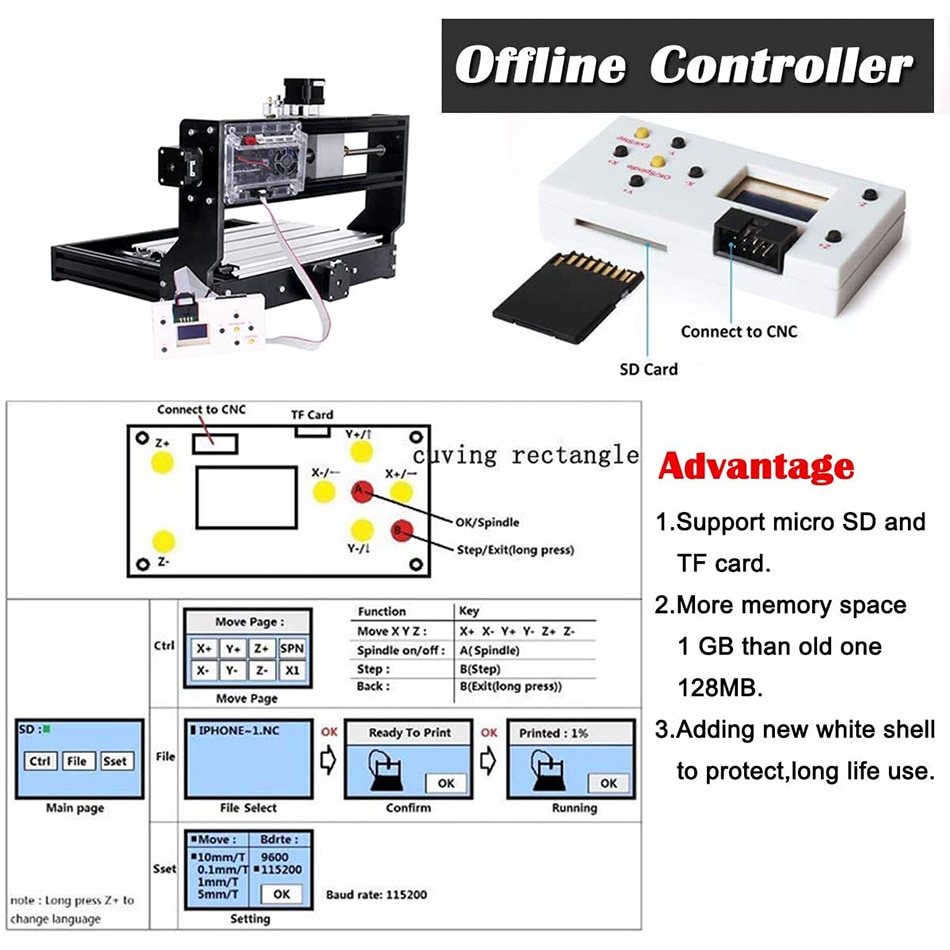

- New Offline Controller – Upgrade to 1G Storage Capacity! ①No need to connect the computer. ②Included SD card reader to write into the root directory G-code files or NC file. ③Manually adjust X, Y, Z axis location as engraving starting point, manually open or close spindle.

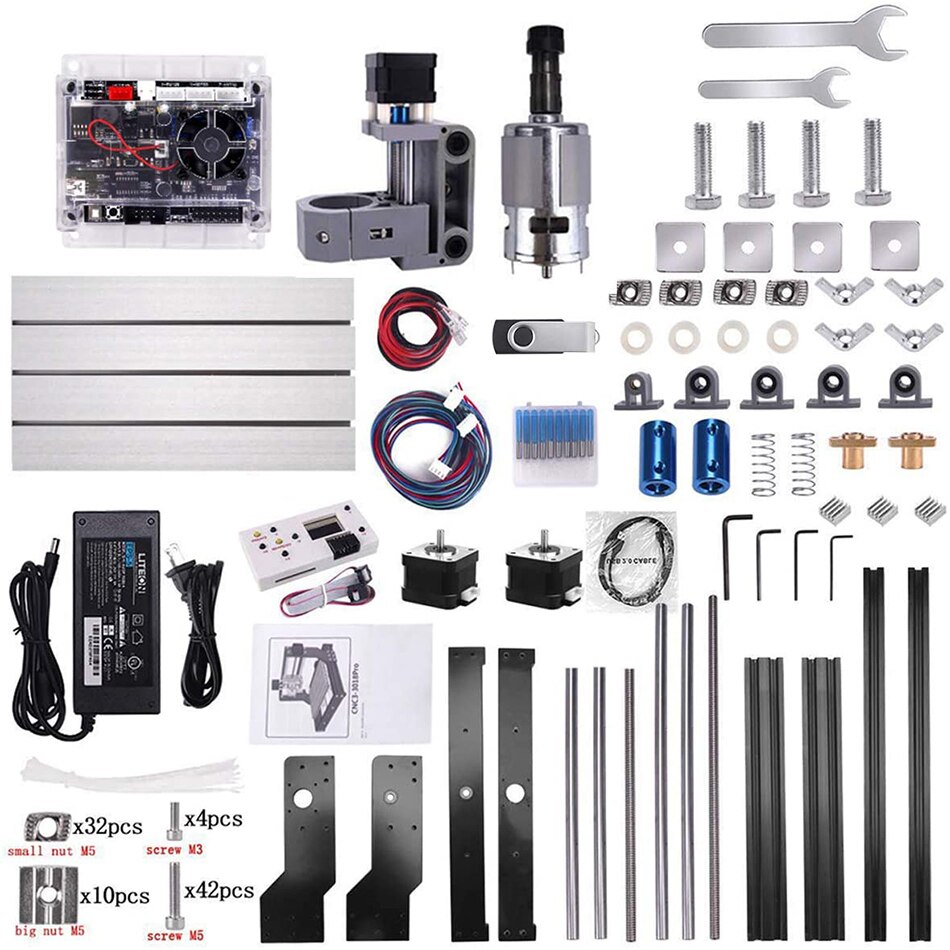

- Easy To Install – Some components and core components have been assembled. The CNC3018 PRO machine is very easy to install , stable structure ,take only about 20 minutes to assemble.
- Wide Application – This 3018 pro engraving machine can be engraved plastic, wood, acrylic, pvc, pcb or the like material. Drill bit can not engrave hard metal, jade or other hard materials.
CNC 3018 Pro is an upgraded version of 3018

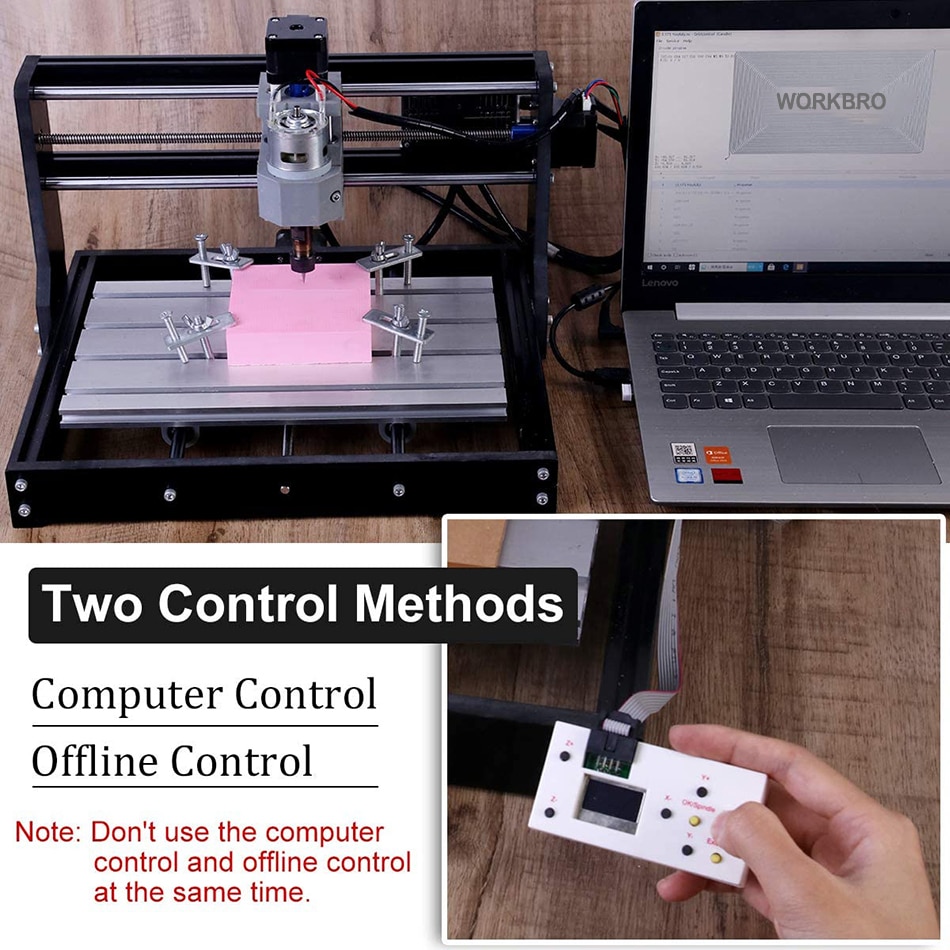

1)Manual Control: Manually adjust the position of the three axes of XYZ as the starting point of carving, manually open or close the spindle.
2)Document Engraving: The offline board can be linked to the GRBL control board for carving without storing a computer.
3)Storage File: After the offline board is connected to the computer, it is recognized as a USB mass storage device, and the engraving file can be directly accessed.
New Ver
Specification of CNC 3018 Pro

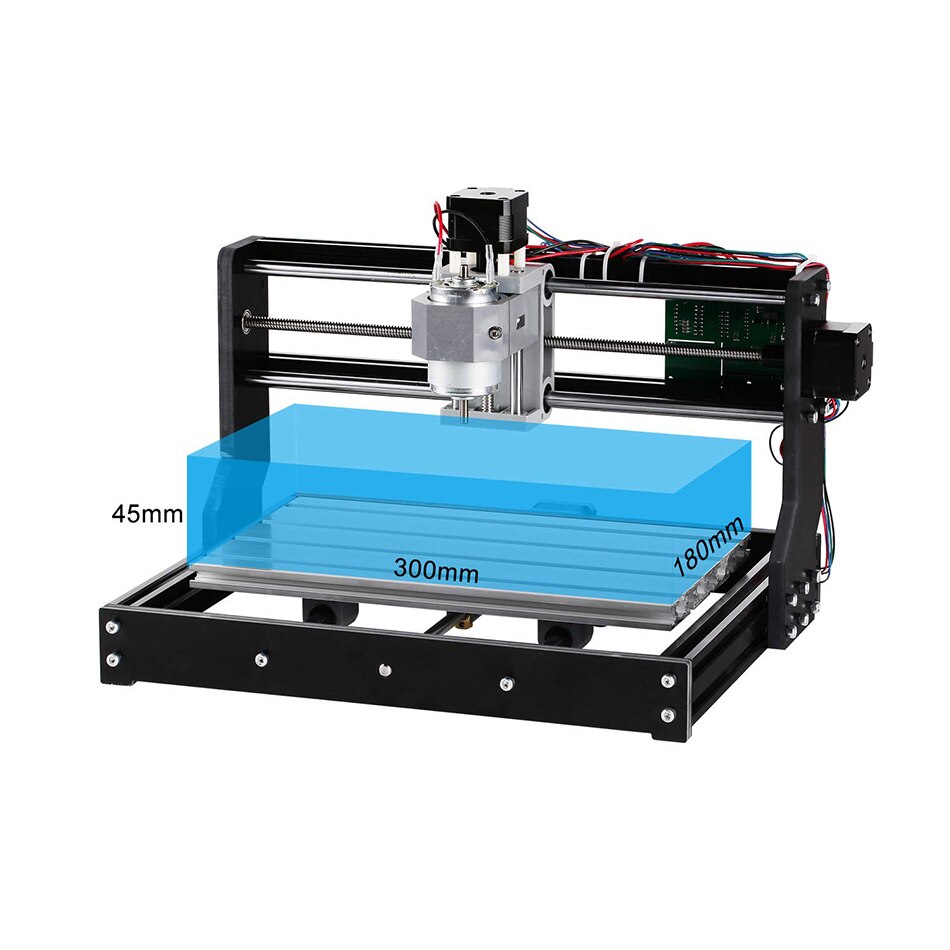

- Effective Engraving Area: 300 x 180 x 45 mm(11.8 x 7.1 x 1.8″)
- Frame Size: 400 x 330 x 240 mm(15.7 x 13.0 x 9.4″)
- Rated power: 60W; Maximum power: 120W
- Software: Grbl control(Candle) / Laser GRBL control systems
- Supported OS: Windows XP, Windows 7, Windows 8, Windows 10
Specification of 775 DC Motor
- Speed: 10000/min
- Rated Current: 1.5A
- Voltage: 24V
- Shaft Diameter: Approx.5 mm; Shaft length: Approx.14 mm
- Body diameter: Approx.42 mm; Motor Overall Length: Approx.67 mm
775 DC Motor Features
- ALL-METAL GEARS, high-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the gear box motor body.
- PURE COPPER WIRE CORE ROTOR, with precision winding technology, the geared motor power instant increased by 30%.
- With Copper Wire Production, durable for using. Easy to wire and install. Durable construction for long-lasting performance. Wide applied to electric tools, electric fans, electric cleaners, etc. Small size but large torque
10pcs PCB Engraving Drill Bits
- A power tool for 2D sculpture, 3D sculpture
- Drill Bits: Tip 0.1 mm, 20 degree, Diameter 3.175 mm
- A Wide Range of Materials can be engraved, including:Aluminum,ABS, Acrylic, PVC, Nylon, Resin ,Majority of plastics ,Wood,
