Description
- Brand Name: becornce
- Origin: CN(Origin)
- Certification: NONE
- Condition: New
- Model Number: Engraver
- CNC or Not: Normal
- Is Smart Device: No
- Style: 3018 PRO M
- Item Weight: 6 kg
- Material: Metal
- Maximum power: 120W
- Softwear: GRBL control systems/ Lasergrbl control systems
Feature:
1. Designed for CNC: A great tool for entrance CNC. Able to carve text on daily materials easily. Great for those who are interested in CNC, helping you engrave the model efficiently.
2. GRBL Control: Latest control system different from another old controller system which was no longer upgraded. No need for extra accessories. Just turn your computer into a CNC machine.
3. Compatible with different laser modules of 2500mW, 5500mW, 7000mW, 10000mW(lasers not included), More than just an engraving machine but a laser engraver as well.
(Now we recommend the laser module (2500mW Blue Laser Module) produced by the original manufacturer

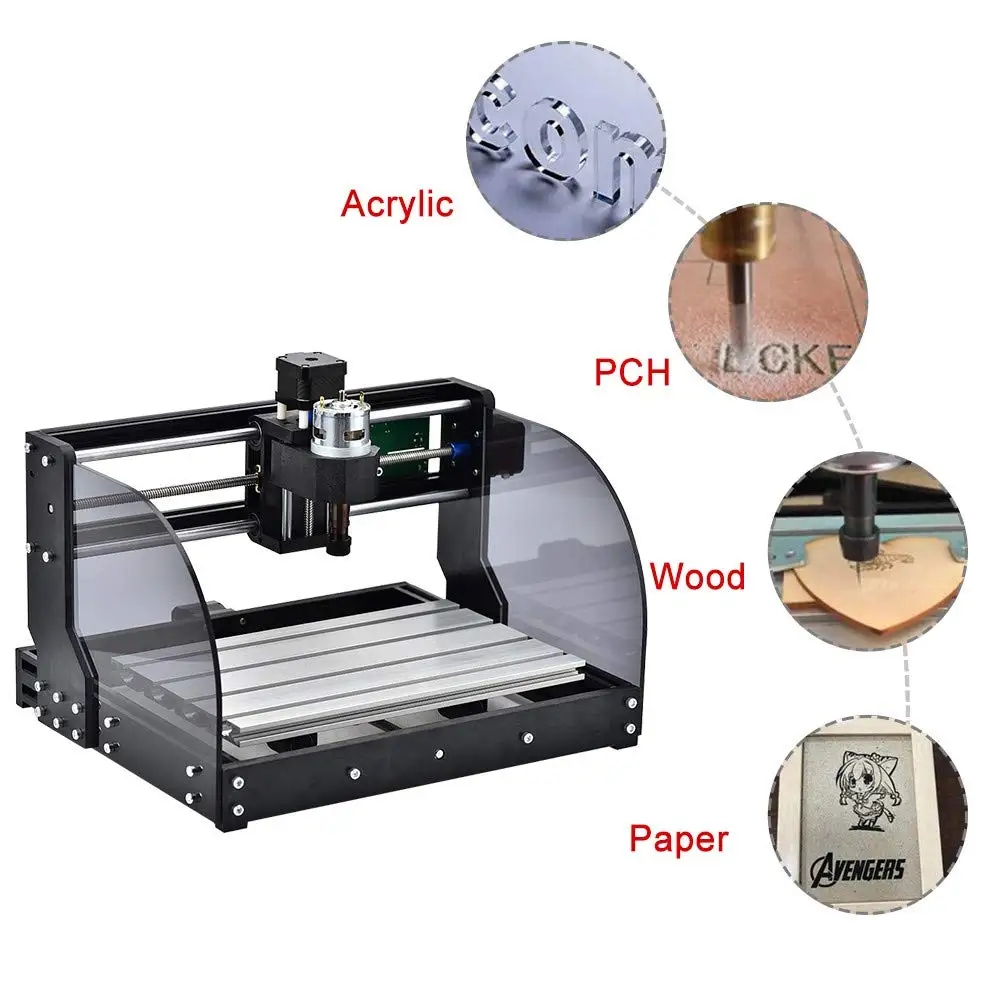

4. Wide Application: With manuals and software suitable for carve wood, plastic, acrylic, PCB CCL, soft metal like copper and aluminum, and other materials, a great tool for CNC lovers.
5. Supported OS: Windows XP, Windows 7 32/64 bits, Windows 8, Windows 10
6. Drill Bits: Tip 0.2 mm, 20 degrees, Diameter 3.175 mm
Feature:
1. Support GRBL and benbox firmware. Support CNC 3-axis laser engraving machine.
2. The stroke length isn’t limited to 30×18 and 24×18, it can be setting another length. Please set the stroke in the command.
For example
3018, please set the stroke in the command, 30cm length and 18cm width;
2418, please set the XY stroke in the command, length 24cm, width 18cm.

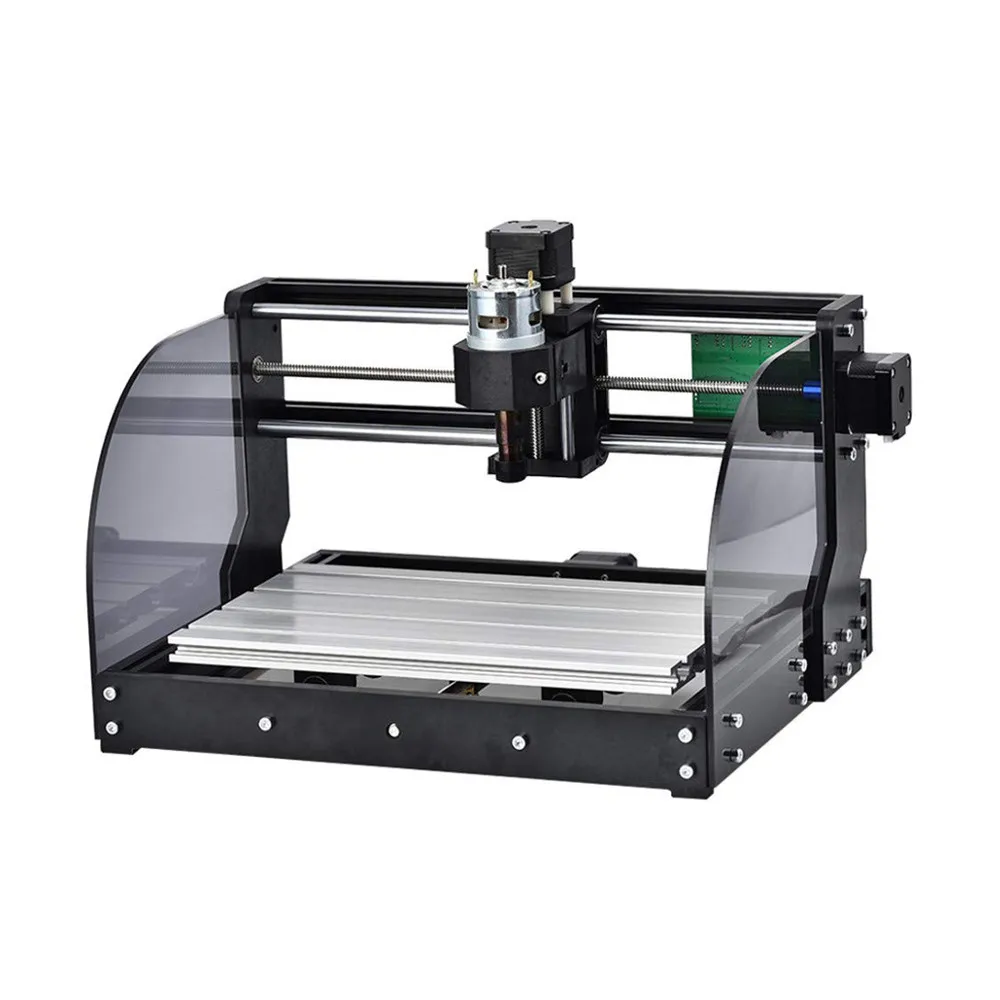

Machine Specification:
| Style | 3018 PRO M |
| Product Dimensions | 10.9 x 16.7 x 10.9 cm |

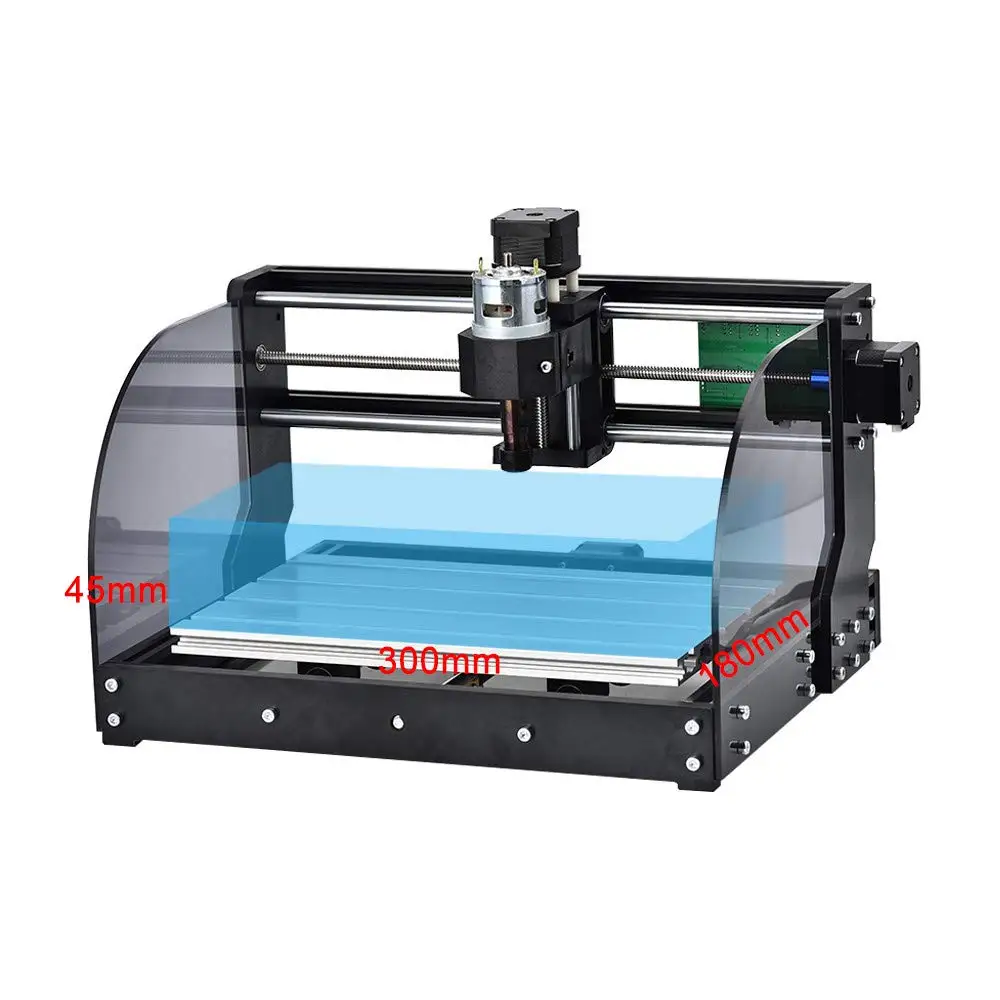

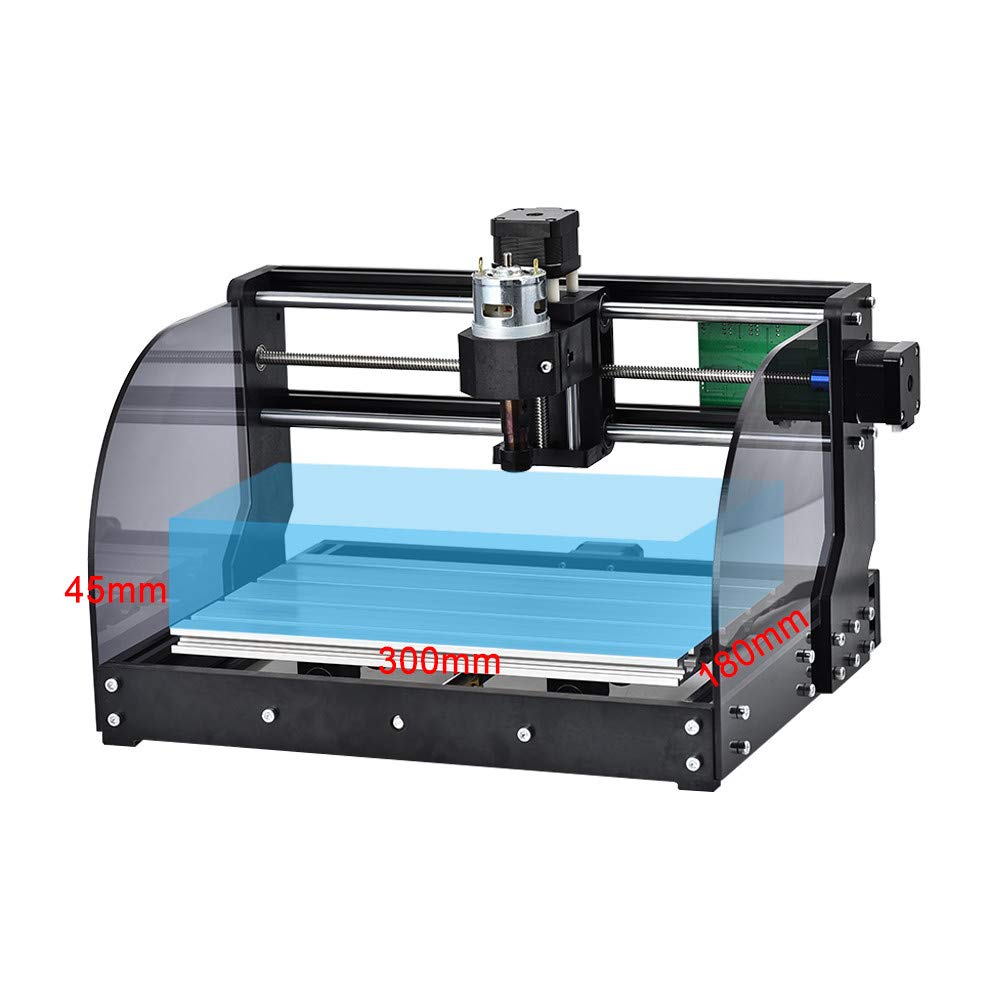

| Effective Engraving Area | 300 x 180 x 45mm(11.8 x 7.1 x 1.8”) |
| Item Weight | 6 kg |
| Material | Metal |
| Step Motor | 1.3 A, 12V, 0.25 Nm torque (2.2 in-lb) |
| Rated power | 60W |
| Maximum power | 120W |
| Software | GRBL control systems/ Lasergrbl control systems |
Controller Specification:
| USB Cable Length | 20cm |
| Firmware | GRBL 08, 09, 1.1, and so on |
| Input Voltage | DC 7V- 36V |
| Applicable CNC Router | 3 Axis CNC router 1610; 2418; 3018 |
Instruction:

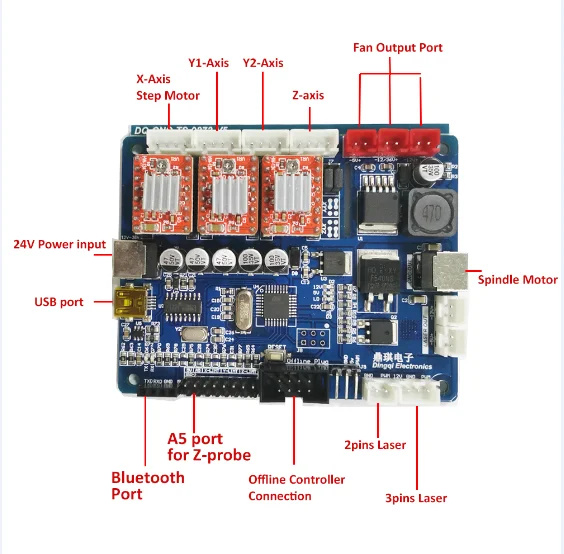

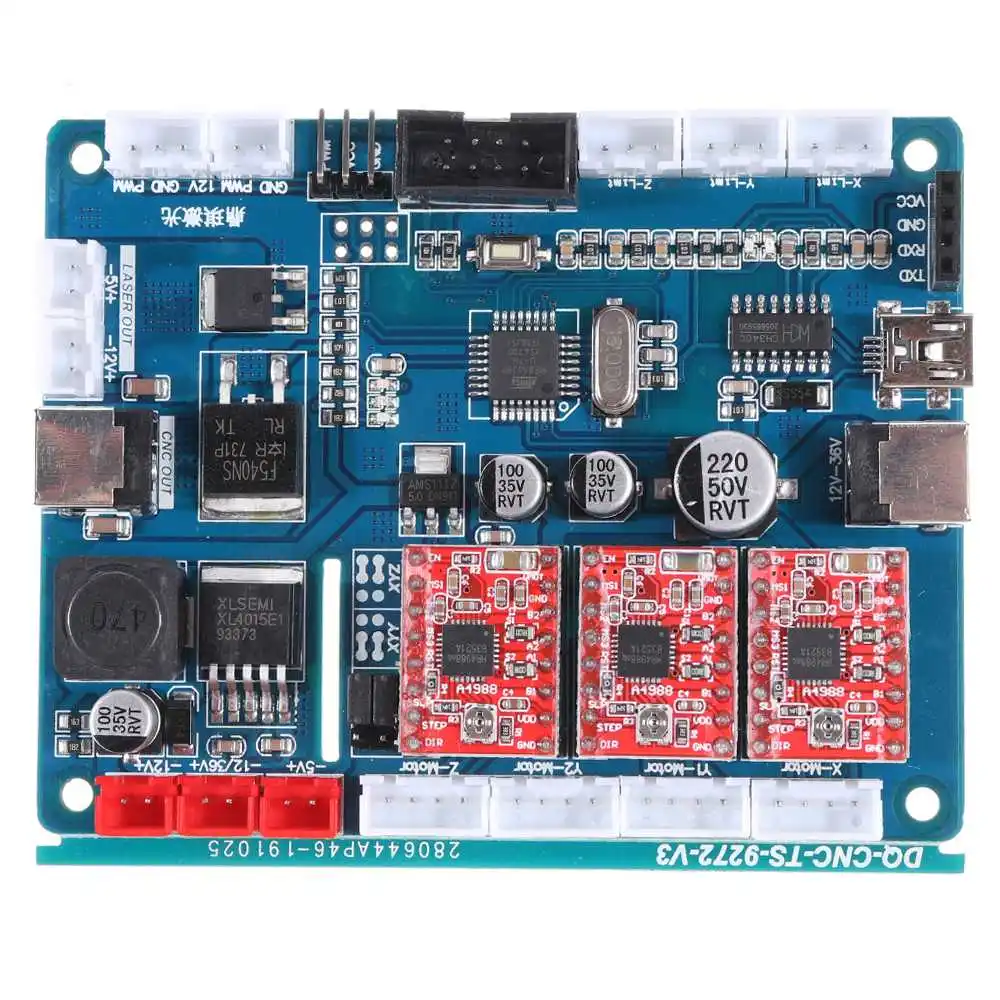

3-Axis GRBL Control Board
Output signal:
1: Fan: Used for shaft motor cooling
2: Shaft: Connect motor shaft, keep the same with power supply voltage, 5A electricity, if the motor power of the spindle is high, can connect external relays such as the switch. G code M3 open, M5 closed, with version 0.9 of the firmware can adjust PWM, achieve the speed of the axis governing and tunable laser
3: X-axis motor signal output, A4988 max 1.5A electric current
4: Y-axis motor signal output, A4988 max 1.5A electric current
5: Z-axis motor signal output, A4988 max 1.5A electric current
Input Signal:
1: X-axis minimum limit X-
2: Y-axis minimum limit Y-
3: Z-axis minimum limit Z-
4: Reset button: press the button, system will restart, can be used for urgent stopping of the machine
Package Included:
1 x Wood Engraving Machine Full Set (Unassembled Delivery)
1 x GRBL 3-Axis Control Board
1 x USB Cable
1 x Cable for Spindle Connection
(Spindle Motor, Control Board, Z A xis Set, Stepper Motors, and other Assemble Parts are all included.)

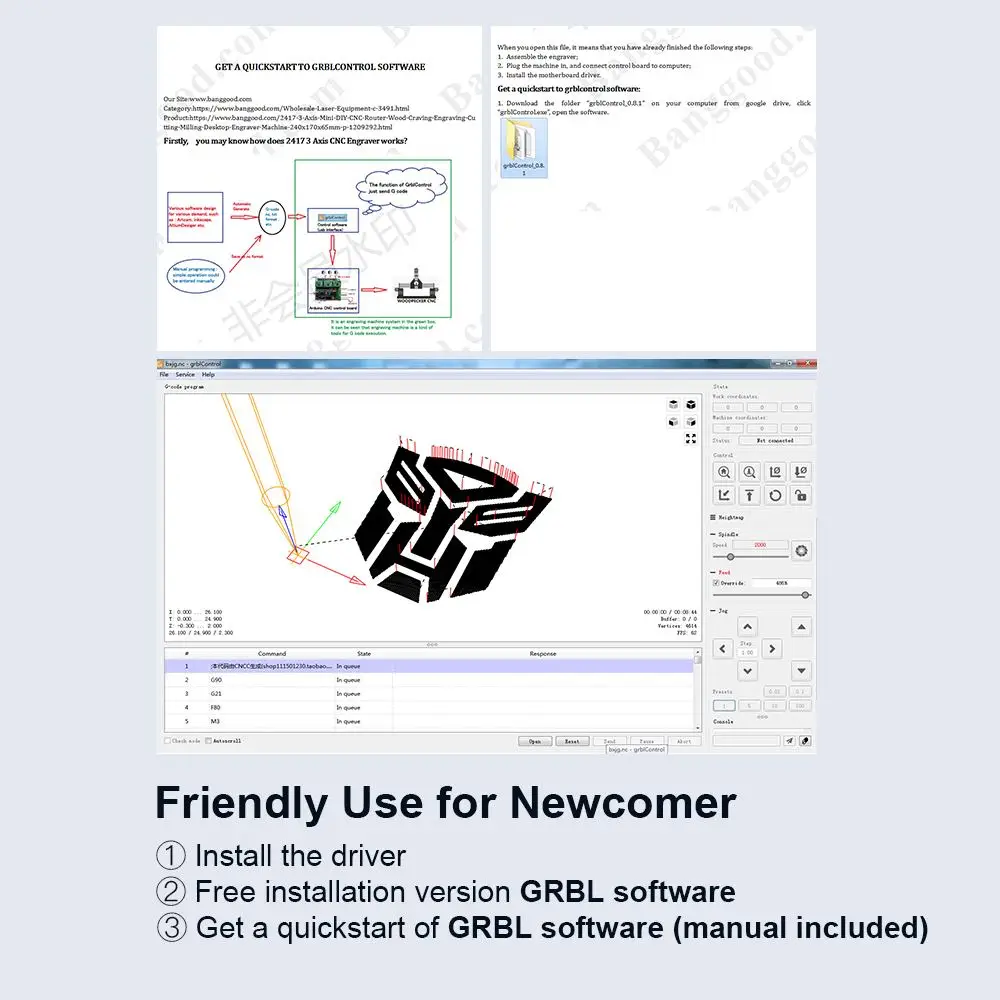

Instructions & Software: Assembly instructions, control software and further information please CLICK HERE
