Description
- Brand Name: SNAPMAKER
- Origin: Mainland China
- Item Type: High Power Module
- Model Number: 71028
- Product Name: Snapmaker 10W High Power Laser Module
- Laser Power: 10 W
- Laser Type: 450/460 nm Semi-conductor
- Input Voltage: 24 V
- Laser Class: Class 4
- Maximum Work Speed: 6000 mm/min
- Laser Spot Dimensions: 0.05 mm * 0.2 mm
- Weight: 0.63 kg
- Frame Material: Aluminum Alloy
- Maximum Cutting Depth: 8 mm (Basswood)
- Main Feature 1: Auto Focus / Tailor-made Software
- Main Feature 2: Upgraded Camera Capture / Faster Speed
- Main Feature 3: Support Various Materials for Engraving / Cutting

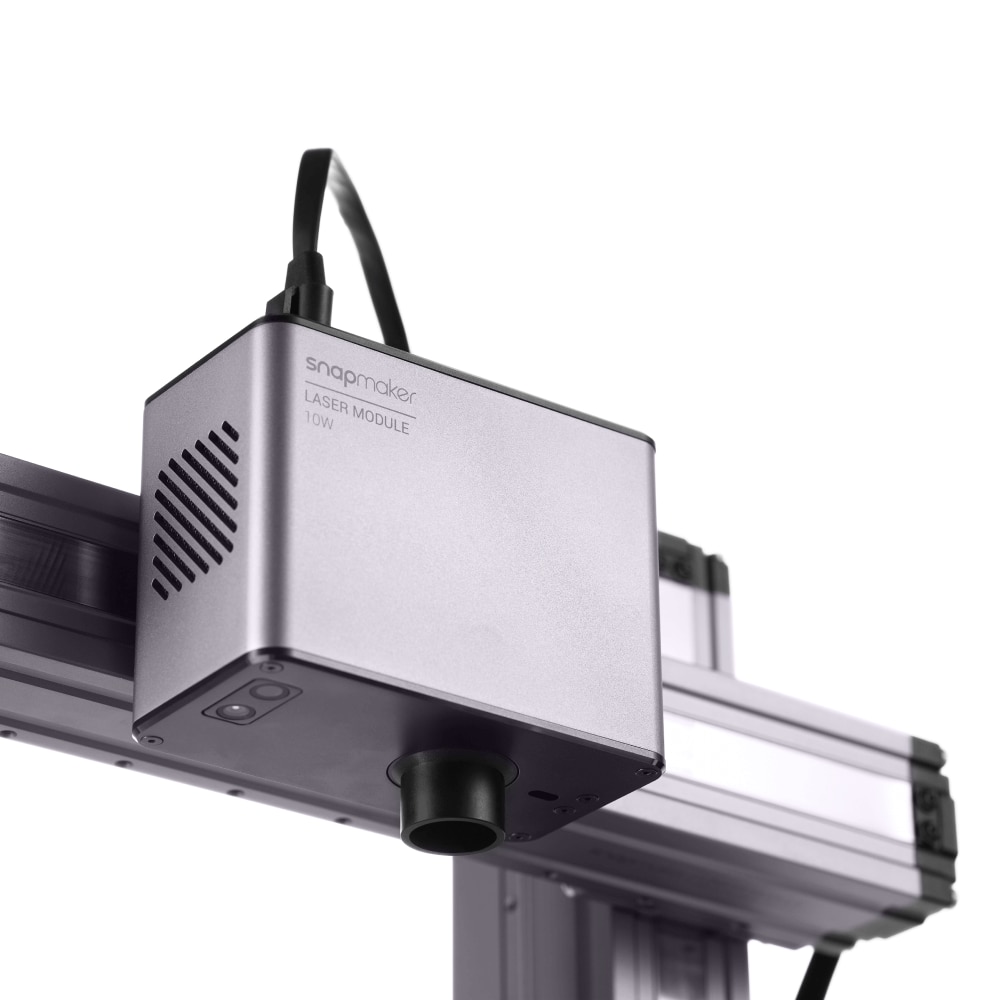

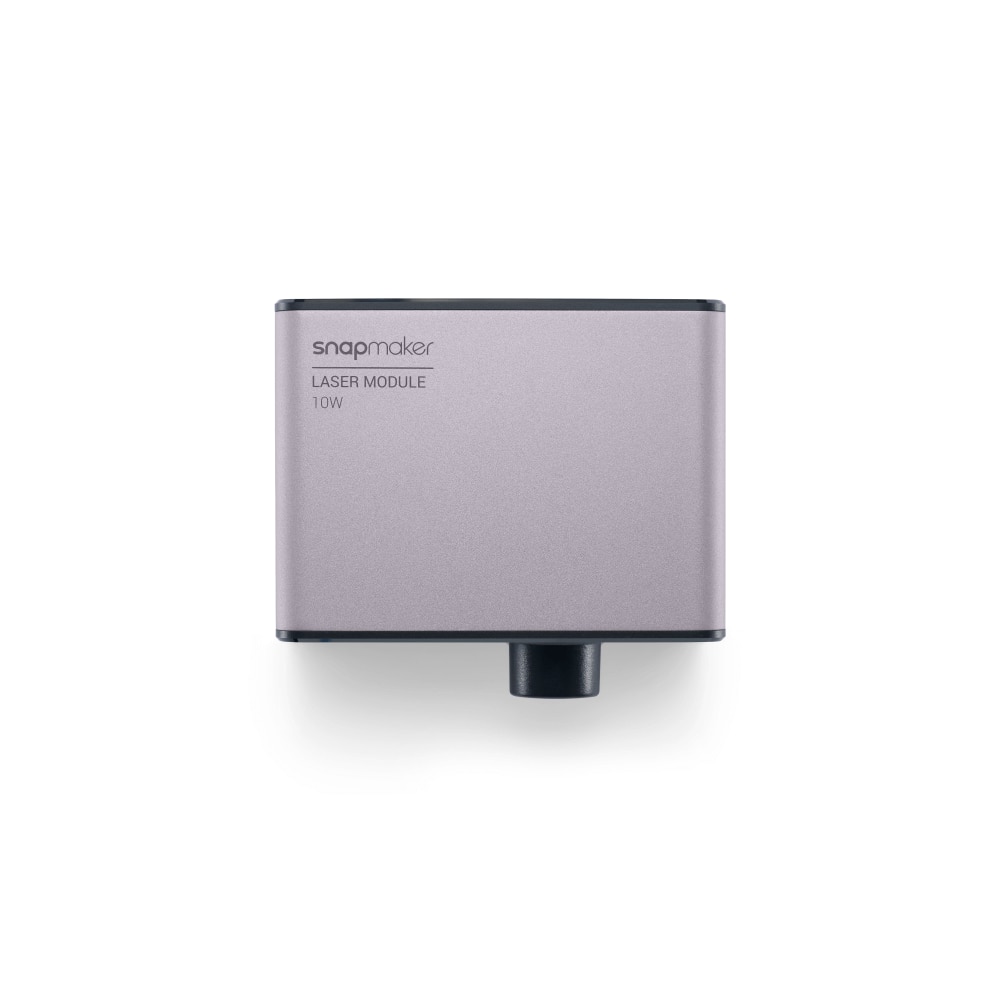

Snapmaker 10W High Power Laser Module
Main Features:
10W
High Power / Auto Focus / Upgraded
Camera Capture / Tailor-made
Software
The 10W Laser Module is equipped with the most cutting-edge laser beam splitters, effecting a power leap from 5W to 10W. This means you can now play with a wider variety of materials and hammer out more projects.

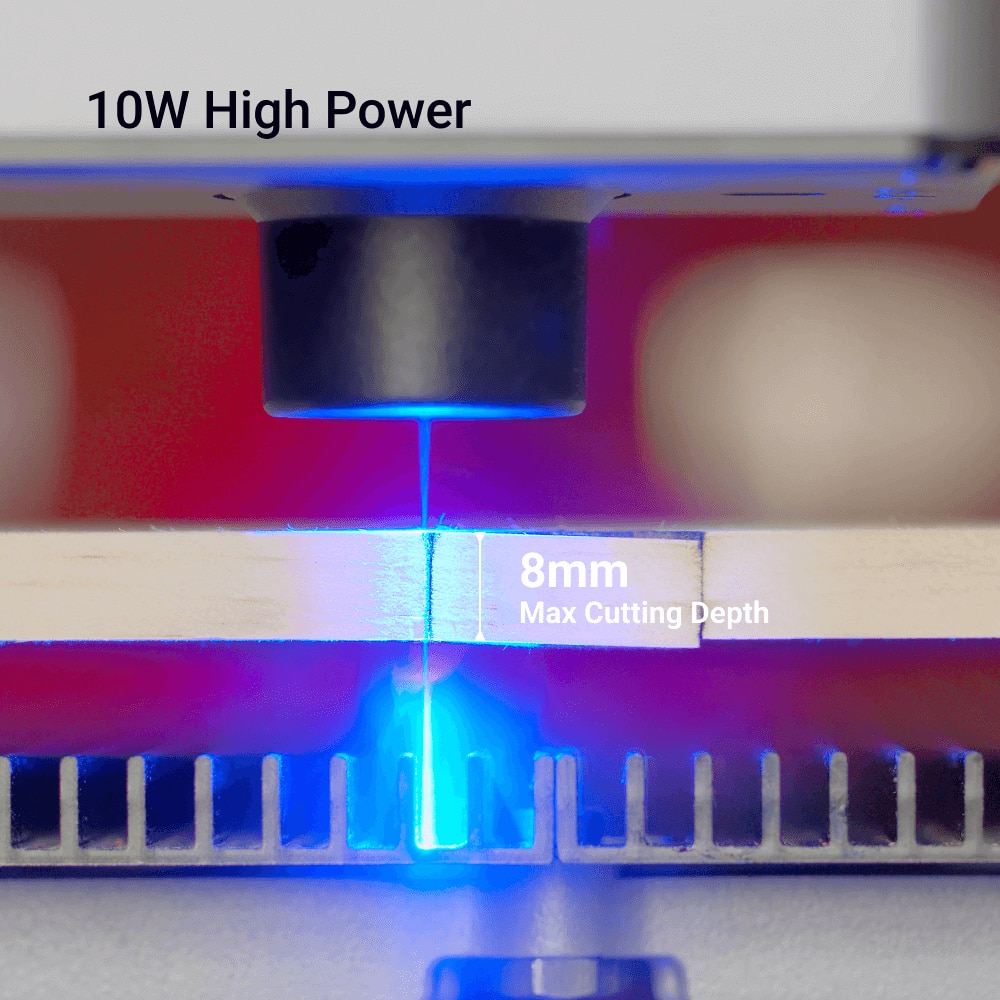

The work speed of the 10W Laser Module can be as high as 6000 mm/min, while cutting through basswoods as thick as 8 mm.
With the Fast-axis Collimating (FAC) lenses embedded in the two laser diodes, the module has a higher output power and an ultra-fine laser focus (0.05 mm × 0.2 mm).
Thanks to the triangulation technique, the module is able to measure the thickness of your material by obtaining a few sets of data on the camera and light emitter. It will then adjust itself in Z orientation so that the focal point falls right on the material surface.

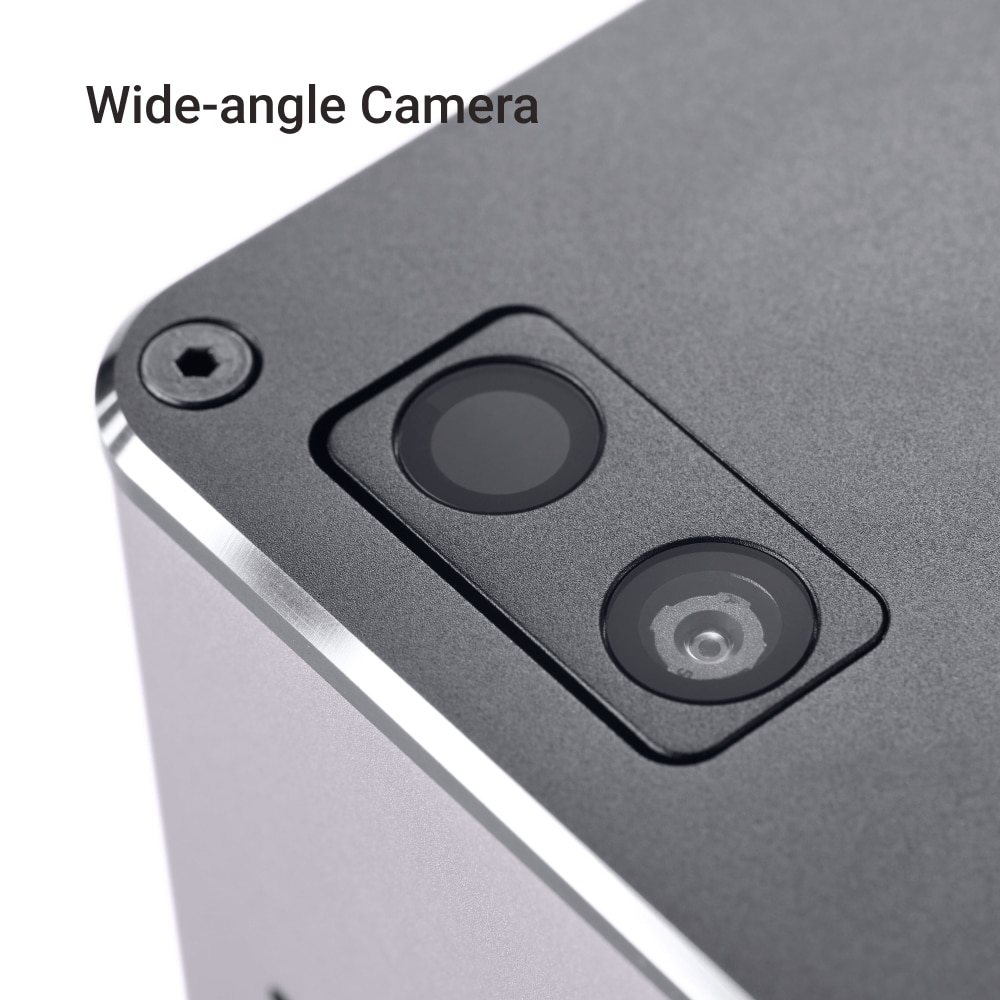

The wide-angle HD camera captures in one take your material and lets you get an instant preview in Luban of your laser job on the material.
With Snapmaker Luban, you can polish your basic skills and master more sophisticated tricks, from simple image transform to setting the right parameters for varying materials, and slicing 3D models into laser cuttable vectors.
The gyro sensor in the module makes sure that no laser beam comes out if the module is incorrectly installed or deviates from its designated position.
The 10W Laser Module is compatible with all models of the Snapmaker 2.0 series apart from the 150 models, and will be compatible with upcoming machines. You can use it with the addons as well, including the Rotary Module, Emergency Stop Button, Air Purifier, and CAN Hub.
