Upgrade CNC 3018 Pro Max Engraver with 200W Spindle 3 Axis Pcb Milling Machine GRBL Control Wood Router Engraver DIY CNC Machine

$358.80$386.32

SKU: 1005002619028006 Category:

Description

  • Brand Name: annoytools
  • Origin: CN(Origin)
  • Certification: ce

Upgrade CNC 3018Pro Max Engraver with 200W Spindle,

3 Axis Pcb Milling Machine, GRBL Control Wood Router Engraver

DIY CNC Machine with Offline Controller

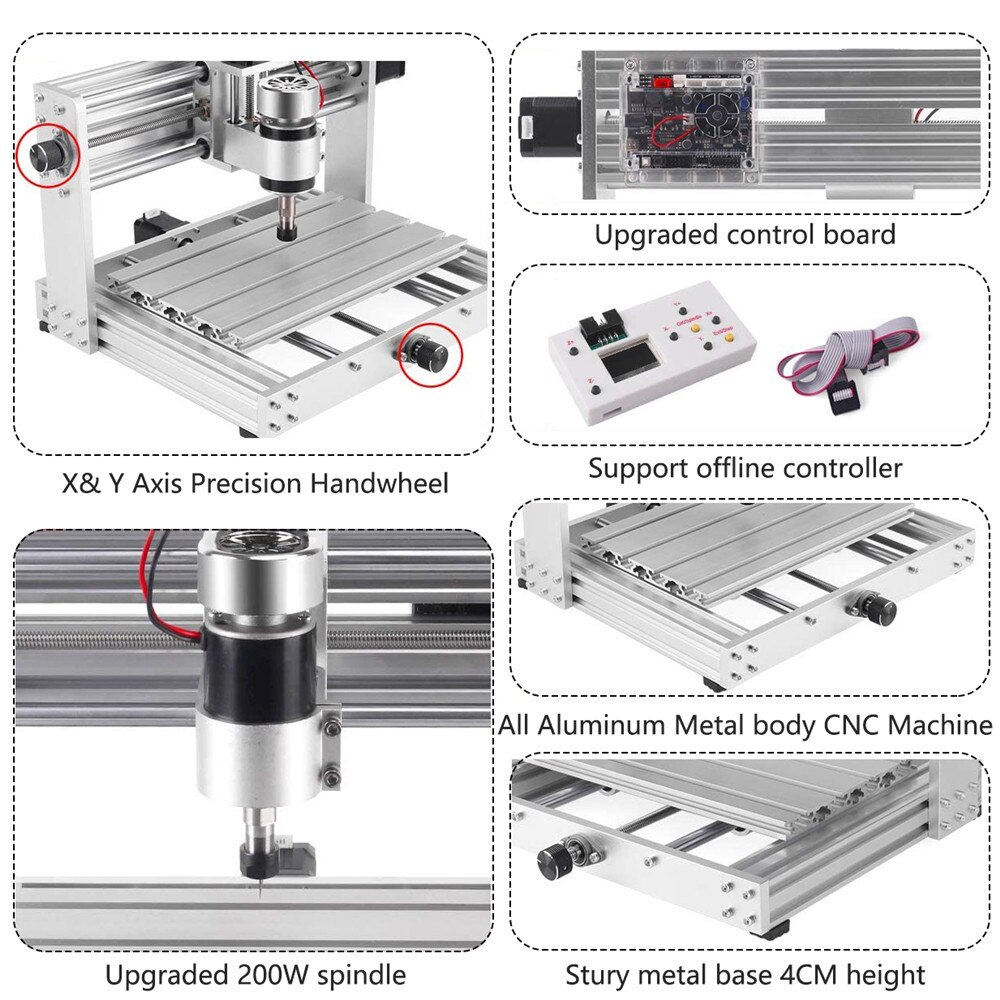

【All-aluminum alloy body】- The engraving machine adopts and all-aluminum body. The frame is composed of 4040 aluminum and 10mm thick aluminum. The XYZ components are all processed by CNC, non-aluminum plate splicing, high precision and high strength.

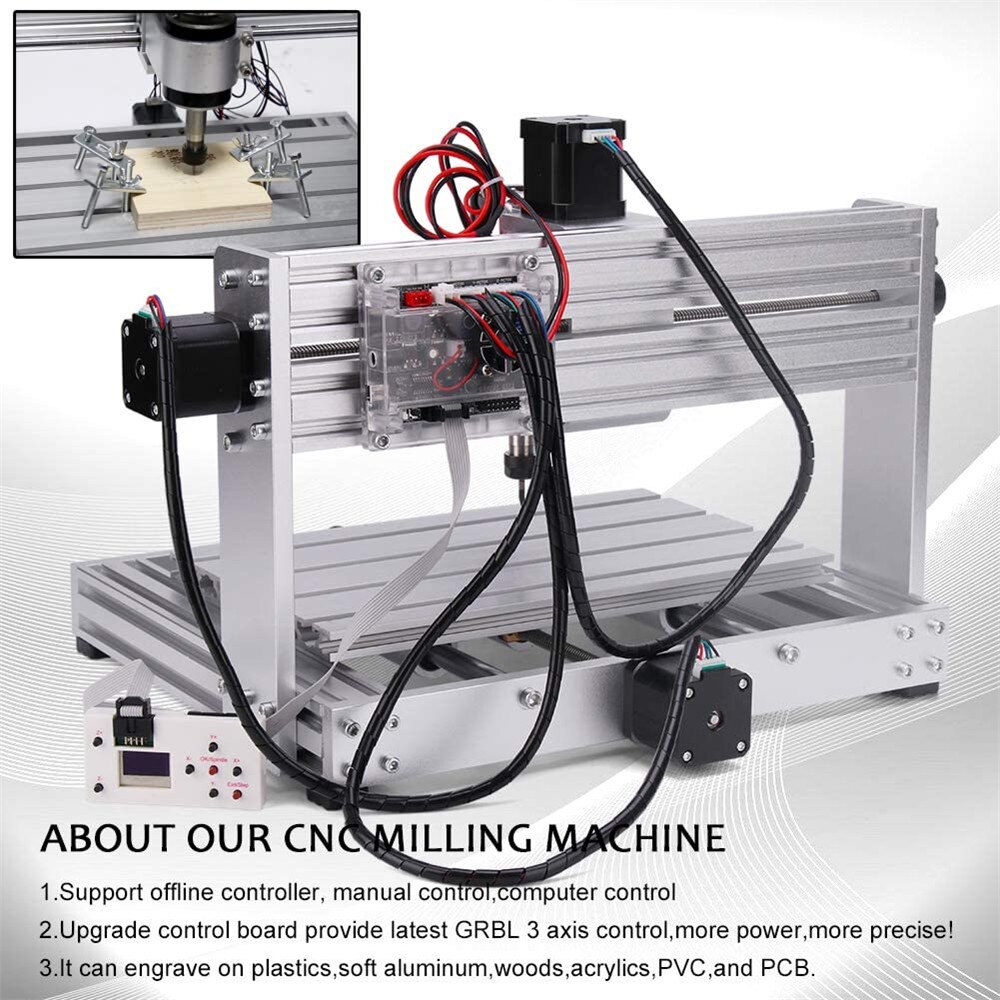

【Offline Controller】- Coming with an offline controller, no need to connect to the computer, just adjust X, Y, Z axis location on your offline controller ; no need to download files, the engraving file can be directly accessed.

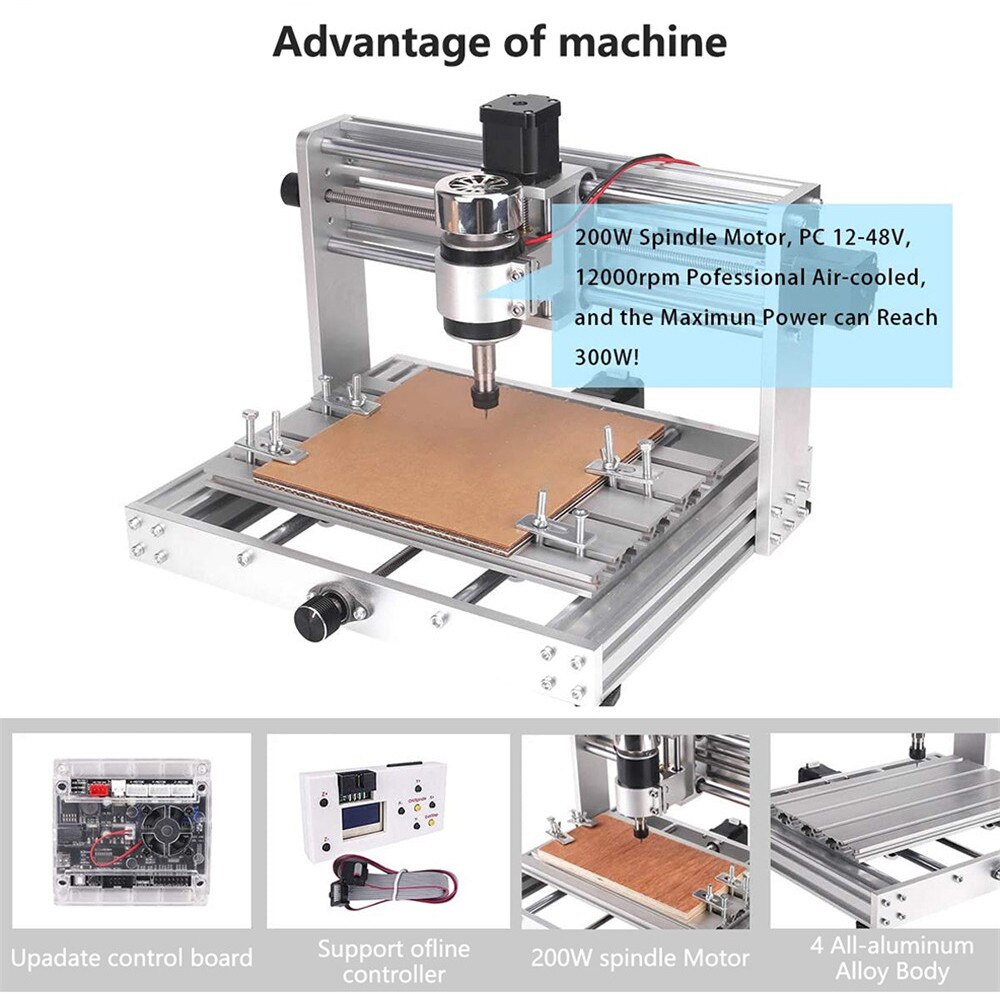

【200W Spindle】- The main shaft has a professional air-cooled main shaft with a diameter of 52mm and rated power of 200W, and the maximum power can reach 300W.

【Simple Assembly】- CNC 3018PRO-MAX is an upgraded version of 3018Pro. All components do not need to be positioned, which greatly reduces the difficulty of assembly and improves the working accuracy. Moreover, the base height is raised to 4cm for a better stability.

【Wide Application】- Capable of cutting all types of plastics, soft aluminum, woods, acrylics, PVCs, and PCBs, the 3018Pro-MAX can be used on a wide range of projects and materials.

【Package】- CNC machine kit comes with 1 piece offline controller.

Complete set engraving machine; clamps*4, bits*10; extension rod with ER11 collet*1; 1 set PCB Coated Milling Cutter; 1 ER11 collet set; Please see our mine picture for details.

Effective Engraving Area: 300 x 180 x 45mm(11.8 x 7.1 x 1.8”)

Frame Size: 400 x 330 x 240mm(15.7 x 13.0 x 9.4”)

Frame Material: aluminum alloy

Z-Axis Component Material: aluminum alloy

Spindle: 200 W Spindle

Softwear: GRBL control systems

Power Supply : AC 24V 10A

Stepper Motor : 1.3A 0.25N.m

Supported OS: Windows XP/ Win 7/ Win 8/ Win10

Usage : can be engraved plastic, wood, acrylic, pvc, pcb, aluminum, wood or the like material.

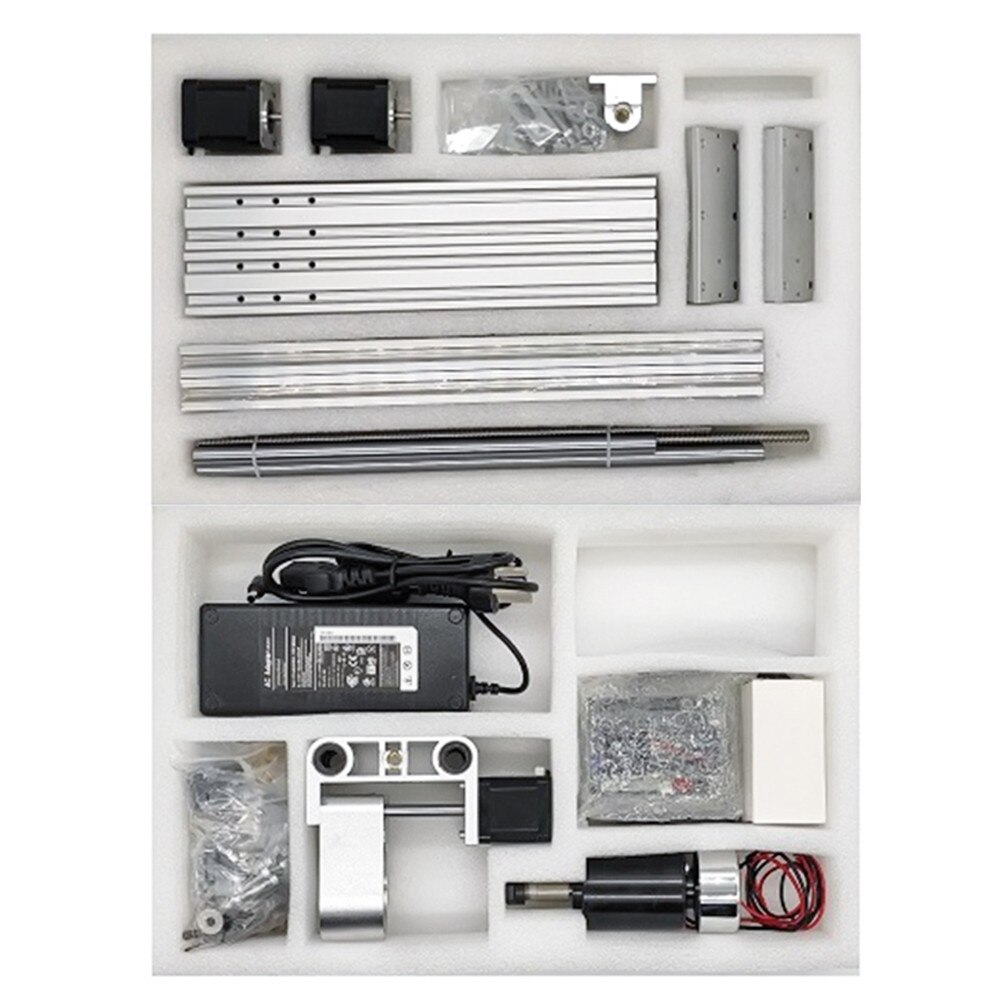

Package Include

1 * 3018Pro-MAX Router Kit

1 * Offline Controller

1 * Extension Rod with ER11 Collet

1 * Power Supply

4 * Plate Clamp

10 * CNC Router Bits

1 * U Disk

Spindle: 200 W Spindle
