Description
- Brand Name: MASTER JIANG
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: Upgrade 3018 Plus Engraving machine Kit
- CNC or Not: CNC
- Is Smart Device: No

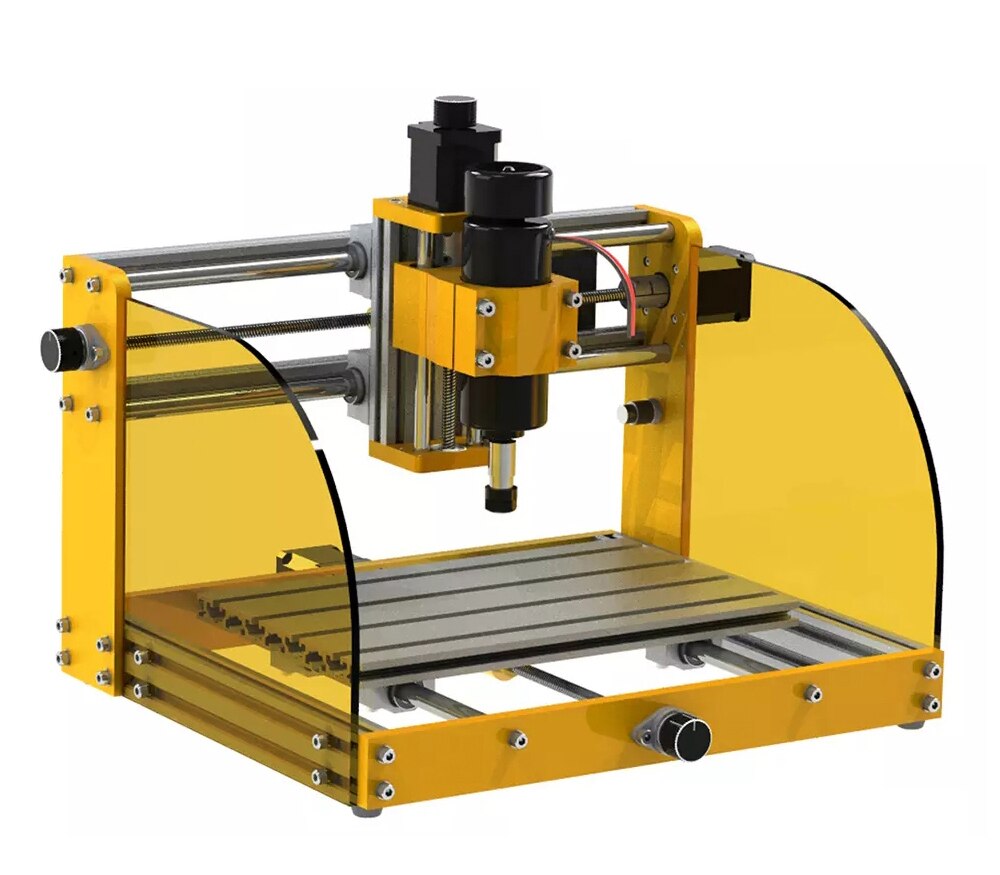

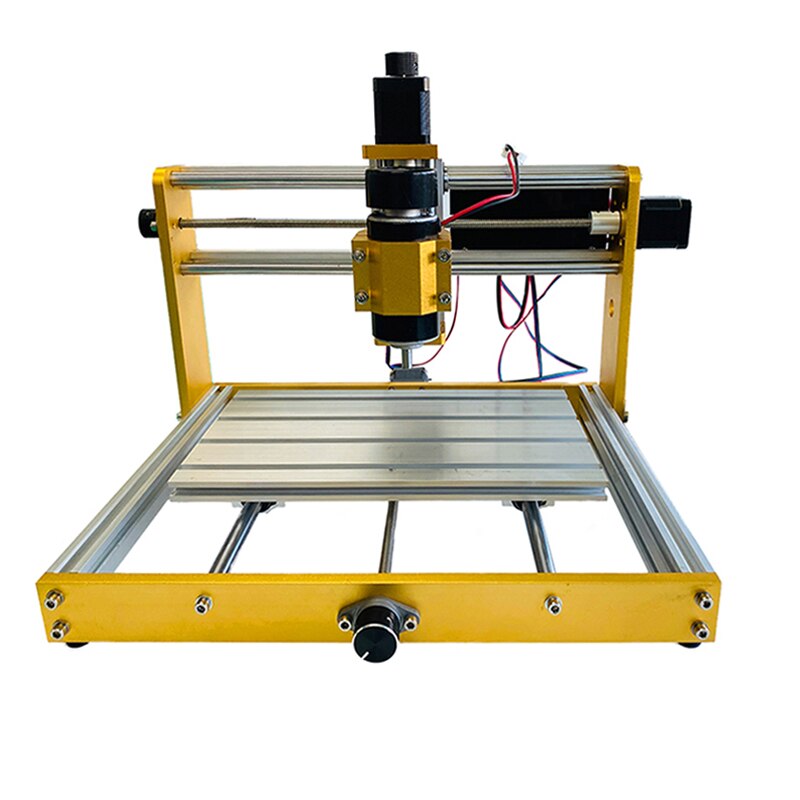

Upgrade 3018 Plus Metal Frame Engraver with Laser Protection Plates GRBL DIY Pcb Milling Machine, Carved On Metal, Nema 17/23 Stepper 52mm 300/500W Spindle 5500mW/15W/30W Laser Module
Feature:
X, Y, Z working area: 300 x 180 x 60 mm (about 11.81 x 7.08 x 2.59 inch )
Aluminum table area: 300 x 180 mm (about 11.81 x 7.08 inch )

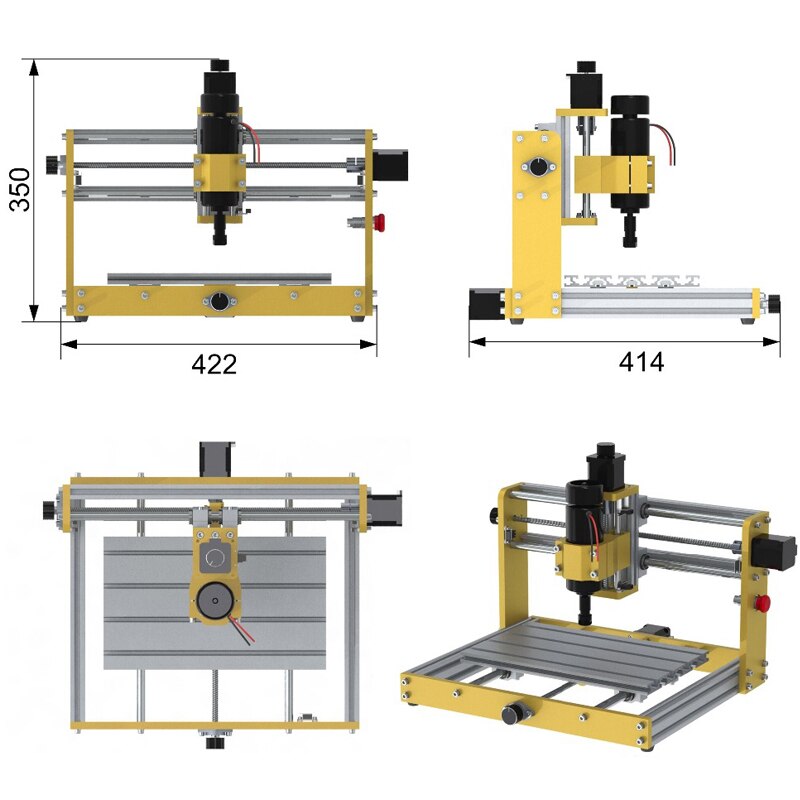

Frame: 390 x 320 x 250 mm (about 15.35 x 12.59 x 9.84 inch )
Material: Aluminium
Stepper Motor: Apply to Nema17/23 42/57BYG Stepper motor
Screw: T8 anti-backlash nut, pitch 2mm, lead 4mm
Spindle hole diameter: 52mm

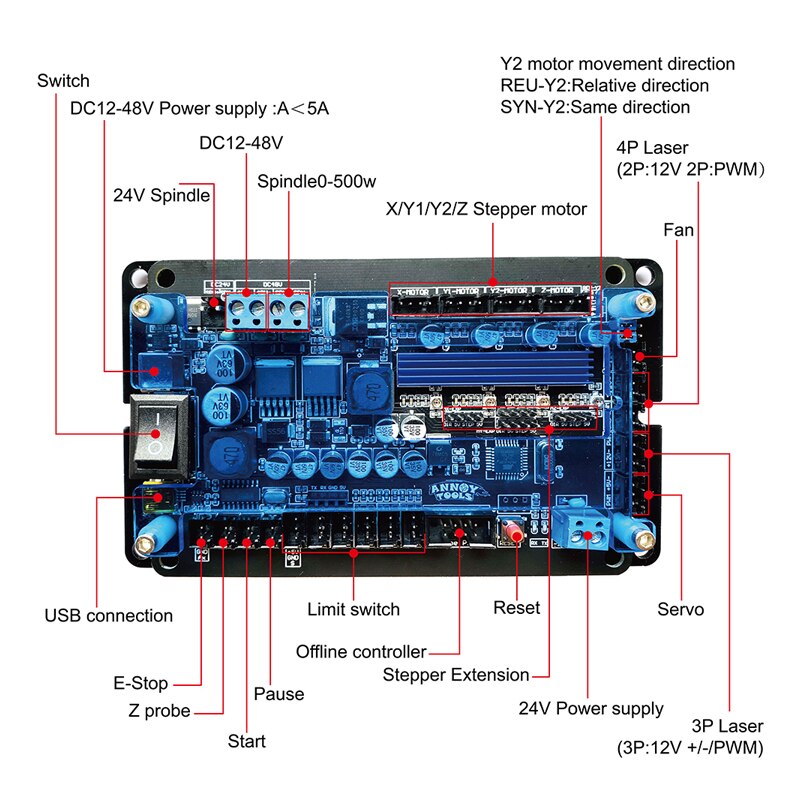

Control board: 5.2 Multi-function control board
Supported System: Win 7/8/10
Supported Software: CANDLE 1.1, LASERGRBL, Weidiao and etc.
Suppoted Material: Wood, acrylic, PVC, nylon, epoxy resin, glass fiber PCB board, POM, carbon fiber board
Suppoted Material of Laser: wood, plastic, anodized aluminum, stainless steel (304, 201)
Package Introduction:
Frame：

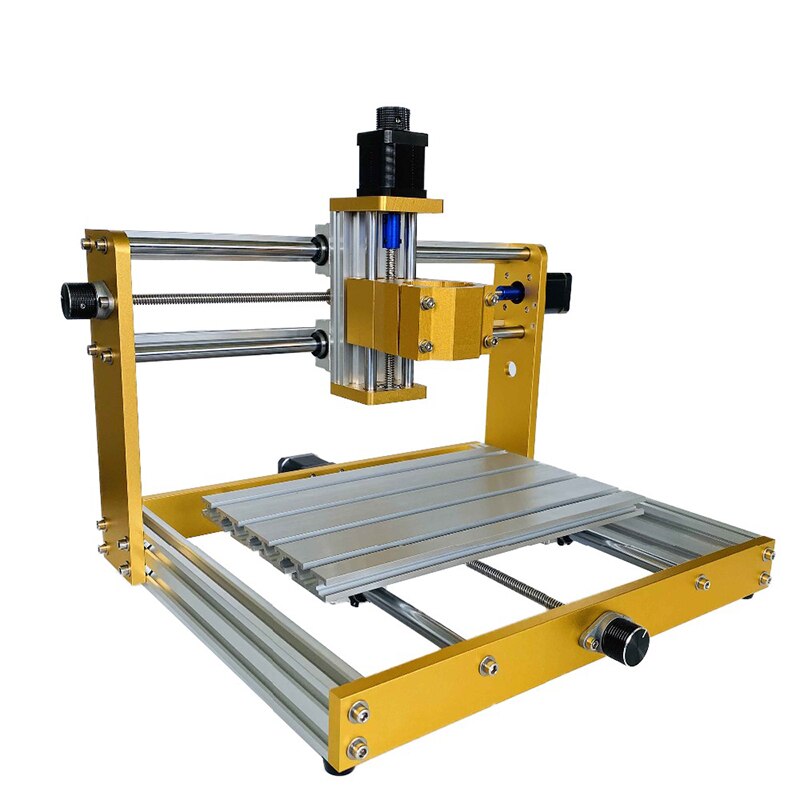

1 x 3018 Plus Metal Frame with Laser Protection Plates (Only frame and plates, shown as picture )
With stepper motor:
1 x 3018 Plus Metal Frame with Laser Protection Plates
3 x Nema 17 42HS48mm (shown as picture)
With 300W:
1 x 3018 Plus Metal Frame with Laser Protection Plates
1 x 300W Spindle
1 x 300W Power Supply
1 x 3 Axis Controller
1 x ER11 Chuck 8mm
1 x Collet 3.175mm
4 x Plate
10 x Drill Bit
1 x Gift: Dust Ball
With 500W:
1 x 3018 Plus Metal Frame with Laser Protection Plates
1 x 500W Spindle
1 x 500W Power Supply
1 x 3 Axis Controller
1 x Collet 3.175mm
4 x Plate
10 x Drill Bit
1 x Gift: Dust Ball
300W 5.5W Laser:
1 x 3018 Plus Metal Frame with Laser Protection Plates
1 x 300W Spindle
1 x 300W Power Supply
1 x 3 Axis Controller
1 x ER11 Chuck 8mm
1 x Collet 3.175mm
4 x Plate
10 x Drill Bit
1 x Gift: Dust Ball
1 x 5.5W Laser Module (Adjustable Focus)
1 x Laser Protection Goggles
300W 15W Laser:
1 x 3018 Plus Metal Frame with Laser Protection Plates
1 x 300W Spindle
1 x 300W Power Supply
1 x 3 Axis Controller
1 x ER11 Chuck 8mm
1 x Collet 3.175mm
4 x Plate
10 x Drill Bit
1 x Gift: Dust Ball
1 x 15W Laser Module (Fixed Focus)
1 x Laser Protection Goggles
500W 5.5W Laser:
1 x 3018 Plus Metal Frame with Laser Protection Plates
1 x 500W Spindle
1 x 500W Power Supply
1 x 3 Axis Controller
1 x Collet 3.175mm
4 x Plate
10 x Drill Bit
1 x Gift: Dust Ball
1 x 5.5W Laser Module (Adjustable Focus)
1 x Laser Protection Goggles
500W 15W Laser:
1 x 3018 Plus Metal Frame with Laser Protection Plates
1 x 500W Spindle
1 x 500W Power Supply
1 x 3 Axis Controller
1 x Collet 3.175mm
4 x Plate
10 x Drill Bit
1 x Gift: Dust Ball
1 x 15W Laser Module (Fixed Focus)
1 x Laser Protection Goggles
300W 30W Laser:
1 x 3018 Plus Metal Frame with Laser Protection Plates
1 x 300W Spindle
1 x 300W Power Supply
1 x 3 Axis Controller
1 x Collet 3.175mm
4 x Plate
10 x Drill Bit
1 x Gift: Dust Ball
1 x 30W Laser Module (Fixed Focus)
1 x Laser Protection Goggles
500W 30W Laser:
1 x 3018 Plus Metal Frame with Laser Protection Plates
1 x 500W Spindle
1 x 500W Power Supply
1 x 3 Axis Controller
1 x Collet 3.175mm
4 x Plate
10 x Drill Bit
1 x Gift: Dust Ball
1 x 30W Laser Module (Fixed Focus)
1 x Laser Protection Goggles
Note:
1.The laser cannot be used to carve or engrave mirror or reflective materials!
2. This kit is disassemble, needs the customer DIY assembling, needs certain electronic and the Mechanical Foundation.
Note: All laser kits will be with connection cable and protection glass; color of laser (blue and gold) will be sent in random!
