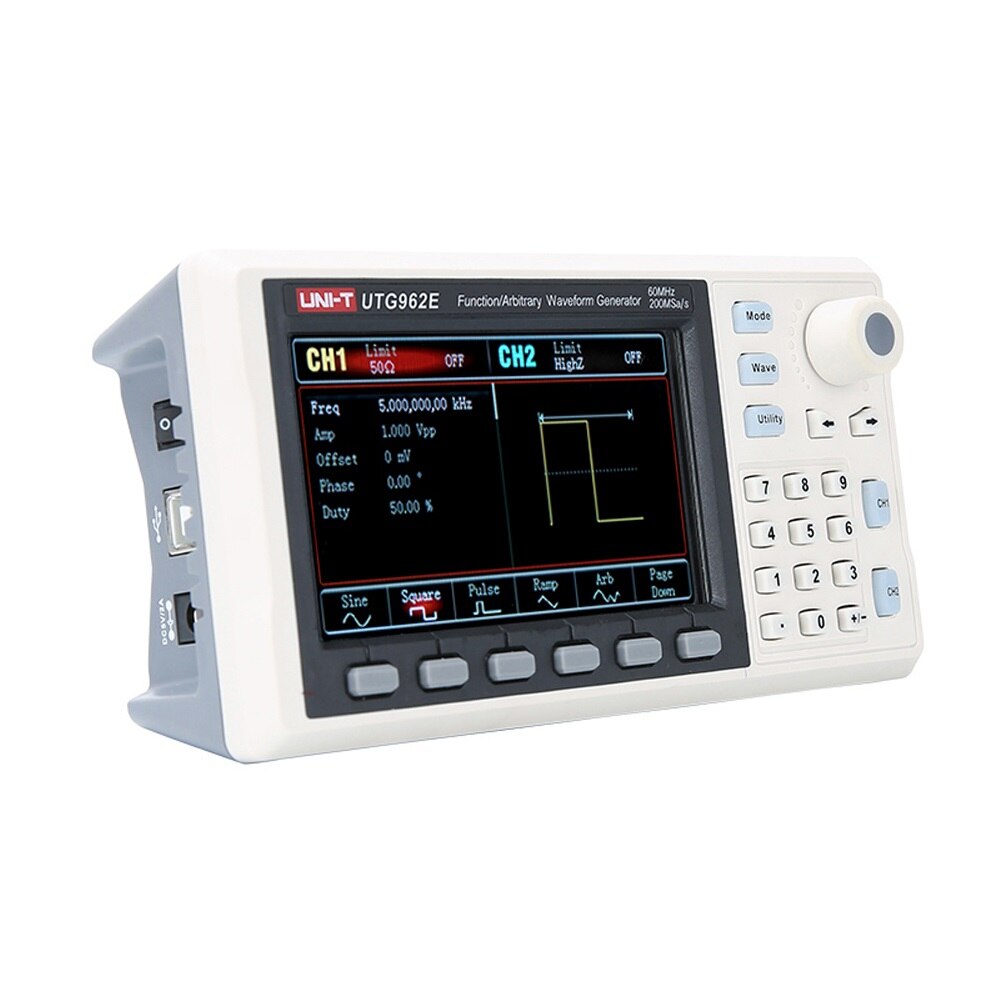

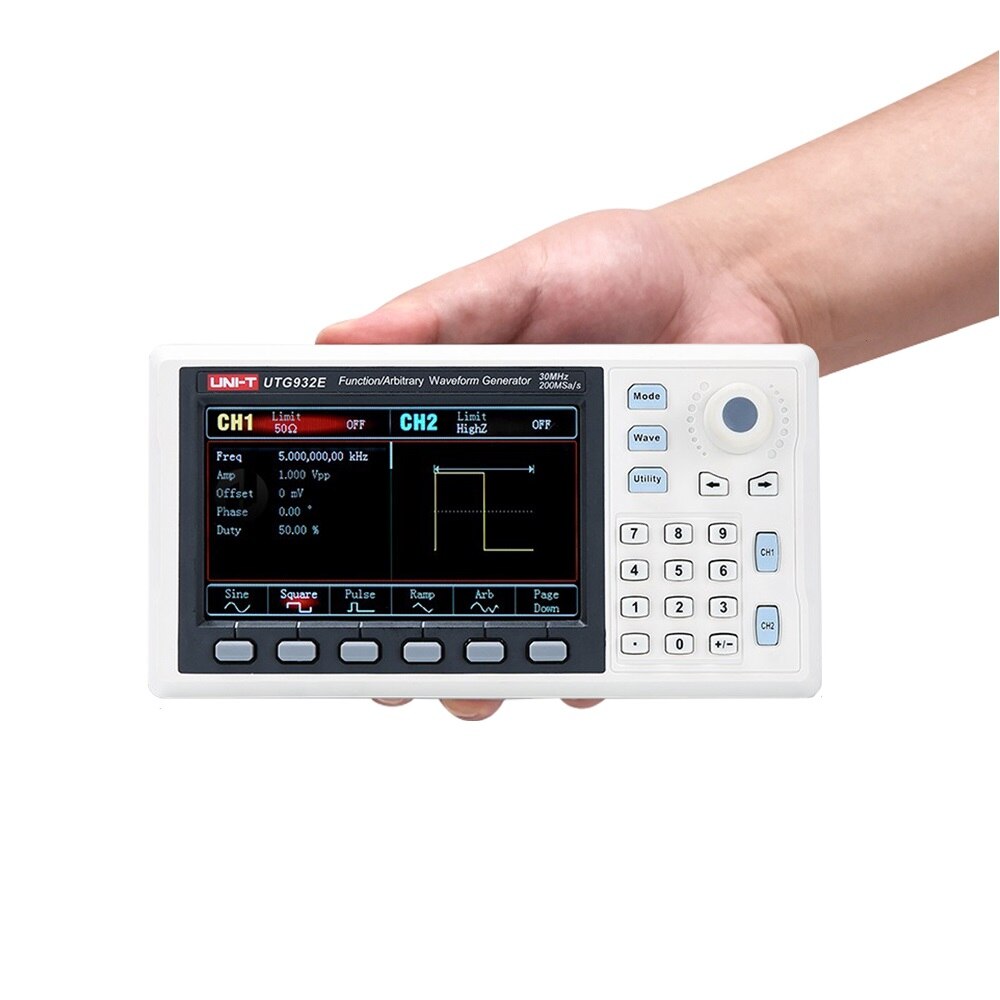

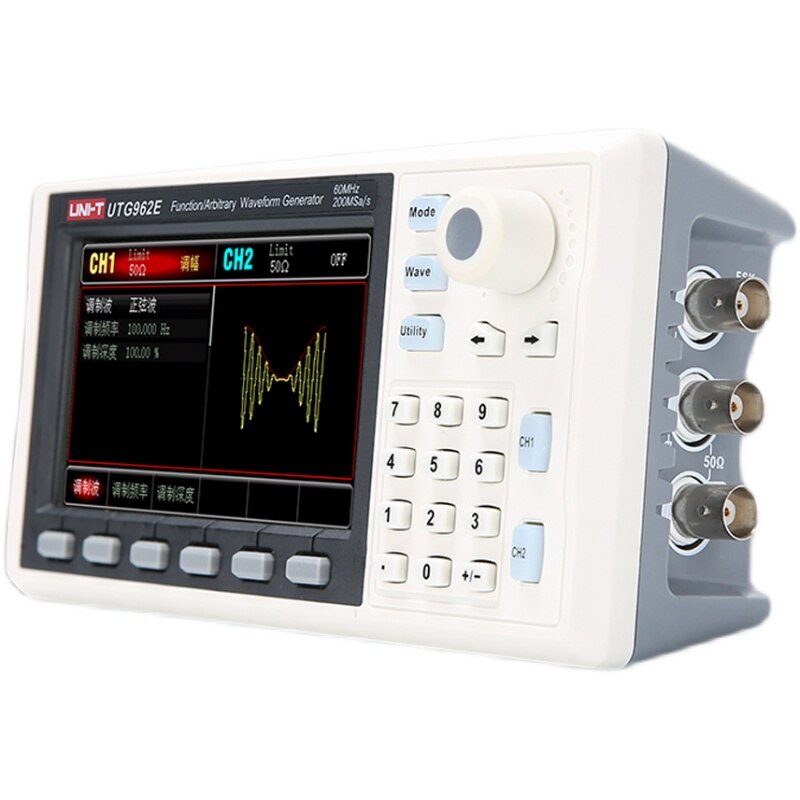

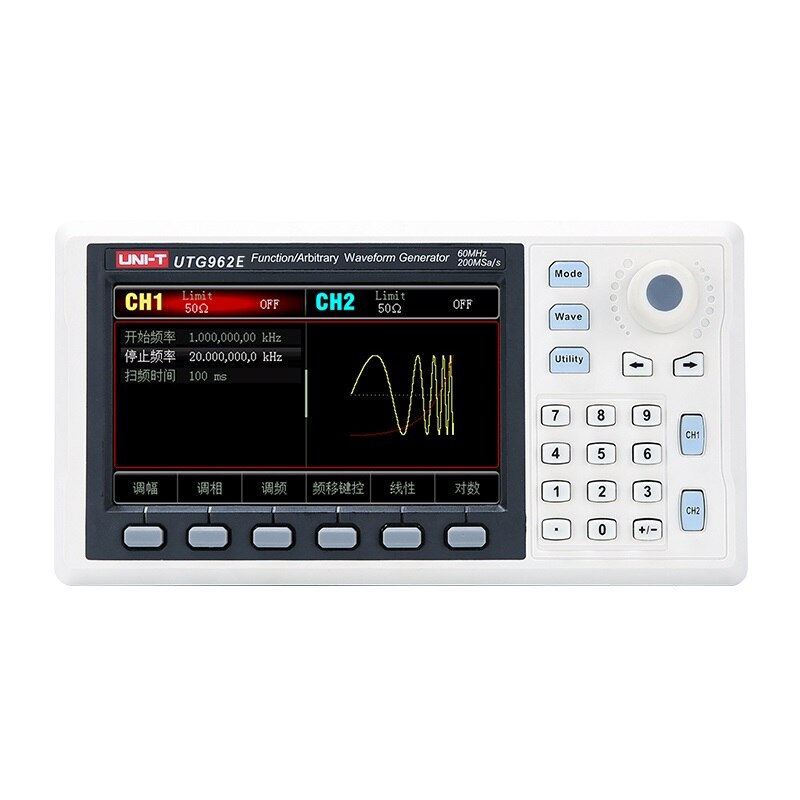

UNI-T UTG932E UTG962E Signal Source Frequency 30MHz 60MHz Function/Arbitrary Waveform Generator 2-Channel Signal Source 200MS/s

$162.80$200.20

SKU: 3256804001493462 Category:

Description

  • Brand Name: UNI-T
  • DIY Supplies: ELECTRICAL
  • Origin: Mainland China
  • Display Type: Digital Only
  • Certification: CE
  • Measuring Range: Refer to SPEC
  • Dimensions: 172* 90* 68mm
  • Operating Temperature: 0~50C
  • Model Number: UTG932E UTG962E
  • Accuracy Class: Refer to SPEC
  • Display Size: 3.0 – 4.9 Inches

UNI-T UTG932E UTG962E Signal Source Frequency 30MHz 60MHz

Function/Arbitrary Waveform Generator 2-Channel Signal Source 200MS/s

1.Output Waveforms: Sine,square, pulse, ramp, noise, DC ,arbitrary
2.Output frequency range:1uHz-30MHz/60MHz
3.High accuracy, broad band 6 bit frequency ,counter,range:100mHz-100MHz
3.4.3 inches TFT LCD
4.Two equivalent-performance channels
5.Multi-language menu ,easy to operation

Specifications

Model

UTG932

UTG962

Channel

2

Max frequency

30MHz

60MHz

Sampling rate

200MS/s

Vertical resolution

14 bits

Waveforms

Sine, square, pulse, ramp, noise, DC, arbitrary

Sweep modes

Logarithmic, linear

Frequency Characteristics

Sine

1μHz~30MHz

1μHz~60MHz

Square

1μHz~15MHz

1μHz~20MHz

Ramp

1μHz~400kHz

1μHz~400kHz

Pulse

1μHz~15MHz

1μHz~20MHz

Arbitrary

1μHz~10MHz

1μHz~10MHz

Resolution

1μHz

Accuracy

Within 90 days ± 50ppm

Within 1 year ± 100ppm

18℃~28℃

Output Characteristics

Impedance

50Ω/High Z

Amplitude range

1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)

DC offset range (AC+DC)

±5V (50Ω); ±10V  (high Z)

Amplitude resolution

1mV

General Characterisitics

Power

100~240VAC, 50Hz/60Hz

Display

4.3”TFT LCD (480×272)

Product color

White and grey

Product net weight

0.33kg

Product size

172mm x 90mm x 68mm

Standard accessories

USB interface cable, power cord, BNC cable with alligator clips

Standard individual packing

Carton box
