UNI-T UT595 Multifunction Loop Testers Earth Ground Line Loop Impedance Tester Insulation Resistance Meter w/ RCD Protection

$834.42

9979 in stock

SKU: 2251832161354451 Category:

Description

  • Brand Name: UNI-T
  • Origin: Mainland China
  • DIY Supplies: ELECTRICAL
  • Certification: CE
  • Display Type: Digital Only
  • Dimensions: 210mm X 175mm X90 mm
  • Testing Voltage: 0~440V
  • Operating Temperature: 0-50C
  • Accuracy Class: Refer to SPEC
  • Model Number: UT595
  • Measuring Range: 0.05Mohm-1000Mohm

UNI-T UT595 Multifunction Loop Testers Earth Ground Line

Loop Impedance Tester Insulation Resistance Meter w/

RCD Protection


Description

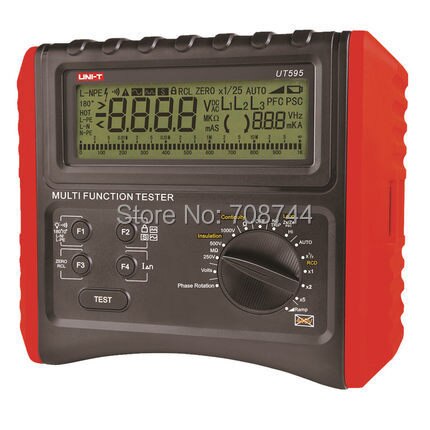

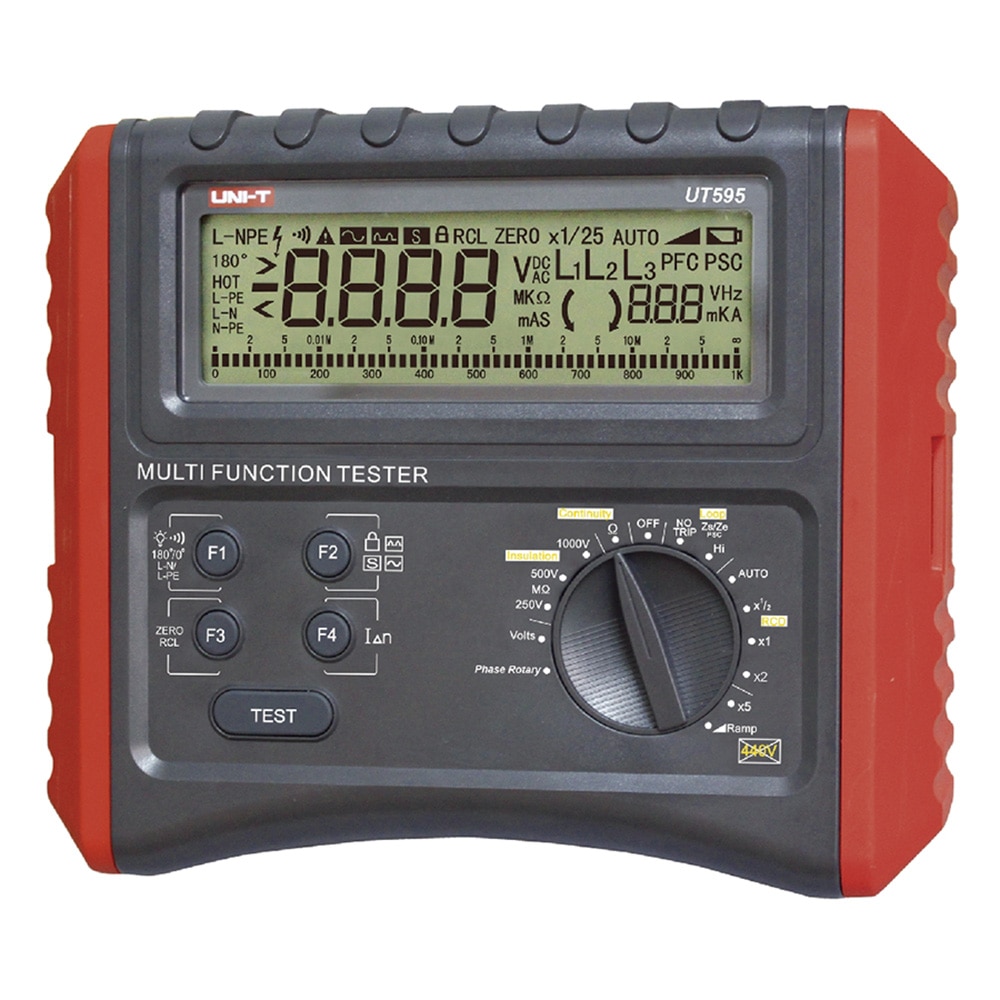

UT595 is a kind of comprehensive digital multifunctional electrical safety test instrument. The overall instrument adopts new design as well as large-scale integrated analogy circuits, digital circuits and microcomputer chip combination. It is mainly used to complete measurement of parameters including (RCD) electric leakage protector, loop circuit/line impedance, grounding continuity test, test insulation resistance, DC voltage, AC voltage and phase sequence judgment; it has more functions, higher accuracy and stable performance as well as it is reliable and convenient for operation. It is applicable to measuring (RCD) electric leakage protector, measuring insulation of various electrical equipment and grounding continuity test. UT593/UT595 is your ideal choice for maintenance, test and inspection on electric protector of various electrical equipment.

Specifications:

Functions

Range

Accuracy

Open circuit output voltage

250V

+-10%

500V

1000V

Short circuit current

2mA

Insulation Resistance Measurement

250V

0.01M ohm

0.05M ohm to 1000M ohm: 5%+5

0.1M ohm

1M ohm

500V

0.01M ohm

0.1M ohm

1M ohm

1000V

0.01M ohm

0.1M ohm

1M ohm

Grounding (Earthing) continuity measurement

Range

0.00 ohm-199 ohm;+-2%+5

0.00-2 ohm, testing current is more than 200mA

Line impedance

Applied voltage

195V-440V,Frequency: 45Hz-65Hz;
Testing current:20A

Range

0.01 ohm-2000 ohm: 5%+5;
PSC: 0KA-26KA.

Loop impedance

Applied voltage

195V-253V,Frequency: 45Hz-65Hz;
Testing current: 20A

Range

0.01 ohm-2000 ohm: 5%+5;
PFC: 0KA-26KA.

Loop impedance without tripping

Applied voltage

195V-253V,Frequency: 45Hz-65Hz;
Testing current: 20A

Range

1.00 ohm-2000 ohm: 5%+5;
PFC: 0KA-26KA.

Testing current

15mA

RCD measurement

Applied voltage

195V-253V,Frequency: 45Hz-65Hz;

Testing current

10mA,30mA,100mA,300mA,500mA

Accuracy of testing current

+-10%

Tripping time

0ms–2000ms, 1/2 delta n

0ms–300ms, I delta n General

0ms–500ms, I delta n Selective

0ms–300ms, 2I delta n Selective

0ms–40ms, 5I delta n

Accuracy of tripping timee

+-5%+5

RAMP Slope RCD measurement

Test current range

10mA,30mA,100mA,300mA,500mA

Accuracy of test current

+-10%

Phase consequence measurement

Display:

As per the sequency: L1→ L2→ L3 foreward; L1→ L3→ L2 reserved.

Applied voltage

100V-440V,frequency: 45Hz-65Hz.

Voltage measurement

Range and frequency

Resolution: 1V

0V–440V/45Hz-60Hz

Accuracy

+-5%+2

Special functions

AUTO half-wave test

RCD Coundown test

30 seconds

RCD half-wave test

RCD 0°& 180°measurement

Data storage

Back light

Power off automatically

Low voltage display

General

Power supply

1.5V battery x 8(not included)

LCD size

125mm x37mm

Color

red and grey

Weight

4kg

Meter size

210mm x 175mm x 90 mm

Accessories

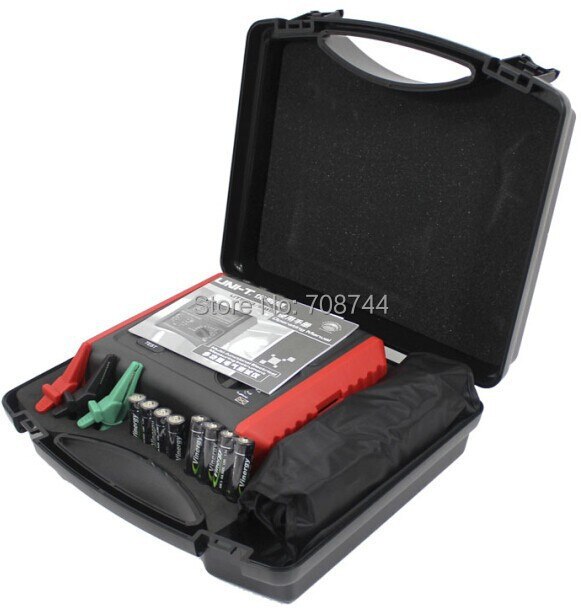

Test leads(red,green, black), electrical lead,far-end test control lead, case.
