Description
- Brand Name: UNI-T
- DIY Supplies: ELECTRICAL
- Certification: CE
- Origin: CN(Origin)
- Model Number: UT116C
- Measuring Resistance Range: 60MΩ
- Display Type: Digital Display
- Measuring Capacitance Range: 100mF
- Dimensions: 204mm x 33mm x 25mm
- Display count: 6000
- Diode test: 3.2V
- Continuity Test: <50Ω

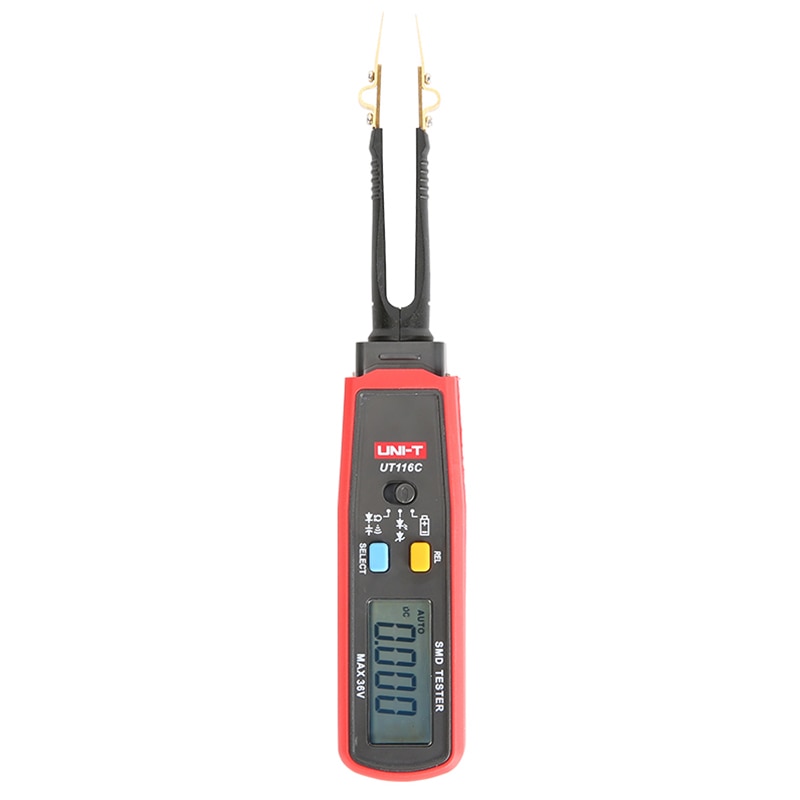

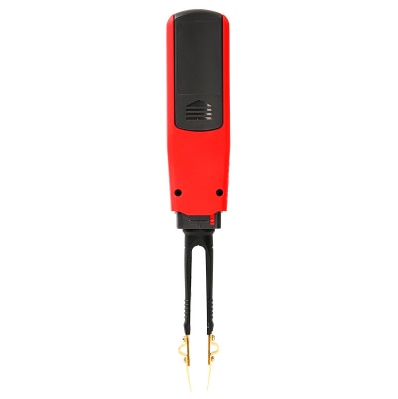

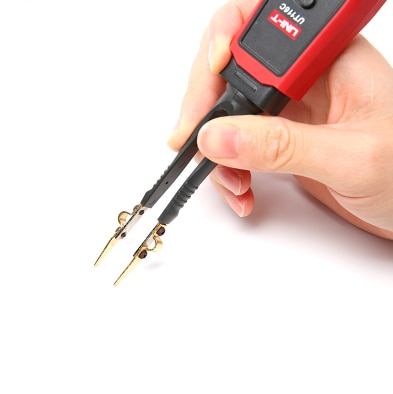

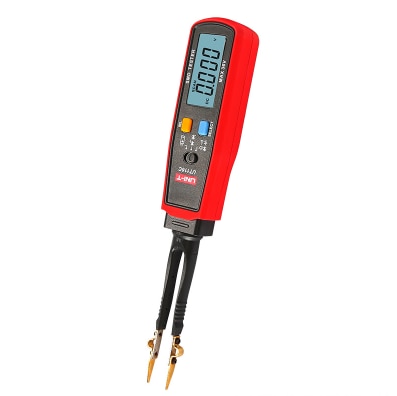

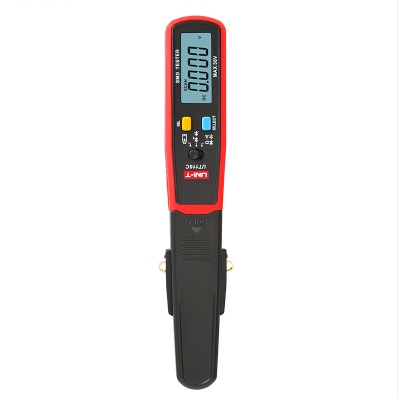

UT116C SMD Tester
● 36V DC voltage measurement
● Battery measurement (10mA)
● Resistance, capacitance ( up to 100mF), continuity, diode measurement
● The pen can be rotated by 180°, which is convenient for reading and diode/LED
● Zener diode polarity test
| Specifications | |
| Model | UT116C |
| Display count | 6000 |
| Resistance | 60MΩ |
| Capacitance | 100mF |
| Diode test | 3.2V |
| LED/stabilivolt | About 21V/1mA |
| Continuity Test | ＜50Ω |
| Battery test | Load current ≈ 10mA |
| Auto range | √ |
| Auto power off | √ |
| General Characteristics | |
| Power | 1.5V battery (R03) x 2 |
| Display | 39mm x 20mm |
| Product color | Red and grey |
| Product net weight | About 80g |
| Product size | 204mm x 33mm x 25mm |
| Standard accessories |
No Battery |
| Standard individual packing | Gift box, English manual |
| Standard quantity per carton | 60pcs |
| Standard carton measurement | 440mm x 420mm x 210mm |
| Standard carton gross weight |
About 7.1kg |
