Description
- Brand Name: UNI-T
- Certification: CE
- DIY Supplies: ELECTRICAL
- Origin: CN(Origin)
- Measuring Capacitance Range: UT116A: 30MF UT116C: 99.99MF
- Model Number: UT116A/UT116C
- Measuring Voltage Range: DC 36V
- Operating Temperature: -40-1000℃
- Measuring Resistance Range: UT116A: 30MΩ UT116C: 60MΩ
- Display Type: Digital Only
- Auto scan identification: Only UT116A
- Auto range: YES
- Auto power off: YES
- LED/stabilivolt: About 21V/1mA

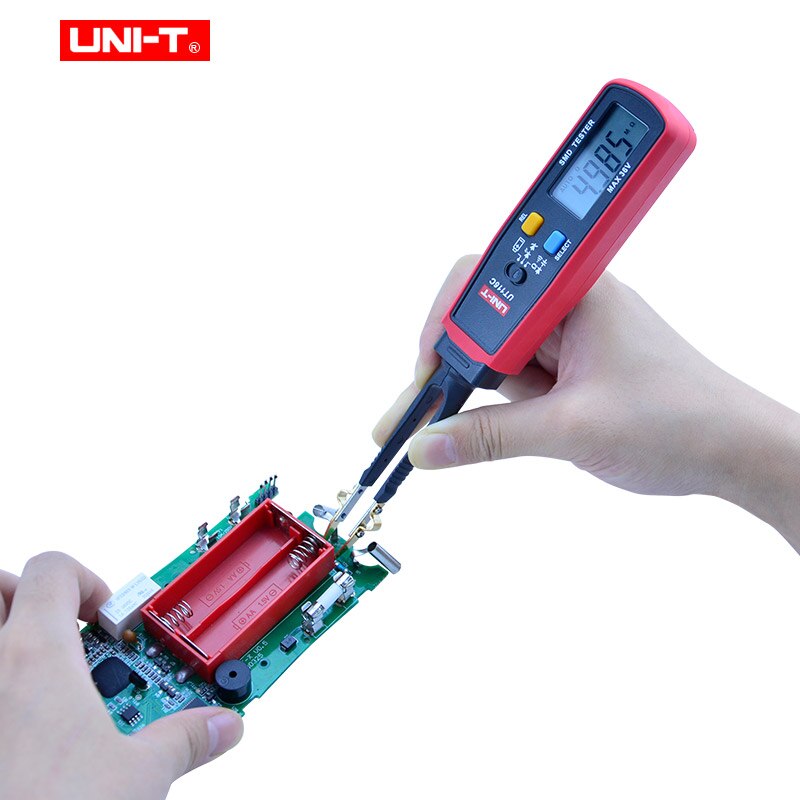

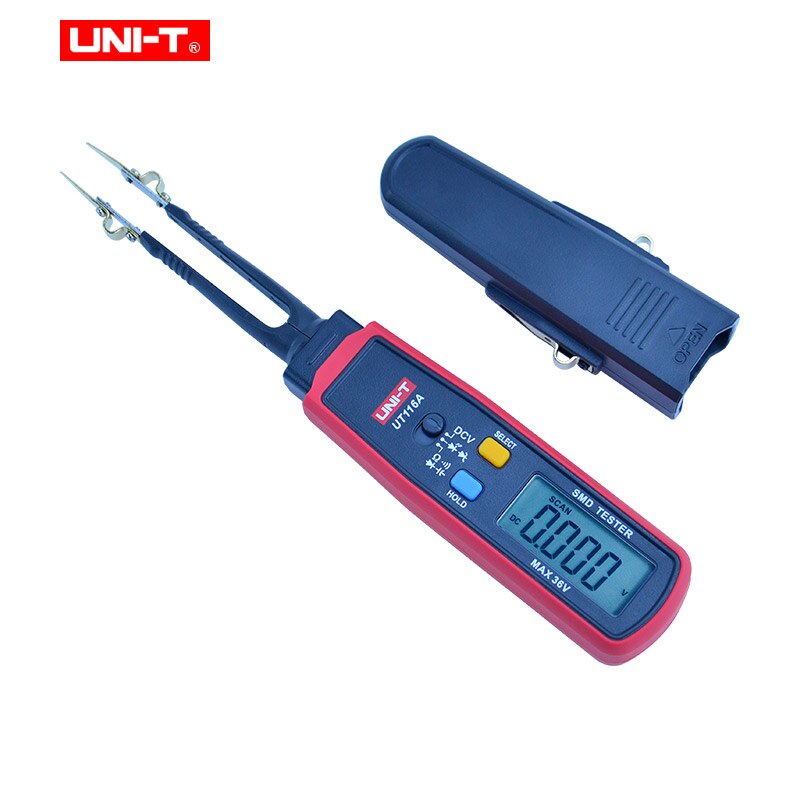

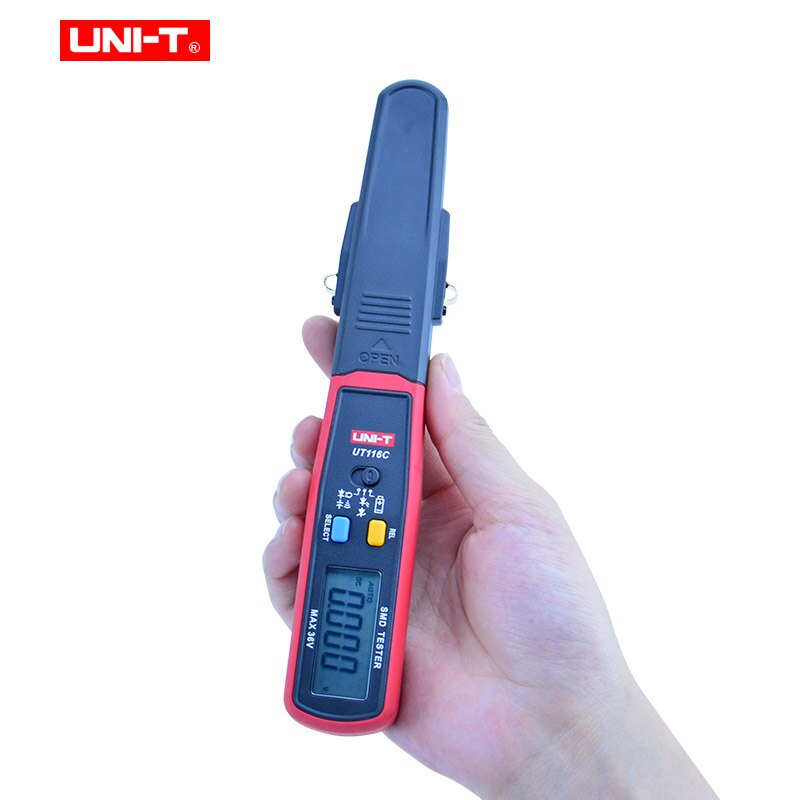

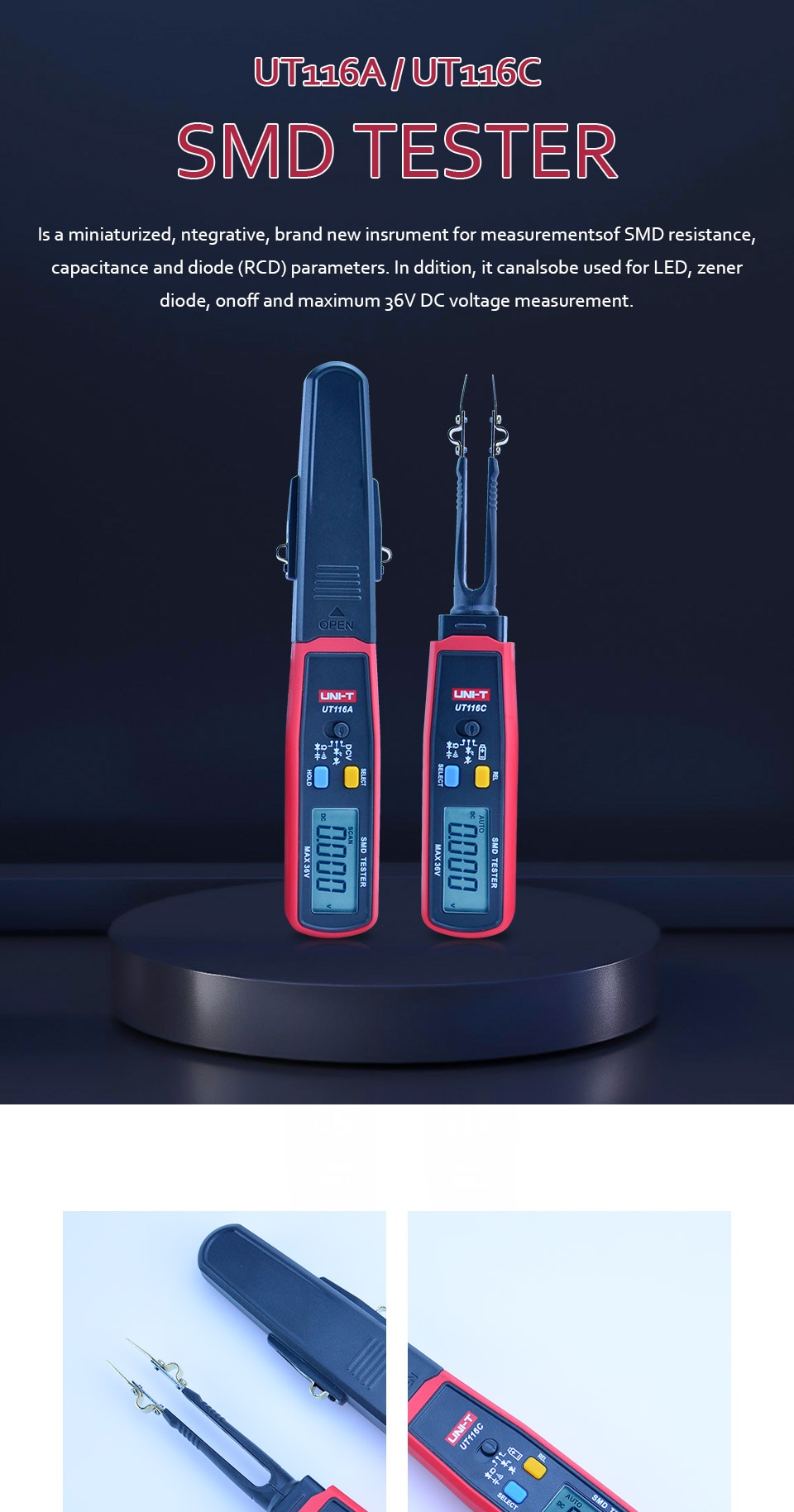

UNI-T UT116A UT116C SMD Tester Multimeter Auto Range Resistance Capacitance Diode(RCD) LED Zener DCV Continuity Battery Tester
Instruction:

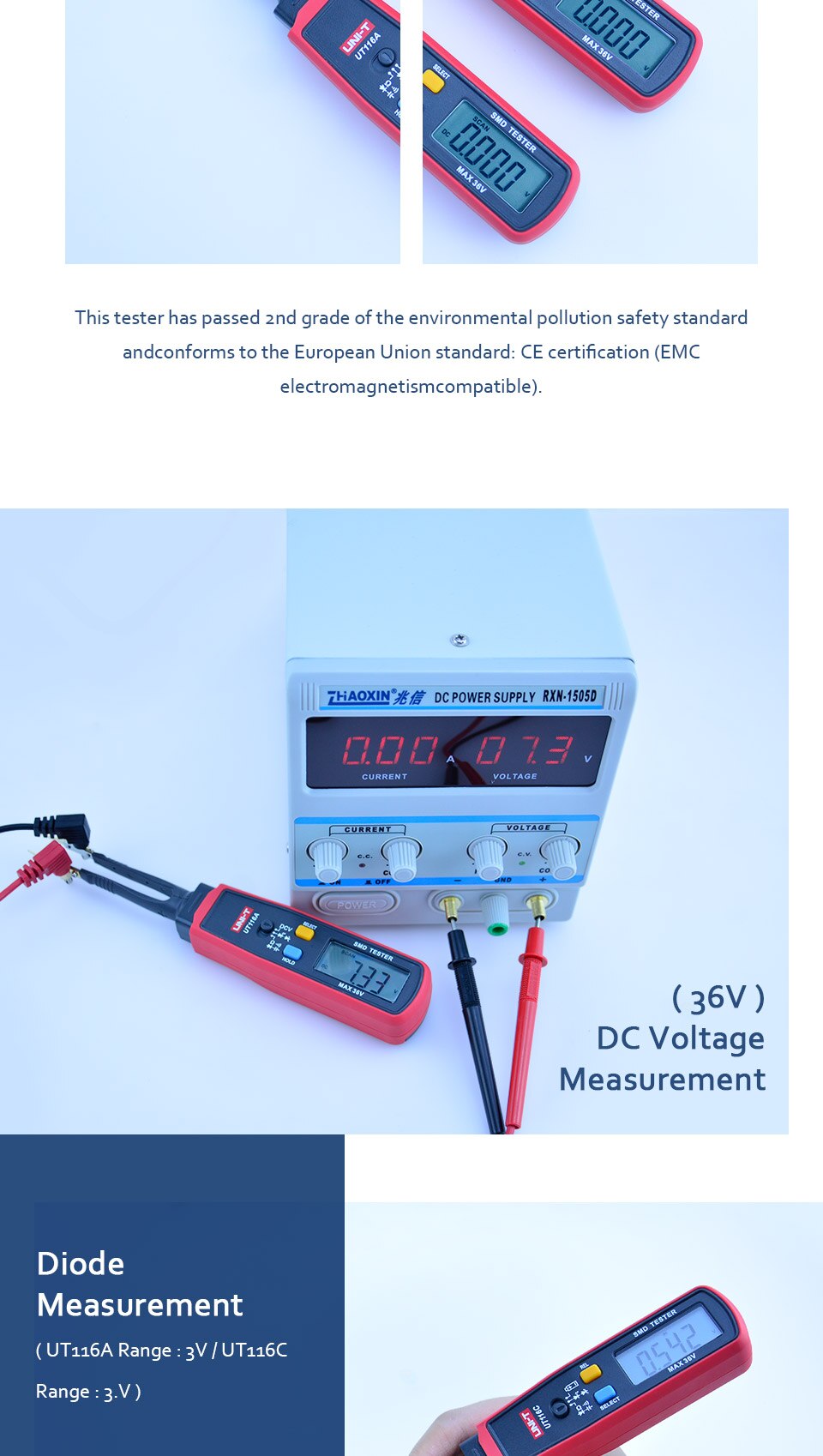

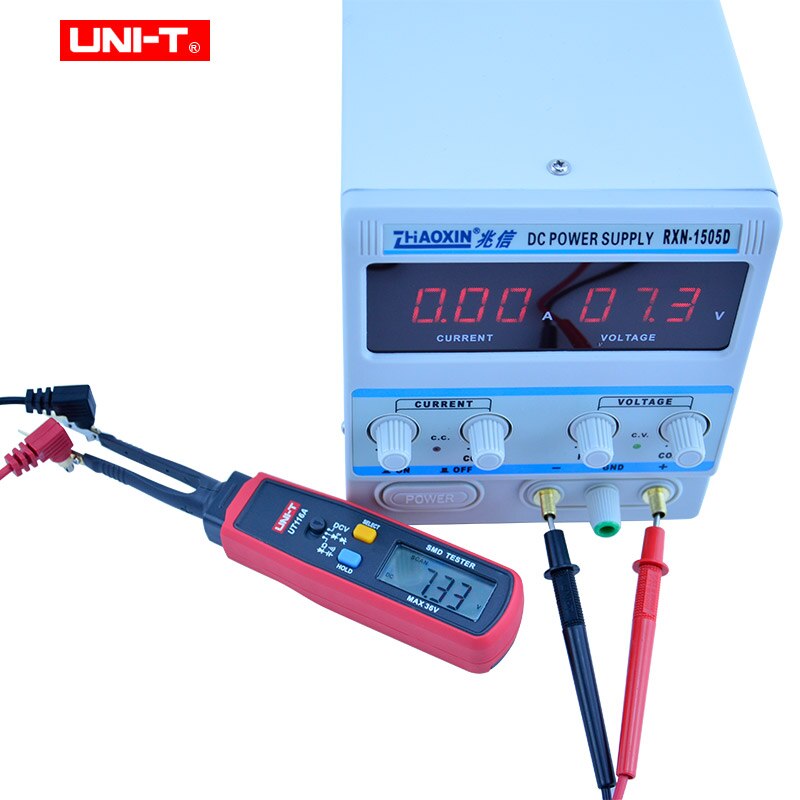

1.36V DC voltage measurement

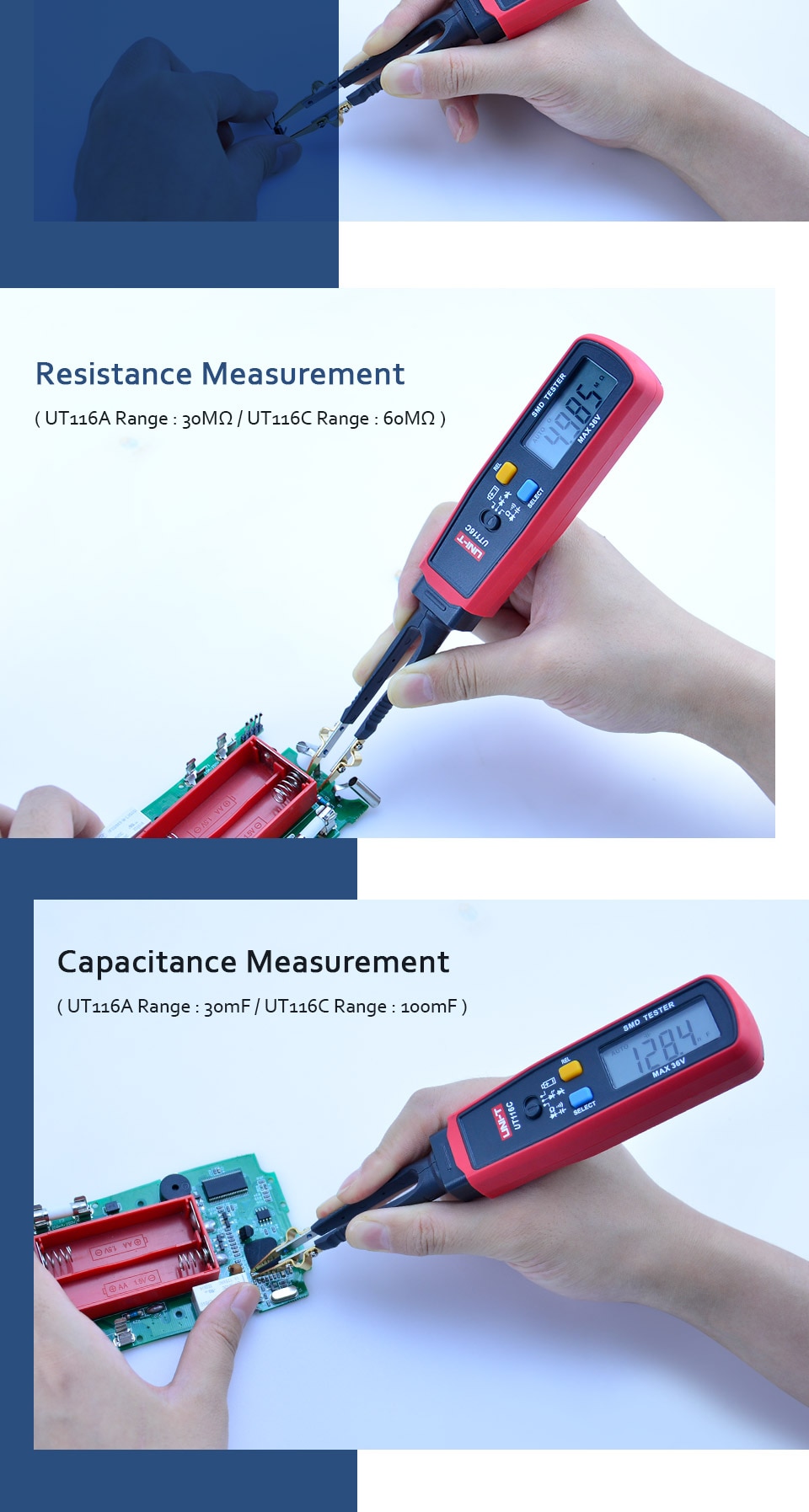

2.Resistance, capacitance, continuity, diode measurement

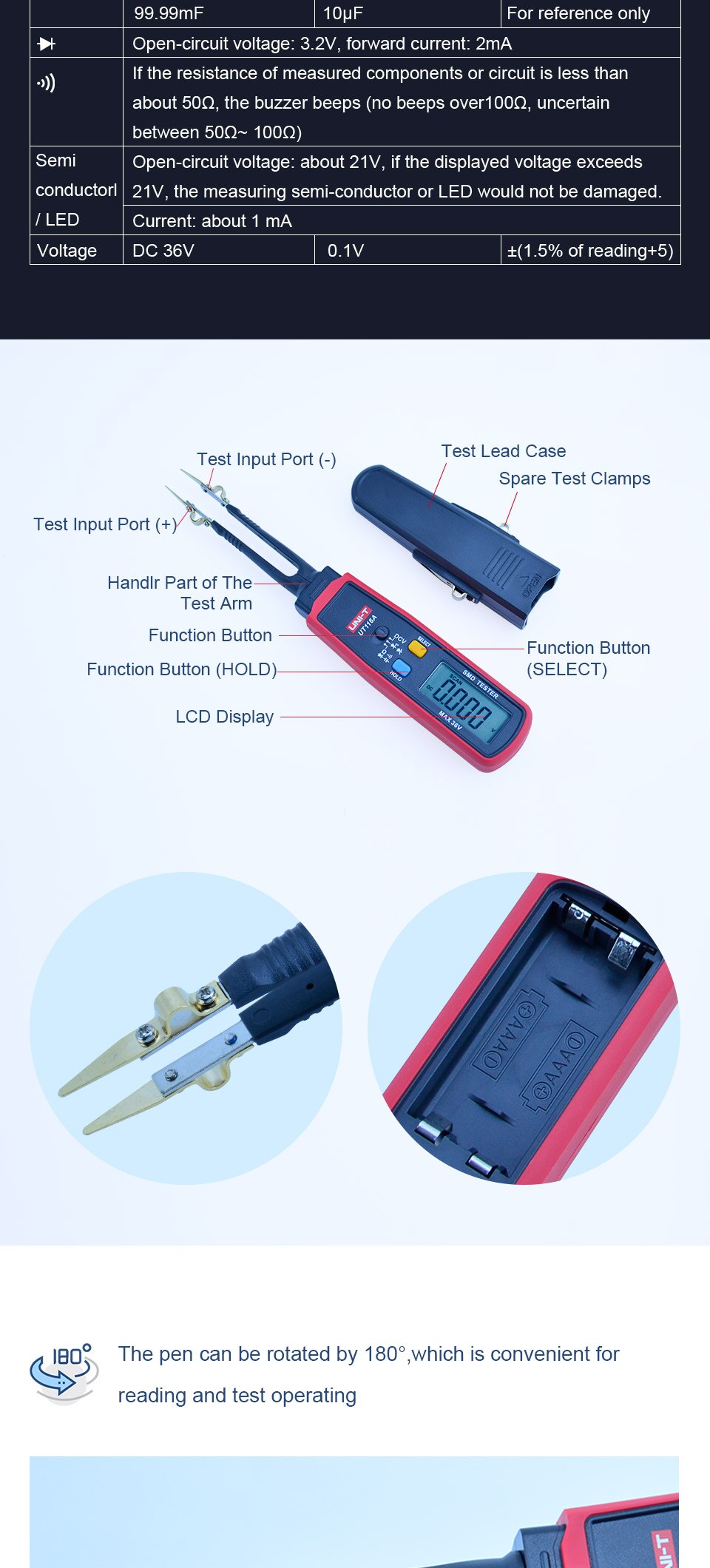

3.The pen can be rotated by 180°, which is convenient for reading and diode/LED
4.Zener diode polarity test

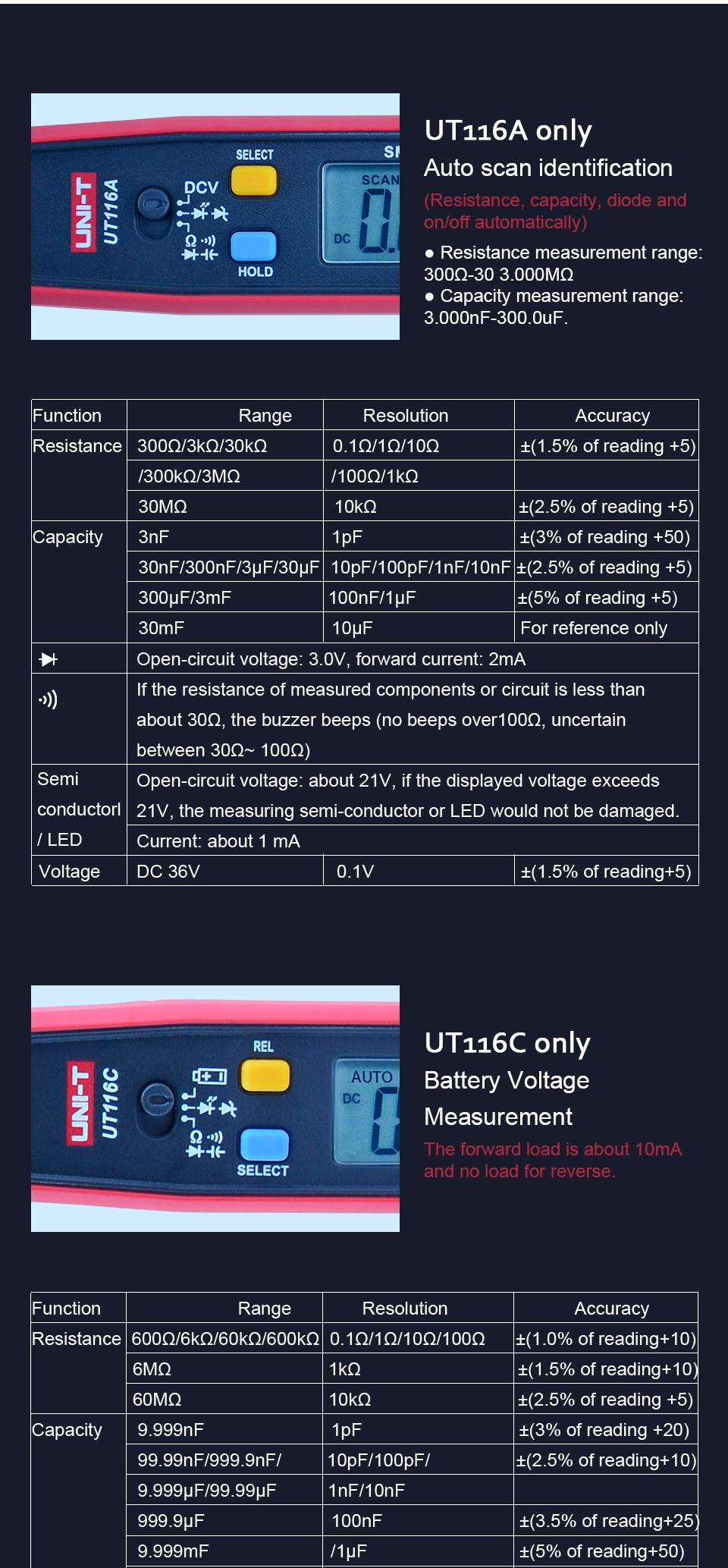

Specifications:
|
Specifications |
||
|
Model |
UT116A |
UT116C |
|
Display count |
3000 |
6000 |
|
Resistance |
30MΩ |
60MΩ |
|
Capacitance |
30mF |
100mF |
|
Diode test |
3V |
3.2V |
|

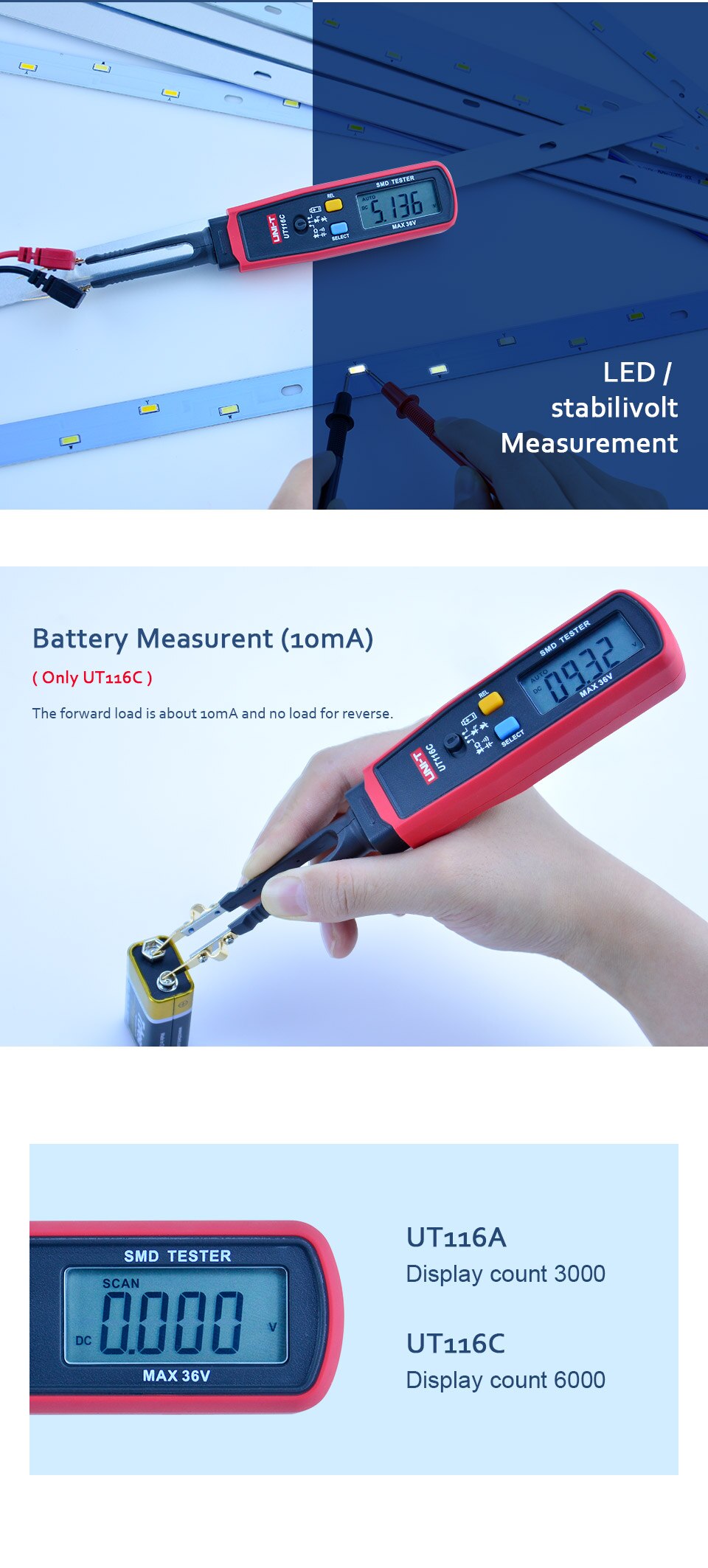

LED/stabilivolt |
About 21V/1mA |
About 21V/1mA |
|
Continuity Test |
＜30Ω |
＜50Ω |
|
DCV |
36V |
36V |
|
Battery test |
Load current ≈ 10mA |
|
|
Auto range |
√ |
√ |
|
Auto scan identification |
√ |
|
|
Auto power off |
√ |
√ |
|
General Characteristics |
||
|
Power |
1.5V battery (R03) x 2 |
|
|
Display |
39mm x 20mm |
|
|
Product color |
Red and grey |
|
|
Product net weight |
About 80g |
|
|
Product size |
204mm x 33mm x 25mm |
|
|

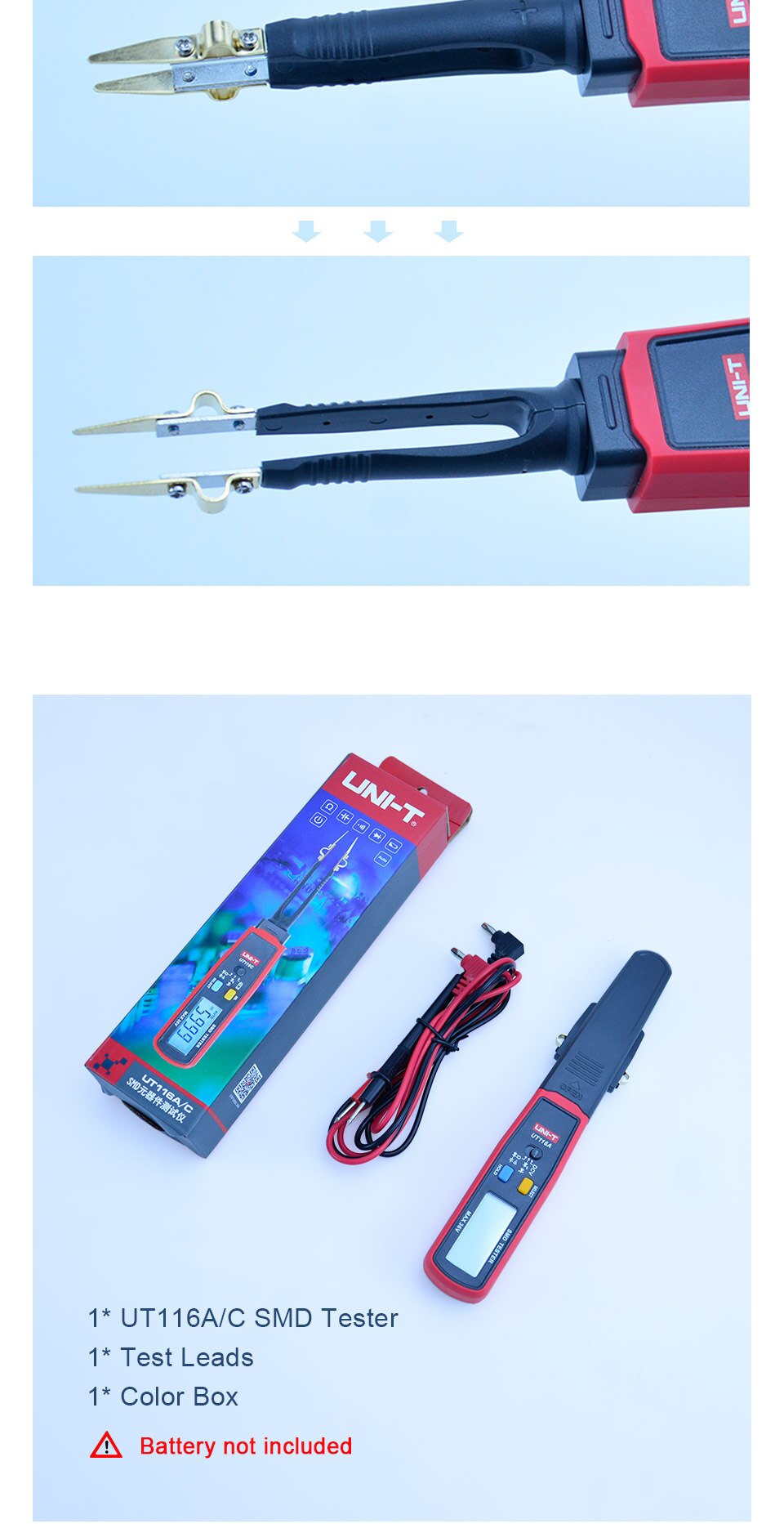

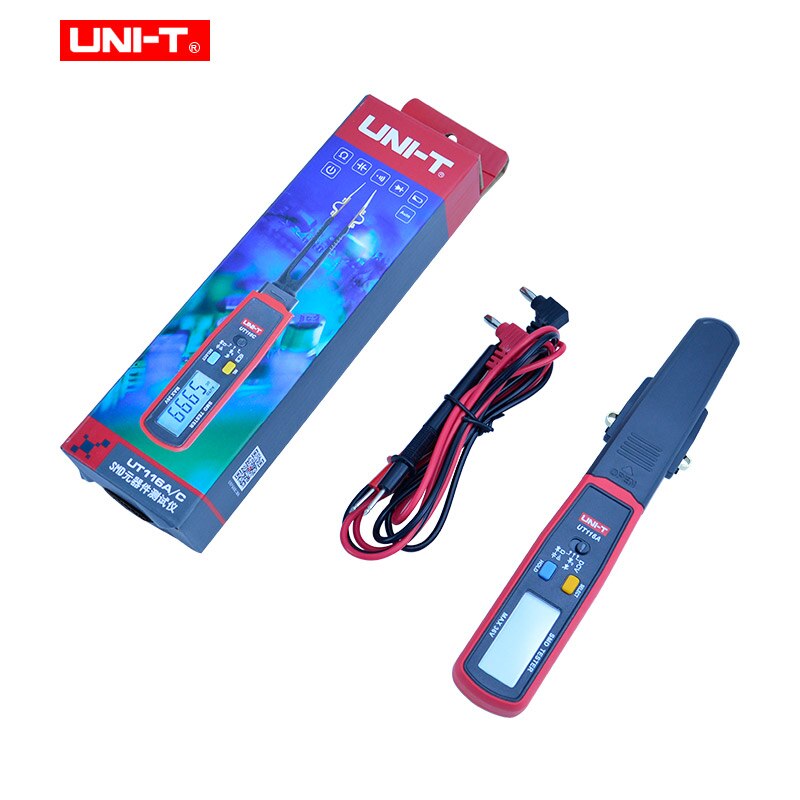

Standard accessories |
Battery |
|
|
Standard individual packing |
Gift box, English manual |
|
|
Standard quantity per carton |
60pcs |
|
|
Standard carton measurement |
440mm x 420mm x 210mm |
|
|
Standard carton gross weight |
About 7.1kg |
|
