Description
- Brand Name: UNI-T
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Display Type: Digital Only
- Power Supply: AC
- Certification: CE
- Model Number: UDP1306C
- Dimensions: 136*194* 327mm
- Operating Temperature: Refer to SPEC
- Accuracy Class: Refer to SPEC
- Output voltage: 0~32V
- Output current: 0~6A
Feature
● 4-digit high precision display ● OVP OCP OTP protection
● Output setting viewable
● Remote control (output ON/OFF)
● Shutdown memory/keypad lock
● Intelligent cooling fan
● USB charging interface
● RS232 program-controlled communication
● USB device communication
● 5 sets of data storage
|
Specifications |
||
|
Model |
UDP1306C |
|
|
Output voltage (CH1/CH2) |
0~32V |
|
|
Output current (CH1/CH2) |
0~6A |
|
|
Output power |
192W |
|
|
Display mode |
3-window, 4-digit voltage and current high precision display |
|
|
Resolution |
Voltage |
10mV |
|
Current |
1mA |
|
|
Load regulation |
Voltage |
<0.01%+5mV |
|
Current |
<0.1%+10mA |
|
|
Power regulation |
Voltage |
<0.01%+3mV |
|
Current |
<0.1%+3mA |
|
|
Setting accuracy(25℃±5℃) |
Voltage |
<0.5%+20mV |
|
Current |
<0.5%+10mA |
|
|
Ripple and noise(20Hz~20MHz) |
Voltage |
≤2mVrms |
|
Current |
≤3mArms |
|
|
Temperature coefficient |
Current/Voltage: ≤300ppm/℃ |
|
|
Voltage rising/falling time delay |
≤100ms (10% rated load) |
|
|

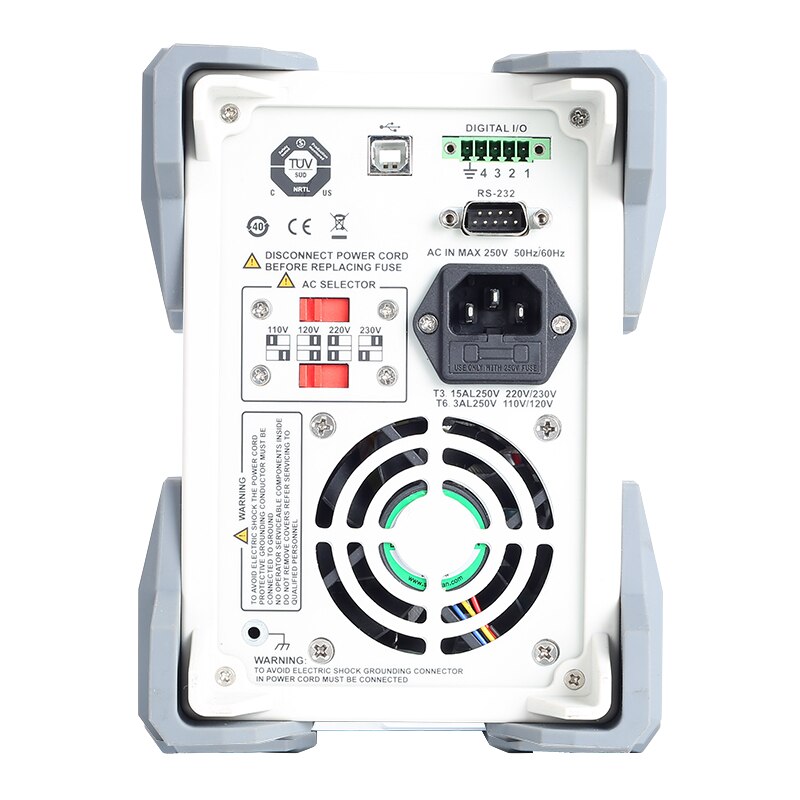

Interfaces |
USB Host (5V/2A), USB Device, RS-232 |
|
|
General Characteristics |
||
|
Power |
AC 100V/120V/220V/230V±10%, 50Hz/60Hz |
|
|
Product net weight |
7.5kg |
|
|
Product size |
136mm x 194mm x 327mm |
|
|

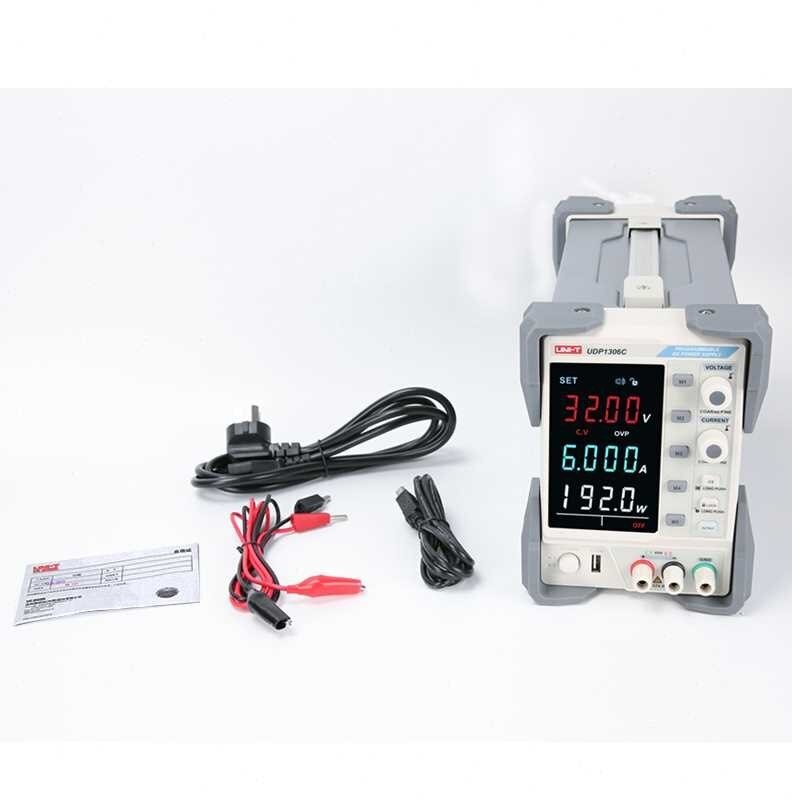

Standard accessories |
USB communication cable, output cables, Power cord |
|
|
Standard individual packing |
Carton box |
|
|
Standard quantity per carton |
1pcs |
|
|
Standard carton measurement |
505mm x 270mm x 335mm |
|
|
Standard carton gross weight |
9.6kg |
|
