Description
- Brand Name: UNI-T
- DIY Supplies: ELECTRICAL
- Certification: CE
- Origin: CN(Origin)
- Model Number: UT89X / UT89XD
- AC Current: 60mA/600mA//20A
- AC Voltage: 6V/60V/600V/1000V
- Measuring Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
- Display Type: Digital Display
- DC Current: 600uA/6mA/60mA/600mA//20A
- DC Voltage: 600mV/6V/60V/600V/1000V
- Measuring Capacitance Range: 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF/100mF
- Dimensions: 189mm * 89mm * 53mm
- Frequency: 9.999Hz/9.999MHz
- Duty cycle: 0.1%~99.9%
- Temperature: -40℃~1000℃
- True RMS: YES
- Data hold: YES
- Diode/Continuity test: YES
- Transistor hFE: YES
- Dual range NCV test: YES

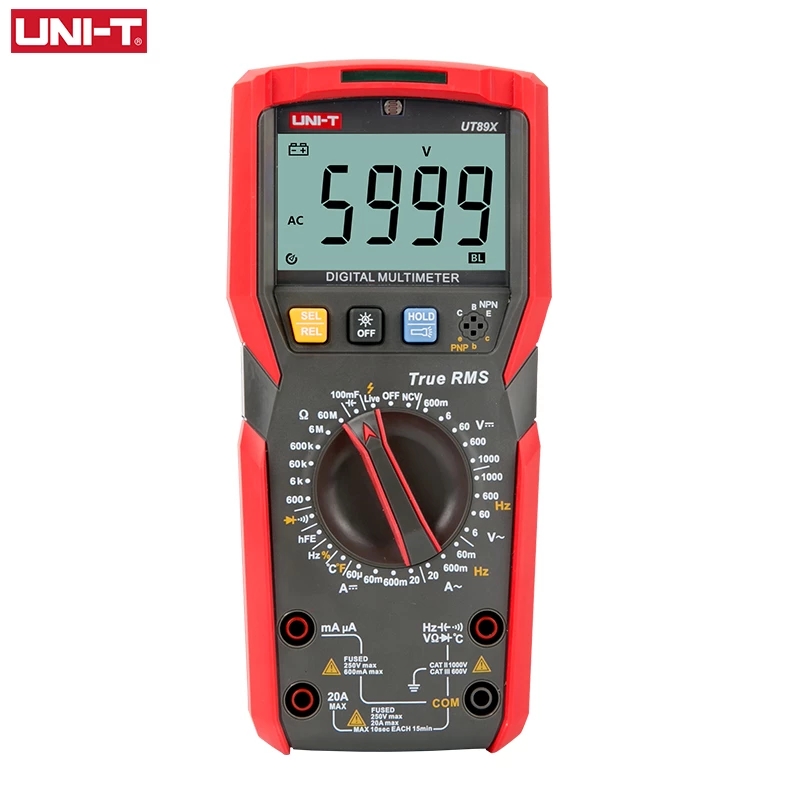

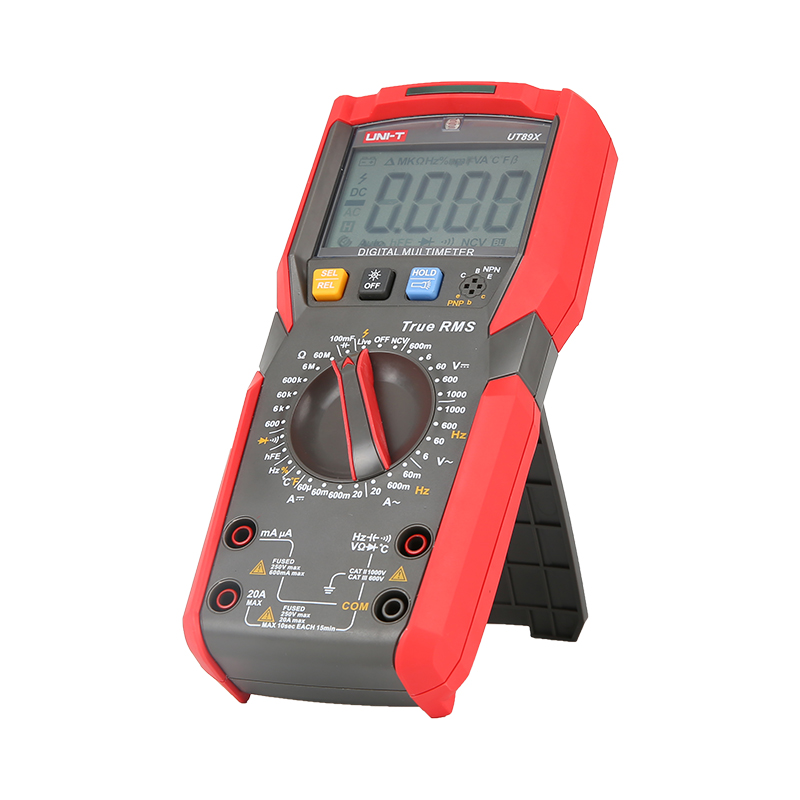

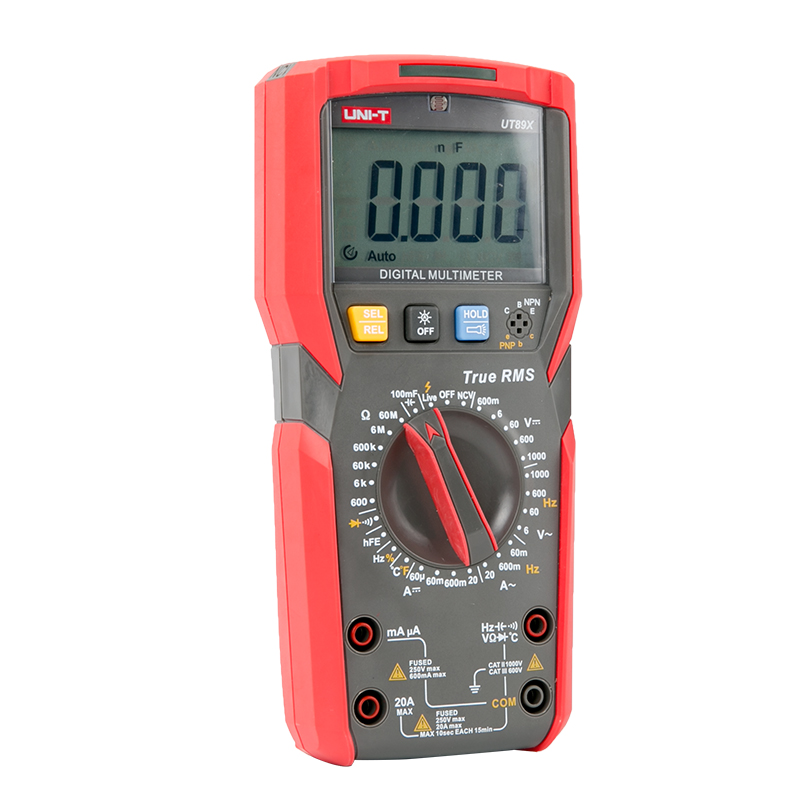

UT89X/UT89XD is a reliable hand-held 3 5/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity and NCV, quickly distinguishing between neutral and live wires accurately. UT89X can measure temperature and detect neutral and live wires with a test lead. UT89XD can perform LED test. Equipped with audible and visible alarm, flashlight and auto backlight functions, this series can be used in dark environment. It attracts users with its bi-color durable case, modern exterior and multiple functions.
|
Specifications |
Range |
UT89X |
UT89XD |
|
DC voltage (V) |
600mV/6V/60V/600V/1000V |
±(0.5%+2) |
±(0.5%+2) |
|
AC voltage (V) |
6V/60V/600V/1000V |
±(0.8%+5) |
±(0.8%+5) |
|
DC current (A) |
60μA/60mA/600mA/20A |
±(0.8%+8) |
|
|
60μA/6mA/60mA/600mA/20A |
±(0.8%+8) |
||
|
AC current (A) |
60mA/600mA/20A |
±(1%+12) |
±(1%+12) |
|
Resistance (Ω) |
600Ω/6kΩ/60kΩ/ |
±(0.8%+3) |
±(0.8%+3) |
|
Capacitance (F) |
6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF/100mF |
±(2.5%+20) |
±(2.5%+20) |
|
Frequency (Hz) |
9.999Hz/9.999MHz |
±(0.1%+4) |
±(0.1%+4) |
|
Duty cycle |
0.1%~99.9% |
±(2%+5) |
±(2%+5) |
|
Temperature (℃) |
-40℃~1000℃ |
±(2%+4) |
|
|
Temperature (℉) |
-40℉~1832℉ |
±(2%+8) |
|
|
Features |
|||
|
Display count |
6000 |
6000 |
|
|
Sampling rate |
3 times/s |
3 times/s |
|
|
True RMS |
√ |
√ |
|
|
AC voltage frequency response |
45~1000Hz |
45~1000Hz |
|
|
AC current frequency response |
45~1000Hz |
45~1000Hz |
|
|
Live wire test |
√ |
||
|
LED test |
√ |
||
|
Audible/visual alarm |
V/A/Cap/Diode/hFE/NCV/Live (UT89X)/LED (UT89XD) |
||
|
Diode/Continuity test |
√ |
√ |
|
|
Transistor hFE |
√ |
√ |
|
|
Dual range NCV test |
√ |
√ |
|
|
Auto power off |
√ |
√ |
|
|
Low battery indication |
√ |
√ |
|
|
Data hold |
√ |
√ |
|
|
Function selection |
SELECT |
√ |
√ |
|

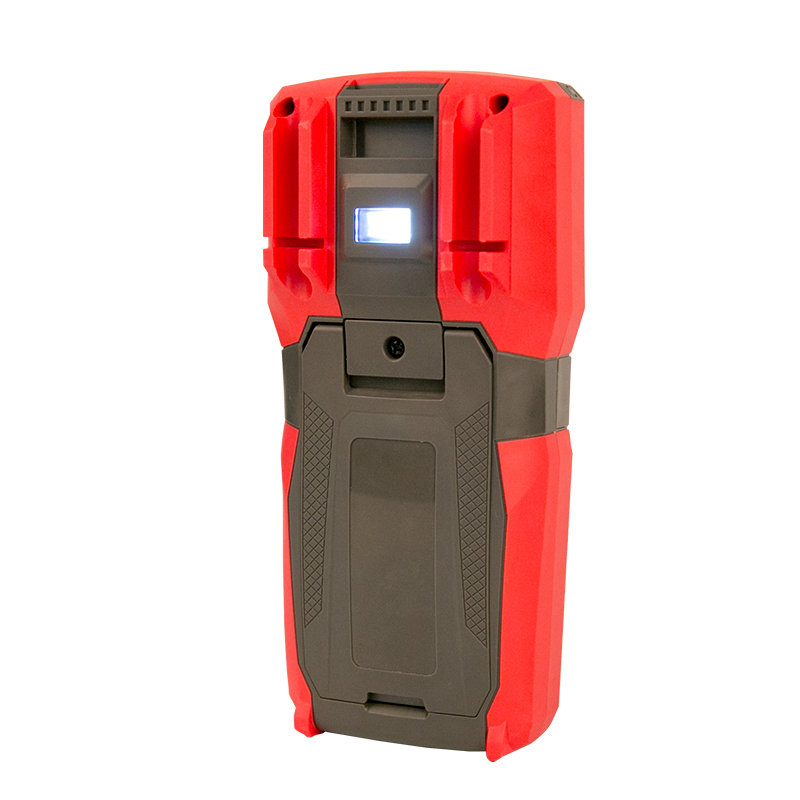

Flashlight |
√ |
√ |
|
|
Auto backlight |
√ |
√ |
|
