Ultraviolet Laser Galvanometer 355 nm High Speed Laser Scanning Galvanometer Digital Galvanometer High Speed Galvan

$527.99

100000 in stock

SKU: 32993177569 Category:

Description

  • Origin: Mainland China
  • Item Type: BALL

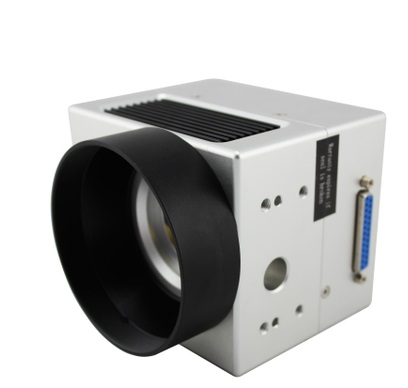

High-quality Ultraviolet Laser Galvanometer high-speed digital galvanometer is mainly suitable for high-speed and on-line flight marking. The standard incident spot diameter is 10 mm. The galvanometer system has the characteristics of zero drift, fast speed, small size, low temperature and stable and reliable operation. Its comprehensive performance index has reached the leading level and obtained many patents.
15V switching power supply and wiring.
Scanning motor parameters
Working temperature: 0 – 45 C
Linearity: 99.9%
Small step response time: <0.5ms
Proportional drift: <40PPM/C
Zero drift: <15 u Rad. / C
Long time drift (8 hours continuous work): <0.5 mm Rad.
Average working current: 2.0 A
Peak current: 15A (Max)
Scanning angle: +15 degrees
Storage temperature: – 10 to + 60 Temperature
Resolution: 12 URad.
Repetition accuracy: 8 u Rad.
Input aperture: 10.0mm
Beam displacement: 13.4mm
Weight: 120g
Frequency: <700Hz
Servo Drive Board Parameters
Input voltage: +15VDC
Signal Interface: Digital (XY2-100)
Input Resistance of Position Signal: 1K+1%
Input Proportional Coefficient of Position Signal: 0.33V/Degree
Output Proportional Coefficient of Position Signal: 0.33V/Degree
Working temperature: 0 – 45 C
Drive plate size (length * width * height): 75 * 50 * 28 mm
