Description
- Brand Name: NoEnName_Null
- is_customized: None
- Model Number: UVC-254/UVC-254A

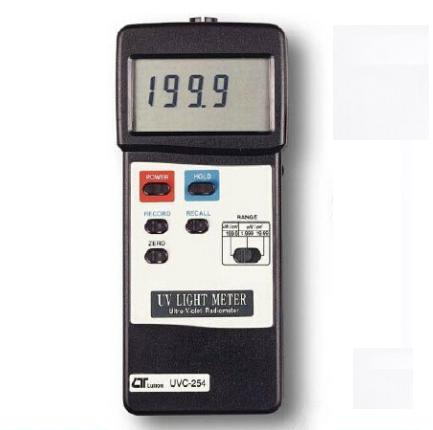

Ultraviolet Intensity Meter UVC-254 UVC-254A UVC UV Radiometer
Characteristic
* 254nm wavelength UV measurement, probe spectral response range: 254nm + 6nm (ie 248nm~260nm)
* professional, high quality UV table
* microcomputer circuit ensures high precision and provides special functions
* special UV probe with correction filter
* super LCD display, adjustable contrast
* rugged housing
* maximum / minimum record
* data retention
Automatic shutdown
* RS232 computer serial interface (software separately)
Key zero
Measuring range:
|
Range |
Resolution |
Accuracy |
|
199.9 W/cm2 |
0.1 W/cm2 |
(2%FS+2) FS: full scale |
|
1.999mW/cm2 |
0.001mW/cm2 |
|
|
19.99mW/cm2 |
0.01mW/cm2 |
General specification:
|
Circuit |
Single large microprocessor integrated circuit |
|
Monitor |
LCD, word high 13mm |
|
Sensor spectral response |
Central wavelength 254MM |
|
measuring range |
199.9 W/cm2*0.1 W/cm2 1.999mW/cm2*0.001mW/cm2 19.99mW/cm2*0.01mW/cm2 |
|
linear |
+ 1% |
|
A sensor |
UV filters and sensors |
|
Memory record |
Record max / min |
|
Zeroing adjustment |
Zero adjustment |
|
Sampling time |
About 0.4 seconds |
|
Automatic shutdown |
Do not use any buttons, ten minutes after the automatic shutdown |
|
Data output |
RS-232 computer data output |
|
Overload indication |
“-“” |
|
Operating temperature and humidity |
The temperature is 0 ~50 and the humidity should be less than 80% |
|
Power Supply |
006P9 volt battery one, it is recommended to use high-capacity batteries |
|
Consumption current |
About DC 5.3mA |
|
weight |
355 grams of /0.77 pounds (including battery) |
|
Appearance size |
Host: 180*72*32mm, inductor diameter 38mm* high 25mm |
|

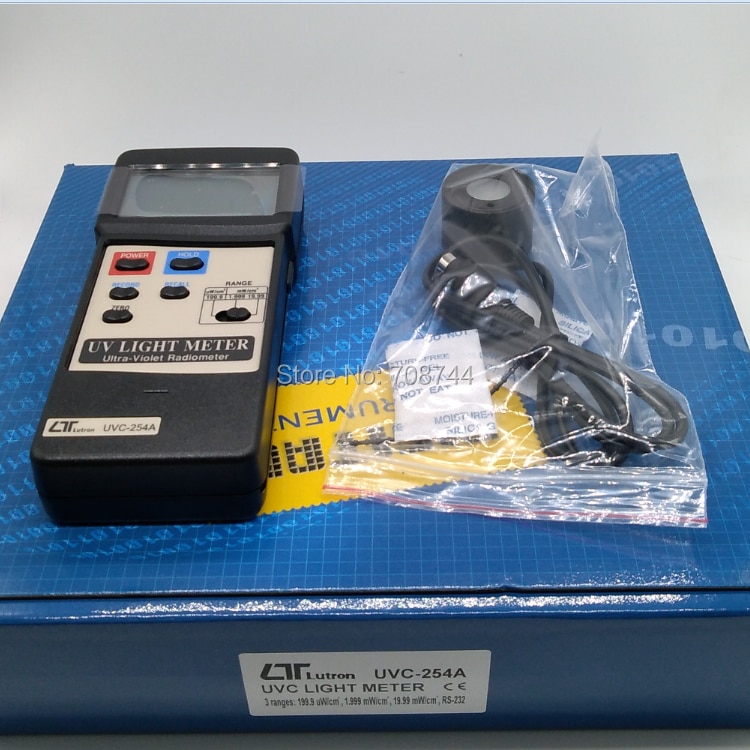

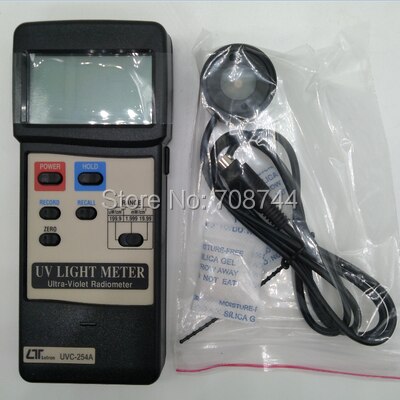

Standard accessories |
Specification…………………… The 1 Inductor…………………… 1 Carrying box…………………… 1 |
